1/10 Capra 1.9 Unlimited 4WD Trail Buggy Brushed RTR, Green
Overview:
The ready-to-run Axial® Capra™ 1.9 Unlimited Trail Buggy is a “new from the ground up” design that any RC enthusiast eager for cutting-edge crawling will appreciate. Its Currie F9 Portal Axles provide extra ground clearance at the diff pumpkin for the best crawling performance.
With the included Spektrum™ STX3 3-channel transmitter and DIG transmission, you can also switch on the fly between 4WD and FWD — locking the rear axle whenever you need the tighter turning radius of front drive power. The Capra features a realistic tube chassis design and metal gears everywhere, from the center transmission to the lockers and portal axles. It rides on real-world inspired Nitto Trail Grappler 1.9 tires mounted to licensed Raceline 3-piece molded beadlock wheels.
For pioneering performance in an RC trail buggy with factory-assembled ease, choose the Capra 1.9 Unlimited RTR. Then just add batteries and get crawling!
Features:

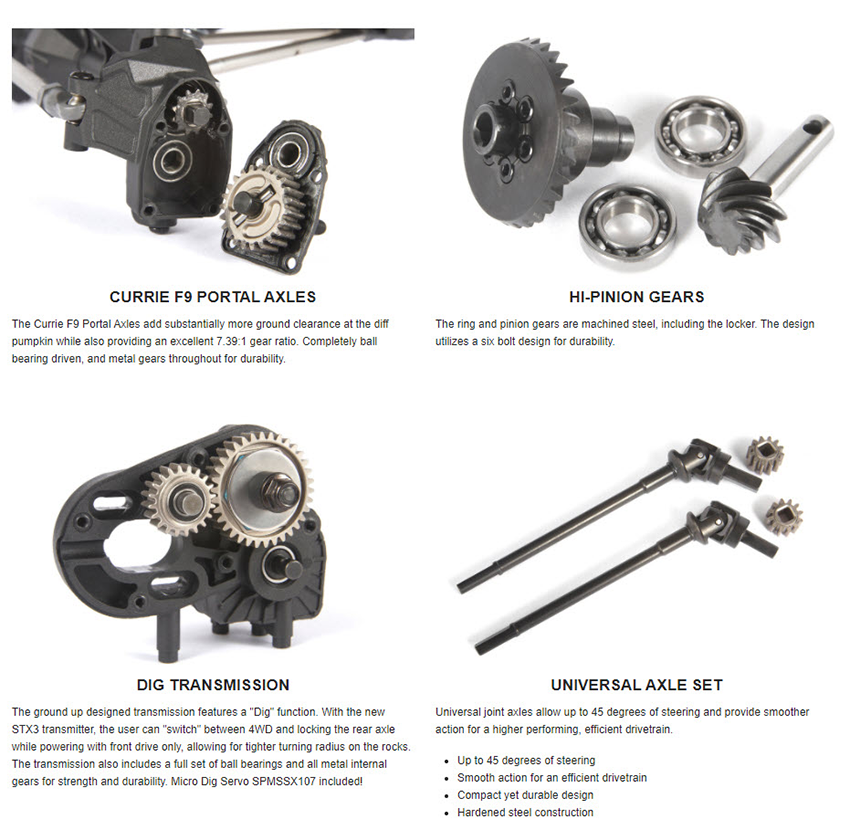

- Transmission with DIG function enables a tighter turning radius by locking the rear axle for FWD power only. Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance.
- Includes all-metal gears, from the center transmission to the lockers and portal axles.
- Tube chassis design offers optimum clearance plus realistic scale looks.
- All pivot points are on stainless steel balls for a durable, long-lasting suspension point.
- Includes Nitto Trail Grapplers 1.9 Monster tires mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels.
- Adjustable oil-filled shocks feature hard anodized, threaded shock bodies and a single coilover spring.
- All-metal front universal axles provide smooth action and 45 degrees of steering angle for an efficient, high-performance drivetrain.
- Durable, machined aluminum universal.
- 540-size, 35T brushed motor with enlarged cooling ports delivers an even balance of speed and technical crawling.
- Spektrum™ STX3 3-channel, 2.4GHz radio system and receiver operate the DIG feature along with other functions.
- Axle-mounted servo improves steering control in full articulation.
- Finely tuned suspension geometry delivers the best crawling capabilities.
What's in the Box?
(1) Axial® Capra™ 1.9 Unlimited Trail Buggy 4WD RTR
(1) Spektrum™ STX3 2.4GHz 3-Channel Radio System
(1) Dynamite® AE-5L Brushed ESC
(1) 540-Size 35T Brushed Motor
(1) Product Manual
Needed to Complete:
(1) Vehicle Battery and charger







Vehicle Type: | Scale 4x4 crawler kit |
Scale: | 1/10 |
Completion Level: | Ready-To-Run |
Drivetrain: | 4WD |
Approximate Assembly Time: | No assembly required |
Length: | 17" (431.8mm) |
Width: | 10.25" (260.35mm) |
Height: | 8.25" (209.5mm) |
Weight: | 4.5lbs (2.04kg) |
Wheelbase: | 12.5" (317.5mm) |
Ground Clearance: | 3" (76.2mm) |
Front Track: | 8.75 in (222.2mm) |
Rear Track: | 8.75 in (222.2mm) |
Body: | Polycarbonate, screen printed color scheme,Separate panels |
Ball Bearings: | Full set |
Batteries: | Shorty configuration (sold separately) |
Brakes: | Integral with ESC |
Bushing Material: | Metal |
Charger: | Sold Separately |
Chassis: | Injection molded tubular |
Differential: | Locked |
Final Drive Ratio: | 37:1 |
Gear Pitch: | 32-Pitch |
Internal Gear Ratio: | 5.14:1 |
Max Battery Dimensions: | 1.02 x 3.8 x 1.8" (26 x 98 x 47mm) |
Motor Size: | 540 35T |
Outer Diameter: | 4.7 in (119mm) |
Pinion: | 14T |
Radio: | Included |
Receiver: | Included |
Servos: | SX107 micro metal gear high torque steering servo, axle mounted for better steering in full articulation |
Shock Type: | Aluminum body, oil-filled, coil-over spring |
Speed Control: | Included |
Suspension: | 4-link solid axle |
Tire Compound: | S30 |
Tire Tread: | Trail Grappler |
Water-Resistant: | Yes |
Wheel Type: | Raceline 3-piece beadlock monster |
Wheel Width: | 1" (25.4mm) |
