15KG Coreless High Torque Micro Servo SCX24

15KG Coreless High Torque Micro Servo SCX24

$49.99
17.7kg-cm Torque Extreme Power For Micro Rigs
Coreless Motor Ultra Fast Steering Response
CNC Aluminum Case Maximum Strength And Cooling
Stainless Steel Gears Heavy Duty Bulletproof Train
6.0V - 7.4V High Voltage Versatile Power Output Range
Micro Form Factor Fits 1/18 And 1/24 Scale

In Stock
SKU: INJS15
Part #: 100027673
MFG: Injora
45+ YEARS IN BUSINESSServing since 1978
REPAIR SERVICESRC Cars, Planes, Boats, Drones & More
AUTHORIZED DEALERGenuine products from top brands
FAST SHIPPINGNext day shipping anywhere in the country.
EASY RETURNSIn-stock items returnable within 30 days
Micro Steering PowerhouseUnmatched Control For Extreme Crawling Rigs

The INJORA INJS15 15KG Coreless High Torque Micro Servo delivers exceptional turning force and steering precision for demanding 1/18 and 1/24 scale RC crawler builds. Engineered with a powerful coreless motor and durable CNC-machined aluminum housing, this high-performance micro servo upgrades your rig's control on technical trails and steep climbs.

Heavy-Duty Micro Performance UpgradeBuilt Tough To Master Demanding Off-Road Obstacles

Designed as the ultimate performance upgrade for heavy custom micro rigs, the INJORA INJS15 15KG Coreless High Torque Micro Servo outputs up to 17.7kg.cm of raw holding torque. Featuring rugged stainless steel gears and dual ball bearings, this premium coreless micro servo resists gear stripping and case flex under high stress. Its full CNC aluminum case ensures superior heat dissipation and structural strength, while maintaining direct compatibility with standard INJS11 mounts and horns for 1/18 and 1/24 scale micro crawlers.

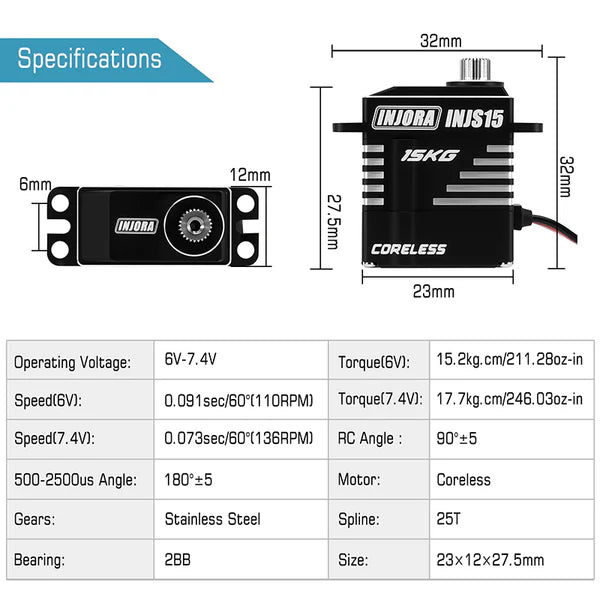

Technical SpecificationsPrecision Engineering And Performance Parameters
Compatible Vehicles 1/18 and 1/24 Scale Micro RC Crawlers
Part Type Steering Micro Servo
Material CNC Aluminum Case / Stainless Steel Gears
Dimensions 23 x 12 x 27.5mm
Weight 22g
Part Number INJS15
Operating Voltage 6.0V - 7.4V
Torque (6.0V) 15.2 kg.cm / 211.28 oz.in
Torque (7.4V) 17.7 kg.cm / 246.03 oz.in
Speed (6.0V) 0.091 sec/60° / 110 RPM
Speed (7.4V) 0.073 sec/60° / 136 RPM
RC Angle 90° ± 5°
Pulse Width Angle (500-2500µs) 180° ± 5°
Motor Type Coreless Motor
Spline F4.9 Mini 25T
Bearings 2BB Dual Ball Bearing
Lead Length 250mm
Key Servo FeaturesOptimized Engineering For High-Torque Steering
Compatible MountsDirect fit with INJS11 servo mounts and horns
Coreless Motor TechnologyDelivers rapid response times and consistent output
Aluminum HousingCNC-machined case for ultimate rigidity and durability
Stainless Steel GearsBulletproof gear train engineered for long-term use
High Torque OutputEasily steers heavy micro crawler builds on sticky terrain
Standardized SplineFeatures F4.9 Mini 25T spline setup
Frequently Asked QuestionsEverything you need to know
What scale vehicles work with the INJORA INJS15 15KG Coreless High Torque Micro Servo?

The INJORA INJS15 micro servo is designed specifically for 1/18 and 1/24 scale micro RC crawlers that demand intense steering torque.

What voltage range does the INJORA INJS15 15KG Coreless High Torque Micro Servo operate on?

The INJORA INJS15 servo safely operates between 6.0V and 7.4V high voltage (HV) power systems.

Does the INJORA INJS15 15KG Micro Servo fit INJS11 servo mounts?

Yes, the INJORA INJS15 shares the same external dimensions as the INJS11 servo, making it fully compatible with INJS11 mounts and horn accessories.

What internal gear material is used in the INJORA INJS15 15KG Micro Servo?

The INJORA INJS15 micro servo features ultra-durable stainless steel gears backed by dual ball bearings for smooth and reliable operation.
