Park 180 Brushless Outrunner Motor, 2200Kv
$41.99
Skip to product information
Park 180 Brushless Outrunner Motor, 2200Kv
$41.99
2200Kv Rating
High Efficiency Outrunner Power
Ultra Lightweight
Weighs Only 8.5 Grams
30W Max Power
Ideal For Micro Models
Brushless Outrunner
Quiet High Torque Motor
2mm Bullet Connectors
Preinstalled Gold Plated Plugs
LiPo Battery Ready
Versatile Voltage Input Range
In Stock
Micro Flight PowerhouseHigh Performance Outrunner Motor Solution
The Park 180 Brushless Outrunner Motor, 2200Kv is an exceptional power plant engineered for ultra-light micro RC airplane models and aerobatic park flyers. Delivering up to 30 watts of quiet, high-torque output, this brushless motor provides incredible power-to-weight efficiency for micro 3D aircraft weighing 2–3 oz and sport models up to 6 oz.
Precision Engineered PerformanceUnmatched Speed And Efficiency Outdoors
Engineered for maximum power in lightweight airframes, the Park 180 Brushless Outrunner Motor, 2200Kv offers a direct-drive alternative to traditional inrunner motors. Featuring dual precision ball bearings, a hardened steel shaft, and high-torque outrunner construction, this motor excels in both indoor aerobatic settings and outdoor sport flying. Pre-fitted with 2mm gold bullet connectors and including a prop adapter plus complete mounting hardware, it offers a seamless performance upgrade for your favorite micro scale model.
Technical SpecificationsFull Motor Dimensions And Specs
Part Type
Brushless Outrunner Motor
Motor Design
Outrunner
Motor Type
Brushless
RPM/Volt (Kv)
2200Kv
Weight
0.3 oz (8.5 g) (weight)
Outer Diameter
0.63 in (16mm) (ruler)
Shaft Diameter
1.5mm
Voltage
4.8–11.4V
Idle Current (Io)
0.30A @ 8V
Bushing Or Bearing
Bearing
Connector Type
2mm Bullet
Recommended Prop Range
3x3 to 6x3 Direct Drive
Key CapabilitiesDesigned For Micro Flight Applications
Target Aircraft3D models 2–3 oz (55–85 g) and sport models 3–6 oz (85–170 g) (plane)
Ultra LightweightCompact design weighing only 0.3 oz (8.5 g) (feather)
Direct DriveHigh-torque brushless outrunner design
Flexible MountingReady for firewall or carbon tube mounting configurations
High OutputDelivers up to 30 watts continuous power

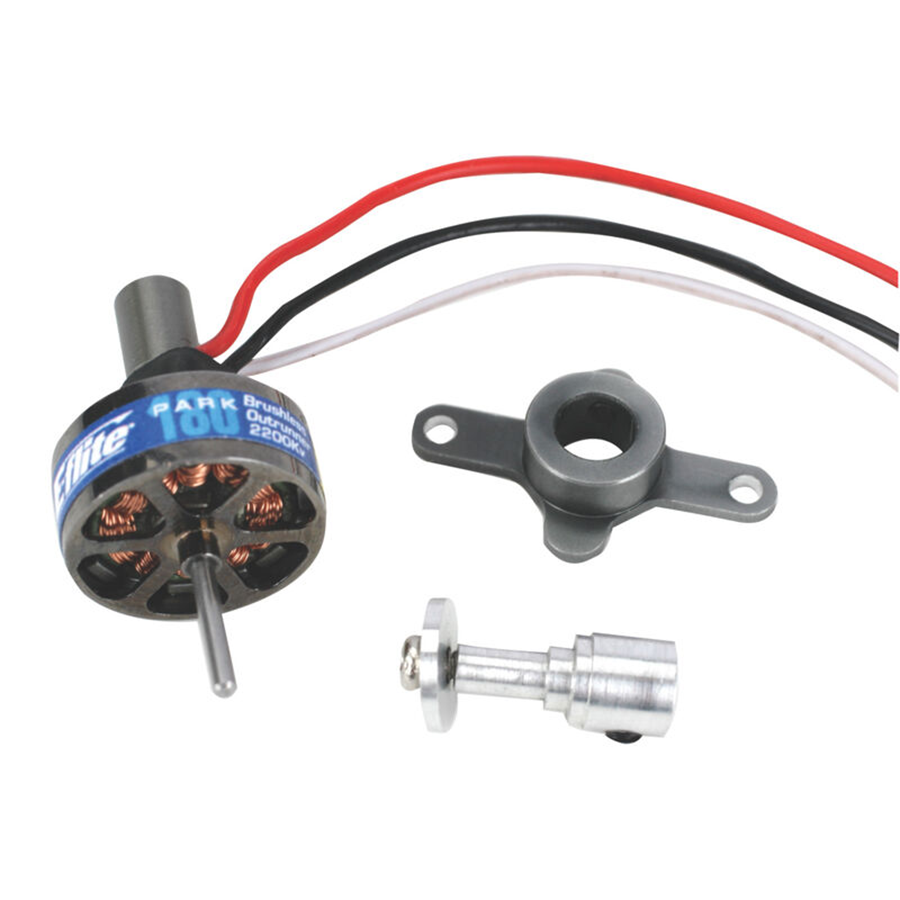

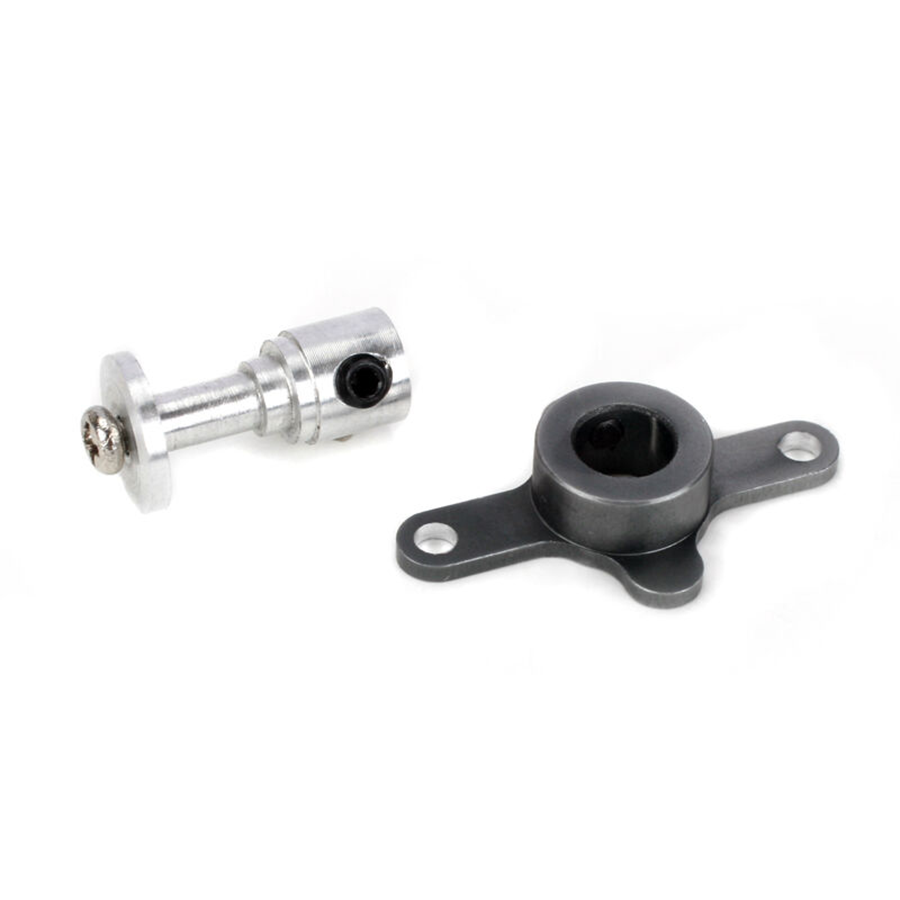

Included AccessoriesComes with prop adapter, mount, and 2mm gold bullet connectors
Quality ConstructionBuilt with ball bearings and hardened steel shaft
Frequently Asked QuestionsEverything you need to know
What type of aircraft is the Park 180 Brushless Outrunner Motor, 2200Kv best suited for?
The Park 180 Brushless Outrunner Motor, 2200Kv is ideal for micro 3D models weighing 2–3 oz (55–85 g) and micro sport or scale RC airplanes weighing 3–6 oz (85–170 g).
What ESC and battery are required for the Park 180 Brushless Outrunner Motor, 2200Kv?
To operate the Park 180 Brushless Outrunner Motor, 2200Kv, you will need a 4–6A brushless ESC and a 2S–3S LiPo battery (or a 4–8 cell Ni-MH/Ni-Cd battery pack).
What accessories are included with the Park 180 Brushless Outrunner Motor, 2200Kv?
The Park 180 Brushless Outrunner Motor, 2200Kv includes a prop adapter, mounting hardware for firewall or carbon tube installations, and pre-soldered 2mm gold bullet connectors.
