"Five, four, three, two, one..." Click. Nothing. Every rocketeer has stood there with a crowd staring at a rocket that refuses to leave. The good news is that the motor is almost never the problem. A misfire is nearly always the starter, the clips, the batteries or a short somewhere in between, and each one leaves a clue you can read.
This guide covers how the launch system fits together, how to install a starter so it lights the first time (straight from Estes), the safe way to handle a misfire under the NAR Safety Code, and a symptom table that will get you flying again in a couple of minutes.
The Short Answer
When a model rocket misfires, pull the safety key, wait 60 seconds, then read the clues: a burned starter means the tip was not touching propellant; no continuity light points to batteries, dirty clips or a broken starter; a light with no launch means something is shorting.
- Install starters tip-to-propellant with the engine upside down, then push in the plug.
- Use the right plug: Estes' standard pack uses yellow for 1/2A6, A8 and B4, magenta for B6 and C6.
- Bend the leads apart so they never touch each other.
- Keep clips clean and off the blast deflector, and run fresh AA batteries.
1. How a Model Rocket Launch System Works
An electric launch system is a simple circuit: battery, safety key, push button, a long cable, two micro clips, and the starter's thin bridge wire. Close the circuit and current heats the bridge wire, which lights the propellant. Every misfire is a break or a short somewhere in that loop.
The launch pad
The Estes PortaPad II is a typical pad: a plastic tripod that assembles without glue or tools, a two-piece 1/8-inch launch rod, a safety cap, and a blast deflector. It tilts up to 30 degrees from vertical, which matches the Safety Code's limit, and it can be adapted for a 3/16-inch rod for bigger rockets. The deflector does two jobs: it keeps exhaust off the ground and it is the metal plate your clips must never touch.
The controller
The Safety Code requires a safety interlock in series with the launch switch and a switch that returns to off when released. On the Estes Electron Beam, the interlock is the removable safety key and the button springs back on its own. It runs on four AA alkaline batteries and has a continuity light that glows when the key is in and the circuit through the starter is complete. That light is your best diagnostic tool.
The starter (igniter)
An Estes starter is two leads joined by a short nichrome bridge wire. The StarTech version has that tip dipped in a pyrogen compound that flares when heated, giving the propellant a bigger burst of heat. Whatever the type, the tip has to be physically touching the propellant inside the nozzle. A hot wire floating a few millimeters away just glows and burns out.
2. Install the Starter So It Lights the First Time
Most misfires are set up at the prep table, not the pad. Estes gives a short, specific procedure, and the DART section of the NAR covers igniter installation in its tips for new rocketeers and warns that igniter wires pushed together while installing the plug are a significant cause of misfires.
Step by step
- Hold the engine upside down (nozzle up).
- Insert the starter into the nozzle until its tip rests against the propellant.
- Keep the engine upside down and push in the plug. The plug will bend the leads slightly, but it must not pull the tip away from the propellant.
- Bend the leads away from each other once the plug holds the starter firmly. Do not bend the starter itself.
- Check the leads do not touch anywhere, above or below any tape.
- Install the engine in the rocket per the kit instructions, and do not attach clips until the rocket is on the pad.
Use the right plug
Plugs are sized to the nozzle. Estes' standard engine plug pack uses yellow plugs for 1/2A6, A8 and B4 engines and magenta plugs for B6 and C6 engines. Larger 24 mm engines like the D12 come with their own matching plugs in the engine package. A plug that is too small lets the starter slide out; one jammed in the wrong nozzle can push the tip off the propellant.
Hook up the clips
With the rocket on the rod and the key out of the controller, attach one micro clip to each starter lead. Make sure the clips do not touch each other or the blast deflector. Lay the cable so the clips are not pulling the starter out. Then walk back at least 15 feet (30 for motors bigger than D), insert the key, and check the continuity light before the countdown.
3. Handling and Diagnosing a Misfire
Safety first, diagnosis second. The NAR code says to remove the safety interlock or disconnect the battery and wait 60 seconds after the last launch attempt before anyone approaches. Estes says the same: pull the key and wait one minute. A motor can smolder and light late, and that minute is what keeps your hand off the rod when it does.
| What you see | Most likely cause | Fix |
|---|---|---|
| Continuity light dim or flickering; starter does not fire | Weak controller batteries | Install four fresh AA alkaline batteries |
| No continuity light; batteries rattle | Battery contact springs compressed | Open the controller and spread the contacts |
| No continuity light; clips look dirty | Exhaust residue on the micro clips | Clean the clip jaws with sandpaper or steel wool |
| No continuity light; clips clean | Broken starter wire or bridge | Replace the starter |
| Light on, nothing happens at launch | Clips touching each other or the blast deflector, or starter leads touching near the tip (a short) | Separate clips and leads; reinstall the starter |
| Starter burned, motor did not light | Starter tip was not touching the propellant | Reinstall a new starter tip-to-propellant |
Burned starter, no launch
If the bridge wire is broken or blackened and the motor did not light, Estes says the starter tip was not touching the propellant. Remove the plug and old starter, check the nozzle is clear, and install a fresh starter with the tip firmly against the propellant.
No continuity light
An open circuit. Work from the controller out: fresh batteries first, then the battery contacts (if the cells rattle, spread the springs), then the clips (sand off the black residue), then the starter itself. A starter with a broken lead or bridge wire will never show continuity, so swap it.
Light on, but nothing happens
That means a short circuit: current is flowing, just not through the bridge wire. The usual suspects are clips touching each other, a clip touching the metal blast deflector, or the starter leads touching near the tip. Separate everything and try again. Weak batteries can also show a dim light while lacking the current to heat the wire.
When to give up on a motor
If you have reinstalled a starter twice with good continuity and the motor still will not light, set it aside. Do not drill, poke or modify a motor, since the Safety Code says to use certified motors only as the maker recommends. Wait the full minute, remove it, and contact the manufacturer or bring it to us to talk through it.
Conclusion
Misfires are rarely mysterious. Install the starter tip-to-propellant with the engine upside down, use the right plug, bend the leads apart, keep the clips clean and off the deflector, and run fresh batteries. When something still goes wrong, pull the key, wait 60 seconds, and let the continuity light and the condition of the starter tell you which fix you need.
We stock Estes pads, Electron Beam controllers, StarTech starters and engines at our Cumming showroom. Browse the rocket collection or ask us if your launch setup keeps fighting you.
Gear Mentioned in This Guide

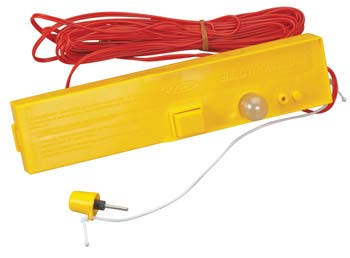

Estes Electron Beam Launch Controller
Safety key, continuity light and a long cable. Runs on four AA alkaline batteries.
Shop now
Estes PortaPad II Launch Pad
Tool-free tripod pad with blast deflector, two-piece 1/8-inch rod and rod cap.
Shop now
Estes StarTech Starters (6)
Spare starters with a pyrogen-dipped nichrome tip. Always carry extras to the field.
Shop now
Estes C6-3 Model Rocket Engines (3-pack)
Standard 18 mm engines; C6 motors use the magenta plugs in Estes' standard plug pack.
Shop now
Estes Rocket Science Starter Set
Complete launch system plus rocket, two engines, four starters and plugs.
Shop nowFrequently Asked Questions
Why won't my model rocket launch when I press the button?
The usual causes are a starter tip not touching the propellant, weak controller batteries, dirty micro clips, or a short from clips or leads touching each other or the blast deflector. Pull the key, wait 60 seconds, then check each one.
How long should I wait after a misfire?
The NAR Model Rocket Safety Code says to remove the safety interlock or disconnect the battery and wait 60 seconds after the last launch attempt before anyone approaches the rocket. Estes gives the same one-minute guidance.
What does it mean if the continuity light is on but the rocket does not fire?
Usually a short circuit, such as the micro clips touching each other, a clip touching the blast deflector, or the starter leads touching near the tip. Weak batteries can also light the bulb dimly without enough current to fire the starter.
Which Estes plug goes with which engine?
In Estes' standard engine plug pack, yellow plugs fit 1/2A6, A8 and B4 engines and magenta plugs fit B6 and C6 engines. Larger 24 mm engines such as the D12 come with their own matching plugs in the engine package.
Can I reuse a starter after a misfire?
Only if the bridge wire is intact and undamaged, and even then a fresh starter is the safer bet. A burned or broken starter must be replaced.
What batteries does the Estes Electron Beam controller use?
Four AA alkaline batteries. Fresh cells matter, because weak batteries can light the continuity bulb but fail to heat the starter enough to ignite the motor.
