There is a moment in every two-stage flight that gets the whole field cheering. The booster burns out, there is a tiny pause you feel more than see, and then the upper stage lights and rips off toward the clouds while the booster tumbles away. It looks like magic. It is actually a very clever bit of black-powder chemistry, and once you understand it you will prep your first two-stager with a lot more confidence.
This guide explains how direct staging works (with help from Apogee Components and Estes), what to check before you build, how to prep the motors on launch day, and what can go wrong. A fair warning up front from Estes itself: each added stage lowers reliability, so fly several single-stage rockets before you try one.
The Short Answer
A two-stage model rocket stacks a booster engine with no delay or ejection charge (a "-0" motor) under a normal upper-stage engine; when the booster burns through, its hot gas and burning particles shoot forward into the upper motor's nozzle and light it, and the stages separate.
- Only the booster gets a starter. The booster lights the upper stage.
- The upper motor should be black powder so the flame can reach its propellant.
- Tape the motors together with cellophane tape so they stay butted until ignition.
- Plan for a big field: count both motors' impulse and expect more drift than a single stage.
1. How Direct Staging Actually Works
Most hobby two-stagers use direct staging: the booster motor sits nose-to-tail with the upper motor and lights it with no electronics at all. Here is the difference between the two motors, then the step-by-step physics.
| Booster engine (example: D12-0) | Upper stage engine (example: D12-5) | |
|---|---|---|
| Code ending | -0 | A delay number, usually a long one |
| Delay and smoke charge | None | Yes, for coasting and tracking |
| Ejection charge | None | Yes, deploys the recovery system |
| Forward end | Bare propellant, no clay cap | Capped |
| How it lights | Electric starter on the pad | Hot gas and burning particles from the booster |
| Starter installed? | Yes | No |
What makes a booster engine different
Estes explains that booster engines have no delay charge, no tracking smoke and no ejection charge, and their codes end in zero, like C6-0 or D12-0. Skipping the delay means the upper stage gets the booster's full velocity instead of coasting and slowing first. Apogee adds a practical reason: with a delay, the rocket could arc over and be pointing sideways when the upper stage lights. Estes also lists a weight limit for each booster (the D12-0 package says rockets under 14 ounces including engines; check the F15-0 page for its own limit), so check that number against your rocket.
Burn-through: the bulkhead that disappears
A black-powder motor burns from the nozzle end toward the front, like a cigarette. According to Apogee, the unburned propellant acts as the motor's pressure bulkhead, and it gets thinner as the burn progresses. When it gets thin enough it ruptures, and hot gas and burning chunks of propellant blast forward out of the booster's open front end and straight into the upper motor's nozzle. That lights the upper motor.
Why the upper motor should be black powder
A black-powder motor's propellant sits right at the nozzle, so the booster's hot particles hit fuel immediately. Apogee explains that composite propellant is too soft to act as a bulkhead, so composite motors need a separate solid bulkhead and tend to snuff out when the flame breaks through. That makes them a poor fit for simple direct staging. For your first two-stager, use the black-powder combinations listed in the kit instructions and nothing else.
Why the stages separate
The two motors are taped together with clear cellophane tape. The tape holds them butted together long enough for ignition, then the booster drops away as the upper motor takes over. Apogee prefers cellophane over masking tape because it melts at a lower temperature. A coupler between the stages keeps them aligned so they separate in a straight line instead of tipping.
2. Before You Build: Skills, Stability and Field Size
A two-stager is not a harder build so much as a less forgiving one. Small errors that a single-stage rocket shrugs off can cost you an upper stage. Check these three things before you open the kit.
Have single-stage experience
Estes recommends building and flying several single-stage rockets first, since each added stage lowers reliability. You should already be comfortable installing starters, packing recovery wadding and choosing delays. Apogee recommends never going beyond three stages at all.
Stability matters twice
A two-stager has to be stable in two configurations: the full stack at liftoff and the upper stage flying alone after separation. The booster's fins are usually large because they have to stabilize a long, heavy stack. Apogee notes that multistage rockets are significantly more prone to weathercocking (turning into the wind) than single-stage models. Use the motor combinations in the instructions, get the fins straight, and do not launch in gusty wind.
Field size: count both motors
The NAR Safety Code sizes the field by total impulse: 500 feet for a D motor and 1,000 feet for the E through G range. When you stack two motors, count the total impulse of both. Two D motors total more than 20 N-sec, which puts you in the 1,000-foot column. Apogee's rule of thumb, based on RockSim estimates, is that in a 10 mph wind a rocket lands roughly twice as far away as it goes up, so drift is a real concern.
Two recovery systems
Both stages have to come down safely. Some boosters tumble or use a streamer; bigger ones get their own parachute. The Estes Vogel uses an 18-inch parachute for the upper stage and a 15-inch for the booster. The Estes So Long uses two bright orange streamers, chosen to bring the rocket down fast so it does not drift away from a flight that can reach 3,600 feet.
3. Prepping and Flying Your First Two-Stager
The kits we carry right now are serious two-stagers: the Estes So Long (Skill Level 3, E16-0 or F15-0 booster) and the Vogel (Pro Series II, E16-0 or F15-0 booster with D12-5, E12-6, E16-6 or F15-6 upper motors). Whatever kit you choose, follow its instructions over anything general. Here is the prep sequence Estes describes, plus the steps around it.
Motor prep, step by step
- Pack the upper stage first. Wadding, then the folded parachute or streamer, then the nose cone, as on any single-stage rocket.
- Identify each motor's ends. The bottom is the nozzle end. The booster has no clay cap at its top.
- Butt the motors together. Put the top of the booster against the nozzle end of the upper motor.
- Tape them with cellophane tape. Keep it light; the tape is supposed to melt apart at staging, so do not substitute heavy tape.
- Adjust the fit. If needed, add masking tape around the rear of the upper motor and the front of the booster so both fit snugly in their mounts.
- Seat the stack. Push the upper motor forward until it stops against the engine block.
- Install one starter in the booster only. Tip touching propellant, plug in, wires bent apart and not touching.
- Check stability with motors loaded if you are unsure, then fly from a field sized for both motors.
Watch the flight like a range officer
Watch the upper stage, not the booster. You want to see a clean light just after booster burnout, then a straight climb and a deployment near the top. Have a second person spot the booster so you recover both. Apogee suggests adding tracking powder to the top stage on high flights so you can spot it at altitude.
Common failures and what they mean
These are the patterns we see most at the shop, as general troubleshooting rather than a manufacturer checklist. If the upper stage never lights, suspect a motor joint that was not butted tight, so check the cellophane tape joint. If the booster fell off on the pad or early in flight, the fit was too loose; add masking tape for friction as Estes describes. If the upper motor lit but the stage went sideways, suspect weathercocking (which Apogee says multistage rockets are especially prone to) or crooked fins. Any stage that arcs over before lighting is a reason to stop and review the build before flying again.
Conclusion
Two-stage flying comes down to one elegant trick: a "-0" booster burns through its own front end and sprays fire into the upper motor's nozzle. Get the basics right (black-powder motors, one starter in the booster, a light cellophane tape joint, straight fins and a field big enough for both motors) and staging becomes repeatable. Rush it, or try it as your first rocket, and you will learn why Estes says every extra stage costs reliability.
Want to look at the So Long or Vogel in person, or talk through booster and upper-stage combinations? Visit our Cumming showroom, browse the rocket collection, or send us a question.
Gear Mentioned in This Guide

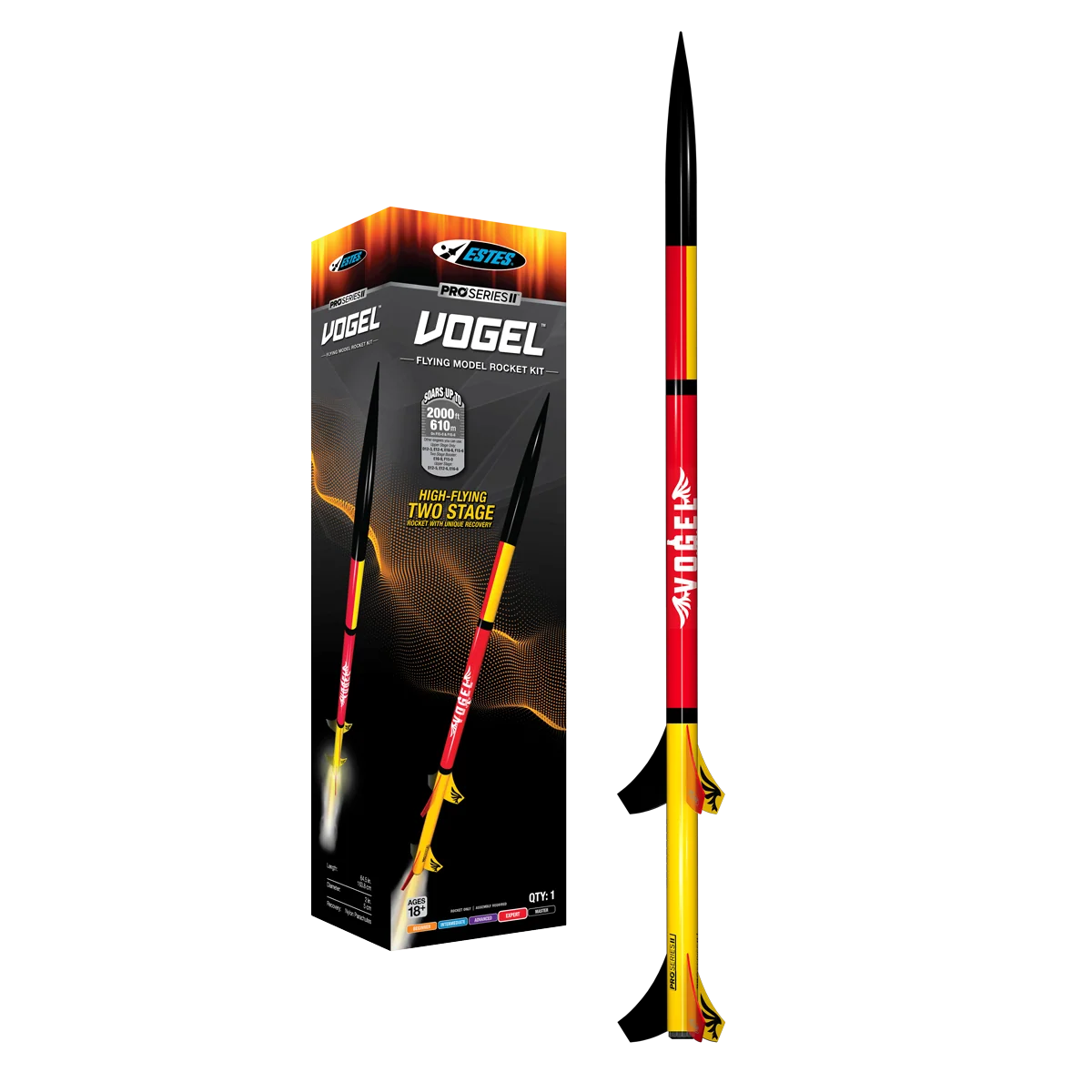

Estes Vogel Pro Series II Two-Stage Rocket
64.5-inch two-stager with separate 18-inch and 15-inch parachutes for each stage.
Shop now
Estes So Long Two-Stage Model Rocket Kit
Skill Level 3 two-stager with streamer recovery and a payload section. Big-field rocket.
Shop now
Estes D12-0 Booster Engines (2)
24 mm booster motors: no delay, no ejection charge. Estes rates them for rockets under 14 oz.
Shop now
Estes Pro Series II Recovery Wadding
Bulk flame-resistant wadding; Estes says one pack covers 10 to 12 Pro Series II launches.
Shop now
Estes Rocket Fin Alignment Guide
Straight fins on both stages matter more on a two-stager. This jig handles 3 or 4 fins.
Shop nowFrequently Asked Questions
How does the second stage of a model rocket ignite?
In direct staging, the booster motor burns through its front end. Hot gas and burning propellant particles shoot forward into the upper motor's nozzle and light it. No second starter or electronics are needed.
What does the 0 mean in a C6-0 or D12-0 engine?
The zero means no delay. Booster engines have no delay charge, no tracking smoke and no ejection charge, so the upper stage lights immediately after the booster burns out and gets its full velocity.
Do I put a starter in both engines?
No. Only the booster gets a starter. The booster's burn-through ignites the upper stage motor.
Can I use composite motors in a two-stage rocket?
Not for direct staging as a beginner. Apogee notes composite propellant cannot act as a bulkhead and composite motors tend to snuff out at burn-through, so they are much harder to stage. Use the black-powder combinations your kit lists.
How big a field do I need for a two-stage rocket?
The NAR Safety Code sizes fields by total impulse, so count both motors. Two D motors put you in the 1,000-foot column. Expect extra drift too, since the upper stage goes higher than a single-stage rocket.
Should a two-stage rocket be my first rocket?
No. Estes recommends flying several single-stage rockets first, because each added stage lowers reliability and the prep has more steps that can go wrong.
