Axial SCX10 III Jeep Cherokee XJ 4X4 Brushed Rock Crawler RTR – Stone White (AXI-2037T2)
$499.99
Skip to product information
New ArrivalOnly 2 Left!In Stock
Axial SCX10 III Jeep Cherokee XJ 4X4 Brushed Rock Crawler RTR – Stone White (AXI-2037T2)
$499.99
Licensed Jeep XJ Body
Stone White Factory Color
Ready To Run
Just Add 3S Battery & Charger
DIG Transmission
3rd-Channel Rear Wheel Lock
BFGoodrich & KMC
Licensed Krawler T/A KX Tires
AR45 Straight Axles
Steel C-Channel Chassis
LED Light Kit
Realistic Night Crawling
In Stock
A True Trail IconOfficially Licensed 2001 Jeep Cherokee XJ

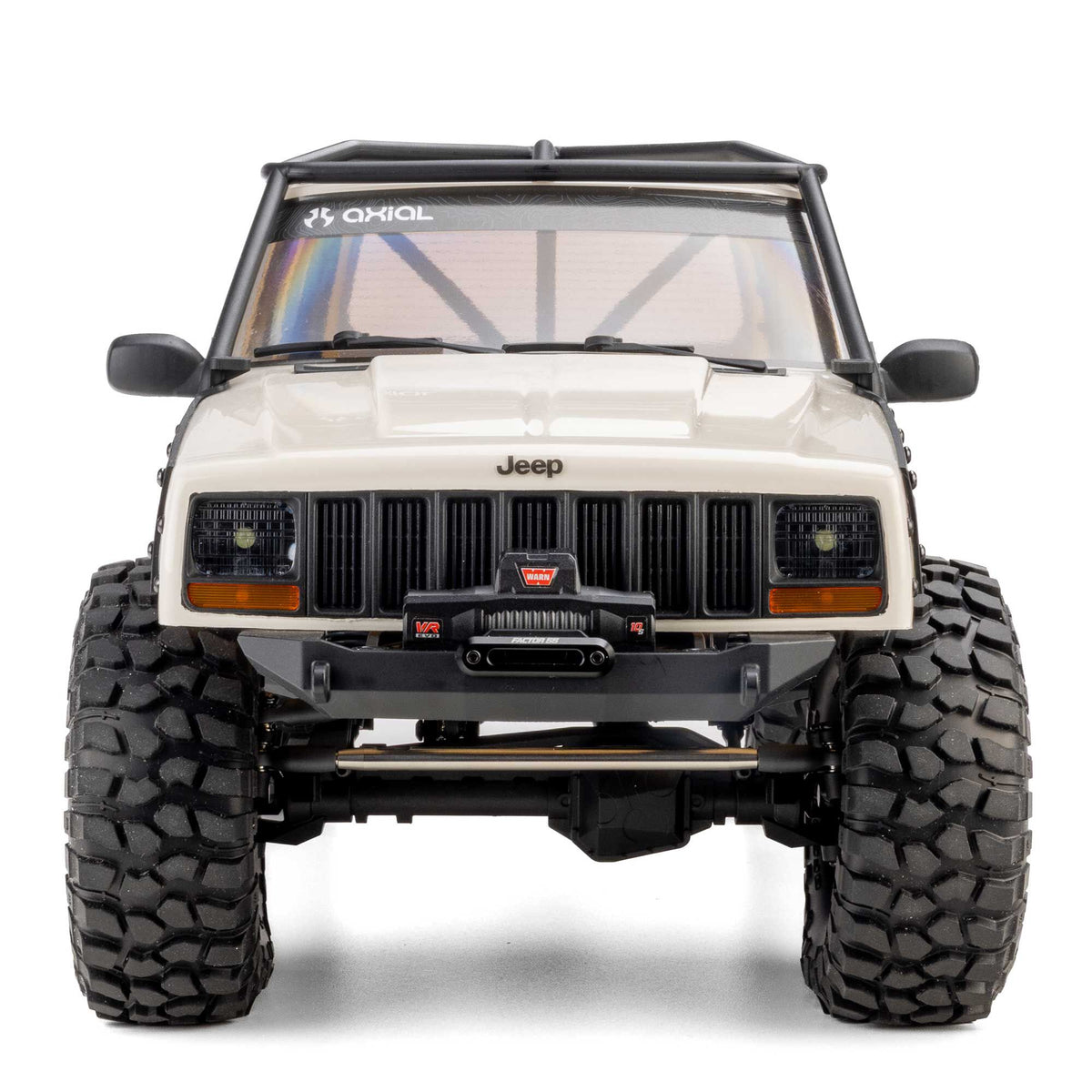

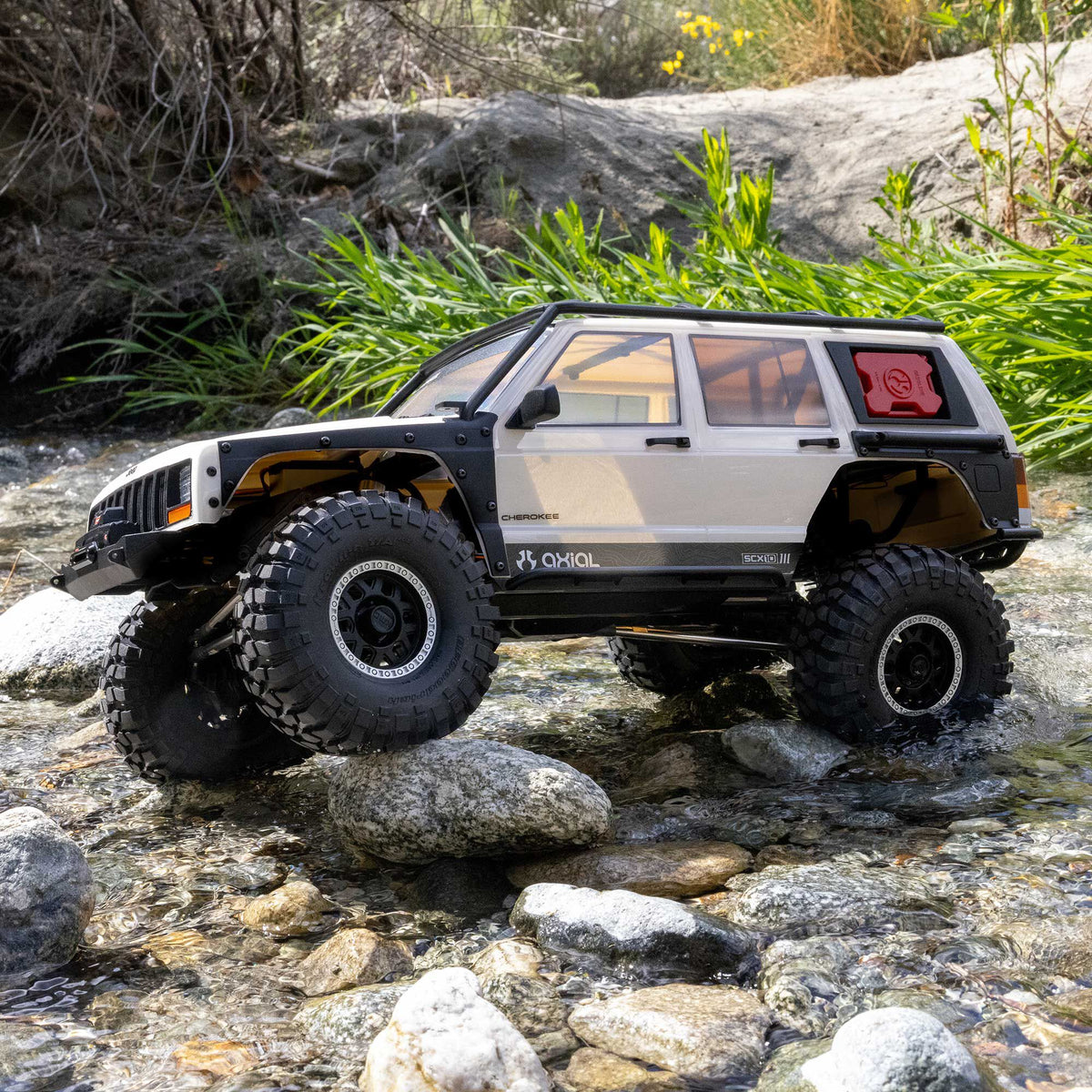

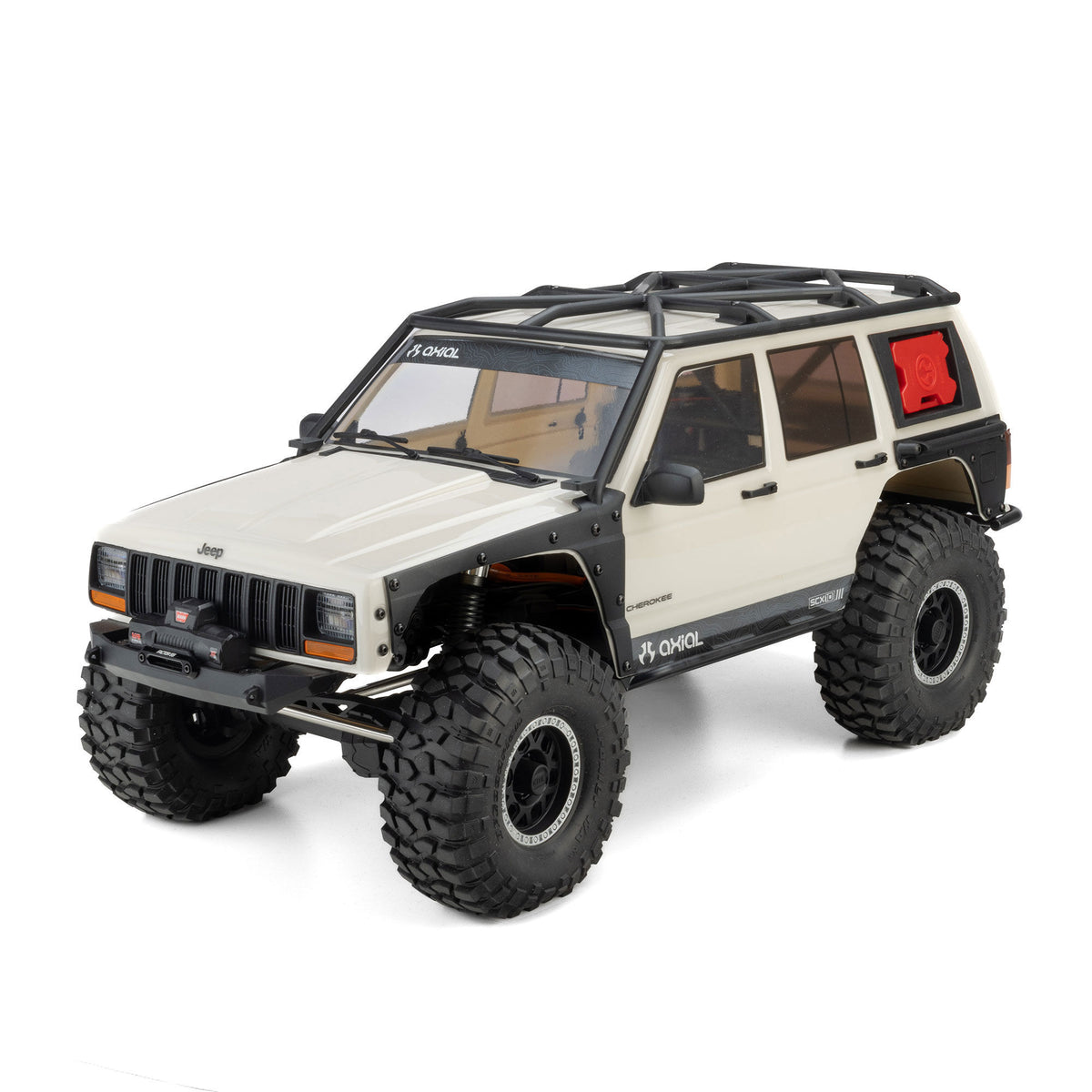

The Axial 1/10 SCX10 III Jeep Cherokee XJ 4X4 RTR recreates the 2001 Cherokee XJ with an officially licensed body in Stone White, BFGoodrich Krawler T/A KX tires on KMC KM444 MESA wheels, a DirtBound bumper and a DIG transmission. It arrives fully assembled; just add a 3S battery and charger.
Built For The RocksScale Detail Meets Real Crawler Hardware

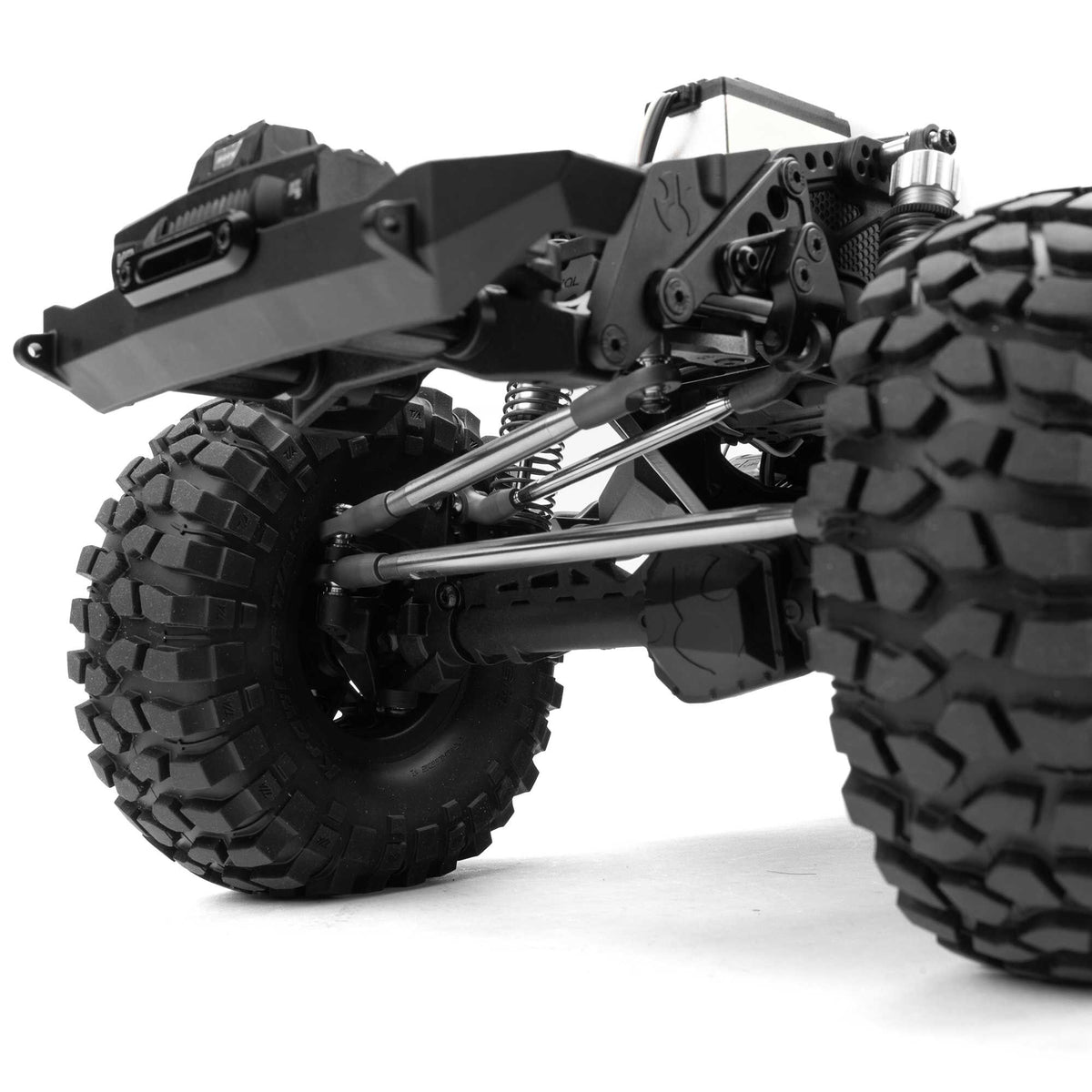

Under the licensed Jeep body is a proven SCX10 III platform: a one-piece steel C-channel chassis, AR45 straight axles, 6mm stainless steel links, all-metal pivot balls and oil-filled shocks with aluminum threaded bodies. The LCXU DIG transmission locks the rear wheels from the Spektrum SLT3 transmitter's third channel for tighter turns, while the Axial Slick Rock 35T 540 motor, Spektrum Firma 40A waterproof ESC and S683 steel-gear servo deliver steady trail control. A WARN EVO10-S scale winch, Factor 55 hawse fairlead and LED lights finish the recovery-ready look.
Technical SpecificationsDetailed Breakdown Of Hardware And Dimensions
Completion Level
Ready-To-Run
Assembly
No Assembly Required
Scale
1/10
Vehicle Type
Rock Crawler
Make
Jeep (officially licensed Cherokee XJ) (car)
Body
Painted polycarbonate
Chassis
Single-piece steel C-channel
Drivetrain
4WD with DIG
Transmission
LCXU DIG, all-metal internal gears
Differential
Spool
Axles
AR45 straight axles
Suspension
Front 3-link, Rear 4-link
Shock Type
Oil-filled with aluminum threaded bodies
Motor
Axial Slick Rock 35-turn 540 brushed
Speed Control
Spektrum Firma 40A brushed waterproof ESC
Radio
Spektrum SLT3 3-channel transmitter, SR515 receiver
Steering Servo
Spektrum S683, steel output gear, 25T
DIG Servo
SX108PM micro servo
Gearing
14T pinion / 56T spur, 32-pitch
Final Drive Ratio
9.80
Tires
BFGoodrich Krawler T/A KX, soft compound
Wheels
KMC KM444 MESA 1.9 in
Wheel Hex
12mm
Lighting
LED
Battery
3S LiPo, sold separately
Connector Type
IC3
Max Battery Dimensions
100 x 50 x 31 mm / 3.93 x 1.96 x 1.22 in
Charger
Sold separately
Length
20 in / 508 mm
Width
9.1 in / 231 mm
Height
9.7 in / 246 mm
Wheelbase
12.3 in / 312 mm
Front / Rear Track
7.4 in
Trail FeaturesLicensed Details And Crawler Engineering
Licensed Jeep XJ BodySecond-generation Cherokee XJ body, painted and assembled in factory-correct colors
Licensed Trail HardwareBFGoodrich Krawler T/A KX tires on KMC KM444 MESA 1.9 wheels
Scale Front EndWARN EVO10-S scale winch (non-functional), DirtBound bumper and machined Factor 55 hawse fairlead (wrench)
DIG TransmissionLCXU DIG locks the rear wheels from the SLT3's third channel for tighter turns
AR45 Straight AxlesFull-size style straight axles; the LCXU layout makes a portal swap easy
Tuned Suspension6mm stainless links, all-metal pivot balls and oil-filled aluminum-body shocks
Steel C-Channel ChassisOne-piece rails reduce flex and are easy to work on
Trail-Ready ElectronicsSlick Rock 35T 540 motor, Firma 40A waterproof ESC, S683 steel-gear servo (7.4V capable) (lightning)
LED Light KitWhite headlights, yellow running lights and rear taillights for night crawling
In The BoxEverything that comes in the box.
1X
Axial SCX10 III Jeep Cherokee XJ 4X4 RTR
1X
Spektrum SLT3 3-Channel Transmitter
1X
Spektrum SR515 Receiver (installed)
1X
Spektrum Firma 40A Brushed Waterproof ESC (installed)
1X
Axial Slick Rock 35-Turn Brushed 540 Motor (installed)
1X
Spektrum S683 Servo with Steel Output Gear (installed)
1X
SX108PM DIG Micro Servo (installed)
4X
AA Batteries
1X
Product Manual
What You Need to Get StartedEssential items required to complete your vehicle.
Keep It RunningGenuine replacement parts for repairs, maintenance, and everyday wear.
Take It FurtherPerformance upgrades and optional parts to customize your ride.
Frequently Asked QuestionsEverything you need to know
What battery and charger do I need for the Axial SCX10 III Jeep Cherokee XJ RTR?
It runs on a 3S LiPo with an IC3 connector. Axial recommends the Spektrum 11.1V 3400mAh 3S 50C Smart G2 Trail Pro LiPo and the Spektrum S155 G2 Smart Charger. The battery tray fits packs up to 100 x 50 x 31 mm (3.93 x 1.96 x 1.22 in), so check pack size before you buy.
What does the DIG feature do?
The LCXU DIG transmission and SX108PM DIG servo lock the rear wheels from the SLT3 transmitter's third channel. With the rear locked, the front wheels pull the truck around for much tighter turns on technical trails.
Does the SCX10 III Jeep Cherokee XJ use portal axles?
No. It comes with AR45 straight axles, like most full-size trail rigs. The LCXU transmission and the adjustable metal Panhard mount are designed so you can switch to portal axles later if you want.
Is the SCX10 III Jeep Cherokee XJ good for someone new to RC?
Yes. It arrives fully assembled with radio, electronics and lights installed, so you only add a battery and charger. Axial built it for experienced crawlers, tinkerers who like to upgrade, and Jeep fans picking up their first RC.
Is the winch functional?
No. The officially licensed WARN EVO10-S winch is a non-functional scale detail.
