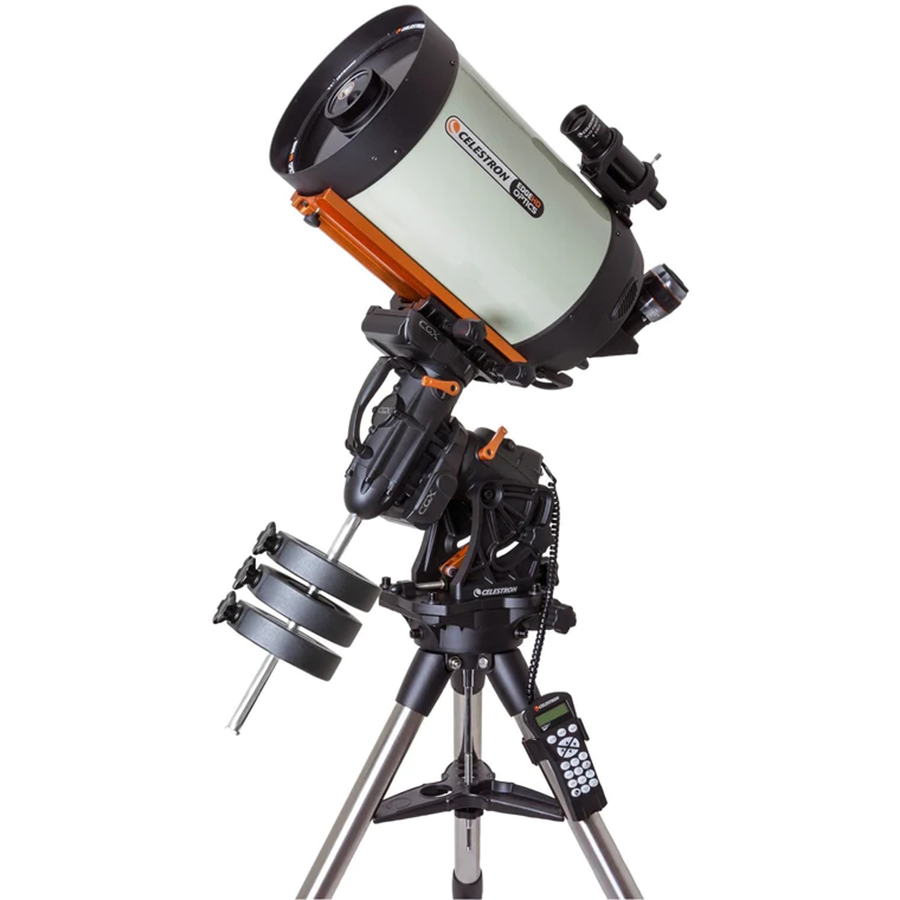

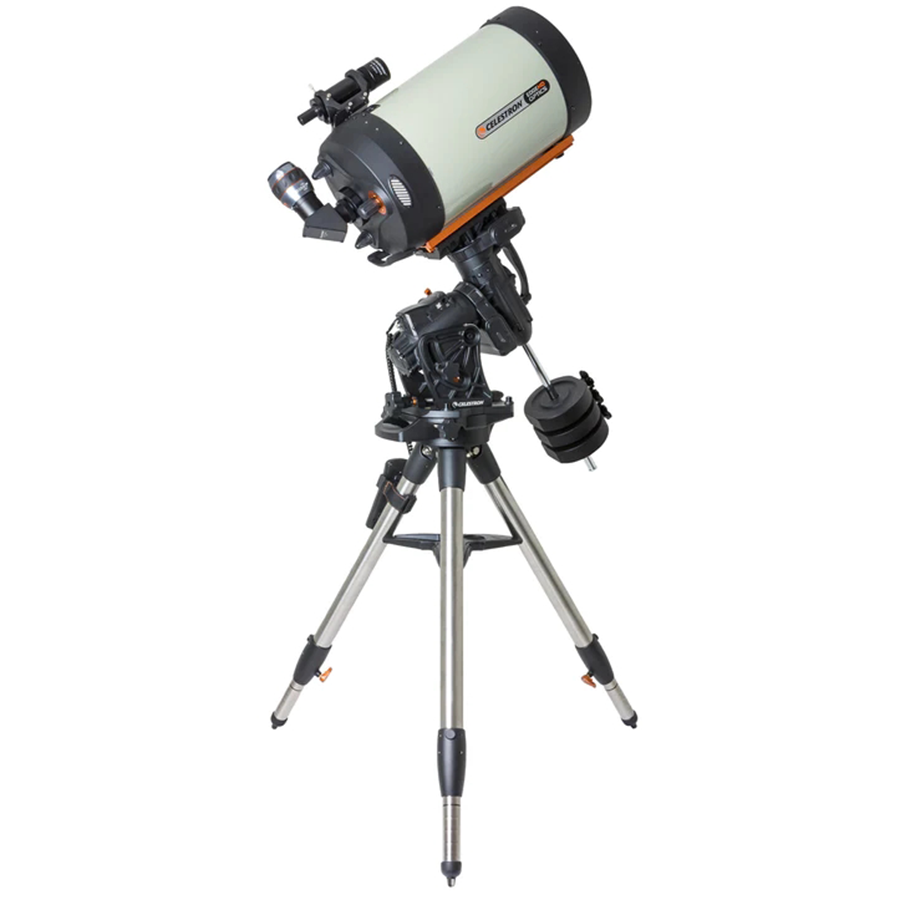

Celestron 11" CGX Equatorial 1100 EdgeHD Telescope (12057)
$6,399.00
Skip to product information
Celestron 11" CGX Equatorial 1100 EdgeHD Telescope (12057)
$6,399.00
11-Inch Aperture
Massive Light Gathering Power System
EdgeHD Optics
Flat Field Coma Free Images
55 lb Payload
Heavy Duty German Equatorial Mount
StarBright XLT Coatings
Maximum Optical Light Throughput
Fastar Compatible Tube
Ultra Fast Imaging Focal Ratios
Belt Drive Servo
Smooth Heavy Load Motor Tracking
Starlight MasteredUnrivaled Clarity and Celestial Precision
The 11" CGX Equatorial 1100 EdgeHD Telescope merges Celestron's premier EdgeHD optical system with the robust, computerized CGX Equatorial mount. Designed for serious visual stargazers and demanding astrophotographers, this setup delivers 89% more light-gathering power than an 8-inch scope with incredible pinpoint star clarity across full-frame sensors.
Deep Space PerfectionAdvanced Engineering for Serious Astrophotographers
Experience deep space like never before with the 11" CGX Equatorial 1100 EdgeHD Telescope. Featuring an aplanatic, flat-field Schmidt-Cassegrain optical tube assembly, this telescope eliminates off-axis star coma and field curvature to guarantee edge-to-edge sharpness across large CCD and CMOS camera chips. Engineered with flexible mirror clutches, integrated mesh tube vents, and StarBright XLT optical coatings, every exposure retains maximum contrast and resolution. The companion heavy-duty CGX computerized mount provides ultra-smooth tracking via a belt-drive system, internal cable management, optical home and limit sensors, and professional-grade CPWI control software to maximize your remote imaging capabilities.
Technical SpecificationsPrecision Components and Engineering Data
Optical Design
EdgeHD Flat-Field Aplanatic SCT
Aperture
279.4mm / 11 inches
Focal Length
2800mm / 110 inches
Focal Ratio
f/10
Optical Coatings
StarBright XLT
Finderscope
9x50
Highest Useful Magnification
660x
Lowest Useful Magnification
40x
Limiting Stellar Magnitude
14
Resolution (Rayleigh)
0.5 arc seconds
Mount Type
Computerized Equatorial
Instrument Load Capacity
55 lbs / 25 kg
Motor Drive
DC Servo Motors
Tracking Rates
Sidereal, Solar, and Lunar
Slew Speeds
9 speeds - max 4°/second
Hand Control
NexStar+ LCD with USB 2.0
Database
40,000+ objects
Optical Tube Weight
28 lbs / 13 kg
Mount Head Weight
44 lbs / 20 kg
Tripod Weight
19.2 lbs / 8.7 kg
Total Kit Weight
124.2 lbs / 56.33 kg
Innovative FeaturesBuilt for Astrophotography and Visual Observation
Flat-Field OpticsEdgeHD optical system produces an astrograph-quality focal plane free of coma
Mirror ClutchesFlexible tension rods hold primary mirror in place to prevent image shift during exposures
Rear Tube VentsIntegrated 50-mesh filter releases trapped heat from behind the primary mirror
Fastar CompatibilityRemovable secondary mirror allows ultra-fast f/2 wide field imaging
Heavy-Duty Belt DriveProvides smooth motor tracking with minimal backlash under heavy payloads
Internal Optical SensorsHome and limit sensors protect gear during unattended remote operation
Advanced Control SoftwarePowered by CPWI software for multi-point mount modeling and extreme accuracy
Dual Dovetail SaddleAccommodates both CG-5/Vixen and CGE/Losmandy dovetail bars
Frequently Asked QuestionsEverything you need to know
What power supply is required to operate the 11" CGX Equatorial 1100 EdgeHD Telescope?
The 11" CGX Equatorial 1100 EdgeHD Telescope requires a 12V DC power source capable of providing at least 4 amps. It features a threaded 12VDC power input barrel connector to ensure a stable power connection during operation.
Is the 11" CGX Equatorial 1100 EdgeHD Telescope suitable for astrophotography?
Yes, the 11" CGX Equatorial 1100 EdgeHD Telescope is specifically designed for astroimaging. Its flat-field, coma-free EdgeHD optics provide edge-to-edge sharpness across large sensor cameras, while flexible mirror clutches and a belt-driven CGX mount provide stable, long-exposure tracking.
Can the secondary mirror on the 11" CGX Equatorial 1100 EdgeHD Telescope be removed?
Yes, the optical tube on the 11" CGX Equatorial 1100 EdgeHD Telescope is Fastar-compatible. The secondary mirror can be removed and replaced with a third-party lens assembly to convert the system into an ultra-fast f/2 wide-field camera setup.
What is the total weight of the 11" CGX Equatorial 1100 EdgeHD Telescope setup?
The total kit weight of the 11" CGX Equatorial 1100 EdgeHD Telescope is 124.2 lbs (56.33 kg). The main components consist of the 28 lb optical tube assembly, 44 lb mount head, 19.2 lb tripod, and three 11 lb counterweights.
