SkyWatcher AZ-EQ6 Mount (includes weights-11lbs-2ea) (S30330)
$2,850.00
Payload Capacity
Heavy duty 44 lb payload
Dual EQ AZ
Versatile equatorial altazimuth mode operation
Quiet Belt Drive
Low backlash precision tracking performance
Freedom Find Encoders
Manual movement without alignment loss
42,000 Object Database
SynScan controller automatic slewing system
USB PC Direct
Easy computer control direct connection

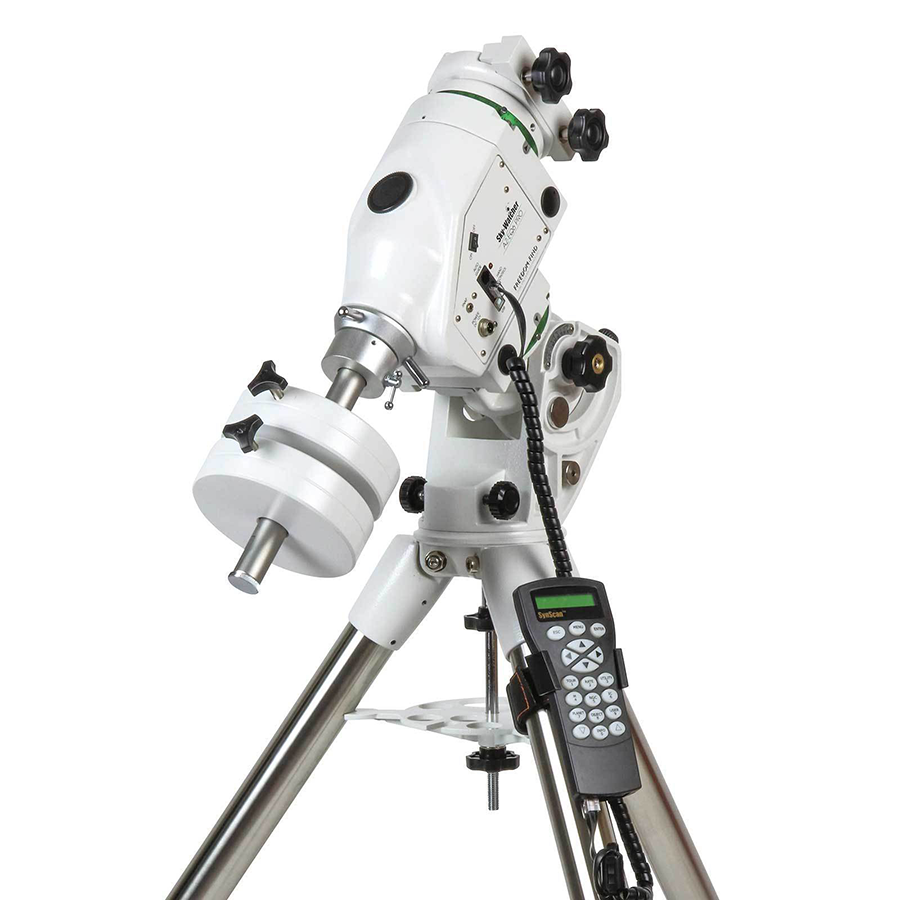

Sky Watcher AZ-EQ6 MountUltimate Dual Equatorial and Altazimuth Mount
The Sky Watcher AZ-EQ6 Telescope Mount is a heavy-duty, multi-role mount engineered for both long-exposure astrophotography and visual observation. Featuring a 44-pound payload capacity and ultra-quiet belt-driven stepper motors, this mount seamlessly converts between Equatorial and Alt-Azimuth configurations. Equipped with Freedom Find auxiliary encoders and SynScan GoTo technology, the Sky Watcher AZ-EQ6 delivers high-precision tracking and seamless star-hopping.
Precision Tracking and ControlAdvanced Drives and Dual Telescope Capability
Designed to provide maximum versatility for amateur astronomers and astrophotographers, the Sky Watcher AZ-EQ6 Telescope Mount utilizes belt drives on both RA and Dec axes to minimize gear backlash and ensure whisper-quiet operation. The included secondary mounting saddle allows you to attach a dual telescope setup in AZ mode, ideal for solar observation, outreach, or multi-field imaging. With an onboard USB-B port for PC direct connection, illuminated polar scope, built-in PEC training, and an expansive 42,000+ object database, the Sky Watcher AZ-EQ6 is the ultimate backbone for your optical tube assembly.
Technical SpecificationsMount Engineering and System Data
Payload Capacity
44 lbs (20 kg) (weight)
Mount Type
Dual EQ / AZ Hybrid Mount
Drive System
Stepper Motors with Belt Drive
Hand Controller
SynScan GoTo Hand Controller
Object Database
42,000+ Celestial Objects
Encoders
Freedom Find Auxiliary Encoders
PC Connection
USB-B Port Direct Connect
Polar Scope
Illuminated Polar Finderscope Included
Counterweights Included
2 x 11 lbs
PEC Training
Built-in Periodic Error Correction
Core System CapabilitiesFeatures Built for Astrophotography Performance
Payload Rating44-pound capacity supports heavy optical tubes and imaging accessories
Hybrid Dual ModesOperates in both Equatorial and Alt-Azimuth tracking configurations
Whisper-Quiet Belt DriveReduced gear count lowers backlash for superior tracking accuracy
Dual OTA MountingSecondary saddle enables mounting two telescopes side-by-side
Freedom Find TechnologyAuxiliary encoders preserve alignment during manual hand adjustment
SynScan GoTo SystemAutomated targeting for over 42,000 celestial objects via controller
Direct PC ControlIntegrated USB-B side panel port simplifies computer imaging control
Polar Alignment AidsIncluded illuminated polar scope and hand-controller alignment routine
Frequently Asked QuestionsEverything you need to know
What is the payload capacity of the Sky Watcher AZ-EQ6 Telescope Mount?
The Sky Watcher AZ-EQ6 Telescope Mount has a maximum payload capacity of 44 pounds (20 kg), making it well-suited for heavy optical tube assemblies and specialized imaging equipment.
Can the Sky Watcher AZ-EQ6 Telescope Mount be used in both EQ and AZ modes?
Yes, the Sky Watcher AZ-EQ6 Telescope Mount features a hybrid design that allows operation in Equatorial (EQ) mode for long-exposure imaging and Alt-Azimuth (AZ) mode for visual observing or dual-telescope setups.
Will I lose star alignment if I move the Sky Watcher AZ-EQ6 Telescope Mount manually?
No, the Sky Watcher AZ-EQ6 Telescope Mount includes Sky-Watcher's Freedom Find auxiliary encoders, which allow you to unlock the clutches and move the mount manually without losing your initial GoTo star alignment.
How do I connect the Sky Watcher AZ-EQ6 Telescope Mount to a PC?
The Sky Watcher AZ-EQ6 Telescope Mount features a built-in USB-B port on its side panel, allowing direct connection to a computer to control the mount using the SynScan Pro application or standard ASCOM-compatible astronomy software.
