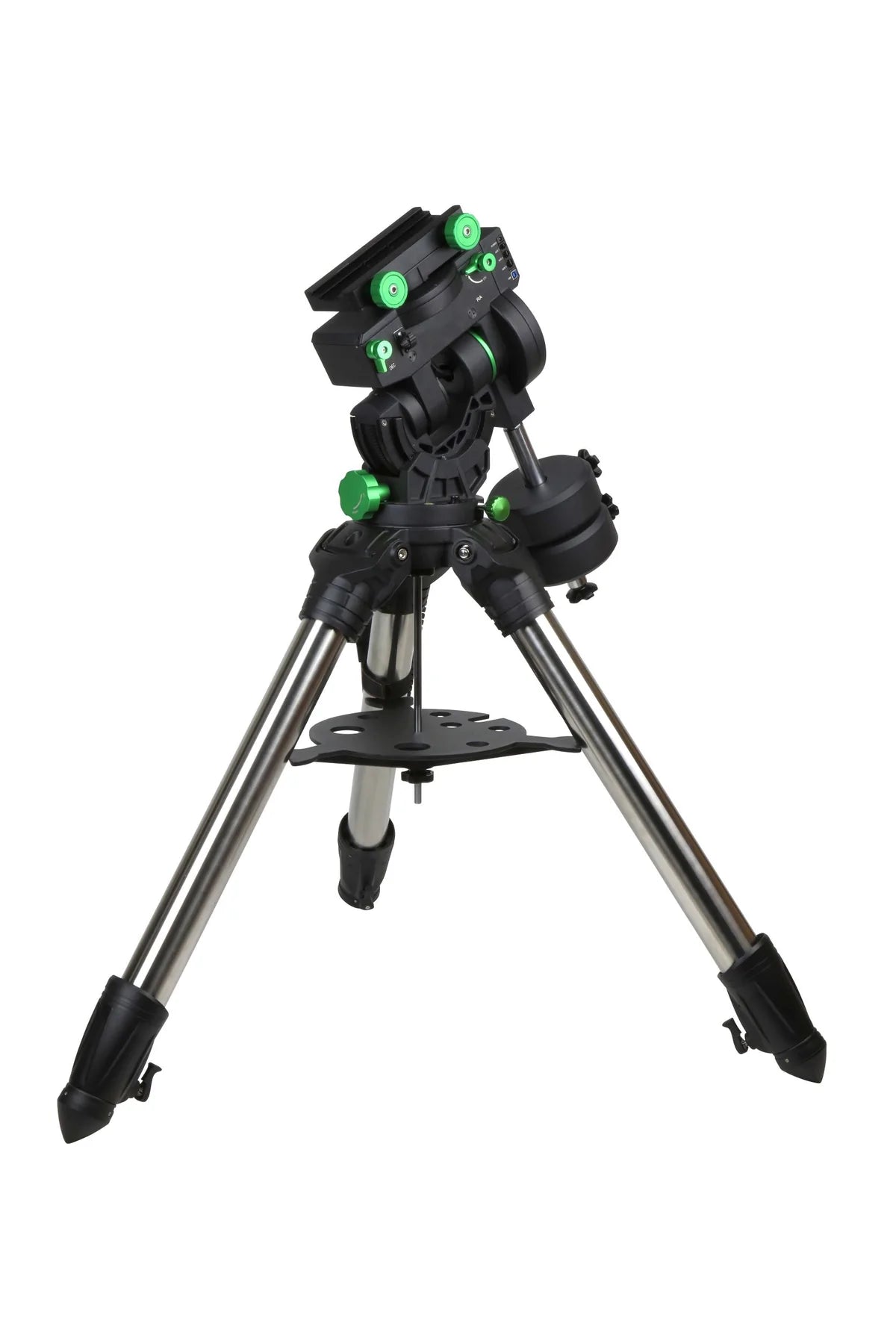

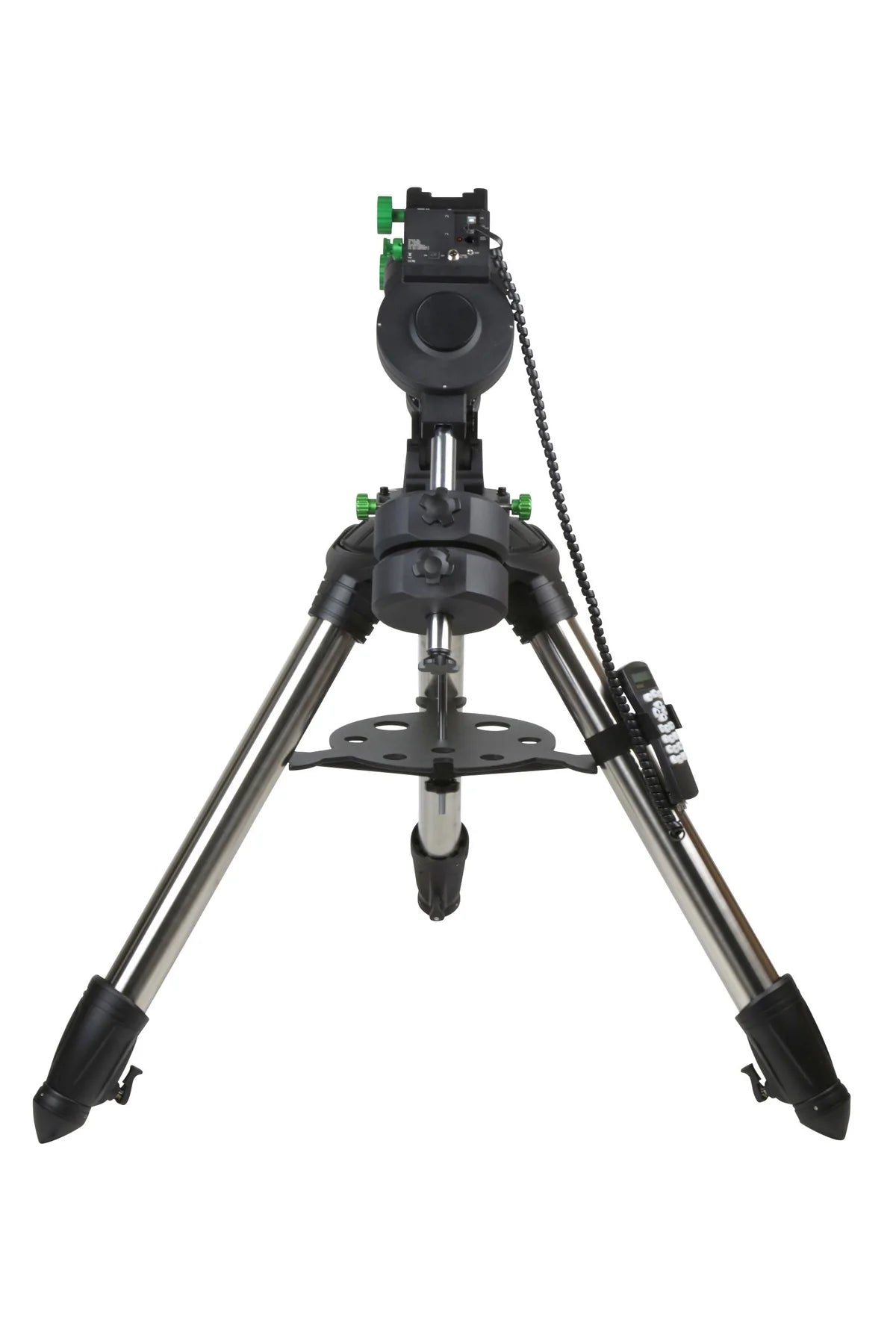

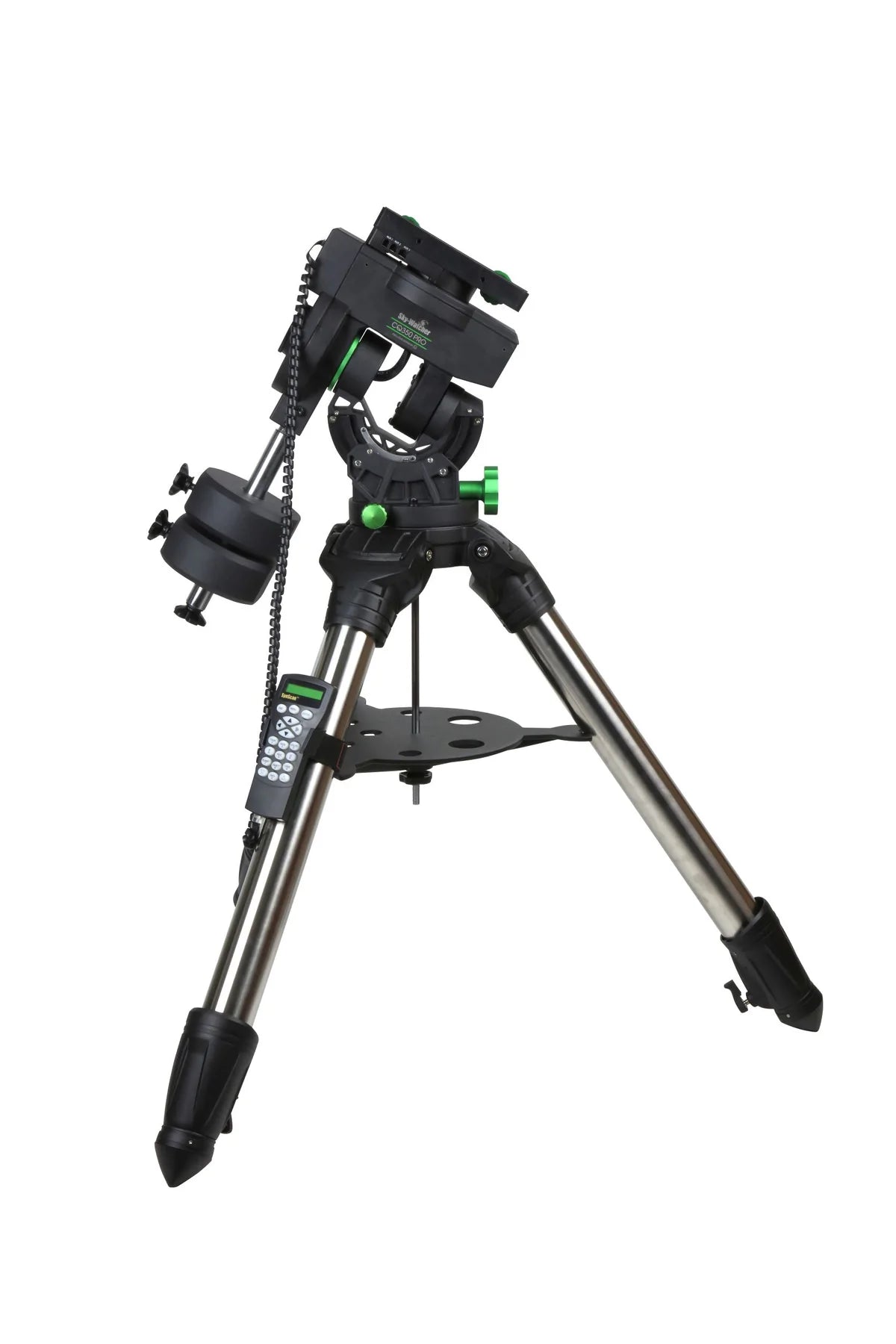

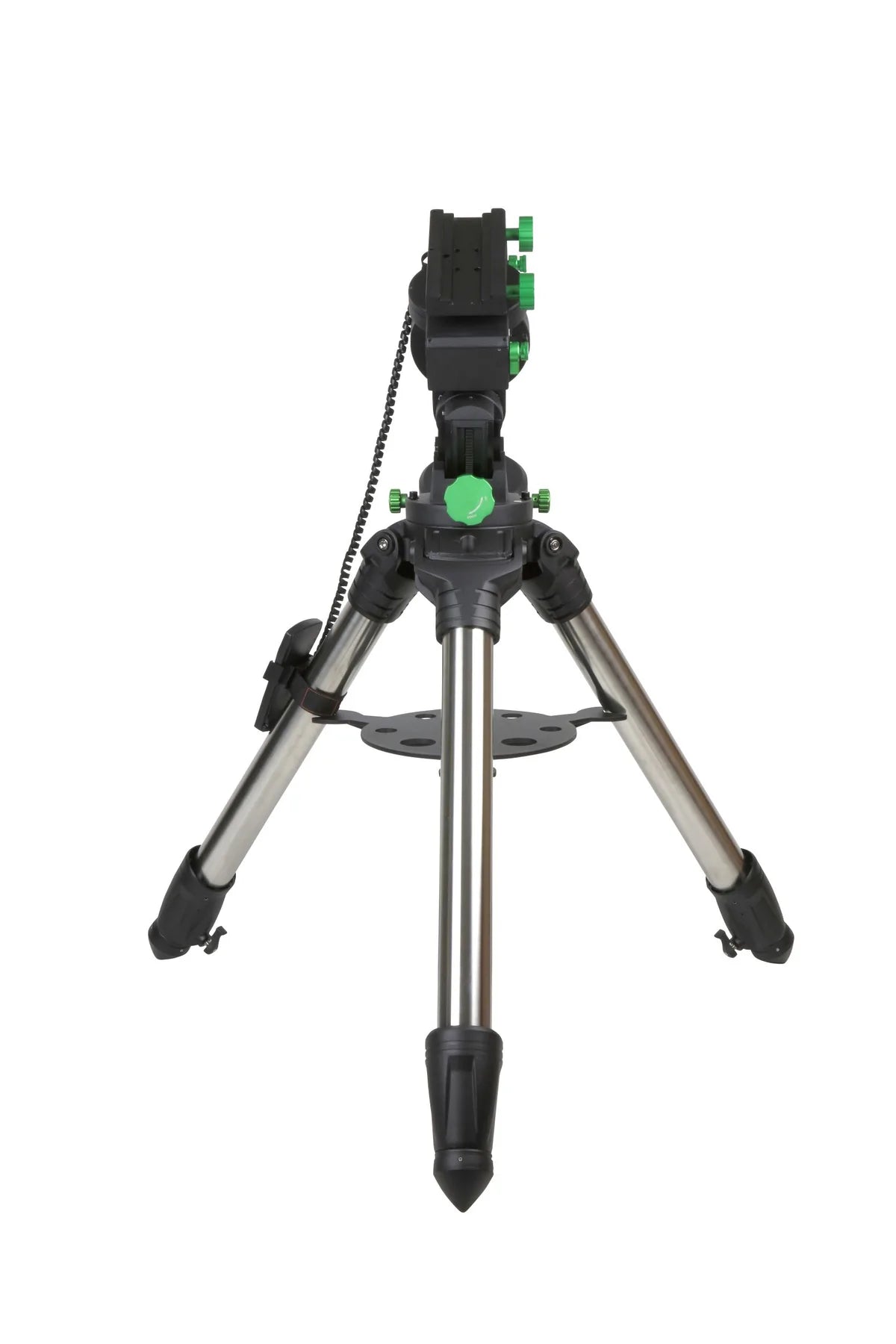

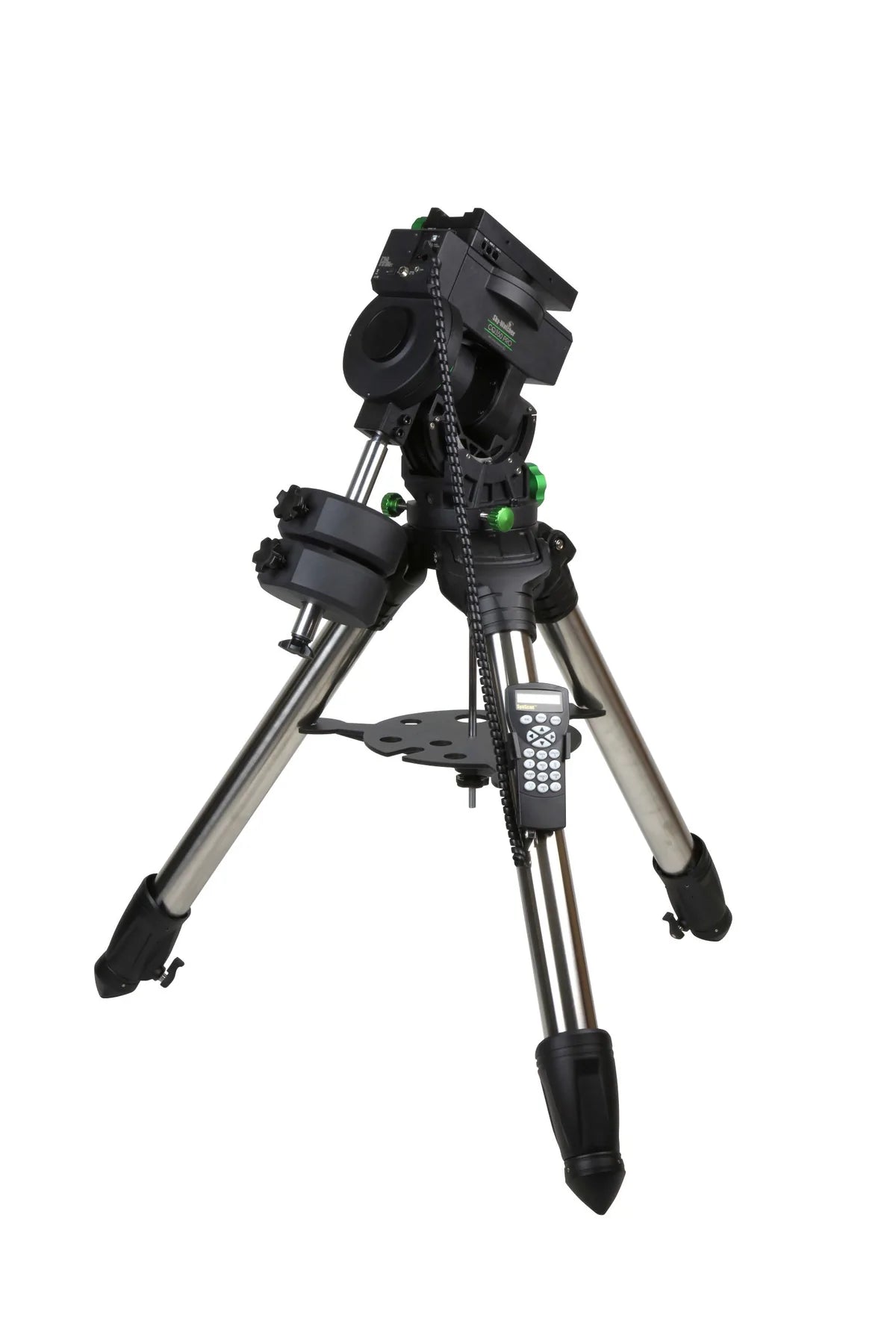

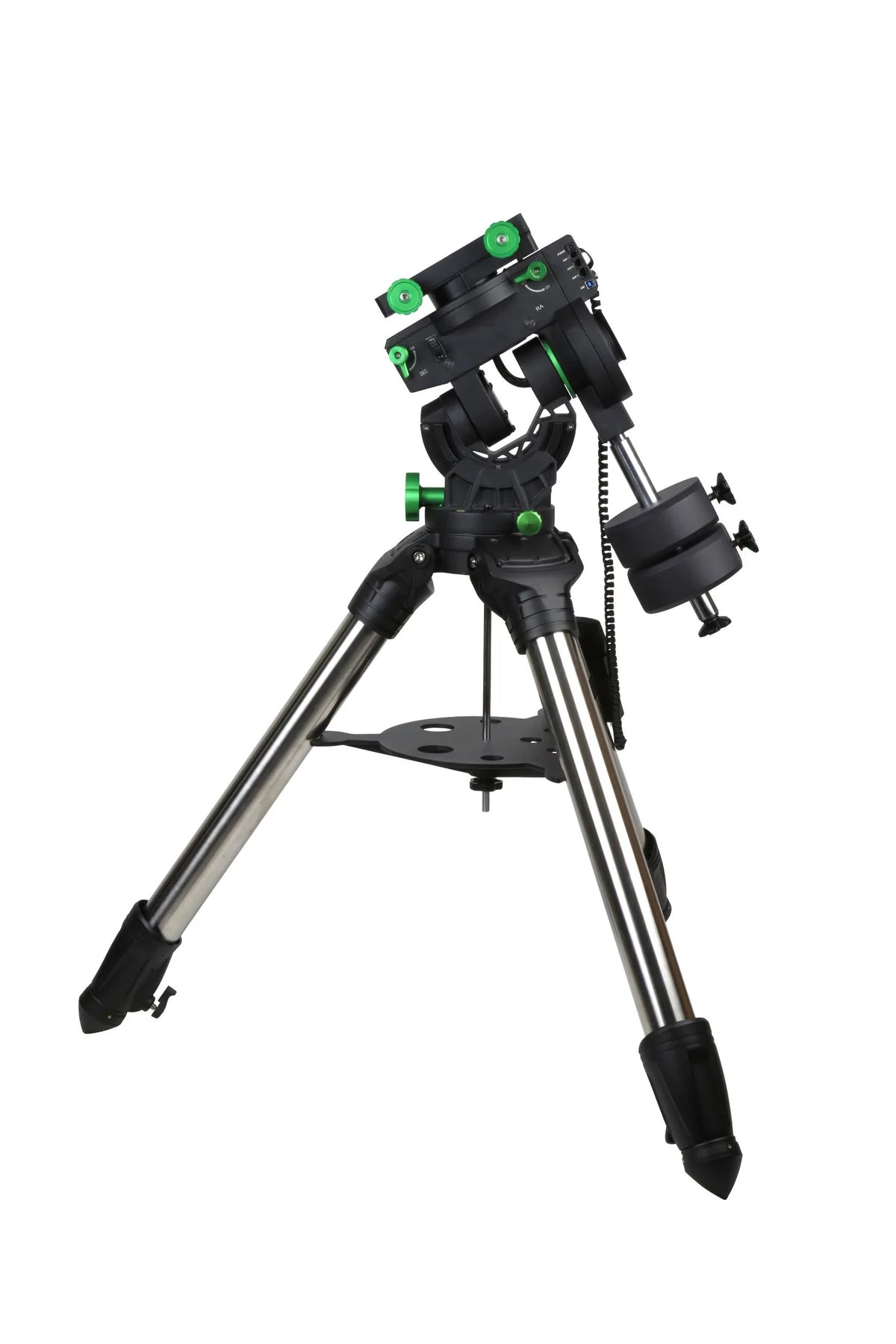

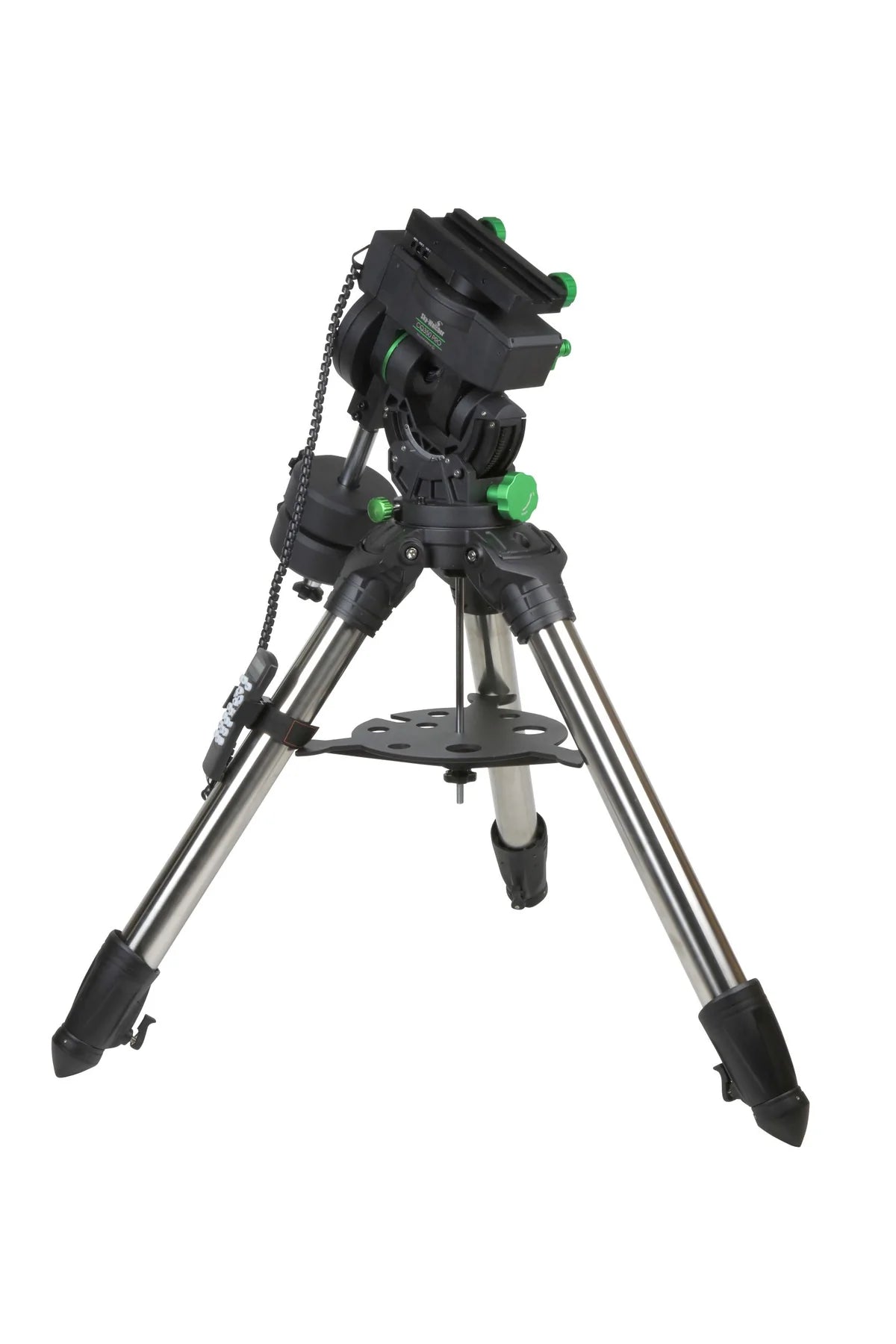

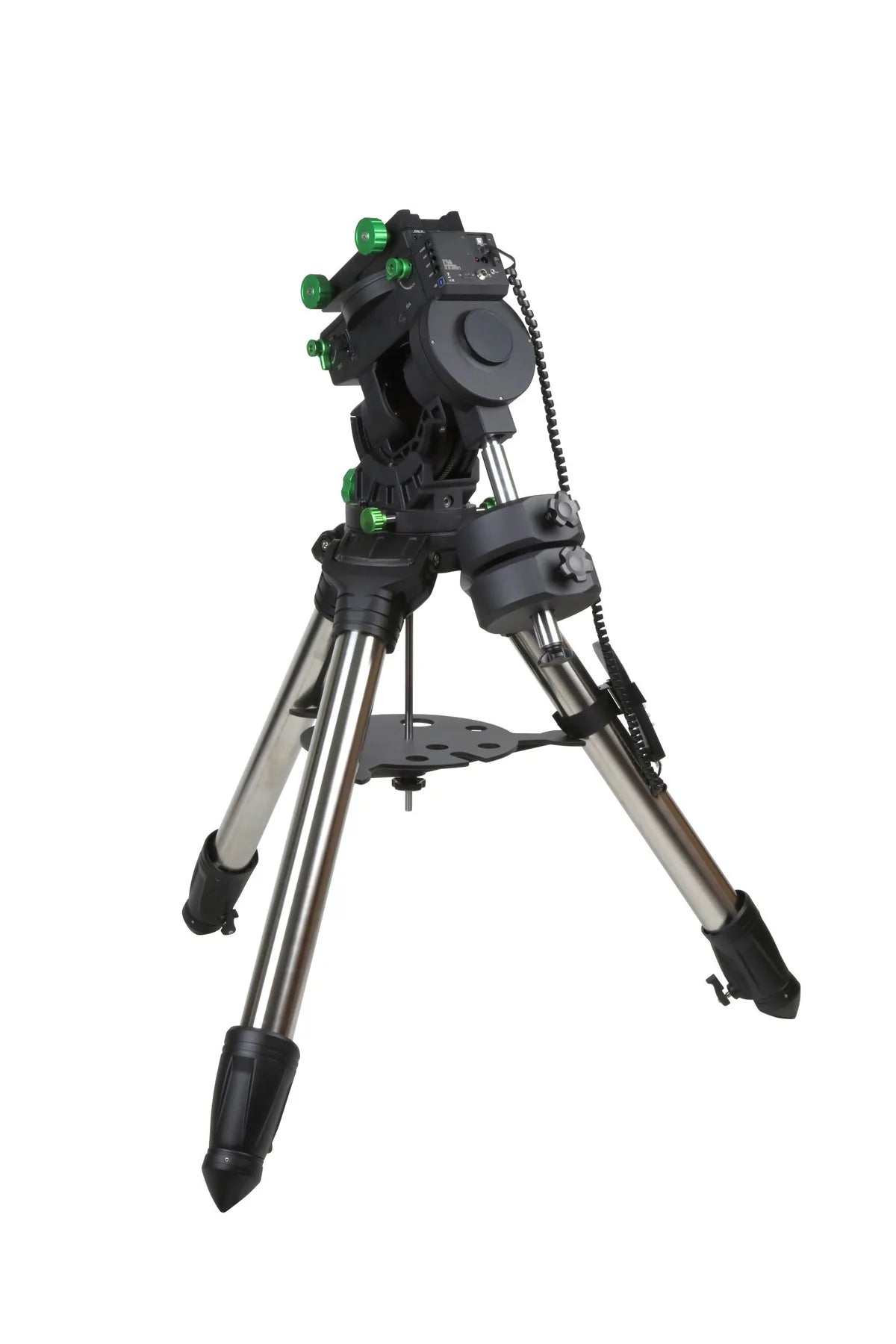

SkyWatcher CQ350 Pro Mount with Heavy-Duty Field Tripod (S30810)
$4,695.00
Payload Capacity
77 lbs Heavy Duty Support
Precision Belt Drive
Whisper Quiet Astrophotography Tracking
SynScan GoTo System
Over 42000 Object Database
Advanced Cable Management
Integrated Power And USB Hub
Hybrid Stepper Motors
Pinpoint Target Tracking Accuracy
Heavy Duty Tripod
Observatory Level Field Stability
Observatory Performance UnlockedPrecision Tracking for Deep-Sky Imaging
The Sky-Watcher CQ350 Pro Mount with Heavy Duty Field Tripod offers an impressive 77-pound payload capacity engineered specifically for serious astrophotography setups and massive optical tube assemblies. Featuring an advanced equatorial GoTo mount drive with quiet belt integration, this system seamlessly bridges the gap between field portability and observatory-class performance. Designed for demanding imagers, the CQ350 Pro Mount delivers pinpoint tracking accuracy to capture deep-sky targets with stunning clarity.
Advanced Sky-Tracking EngineEngineered for Serious Astrophotography Setups

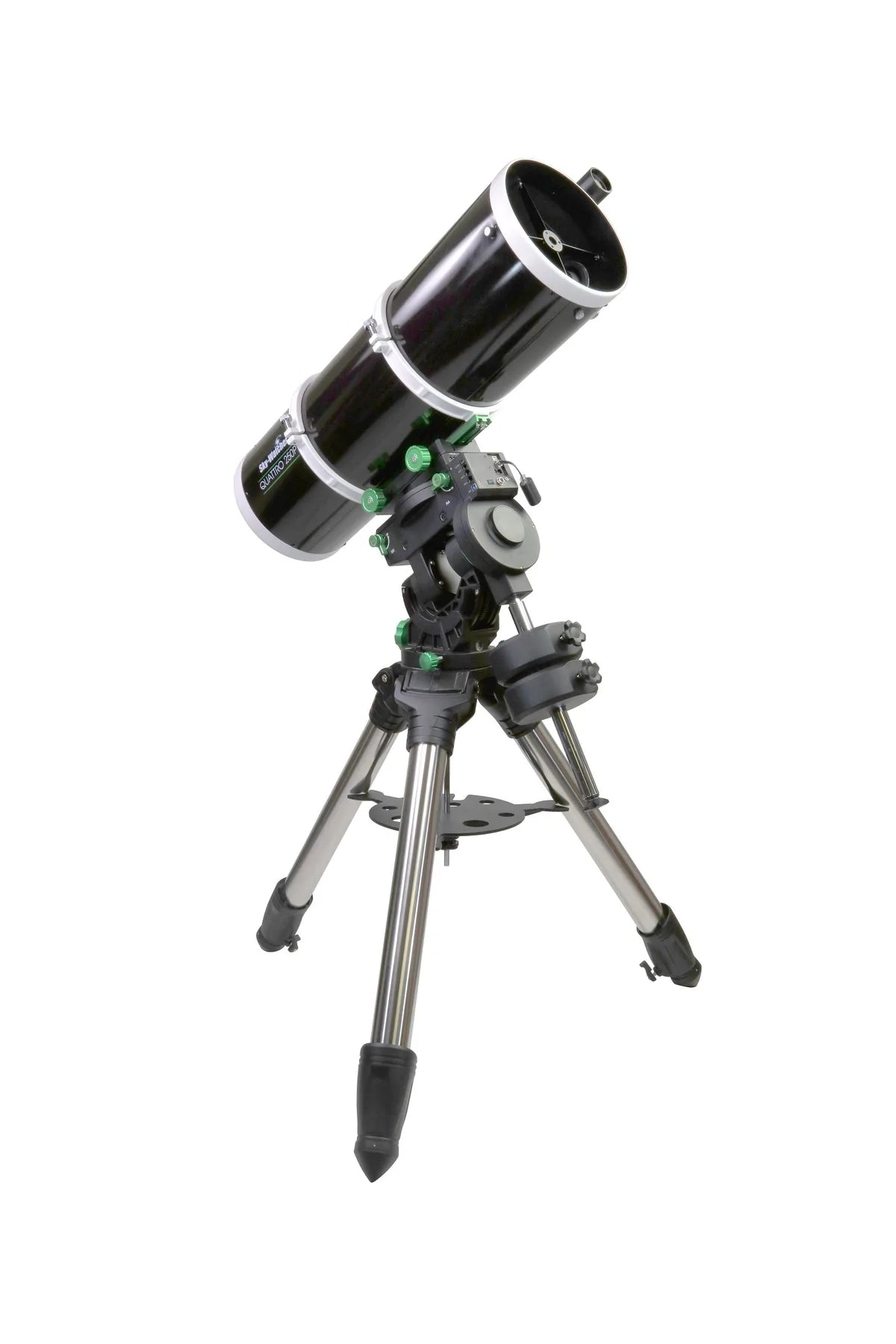

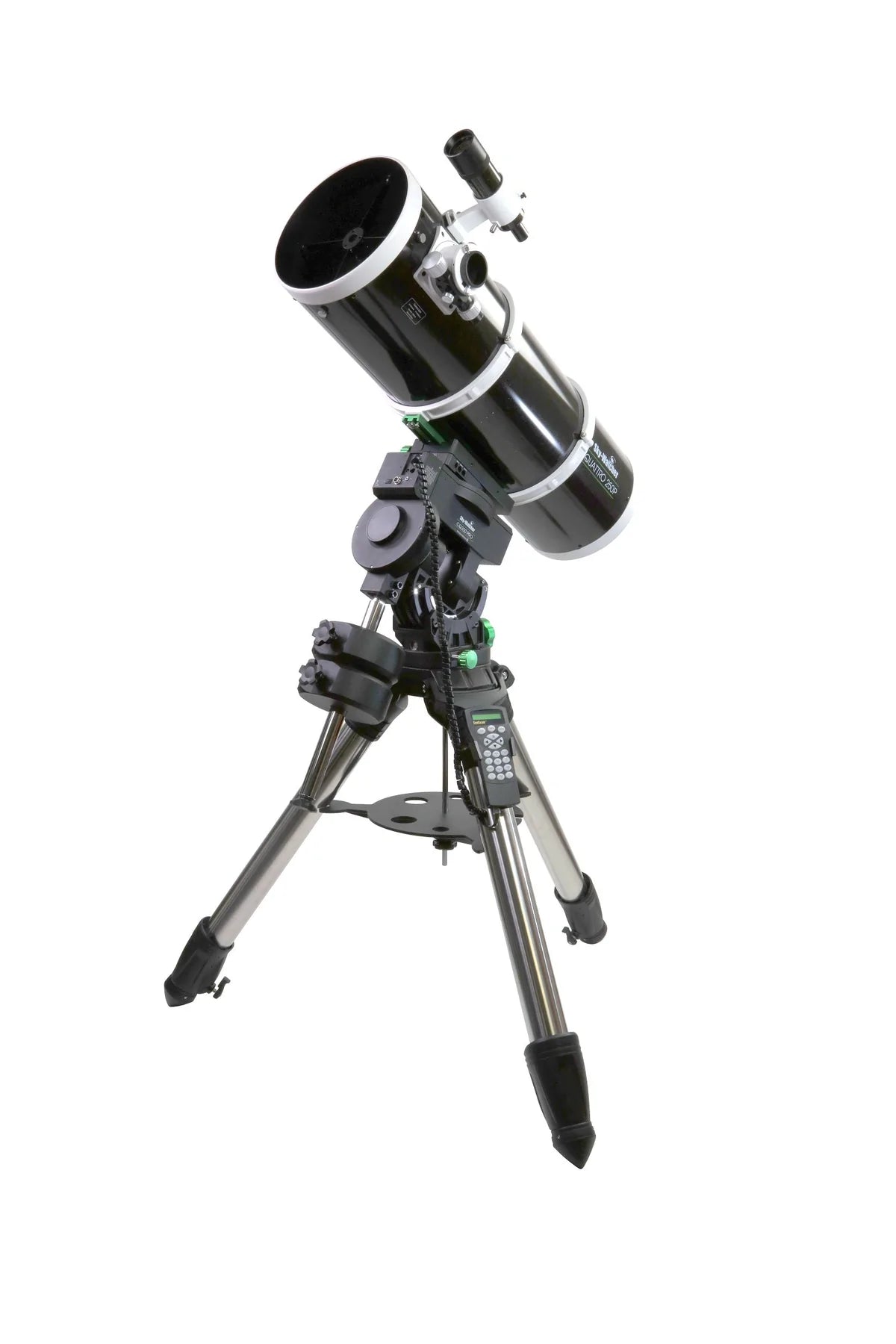

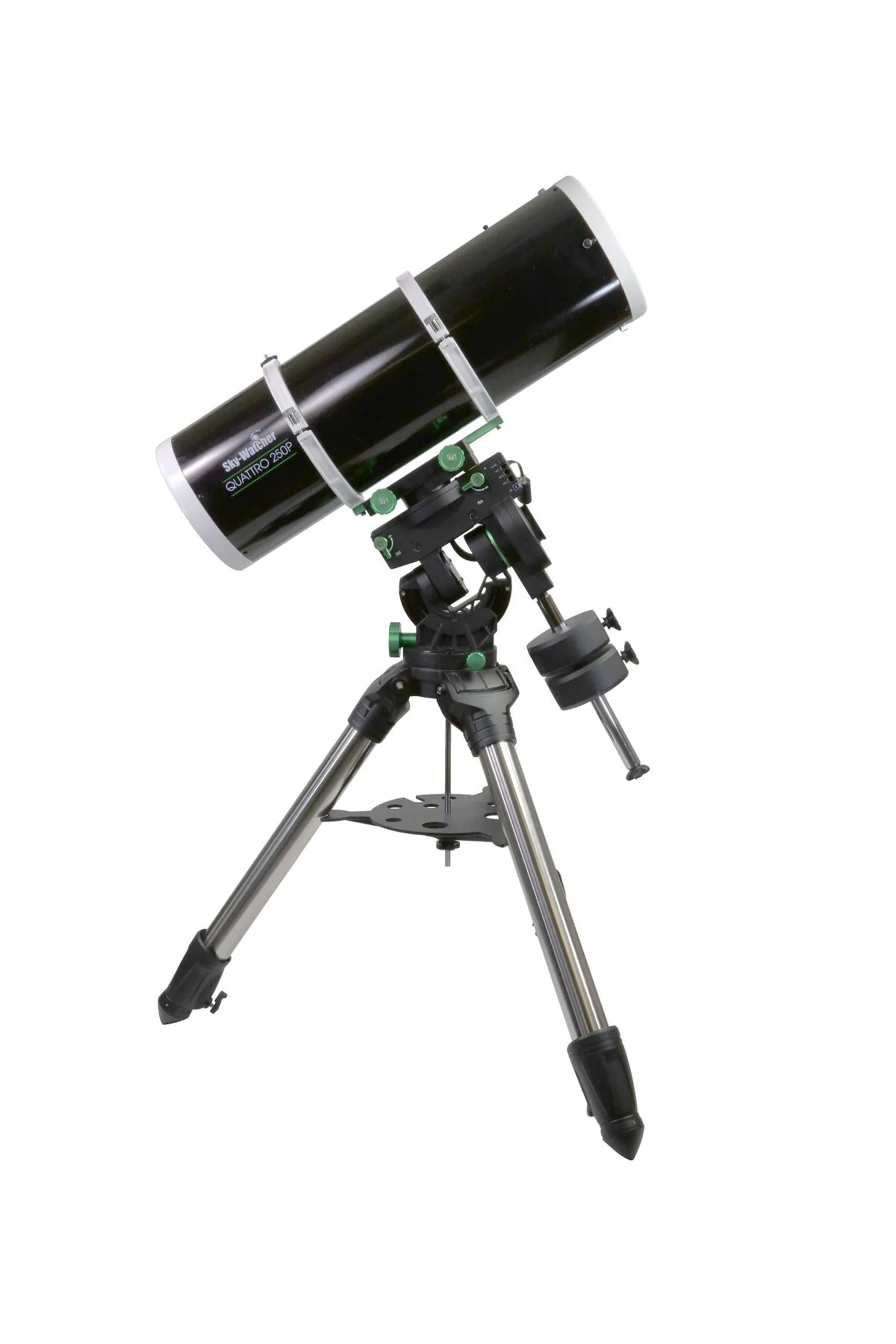

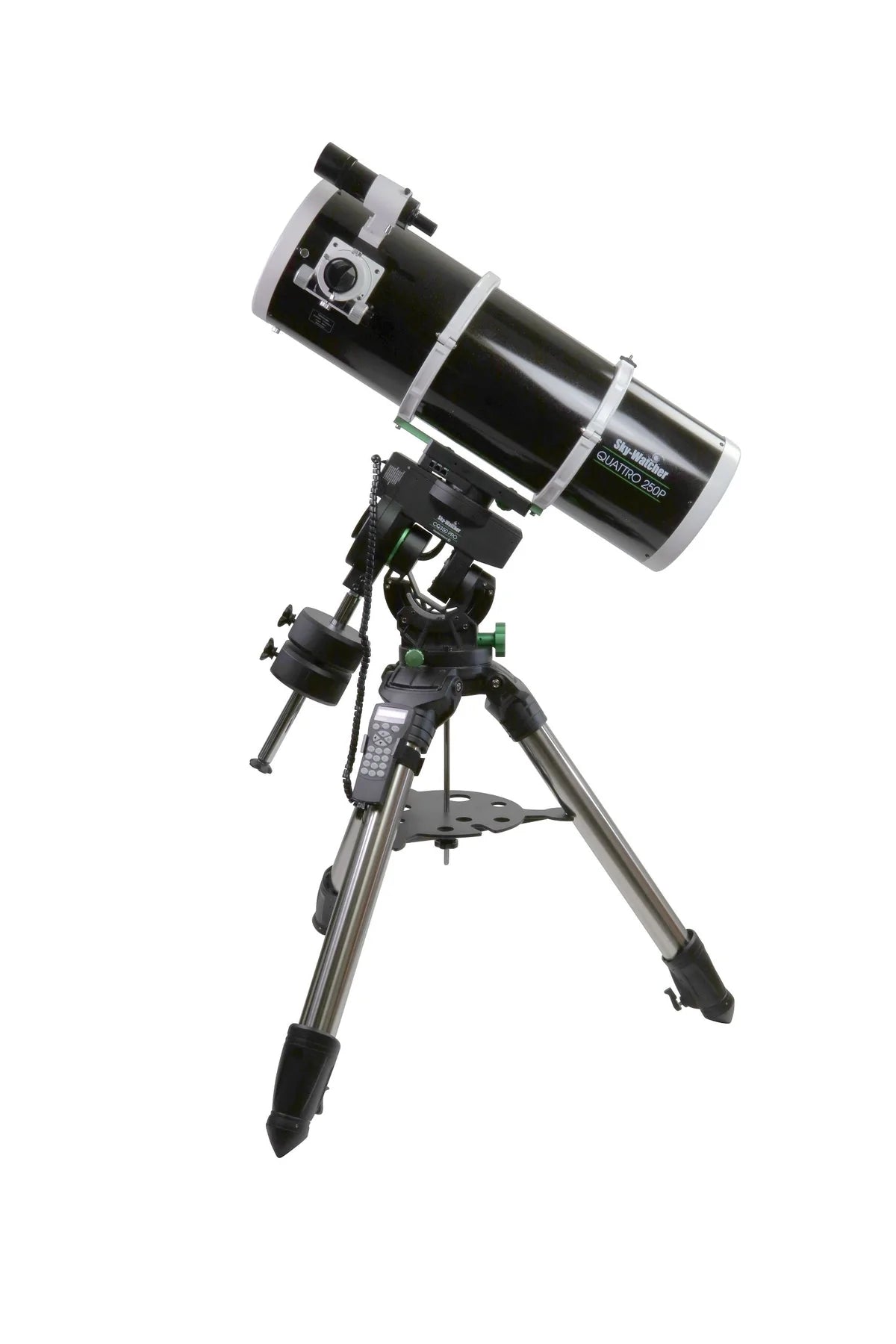

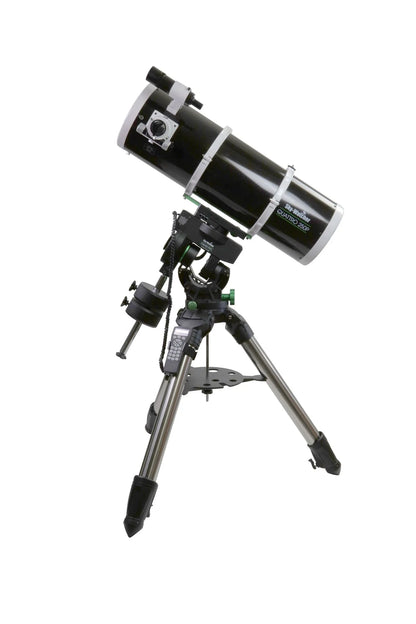

Built to handle heavy imaging loads, the Sky-Watcher CQ350 Pro Mount with Heavy Duty Field Tripod provides a rock-solid platform for large refractors, Newtonians, guidescopes, and heavy camera equipment. Driven by high-precision 0.9° hybrid stepper motors and low-backlash synchronous belt drives, this astrophotography equatorial mount significantly reduces periodic error while maintaining silent operation. Smart cable management is integrated directly into the mount head, providing four USB ports, multiple 12V power outputs, and direct SNAP shutter control to eliminate cable snags during meridian flips. Complete with the SynScan V5 GoTo hand controller featuring a database of over 42,000 astronomical objects, the Sky-Watcher CQ350 provides modern astronomers with maximum control, extreme stability, and incredible imaging payload capability.
Technical SpecificationsDetailed Engineering and Dimension Data
Mount Type
Equatorial
Payload Capacity
77 lbs / 35 kg
Mount Head Weight
33 lbs / 15 kg
Tripod Weight
34.5 lbs / 15.6 kg
Tripod Leg Diameter
70 mm
Mounting Saddle
Dual D/V-style
Drive Type
Synchronous belt drive
Motor Type
0.9° High-Precision Hybrid Stepper Motor
Tracking Modes
Sidereal, Solar, Lunar
Latitude Range
10° to 70°
RA Gear Size
155 mm
GoTo System
SynScan V5 Hand Controller
GoTo Database
42,000+ objects
Power Requirements
DC 11V to 16V
Integrated Cable Management
4x USB Out, 3x Power Out, 3x AUX Out/In, SNAP Port
Counterweights Included
2x 22 lbs / 9.9 kg
Counterweight Bar
15" x 31.5mm
Tripod Height Range
30.5" to 42.5"
Key Mount FeaturesBuilt for Heavy Astrophotography Payloads
Massive Load SupportHolds up to 77 lbs of OTAs, cameras, and accessories
Precision Belt DrivesSignificantly reduces periodic error and backlash for crisp exposures
Onboard Hub ManagementBuilt-in 4x USB port hub and multiple 12V DC power output jacks
Direct SNAP Shutter ControlTriggers DSLR exposures directly through the mount controller
SynScan GoTo DatabaseQuick access to over 42,000 deep-sky stars, nebulae, and galaxies
Dual Dovetail SaddleAccepts both D-style and V-style mounting plates seamlessly
Rock-Solid TripodIncludes heavy-duty steel tripod with 70mm legs for vibration suppression
Auto-Home & Hard StopsBuilt-in safety stops and automated homing sensors prevent collision
Frequently Asked QuestionsEverything you need to know
What is the maximum weight capacity of the Sky-Watcher CQ350 Pro Mount with Heavy Duty Field Tripod?
The Sky-Watcher CQ350 Pro Mount features a maximum payload capacity of 77 lbs (35 kg), making it capable of holding large optical tubes like 150mm triplet refractors or 10-inch Newtonians along with guide scopes and heavy camera gear.
Does the Sky-Watcher CQ350 Pro Mount with Heavy Duty Field Tripod include integrated cable management?
Yes, the Sky-Watcher CQ350 Pro Mount includes built-in cable management ports right on the mount head, featuring a 4-port USB hub, three 2.1mm power output ports, AUX ports, and a camera SNAP port to keep your setup tangle-free.
What power supply does the Sky-Watcher CQ350 Pro Mount require?
The Sky-Watcher CQ350 Pro Mount requires a 11V to 16V DC power source capable of supplying sufficient amperage, connected via the included secure aircraft-style locking power cable.
Is a tripod included with the Sky-Watcher CQ350 Pro Mount?
Yes, this package includes the Sky-Watcher CQ350 Pro Mount head along with the Heavy Duty Field Tripod featuring 70mm steel legs for maximum field stability.
