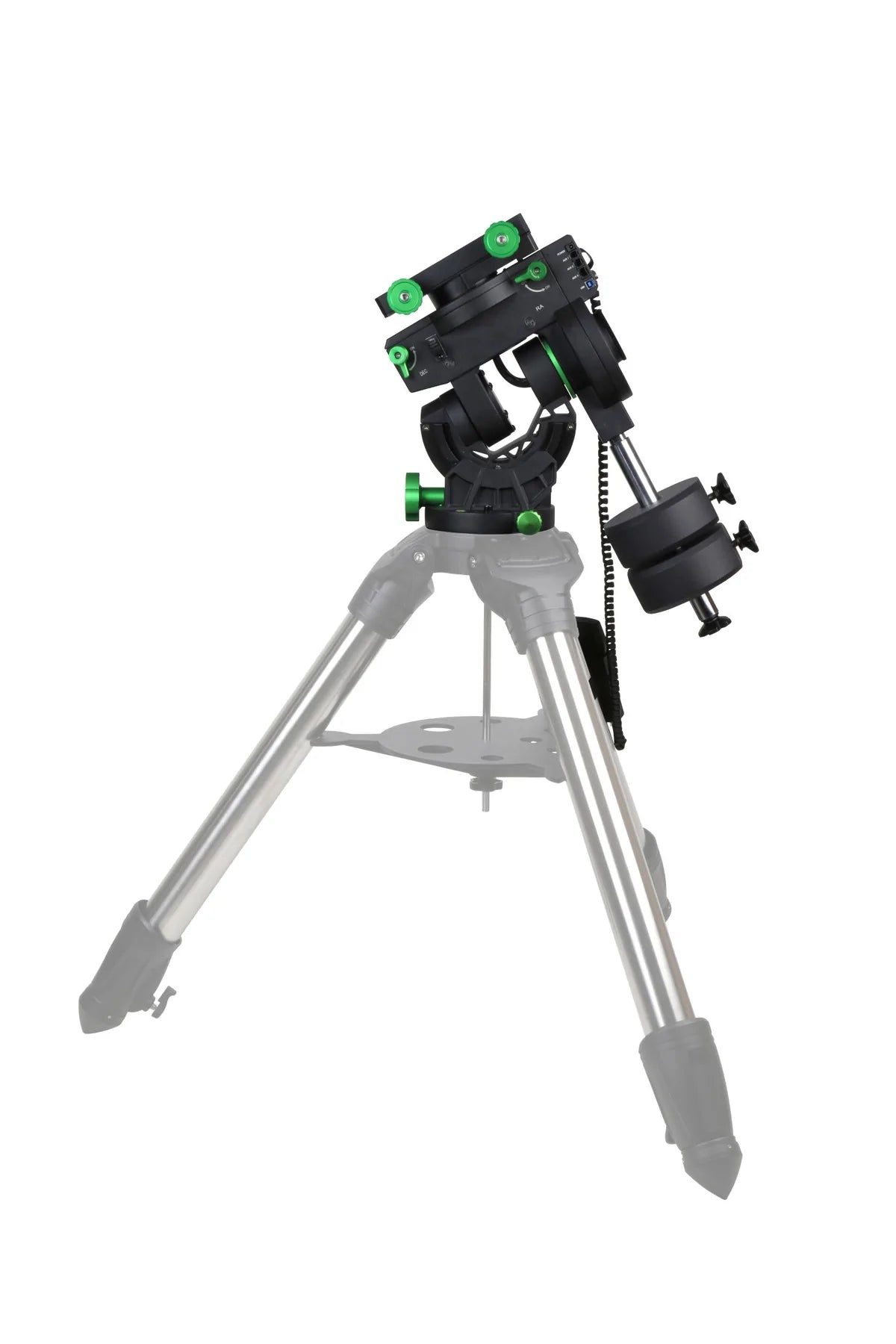

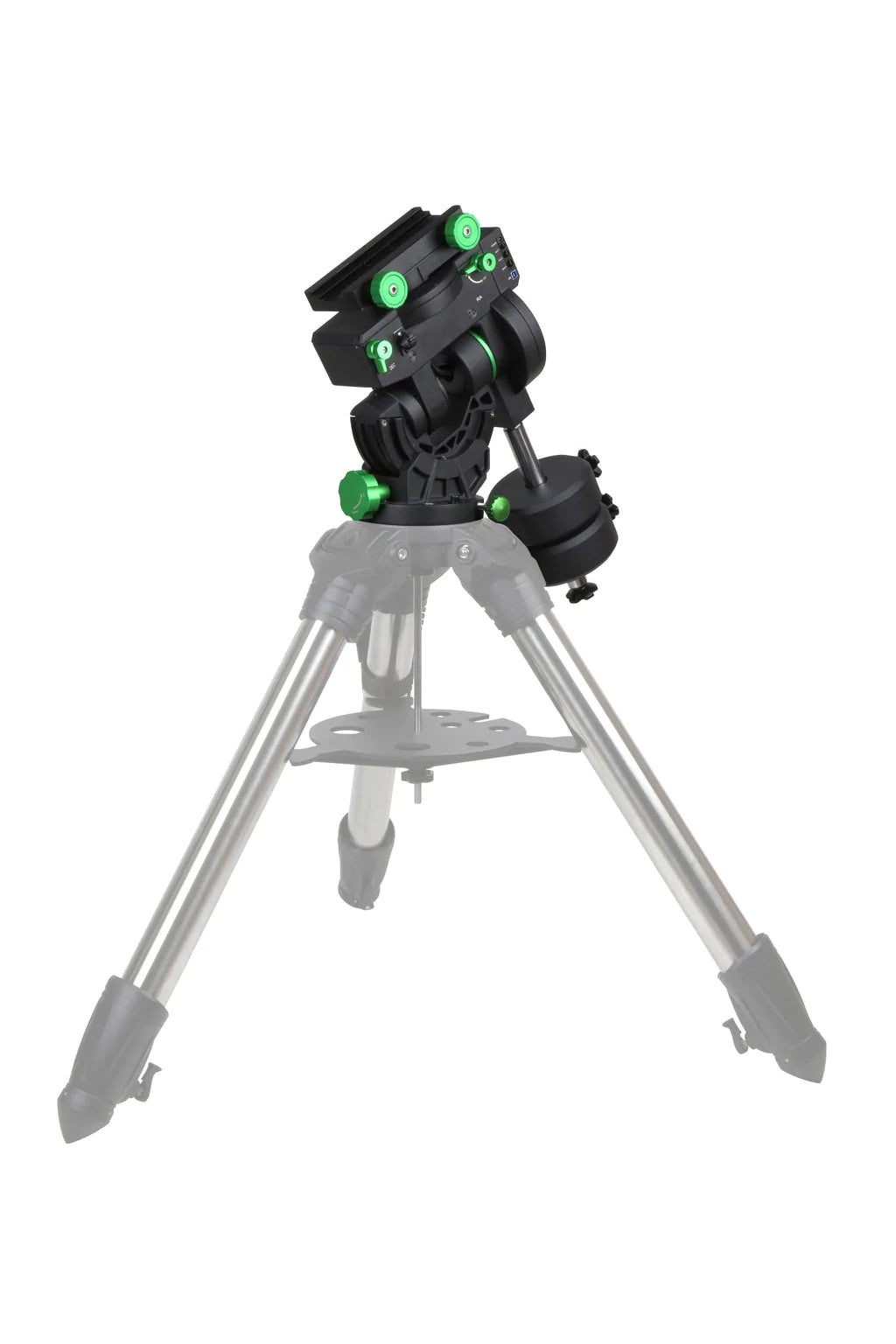

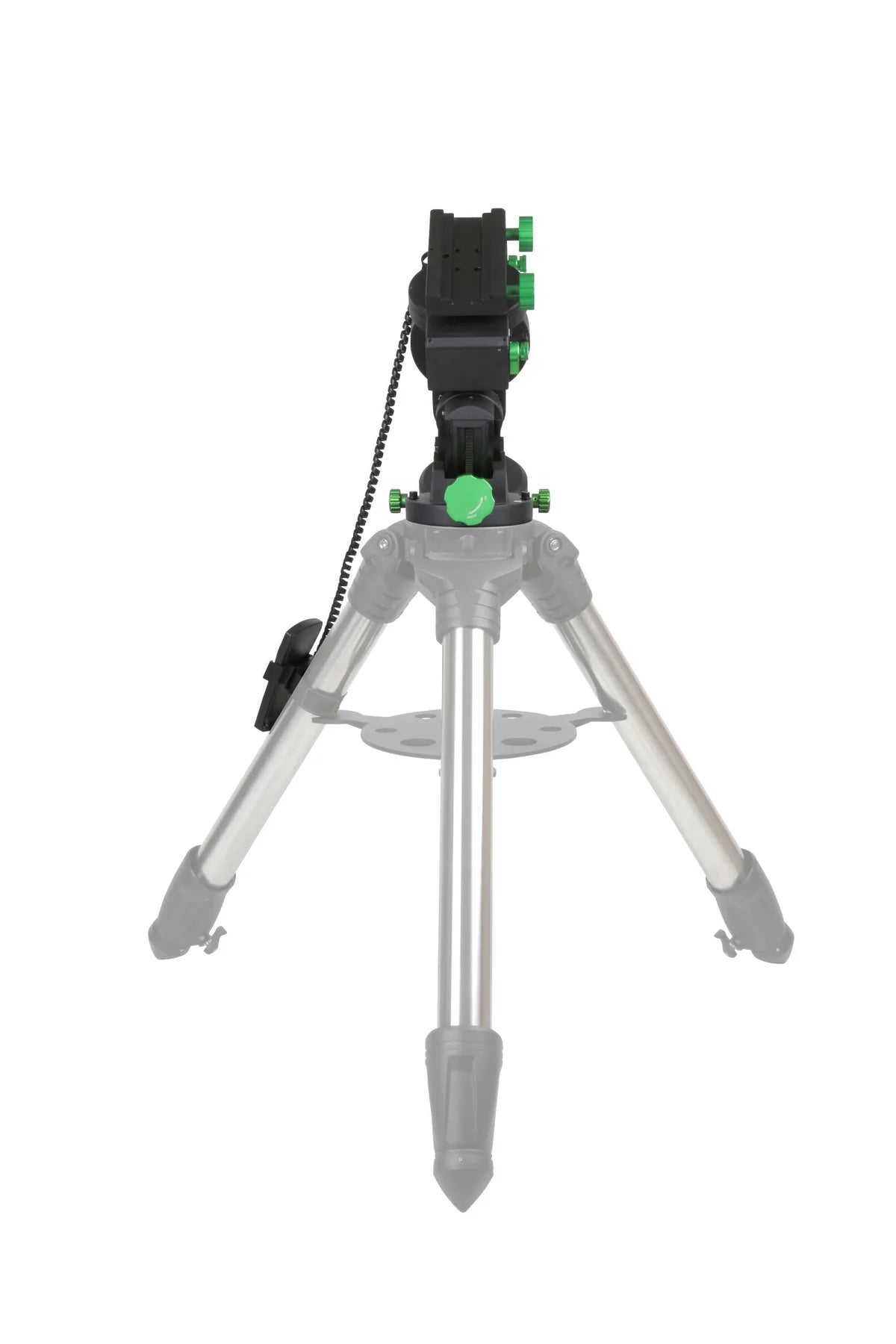

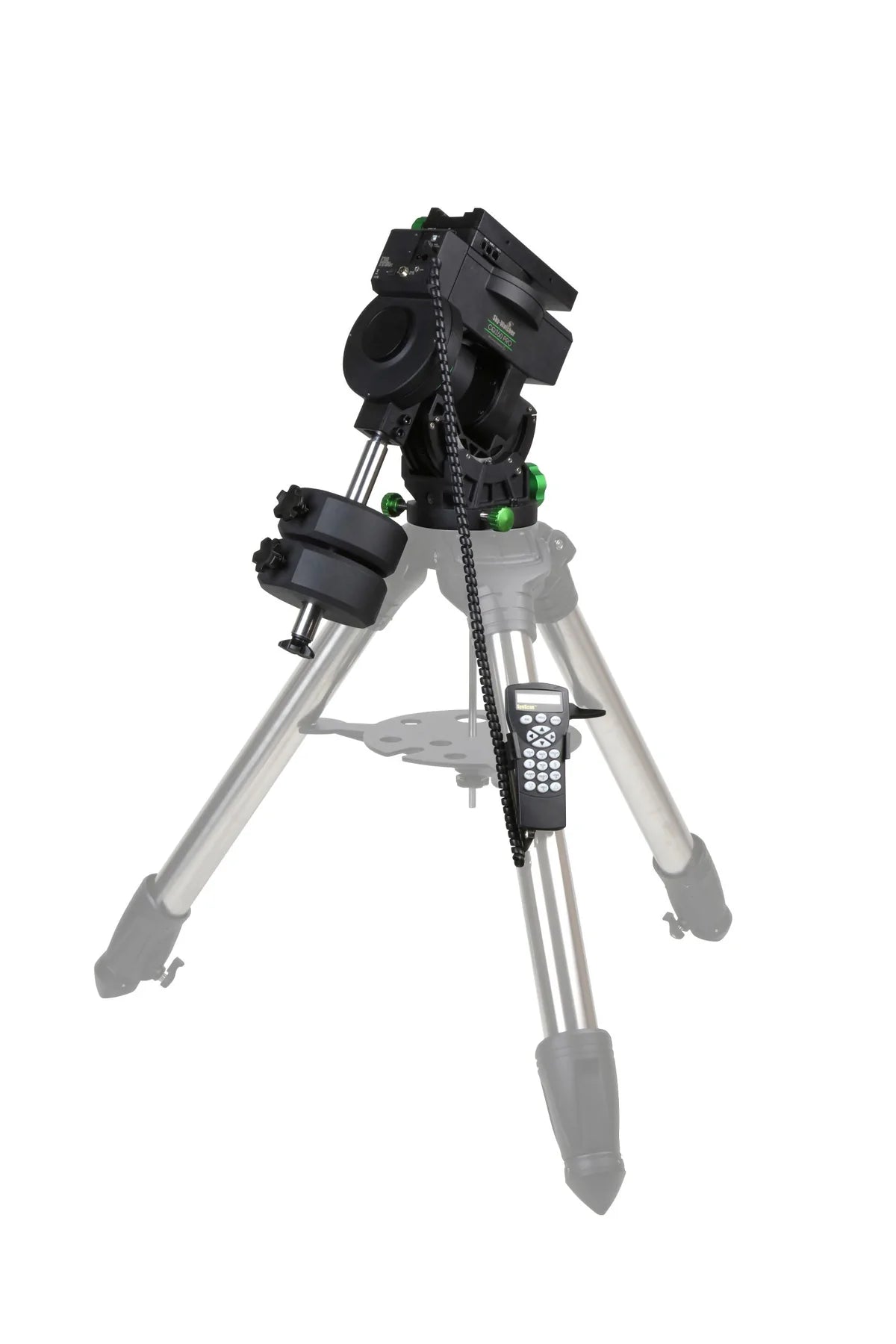

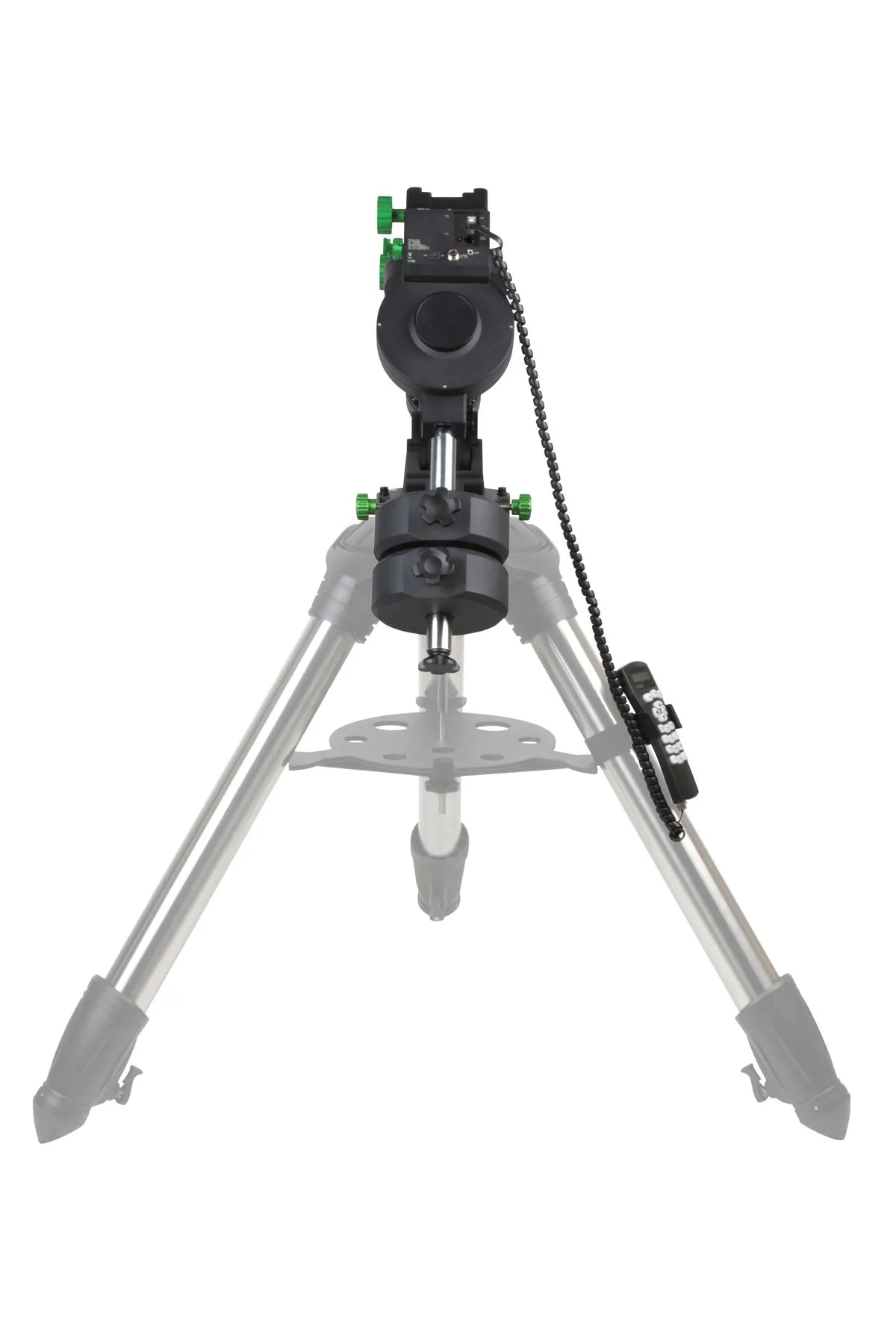

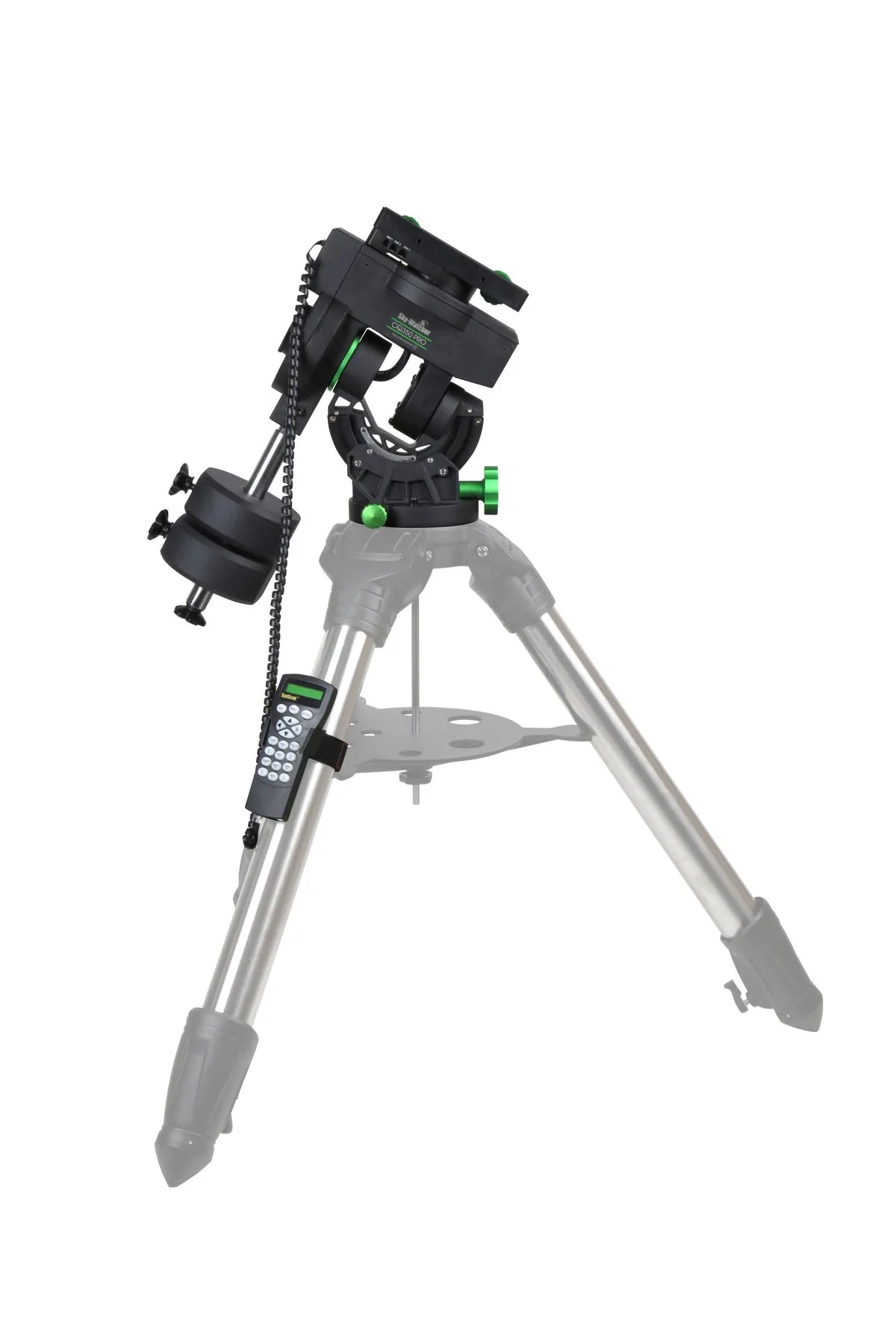

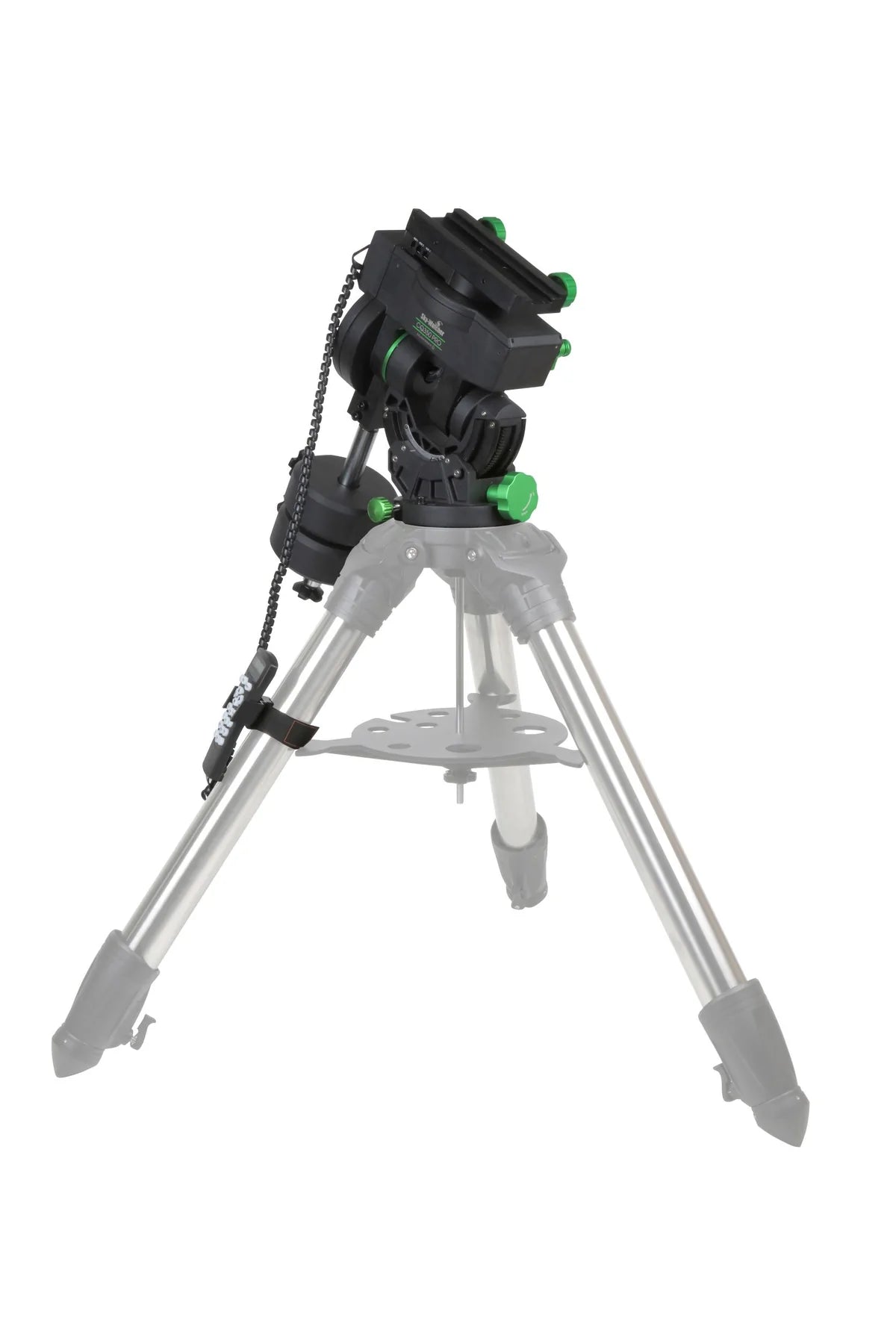

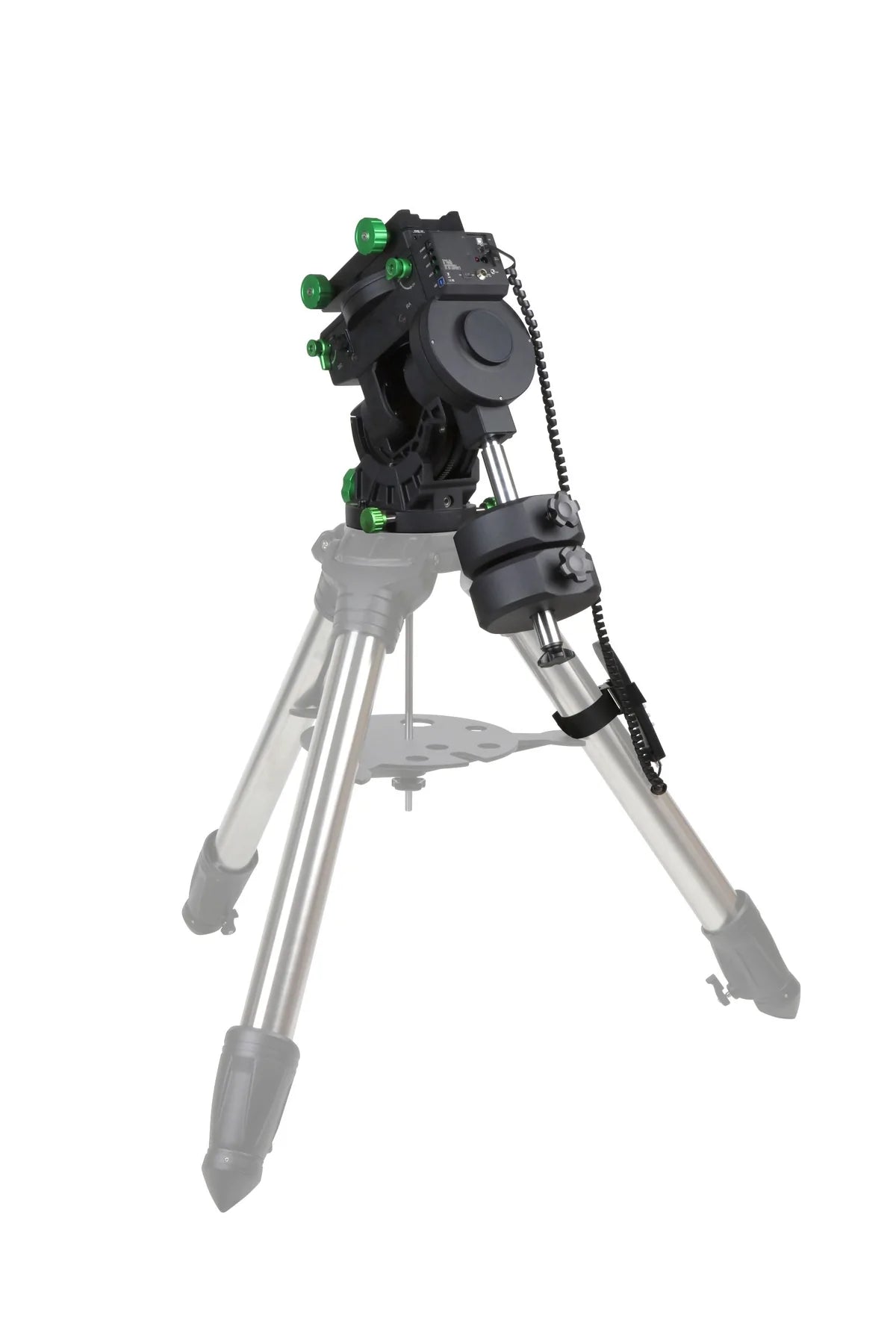

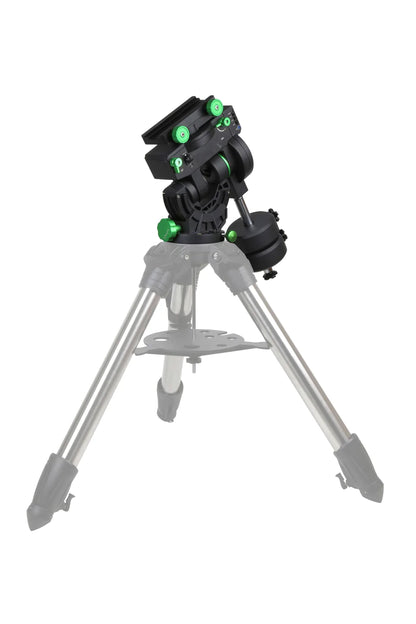

SkyWatcher CQ350 Pro Mount Head Only with Counterweights (S30820)
$3,895.00
77 lb Capacity
Observatory Class Payload Support
Hybrid Stepper
High Precision Stepper Motor
Belt Drive System
Low Backlash Ultra Quiet
Cable Management
Integrated Power USB Hub
SynScan GoTo
Over 42000 Target Database
Dual Saddle Plate
Fits D and V Plates
Observatory Class Sky TrackingPrecision Equatorial Mount for Astrophotography
The Sky-Watcher CQ350 Pro Mount Head Only with Counterweights delivers elite observatory-class performance for serious astrophotographers and astronomy enthusiasts. Featuring a impressive 77-pound payload capacity, this computerized equatorial telescope mount effortlessly carries massive optical tube assemblies along with heavy imaging equipment. Built-in cable management, quiet belt drives, and accurate tracking make the Sky-Watcher CQ350 Pro the ultimate centerpiece for deep-sky imaging setups.
Engineered for Superior ImagingAdvanced Equatorial Tracking and Control
Filling the space between portable field mounts and permanent observatory platforms, the Sky-Watcher CQ350 Pro Mount Head Only with Counterweights provides rock-solid performance for demanding optical setups. Driven by high-precision 0.9° hybrid stepper motors and smooth belt drives, this GoTo telescope mount minimizes gear backlash and dramatically reduces periodic error during long exposures. Astrophotographers will appreciate the intelligent cable management system, which offers an onboard 4-port USB hub, 12V power outputs, and dedicated SNAP and autoguider ports right on the moving head to eliminate cord tangles. Controlled by the intuitive SynScan hand controller with over 42,000 celestial objects in memory, the Sky-Watcher CQ350 Pro Mount Head gives you full authority over the night sky.
Technical SpecificationsFull Hardware Capabilities and Specs
Mount Type
Equatorial
Payload Capacity
77 lbs / 35 kg
Mount Head Weight
33 lbs / 15 kg
Mount Head Dimensions
434mm x 176mm x 323mm
Motor Type
0.9° Hybrid Stepper
Drive Type
Belt Drive with Spring-Loaded Worms
Mounting Saddle
D/V Dual Style
RA Gear Size
155 mm
Latitude Range
10° to 70°
Tracking Modes
Sidereal, Solar, Lunar
GoTo Database
42,000+ Objects
Hand Controller
SynScan V5 RJ-45 (controller)
Power Requirements
DC 11V to 16V
USB Hub
4x USB-A Out, 1x USB-B In
Power Ports
3x 2.1mm Central Positive Out
AUX Ports
3x In, 3x Out
Included Counterweights
2x 22 lbs / 9.9 kg
Heavy Duty FeaturesBuilt for Deep Sky Astrophotography
Payload CapacityMassive 77-pound rating supports large telescopes and guiding setups
Whisper Quiet Belt DriveSynchronous belt drive delivers ultra-low backlash and smooth tracking
Integrated Cable ManagementOnboard USB hub and power outlets eliminate messy wire snags
SynScan GoTo ControllerPre-loaded database of 42,000+ stars, galaxies, and celestial objects
Dual Saddle PlateUniversal D/V saddle accepts both Losmandy and Vixen style dovetails
SNAP Camera ControlIntegrated shutter release port allows direct DSLR exposure scheduling
Autoguider ReadyDedicated ST-4 autoguide port enables precise long-exposure alignment
Frequently Asked QuestionsEverything you need to know
What is the weight capacity of the Sky-Watcher CQ350 Pro Mount Head?
The Sky-Watcher CQ350 Pro Mount Head features a massive 77-pound (35 kg) payload capacity, making it capable of holding large refractors, Newtonians, and astrophotography gear.
Does the Sky-Watcher CQ350 Pro Mount Head come with a tripod?
No, this package includes the Sky-Watcher CQ350 Pro Mount Head only with counterweights. It is compatible with EQ8-R style tripods and piers.
What counterweights are included with the Sky-Watcher CQ350 Pro Mount Head?
The package includes two 22-pound (9.9 kg) counterweights along with the counterweight bar.
Does the Sky-Watcher CQ350 Pro Mount Head have cable management?
Yes, the Sky-Watcher CQ350 Pro Mount Head features an advanced cable management hub on the mount head, including 4 USB ports, three 12V power outputs, and AUX ports to keep cables organized.
What hand controller is included with the Sky-Watcher CQ350 Pro Mount Head?
It comes with the V5 SynScan hand controller, featuring a database of over 42,000 night sky targets for automated GoTo tracking.
