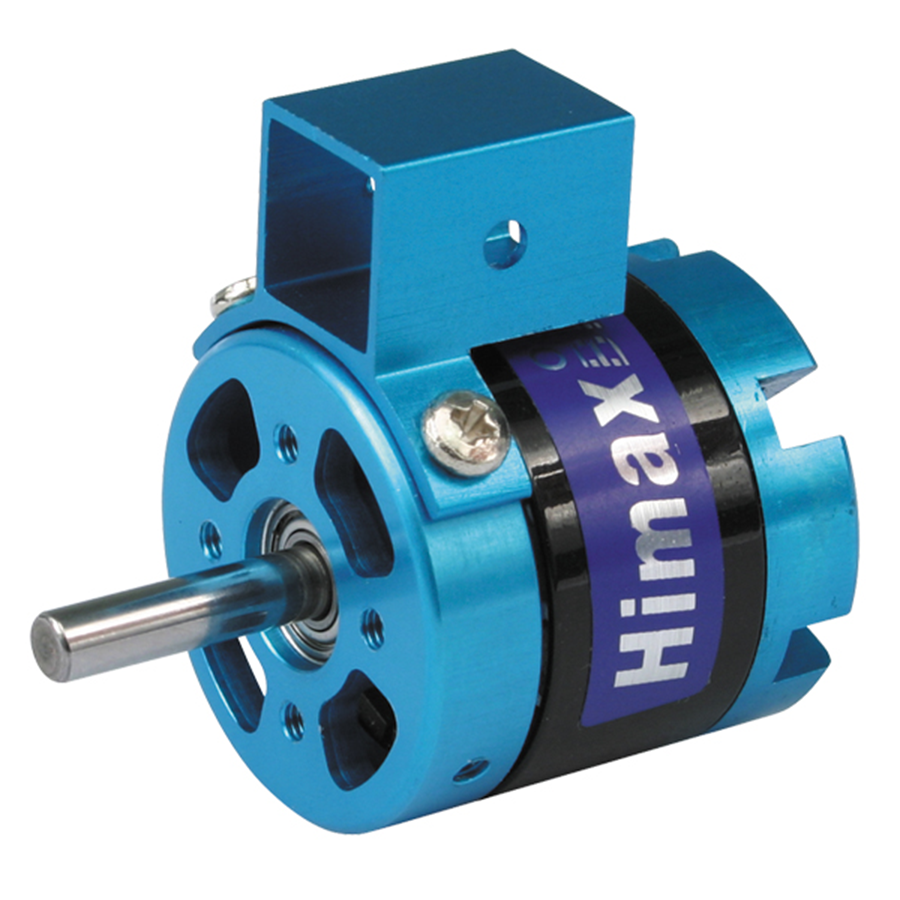

Himax HC2812-0650 Outrunner Brushless Motor, 150 Watt
$63.99
Skip to product information
Himax HC2812-0650 Outrunner Brushless Motor, 150 Watt
$63.99
Outrunner Motor
High Torque Brushless Power
160W Output
Lightweight Efficient Performance
650 Kv
Optimized Low RPM Torque
Reliable Electric PowerHigh Efficiency Outrunner Motor Performance
The Himax HC2812-0650 Outrunner Brushless Motor is engineered to provide exceptional efficiency and high torque output for small to medium-sized RC aircraft. Designed for modelers who demand top-tier durability, this lightweight brushless motor delivers reliable power for airframes weighing between 12 and 32 ounces. Upgrade your model's power system with precise manufacturing standards that ensure long-lasting operational performance.
Advanced Motor EngineeringMaximum Power In A Compact Frame
Built for discerning RC hobbyists, the Himax HC2812-0650 Outrunner Brushless Motor delivers an impressive peak output of 160 watts. Operating at 650 Kv, this motor provides excellent low-RPM power density ideal for swinging larger propellers without sacrificing runtime. Featuring precision internal components, a 4.0mm shaft diameter, and an included stick mount, the Himax HC2812-0650 provides an easy-to-install solution for high-torque electric airplane propulsion.
Technical SpecificationsDetailed Motor Dimensions And Data
Part Type
Outrunner Brushless Motor
Kv Rating
650
Max Power
160W
Max RPM
20,000 RPM
Weight
65g / 2.3oz with stick mount
Diameter
27.8mm / 1.09in
Length
28.9mm / 1.14in
Shaft Diameter
4.0mm / 0.1575in
Mounting Screw Thread
2.5mm (max depth 4.5mm) (tool)
Mounting Pattern
16mm bolt circle
Maximum Case Temperature
65°C / 149°F
Efficient Operating Current
2-8A (11A Max 15s) (battery)
Recommended Model Weight
12 to 32 oz
Key FeaturesDesigned For Peak Efficiency And Output
High Torque OutputDelivers direct-drive torque for lightweight models
Efficient OperationOptimized 2-8A operating current range minimizes thermal loss
Durable ConstructionBuilt to exacting standards for maximum operational life
Compact DesignLightweight 65g frame integrates easily into tight airframes
Included MountShips with stick mount for straightforward installation
Versatile CompatibilityPerfect match for aircraft models weighing 12 to 32 oz
Frequently Asked QuestionsEverything you need to know
What size RC models is the Himax HC2812-0650 Outrunner Brushless Motor suited for?
The Himax HC2812-0650 Outrunner Brushless Motor is designed primarily for small to medium-sized RC airplanes weighing between 12 and 32 ounces.
What is the Kv rating and max power of the Himax HC2812-0650 Outrunner Brushless Motor?
The motor features a 650 Kv rating and can deliver up to 160 Watts of maximum power depending on your prop and battery setup.
What mounting options are available for the Himax HC2812-0650 Outrunner Brushless Motor?
The Himax HC2812-0650 comes with a stick mount and features 2.5mm mounting screw threads (max depth 4.5mm) arranged on a 16mm bolt circle pattern.
