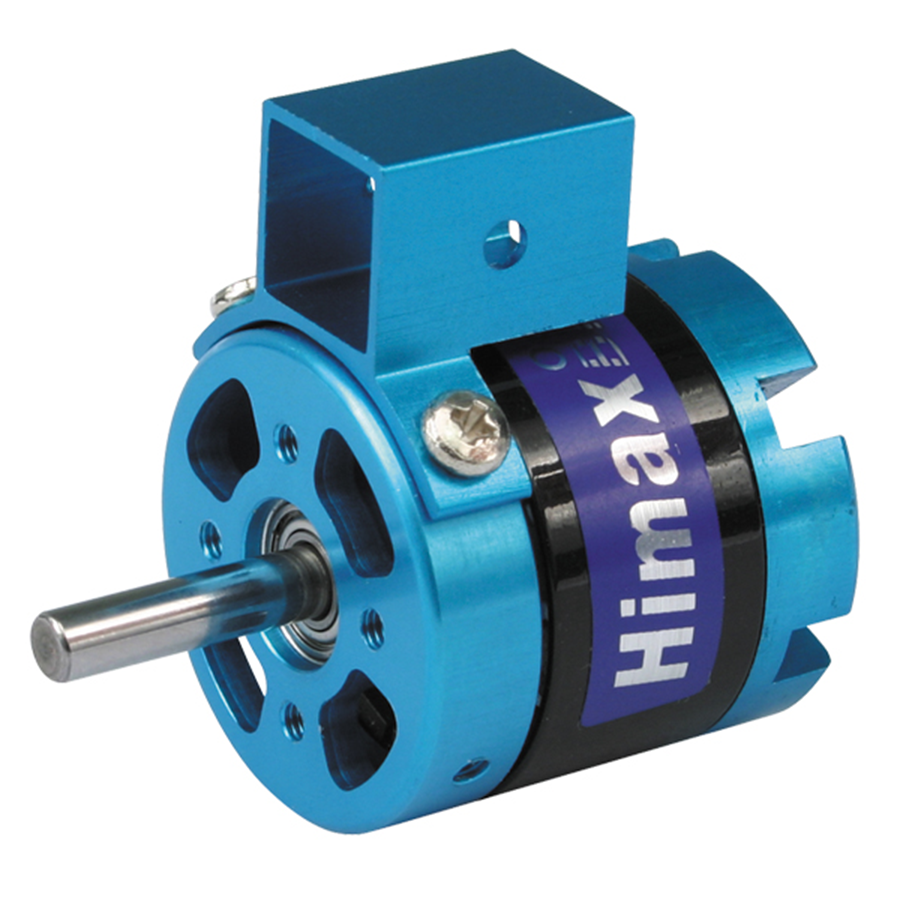

Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt
$65.99
Skip to product information
Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt
$65.99
Brushless Power
High Efficiency Outrunner Motor
850 Kv Rating
Delivers Smooth Reliable Torque
Lightweight Build
Weighs Just 65 Grams
Precision Flight PowerReliable Brushless Performance for Models
The Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt offers exceptional performance and high efficiency for discerning RC modelers. Designed specifically for lightweight RC aircraft weighing between 12 and 32 ounces, this brushless motor delivers outstanding torque and smooth throttle response. Upgrade your model with reliable Himax motor power for superior flight times and long-lasting durability.
Engineered for ExcellenceHigh Torque Outrunner Power System
Engineered to rigorous standards, the Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt is an ideal choice for small to medium radio-controlled models. Featuring an efficient outrunner design with an 850 Kv rating, this motor provides maximum thrust with minimal current draw. Operating efficiently between 4A to 11A with a peak power handling of up to 160W, the Himax HC2812-0850 ensures your RC plane stays powered through every maneuver with maximum reliability and thermal stability.
Motor SpecificationsDetailed Performance and Mechanical Data
Motor Type
Brushless Outrunner
Kv Rating
850
Max Power
160W
Max RPM
20,000 RPM
Weight
65g / 2.3oz with mount
Diameter
27.8mm / 1.09 in
Length
28.9mm / 1.14 in
Shaft Diameter
4.0mm / 0.1575 in
Mounting Pattern
2.5mm thread on 16mm bolt circle
Efficient Operating Current
4-11A
Max Peak Current
14A for 15 seconds
Maximum Case Temperature
65°C / 149°F
Recommended Vehicle Weight
12 to 32 oz
Key Performance FeaturesOptimized Design for Aeromodeling Enthusiasts
High EfficiencyOptimized windings for maximum flight duration
Outrunner DesignDelivers high torque output without needing gearboxes
Mounting HardwareIncludes stick mount hardware for easy installation
Precision ShaftDurable 4.0mm steel motor shaft
Target AircraftIdeal for small to medium 12 to 32 oz models
Thermal ToleranceBuilt to operate safely up to 65°C case temp
Frequently Asked QuestionsEverything you need to know
What size models are best suited for the Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt?
The Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt is specifically engineered for small to medium RC aircraft weighing between 12 and 32 ounces.
What is the Kv rating and power output of the Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt?
The Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt features an 850 Kv rating and achieves up to 160 watts of maximum power handling.
What operating current should I expect with the Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt?
The Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt operates most efficiently between 4A and 11A, with a maximum burst current capability of 14A for up to 15 seconds.
