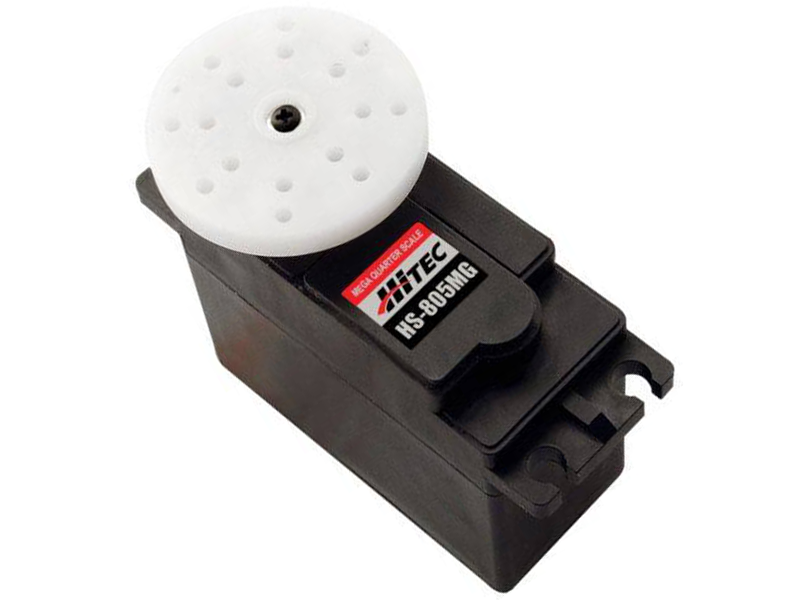

HS-805MG Giant Scale Analog Metal Gear Servo

HS-805MG Giant Scale Analog Metal Gear Servo
Regular price
$72.99
Sale price
$72.99
Regular price
$0.00
Sold out
Unit price
per
Shipping calculated at checkout.
info icon $0.00 Tax Collected Outside GA

Availability: Sorry we are out of stock but have more on the way.
SKU: 100021507
Part #: HRC32805S
UPC: 669962328050
MFG: Hitec
rewards icon
You will earn 36 Electron Reward Points on this product!
Click to find out more about our points program and save big!

Hitec HS-805MG Mega Servo


Overview:
The HS-805MG heavy duty super sized servo is designed to handle the abuse dished out by the latest wave of large 1/5th scale vehicles. With big gears in a big case powered by a big motor this servos was designed to handle all the punishment you can inflict, and keep on going.


Features:
• Large 8mm Output shaft
• Dual Ball Bearings
• Heavy Duty Metal Gear Train
• Water and Dust Resistant Case


Accessories:
• Metal Gear Set
• Plastic Case Set
• Applicable Horns

Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.22 ~ 0.18
Maximum Torque Range oz. / in.: 275 ~ 343
Maximum Torque Range kg. / cm.: 19.8 ~ 24.7
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 520 mA
Stall Current Draw: 6,000 mA
Dead Band Width: 5 µs
Dimensions (Inches): 2.60 x 1.18 x 2.27
Dimensions (Metric): 66.0 x 30.0 x 57.6
Weight (Ounces): 6.95
Weight (Gram): 197.0
Circuit Type: HT7003 Analog MosFet
Motor Type: 3 Pole Carbon Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Mega 15
Case Material: Plastic
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 22 / 60
