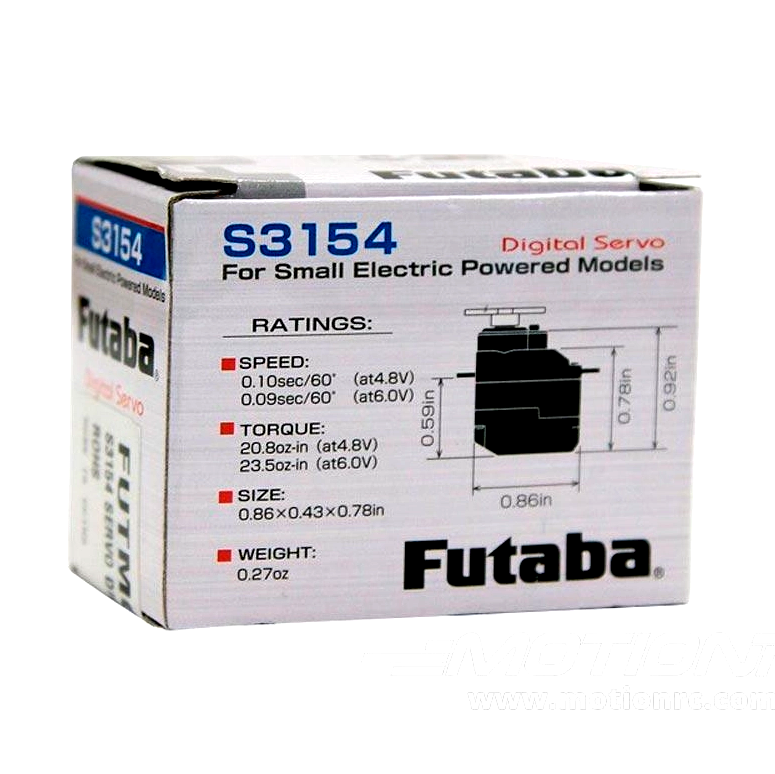

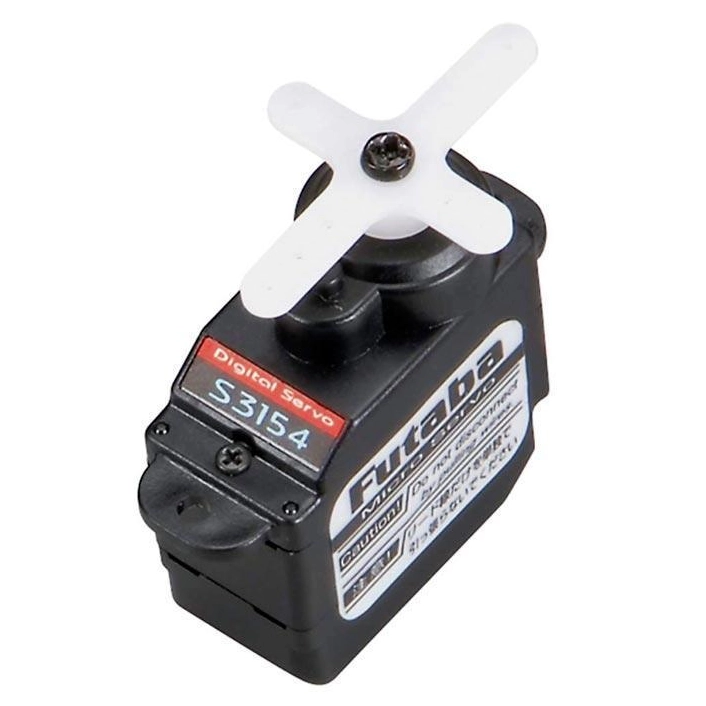

Futaba S3154 High Torque Digital Sub-Micro Servo
Overview:
When you need a quality high torque sub-micro size servo that works well for 1400mm wingspan and smaller airplanes, small EDF jets, and 200 to 450 size helicopters the Futaba S3154 performs beautifully.
Features:
- Ideal for smaller-sized electric aircraft
- Increased precision (digital)
- Light weight, perfect for Micro helicopters and aircraft
- Nylon gears
- One year warranty
Includes:
- (1) S3154 high torque digital sub-micro servo
- (1) .91" x .64" (23mm x 16mm) 4 arm servo horn (comes pre-installed)
- (1) 1.33" x 1.33" (34mm x 34mm) 4 arm servo horn
- (1) Instruction sheet
| Servo Class | Sub-Micro |
| Servo Type | Digital |
| Gear Material | Nylon |
| Direction | Standard / Normal |
| Operating Voltage Range | 4.8V - 6V |
| Speed (4.8V) | 0.10 sec @ 60 deg |
| Speed (6V) | 0.09 sec @ 60 deg |
| Torque (4.8V) | 1.5 kg/cm (21 oz/in) |
| Torque (6V) | 1.7 kg/cm (24 oz/in) |
| Dimensions (L x W x H) | 22 x 11 x 20mm |
| Weight | 7.9g (0.28oz) |
| Lead Length | 170mm / 6.5in |
