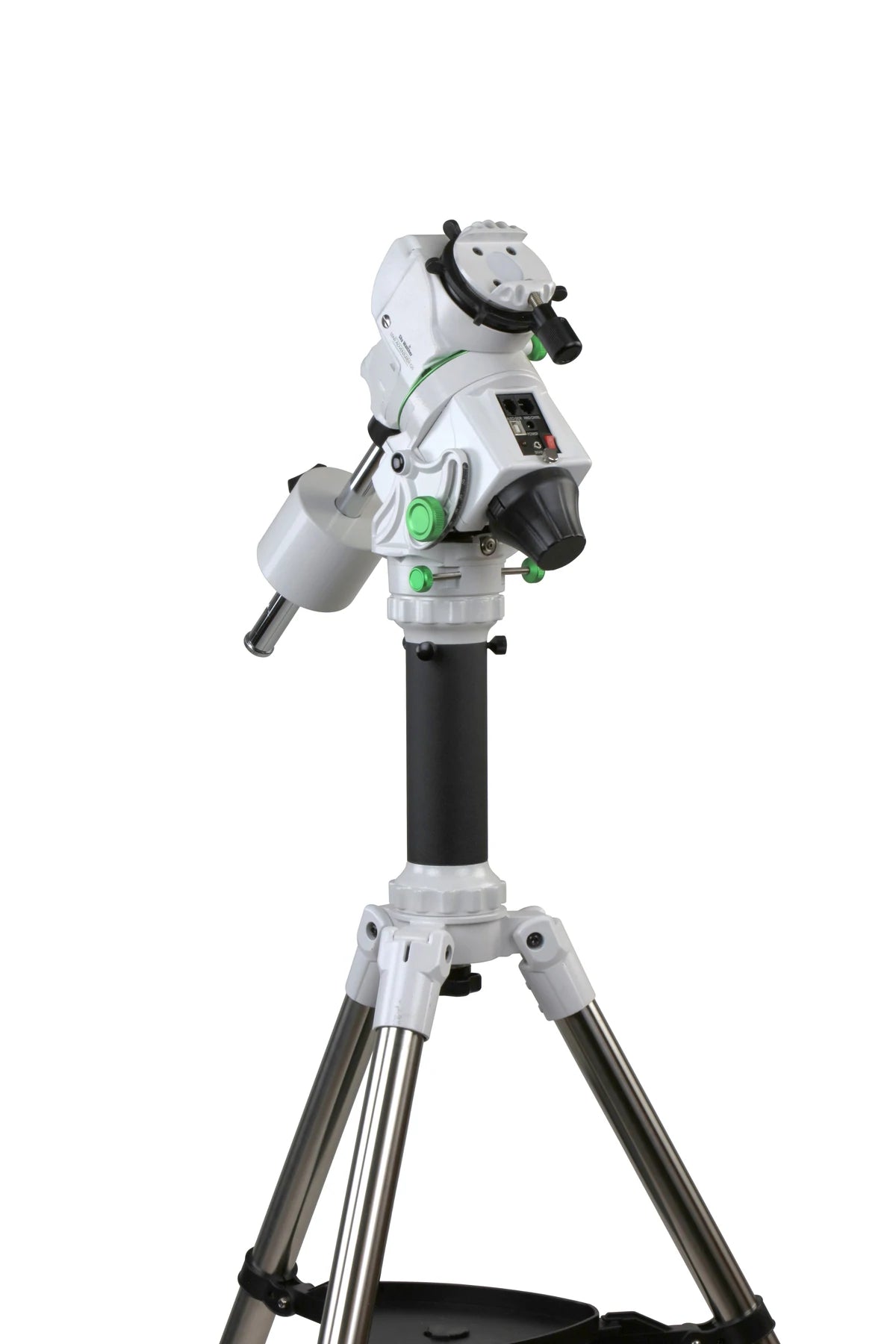

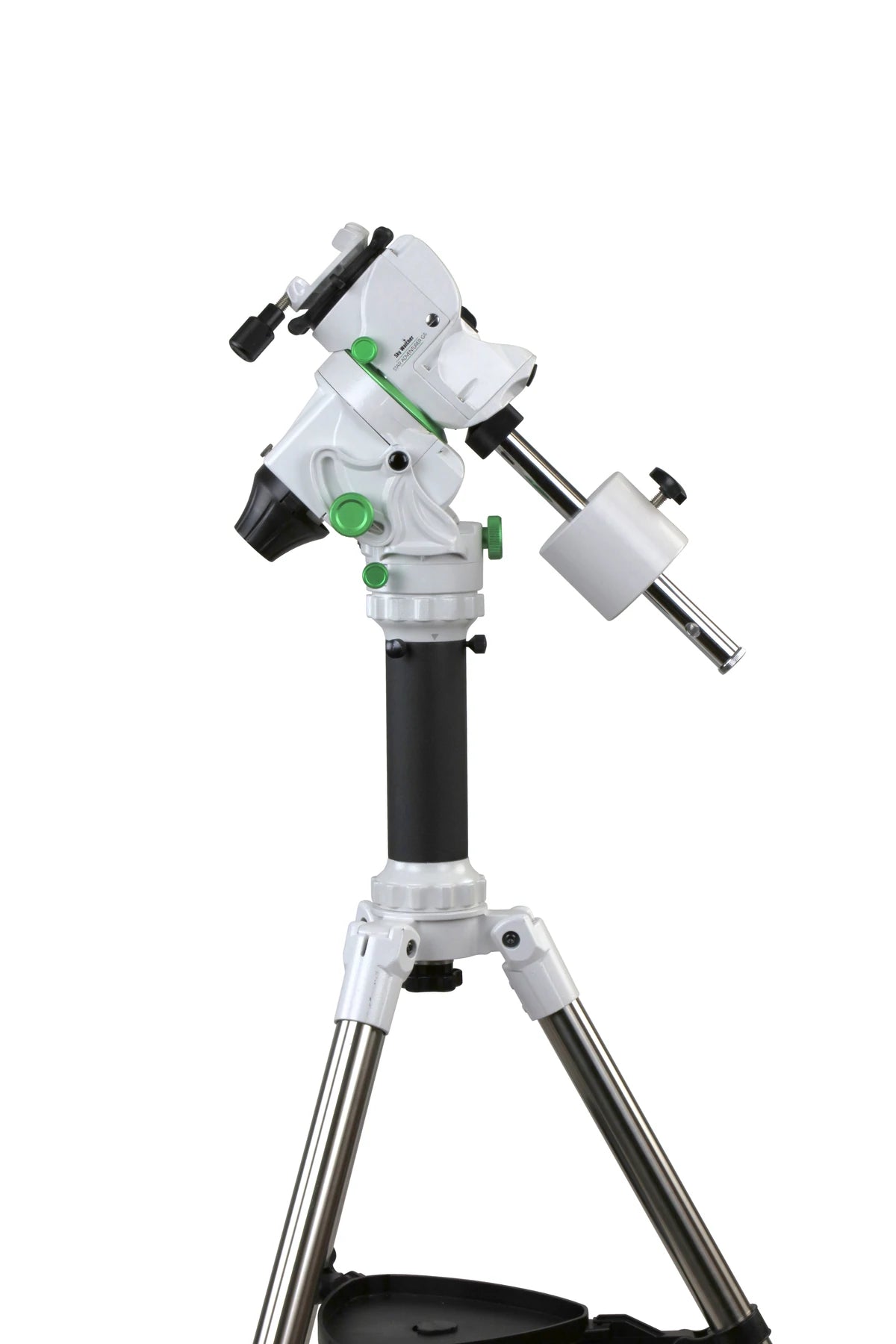

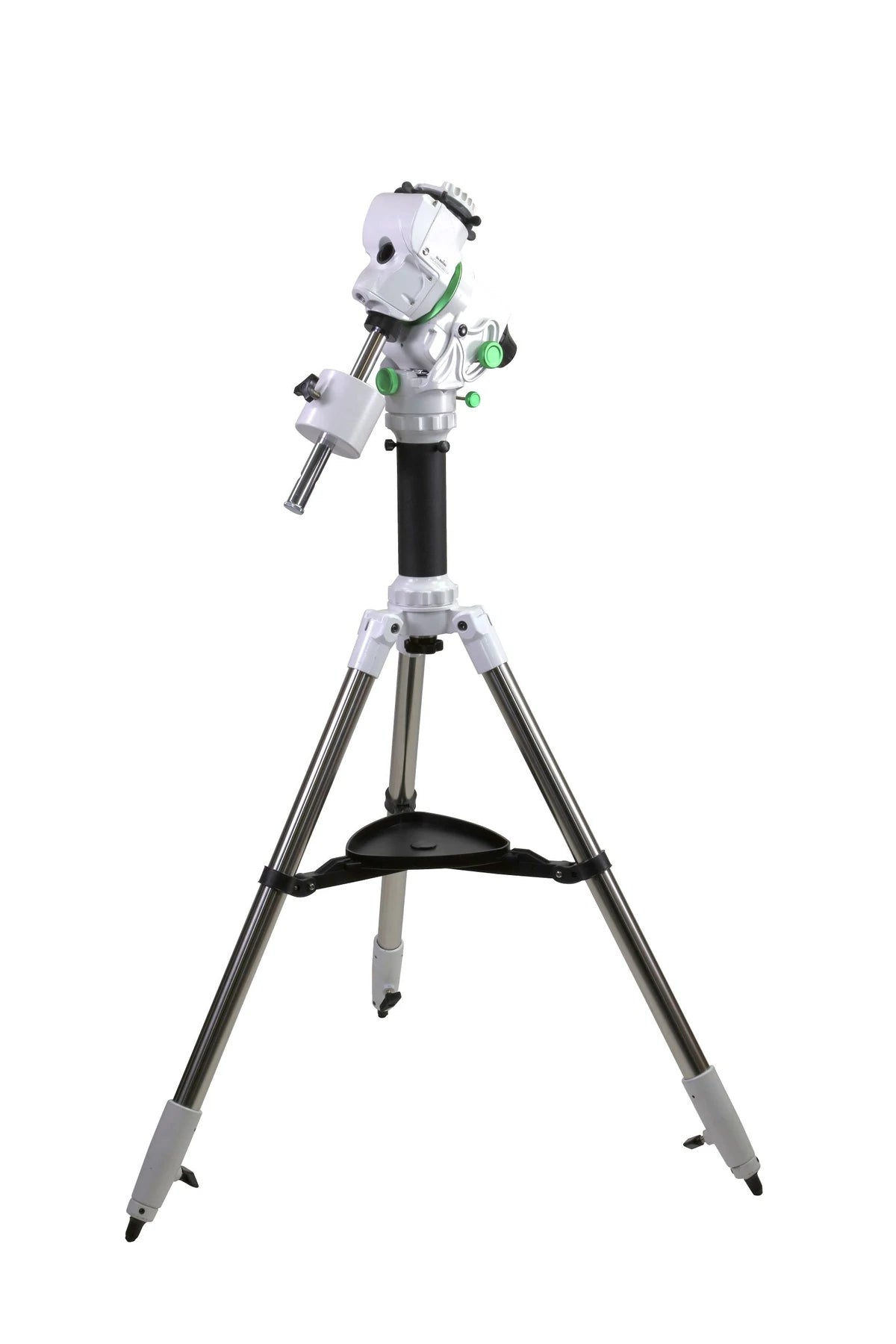

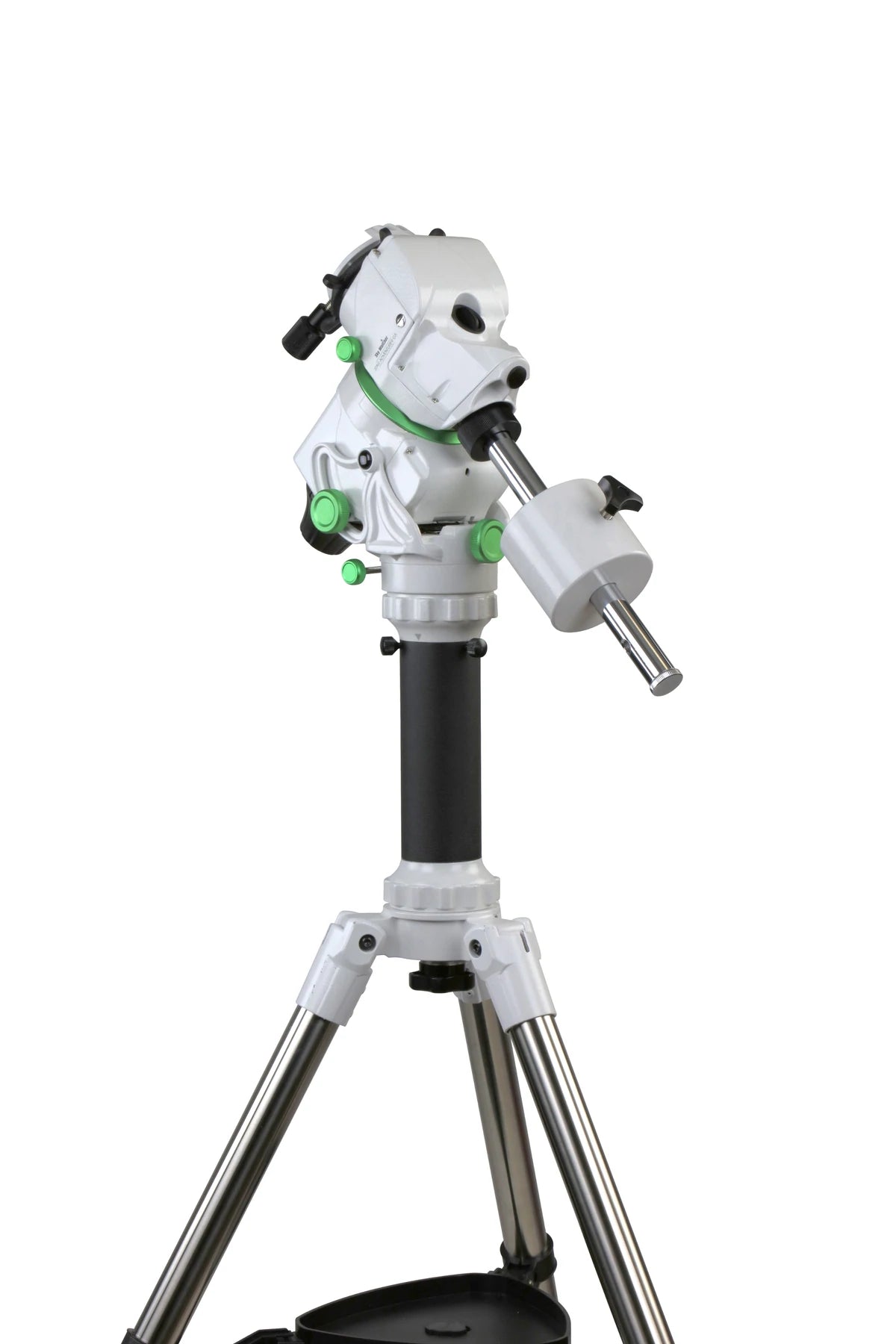

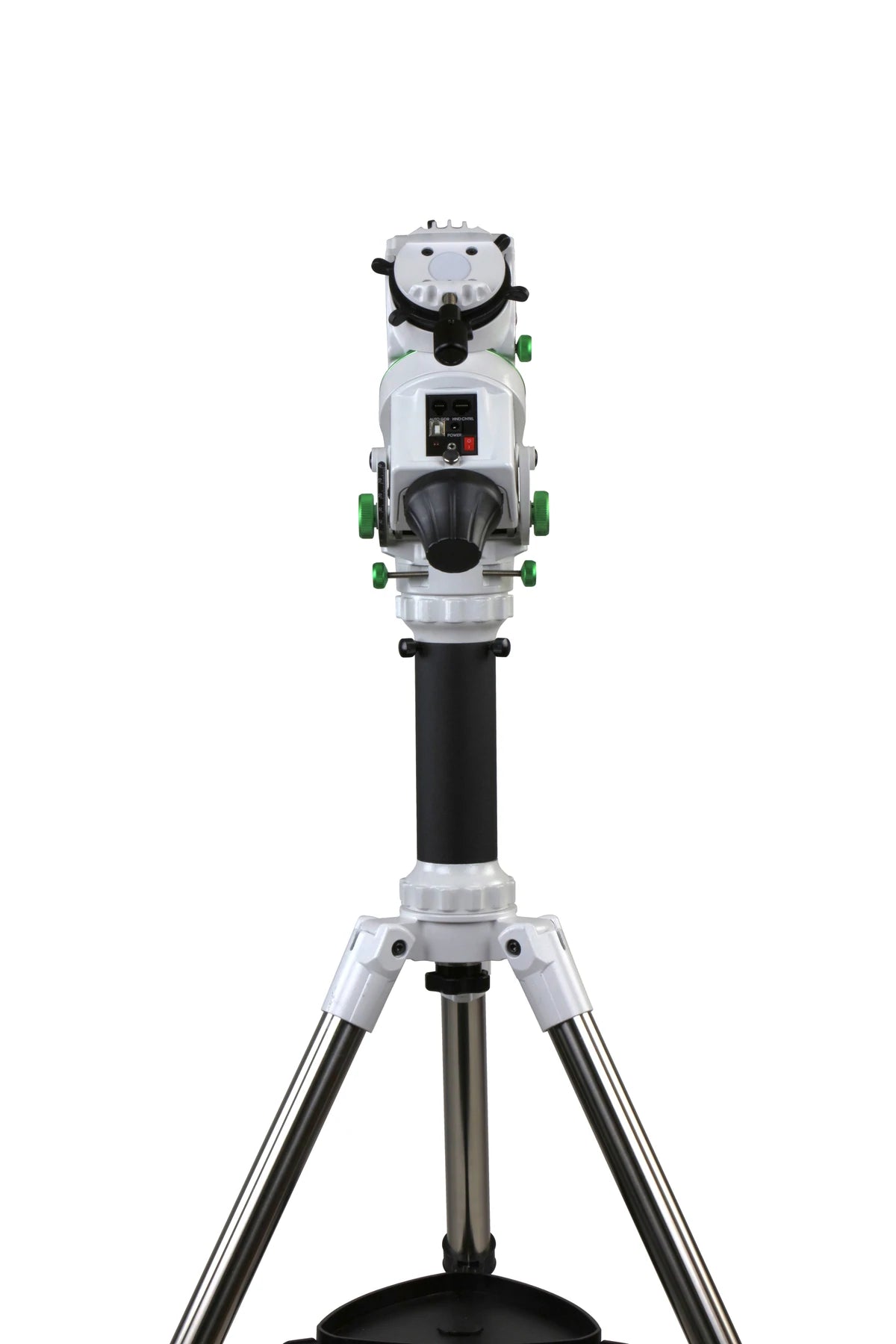

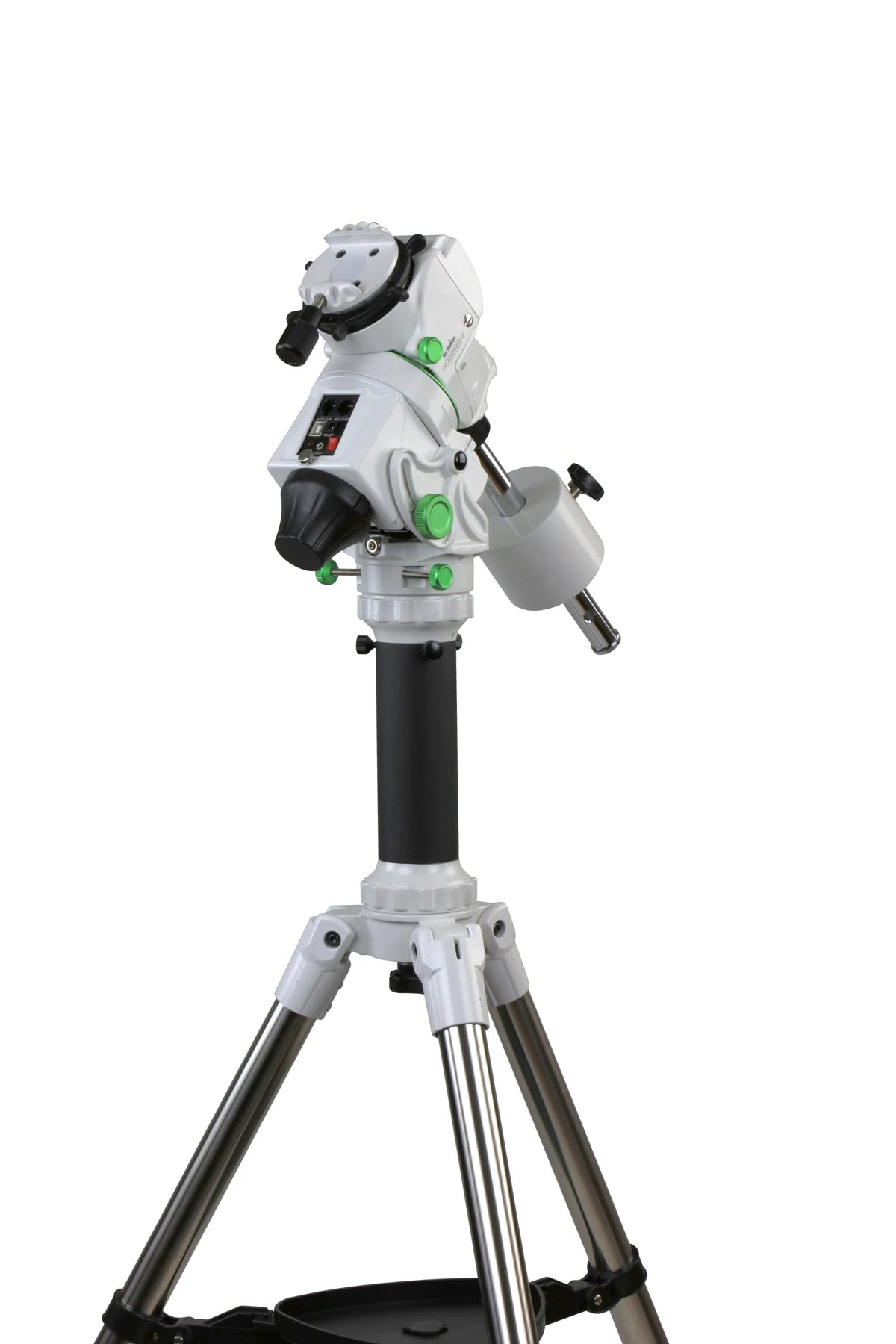

SkyWatcher Star Adventurer Gti Head Kit (S20590)
$720.00
11 LB Payload
Supports Cameras and Compact OTAs
Full GoTo Mount
Automated Precision Sky Alignment
Illuminated Polar Scope
Fast Equatorial Axis Alignment
Wireless App Control
Integrated Wi Fi Connectivity
Multi Rate Tracking
Sidereal Solar and Lunar Modes
Versatile Power
Runs on AA or 12V DC
Portable GoTo PrecisionRevolutionizing Compact Astrophotography Tracking Performance

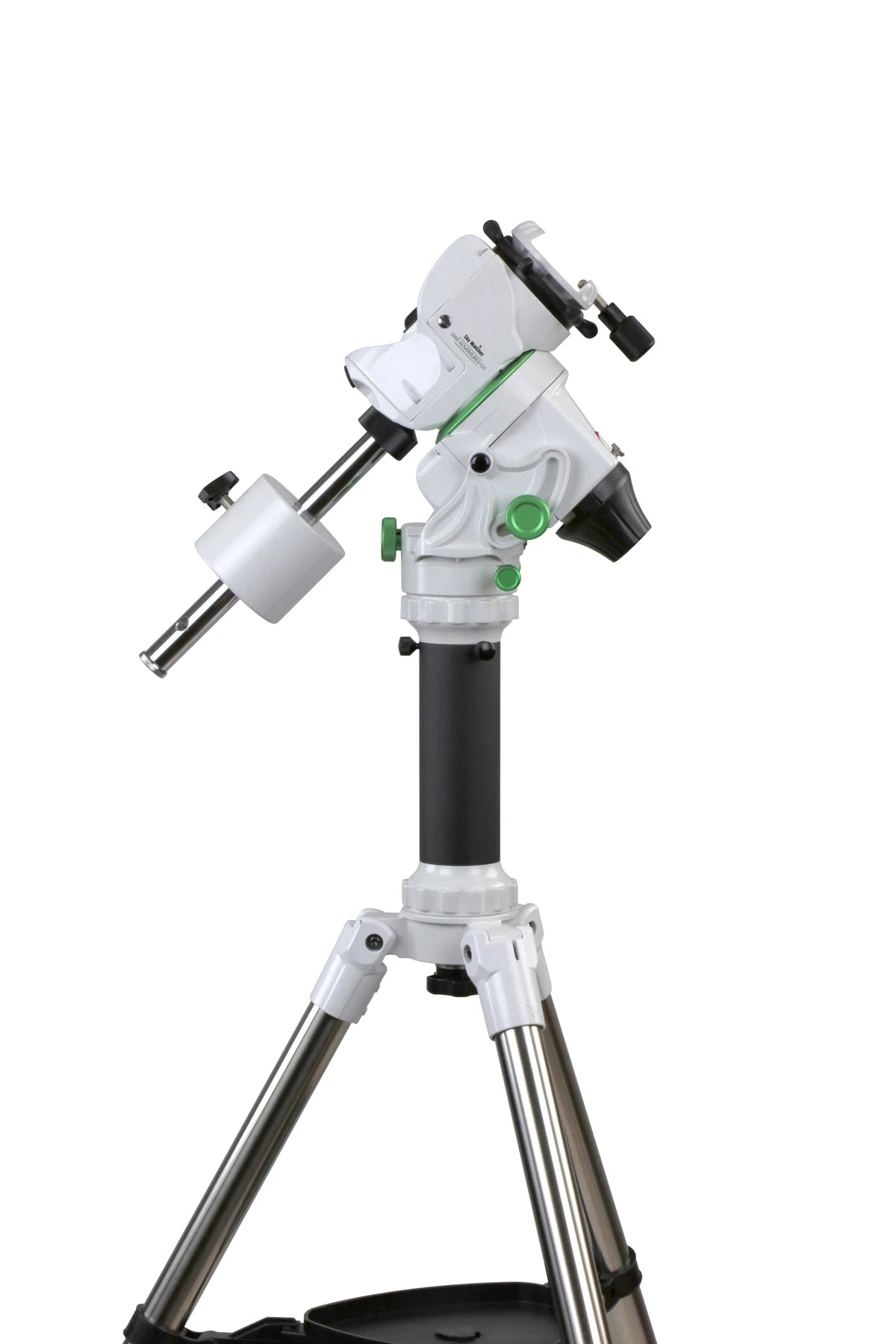

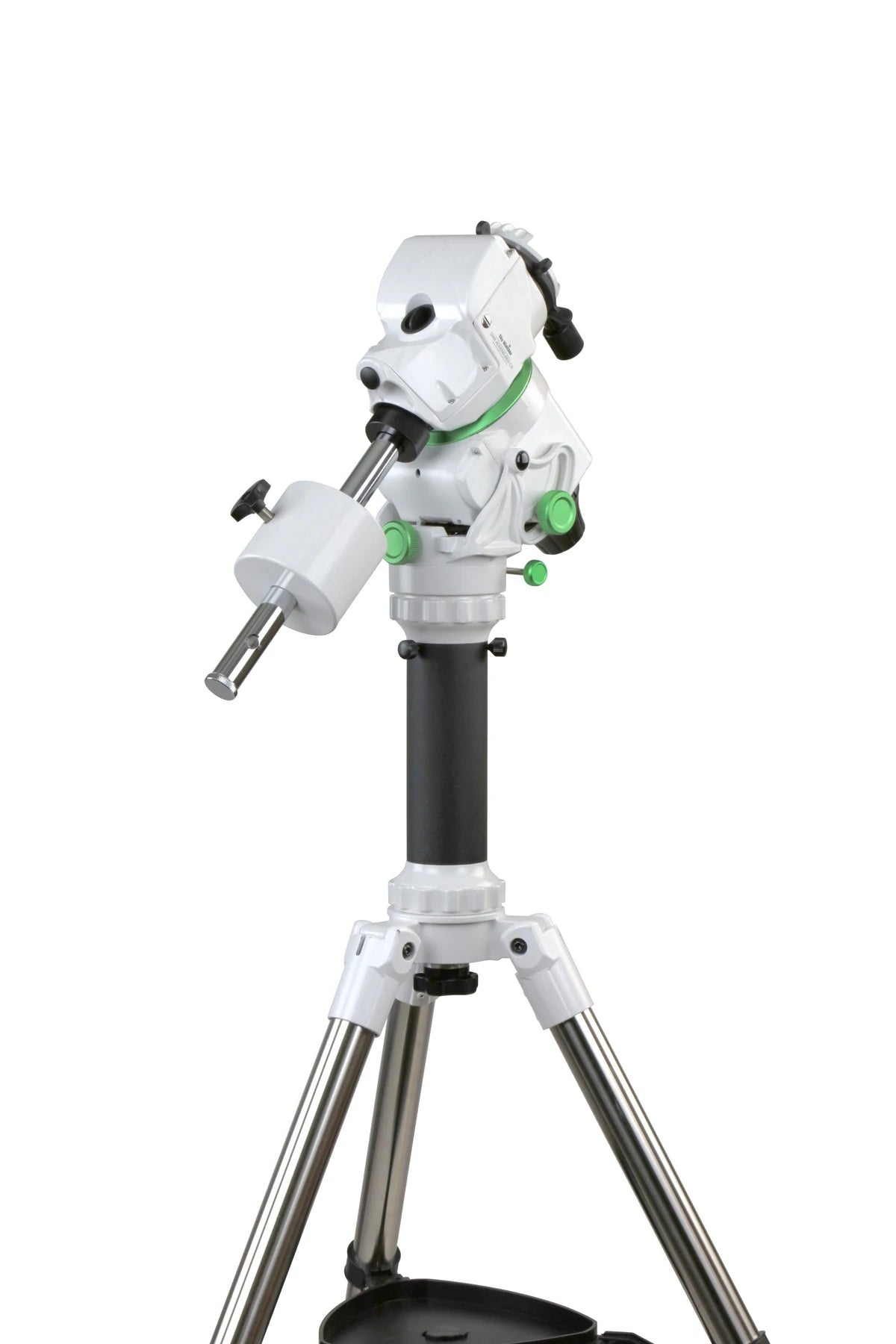

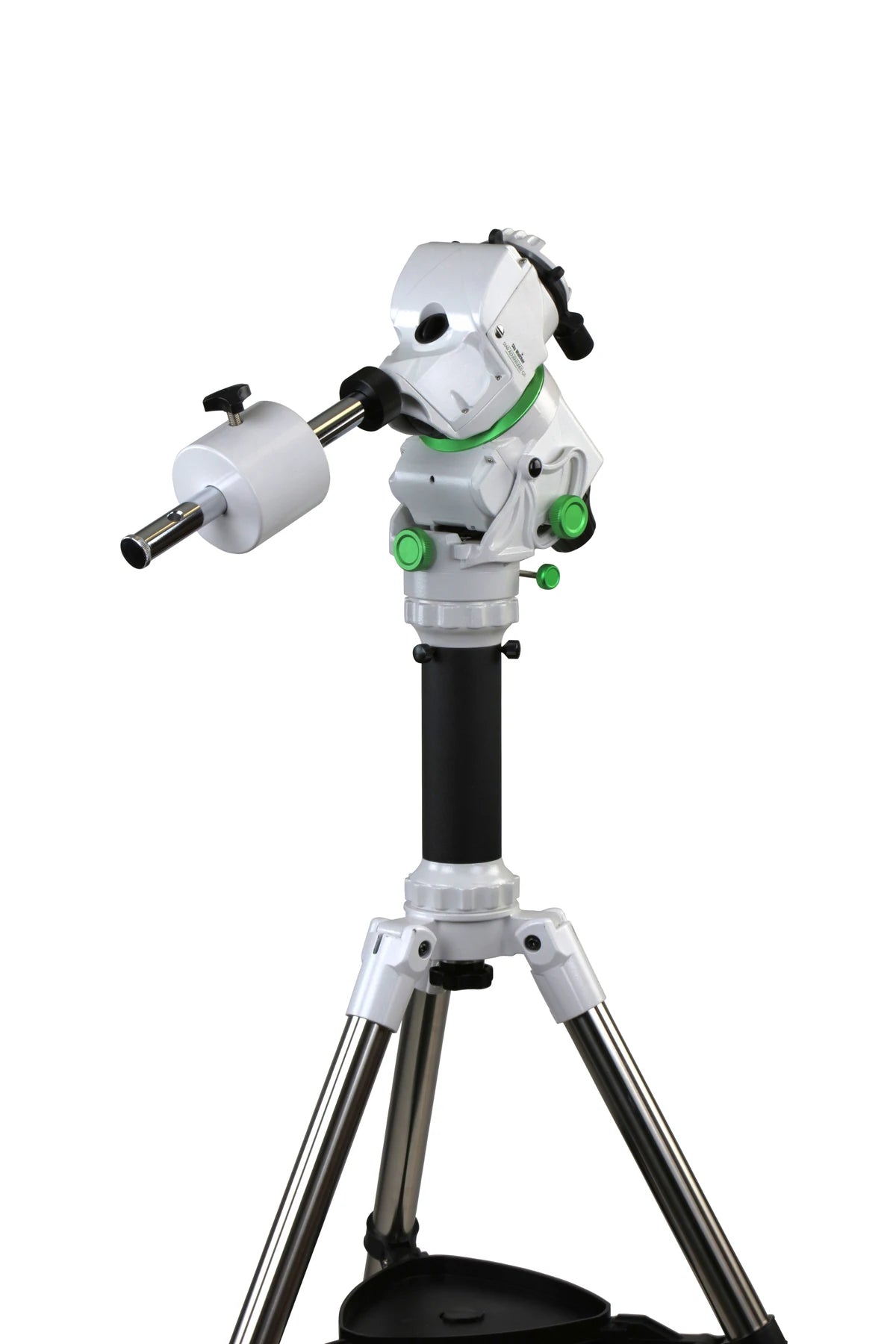

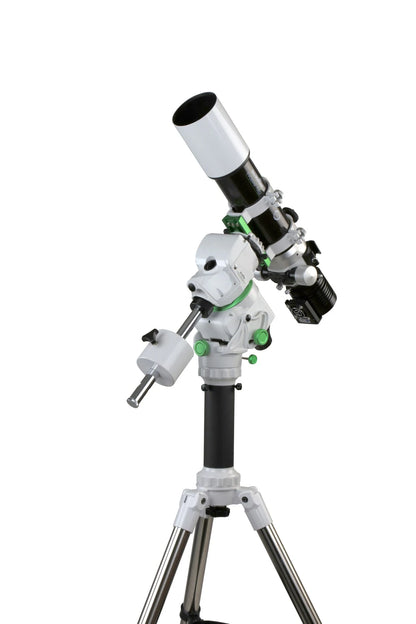

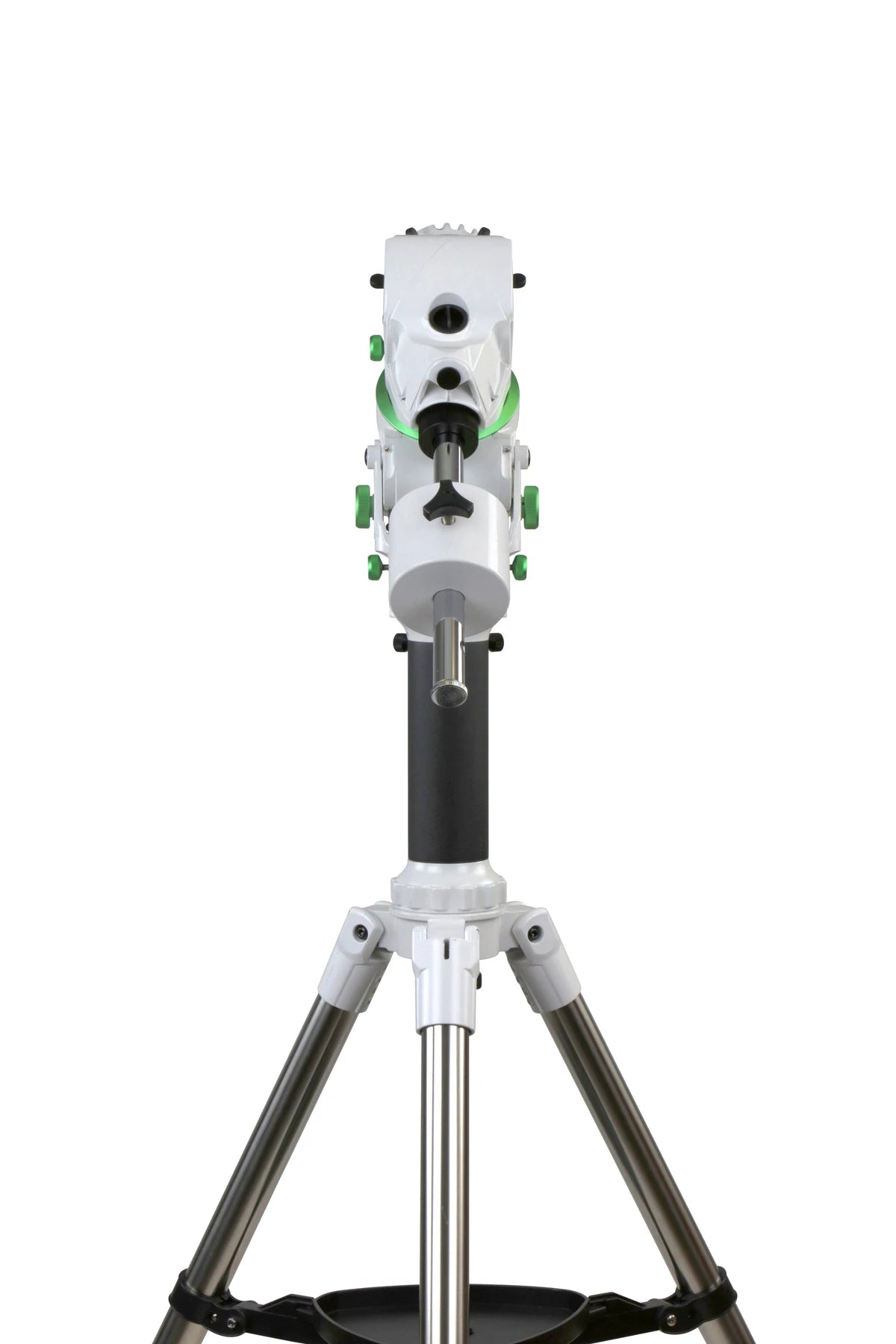

The Star Adventurer GTi Head Kit brings full computerized GoTo performance to a portable equatorial mount designed for deep space, solar system, and widefield astrophotography. Featuring an 11-pound payload capacity, built-in illuminated polar scope, and integrated Wi-Fi control via the free SynScan Pro app, this lightweight star tracker mount delivers accurate tracking capability wherever your dark-sky travels lead.
Ultimate Portable TrackingCapture Deep Space Objects Anywhere

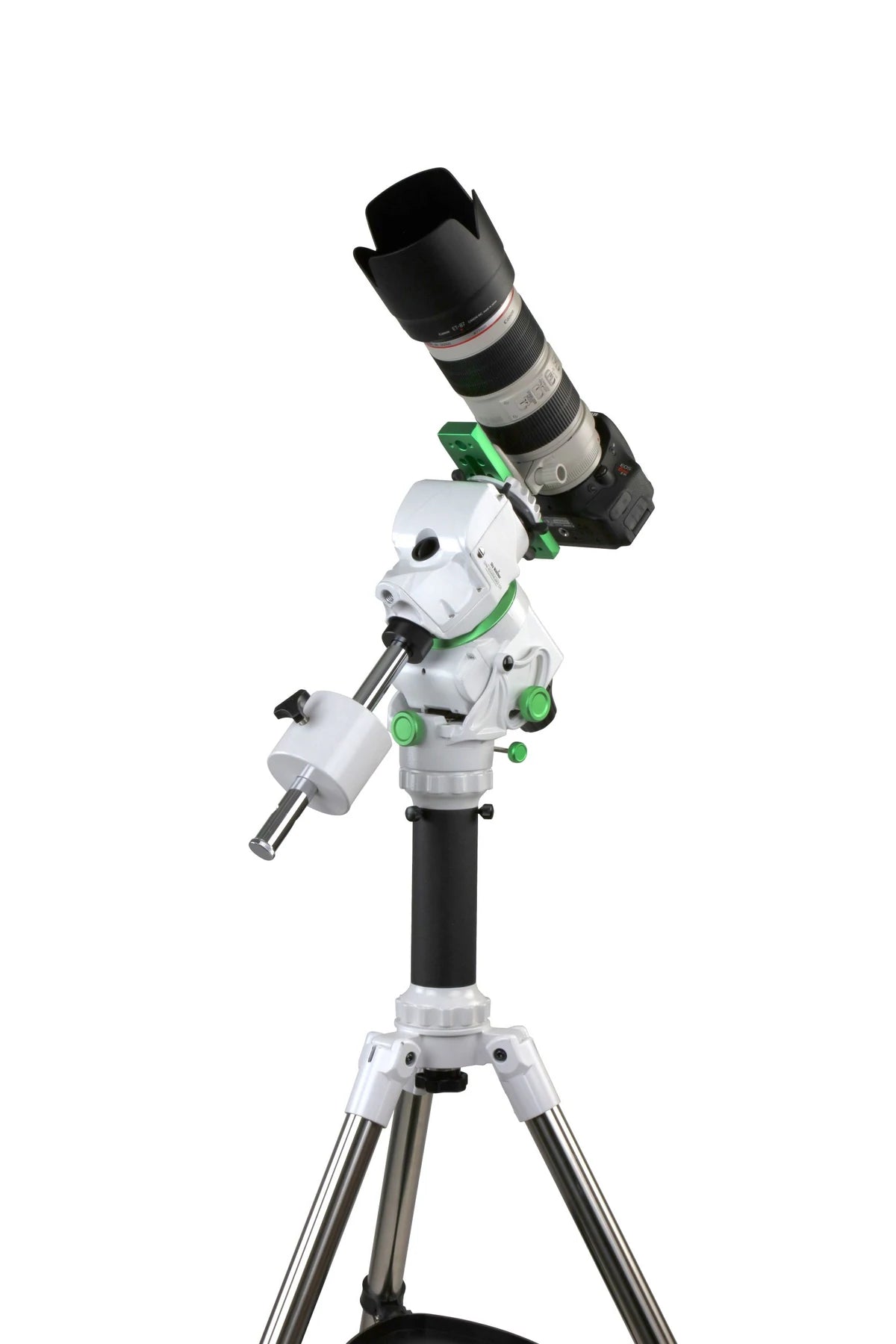

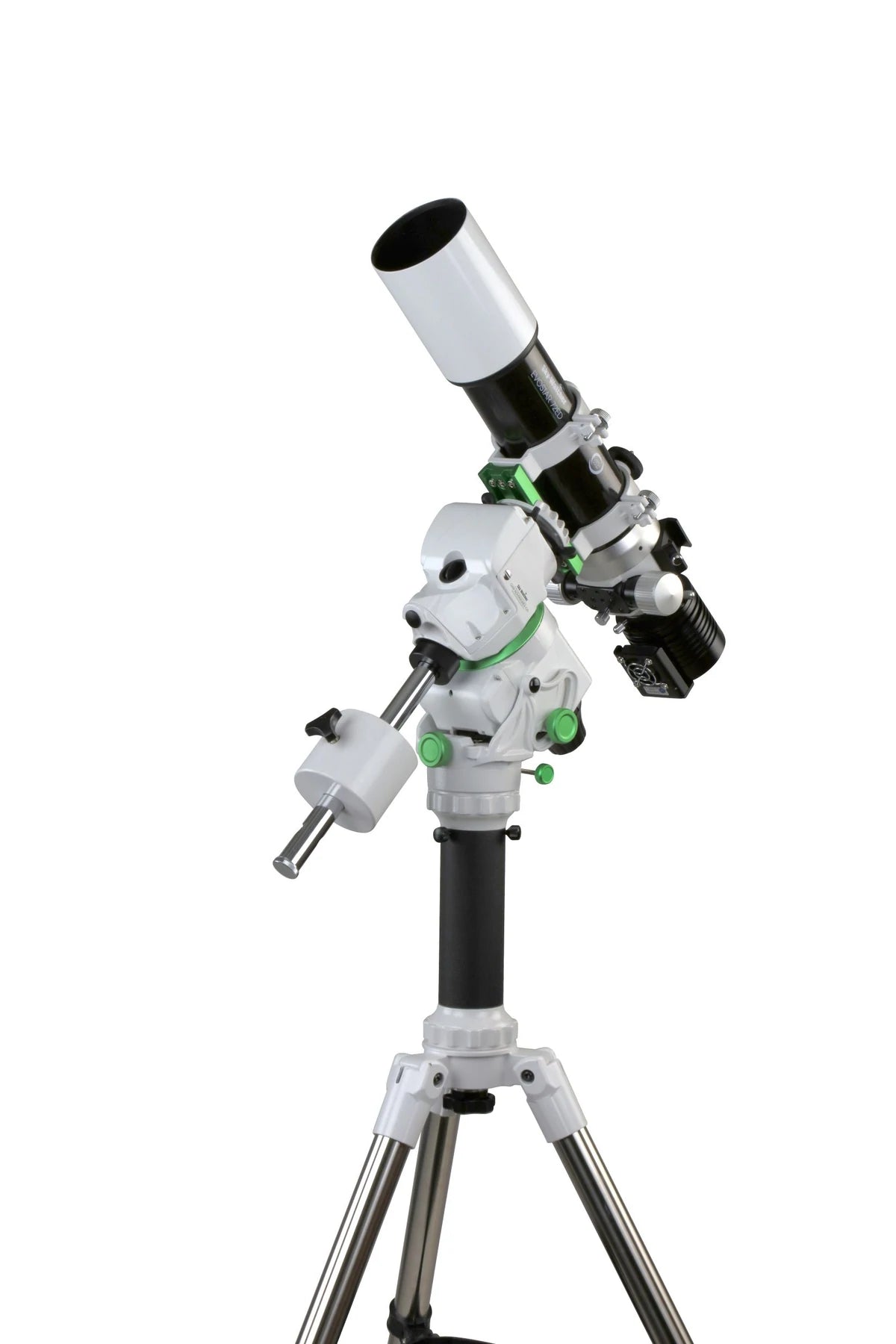

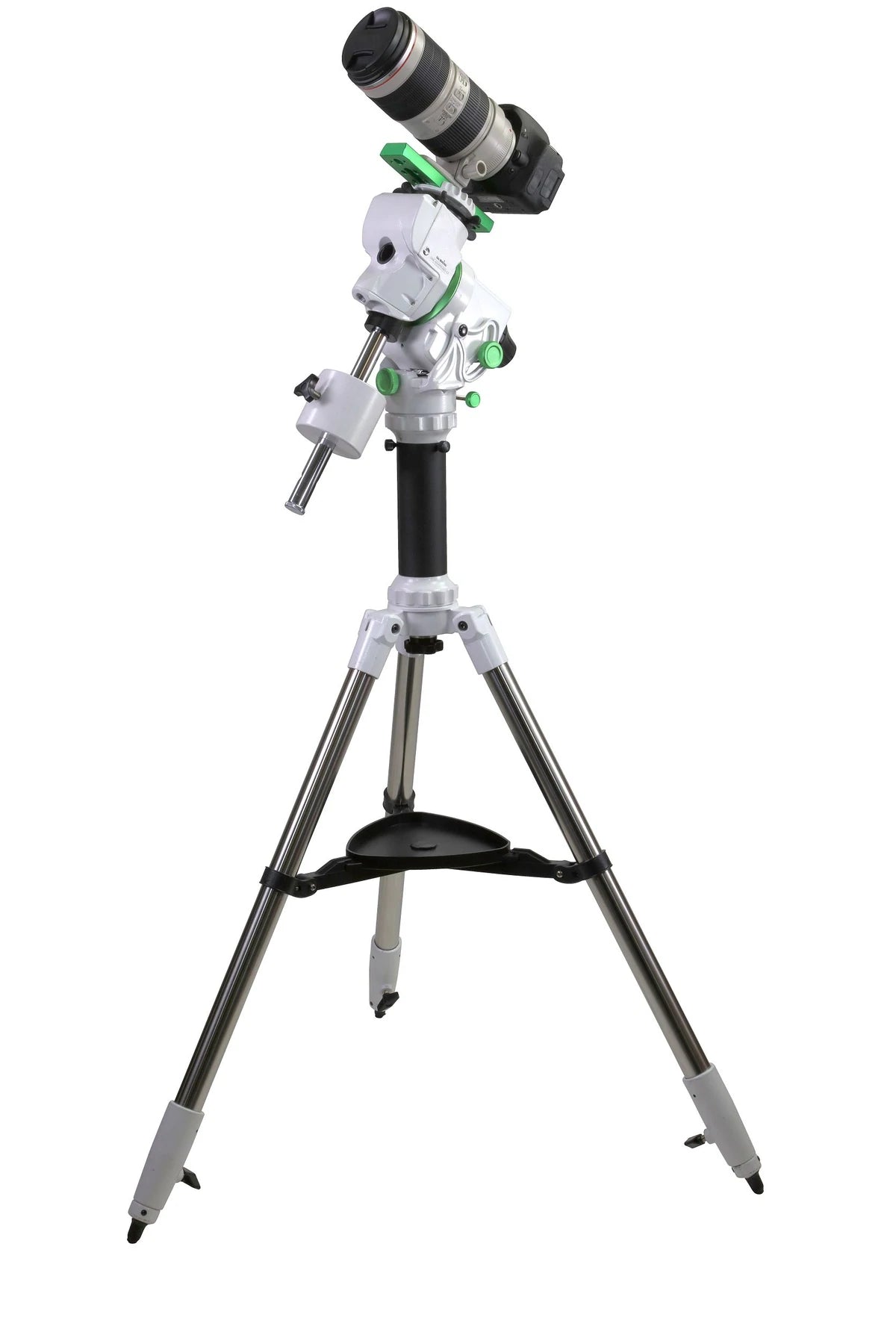

Elevate your nightscape and deep-sky imaging with the Star Adventurer GTi Head Kit. Building on Sky-Watcher's iconic portable tracker design, this advanced unit integrates full computerized GoTo star tracker functionality, allowing users to quickly locate and automatically track faint galaxies, nebulae, planets, and the Moon. Powered by internal mini-DC servo motors, the mount includes a V-style dovetail saddle, an ST4 autoguiding port, USB interface, and a SNAP shutter control port for automated DSLR camera exposures. Whether you mount a wide-angle camera lens or a small Maksutov-Cassegrain telescope, the Star Adventurer GTi Head Kit provides standard 3/8-inch tripod mounting and dual-position counterweight capability for exceptional stability across all latitudes.
Technical SpecificationsComplete Star Tracker Hardware Details
Mount Type
Equatorial (EQ) (gear)
Payload Capacity
11 lbs
Mount Head Size
227mm x 227mm x 125mm
Motor Type
Mini-DC Servo
Drive Type
Gear Drive
Tracking Modes
Sidereal, Solar, Lunar
Latitude Range
0 to 70 Degrees
GoTo Capabilities
Yes
Polar Scope
Built-in illuminated polar scope
Saddle Type
V-Style Dovetail
Wi-Fi Built-In
Yes
Guide Port
Yes (ST4) (cable)
SNAP Port
Yes
USB Port
Yes (pc)
Power Requirements
12V DC 2.1mm or 8x AA Batteries
Counterweight Included
5 lbs / 2.26 kg
Tripod Mounting Thread
3/8 inch
Shipping Weight
12 lbs / 5.4 kg
Key Mount FeaturesAdvanced Functionality in Compact Design
GoTo PerformanceFull GoTo motorized capability via Wi-Fi and SynScan Pro app
Payload Capacity11 lbs payload capacity for cameras and small OTAs
Polar AlignmentIntegrated illuminated polar scope for fast polar axis setup
Tracking RatesPre-programmed sidereal, solar, and lunar tracking rates
Interface PortsUSB, ST4 autoguider, SNAP camera shutter port, and hand controller port
Power OptionsOperates on 8 AA internal batteries or external 12V DC power source
Mounting SaddleStandard V-style dovetail saddle for quick instrument mounting
Tripod MountingFits standard tripods using a 3/8-inch attachment thread (mount)
Frequently Asked QuestionsEverything you need to know
What payload capacity does the Star Adventurer GTi Head Kit support?
The Star Adventurer GTi Head Kit supports up to an 11-pound (5 kg) payload, easily holding DSLR or mirrorless cameras with telephoto lenses as well as small astrographs and Maksutov-Cassegrain telescopes.
How do I control the Star Adventurer GTi Head Kit?
You can control the Star Adventurer GTi Head Kit wirelessly using built-in Wi-Fi via the free SynScan Pro app on iOS or Android devices, or with an optional SynScan hand controller.
What power sources are required for the Star Adventurer GTi Head Kit?
The Star Adventurer GTi Head Kit can run internally on eight AA batteries or via an external 12V DC power supply connected to its 2.1mm power port.
Does the Star Adventurer GTi Head Kit include a tripod?
No, the Star Adventurer GTi Head Kit includes the mount head, counterweight, and counterweight bar, but does not include a tripod or pier extension. It mounts to any standard tripod equipped with a 3/8-inch thread.
