Starfield Optics Ultra Thin Motorized Filter Wheel 5x1.25" Filters, High Speed (FW5125V4HS)
$249.00
Skip to product information
Starfield Optics Ultra Thin Motorized Filter Wheel 5x1.25" Filters, High Speed (FW5125V4HS)
$249.00
Ultra Thin
Only 19mm back focus
Featherweight Design
Weighs a mere 248 grams
High Speed V4
Five times faster carousel rotation
USB Powered
No external power supply needed
5 Filter Capacity
Holds standard 1.25 inch filters
ASCOM Control
Seamless astrophotography imaging integration
Precision Imaging ControlNext Generation High Speed Performance

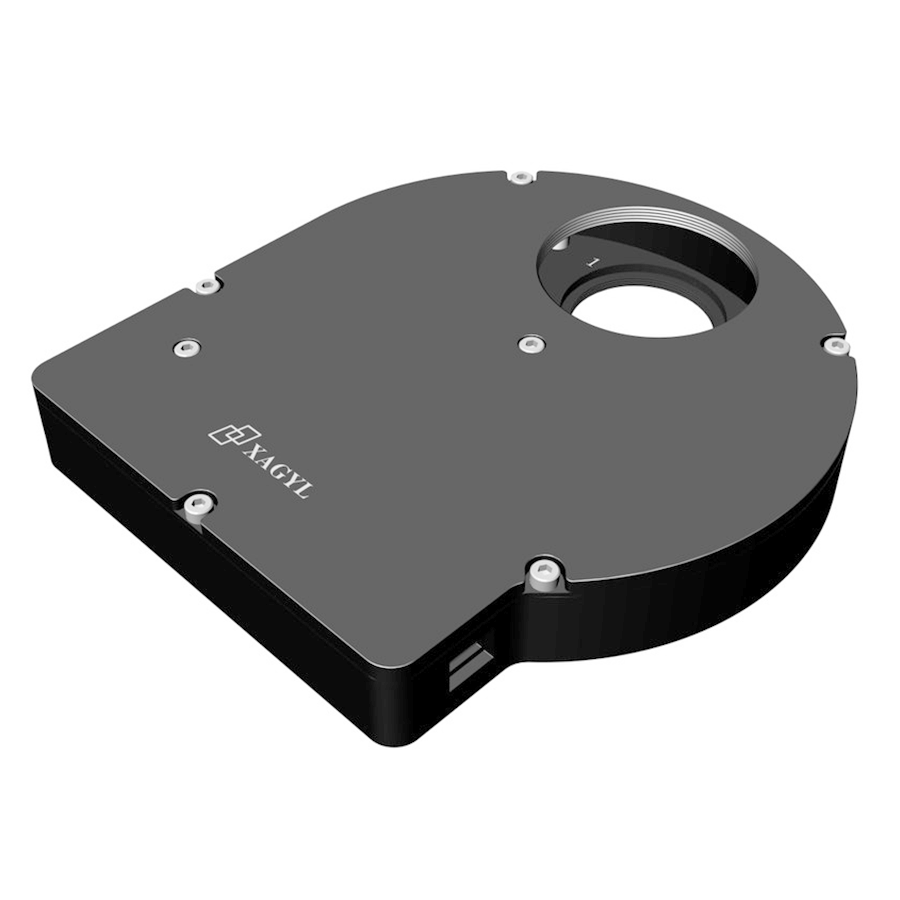

The Starfield Ultra Thin Motorized Filter Wheel - 5 x 1.25" Filters - V4 High Speed delivers ultra-fast carousel rotation and lightweight performance for modern astrophotography setups. Engineered to add only 19mm of back focus, this ASCOM-controlled motorized filter wheel connects directly via USB without needing external power supplies. Elevate your deep-sky mono imaging routine with smooth, high-speed 5-position filter selection designed for modern astronomy cameras.
Slim Compact Optical IntegrationMaximum Clearance for Astrophotography Cameras
Designed for passionate astrophotographers, the Starfield Ultra Thin Motorized Filter Wheel - V4 High Speed boasts a sleek form factor measuring just 4.5" x 4.75" x 0.7" and weighing only 248 grams. Despite its compact footprint, it accommodates up to five standard 1.25" optical filters (M28.5 x 0.6) with maximum cell heights up to 11mm. Its internal drive system operates without protruding motors, ensuring minimal profile obstruction and maximum compatibility with popular astronomy cameras like ZWO ASI, QHY, Atik, SBIG, and Moravian. Included threaded adapters make connecting to standard T-threads, C-mounts, and 1.25" nosepieces simple, reliable, and secure.
Technical SpecificationsDetailed Dimensions and Hardware Metrics
Part Type
Motorized Filter Wheel
Filter Capacity
5 x 1.25" Threaded Filters
Back Focus
19mm
Weight
248g
Dimensions
4.5" x 4.75" x 0.7"
Power Supply
USB Powered
Control
ASCOM Driver Interface
Max Cell Height
11mm
Max Thread Length
4mm
Compatible Brands
ZWO, QHY, Atik, Moravian, SBIG, Basler
Key System FeaturesEngineered for High Performance Imaging
Carousel SpeedOver 5 times faster rotation than previous generation models
Ultra Slim FootprintAdds only 19mm back focus to optical assemblies
Streamlined EnclosureZero protruding external motors to obstruct equipment
USB Bus PoweredOperates via single USB cable without extra power leads
High Filter CapacityHolds five standard 1.25 inch M28.5 x 0.6 filters
Camera CompatibilityFits Basler Ace, ZWO ASI, QHY, Atik, Moravian, and SBIG cameras
Complete Adapter KitIncludes T-thread, C-thread, and 1.25 inch barrel adapters
Frequently Asked QuestionsEverything you need to know
How is the Starfield Ultra Thin Motorized Filter Wheel - V4 High Speed powered?
The Starfield Ultra Thin Motorized Filter Wheel - V4 High Speed is powered and controlled entirely through a single USB cable, requiring no external power supply.
What filter sizes fit inside the Starfield Ultra Thin Motorized Filter Wheel - V4 High Speed?
The Starfield Ultra Thin Motorized Filter Wheel - V4 High Speed holds up to five standard 1.25-inch threaded filters (M28.5 x 0.6) with a maximum cell height of 11mm and thread length up to 4mm.
How much back focus does the Starfield Ultra Thin Motorized Filter Wheel consume?
When used with the included adapters, the Starfield Ultra Thin Motorized Filter Wheel - V4 High Speed adds only 19mm of back focus to your optical train.
Is the Starfield Ultra Thin Motorized Filter Wheel - V4 High Speed compatible with my CMOS camera?
Yes, the Starfield Ultra Thin Motorized Filter Wheel - V4 High Speed works seamlessly via ASCOM drivers with popular astrophotography cameras from ZWO, QHY, Atik, Moravian, SBIG, and Basler Ace.
