Tamiya 1/10 RC Squash Van 4WD Monster Truck Kit (TAM58725-A)
$204.99
Skip to product information
Low StockIn Stock
Tamiya 1/10 RC Squash Van 4WD Monster Truck Kit (TAM58725-A)
$204.99
In Stock
Arrives
This item ships free.
Pick up today in Cumming, usually ready in 2 hours.
1/10 Scale
Realistic Off Road Proportions
Unassembled Kit
Build And Customize Yourself
Gear 4WD
Durable Central Motor Layout
Brushed Power
Includes Motor And ESC
4WS Ready
Four Wheel Steering Capable
V Block Tires
Massive All Terrain Grip
Rugged Monster Truck PerformanceGear driven four wheel drive fun

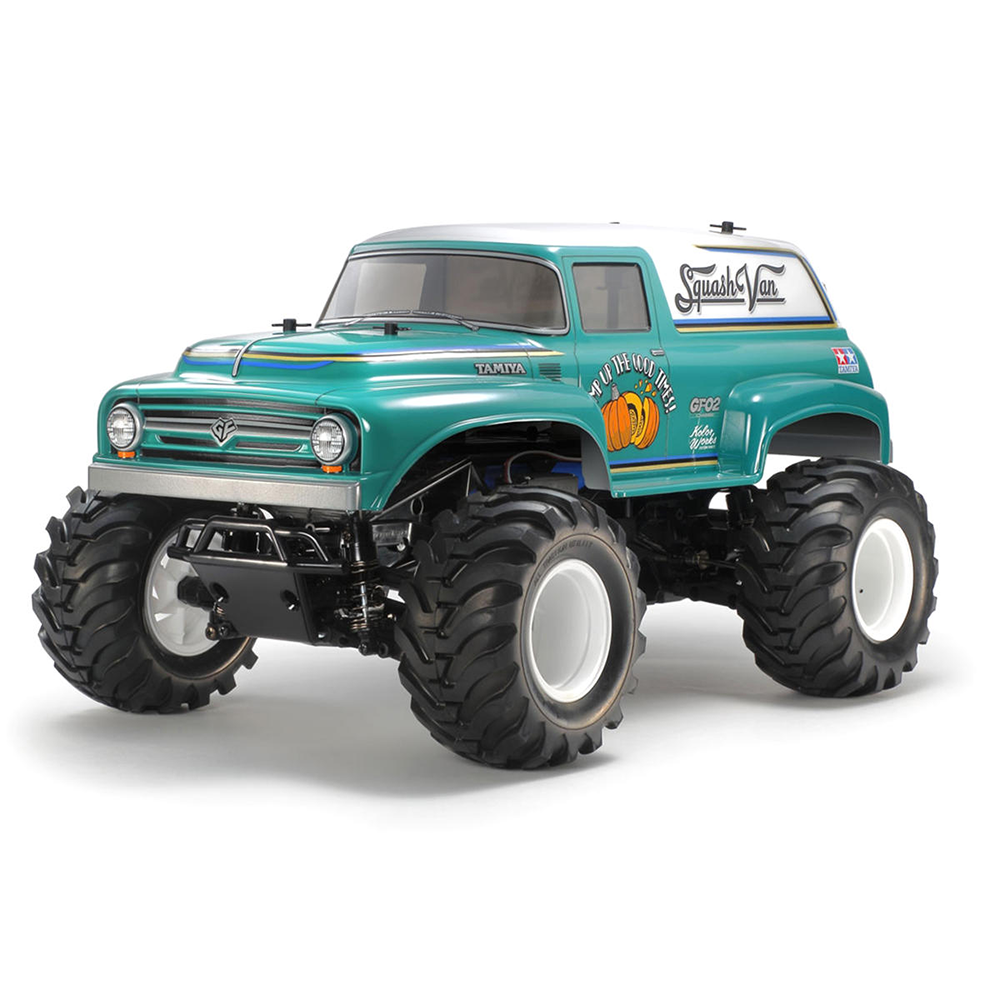

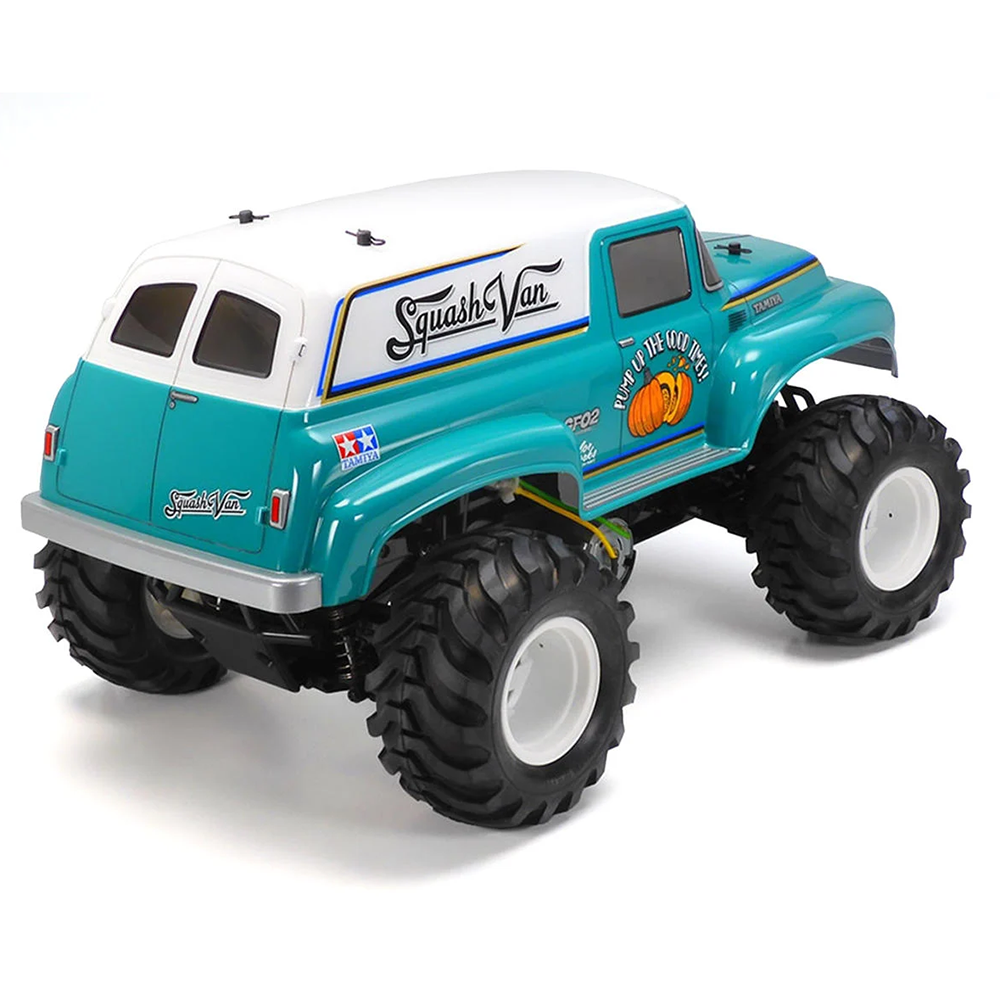

Experience authentic off-road action with the Tamiya 1/10 R/C Squash Van GF-02 kit. Built on the innovative gear-driven 4WD GF-02 chassis, this RC truck combines custom pickup style with impressive stability and torque. It is the perfect choice for hobbyists looking for a durable, realistic electric RC car to assemble and drive anywhere.
GF-02 Engineering MasterySuperior balance and versatile trail capability

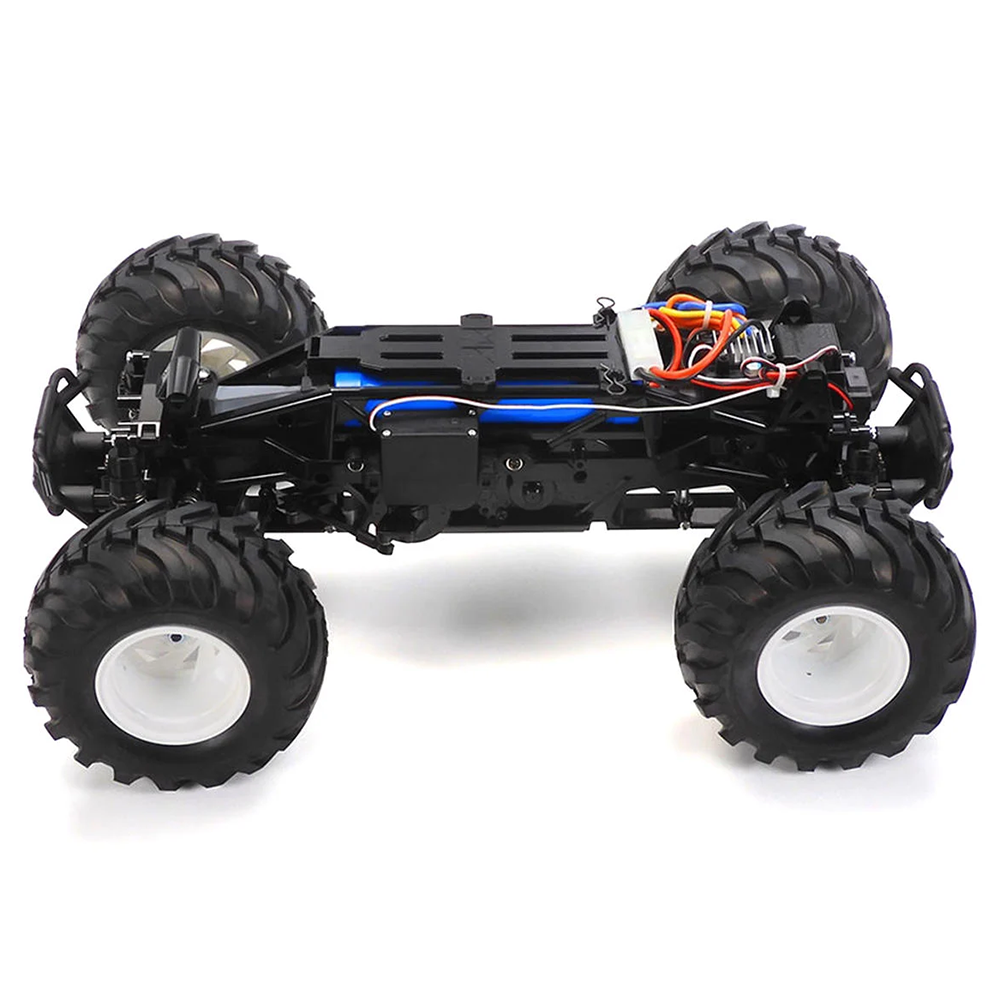

The Tamiya 1/10 R/C Squash Van GF-02 sets a new benchmark for off-road fun with its central motor layout and slim monocoque frame. Power from the included 540 brushed motor is directed to both axles through sealed gearboxes, shielding internal components from rocks and trail debris. Featuring independent 4-wheel double wishbone suspension, durable gear differentials, and giant 122.8mm V-block tires, this RC monster truck tackles steep inclines and rough dirt with ease. For extreme maneuverability, drivers can also equip an optional four-wheel steering (4WS) radio setup.
Technical SpecificationsDetailed specifications for this model
Completion Level
Kit
Drivetrain
4WD
Motor Size
540
Power Type
Electric
Differential
Gear Diffs
Vehicle Size
Standard
Product Width/Weight/Height
Front Track 223mm / Rear Track 221mm
Charger
Sold Separately
Connector Type
Tamiya
Spur Gear
Standard
Gear Pitch
Standard
Speed Control
Included (HobbyWing THW 1060) (shield)
Servo
Sold Separately
Vehicle Type
Monster Truck
Top Speed
Varies with gearing
Battery Type
7.2V - 7.4V (Sold Separately) (battery)
LiPo Compatibility
Yes (2S compatible) (check)
Drive Type
Forward/Brake/Reverse
Shock Type
Friction type
Body
Polycarbonate
Wheel Hex Size
Standard 12mm
Battery Tray
Standard
Motor Class
540 Brushed
Final Drive Ratio
Adjustable
Roll Out
N/A
Radio
Sold Separately
Assembly Time
3-5 Hours
Scale
1/10
Motor Type
Brushed
Power System
2S LiPo / 7.2V NiMH
Chassis
ABS Plastic Monocoque (GF-02) (cpu)
Tire Tread/Hub Size
122.8mm V-Block Tires
Recommended Battery
7.2V NiMH or 7.4V LiPo
Pinion
Adjustable
Internal Gear Ratio
Gear Driven
Oil Type
N/A
Receiver
Sold Separately
Wheelbase
10.51" (267 mm) (ruler)
Suspension
Fully Independent Double Wishbone
Ball Bearings
Plastic Bushings
Key Features & EngineeringBuilt for durability and extreme traction

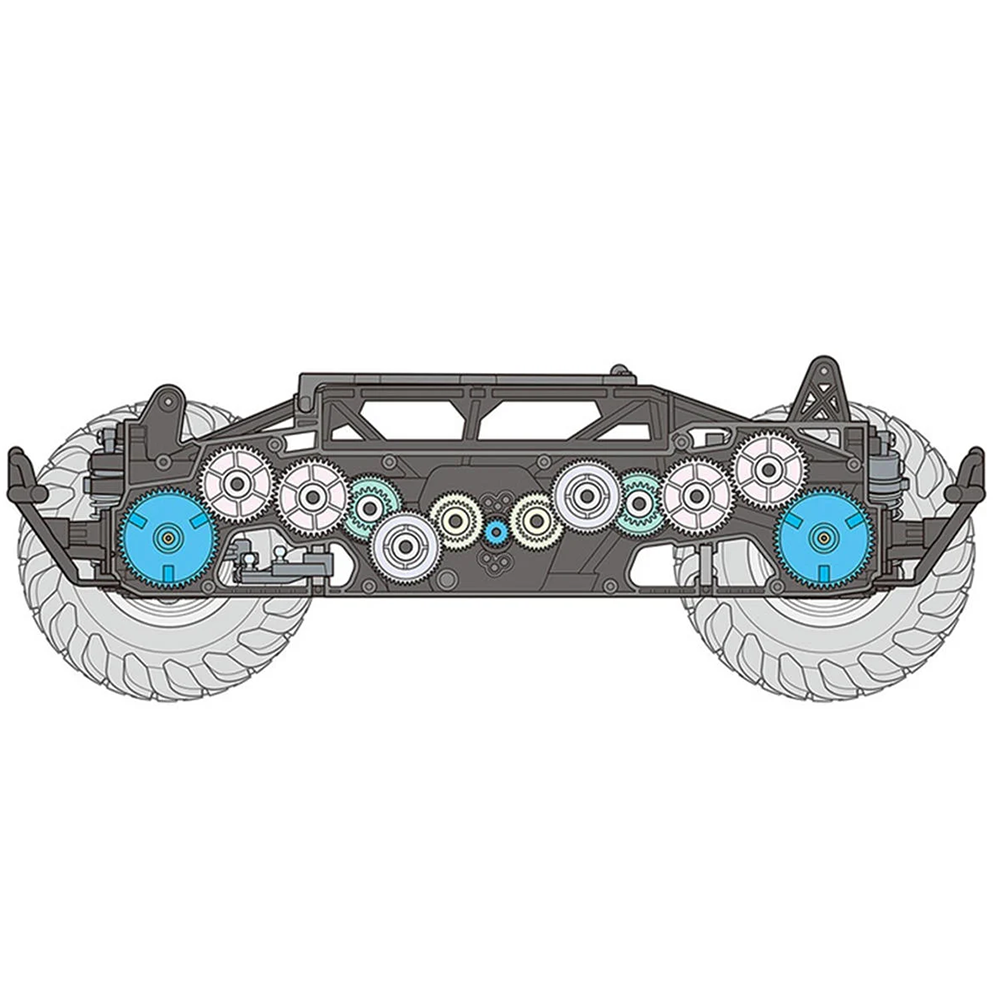

Gear-Driven 4WD GF-02 ChassisLow central motor layout with integrated sealed gearboxes
4WS Steering CapableCompatible with 4-wheel steering using a 3-channel radio setup
Included Electronics PackageFeatures a 540 brushed motor and HobbyWing THW 1060 ESC

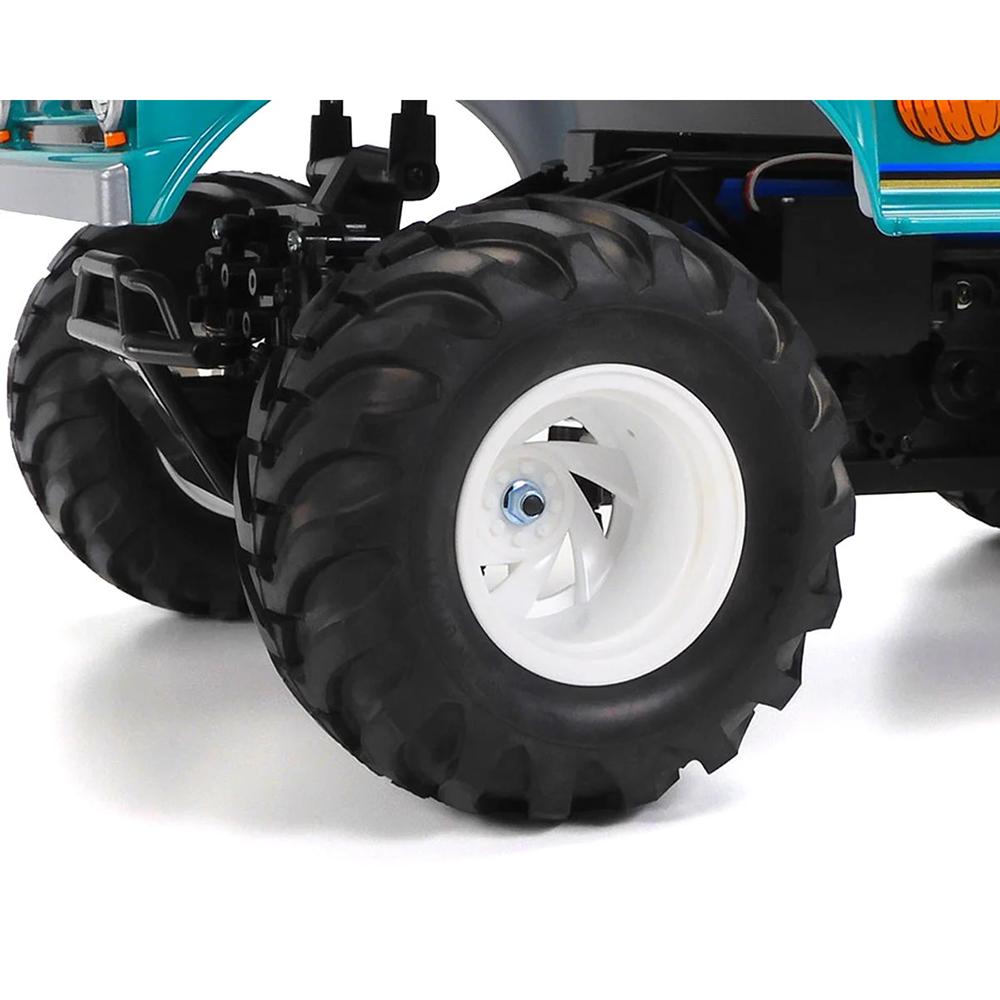

Aggressive V-Block TiresLarge 122.8mm diameter tires deliver exceptional traction
Durable Monocoque FrameRealistic ladder and pipe motifs with integrated motor protection

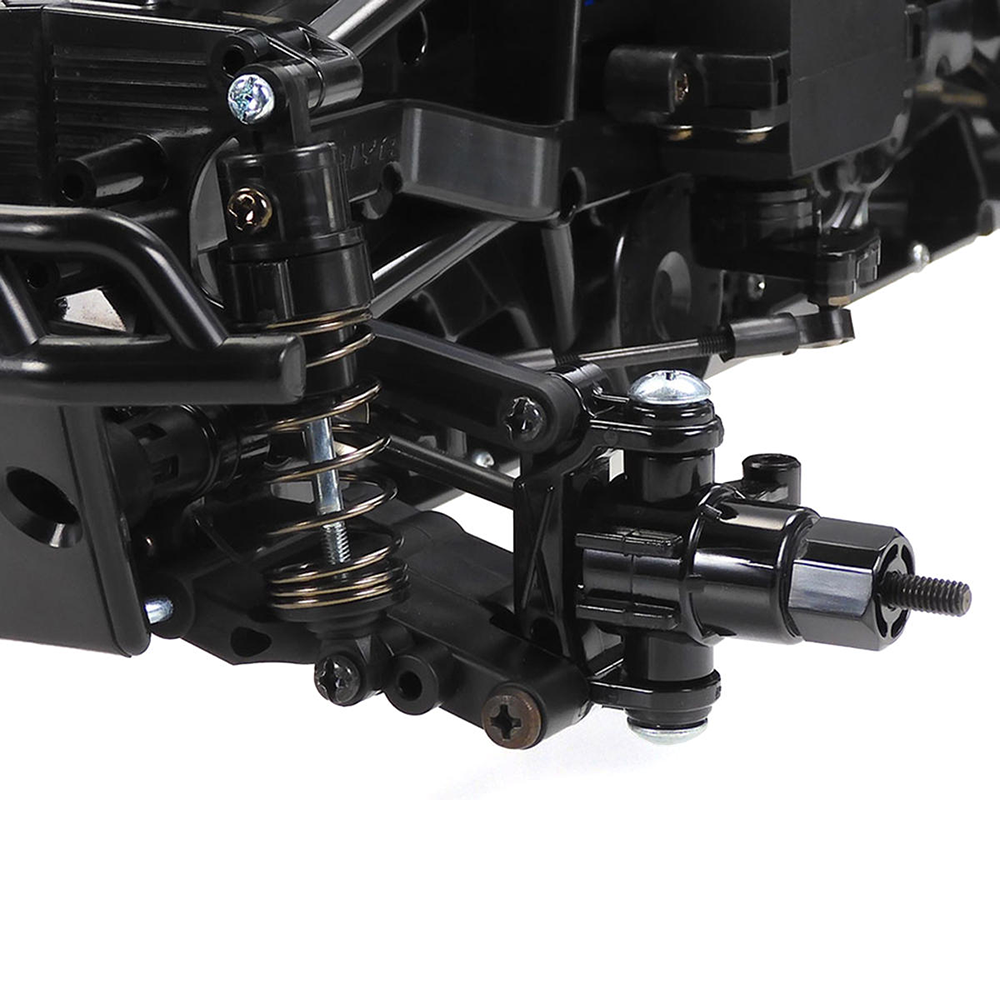

Independent Suspension4-wheel double wishbone layout with quad friction shocks
Customizable Gear RatiosChoose from three different pinion gears to adjust speed and torque
Parts & Accessories
To run this model you’ll need:
Frequently Asked QuestionsEverything you need to know
What additional items are needed to complete the Tamiya 1/10 R/C Squash Van GF-02?
To get the Tamiya 1/10 R/C Squash Van GF-02 fully operational, you will need a 2+ channel radio system, a standard steering servo, a 7.2V NiMH or 7.4V LiPo battery, a compatible battery charger, and PS polycarbonate paint for the body.
Is the Tamiya 1/10 R/C Squash Van GF-02 capable of four-wheel steering (4WS)?
Yes, the Tamiya 1/10 R/C Squash Van GF-02 chassis supports optional 4WS out of the box when equipped with an additional servo and a 4WS-compatible radio system.
Does the Tamiya 1/10 R/C Squash Van GF-02 include a motor and speed controller?
Yes, the Tamiya 1/10 R/C Squash Van GF-02 comes complete with a 540 brushed motor and a HobbyWing THW 1060 electronic speed controller.
