1/14 Monster Beetle Trail 4x4 Kit, w/ GF-01TR Chassis (Requires battery & charger)
$270.99
Assembly Level
Unassembled Scale Kit Format
Drive System
4WD Shaft Gear Driven
Portal Axles
Massive Off Road Clearance
Scale Body
Molded ABS Beetle Shell
ESC Included
Hobbywing THW 1060 Controller
Big Tires
Aggressive Hybrid Pin Spike
Unleash Trail DominanceClassic style meets portal performance

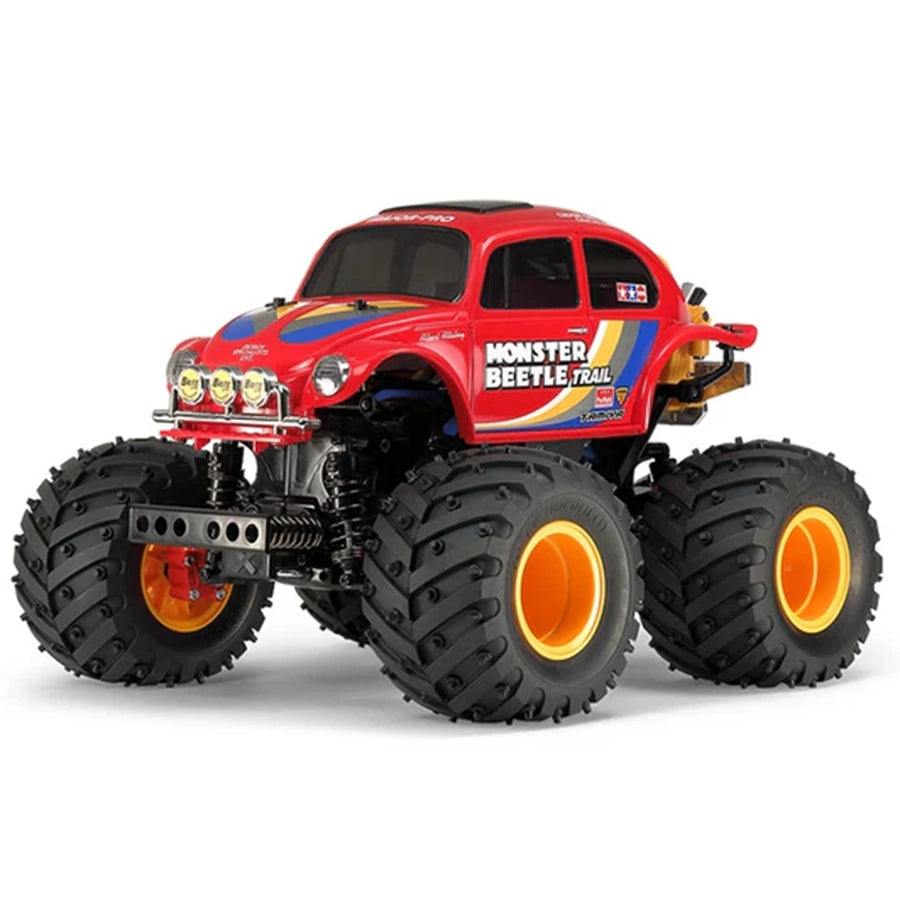

The Tamiya RC Monster Beetle Trail 4x4 Kit brings iconic vintage off-road styling to a highly capable gear-driven 4WD chassis. Built on the innovative GF-01TR chassis with reduction gear portal axles, this trail truck delivers unmatched ground clearance to conquer rugged terrain. Complete with an included Hobbywing 1060 ESC and custom ABS body shell, it offers the ultimate combination of scale assembly and extreme off-road driving performance.
Conquer Any TerrainPrecision engineering for ultimate crawling
Take your off-road adventures to new heights with the Tamiya RC Monster Beetle Trail 4x4 Kit. Featuring a gear-driven monocoque frame, this scale RC car kit equips reduction gears at each axle to drastically boost low-end torque while raising chassis ground clearance over obstacles. The sealed drivetrain protects gearboxes from trail debris, while integrated differential putty provides maximum traction through tough spots. Coupled with 4-wheel independent double wishbone suspension, 115mm hybrid pin-spike tires, and eye-catching metal-plated scale accents, this brushless-compatible RC car offers superior balance, grip, and durability for builders of all skill levels.
Detailed SpecificationsTechnical details and kit measurements
Completion Level
Unassembled Kit
Drivetrain
4WD Gear-Driven
Motor Size
540 Brushed Motor Included
Power Type
Electric
Differential
Sealed Gear Diff with Putty
Vehicle Size
410mm x 285mm x 240mm
Product Width/Weight/Height
285mm / N/A / 240mm
Charger
Sold Separately
Connector Type
Tamiya
Spur Gear
Sealed Internal
Gear Pitch
Metric
Speed Control
Hobbywing THW 1060 Brushed/Brushless ESC
Servo
Standard Size (Sold Separately) (cpu)
Vehicle Type
Trail Truck / Monster Truck
Top Speed
Trail Scale Speed
Battery Type
6-Cell NiMH or 2S LiPo
LiPo Compatibility
Yes (2S Limit) (lightning)
Drive Type
Reduction Gear Portal Axles
Shock Type
Friction Dampers
Body
Molded Red ABS Plastic
Wheel Hex Size
12mm Hex
Battery Tray
Square Monocoque Tray
Motor Class
540 Class
Final Drive Ratio
14.7:1
Roll Out
Trail Setup
Radio
2-Channel Radio System (Sold Separately) (radio)
Assembly Time
3-5 Hours
Scale
Mini Scale
Motor Type
Brushed Included / BL Capable
Power System
2S-3S Compatible ESC
Chassis
GF-01TR Monocoque Frame
Tire Tread/Hub Size
58mm Width / 130mm Outer Diameter
Recommended Battery
7.2V NiMH or 7.4V LiPo
Pinion
Included
Internal Gear Ratio
14.7:1
Oil Type
Friction Dampers / Diff Putty
Receiver
Sold Separately
Wheelbase
247mm
Key Platform FeaturesEngineered for maximum scale realism
Scale BodyMolded Red ABS with Custom Fenders and Auxiliary Lights
Portal AxlesGF-01TR Reduction Gears for Maximum Off-Road Clearance
Speed ControllerHobbywing THW 1060 Dual-Mode ESC Included
Rugged DrivetrainFully Gear-Driven 4WD Monocoque Frame

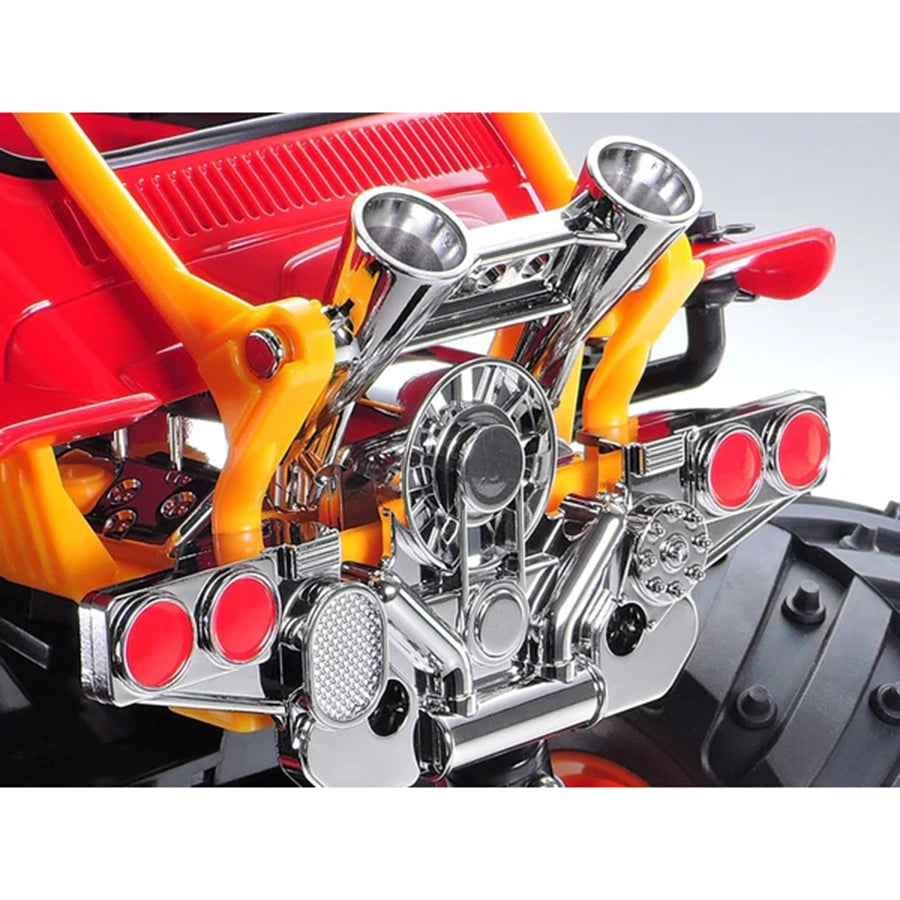

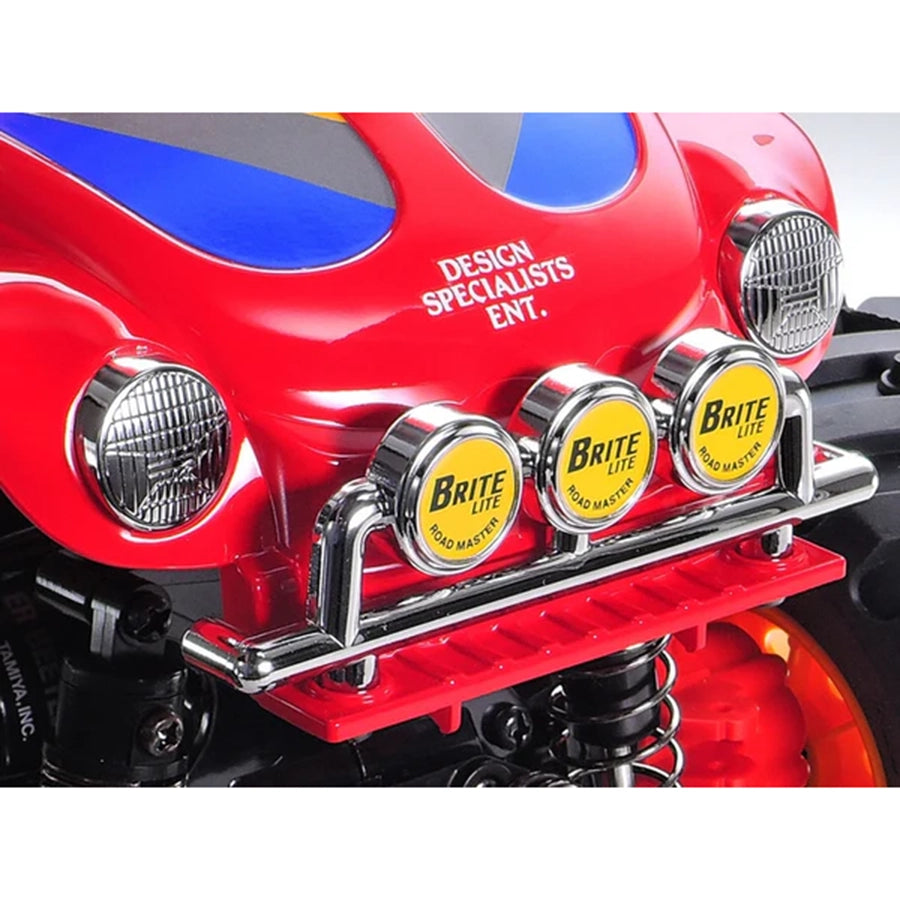

Scale DetailChrome Metal-Plated Headlights Engine and Lights
Tire Performance115mm Hybrid Pin Spike and Lug Pattern Tires
Traction DifferentialSealed Gear Differentials with Soft Diff Putty
Suspension Setup4-Wheel Double Wishbone with Friction Dampers
Parts & Accessories
To run this model you’ll need:
Frequently Asked QuestionsEverything you need to know
What electronics are required to complete the Tamiya RC Monster Beetle Trail 4x4 Kit?
To complete the Tamiya RC Monster Beetle Trail 4x4 Kit, you will need a standard 2-channel surface radio system with a receiver, one standard steering servo, a 7.2V NiMH or 7.4V 2S LiPo battery pack, a compatible battery charger, and synthetic paint for custom detail work.
Does the Tamiya RC Monster Beetle Trail 4x4 Kit include portal axles?
Yes, the Tamiya RC Monster Beetle Trail 4x4 Kit utilizes the GF-01TR chassis variant, which comes equipped with reduction gears on each axle (portal axles). This significantly increases chassis ground clearance and boosts low-end crawling torque over obstacle-filled trails.
Can I upgrade the motor on the Tamiya RC Monster Beetle Trail 4x4 Kit to brushless?
Yes! The included Hobbywing THW 1060 speed controller supports both brushed motors and sensorless brushless motors down to a 21.5 Turn motor limit, allowing for straightforward power upgrades.
