102mm AirSpaced Triplet Apochromat Refractor Telescope, Optical Tube Assembly w/Accessories
$2,499.99
Skip to product information
102mm AirSpaced Triplet Apochromat Refractor Telescope, Optical Tube Assembly w/Accessories
$2,499.99
Carbon Fiber Tube
Lightweight High Strength Design
HOYA Glass
Genuine FCD100 ED Optics
Triplet Optics
Air Spaced Optical Lens
Hex Focuser
Rigid 2.5 Inch Support
EMD Coatings
Enhanced Multi Layer Optics
Vixen Dovetail
Integrated Handle Mounting Plate
Apochromatic Telescope PerformanceLightweight High Contrast Astronomical Refractor

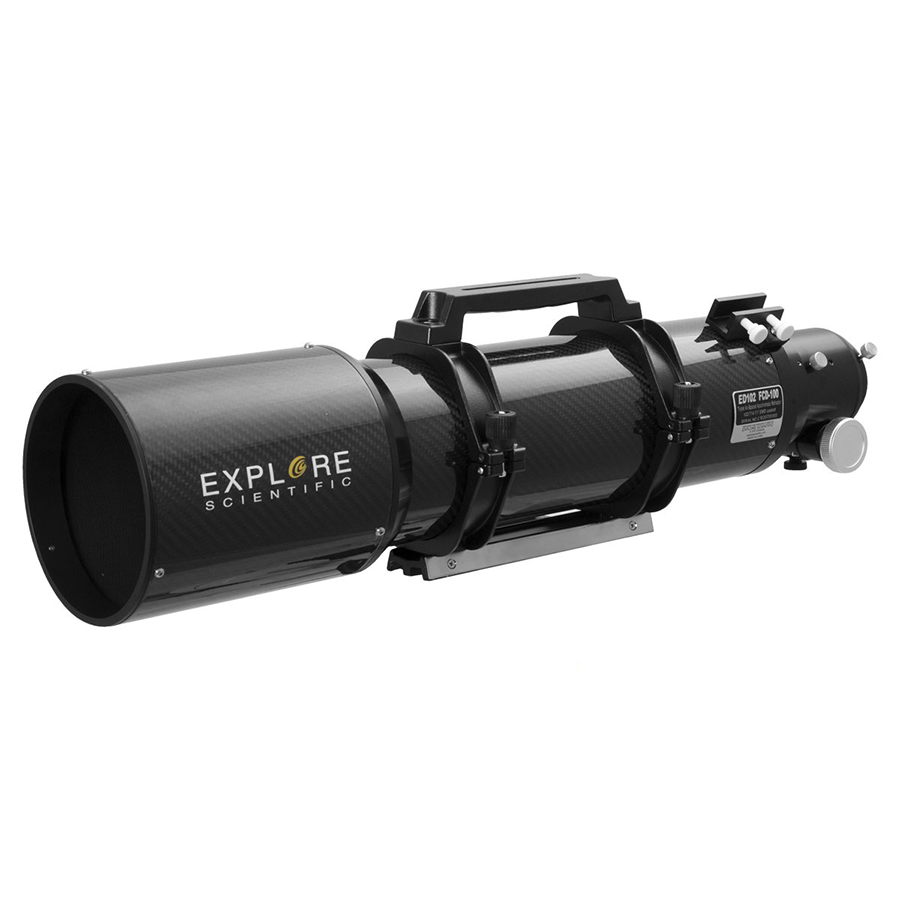

The Explore Scientific ED102-FCD100 Series Air-Spaced Triplet Telescope in Carbon Fiber offers supreme optical performance with minimal weight for both astrophotography and visual observing. Featuring premium HOYA FCD100 ED glass and a true air-spaced triplet design, this high-contrast apochromatic refractor telescope virtually eliminates chromatic aberration. Its lightweight carbon fiber optical tube reduces mount strain while providing an ideal grab-and-go setup for deep-sky observation.
Precision Optical DesignAdvanced Carbon Fiber Astrophotography Setup
Engineered for discerning astronomers, the Explore Scientific ED102-FCD100 Series Air-Spaced Triplet Telescope in Carbon Fiber features a 714mm focal length at an f/7 focal ratio. Built around premier HOYA FCD100 extra-low dispersion (ED) glass with a high refractive index, it achieves unprecedented chromatic aberration correction and brilliant high-contrast views. All air-to-glass optical surfaces feature proprietary EMD enhanced multi-layer coatings to maximize light transmission. Equipped with a robust 2.5" Hexagonal focuser capable of supporting up to 10 lbs of imaging gear without flexure, this refractor includes a 99% reflective 2" diagonal, cradle ring with carrying handle, and a Vixen-style dovetail plate for effortless mount compatibility.
Technical SpecificationsComplete Refractor Optical Measurements
Item Number
FCD100–10207-CF (hash)
Aperture
102mm
Focal Length
714mm
Focal Ratio
f/7
Optical Design
Air-Spaced Triplet Refractor
Glass Type
Genuine HOYA FCD100 ED Glass
Coatings
EMD Enhanced Multi-Layer Coatings
Focuser
2.5" Hexagonal Focuser (10 lb load capacity) (cog)
Weight
7 lbs (3.17 kg tube) / 9.3 lbs with cradle (weight)
Dovetail Plate
45mm Vixen-Style Dovetail with Cone-Angle Adjustments
Diagonal
99% Reflective 2" Diagonal Included
Key Instrument FeaturesPremium Refractor Engineering Highlights
Optical GlassGenuine HOYA FCD100 extra-low dispersion ED glass
Lens StructureAir-spaced triplet design virtually eliminates chromatic aberration
Tube ConstructionLightweight carbon fiber tube minimizes strain on mounts
CoatingsProprietary EMD enhanced multi-layer coatings on all optical surfaces

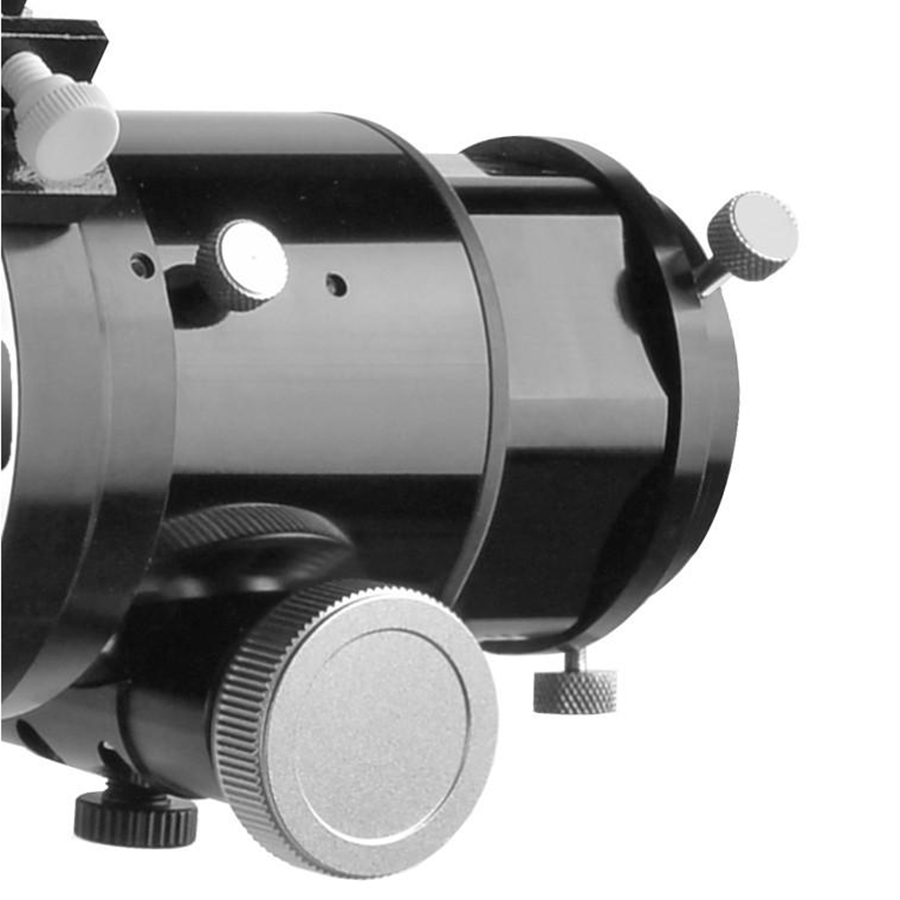

Focuser SystemHeavy-duty 2.5" Hexagonal focuser supports up to 10 lbs
Mounting HardwareCradle ring with handle and Vixen-style dovetail plate
Dew ProtectionIntegrated dew shield protects objective lens from condensation
Frequently Asked QuestionsEverything you need to know
What mounting plate comes with the Explore Scientific ED102-FCD100 Series Air-Spaced Triplet Telescope in Carbon Fiber?
The Explore Scientific ED102-FCD100 Series Air-Spaced Triplet Telescope in Carbon Fiber includes a 45mm wide Vixen-style dovetail plate featuring cone-angle adjustments and an integrated carrying handle attached to the cradle ring.
What optical glass is used in the Explore Scientific ED102-FCD100 Series Air-Spaced Triplet Telescope in Carbon Fiber?
It uses genuine HOYA FCD100 extra-low dispersion (ED) glass combined with optical glass of high refractive index in an air-spaced triplet design to virtually eliminate color fringing and chromatic aberration.
How much weight can the focuser support on the Explore Scientific ED102-FCD100 Series Air-Spaced Triplet Telescope in Carbon Fiber?
The included 2.5" Hexagonal focuser features an ultra-rigid design that can support up to 10 lbs of astrophotography cameras and imaging equipment.
Are a finder scope and carrying case included with the Explore Scientific ED102-FCD100 Series Air-Spaced Triplet Telescope in Carbon Fiber?
No, the carrying case and finder scope are not included with this telescope model, though it does feature a pre-installed Explore Finder Scope base on the tube.
