Every week somebody walks into the shop holding a Traxxas like an injured pet. "It was fine, then it just stopped. Now there's a red light blinking." Nine times out of ten, the truck isn't broken. It's protecting itself, and the blinking light says exactly why. Traxxas packs a surprising amount of diagnosis into one LED on the speed control, one on the receiver and one on the transmitter.
The problem is the blink codes differ slightly between ESCs, and "blinking red" can mean three different things depending on speed. So here's the decoder ring, straight from Traxxas manuals and support pages, plus the fixes we use at the repair bench. Most of them take under a minute and cost nothing.
The Short Answer
A slowly blinking red light on a Traxxas ESC means Low-Voltage Detection has cut power to protect a LiPo, and a fast blinking red light means thermal shutdown from overheating. Charge the battery or let the ESC cool, then fix the cause.
- Alternating red/green (VXL-3s): over-voltage. The battery is too much for the ESC.
- Blinking green: on a VXL-3s, throttle trim is off center. On an XL-5, fast green means no signal from the receiver.
- Fast red on the receiver or transmitter: fail-safe or a link failure. Check the AA batteries, power-cycle in the right order, and re-bind if needed.
- Solid light but no throttle: recalibrate the ESC to the transmitter.
1. Decode the ESC Light First
Before you unscrew anything, look at the speed control's LED and count. Speed matters: slow blinking and fast blinking point to different problems.
The ESC LED chart
| ESC LED (XL-5 / VXL-3s) | What Traxxas says it means | Fix |
|---|---|---|
| Solid green at power-on | Low-Voltage Detection ON (LiPo setting) | Normal for LiPo. |
| Solid red at power-on | Low-Voltage Detection OFF (NiMH setting) | Normal for NiMH. Never run LiPo like this. |
| Slow blinking red | Low-voltage protection: power cut to 50%, then shutdown | Charge or replace the pack. |
| Fast blinking red | Thermal shutdown protection | Let it cool. Check gearing and drag. |
| Very fast blinking red (VXL-3s) | Thermal and low-voltage protection at once | Cool it down and charge the pack. |
| Alternating red and green (VXL-3s) | Over-voltage protection | Battery voltage is too high. VXL-3s max is 3S (12.6V peak). |
| Blinking green (VXL-3s) | Throttle trim set wrong | Return throttle trim to "0". |
| Fast blinking green (XL-5) | No signal from the receiver | Check the ESC plug and that the transmitter is on. |
| Solid light, no motor response | Throttle neutral has changed | Recalibrate the ESC. |
Codes from Traxxas' ESC programming guide, the Slash XL-5 manual and the Rustler 4X4 VXL-3s manual. Bigger VXL-4s, 6s and 8s ESCs have separate current, voltage and temperature LEDs. Check your model's manual for those.
Slow blinking red: low-voltage protection
When Low-Voltage Detection is on, the ESC watches pack voltage. As a LiPo nears its minimum safe voltage, the ESC limits power to 50% throttle. If voltage keeps falling, it shuts down all motor output and slowly blinks red. It stays that way until a fully charged battery is connected. That's the ESC saving your LiPo, not a defect.
The fix is a charged pack. If it happens after only a few minutes on a full charge, the pack may not be charging fully, may be damaged, or may have one weak cell. Traxxas' VXL troubleshooting article says to check your charger in that case. A balance charger like the Traxxas EZ-Peak Live 100W Charger with iD (2971) shows per-cell information. A puffy pack goes in the recycling bin, not back in the truck.
Fast blinking red: thermal shutdown
The ESC got too hot and protected itself. On a VXL-3s, Stage 1 means reduced power while hot, and Stage 2 means a full shutdown. Let it cool. Don't put it in the freezer: condensation and electronics don't mix. Then remove the reason it overheated. Traxxas' first suggestion is a smaller pinion. Next come tall grass, mud, a dragging brake, a bound-up drivetrain or a truck that's too heavy for its gearing. Our gearing 101 guide shows how to gear down and check temperatures.
2. When the Receiver or Transmitter Is the One Blinking
If the ESC looks normal but the truck won't respond, look at the receiver box and the radio.
Receiver and transmitter codes
| Where | Pattern | Meaning |
|---|---|---|
| Receiver | Solid green | Normal |
| Receiver | Slow red | Bind mode |
| Receiver | Fast red | Fail-safe or low receiver voltage |
| Transmitter | Medium red flash | Low transmitter batteries |
| Transmitter | Fast red flash | Link failure: out of range, low batteries or damaged antenna |
| Transmitter | Fast green flash | Throttle Trim Seek: turn the knob until it stops |
Patterns per the TQi LED tables in the Maxx Ultimate manual and the TQi receiver instructions.
Fail-safe and link failures
When the signal drops, the TQi fail-safe returns the throttle to neutral and both LEDs flash fast red. Fixes, in order:
- Put fresh AA batteries in the transmitter. Weak AAs are the number one cause we see.
- Power down the truck, then the transmitter. Turn the transmitter on first, then the truck, within about 20 seconds.
- Check the receiver antenna. A cut or kinked wire, or a missing tip, kills range.
- Still red? Re-bind: hold SET while switching on the transmitter, then hold LINK while switching on the ESC, until both go solid green. Our TQi programming guide walks through it.
Fast red on the receiver can also mean the receiver's supply voltage is sagging. Traxxas designed that fail-safe to keep enough power to center the throttle. A failing servo or ESC BEC can trigger it too.
Blinking green and Throttle Trim Seek
If you set the Multi-Function knob to throttle trim and it moved while the radio was off, the TQi ignores the knob and flashes fast green so the truck can't creep away. Turn the knob back toward its saved spot until the flashing stops. A VXL-3s blinking green is complaining about the same off-center throttle trim. Set it back to the "0" mark.
3. Fix the Root Cause: LVD Settings, Recalibration and Gearing
Clearing a code gets you driving again. Fixing why it happened keeps you driving.
Set Low-Voltage Detection to match your battery
Traxxas ships some NiMH-equipped models with LVD off. Before you plug in a LiPo, check it: switch on with the transmitter on. Solid green means LVD is on, solid red means off.
- To turn LVD on (LiPo): with the LED on and red, hold EZ-Set about 10 seconds until the LED turns green. On an XL-5 the motor beeps twice.
- To turn LVD off (NiMH only): with the LED green, hold EZ-Set about 10 seconds until it turns red.
Traxxas is blunt about it: never run LiPo batteries with LVD disabled. If your NiMH truck stutters with LVD on, turn it off for NiMH. Don't "fix" a LiPo truck's cutoffs by disabling LVD.
Solid light, no throttle: recalibrate
If the ESC powers on with a solid light but the motor does nothing, Traxxas says the throttle neutral has changed. That's common after a radio swap, a reset or a bumped throttle trim. Recalibrate:
- Charged battery in, transmitter on at neutral.
- Hold EZ-Set until the LED goes green, then red. Release.
- At one red blink, hold full throttle. At two red blinks, hold full reverse.
- One green blink means done.
VXL-3s trucks also have locked-rotor protection. If the motor can't turn because of a jammed gear or a rock in the spur, the ESC goes into fail-safe until it's free. Spin the drivetrain by hand to check.
Still dead? A quick bench checklist
- Is the ESC plug in the receiver's throttle channel, the right way around?
- Are the motor wires and bullet connectors tight? Burnt or loose bullets cause stutter that looks like a radio problem.
- Was the over-voltage code caused by a pack that's too big? A VXL-3s maxes out at 3S, and Traxxas warns roughly 20V can damage it.
- Water in the receiver box? Remove the cover and let it dry.
- Steering dead too? That points to receiver power or the BEC, not the motor.
If you've done all that and it's still blinking, it's bench time. A replacement TQi receiver or a new VXL-3s or XL-5 is a common repair, but let's test before you buy.
Conclusion
A blinking Traxxas is usually a truck doing its job: protecting a LiPo, cooling an overworked ESC or refusing to run without a clean signal. Count the blinks, match them to the chart, and fix the cause. That might be a charged pack, a smaller pinion, fresh AAs or a two-minute recalibration. Most "dead" trucks we see leave the counter running without a single part.
Need batteries, a charger or replacement electronics? Shop LiPo batteries and surface radios, or bring the truck and transmitter by the store and we'll diagnose it on the bench.
Gear Mentioned in This Guide
Traxxas 3S 5000mAh 11.1V 25C LiPo with iD (2872X)
Fresh, balanced packs end most low-voltage cutoffs.
Shop now
Traxxas EZ-Peak Live 100W Charger with iD (2971)
Reads Traxxas iD packs and balance-charges LiPos.
Shop now

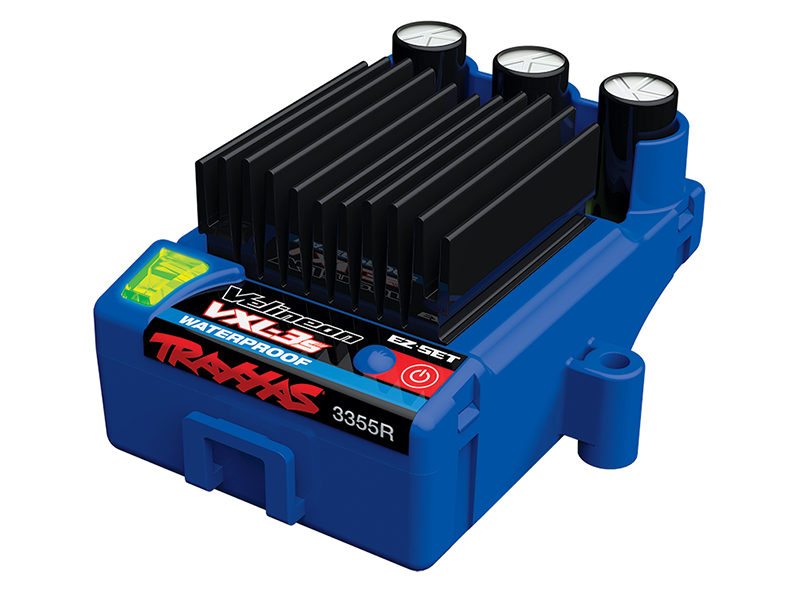

Traxxas Velineon VXL-3s Waterproof ESC (3355R)
The brushless ESC in most 3S Traxxas VXL models.
Shop now
Traxxas XL-5 Waterproof ESC with Low-Voltage Detection (3018R)
The brushed ESC in Slash, Stampede, Rustler and Bandit XL-5 models.
Shop now
Traxxas TQi 5-Channel Micro Receiver with Telemetry & TSM (6533)
A replacement receiver when a crash or water kills the old one.
Shop nowFrequently Asked Questions
What does a blinking red light on a Traxxas ESC mean?
Slow blinking red means low-voltage protection: the battery is depleted and the ESC shut down to protect it. Fast blinking red means thermal shutdown from overheating. On a VXL-3s, very fast blinking red means both at once.
How do I fix low-voltage detection on my Traxxas?
Connect a fully charged battery. If it cuts out early on a full charge, check your charger and the pack's cell balance. Only turn LVD off (hold EZ-Set about 10 seconds until the LED turns red) when running NiMH. Never run LiPo with it off.
Why is my Traxxas ESC flashing red and green?
On a VXL-3s, alternating red and green means over-voltage protection. The battery voltage is too high for the ESC, so use a pack within its rating (3S max).
Why is my Traxxas blinking green and won't move?
On an XL-5, fast blinking green means the ESC isn't getting a receiver signal. On a VXL-3s, blinking green means throttle trim is off center. On the TQi transmitter, fast green is Throttle Trim Seek mode: turn the knob until it stops.
My Traxxas has a solid light but won't move. What now?
The throttle neutral point has probably changed. Recalibrate the ESC: hold EZ-Set until green then red, full throttle at one red blink, full reverse at two, and release at one green blink.
Why are my Traxxas receiver and transmitter flashing fast red?
That's fail-safe or a link failure. Replace the transmitter AAs, turn the transmitter on first and the truck second, check the antenna, and re-bind if needed.
