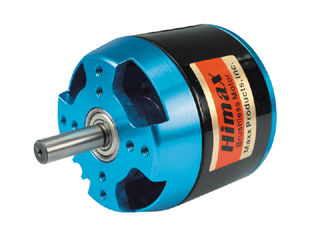

Himax HC6320-250 Outrunner Brushless Motor
$199.99
Skip to product information
Himax HC6320-250 Outrunner Brushless Motor
$199.99
1700W Max Output
Extreme Brushless Electric Power
250 Kv Rating
High Torque Motor Performance
1.20 Swap
Replaces Nitro Gas Engines
Electric Power RedefinedBrushless performance for scale aircraft
The HC6320-250 Motor delivers immense electric performance engineered specifically as a direct brushless replacement for 1.20 cubic inch glow or gas engines in large RC plane models. Delivering up to 1700W of clean output, this heavy-duty outrunner provides exceptional high-torque power tailored for 3D, aerobatic, and scale flight applications.
High Torque Motor PerformanceUnmatched reliability for large RC planes
Upgrade your large scale aircraft with the powerful HC6320-250 Motor, crafted to handle heavy airframes ranging from 10-pound 3D aerobatic setups to 22-pound scale flyers. Operating efficiently at 250 Kv, this premium brushless motor supports continuous currents up to 60A and peak burst loads of 80A. Designed to run smoothly on 9S to 12S LiPo battery setups paired with an 80A ESC, the HC6320-250 Motor ensures impressive flight endurance, smooth throttle response, and reliable power output for your aviation demands.
Technical SpecificationsDetailed electrical and physical dimensions
Motor Type
Brushless Outrunner
Kv Rating
250 RPM/V
Max Power
1700W
Max RPM
10,000
Weight
450g / 15.9oz motor only
Diameter
63mm / 2.48 in
Length
51mm / 2.01 in
Shaft Diameter
8mm
Continuous Current
60A
Peak Current
80A / 15 sec
Resistance (Rm)
0.041 ohms
Idle Current (Io)
1.3A at 20V
Max Case Temperature
149°F / 65°C
Glow Engine Equivalent
1.20 cu. in.
Power Plant FeaturesKey design details and setup recommendations
3D Flight CompatibilityUp to 10 lbs aircraft weight
Aerobatic Flight CompatibilityUp to 17 lbs aircraft weight
Leisurely Flight CompatibilityUp to 22 lbs aircraft weight
Recommended Speed Control80 Amp Brushless ESC
Recommended LiPo Battery9S to 12S LiPo pack
Recommended NiMh Battery27 to 36 NiMh cells
Recommended Propeller18x10 E-prop on 10S LiPo
Frequently Asked QuestionsEverything you need to know
What glow engine size does the HC6320-250 Motor replace?
The HC6320-250 Motor is specifically engineered as an electric brushless replacement for 1.20 cubic inch glow or gas engines in large RC airplane models.
What electronic speed control (ESC) is recommended for the HC6320-250 Motor?
An 80 Amp brushless speed control (ESC) is recommended to safely handle the continuous 60A and 80A peak current demands of the HC6320-250 Motor.
What propeller and battery configuration works best with the HC6320-250 Motor?
For efficient performance, the HC6320-250 Motor pairs excellently with a 9S to 12S LiPo battery pack (or 27-36 NiMh pack) and an 18x10 electric propeller on 10S LiPo power.
