Himax HC3522-0990 Outrunner Brushless Motor, 400 Watt
$88.95
Skip to product information
Himax HC3522-0990 Outrunner Brushless Motor, 400 Watt
$88.95
400W Power Output
High efficiency output design
Brushless Outrunner
Engineered for RC aircraft
20000 Max RPM
High torque performance dynamic
Precision Electric PowerHigh efficiency outrunner for aircraft
The Himax Brushless HC3522-0990 is a high-performance 400W brushless motor engineered specifically for medium-sized radio controlled aircraft. Built to demanding standards, this lightweight outrunner delivers high torque and outstanding efficiency for discerning RC pilots. Whether flying 3D, aerobatic, or scale models, the Himax Brushless HC3522-0990 provides reliable power for every flight.
Engineered For Peak FlightReliable high torque performance
Take your flight performance to new heights with the Himax Brushless HC3522-0990 motor. Capable of reaching up to 20,000 RPM and generating 400 Watts of continuous power output, this RC airplane brushless motor is perfectly optimized for models weighing between 38 oz and 128 oz depending on flight style. Each unit includes a complete hardware package, prop adapter, and female bullet connectors for straightforward mounting and installation. Upgrade to the Himax Brushless HC3522-0990 for durable power and dependable RC flight performance.
Technical ParametersMotor dimensions and performance metrics
Part Type
Brushless Outrunner Motor
Weight
162g / 5.7 oz Motor only
Max Power
400W
Max RPM
20,000 RPM
Diameter
35.2mm / 1.39 in
Length
48mm / 1.89 in
Shaft Diameter
5.0mm / 0.1969 in
Mount Screw Thread
4-40 max depth 5mm on 25mm circle
Maximum Case Temperature
65°C / 149°F
Performance CapabilitiesKey features and included hardware
Brushless DesignHigh efficiency 400W outrunner motor
Flexible CompatibilityIdeal for models weighing 38 oz up to 128 oz
Included Prop AdapterEnables easy propeller installation
Mounting HardwareComes with complete motor mount kit and 4-40 screws
Tools IncludedPackaged with two hex keys for convenient maintenance
Connector HardwareIncludes three 3.5mm female bullet connectors
Frequently Asked QuestionsEverything you need to know
What size model aircraft is the Himax Brushless HC3522-0990 motor suitable for?
The Himax Brushless HC3522-0990 is designed for medium-sized RC airplanes weighing 38-50 oz for 3D flight, up to 84 oz for aerobatic flight, and up to 128 oz for scale or leisurely flight.
What accessories are included with the Himax Brushless HC3522-0990?

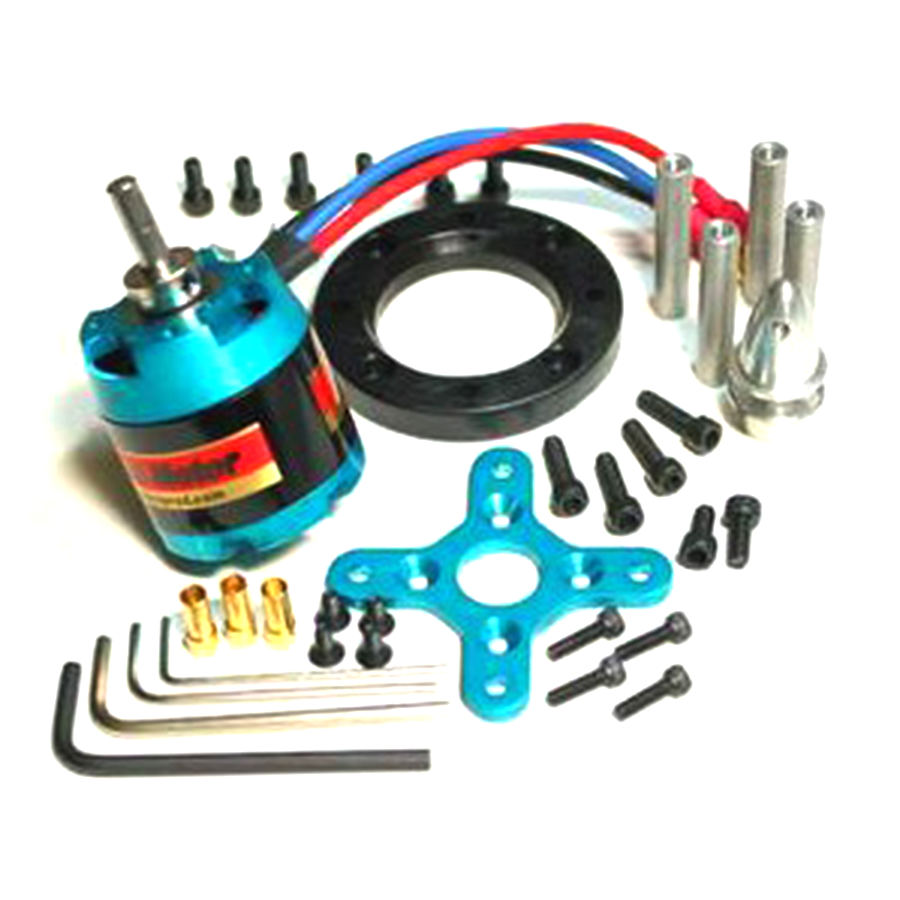

The Himax Brushless HC3522-0990 includes one prop adapter, three female 3.5mm connectors, four motor mounting screws, one motor mount kit, and two hex keys.
What is the maximum safe operating temperature for the Himax Brushless HC3522-0990?
The maximum case temperature for the Himax Brushless HC3522-0990 motor should not exceed 65°C (149°F) during operation.
