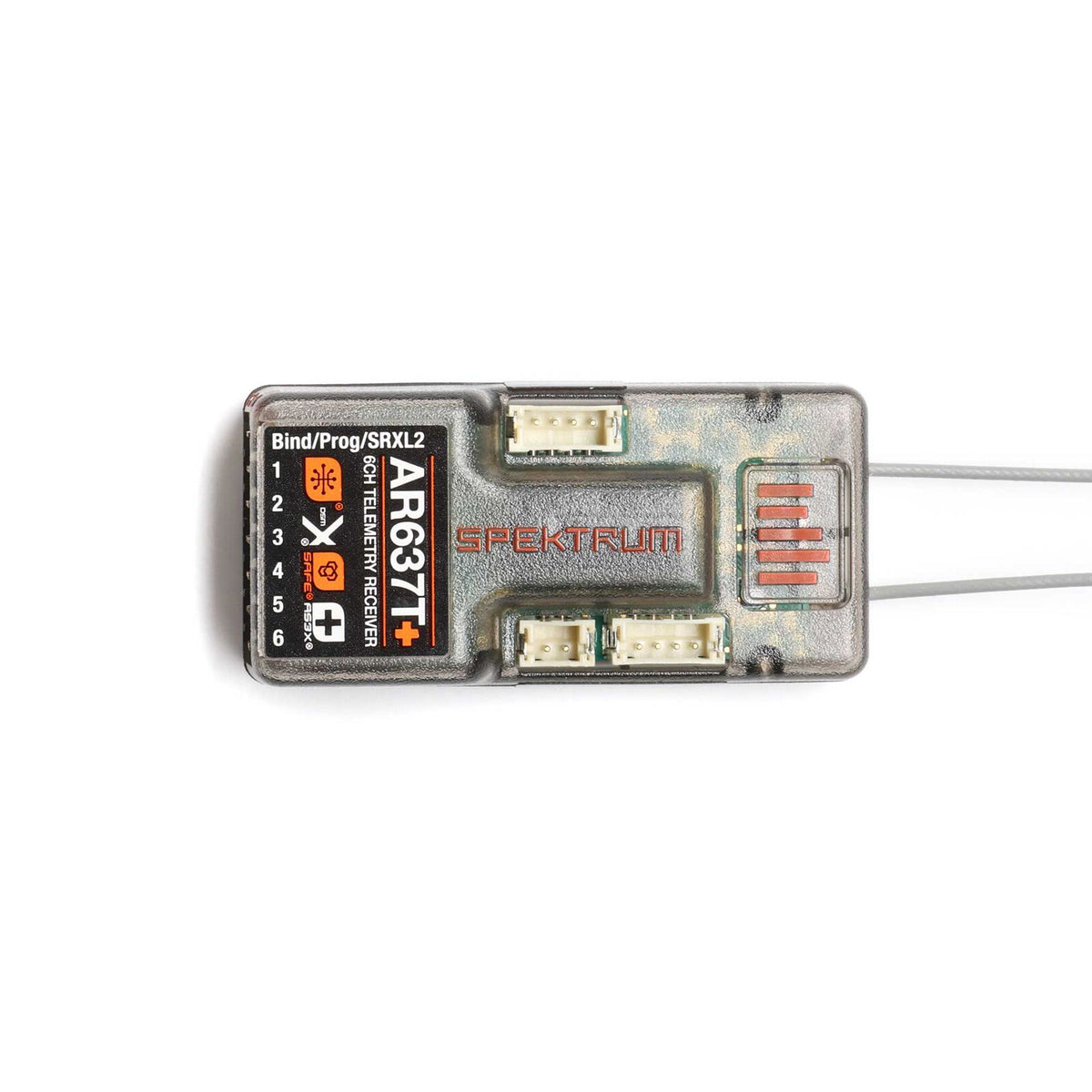

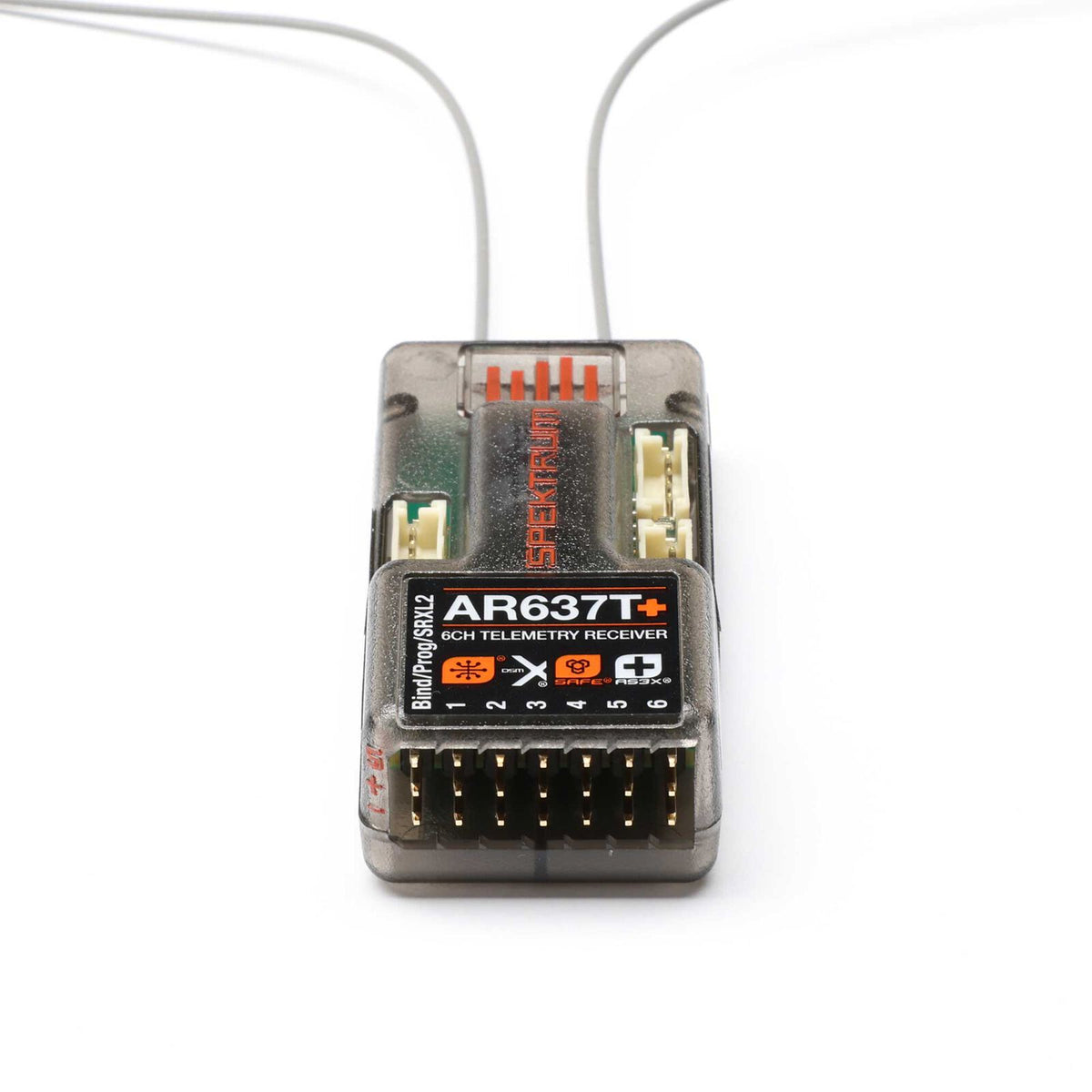

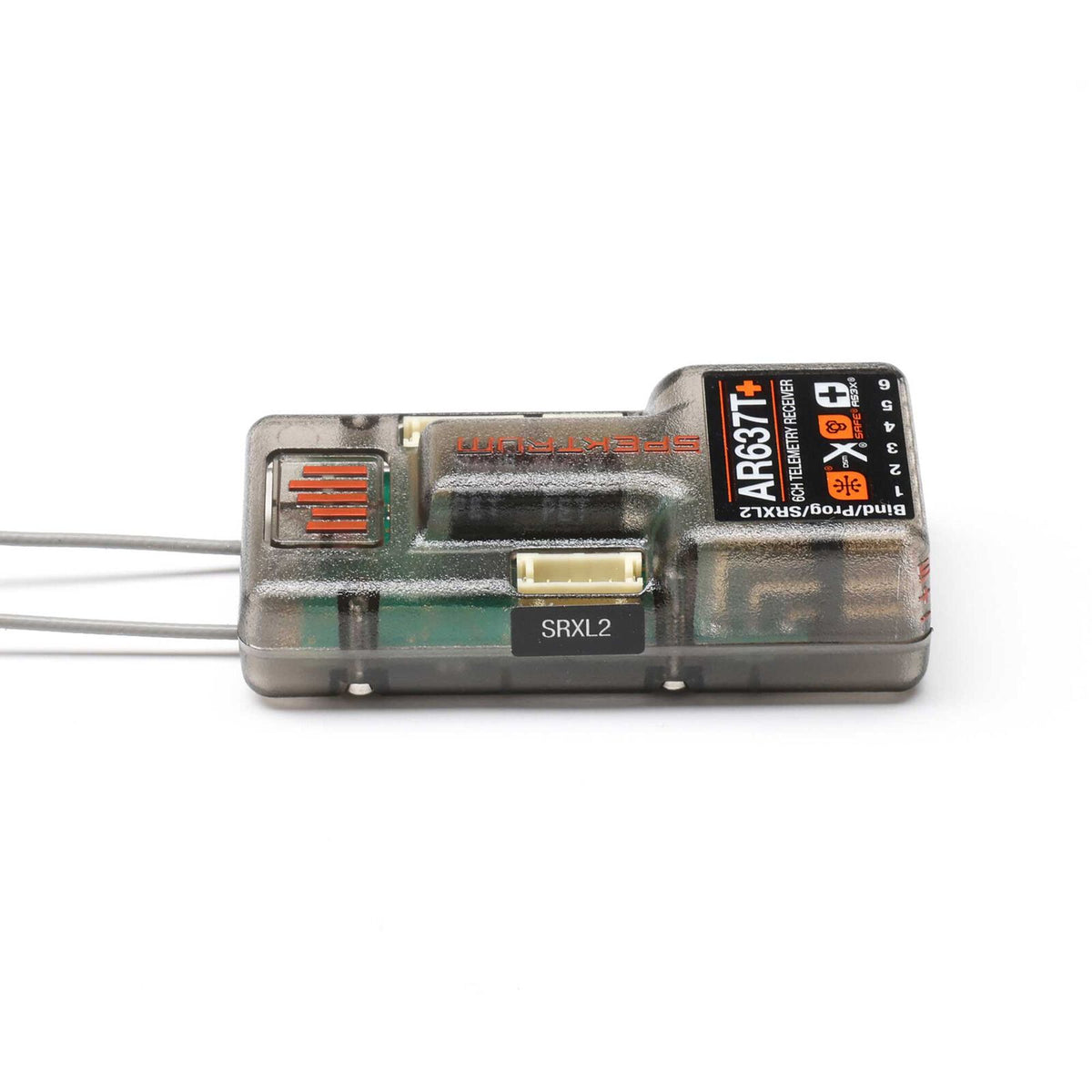

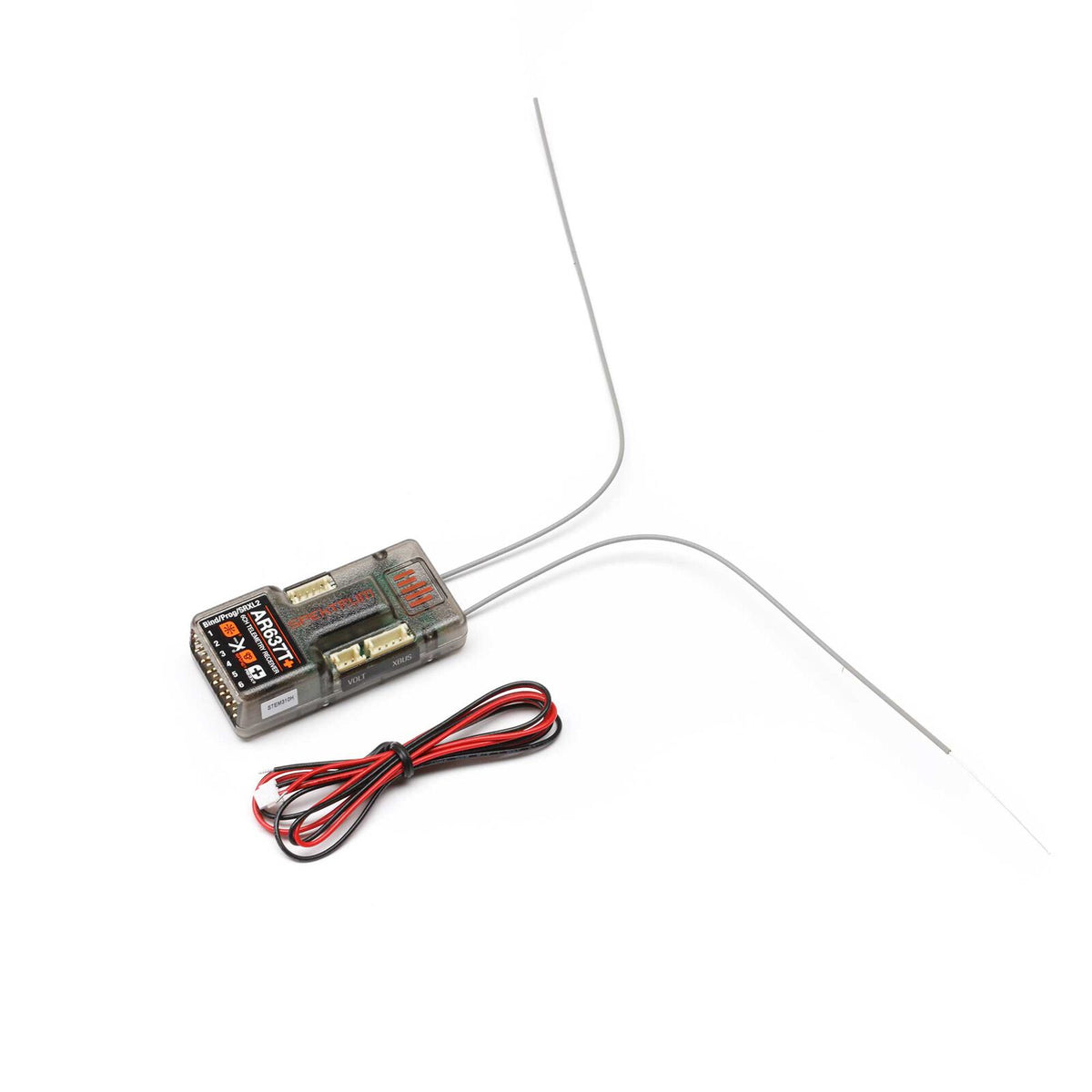

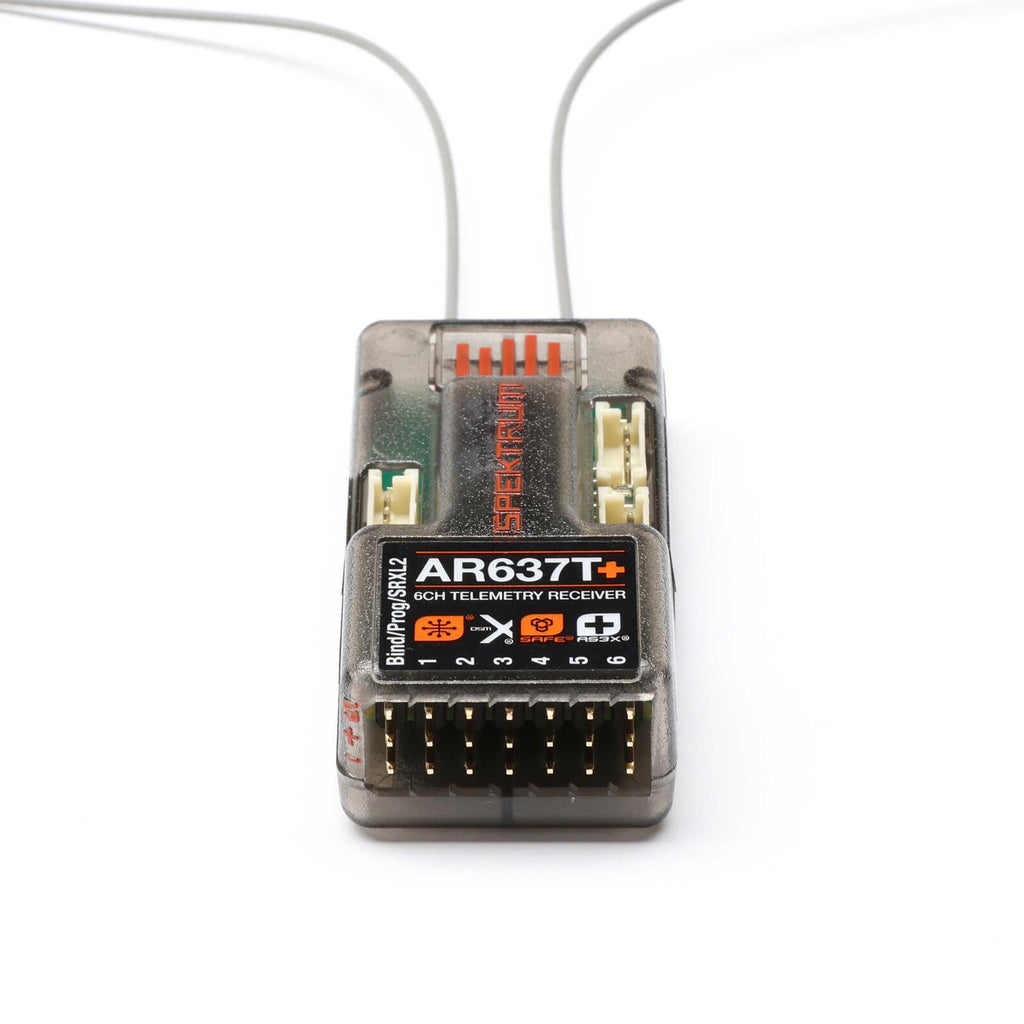

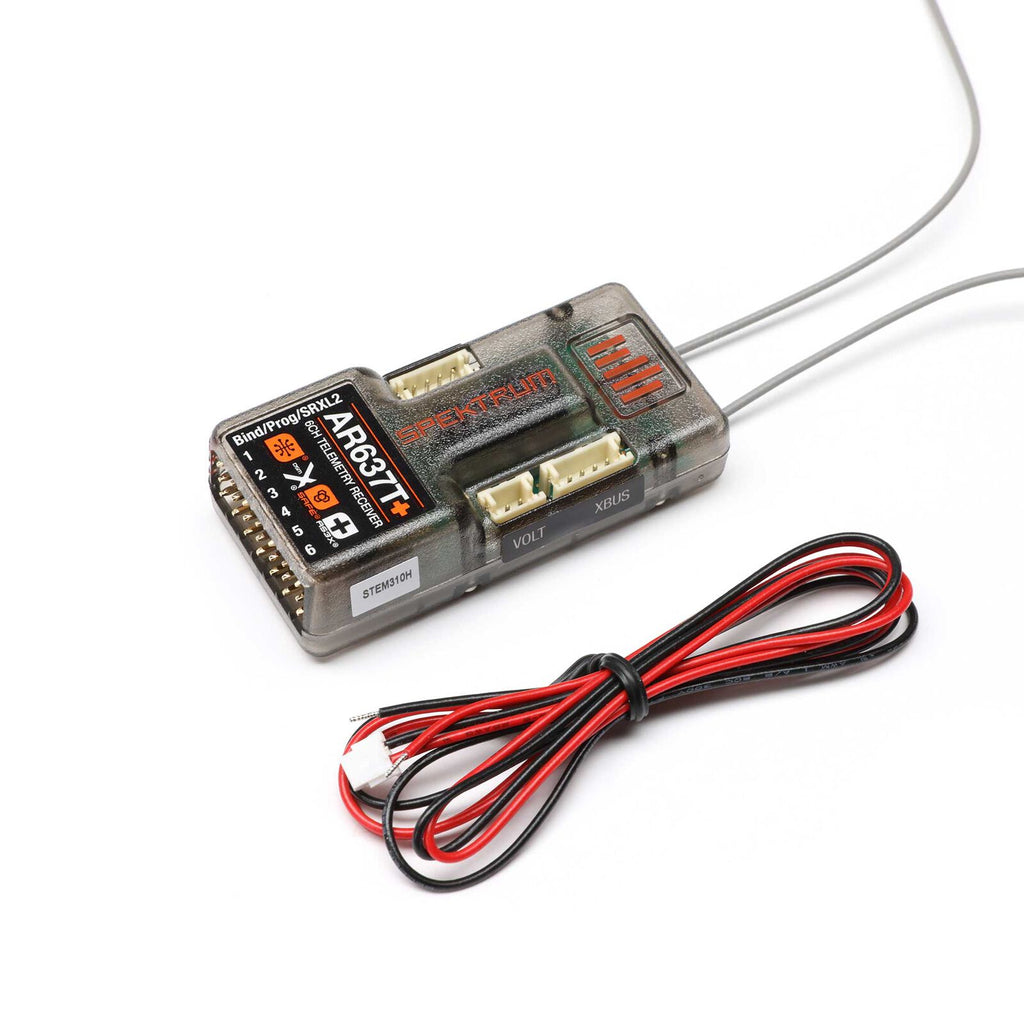

AR637T+ 6-Channel AS3X+ / SAFE Telemetry Receiver

AR637T+ DSMX 6-Channel AS3X+ & SAFE Telemetry Receiver

Overview:

The Spektrum™ AR637T+ 6 Channel AS3X+ Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. This receiver is full-range with built-in AS3X+® and SAFE® stabilization. *Please note – Using this receiver in turbine-powered aircraft models is not recommended.

The Spektrum™ AR637T+ 6 Channel AS3X+ Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR637T+ is a full-range 6-channel receiver with built-in AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy and data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.

AS3X+ and SAFE are programmed and set up directly from your Spektrum transmitter* with an easy 3-step Forward Programming initial setup. To use SAFE and AS3X+ technology with the AR637T receiver, the receiver needs to be set up with a compatible Spektrum transmitter. With Forward Programming, there is no need for apps or cables to program or make changes while at the flying field.

The AR637T+ features full-range telemetry and an integrated barometer to provide altitude and vario telemetry data without additional purchase. XBUS, RPM, voltage, and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747), available separately, to add additional RF path redundancy.

An SRXL2/Bind/Program/Batt servo header is available to connect Smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR637T+ also features a bind button for easy binding with no plugs necessary, offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through Forward Programming. Additionally, Smart Transmitter Model Files allows BNF models to be stored on the receiver to automatically setup the model at bind.

Please Note: The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR637T receiver.

These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, non-computer transmitters.

In The Box:

(1) AR637T+ 6-channel AS3X+ / SAFE Telemetry Receiver
(1) Product Manual

Needed to Complete:

(1) Telemetry Capable DSMX Transmitter. (Servo Extension(s) May Be Required)

Features:

• Perfect for electric powered RC pilots to large gas models requiring six channels or less
• Built-in AS3X+ Stabilization System with SAFE flight envelope protection
• Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need for modules, links, and wires
• Full-range telemetry with an integrated barometer to provide altitude and vario telemetry without additional modules
• Smart Transmitter Model File support
• AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter*
• Bind button allows for easy binding and eliminates the need for bind plug
• Streamlined, end-pin design in a lightweight hard-case
• Expansion ports for use with SRXL2 remote receivers and telemetry sensors
• Standard servo connectors
