Spektrum Avian 100 Amp Brushless Smart ESC, 3S6S (SPMXAE1100)
$99.99
Skip to product information
Spektrum Avian 100 Amp Brushless Smart ESC, 3S6S (SPMXAE1100)
$99.99
100A Power Output
Supports Continuous High Power Loads
3S-6S LiPo Compatible
Versatile Power For Flying Models
Smart Telemetry Built-In
Real Time Single Wire Telemetry
32-Bit ARM Processing
Fast Powerful M4 Microcontroller Response
Efficient Active Cooling
Integrated Heatsink And Cooling Fan
Plug And Play
Pre Wired Factory IC Connectors
Smart Air Power SolutionNext Generation Telemetry For RC Aircraft

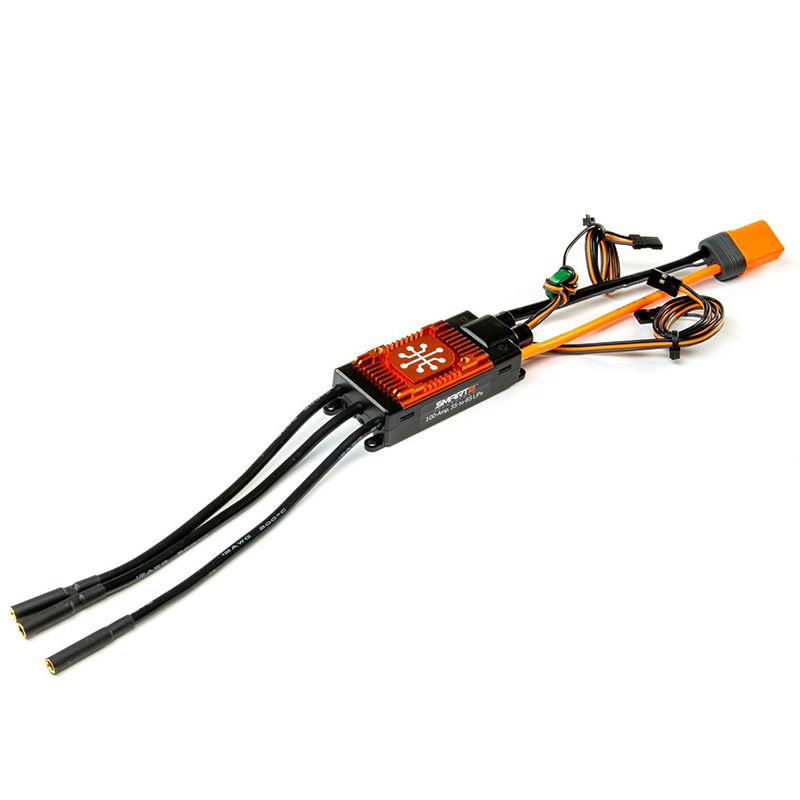

The Spektrum Avian 100 Amp Brushless Smart ESC provides unmatched power delivery and real-time telemetry for your high-performance RC aircraft. Operating seamlessly on 3S to 6S LiPo power setups, this electronic speed control delivers vital performance data directly to your transmitter without additional sensors. Upgrade your brushless motor system with an all-in-one Smart telemetry solution designed for maximum aircraft efficiency and flight confidence.
Intelligent Speed Control TechnologyAdvanced Telemetry and Thermal Efficiency

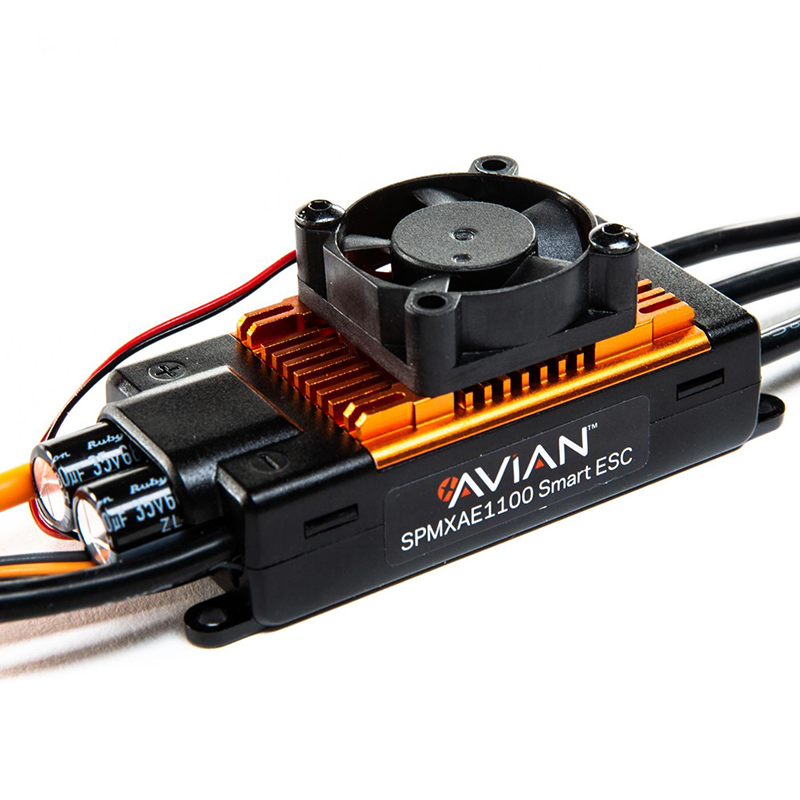

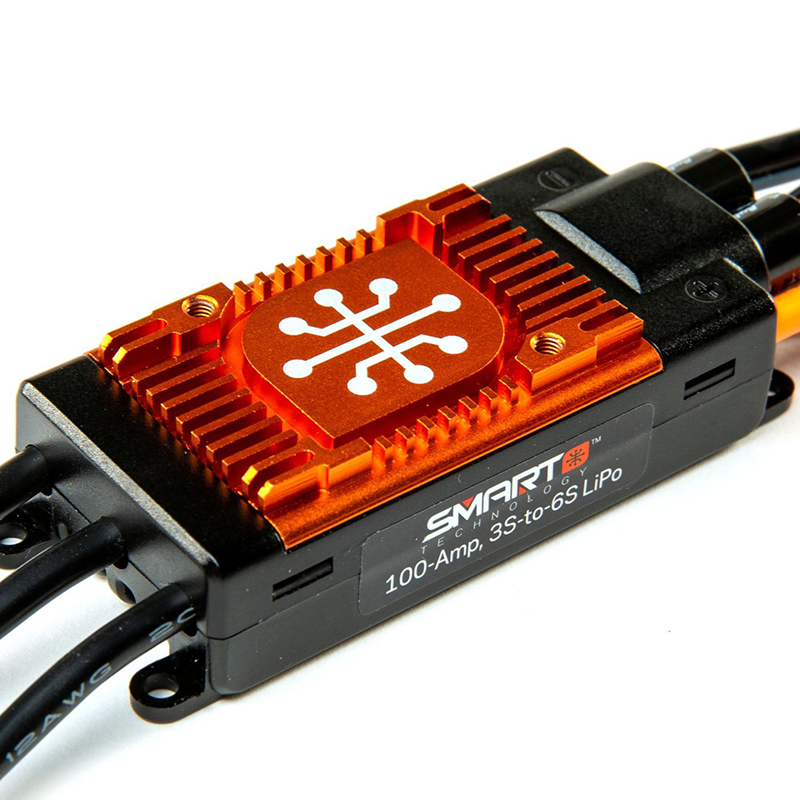

Designed from the ground up for modern RC aircraft, the Spektrum Avian 100 Amp Brushless Smart ESC functions like a virtual engineer inside your model. Powered by a fast 32-bit ARM M4 processor, this advanced brushless speed controller transmits critical real-time operating data—including current, voltage, cell balance, temperature, and RPM—through a single wire directly to Smart-compatible transmitters. Housed in a rugged, heat-dissipating plastic case with an integrated aluminum heatsink and cooling fan, the Avian 100A ESC ensures efficient power management and long-term durability. Complete with high-heat resistant IC series connectors, an adjustable high-power BEC, and comprehensive multi-point protection algorithms, this plug-and-play electronic speed control delivers ultimate performance and complete confidence in the air.
Technical SpecificationsDetailed Avian 100A ESC Parameters
Part Type
Electronic Speed Control (ESC) (gear)
Motor Type
Brushless
Continuous Current
100A
Input Voltage
3S - 6S LiPo
Telemetry
Spektrum Smart Telemetry
Processor
32-Bit ARM M4
Connector Type
IC5 / EC5 Compatible
BEC
Adjustable High-Power Dual Connectors
Housing Material
Rugged Plastic with Aluminum Heatsink
Cooling
Integrated Fan and Heatsink
Programming
Smart Box / SmartLink USB / Throttle Stick
Key System FeaturesEngineered For Peak Aerial Performance
Smart TelemetryTransmits voltage, current, RPM, and temperature via a single wire
32-Bit ARM ProcessingFast M4 processor delivers precise motor drive and quick throttle response
Multi-Point SafeguardsFeatures over-current, thermal, failsafe, and auto LiPo low-voltage protection
Active Thermal ManagementBuilt-in aluminum heatsink and cooling fan keep temperatures low
Versatile Programming OptionsProgram via Smart Box, SmartLink PC app, or throttle stick
Adjustable High-Power BECDual BEC power connectors support high-torque, high-voltage servos
Plug and Play InstallationFactory-installed IC connectors eliminate the need for soldering
Frequently Asked QuestionsEverything you need to know
What battery configurations are compatible with the Spektrum Avian 100 Amp Brushless Smart ESC?
The Spektrum Avian 100 Amp Brushless Smart ESC is designed to operate on 3S to 6S LiPo battery configurations, providing flexible high-voltage options for a wide range of RC aircraft.
Do I need additional telemetry sensors with the Spektrum Avian 100 Amp Brushless Smart ESC?
No, the Spektrum Avian 100 Amp Brushless Smart ESC features integrated single-wire telemetry that transmits real-time current, voltage, cell balance, temperature, and RPM data directly to compatible Spektrum telemetry transmitters.
Is soldering required to install the Spektrum Avian 100 Amp Brushless Smart ESC?

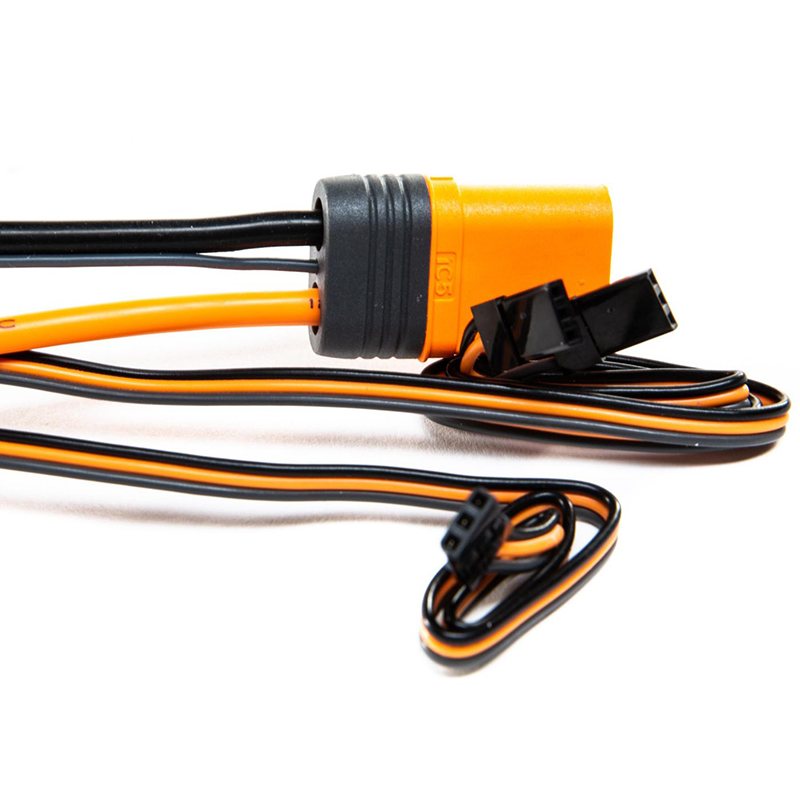

No, the Spektrum Avian 100 Amp Brushless Smart ESC comes ready to install out of the box with high heat-resistant IC connectors that are fully backwards compatible with EC connectors.
How do I update or adjust settings on the Spektrum Avian 100 Amp Brushless Smart ESC?
You can easily update firmware or alter settings on the Spektrum Avian 100 Amp Brushless Smart ESC using the Smart ESC Programming Box, the SmartLink USB PC application, or throttle stick programming.
