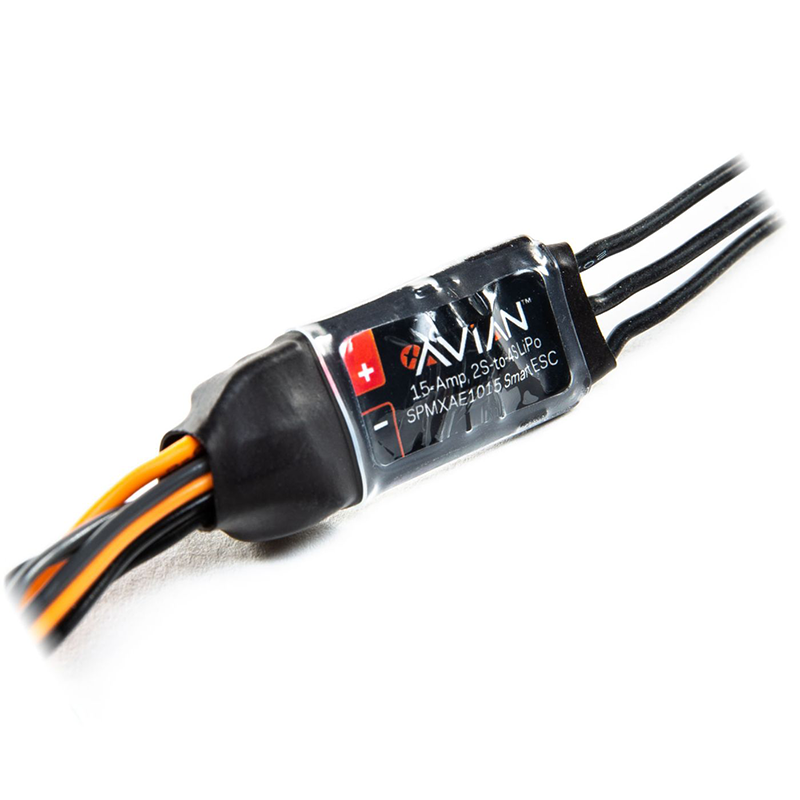

Spektrum Avian 15 Amp Brushless Smart ESC, 3S4S (SPMXAE1015)
Sale price
$29.99
Regular price $39.99
Skip to product information
Low StockIn Stock
Spektrum Avian 15 Amp Brushless Smart ESC, 3S4S (SPMXAE1015)
Sale price
$29.99
Regular price $39.99
You Save $10 (25%)
In Stock
Arrives
Free shipping on orders $99+.
Pick up today in Cumming, usually ready in 2 hours.
15A Continuous
2S to 4S Power
Smart Telemetry
Real Time Aircraft Data
Fast Processing
32 Bit ARM Processor
IC3 Connector
High Heat Resistant Design
Linear BEC
5.2V Power Output
Plug and Play
No Soldering Required
Smart Aircraft ControlNext Generation Electronics for RC Planes
Elevate your flight control with the Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3. Purpose-built for parkflyers and light RC aircraft, this brushless motor controller combines real-time single-wire telemetry with dependable power delivery in a convenient plug-and-play footprint.
Integrated Telemetry IntelligenceA Virtual Engineer Inside Your Aircraft
The Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3 acts as a virtual engineer inside your model, delivering vital operating data directly to your Spektrum transmitter. Powered by a fast 32-bit ARM M4 processor, this high-tech RC ESC transmits real-time telemetry—including input voltage, ESC FET temperature, throttle output, and motor RPM—without requiring complex secondary sensors. Designed with high heat-resistant IC3 connectors that are backward compatible with EC3 plugs, the Avian 15A Smart ESC offers built-in thermal and low-voltage protection to ensure your brushless motor system operates at peak safety and efficiency.
Technical ParametersComplete Power and Dimension Details
Compatible Vehicles
Small to Micro RC Aircraft
Part Type
Brushless Electronic Speed Control (ESC) (gear)
Input Voltage
2S - 4S LiPo
Maximum Continuous Current
15A
Maximum Burst Current
25A
BEC Type
Linear
BEC Voltage
5.2V
BEC Continuous Current
3A (current)
BEC Maximum Burst Current
12A
Battery Connector
IC3
Motor Connector
2mm Bullet (connector)
Product Length
1.4" (35mm) (ruler)
Product Width
0.6" (16mm) (ruler)
Product Height
0.4" (11mm) (ruler)
Product Weight
0.6oz (16g) (scale)
Battery Input Lead
2.9" (75mm) 20AWG (wire)
Motor Output Lead
3.9" (100mm) 20AWG (wire)
Smart Technology
Smart ESC Telemetry
Programmable
Yes
Brakes
Yes
Engineering HighlightsAdvanced Features for Peak Operational Flight
Smart TelemetrySingle-wire connection delivers real-time voltage, RPM, and temperature data
Fast Processing32-bit ARM M4 CPU provides superior throttle responsiveness and processing speeds

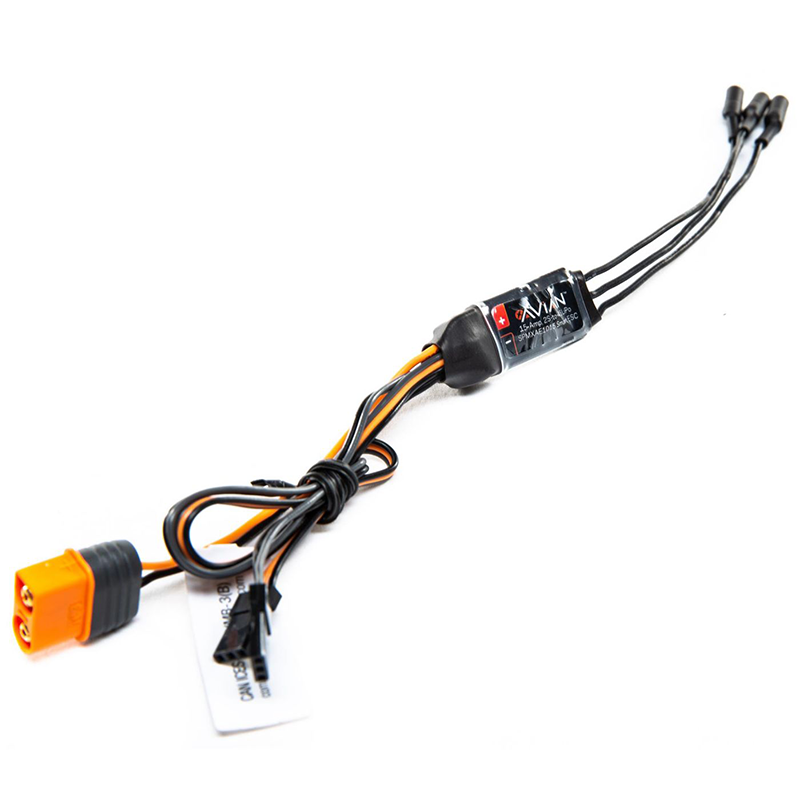

Ready to InstallPre-soldered IC3 battery plug and 2mm bullet motor connectors require no soldering
Multi-Point ProtectionOver-current, thermal, failsafe, and automatic LiPo cutoff protection
Versatile ProgrammingConfigurable using stick input, Smart Programming Box, or SmartLink PC app
Compact Thermal DesignOptimized heat dissipation chassis fits easily into cramped fuselages
Integrated BECBuilt-in 5.2V linear BEC supplies steady power to onboard receiver and servos
Frequently Asked QuestionsEverything you need to know
What battery types work with the Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3?
The Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3 is compatible with 2S to 4S LiPo battery packs fitted with an IC3 or EC3 connector.
What telemetry data is provided by the Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3?
The Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3 provides real-time telemetry for input voltage, throttle input/output percentage, ESC FET temperature, and motor RPM directly to compatible Spektrum telemetry receivers and transmitters.
Is soldering required to install the Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3?
No soldering is required. The Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3 comes factory-equipped with an IC3 battery connector and 2mm bullet motor connectors.
How do I program settings on the Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3?
You can easily program the Spektrum Avian 15-Amp Brushless Smart ESC, 2S-4S: IC3 using transmitter throttle stick programming, the optional Smart ESC Programming Box, or the Spektrum SmartLink PC application via USB.
