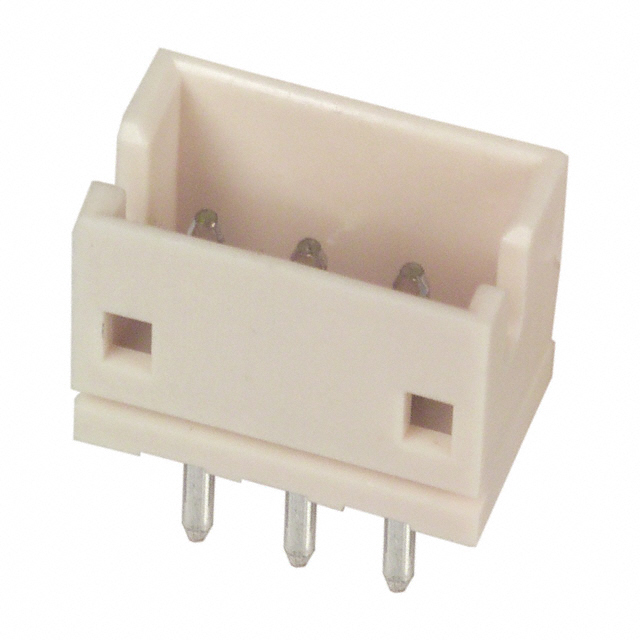

Conn Header ZH Top 3POS 1.5mm
$4.99
Skip to product information
Conn Header ZH Top 3POS 1.5mm
$4.99
3-Pin Design
Triple position pin header
1.5mm Pitch
Compact precision contact spacing
Top Entry
Vertical circuit board mount
In Stock
Essential Micro ConnectionsReliable wiring for RC electronics
Upgrade and repair your custom electronics with the Connection Header ZH Top 3POS 1.5mm. Designed for compact circuit board applications, this 1.5mm pitch RC connector provides a secure and stable pin interface for lightweight micro models and electronic assemblies.
Precision Electronics HeaderEngineered for durable board connections
The Connection Header ZH Top 3POS 1.5mm is an essential component for custom RC wiring, micro receiver hookups, and specialized board-to-board connections. Featuring standard 1.5mm pitch spacing and a space-saving top-entry orientation, this header ensures precise alignment and dependable electrical conductivity. Ideal for hobbyists building or maintaining micro RC vehicles, drones, and sensor modules, the JST-ZH compatible 3-position header delivers lightweight efficiency without compromising signal reliability.
Hardware SpecificationsDetailed technical parameters and sizing
Part Type
Pin Header / Wiring Connector
Positions
3 Pins (3POS) (gear)
Pitch
1.5mm
Orientation
Top Entry / Vertical
Compatible Vehicles
Micro RC Cars, Drones & Helicopters
Material
High-Temp Thermoplastic & Copper Alloy
Placement/Position
Circuit Board / Receiver Interface
Dimensions
1.5mm Pin Pitch Standard
Weight
Ultra Lightweight (< 1g) (scale)
Key Terminal AdvantagesDesigned for reliable electronics integration
Pin Configuration3-Position Top Entry Header
Pitch SpacingStandard 1.5mm Contact Pitch
Connector CompatibilityJST-ZH Style Standard
Mounting StyleVertical PCB Through-Hole
Application UsageMicro RC & Custom Drone Wiring
Material BuildHeat-Resistant Molded Housing
Frequently Asked QuestionsEverything you need to know
What is the pin pitch of the Connection Header ZH Top 3POS 1.5mm?
The Connection Header ZH Top 3POS 1.5mm features a precise 1.5mm pin-to-pin spacing, making it ideal for compact micro RC electronics and circuit boards.
What applications is the Connection Header ZH Top 3POS 1.5mm used for?
The Connection Header ZH Top 3POS 1.5mm is commonly used in micro RC cars, fpv drone wiring, sensor modules, and custom receiver power connections.
Is the Connection Header ZH Top 3POS 1.5mm oriented for vertical connection?
Yes, the Connection Header ZH Top 3POS 1.5mm is a top-entry header design, allowing clean, straight-in mating from above the circuit board.
