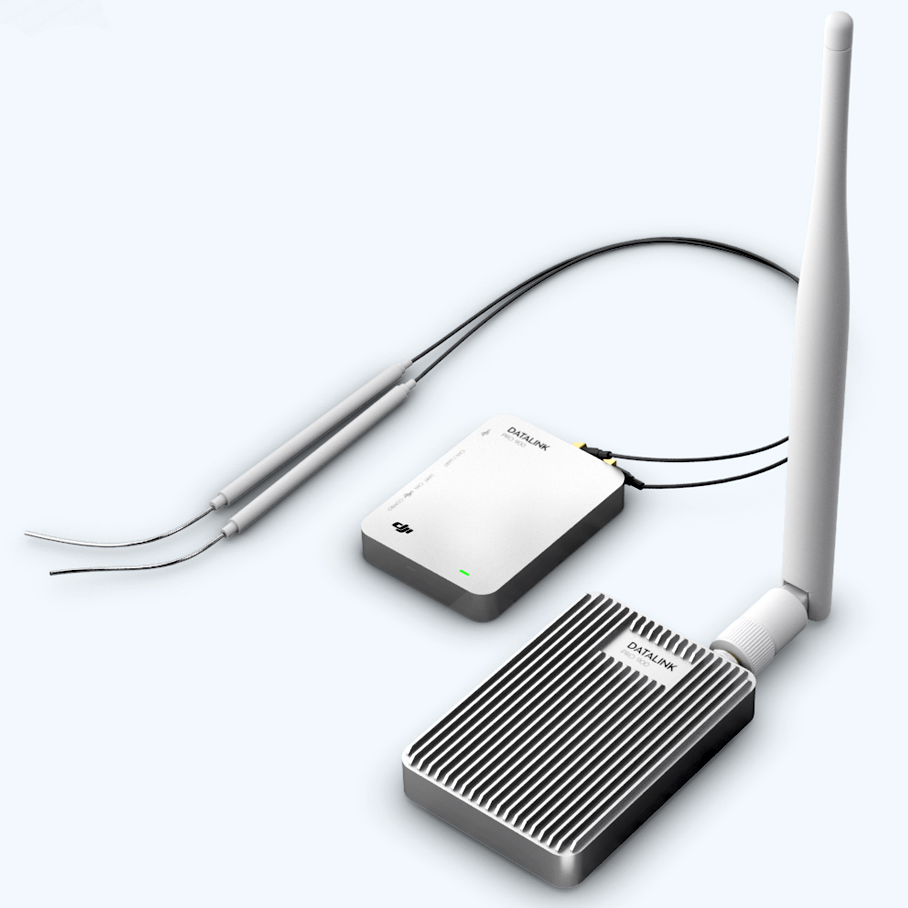

DJI Datalink Pro (900M)

Overview:

DATALINK PRO is a highly electro-magnetic interference resistant wireless datalink that supports the DJI A3, D-RTK and Ground Station. It features a number of interfaces and work modes enabling it to be tuned for the needs of different usage scenarios.

Multiple Data Transmission Modes

Three data transmission modes are supported: Dual Transmission, Broadcast and Ground Station.

  • In Dual Transmission mode, two-way data transmission is carried out between one base station and one mobile station.
  • In broadcast mode, data is simultaneously transmitted from one base station to a maximum of 32 mobile stations.
  • In Ground Station mode, RTK data is sent from the base station to a maximum of five mobile stations, while control data is transmitted two-ways.

Multiple Ports

A range of ports are provided to allow for use with highly customized aircraft, including USB, CAN and UART. Ports can be individually selected by toggling a switch, and data is automatically transmitted from one port to another.

Performance
Transmission Power CE: 13 dBm
FCC: 27 dBm
Canada: 27 dBm
Australia: 27 dBm
Japan: 10 dBm
Transmission Range Japan: 1200 m
Australia: 2000 m
FCC: 2000 m
CE: 300 m
Power Consumption Base Station: 1.2 W
Mobile Station: 0.65 W
Power Supply
Voltage Base Station: DC 9 V
Mobile Station: DC 9 V
Max. Current (Transmitting Signal) 130 mA
Max. Current (Receiving Signal) 70 mA
Features
Frequency Band (MHz) CE: 869.525
FCC: 903-925.5
Canada: 903-925.5
Australia: 916.5-925.5
Japan: 923.1-926.3
Serial Data Rate 115200 bps
Antenna Options Vertically polarized
Supported Interfaces USB, UART, CAN
Supported Max. Mobile Station Number Full Duplex Mode: 1
Broadcast Mode: 32
Supported DJI Products D-RTK
Operating Temperature 32° to 113°F (0° to 45°C)
Storage Temperature -40° to 185°F (-40° to 85°C)
Humidity 5% to 95%, non-condensing
Dimension (without Antenna) Base Station: 82.9 mm x 51 mm x 14.35 mm
Mobile Station: 57.8 mm x 42.3 mm x 9.35 mm
Weight (without Antenna) Base Station: 53 g
Mobile Station: 25.5 g

Datalink Pro Quick Start Guide.
