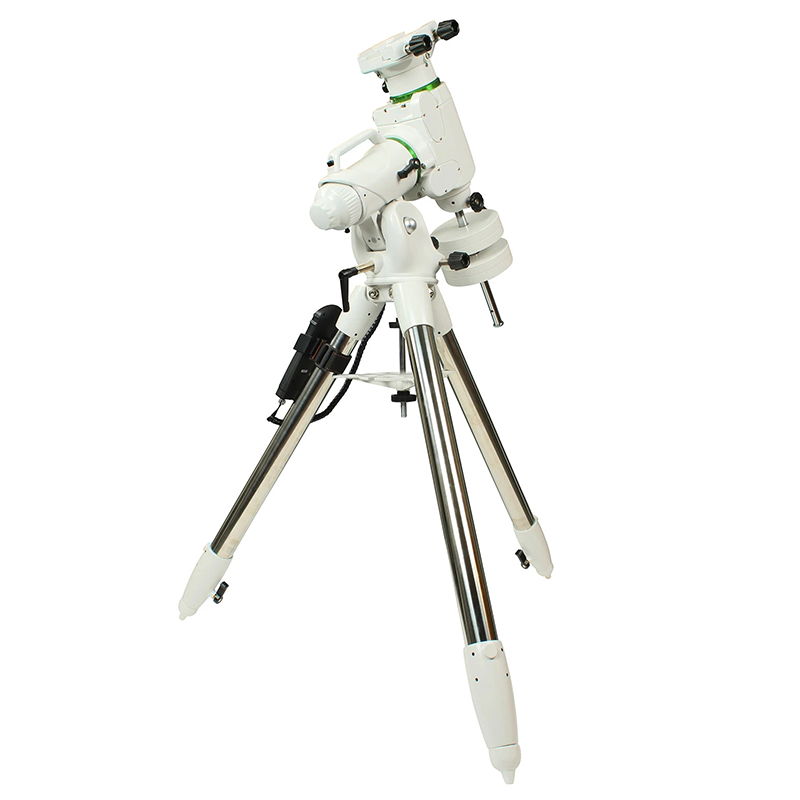

SkyWatcher EQ6 R Pro Mount with Head & Tripod Weights (S30300)
$2,250.00
44 lb Capacity
Supports Heavy Optical Tubes
Belt Drive System
Silent and Precise Slewing
42,000 Object Database
SynScan GoTo Hand Controller
ST-4 Autoguider Port
Astrophotography Ready Control System
Dual Saddle Plate
Fits D and V Plates
Illuminated Polar Scope
Built in Precise Alignment Scope
Precision Stargazing PowerhouseUnmatched Accuracy for Deep Sky Imaging
The Sky-Watcher EQ6-R Pro Telescope Mount is an elite equatorial mount designed specifically for passionate visual astronomers and astrophotographers. Featuring a robust 44 lbs payload capacity, ultra-quiet belt-driven stepper motors, and advanced SynScan GoTo technology, it delivers rock-solid stability and pin-point tracking accuracy. Whether you are imaging deep-sky nebulae or observing faint galaxies, this premier astrophotography mount guarantees exceptional performance night after night.
Engineered for AstrophotographersAdvanced Stepper Motors and SynScan Control
Upgrade your night sky imaging with the high-performance Sky-Watcher EQ6-R Pro Telescope Mount. Engineered to meet the rigorous demands of astrophotography, the EQ6-R Pro utilizes low-vibration belt drives powered by micro-stepper motors to deliver smooth, accurate tracking up to 1 arc minute without disruptive motor noise. The included SynScan hand controller puts over 42,000 celestial objects at your fingertips with built-in Permanent Periodic Error Correction (PEC) training for maximum long-exposure precision. Equipped with a versatile dual D/V style mounting saddle, integrated ST-4 autoguider port, SNAP camera shutter port, and a built-in illuminated polar scope, this heavy-duty equatorial mount offers total tracking control and dependability for any severe astro-imaging payload.
Technical SpecificationsDetailed Parameters and Load Capacities
Mount Type
EQ
GoTo
Yes
Payload Capacity
44 lbs
Mount Head Weight
38 lbs
Tripod Weight
16.5 lbs
Fully Assembled Weight
76.5 lbs
Tripod Leg Diameter
2 in
Mounting Saddle Type
D/V
Power Type
12V (4 amp minimum) (zap)
Clutch
Locking Lever
Polar Scope
Built In
Latitude Range
5° to 65°
Object Database
42,900+
Controller
SynScan Hand Controller
WiFi
Optional WiFi dongle
Polar Align Assist
Yes
Auto Guide
Yes
Permanent Periodic Correction
Yes
Dual Encoders
No
DSLR Interface
Yes
Included Weights
11 lbs (two) (weight)
Motor Type
Stepper
Drive System
Belt
Key Mount CapabilitiesDesigned to Elevate Your Setup
Payload Capacity44 lbs capacity to easily support optical tubes and heavy imaging setups
Quiet Belt DriveStepper motors with belt drive provide whisper-quiet operation and minimal backlash
SynScan ControllerIncludes hand controller with an expansive 42,000+ object database
Autoguide ReadyBuilt-in ST-4 autoguider port turns the mount into an imaging powerhouse
Illuminated Polar ScopeIntegrated polar finderscope assists in accurate polar alignment
Dual Mounting SaddleCompatible with both D and V style dovetail mounting plates
Camera ControlIntegrated SNAP port allows automated camera shutter control during exposures
Retractable Counterweight BarSimplifies transportation and balancing with included two 11 lb counterweights
Frequently Asked QuestionsEverything you need to know
What payload capacity does the Sky-Watcher EQ6-R Pro Telescope Mount support?
The Sky-Watcher EQ6-R Pro Telescope Mount has a payload capacity of 44 lbs, allowing it to easily support heavy optical tube assemblies along with cameras and imaging accessories.
What power source is required for the Sky-Watcher EQ6-R Pro Telescope Mount?
The Sky-Watcher EQ6-R Pro Telescope Mount requires a 12V DC power supply with a minimum output of 4 amps.
Does the Sky-Watcher EQ6-R Pro Telescope Mount feature an autoguider port?
Yes, the Sky-Watcher EQ6-R Pro Telescope Mount includes a built-in ST-4 autoguider port, allowing seamless integration with most standard autoguiding systems for astrophotography.
How quiet is the drive motor system on the Sky-Watcher EQ6-R Pro Telescope Mount?
The Sky-Watcher EQ6-R Pro Telescope Mount utilizes belt-driven stepper motors with a 1.8° step angle and 64 micro-steps, resulting in extremely quiet slewing and tracking up to 1 arc minute of precision.
