Himax HC2808-0980 Outrunner Brushless Motor, 100 Watt
$55.99
Skip to product information
Himax HC2808-0980 Outrunner Brushless Motor, 100 Watt
$55.99
High Torque
980 Kv Output System
Versatile Mounting
Three Flexible Setup Options
Reversible Shaft
Front And Rear Installation
Ultra Lightweight
Weighs Only 1.66 Ounces
Dual Bearings
Smooth Efficient Power Delivery
Direct Drive
Replaces Speed 370 Motors
Power Up Your AircraftCompact High Torque Outrunner Efficiency

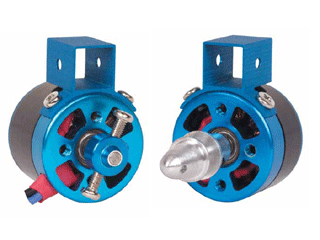

The Himax 2808-0980 Brushless Outrunner Motor delivers high torque and direct-drive performance for RC model airplanes weighing up to 17 ounces. Designed as an efficient brushless upgrade for legacy speed 370 and speed 400 brushed setups, this compact RC airplane motor delivers reliable power and extended flight times. Equipped with dual ball bearings and flexible mounting options, it offers superior durability for your park flyer or scale aircraft.
Unmatched Power And PerformanceEngineered For Peak Airplane Thrust
Upgrade your aircraft's capabilities with the Himax 2808-0980 Brushless Outrunner Motor, specifically engineered to provide optimum thrust and efficiency for small model planes. Featuring a 980 Kv rating and double ball bearing construction, this motor ensures smooth operation and low mechanical wear. The versatile design allows for stick mount, nose mount, or firewall mount configurations, while the reversible shaft accommodates both front and rear propeller positioning. Complete with a prop adapter and mounting brackets, this brushless outrunner motor makes upgrading your hobby airplane fast and hassle-free.
Motor SpecificationsTechnical Details And Power Parameters
Part Type
Brushless Outrunner Motor
Compatible Vehicles
Light RC Airplanes up to 17 oz
Kv Rating
980 RPM/V
Max Power
110 W
Max RPM
20,000 RPM
Weight
1.66 oz / 44 g
Diameter
1.09 in / 27.9 mm
Length
0.97 in / 24.7 mm
Shaft Diameter
1/8 in / 3.17 mm
Max Current
12 A for 15 sec
Efficient Operating Current
3 to 8 A
Mounting Bolt Circle
0.625 in / 16.0 mm
Mounting Screw Thread
2.5 mm
Resistance (Rm)
0.220 Ohm
No Load Current (Io)
0.4 A
Key Motor AdvantagesBuilt For Precision Flight Performance
High Torque Direct DriveDelivers powerful direct-drive performance for models up to 17 oz
Multiple Mount OptionsSupports stick mount, nose mount, and firewall mount setups
Reversible Motor ShaftReversible shaft configuration allows front or rear motor positioning
Dual Ball BearingsLong-lasting dual bearing design ensures smooth and efficient operation
Brushed ReplacementServes as a high-efficiency brushless replacement for speed 370 and 400 motors
Complete Adapter HardwareIncludes prop adapter along with radial and stick mounting brackets
Frequently Asked QuestionsEverything you need to know
What size RC plane is the Himax 2808-0980 Brushless Outrunner Motor designed for?
The Himax 2808-0980 Brushless Outrunner Motor is designed for light RC model airplanes with an all-up flying weight of up to 17 ounces (480 grams).
Can the Himax 2808-0980 Brushless Outrunner Motor replace standard brushed motors?
Yes, the Himax 2808-0980 Brushless Outrunner Motor is an ideal brushless upgrade to replace older speed 370 and speed 400 brushed motors.
What mounting hardware comes with the Himax 2808-0980 Brushless Outrunner Motor?
The Himax 2808-0980 Brushless Outrunner Motor comes with a prop adapter, mounting brackets for stick and radial mounts, and supports stick, nose, or firewall installations.
