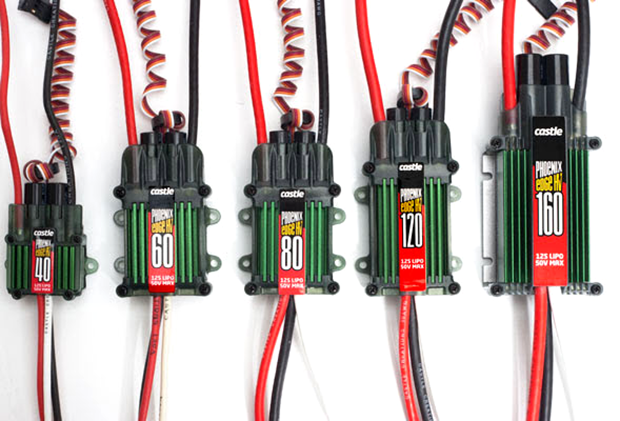

Castle Creations 120 Amp Phoenix Edge HV ESC (010-0104-00)
$259.99
Skip to product information
Castle Creations 120 Amp Phoenix Edge HV ESC (010-0104-00)
$259.99
120A Power Output
Handles Extreme Power Loads Easily
12S LiPo Support
High Voltage Battery Capability
Auxiliary Control Wire
Adjust Settings In Real Time
Flight Data Logging
Track Critical Telemetry Parameters
Castle Link Ready
Free USB Adapter Coupon Included
Aircraft Versatility
Ideal For Helis And Planes
Next Level Flight PerformanceAdvanced Control for RC Aircraft
The Castle Creations Phoenix Edge 120 ESC represents the next evolution in speed controller technology for serious RC pilots. Engineered for high performance, this brushless motor Electronic Speed Controller delivers continuous 120A capability and supports up to 12S LiPo power systems. Featuring a unique programmable auxiliary wire and robust telemetry logging, the Castle Phoenix Edge 120 ESC gives modelers unprecedented control over their flight parameters.
Intelligent Speed ControlUnmatched Telemetry and Signal Flexibility
Take complete command of your aircraft with the Castle Creations Phoenix Edge 120 ESC. Designed specifically for 550 to 700 class RC helicopters and giant scale fixed-wing aircraft, this premium speed controller introduces a user-programmable white auxiliary wire. Pilots can adjust helicopter governor gain mid-flight, output real-time RPM data directly to 3-axis gyros, trigger an audible beacon after an unexpected landing, or configure safety arming locks on the flight line.
In addition to advanced signal routing, the Castle Phoenix Edge 120 ESC features industry-leading onboard data logging. It records critical flight metrics such as current draw, battery voltage, motor RPM, and controller temperature. Customize throttle curves and system thresholds effortlessly using the included coupon for a free Castle Link USB adapter and Windows tuning software, ensuring peak reliability for every flight.
Technical SpecificationsDetailed Engineering and Dimension Data
Input Voltage
3S - 12S LiPo
Max Continuous Current
120 Amps
Width
2.0 in (50.8 mm) (ruler)
Length
3.3 in (83.6 mm) (ruler)
Height
0.9 in (23.2 mm) (ruler)
Weight w/ Wires
5.2 oz (148 g) (scale)
Weight w/o Wires
2.4 oz (69.4 g) (scale)
Helicopter Applications
550, 600, or 700 Class (heli)
Fixed Wing Applications
Giant Scale Aircraft
Programmability
Castle Link USB Adapter
Connector Type
Sold Separately
Tools Required
Soldering Iron & Solder
Advanced Controller CapabilitiesDesigned for Extreme Flight Demands
Auxiliary WireProgrammable for Governor Gain, RPM Output, or Arming Lock
Data LoggingRecords voltage, temp, RPM, and motor current during flight
Castle Link CompatibleIncludes coupon for free USB programming adapter
High Voltage SupportOperates reliably on 3S to 12S LiPo battery systems
Robust Continuous OutputRated for 120A max continuous current at full throttle
Multi-Platform SetupOptimized for 550-700 size helis and giant scale fixed-wing
Frequently Asked QuestionsEverything you need to know
What RC aircraft are compatible with the Castle Creations Phoenix Edge 120 ESC?
The Castle Creations Phoenix Edge 120 ESC is designed for 550, 600, and 700 class RC helicopters as well as giant scale fixed-wing aircraft requiring high-voltage brushless power systems.
How do I program custom settings on the Castle Creations Phoenix Edge 120 ESC?
You can easily program the Castle Creations Phoenix Edge 120 ESC using Castle Link software on Windows via a Castle Link USB adapter. A coupon for a free USB adapter is included inside the package.
What functions does the auxiliary wire provide on the Castle Creations Phoenix Edge 120 ESC?
The white auxiliary wire on the Castle Creations Phoenix Edge 120 ESC can be programmed for mid-flight governor gain adjustments, RPM sensor output for 3-axis gyros, an audible beacon, or an ESC/receiver arming lock.
