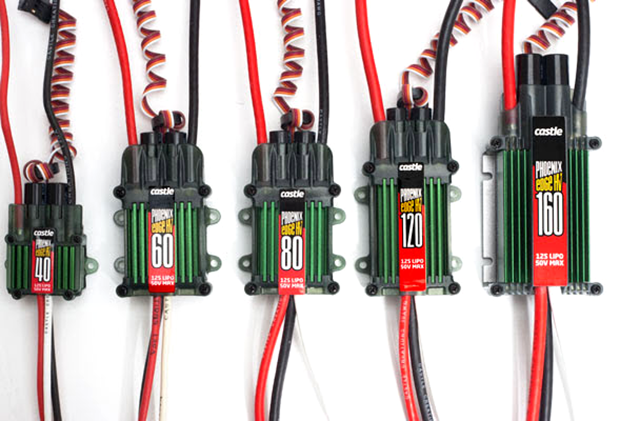

Castle Creations 160 Amp 50V Phoenix Edge HV ESC (010-0103-00)
$309.95
Skip to product information
Castle Creations 160 Amp 50V Phoenix Edge HV ESC (010-0103-00)
$309.95
12S LiPo Capable
Supports Up To 12S LiPo
160A Power Output
Handles High Continuous Amperage
Programmable Aux Wire
Adjust Gain Or Arming Lock
Integrated Data Logging
Track Critical Flight Performance Metrics
Castle Link USB
Free USB Adapter Coupon Included
Giant Scale Ready
Fits 700 To 800 Class
Advanced Speed Control PowerNext Generation Brushless ESC Performance
The Castle Creations Phoenix Edge 160 ESC delivers unparalleled electronic speed controller performance for 700 to 800 class RC helicopters and giant scale fixed-wing RC aircraft. Equipped with a user-programmable auxiliary wire and onboard data logging, this high-voltage brushless motor controller sets a new standard for flight customization and telemetry.
Unmatched Versatility And ControlInnovative Features For High Power Aviators
Step into the next evolution of speed controller technology with the Castle Creations Phoenix Edge 160 ESC. Designed for demanding high-power applications, the Phoenix Edge series introduces a multi-function white auxiliary wire that allows pilots to adjust governor gain mid-flight, activate an audible beacon after unexpected landings, output RPM signal to 3-axis gyros, or engage an arming lockout for maximum safety. Coupled with full data logging capabilities and free access to Castle Link USB programming software, this 160A brushless electronic speed control provides precision tuning for giant scale fixed-wing models and aggressive aerobatic helicopters.
Technical SpecificationsComplete Power And Dimension Details
Part Type
Electronic Speed Control (ESC) (gear)
Input Voltage
3S to 12S LiPo
Max Continuous Amperage
160 Amps
Length
4.3 in / 108.4 mm
Width
2.0 in / 50.8 mm
Height
1.2 in / 31.5 mm
Weight with Wires
8.2 oz / 232.8 g
Weight without Wires
5.3 oz / 150.6 g
Programmability
Castle Link USB Adapter (coupon included) (cpu)
Connectors
Sold Separately
Tools Needed
Soldering Iron and Solder
Applications
700-800 Class Helis, Giant Scale Fixed Wing
Key Controller FeaturesEngineered For Peak Flight Performance
Auxiliary WireMid-flight governor gain, RPM output, or arming lock
Data LoggingBuilt-in recording for detailed flight telemetry analysis
High Voltage SupportCompatible with up to 12S LiPo power systems
Castle Link IntegrationFree coupon for Castle Link USB adapter included
Audible BeaconEmits motor tone for easy aircraft recovery
High Amperage RatingRated up to 160A continuous at full throttle
Frequently Asked QuestionsEverything you need to know
What vehicles are compatible with the Castle Creations Phoenix Edge 160 ESC?
The Castle Creations Phoenix Edge 160 ESC is designed for 700-class and 800-class RC helicopters, as well as giant scale fixed-wing RC aircraft.
What battery voltage range does the Castle Creations Phoenix Edge 160 ESC support?
The Castle Creations Phoenix Edge 160 ESC supports input voltages from 3S LiPo up to 12S LiPo power packs.
What functions does the auxiliary wire perform on the Castle Creations Phoenix Edge 160 ESC?
The programmable auxiliary wire on the Castle Creations Phoenix Edge 160 ESC can be configured for mid-flight helicopter governor gain adjustments, RPM sensor output for 3-axis gyros, receiver arming lockouts, or an audible beacon function.
Is the Castle Creations Phoenix Edge 160 ESC fully programmable?
Yes, the Castle Creations Phoenix Edge 160 ESC offers complete programming capabilities using downloadable Castle Link Windows software, and a coupon for a free Castle Link USB adapter is included in the package.
