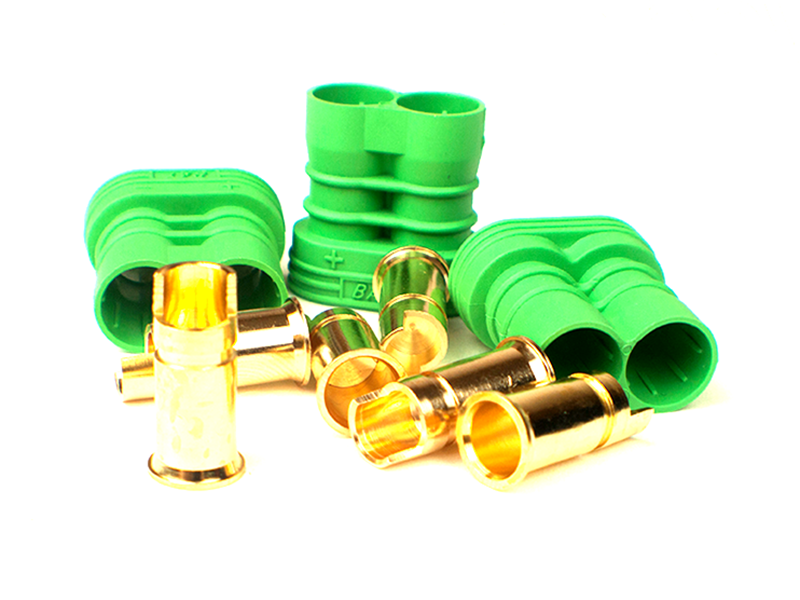

Castle Creations Polarized Bullet Conn Female, 6.5mm Set (011-0069-00)
$11.95
200A Rating
Handles extreme continuous current
6.5mm Bullets
Gold plated low resistance
6 AWG Capacity
Fits massive heavy wire
Polarized Housing
Prevents reverse polarity damage
Textured Grip
Easy to connect and pull
Clear Markings
Labeled for ESC and battery
Extreme Power ConnectionHigh current performance for RC
The Castle Creations 6.5mm Polarized Connectors deliver uncompromised power transfer for high-performance RC Car and brushless motor systems. Designed to handle an astounding 200A continuous current, these heavy-duty battery connectors eliminate electrical bottlenecks without compromising safety.
Unmatched Amperage HandlingEngineered for demanding RC setups
When high-voltage RC power setups reach their limit, the Castle Creations 6.5mm Polarized Connectors provide the ultimate high-amperage solution for demanding hobbyists. Built using low-resistance 6.5mm gold-plated bullet contacts housed in textured, high-grip nylon casings, these connectors accept wire gauges up to massive 6 AWG wire.
Distinctly marked for Battery and ESC sides, the keyed polarized design eliminates the risk of reverse polarity damage, protecting your expensive electronic speed controls and LiPo batteries. Whether you are running high-power RC drag racers, massive scale off-road vehicles, or custom charger leads, these Castle Creations connectors ensure peak conductivity and reliable operation.
Connector SpecificationsTechnical details and physical dimensions
Part Type
Polarized High Current Connector
Connector Size
6.5mm Gold Bullet
Maximum Amperage
200A Continuous
Maximum Wire Gauge
6 AWG
Dimensions
0.91" W x 0.89" L x 0.52" D (23mm x 22.48mm x 13.3mm) (ruler)
Weight
18g / 0.63 oz (Female Multi-Pack) (scale)
Placement/Position
Battery, ESC, Charger Harness
Material
High-Temp Nylon & Gold-Plated Copper
Compatible Vehicles
Universal High-Power RC Cars, Boats, and Aircraft
Key AdvantagesDesigned for high amperage applications
Current Handling200A continuous capability without breaking a sweat
Bullet DiameterLow-resistance 6.5mm gold connectors
Wire SupportFits up to massive 6 AWG wire gauge
Polarized DesignPrevents reverse polarity damage to electronics
Ergonomic GripMoulded ridges make connecting and disconnecting effortless
Explicit LabelingMarked for Battery and ESC for straightforward wiring
Versatile ApplicationsIdeal for ESCs, battery packs, series harnesses, and charge leads
Frequently Asked QuestionsEverything you need to know
What is the maximum continuous current supported by the Castle Creations 6.5mm Polarized Connectors?
The Castle Creations 6.5mm Polarized Connectors are rated to handle up to 200A of continuous current safely across all typical RC voltage levels.
What maximum wire size can I solder to the Castle Creations 6.5mm Polarized Connectors?
These heavy-duty connectors accept wire up to massive 6 AWG gauge thickness.
How do Castle Creations 6.5mm Polarized Connectors prevent reverse polarity damage?
The connector housings feature a keyed polarized shape that only allows male and female plugs to connect in the correct orientation, protecting your ESC and battery.
