Castle Creations 120 Amp Talon 120HV ESC, 12S Max Heavy Duty BEC (CSE010013100)
$244.95
Skip to product information

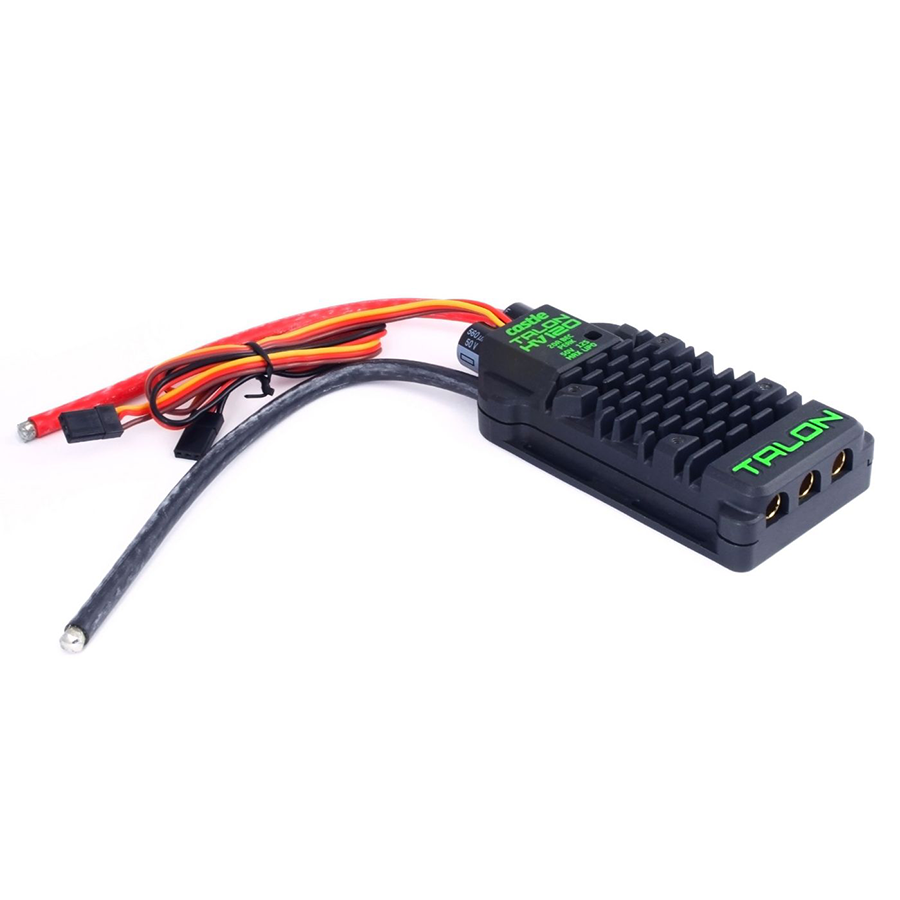

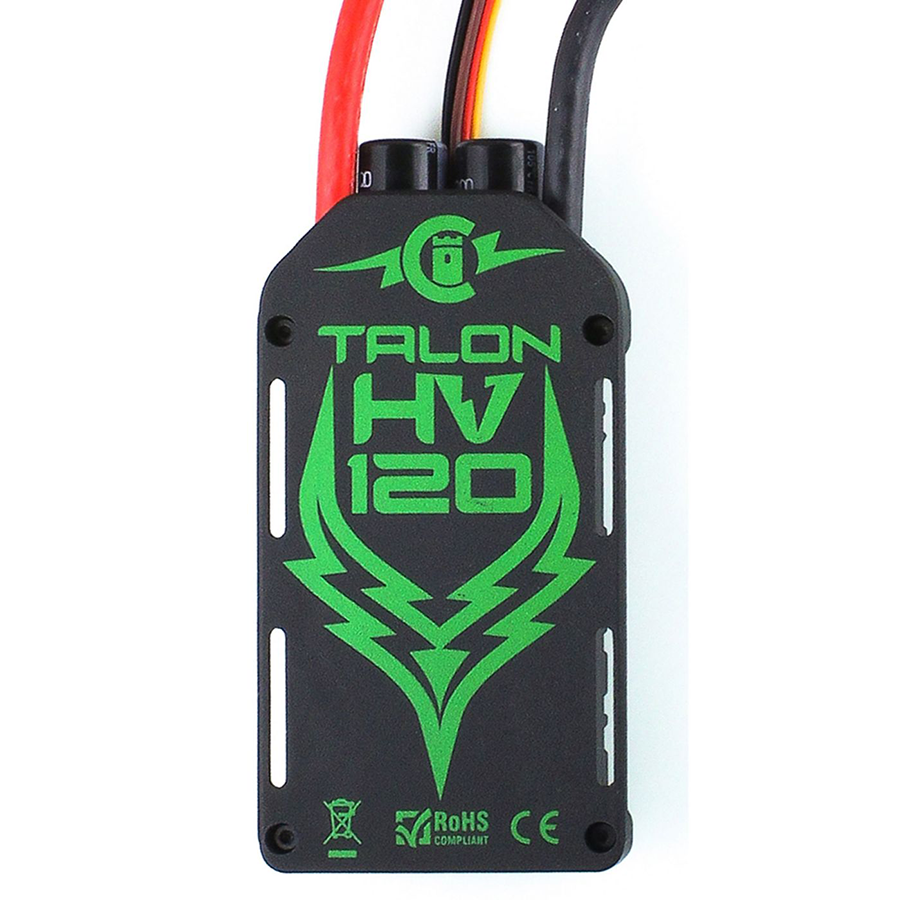

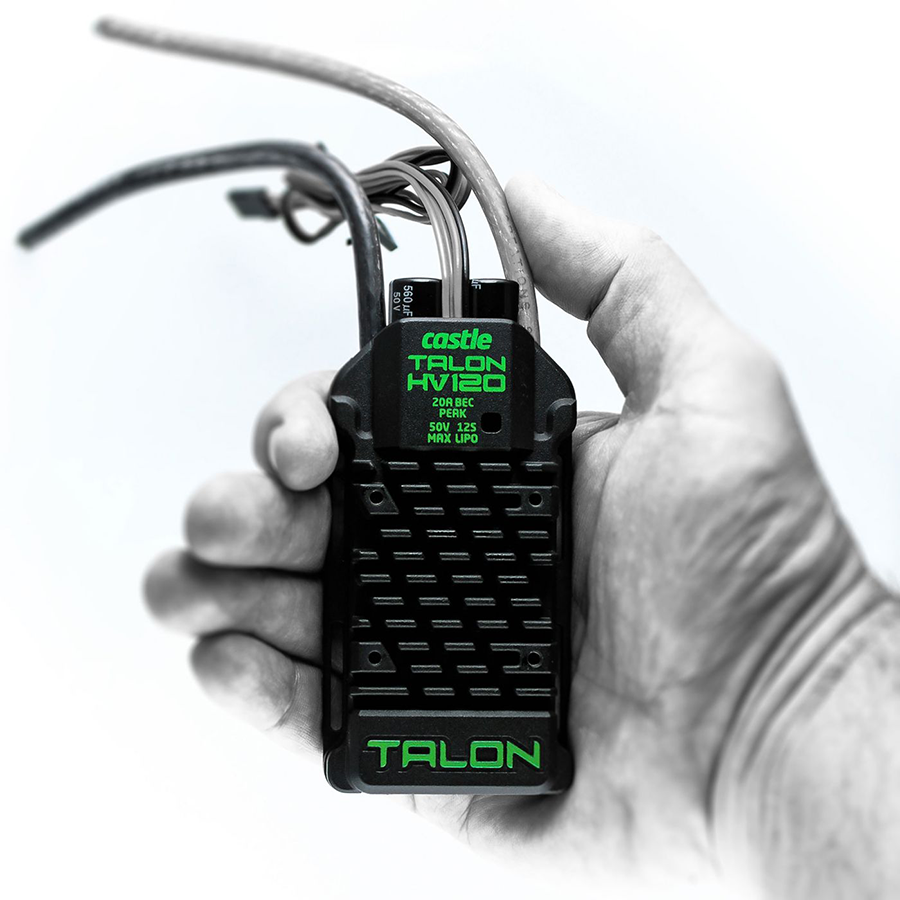

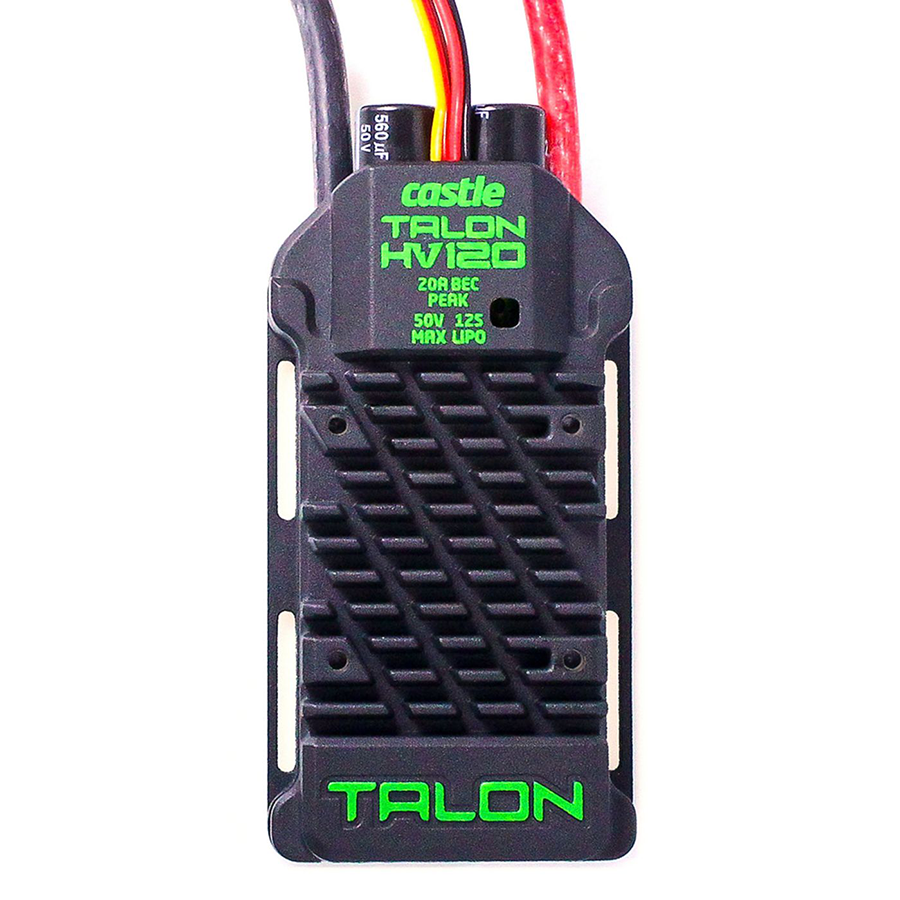

Castle Creations 120 Amp Talon 120HV ESC, 12S Max Heavy Duty BEC (CSE010013100)
$244.95
120A Continuous Power
Reliable Amp Output Performance
12S LiPo Max
Handles High Voltage Power
Heavy Duty BEC
Selectable Voltage Peak Power
Aluminum Housing
Sleek Heat Dissipating Case
6000W Power Output
Extreme Capability For Aircraft
Castle Link Ready
Fully Programmable USB Settings
High Voltage PerformanceUnleash 6000 Watts Of Power
The Castle Creations Talon 120HV ESC delivers up to 6000W of continuous power with an integrated 20A peak BEC, eliminating the need for external power supplies in your large-scale RC helicopter or fixed wing aircraft. Capable of handling 3S to 12S LiPo batteries, this high-voltage brushless ESC provides exceptional performance and smooth throttle control.
Advanced Power EngineeringBuilt For Extreme Air Applications
Designed for demanding high-voltage air applications, the Castle Creations Talon 120HV ESC features a sleek aluminum case engineered for optimal heat dissipation during high-drain operations. Capable of supporting a continuous 120-amp load, this brushless electronic speed control features a selectable 6V or 8V output on its heavy-duty internal BEC, saving weight and simplifying wiring. Users can fully customize performance settings using the Castle Link USB adapter, ensuring maximum reliability and custom throttle curves for giant-scale RC planes and 3D aerobatic helicopters.
Technical SpecificationsDetailed ESC Component Specs
Compatible Vehicles
Giant Scale RC Planes & Helicopters
Part Type
Electronic Speed Control (ESC) (gear)
Continuous Current
120 Amps
Input Voltage Range
3S - 12S LiPo
Maximum Power Capability
Up to 6000 Watts
BEC Output
20A Peak, Selectable 6V or 8V
Case Material
Aluminum
Programming
Castle Link USB Adapter Compatible
Needed To Complete
Main Battery Connector
Key ESC FeaturesEngineered For Peak Reliability
Continuous Amperage120A continuous power rating
Voltage CapabilitySupports 3S to 12S LiPo setups
Heavy Duty BEC20A peak internal BEC circuit
Adjustable BEC VoltageSelectable 6V or 8V output
Cooling DesignSleek anodized heat-dissipating case
Extreme OutputHandles continuous power loads up to 6000W
Software ProgrammableCustomizable parameters via Castle Link USB
Frequently Asked QuestionsEverything you need to know
What battery input voltage does the Castle Creations Talon 120HV ESC support?
The Castle Creations Talon 120HV ESC supports a high-voltage input range from 3S up to 12S LiPo batteries.
Does the Castle Creations Talon 120HV ESC require an external BEC?
No, the Castle Creations Talon 120HV ESC features a heavy-duty built-in BEC capable of 20A peak power output with user-selectable 6V or 8V operation.
What additional items are required to complete the Castle Creations Talon 120HV ESC setup?
You will need to supply and solder an appropriate high-current battery connector to match your LiPo battery power setup.
How do I program settings on the Castle Creations Talon 120HV ESC?
You can easily adjust throttle response, BEC voltage, and advanced control parameters on the Castle Creations Talon 120HV ESC using the Castle Link USB adapter and Castle software suite.
