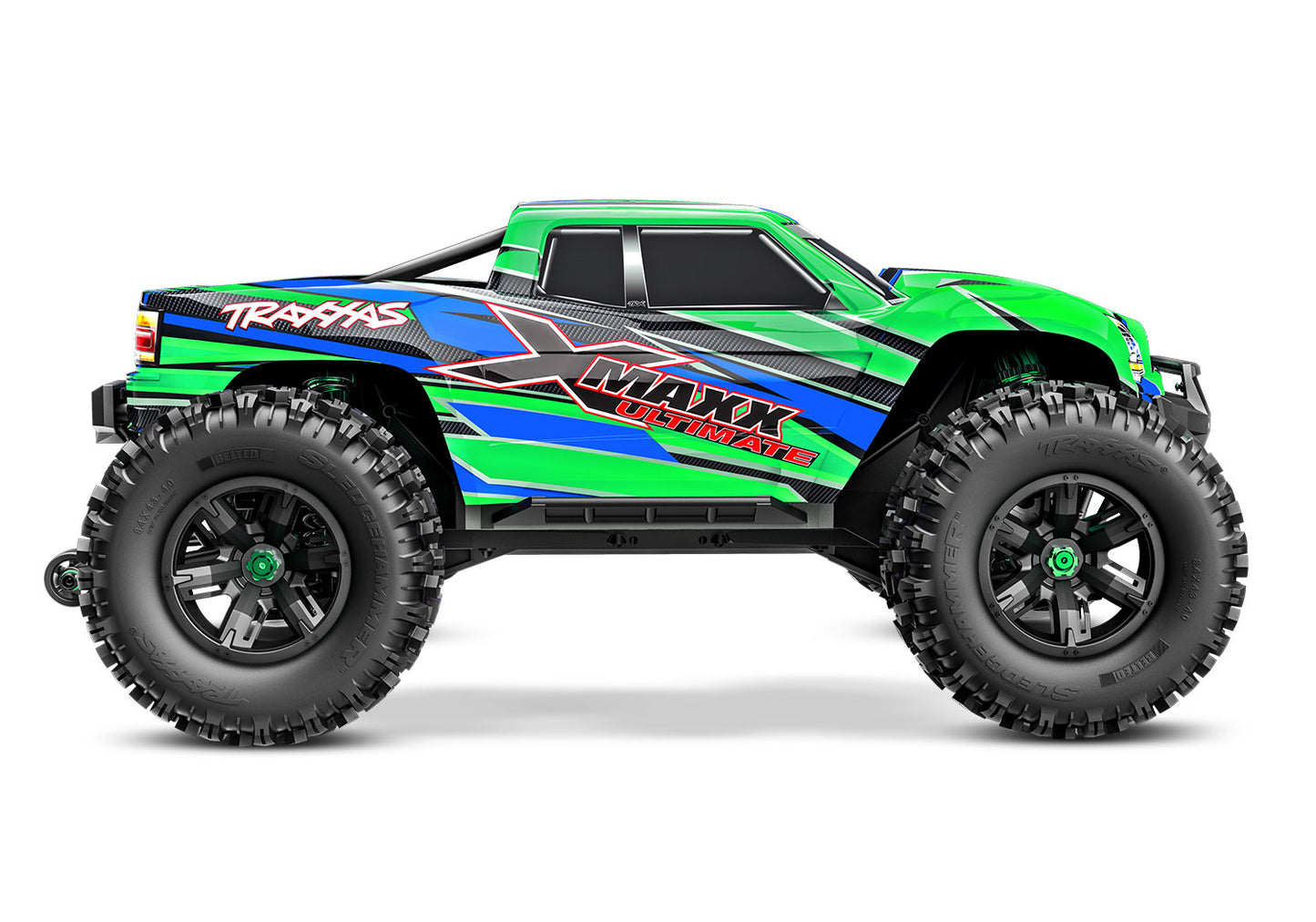

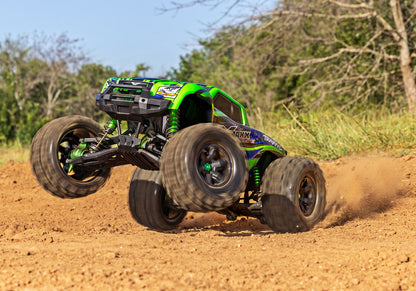

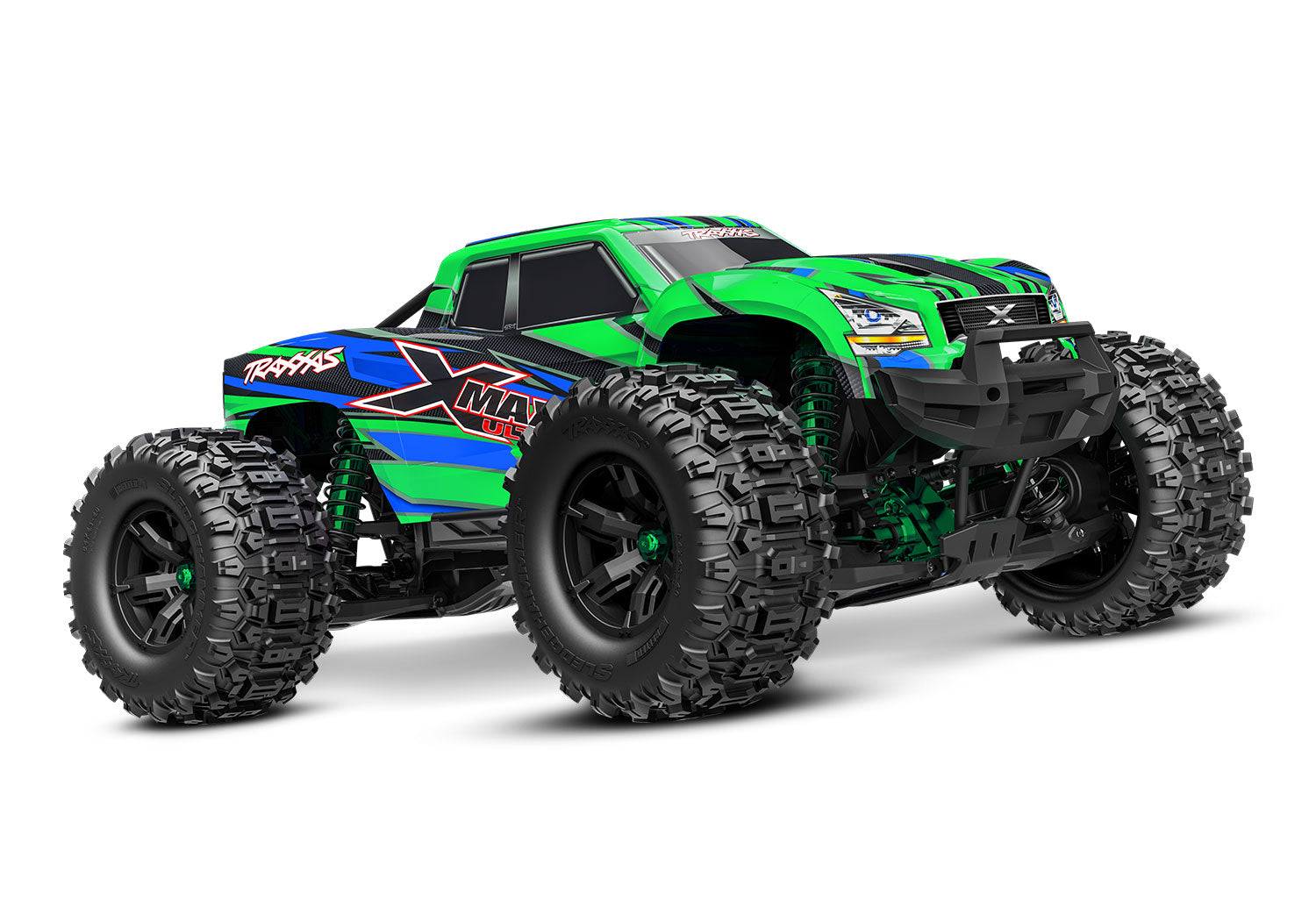

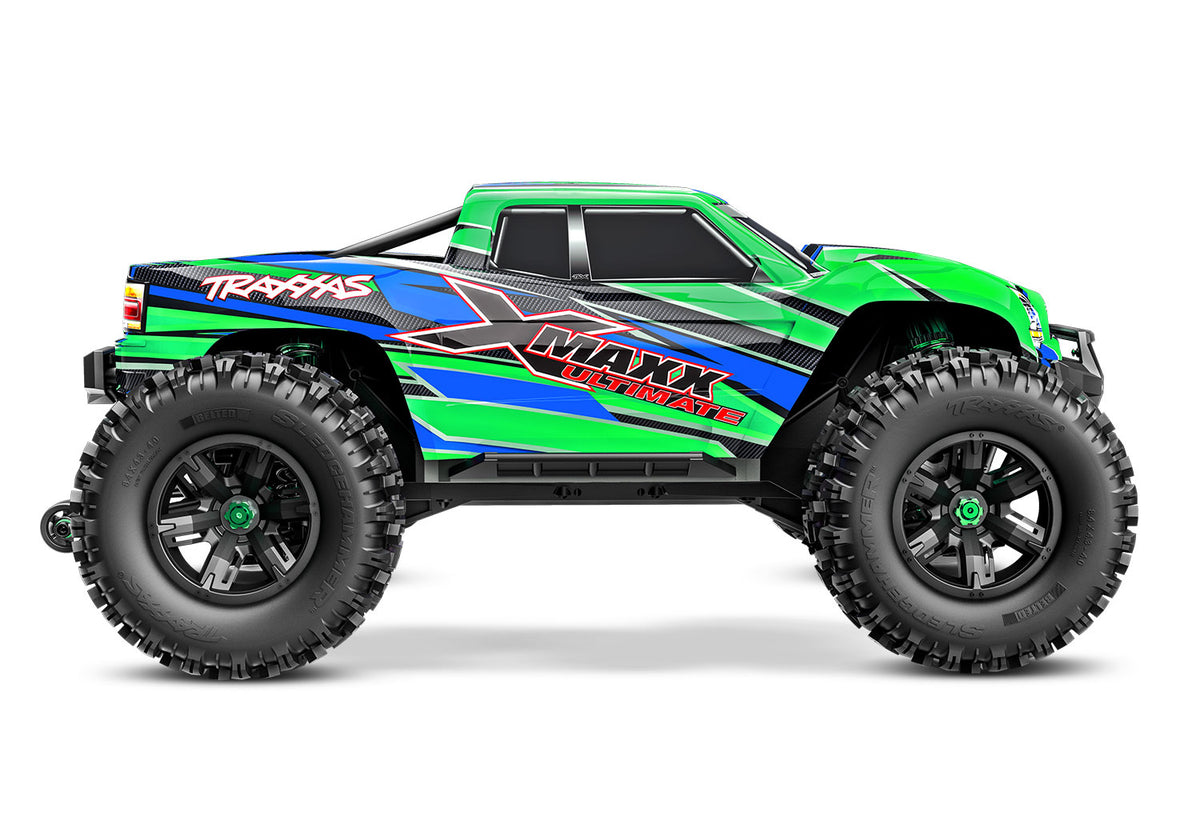

Traxxas 1/6 X-Maxx Ultimate Limited Edition Green V2 (77097-4-Grnx)
$1,599.99
Skip to product information
Traxxas 1/6 X-Maxx Ultimate Limited Edition Green V2 (77097-4-Grnx)
$1,599.99
50+ MPH Speed
Extreme 8S LiPo Power
Ready To Race
Fully Assembled Monster Truck
Brushless Power System
Velineon 1200XL Motor Included
X-Truck Scale Size
Massive Heavy Duty Dimensions

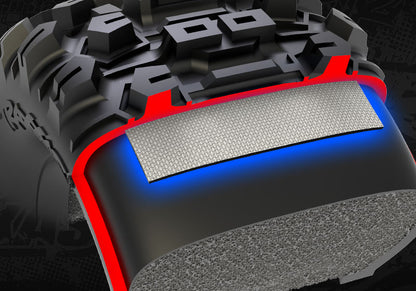

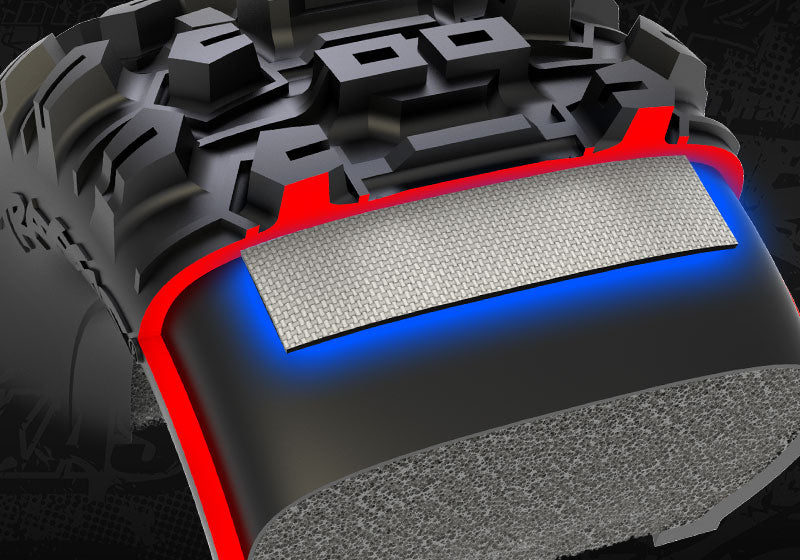

Belted Tires Included
Sledgehammer Tires Maintain Grip
Aluminum Upgrades Built-In
Maximum Toughness and Precision
Dominant Bashing AuthorityUnmatched 8S Power and Upgrades
The Traxxas X-Maxx Ultimate redefines extreme bashing performance, delivering ruthless power in a massive 8S RC monster truck package. Powered by a relentless Velineon 1200XL brushless motor, this high-performance vehicle comes pre-equipped with over $1,000 in factory aluminum upgrades for supreme durability. Designed for hobbyists who demand top-tier strength, the Traxxas X-Maxx Ultimate conquers all off-road environments with authority.
Engineering Extreme DurabilityFactory Loaded For Maximum Bashing

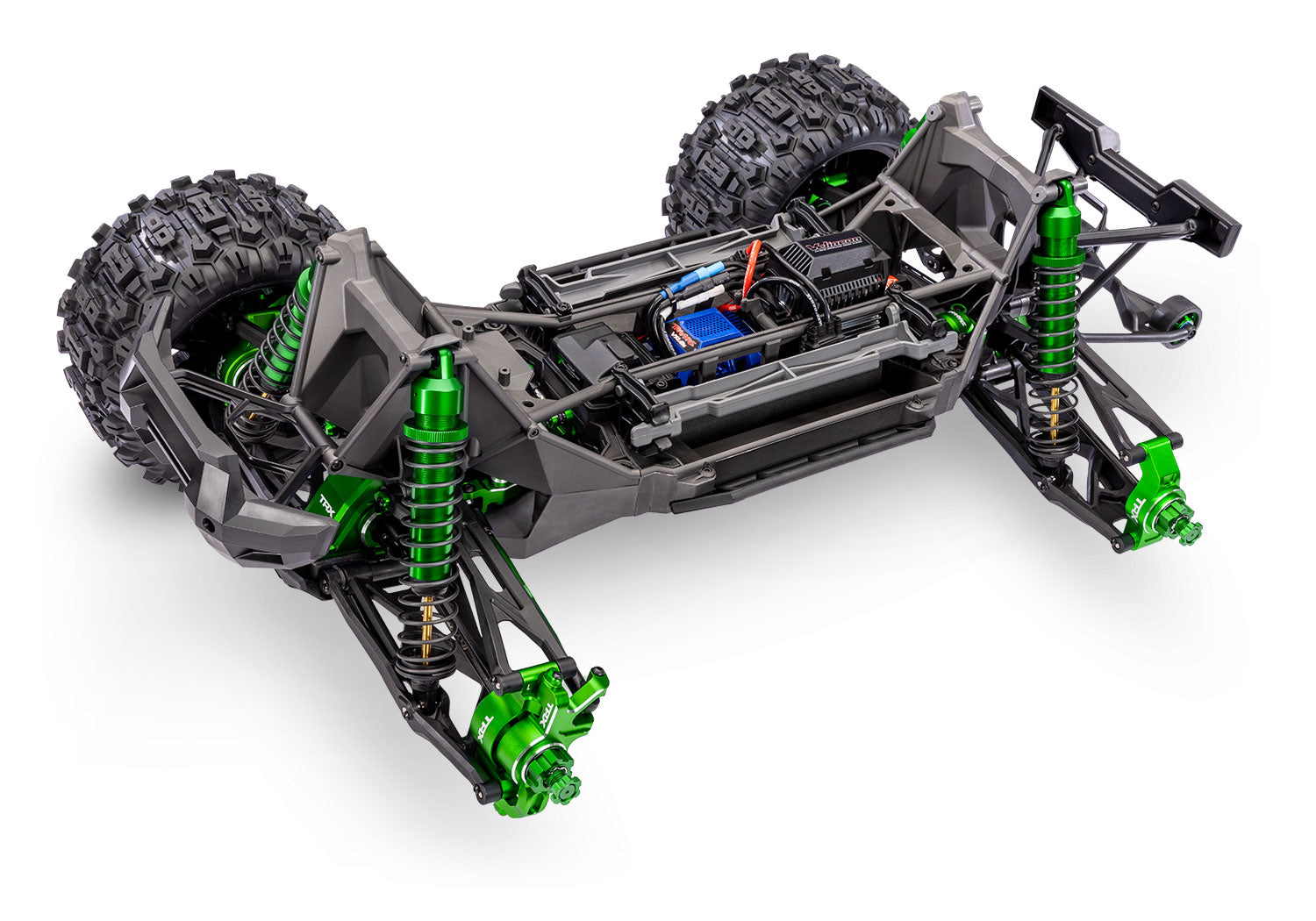

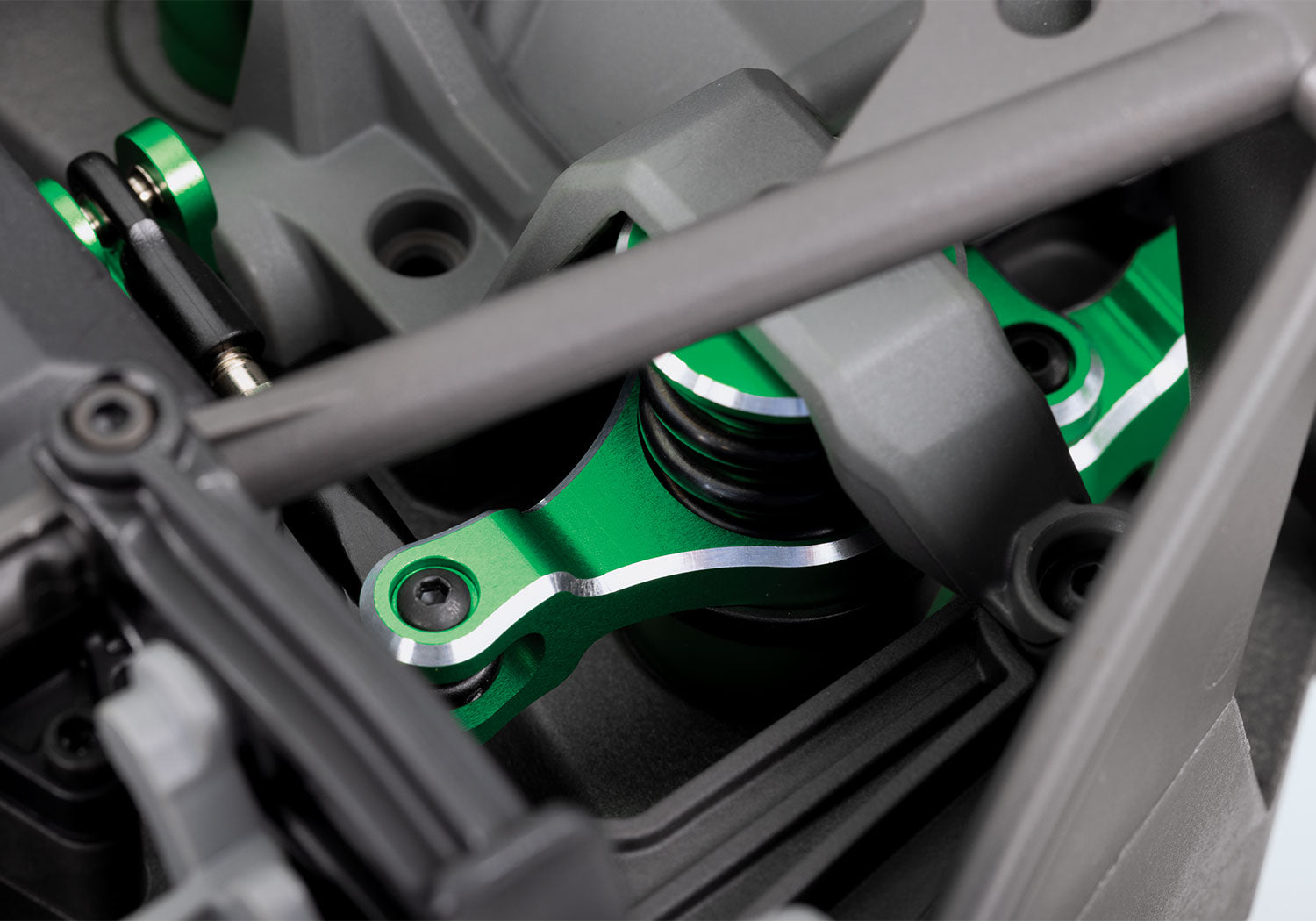

Take your high-speed RC action to unprecedented levels with the Traxxas X-Maxx Ultimate. Built around a heavy-duty modular composite chassis, this 4WD brushless RC car features premium 6061-T6 aluminum suspension links, steering bellcranks, and hub carriers paired with plush aluminum GTX shocks. Handling extreme 8S power is effortless thanks to belted Sledgehammer tires and an ultra-high-torque 2085RL metal-gear servo outputting 650 oz-in of steering control. Complete with real-time telemetry, a wireless TQi transmitter module, and a waterproof VXL-8s ESC, the Traxxas X-Maxx Ultimate sets the benchmark for scale model monster trucks.
Technical Performance SpecsComplete Vehicle Dimensions and Electronics
Completion Level
Ready-To-Race
Drivetrain
Shaft-driven 4WD
Motor Size
Velineon 1200XL
Power Type
Electric
Differential
Sealed, hardened steel bevel, limited slip
Vehicle Size
30.67 in x 21.3 in x 13.99 in
Product Weight
22.20 lbs (9.5 kg) (anchor)
Charger
Dual 4S Balance Charger required (sold separately) (battery)
Connector Type
Traxxas High-Current Connectors
Spur Gear
Steel
Gear Pitch
1.0 Metric Pitch (Mod 1) (gear)
Speed Control
Velineon VXL-8s Waterproof ESC
Servo
2085RL Metal Gear High-Torque Waterproof
Vehicle Type
Monster Truck
Top Speed
50+ mph
Battery Type
LiPo (2x 4S required) (battery)
LiPo Compatibility
8S LiPo (dual 4S) (battery)
Drive Type
Shaft Drive
Shock Type
Aluminum GTX Shocks
Body
Clipless Body Mount System
Wheel Hex Size
24mm Splined
Battery Tray
197mm x 52mm x 44mm
Motor Class
Sensorless Brushless
Final Drive Ratio
8.11
Radio
TQi 2.4 GHz 2-Channel with Wireless Module
Assembly Time
None
Scale
X-Truck
Motor Type
1275 Kv Brushless
Power System
8S LiPo
Chassis
Heavy-Duty Modular Composite
Tire Tread/Hub Size
8.4 in Belted Sledgehammer Tires
Recommended Battery
Dual 4-Cell 6700 mAh Power Cell LiPo
Internal Gear Ratio
8.11
Receiver
TQi Micro Receiver with TSM
Loaded Heavy Duty FeaturesPremium Components Built for Maximum Abuse

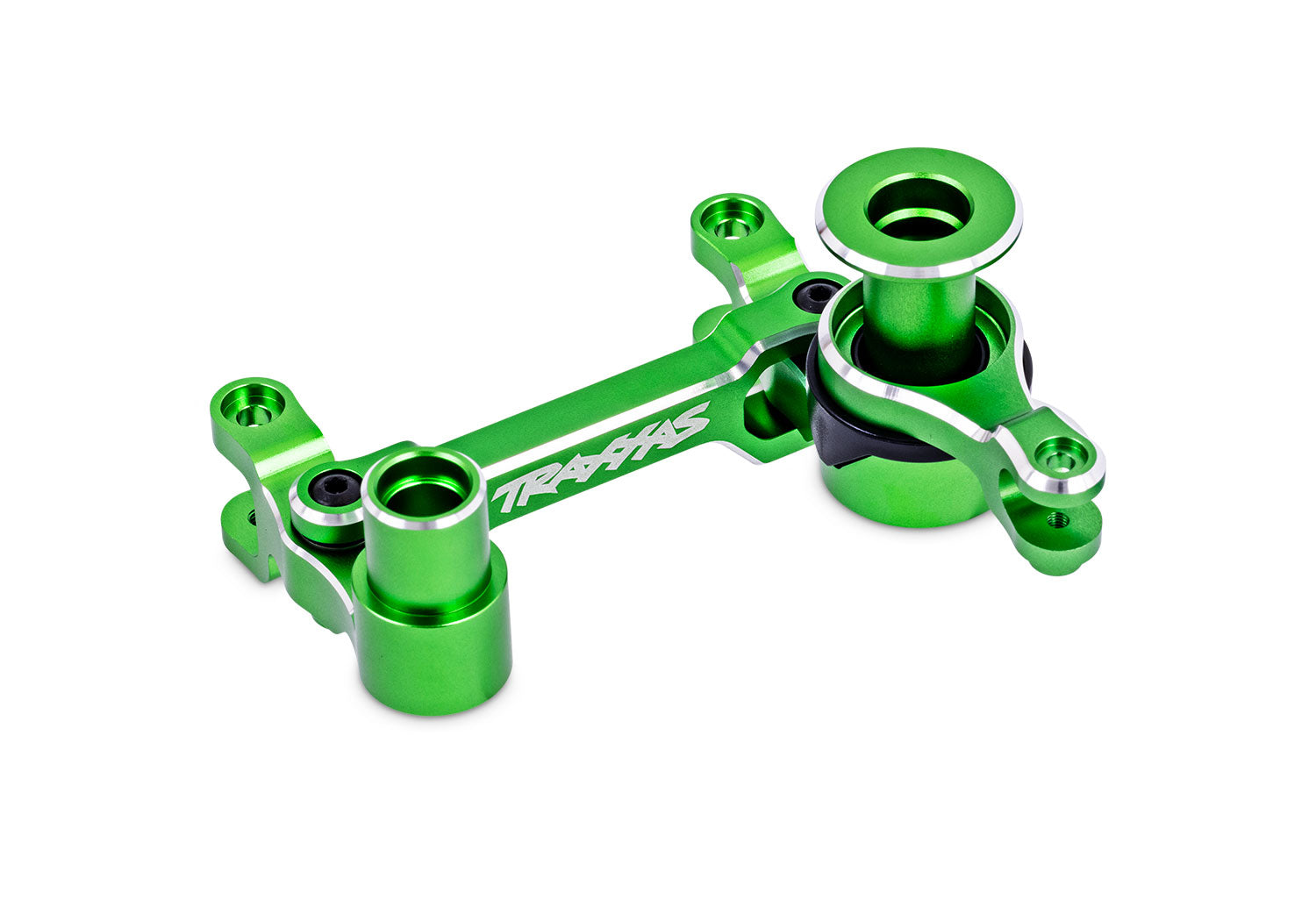

Aluminum PartsPremium 6061-T6 aluminum upgrades for suspension and steering
Brushless MotorVelineon 1200XL 1275 Kv high-output brushless motor
Speed ControlVXL-8s waterproof speed control with real-time telemetry
TiresMassive 8.4-inch belted Sledgehammer off-road tires
Steering ServoHigh-output 2085RL metal gear servo with 650 oz-in torque
Radio SystemTQi 2.4 GHz radio with factory-installed wireless link module
Clipless BodyFast and secure clipless body latching system

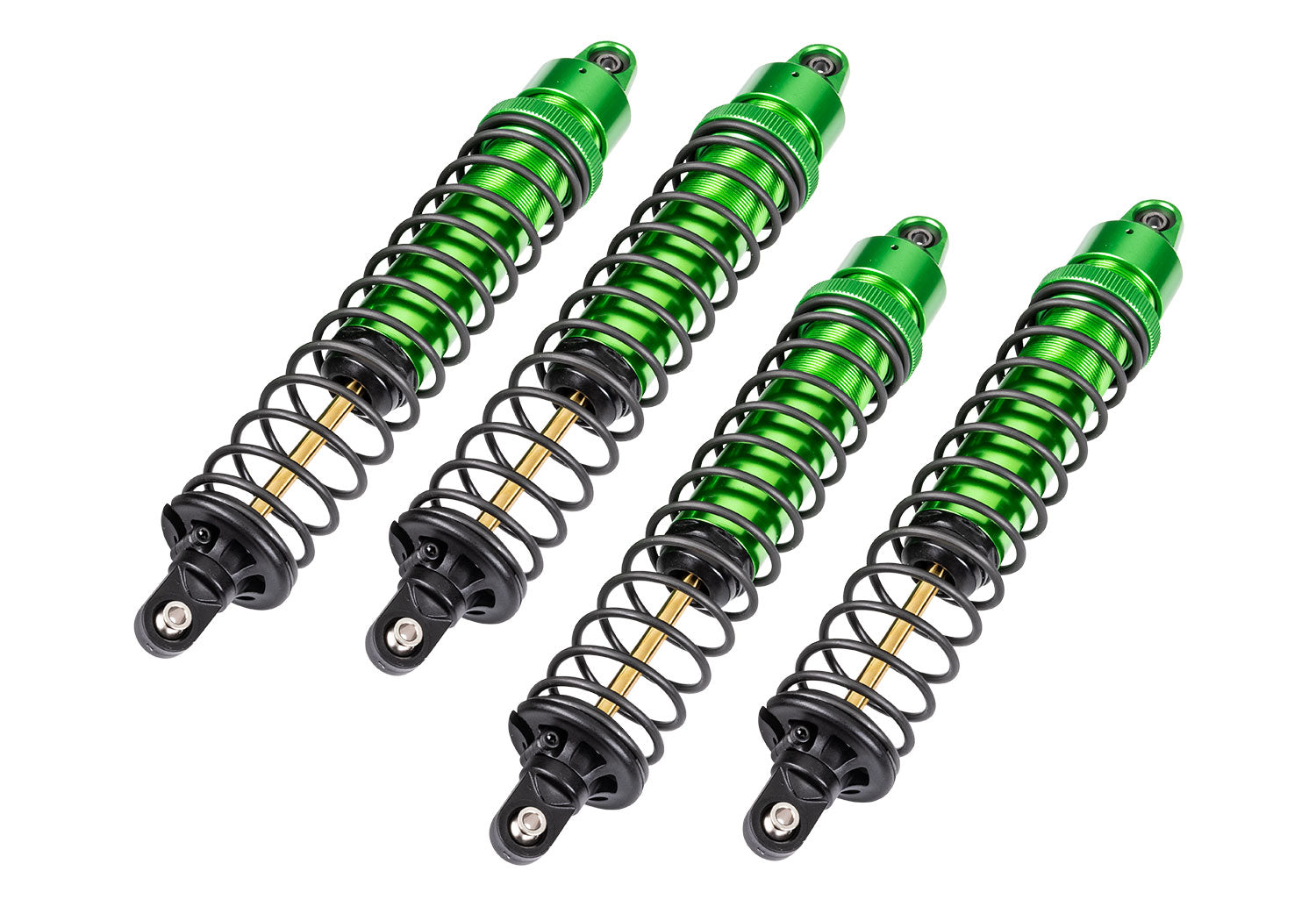

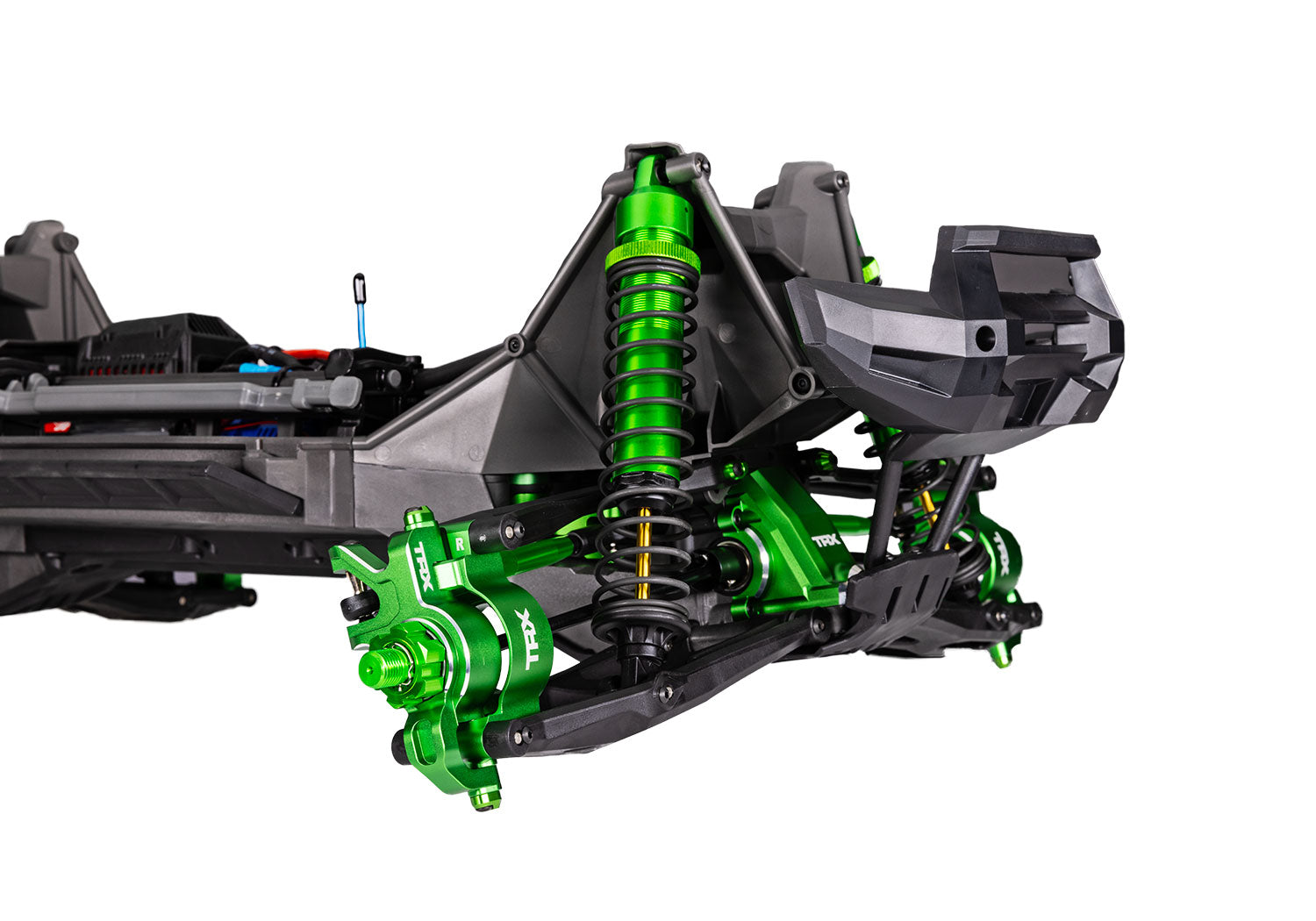

High Capacity ShocksLarge-bore oil-filled aluminum GTX shocks
Parts & Accessories
Frequently Asked QuestionsEverything you need to know
What batteries are required to operate the Traxxas X-Maxx Ultimate?
The Traxxas X-Maxx Ultimate requires two 4S LiPo batteries (or a dual 4S completer pack) equipped with Traxxas High-Current Connectors, along with four AA batteries for the transmitter.
How fast does the Traxxas X-Maxx Ultimate go?
The Traxxas X-Maxx Ultimate can reach speeds of 50+ MPH when powered by two 4S LiPo batteries and equipped with the optional speed gearing.
Is the Traxxas X-Maxx Ultimate waterproof?
Yes, the Traxxas X-Maxx Ultimate features waterproof electronics, including the VXL-8s ESC and 2085RL high-torque steering servo, allowing you to drive through water, mud, and snow.
What aluminum upgrades come pre-installed on the Traxxas X-Maxx Ultimate?
The Traxxas X-Maxx Ultimate comes loaded with over $1,000 in factory aluminum upgrades, including 6061-T6 aluminum steering bellcranks, C-hubs, steering blocks, rear hub carriers, and GTX shocks.
Does the Traxxas X-Maxx Ultimate include a telemetry system?

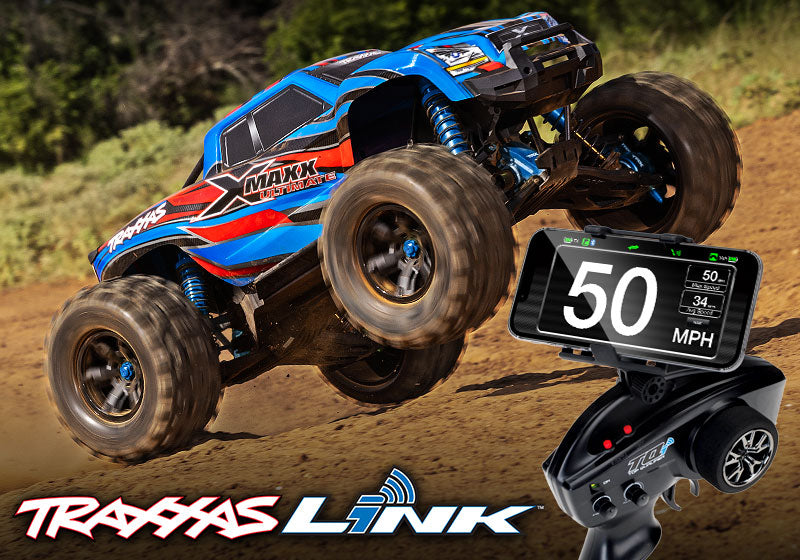

Yes, the Traxxas X-Maxx Ultimate includes a factory-installed Traxxas Link Wireless Module in the transmitter, allowing real-time monitoring of speed, RPM, and voltage via the free Traxxas Link app.
