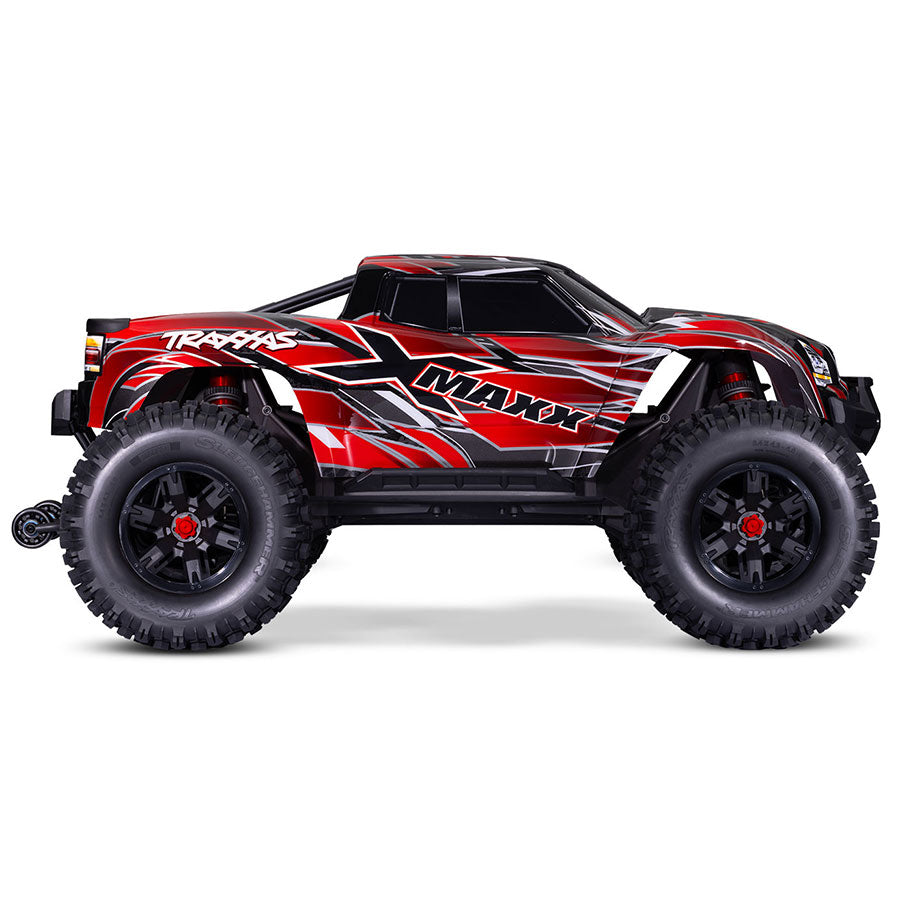

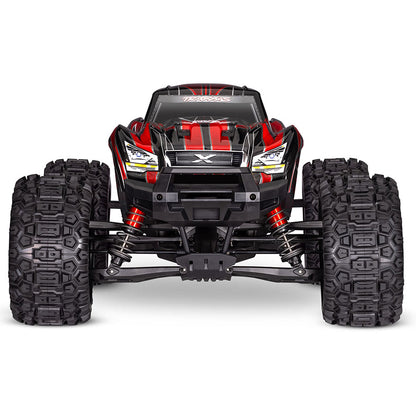

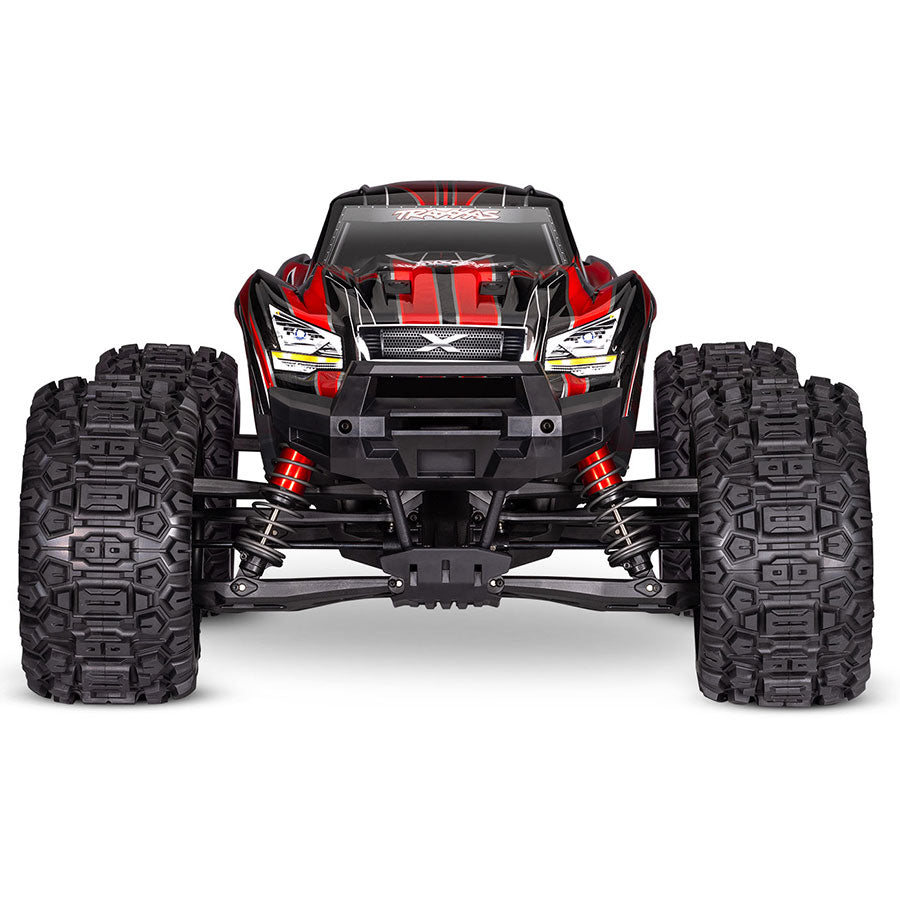

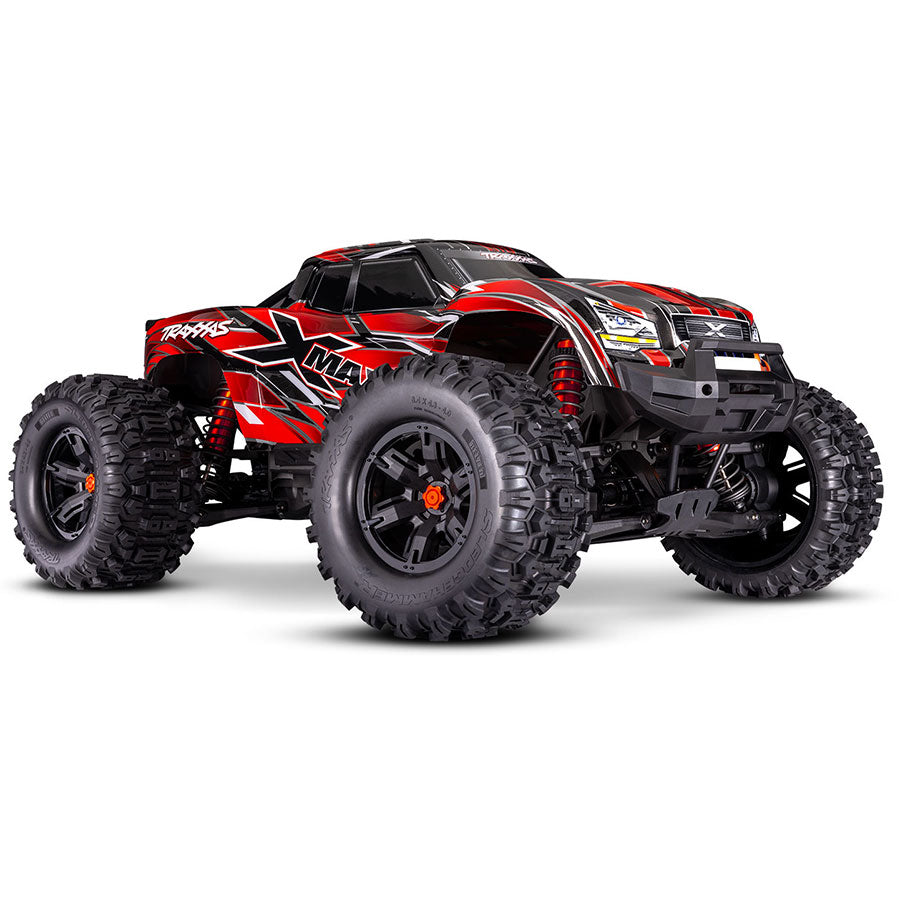

1/6 X-Maxx, 4WD, 8S Belted (Requires Battery & charger): Red

Overview:

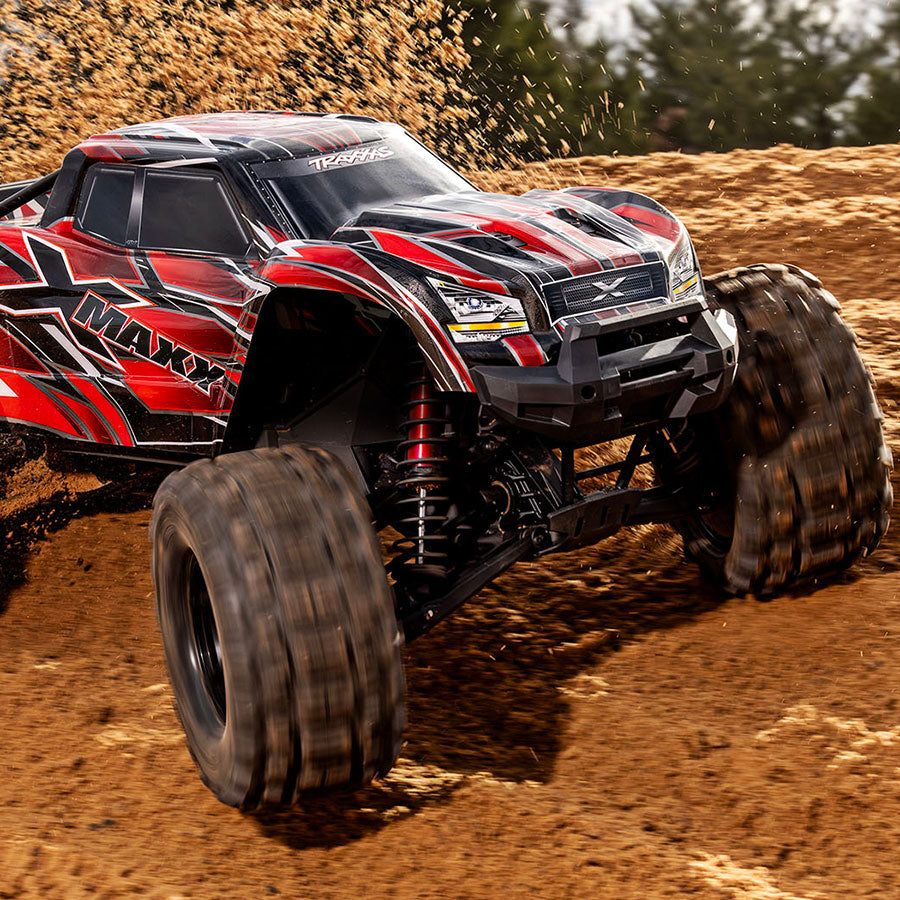

Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8s power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+ mph speed. Belted Sledgehammer® tires conquer the most extreme terrain while providing unrivaled high-speed stability. Built to take brutal punishment in stride, X-Maxx is the definition of Traxxas Tough™.

Insightful engineering and precise integration of innovative solutions set X-Maxx in an all-new category of superior performance. It’s as satisfying and rewarding to use as it is fun and exciting to drive.

Great New Features:

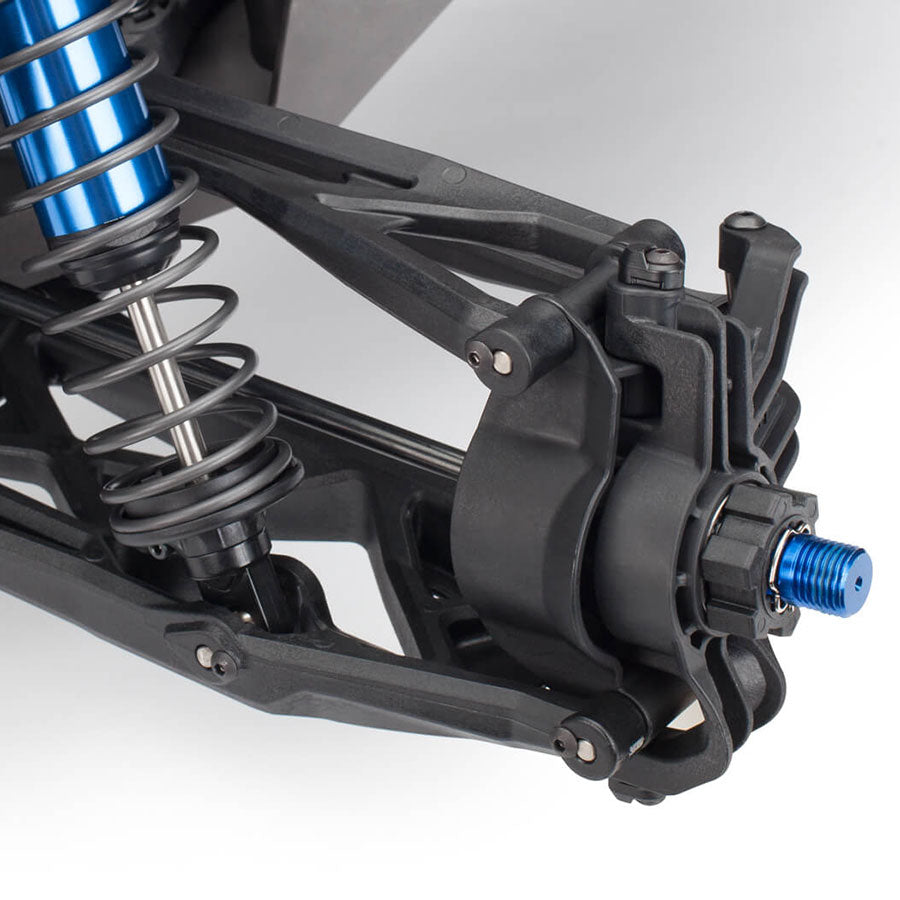

  • At the end of the day, size always wins. X-Maxx plows over obstacles and muscles through extreme terrain that leaves lesser trucks stranded. Mammoth 8-inch-tall tires, long-arm suspension, and huge ground clearance dwarf the surroundings for virtually unstoppable monster truck fun.

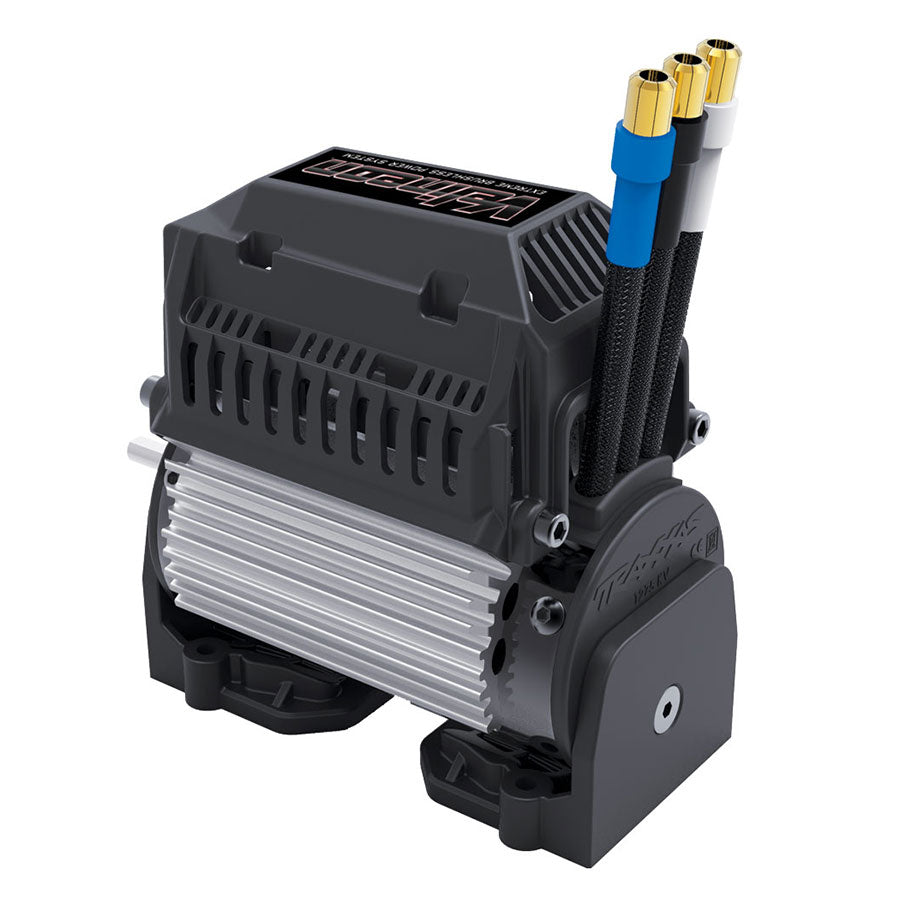

  • At Traxxas, too much power is never enough! The durability of the VXL-8s™ is matched only by the sheer ferocity of its 8s 30+ volt LiPo muscle. The speed-tuned 1200XL Big Block motor propels X-Maxx with brutal authority and exacting quickness that warps your senses. No matter what you have driven in the past, nothing will prepare you for X-Maxx.

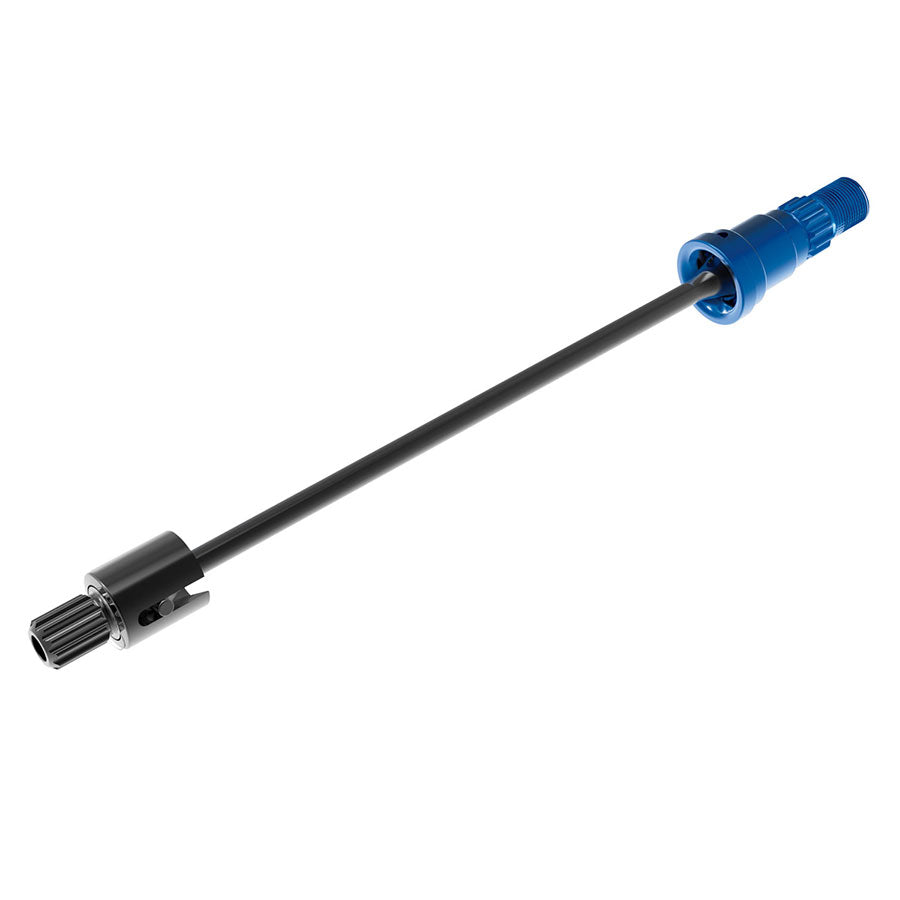

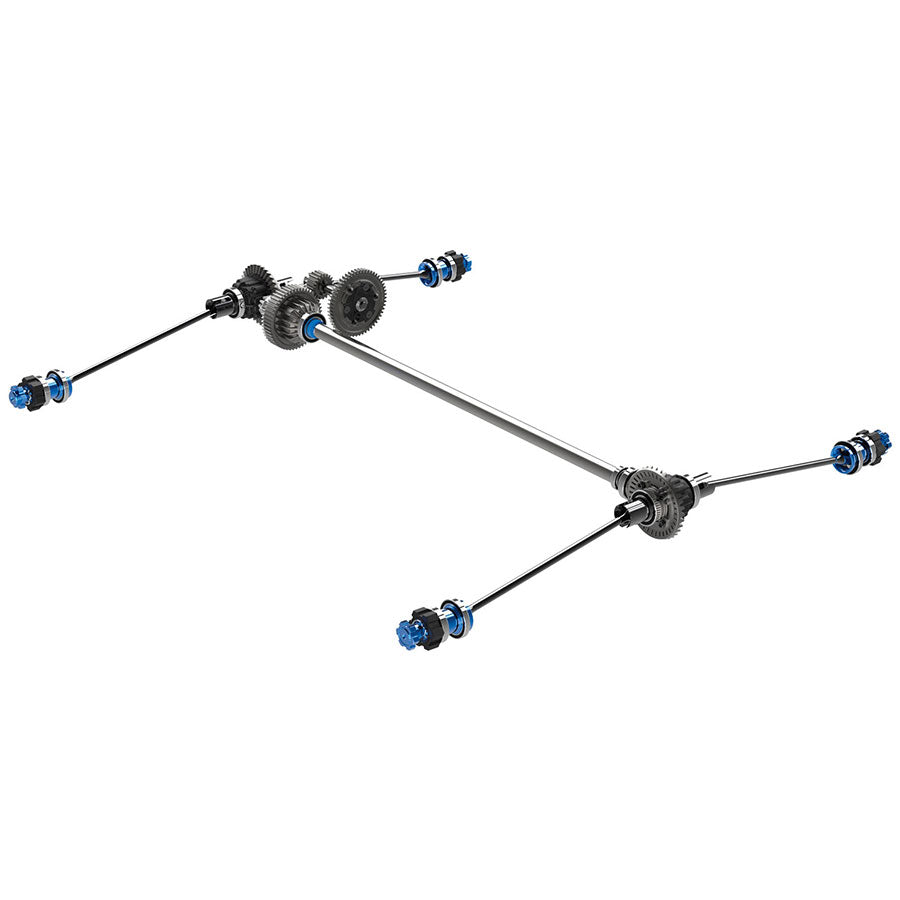

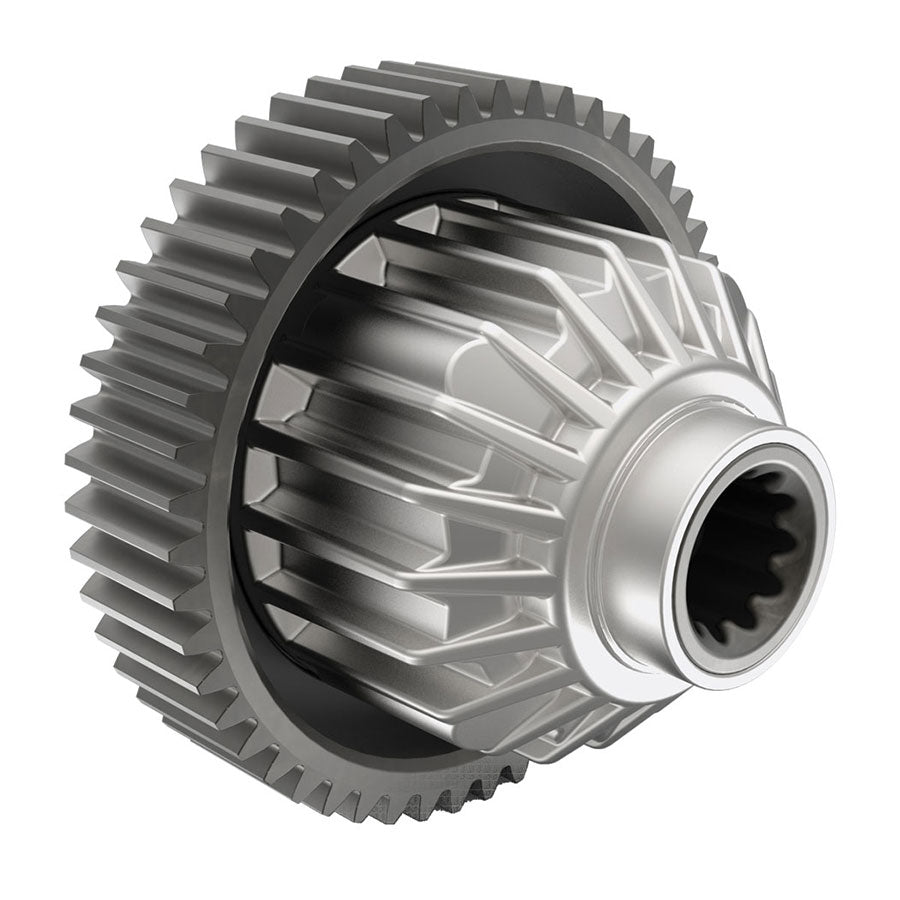

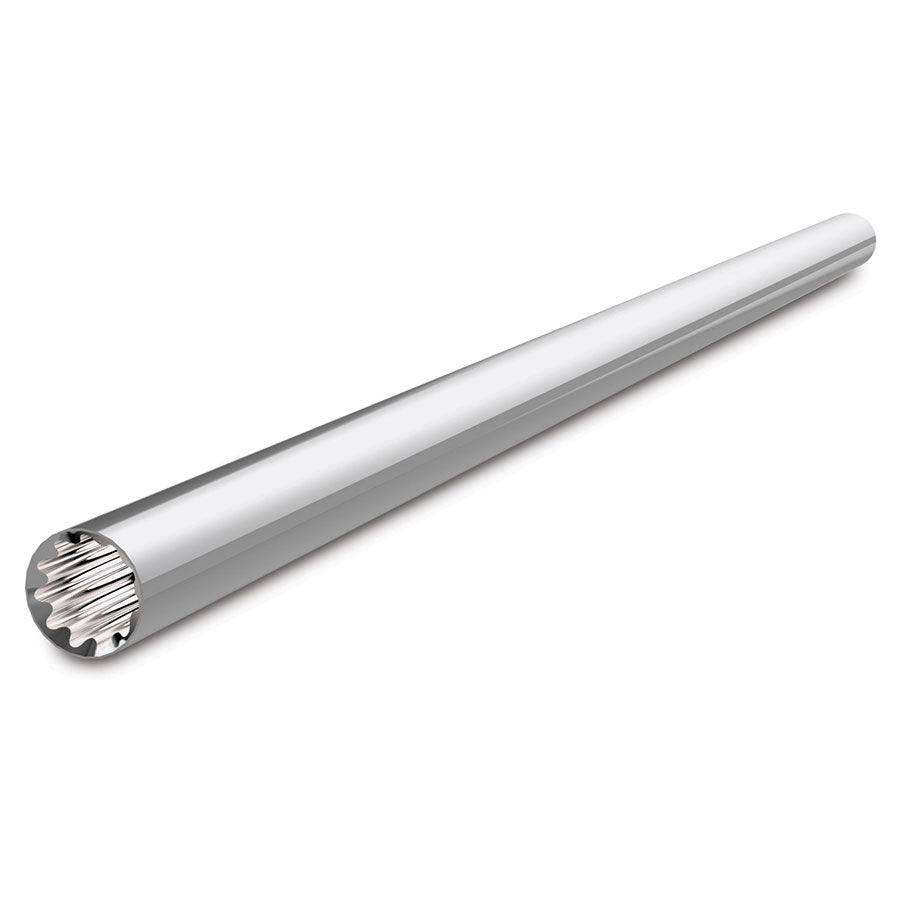

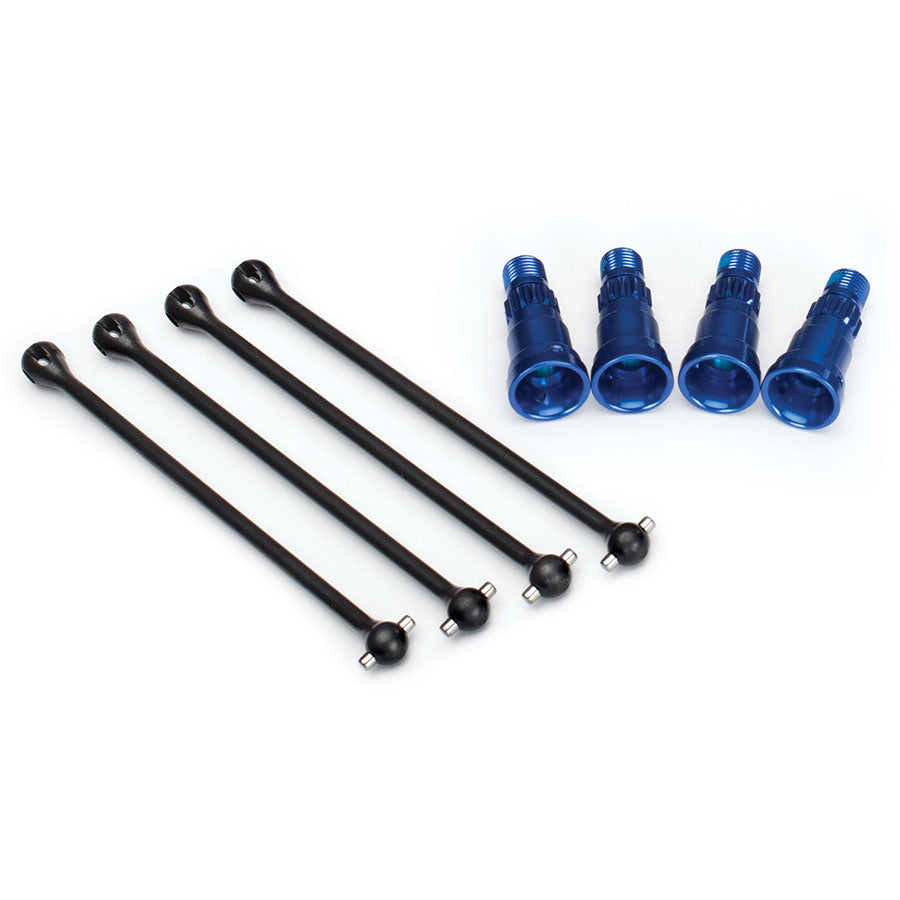

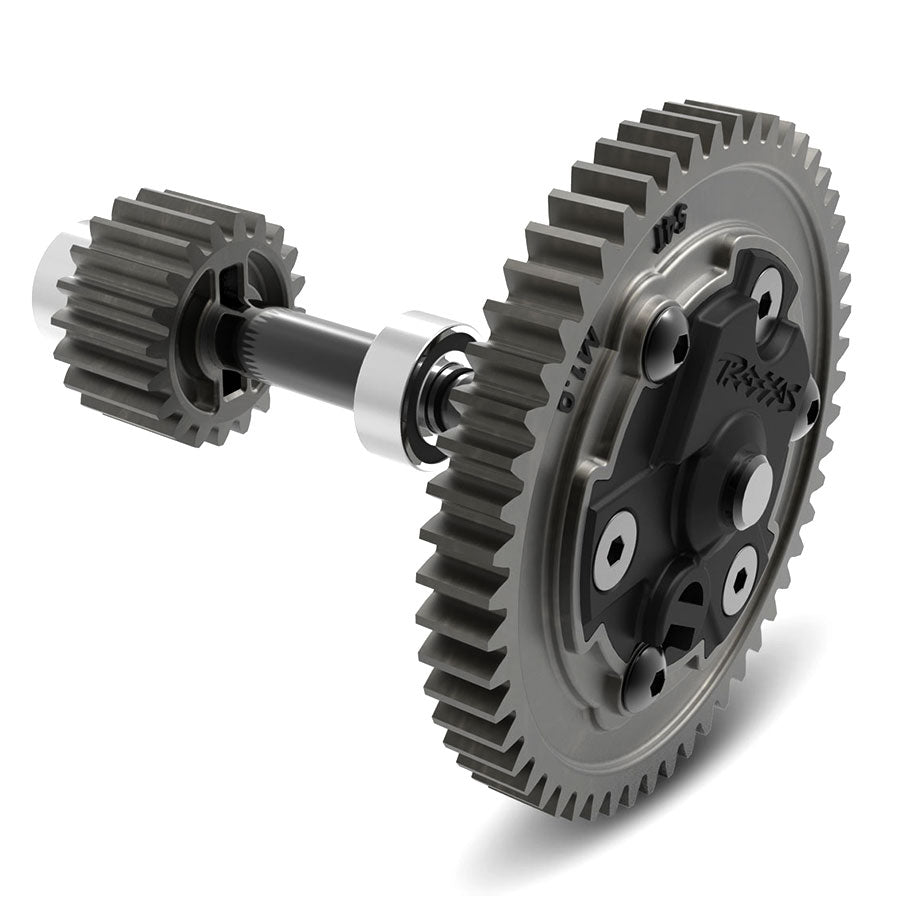

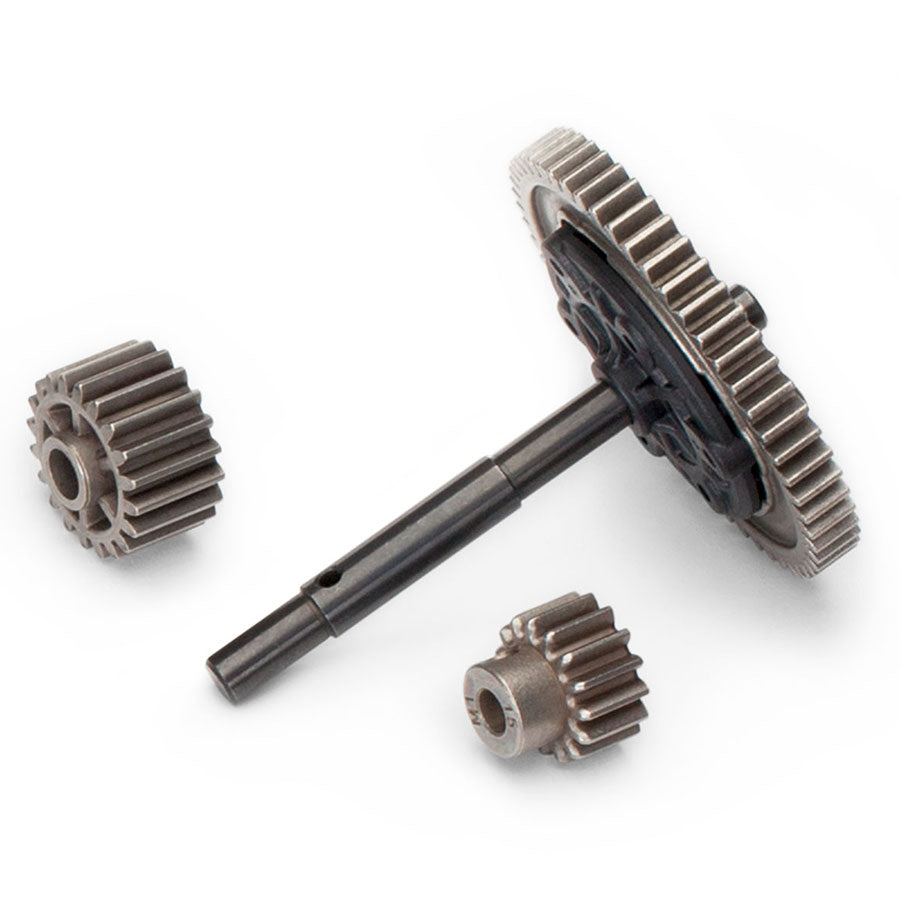

  • X-Maxx puts its massive power to the ground through an all-metal 8s driveline backed by the revolutionary Cush Drive® system, high-strength extruded aluminum center shaft, and our strongest steel driveshafts ever. The Torque-Biasing Center Drive improves driveline durability and drives huge steel 4-gear differentials.

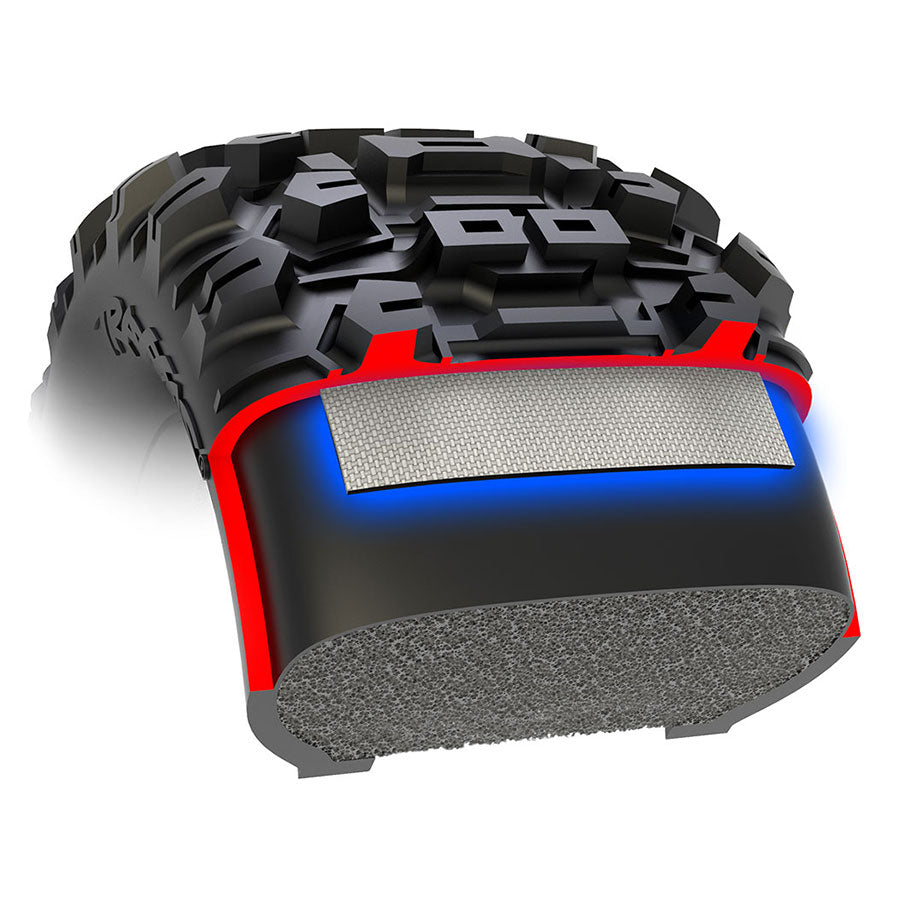

  • X-Maxx’s belted Sledgehammer tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

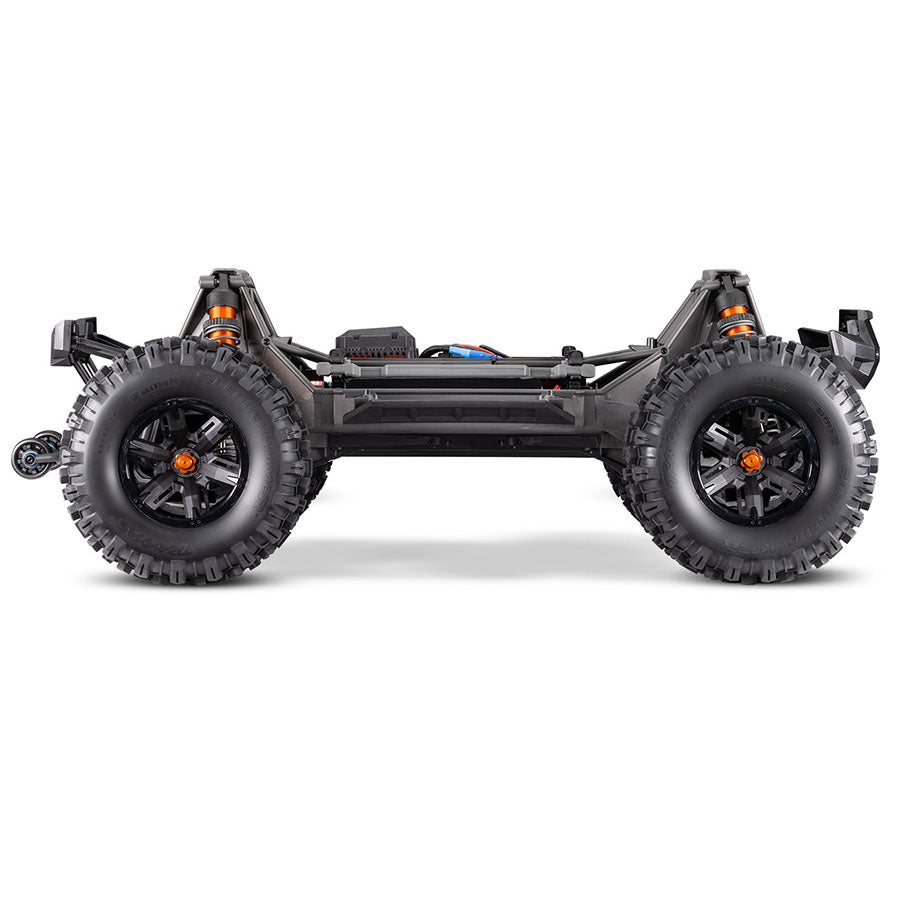

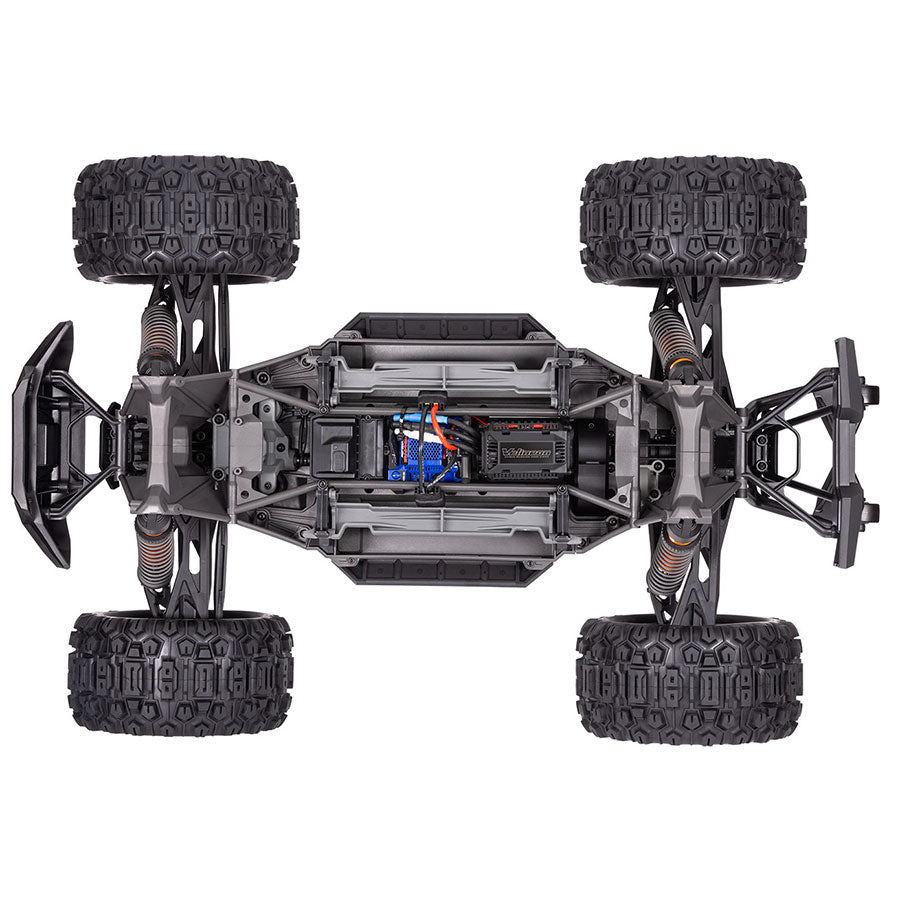

Truck Specs
Length: 30.67 inches (779 mm)
Front Track: 21.3 inches (540 mm)
Rear Track: 21.3 inches (540 mm)
Ground Clearance: 4 inches (102 mm)
Weight: 19.1 pounds (8.66 kg)
Height (ride): 13.79 inches (350 mm)
Wheelbase: 18.92 inches (480 mm)

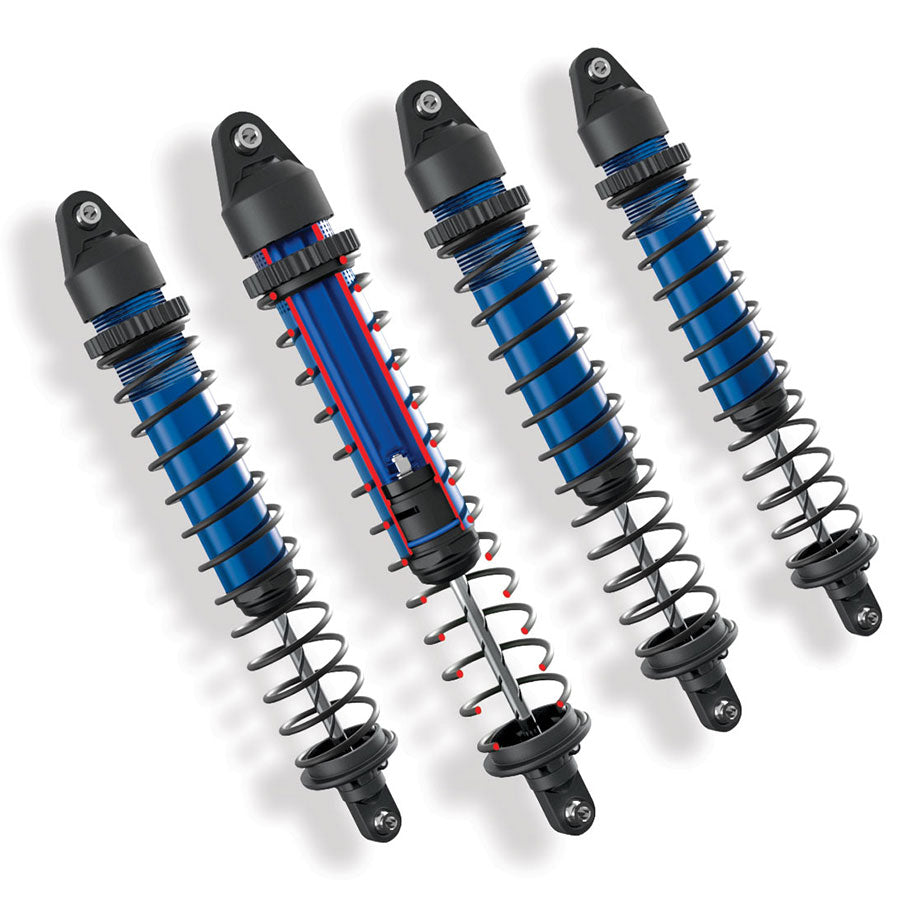

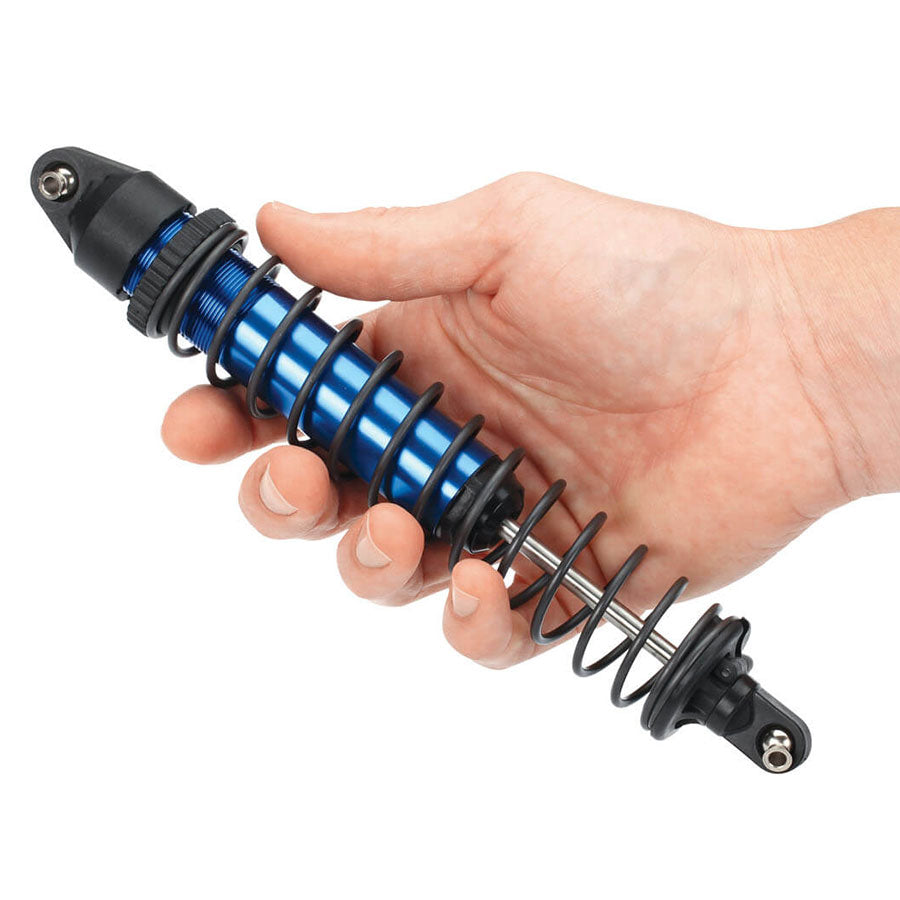

Shock Length: 7.4 inches (187 mm)
Tires (pre-glued): 8.0x4.0 inches (203 mm)
Wheels: 4.3x5.7 inches (110x145 mm)
Wheel Hex Size: 24 mm splined hex
Speed Control: Velineon® VXL-8s
Motor (electric): Velineon 1200XL
Transmission: Single-speed
Overall Drive Ratio: 8.11 (stock, out-of-box)

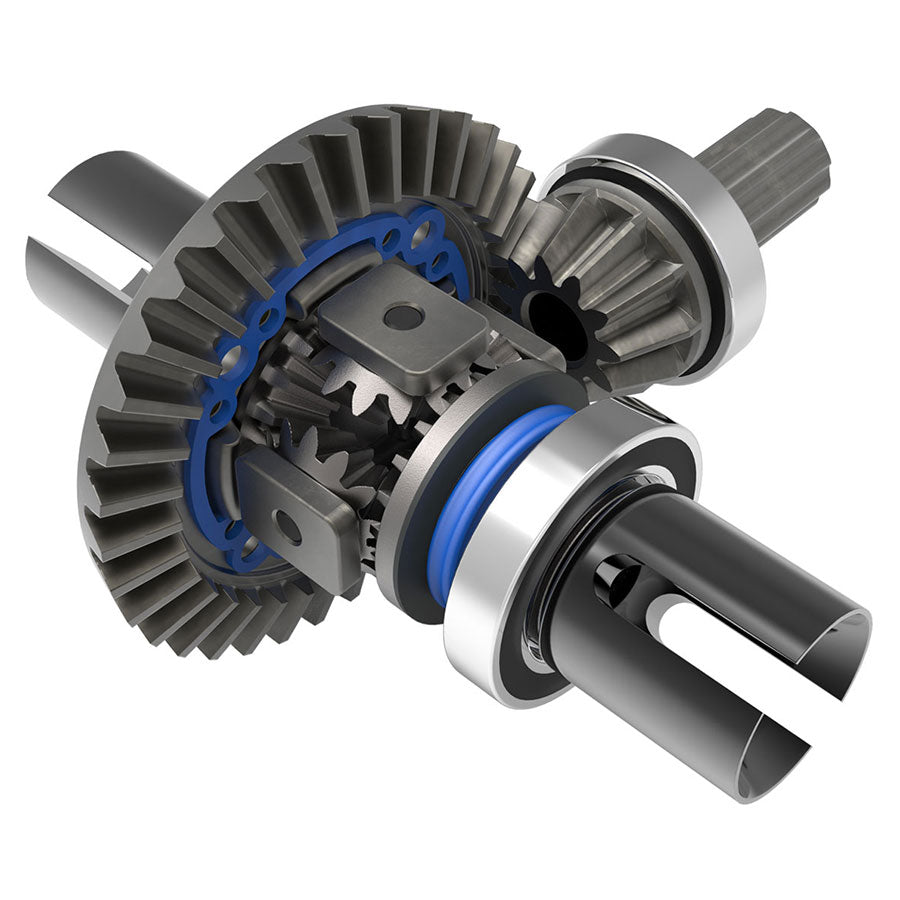

Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: 1.0 pitch
Chassis Structure/Material: Composite Nylon tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Bellcrank
Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
Servo: Torque: 365 oz/in Speed: 0.17 sec/ 60° (6.0 V)
Top Speed: 50+ MPH with two 4s LiPo batteries and optional gearing
Skill Level: 6
Battery Tray: 197 mm x 51.5 mm x 44 mm
Required Batteries: 4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)

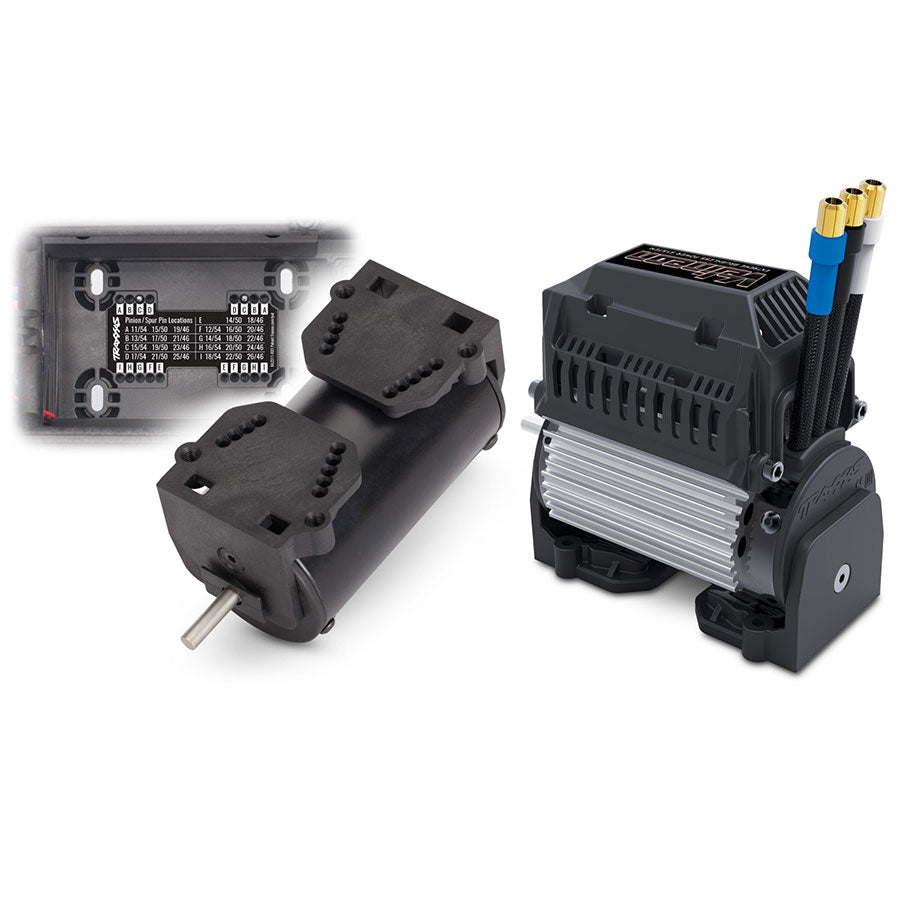

Motor Specs
Type: 1275 kV Sensorless Brushless
Weight: 23.44 ounces (665 g)
Length: 4.32 inches (110 mm)
Diameter: 1.88 inches (48 mm)
Connector Type: Traxxas 6.5 mm bullet connectors

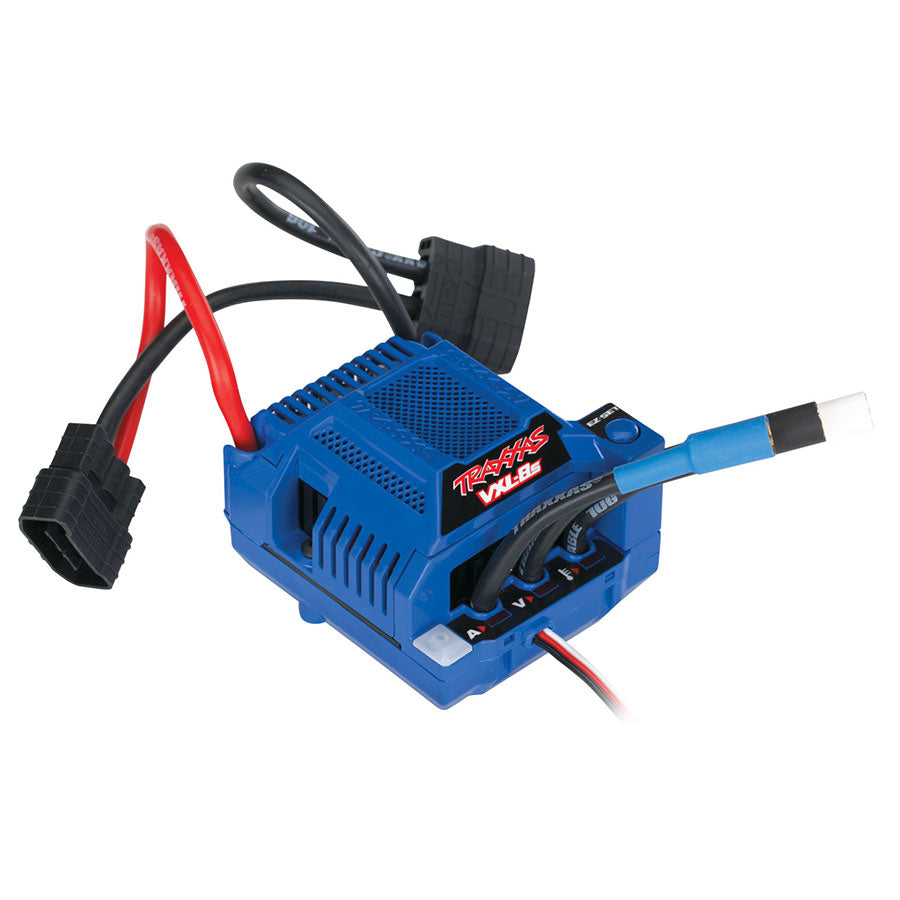

ESC Specs
Input Voltage: 8s LiPo (Max 33.6 volts)
Case Size: 2.23″ (58 mm) / 2.83″ (72 mm) / 1.81″ (46 mm)
Weight: 7.6 ounces (215.5 g)
BEC Voltage: 6.0 volts
BEC Current Continuous: 10 amps
BEC Current Peak: 20 amps
Motor Connectors: Traxxas 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10 gauge Maxx® Cable
Ports: RX input, auxiliary fan, accessory port
