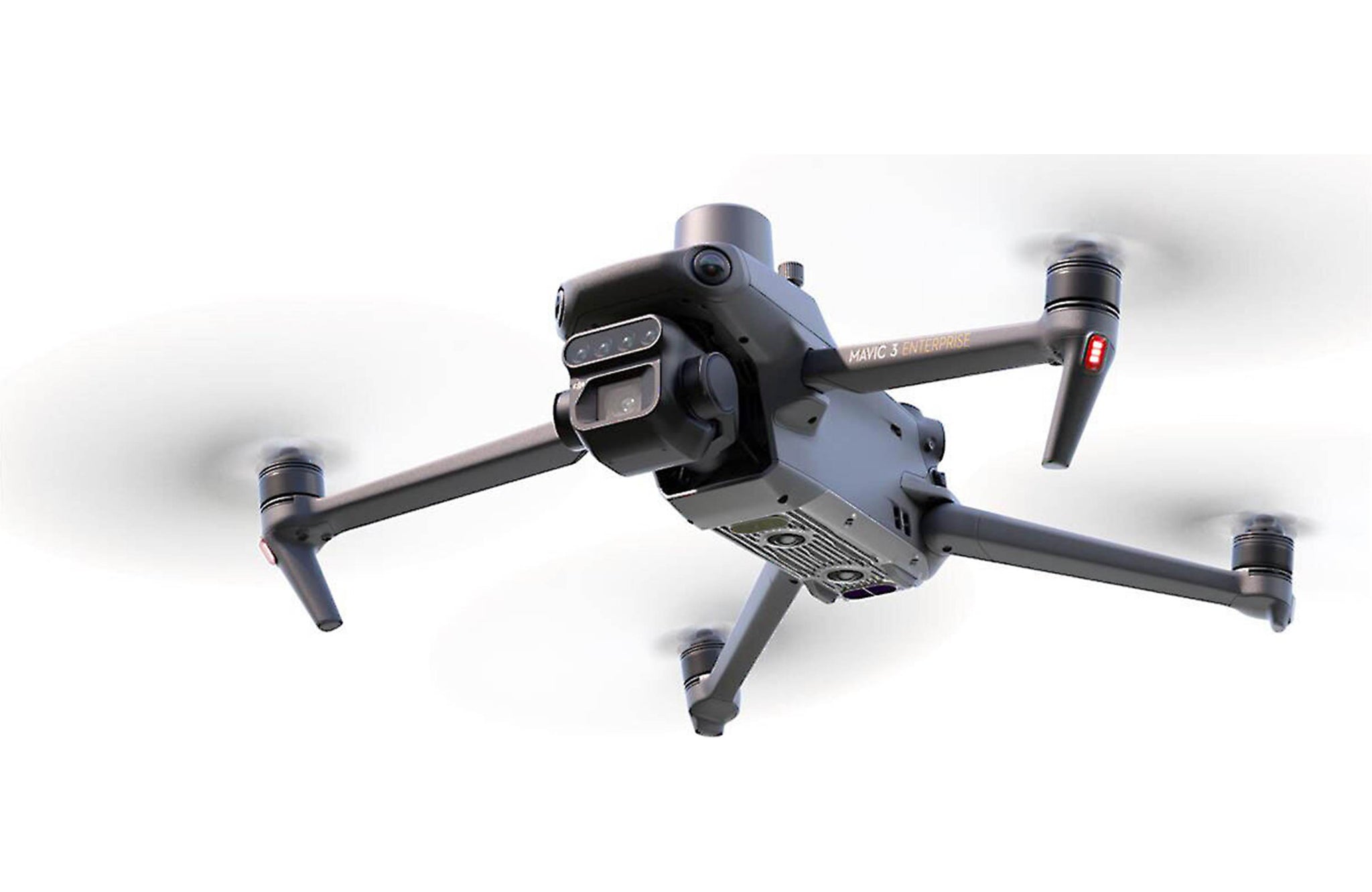

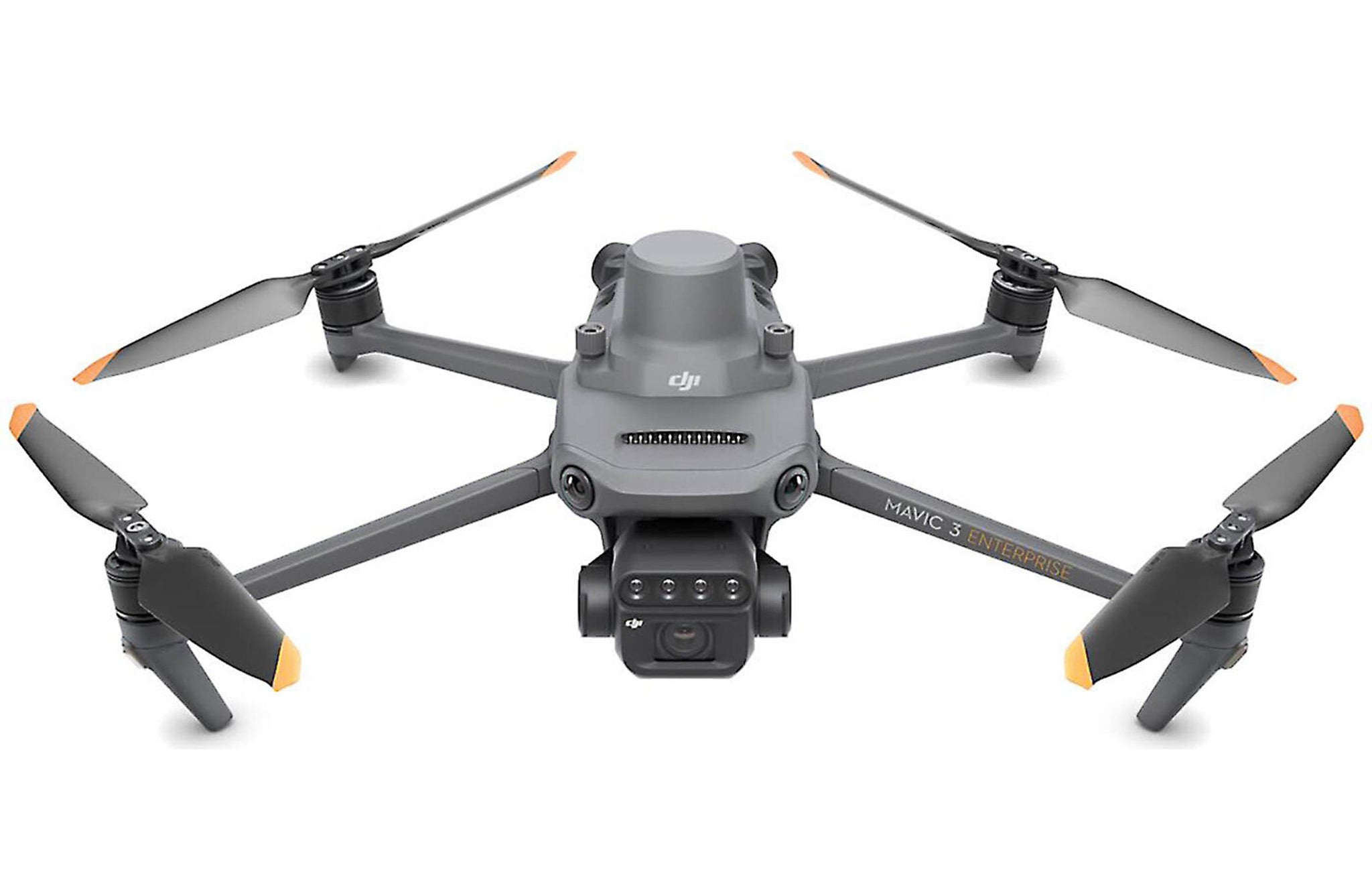

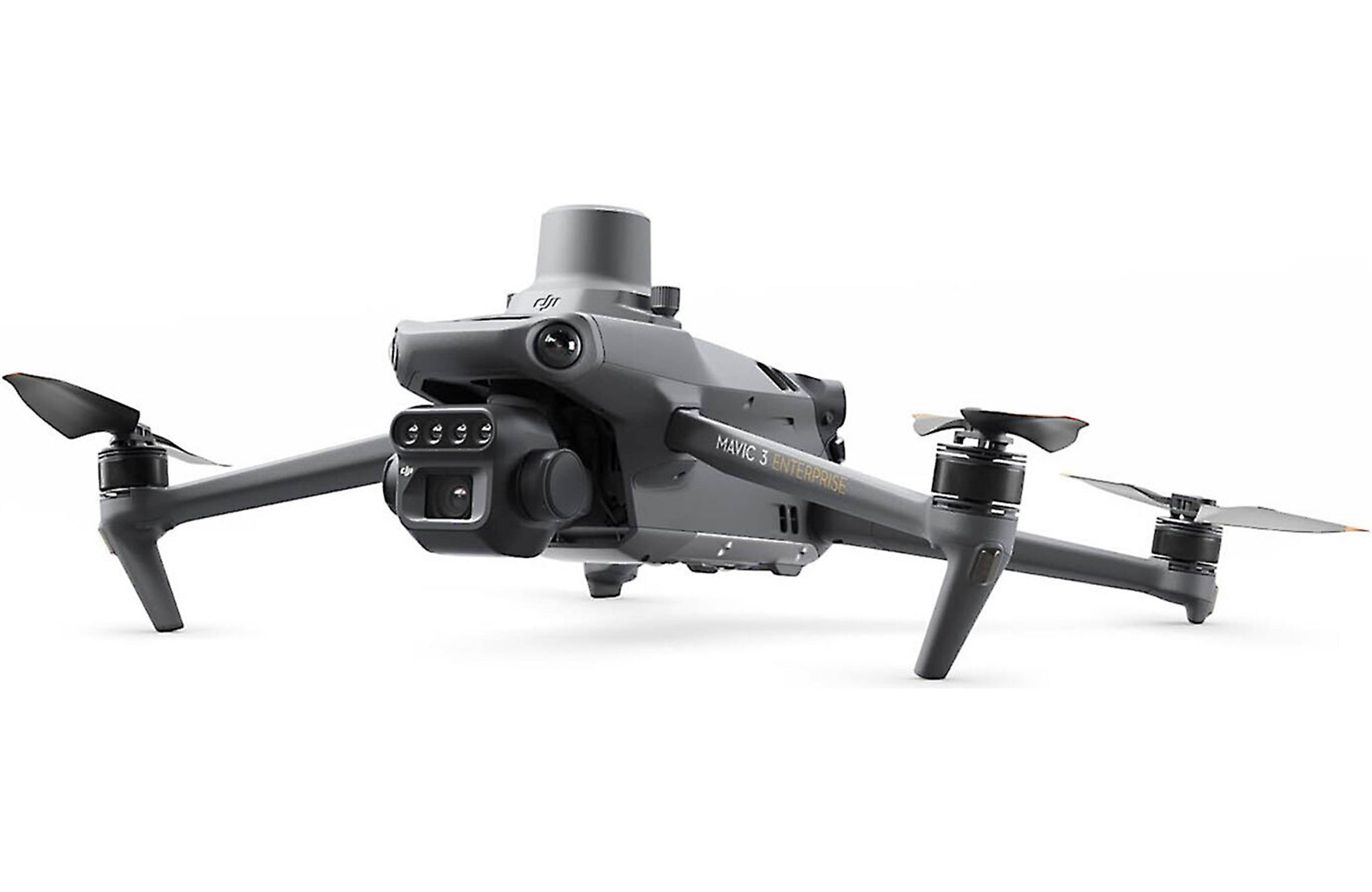

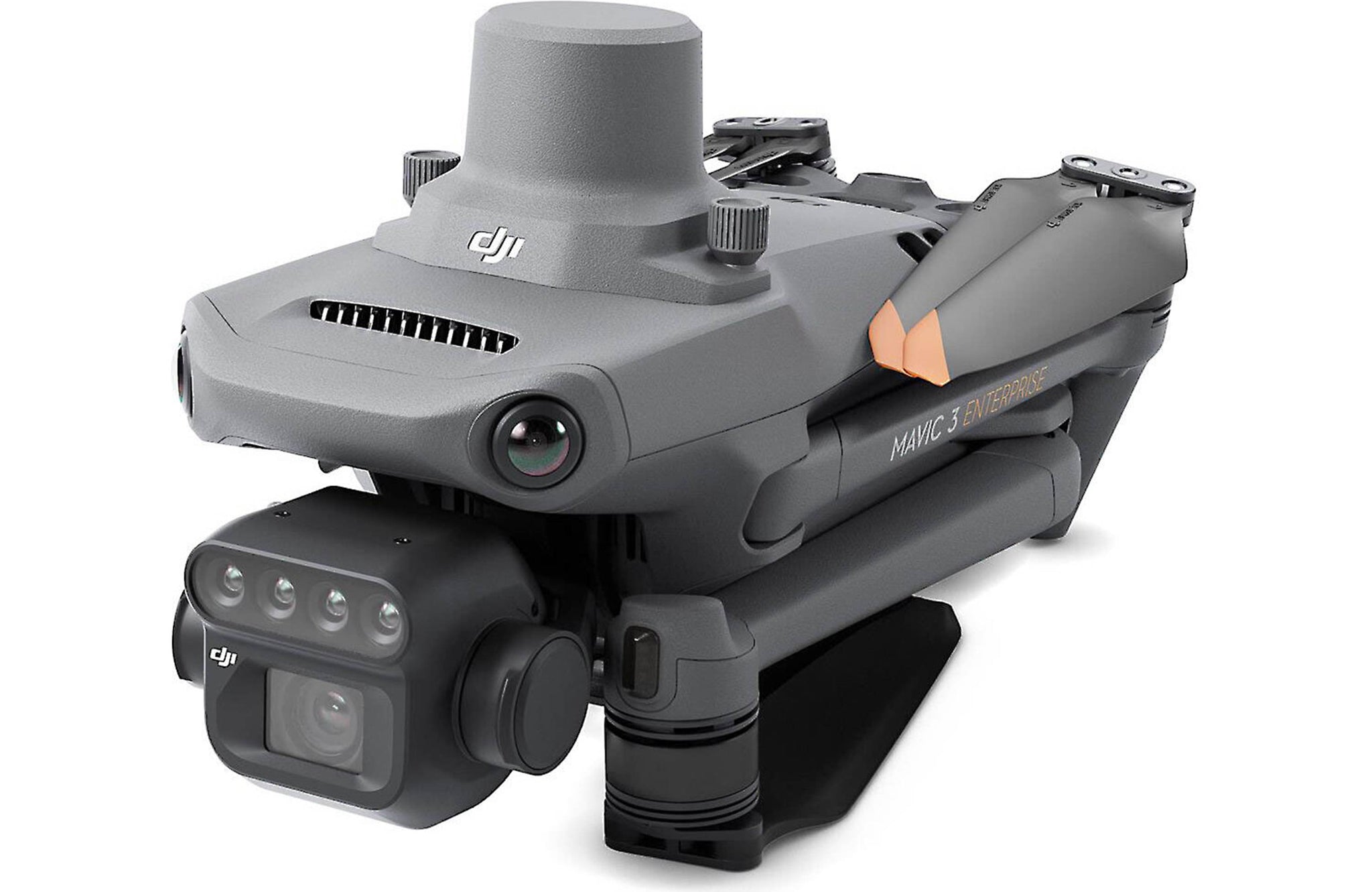

DJI Mavic 3 Multispectral M3M With Enterprise Care Basic 1 Year

Overview:
DJI Mavic 3 Multispectral aerial drone bundle with gimbal-mounted visual and multispectral cameras, smart remote controller, case, and 1-year protection plan. The DJI Mavic 3M's multispectral camera system is a powerful tool for farming, surveying, and industrial enterprises.

Effective aerial surveying needs to see the invisible. That's why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both.

An adaptable, hard-working enterprise drone
This Multispectral Edition of the powerful Mavic 3 Enterprise commercial drone adds a flexible multispectral camera system and RTK support out of the box. This makes the Mavic 3M a cost- and time-saving solution for a range of industry needs, from industrial inspection and mapping to agricultural applications like crop management, growth monitoring, and more. Plus, this drone flies fast and can be deployed quickly, increasing your team's ability to efficiently plan and complete key tasks.

Multi-camera design
The Mavic 3M can adapt to different jobs with two different built-in camera systems. The primary wide-angle RGB camera features a large 20-megapixel, 4/3" CMOS sensor that gives you greater resolution and clarity, reducing noise for excellent low-light performance. And its wide 84° field of view lets you capture more in every frame.

The secondary camera system combines four different multispectral cameras that capture Red (R), Green (G), Red Edge (RE), and Near Infrared (NIR) light. Combined with a built-in sunlight sensor, these cameras offer high-precision mapping and monitoring for agricultural management — giving you increased accuracy and data consistency when mapping and analyzing vegetation.

Smarter farming
The Mavic 3M is fully compatible with DJI's powerful SmartFarm software, letting you conduct intelligent field scouting and crop analyses. This can be used to construct high-res, multispectral maps that automatically distinguish trees from other objects, capture differences in crop potential, and produce prescriptive 3D routes for other agricultural drones to follow. These routes can include variable rate applications like rice fertilization and cotton growth regulation to increase yield and reduce costs. Real-time identification of abnormalities, weed pressure, emergence deficiencies, and other factors can also be used to support environmental protection services and natural resource management.

RTK module included
The drone comes with an onboard RTK module that helps bring superior accuracy to aerial inspections, surveys, and mapping. RTK (real-time kinematics) geotags each image with positional metadata as it's taken, providing corrections in real-time. This makes the module an invaluable tool add-on for surveyors looking for an efficient and cost-effective alternative to otherwise expensive and time-consuming work.

Smart flight protects your investment
This drone's advanced obstacle detection means flyers can keep themselves and their drone at a safe distance when performing complex or otherwise dangerous operations. The drone's Advanced RTH (Return to Home) feature can even automatically plot a safe course back to you at the press of a button or if the signal is lost.

Strong transmission, stable controls
Getting a fuzzy feed or losing video connection entirely mid-flight can scuttle a mission and needlessly set your team back. Luckily, the Mavic 3M uses Enterprise OcuSync 3.0 (O3), DJI's impressive transmission system. This wireless technology automatically switches between two different bands (2.4 GHz and 5.8 GHz) to resist pesky interference and provide reliable high-definition video transmission.

OcuSync's low-latency transmission gives you high-definition video feeds at 30 frames per second, and it keeps your control of the drone sharp and responsive. With a range up to 9.3 miles, you also have some serious flexibility. You team can confidently fly the drone on missions over mountains, ravines, and other obstacles — all while their feet are placed safely on terra firma.

Intuitive controls and software
The included RC Pro Enterprise remote controller comes with DJI Pilot 2 built-in, DJI's updated and improved flight interface. Flight and navigation details are displayed clearly on the controller's bright, 5.5-inch touchscreen.

Third-party support
With an open-source SDK (software developer kit) you can develop custom apps and benefit from the work put together by the wider drone community. This means you can create or take advantage of third-party tools and services, helping you expand and refine your drone's capabilities. Support includes the hardware of the drone itself, but also payloads and cloud platforms.

Top-notch security
You can store your data locally on an SD card (sold separately). Your data is encrypted with password protection, and that password isn't stored anywhere on DJI's end. This means if the drone crashes or is lost, no one will be able to retrieve the data without your password. If need be, you can also erase all of your data on the drone with a single tap in the DJI Pilot 2 interface.

Peace of mind
Accidents happen to the best of us. With a year of DJI Enterprise Care Basic covering damage from collisions, water, drops, signal interference, and even user error, you can rest a little easier. The drone can be replaced up to two times within one year of the purchase for a small additional cost. The first replacement is $269 and the second $299. Enterprise Care Basic must be activated within 48 hours of registering your drone.

Aircraft
Net Weight: 951 g (with propellers and RTK module)
Max Takeoff Weight: 1,050 g
Dimensions (Folded/Unfolded): Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height)
Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)
Diagonal Length: Diagonal: 380.1 mm
Max Ascent Speed: 6 m/s (Normal Mode)
8 m/s (Sport Mode)
Max Descent Speed: 6 m/s (Normal Mode)
6 m/s (Sport Mode)
Max Flight Speed (at sea level, no wind): 15 m/s (Normal Mode)
Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode)
Max Wind Speed Resistance: 12 m/s
Max Take-off Altitude Above Sea Level: 6000 m (without a payload)
Max Flight Time (without wind): 43 minutes
Max Hover Time (without wind): 37 minutes
Max Flight Distance: 32 km
Max Tilt Angle: 30° (Normal Mode)
35° (Sport Mode)
Max Angular Velocity: 200°/s
GNSS: GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)
Hovering Accuracy Range: Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled)
Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled)
Operating Temperature: -10° to 40° C (14° to 104° F)
Internal Storage: N/A
Motor Model Number: 2008
Propeller Model Number: 9453F Enterprise Edition
Light Sensor: Built-in module

RGB Camera
Image Sensor: 4/3 CMOS
Effective Pixels: 20 MP
Lens: FOV: 84°
Equivalent focal length: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞
ISO Range: 100-6400
Shutter speed: Electronic shutter: 8-1/8000 s
Mechanical shutter: 8-1/2000 s
Max Image Size: 5280×3956
Photo Shooting Mode: Single shot: 20 MP
Timelapse: 20 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 3/5/7/10/15/20/30/60 s
Panorama: 20 MP (original material)
Video Resolution: H.264:
4K: 3840×2160@30fps
FHD: 1920×1080@30fps
Max Video Bitrate: 4K: 130Mbps
FHD: 70Mbps
Supported File System: exFAT
Image Format: JPEG/DNG (RAW)
Video Format: MP4 (MPEG-4 AVC/H.264)

Multispectral Camera
Image Sensor: 1/2.8-inch CMOS, effective pixels: 5 MP
Lens: FOV: 73.91° (61.2° x 48.10°)
Equivalent focal length: 25 mm
Aperture: f/2.0
Focus: Fixed Focus
Multispectral Camera Band: Green (G): 560 ± 16 nm;
Red (R): 650 ± 16 nm;
Red Edge (RE): 730 ± 16 nm;
Near infrared (NIR): 860 ± 26 nm;
Gain Range: 1x-32x
Shutter Speed: Electronic Shutter: 1/30~1/12800 s
Max Image Size: 2592×1944
Image Format: TIFF
Video Format: MP4 (MPEG-4 AVC/H.264)
Photo Shooting Mode: Single shot: 5 MP
Timelapse: 5 MP
TIFF: 2/3/5/7/10/15/20/30/60 s
Video Resolution: H.264
FHD: 1920 x 1080@30fps
Video content: NDVI/GNDVI/NDRE
Max Video Bitrate: Stream: 60 Mbps

Gimbal
Stabilization System: 3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range: Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -27° to 27°
Controllable Range: Tilt: -90° to 35°
Pan: Uncontrollable
Max Control Speed (tilt): 100°/s
Angular Vibration Range: ±0.007°

Sensing System
Sensing System Type: Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft
Forward: Distance Measuring Range: 0.5 m to 20 m
Detection Range: 0.5 m to 200 m
Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, vertical 103°
Backward: Distance Measuring Range: 0.5 m to 16 m
Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s
FOV: Horizontal 90°, vertical 103°
Lateral: Distance Measuring Range: 0.5 m to 25 m
Effective Obstacle Avoidance Speed: Flight speed ≤15 m/s
FOV: Horizontal 90°, vertical 85°
Upward: Distance Measuring Range: 0.2 m to 10 m
Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s
FOV: Front and rear 100°, left and right 90°
Downward: Distance Measuring Range: 0.3 m to 18 m
Effective Obstacle Avoidance Speed: Flight speed ≤6 m/s
FOV: Front and rear 130°, left and right 160°
Operating Environment: Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.);
Adequate lighting (>15 lux, environments with normal indoor fluorescent light exposure)

Video Transmission
Video Transmission System: DJI O3 Image Transmission Industry Edition
Live View Quality: Remote Controller: 1080p/30fps
Operating Band: 2.400-2.4835 GHz
5.725-5.850 GHz
Max Effective Signal Distance (Unobstructed, No interference): FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Max Transmission Distance (Obstructed): Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed: 15 MB/s (with DJI RC Pro Industry Edition)
Latency: Approximately 200 milliseconds (depending on environment and mobile device)
Antennas: 4 antennas, 2 transmitting and 4 receiving
Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
Other: Supports the DJI Cellular module

DJI RC Pro Enterprise Edition
Image Transmission System: DJI O3 Image Transmission Industry Edition
Max Effective Signal Distance (Unobstructed, No interference): FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Operating Band of Image Transmission: 2.400-2.4835 GHz
5.725-5.850 GHz
Antennas: 4 antennas, 2 transmitting and 4 receiving
Operating Band of Image Transmission and Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Wi-Fi Protocol: 802.11 a/b/g/n/ac/ax
Support 2×2 MIMO Wi-Fi
Wi-Fi Operating Band: 2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Wi-Fi Operating Band and Transmitter Power (EIRP): 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)
Bluetooth Protocol: Bluetooth 5.1
Bluetooth Operating Band: 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP): <10 dBm
Screen Resolution: 1920×1080
Screen Size: 5.5 inches
Screen Frame Rate: 60 fps
Screen Brightness: 1,000 nits
Touch-Screen: 10-point multi-touch
Battery: Lithium-ion battery (5000 mAh, 7.2 V)
Charging Type: 100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended
Rated Power: 12 Watts
Storage Capacity: Internal Memory (ROM): 64 GB
Supports microSD card usage to increase storage capacity
Charging Time: Approx. 1.5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger)
Approximately 2 hours (measured using a 12V USB charger)
Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)
Operating Time: Approx. 3 hours
Video Output Port: Mini-HDMI Port
Operating Temperature: -10° to 40° C (14° to 104°F)
Storage Temperature Range: <1 month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature: 5° to 40° C (41° to 104° F)
Supported DJI Aircraft : DJI Mavic 3E
DJI Mavic 3T
DJI Mavic 3M
GNSS: GPS + Galileo + GLONASS
Dimensions: Antenna is folded and no control sticks are installed:
183.27×137.41×47.6 mm (Length×Width×Height)
Antenna unfolded and control sticks are installed:
183.27×203.35×59.84 mm (Length×Width×Height)
Weight: Approx. 680 g
Model Number: RM510B

Storage
Supported microSD Cards: Aircraft:
Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list
Recommended microSD Cards: Remote Controller:
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO Plus 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC

Aircraft:
SanDisk Extreme 32GB V30 A1 microSDHC
SanDisk Extreme PRO 32GB V30 A1 microSDHC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 1066x 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V90 A1 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC
Kingston Canvas React Plus 256GB V90 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC

Battery
Capacity: 5000 mAh
Standard Voltage: 15.4 V
Max Charging Voltage: 17.6 V
Battery Type: LiPo 4S
Chemical System: Lithium Cobalt
Energy: 77 watt-hours
Weight: 335.5 g
Charging Temperature: 5° to 40° C (41° to 104° F)

Battery Charger
Input: 100V to 240V (AC), 50Hz to 60Hz, 2.5A
Output Power: 100 Watts
Output: Maximum output power of 100 Watts (total)
When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power.

Charging Hub
Input: USB-C: 5V to 20V, 5.0A
Output: Battery Port: 12V to 17.6V, 8.0A
Rated Power: 100 Watts
Charging Type: 3 batteries on charging rotation
Charging Temperature: 5° to 40° C (41° to 104° F)

RTK Module
Dimensions: 50.2×40.2×66.2 mm (Length×Width×Height)
Weight: 24±2 g
Interface: USB-C
Power: Approximately 1.2 watts
RTK Position Accuracy: Fixed RTK:
Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
