Firma 2-in-1 Brushless Crawler Motor/ESC: 2300Kv

Firma 2-in-1 Brushless Crawler Motor/ESC: 2300Kv

Skip to product information
1 of 8
Regular price $149.99
Regular price $0.00 Sale price $149.99
Sale Sold out
Shipping calculated at checkout.
$0.00 Tax Collected Outside GA
Availability: Sorry we are out of stock but have more on the way.
SKU: 100025053
Part #: SPMXSEM1040B
UPC: 605482769089
MFG: Spektrum
Live Help Chat
rewards icon
You will earn 74 Electron Reward Points on this product! Click to find out more about our points program and save big!
View full details

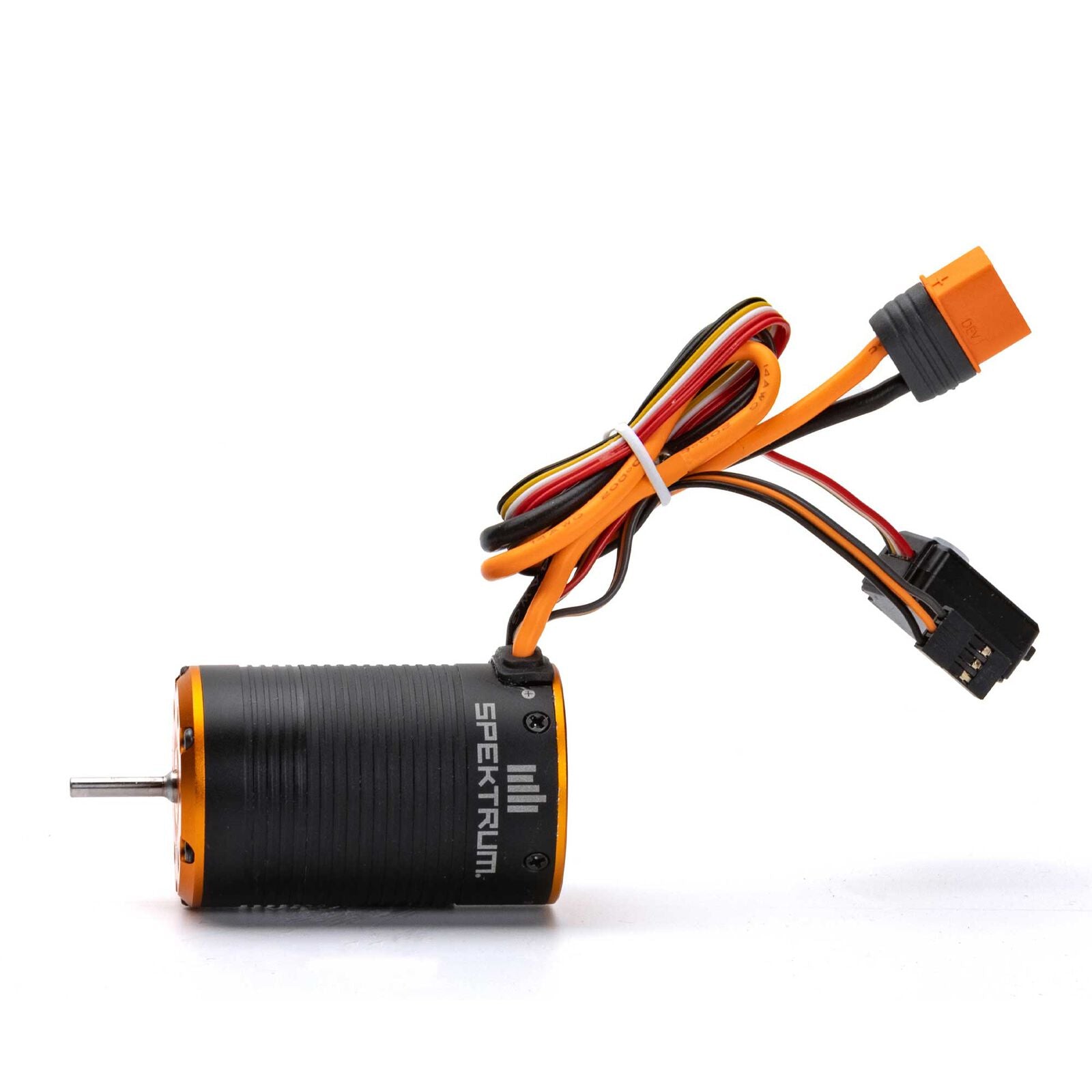

Firma 2-in-1 Brushless Crawler Motor/ESC: 2300Kv

The Ultimate Compact Crawler Solution:
The Spektrum Firma Sensored 2-in-1 System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Field-orientated Control (FOC) and professional drag brake performance and torque control, all while being fully waterproof.

The compact 2-in-1 design grants builders the ability to reduce clutter and components, giving you the most room for scale accessories and customization. The integrated design makes the size similar to a 550 can size motor, making it a easy drop-in option for most 1/10 scale crawler, scaler and trailer models.

Available in a low speed 1400Kv option for extreme slow speed and high angle of attack performance. And a high speed 2300Kv for excellent control for trailers and rock bouncers.


  • Pro-level Drag Brake performance and adjustability
  • RPM/Throttle Matching enabled
  • FOC (Field-Oriented Control) equipped
  • Integrated 40-amp ESC (160amp burst)
  • 2-3S LiPo/6-9 Cell NiMH input voltage range
  • Industry Leading Waterproof Design
  • Fully programmable with optional Spektrum ESC Programmer Box (not included)
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC and Brushless Motor manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Adjustable high-power BEC (6V or 7.4V)
  • Firmware updatable through the Spektrum ESC Programming Box
  • High heat resistant IC3 connectors, backwards compatible with EC3 connectors
  • Limited 1-year warranty

Key Benefits:

  • 2-in-1 ESC Motor Combo: Compact option for detailed scale builds where space is limited
  • Advanced Sensored Motor Control: Great for slow speed driving and next level drag brake performance
  • Industry Leading Waterproof Design: The Firma 2-in-1 Brushless Crawler Motor/ESC provides industry leading waterproof and dustproof operation for worry-free driving in mud, sand, snow and water

Multi-point Protection:

  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection

In The Box:
(1) Spektrum Firma Brushless Sensored 2-in-1 System 2300Kv
(1) Product Manual

Needed to Complete:
(1) Product Manual
(1) 2S or 3S LiPo Battery with EC3 or IC3 Connector
(1) Spektrum Transmitter

Programmable: Yes
Maximum Burst Current: 160A
Maximum Continuous Current: 40A
Motor Type: Brushless
Connector Type: IC3
Product Length: 2.28" (58 mm)
Motor Size: 550-Size
Application: 1/10 Rock Crawler
Auto Cutoff: Yes
Number of Poles: 4
Overload Protection: Yes
Product Weight: 201g (including wire plug)
Shaft Diameter: 0.125" (3 mm)
Water-Resistant: Yes
Forward: Yes
Reverse: Yes
Outer Diameter: 1.46" (37 mm)
BEC Voltage: 6V/7.4V Adjustable, Continuous Current 4A (Switch Mode)
Input Voltage: 2-3S LiPo, 6-9 Cells NiMH
Product Application: Crawling, Surface
RPM/Volt (Kv): 2300Kv
Sensored: Yes
Shaft Length: 0.63" (16 mm)
