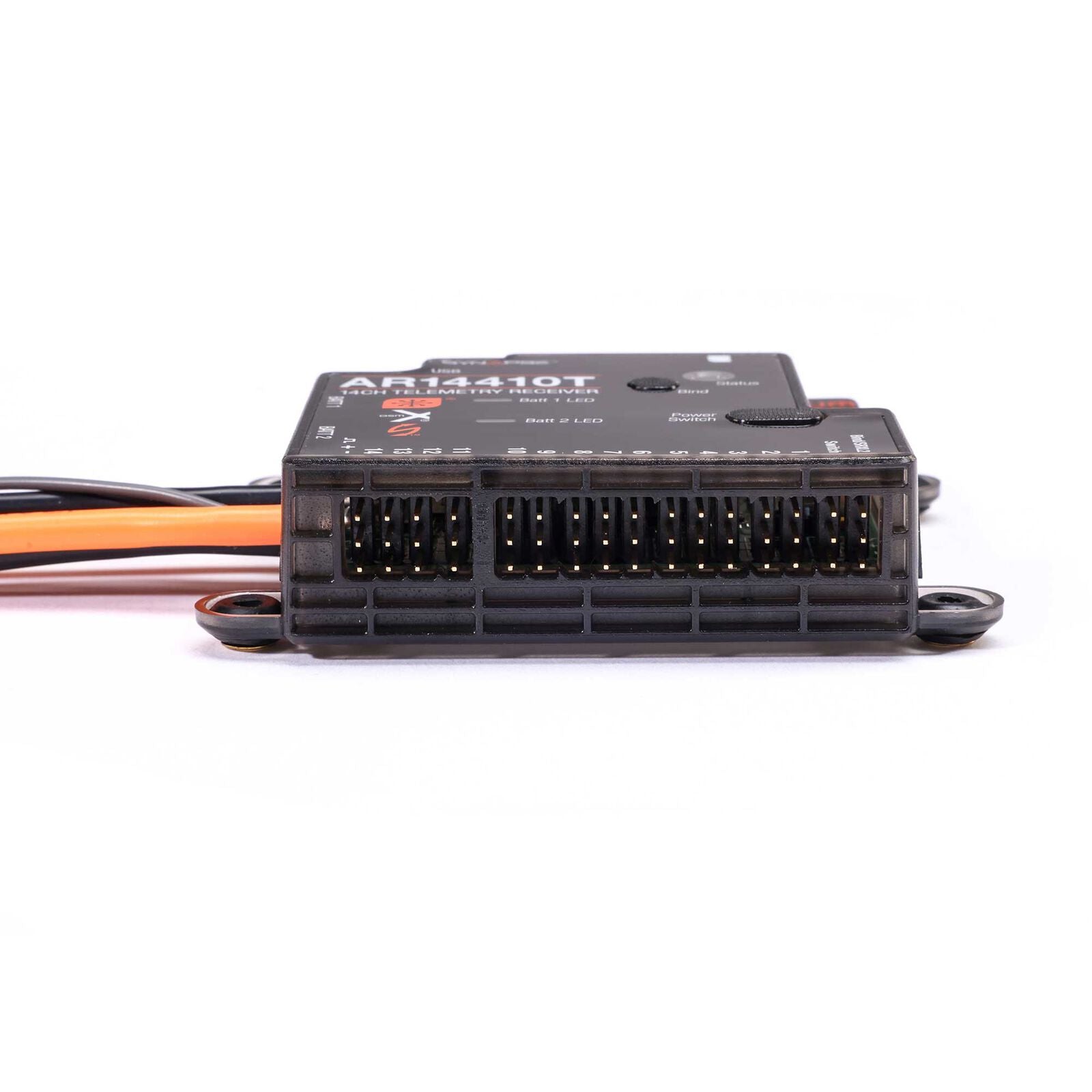

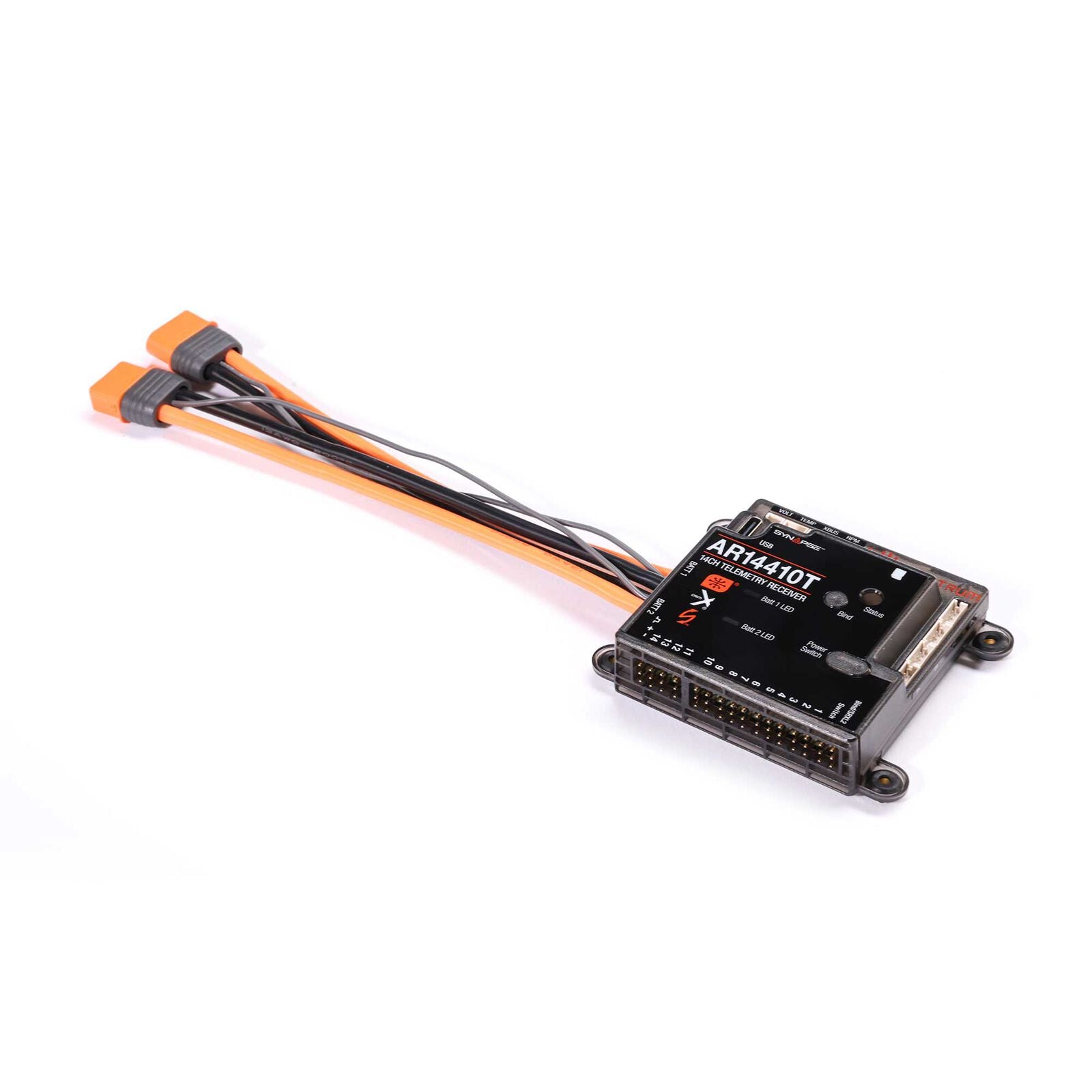

AR14410T 14 Channel PowerSafe Telemetry Receiver

AR14410T 14-Channel PowerSafe Telemetry Receiver

Overview:

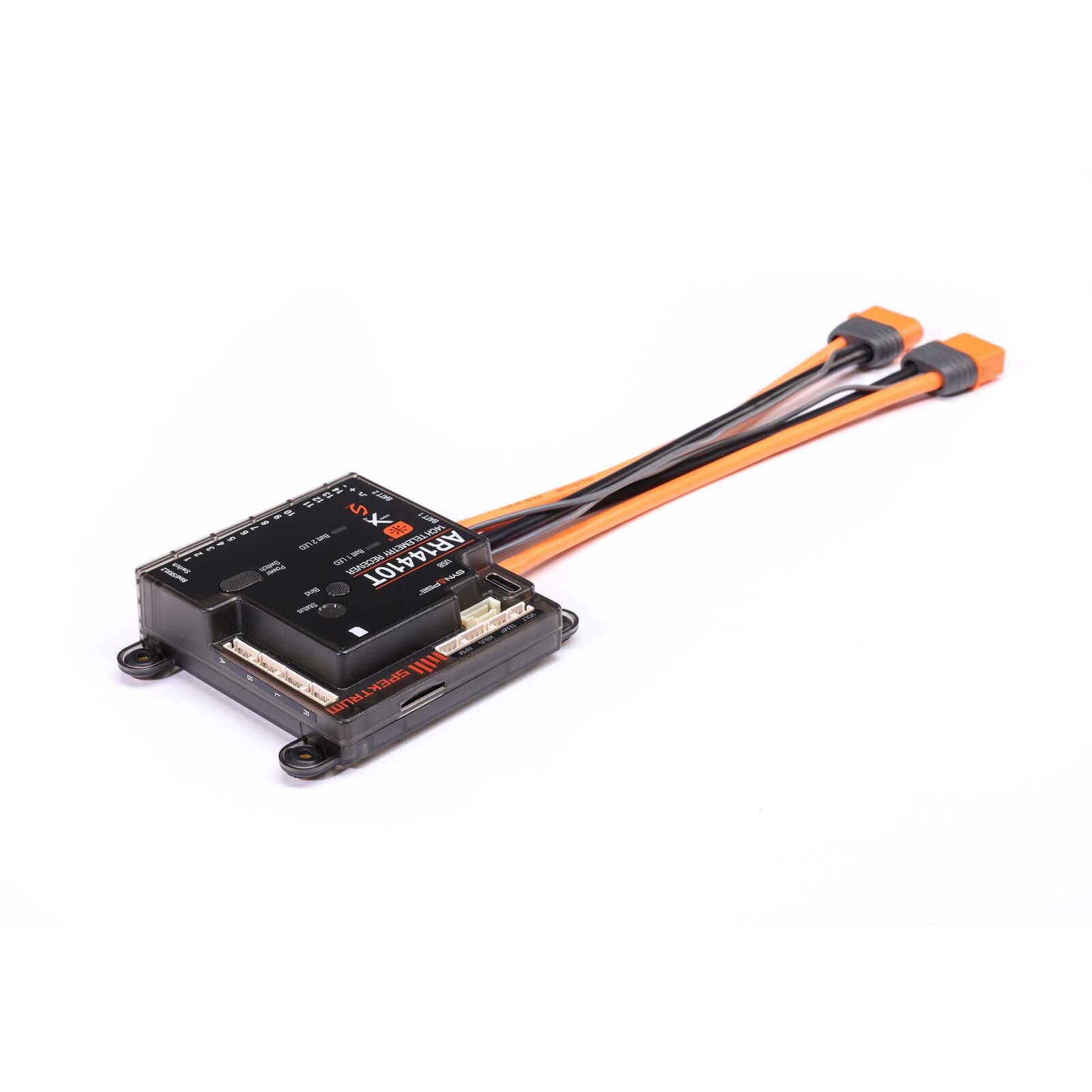

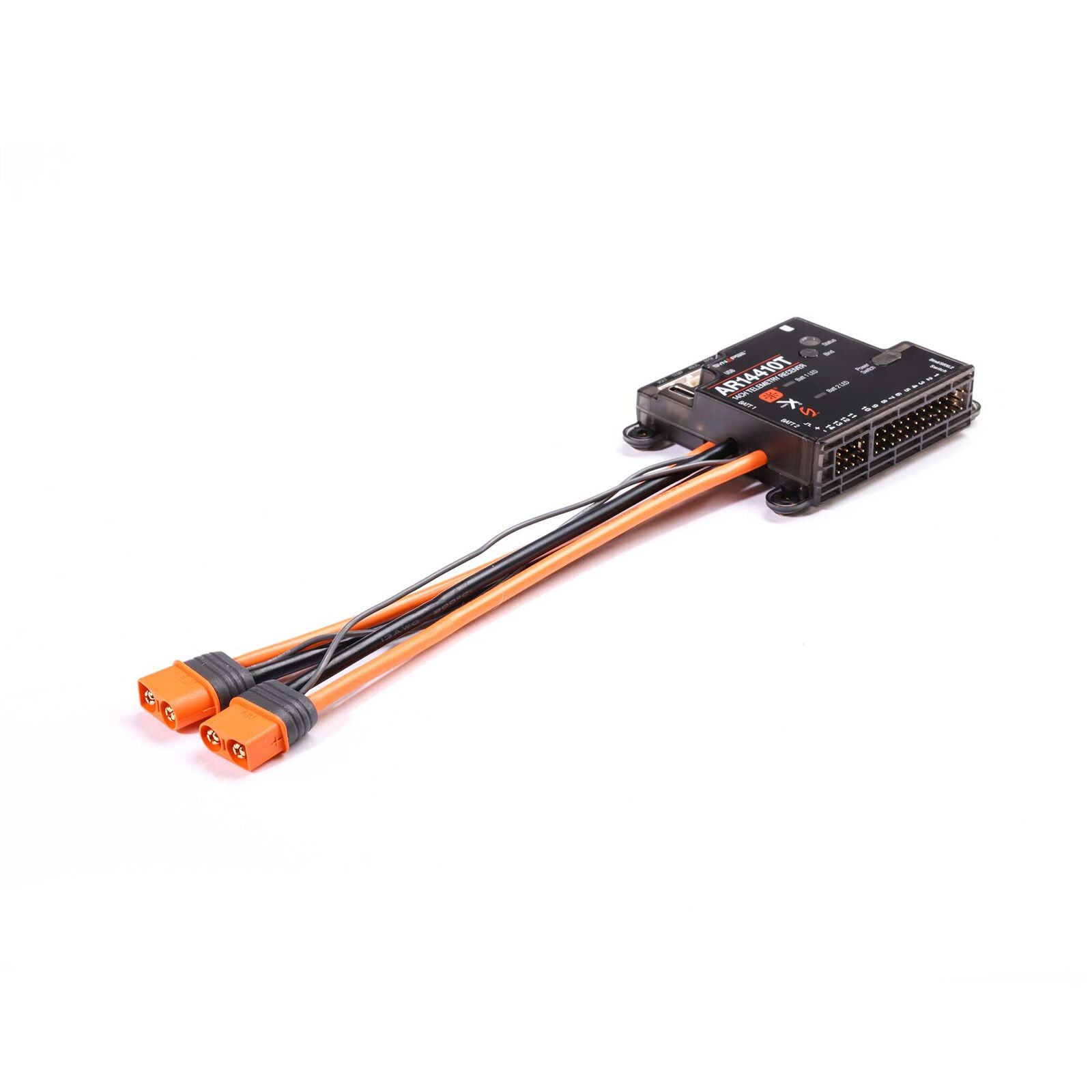

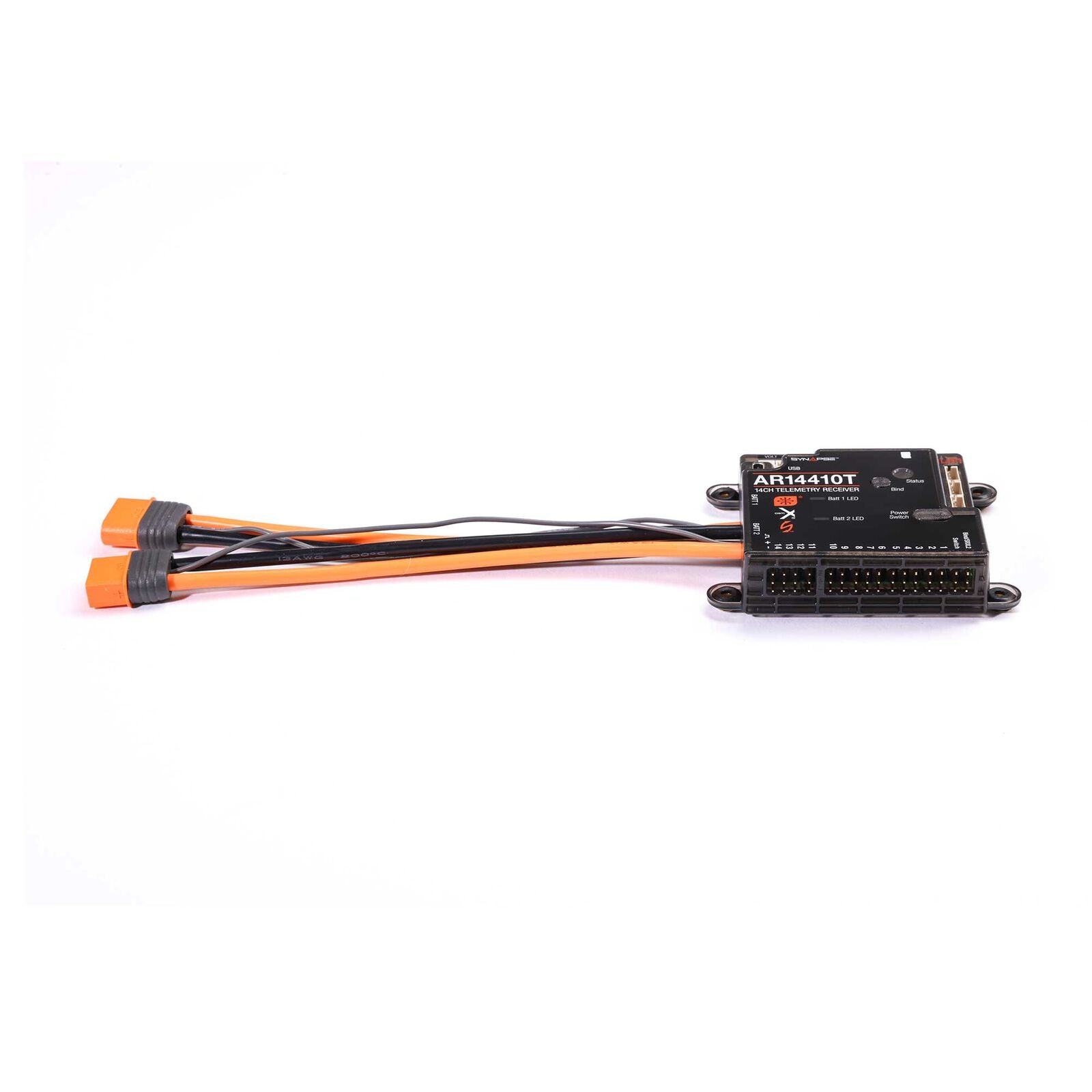

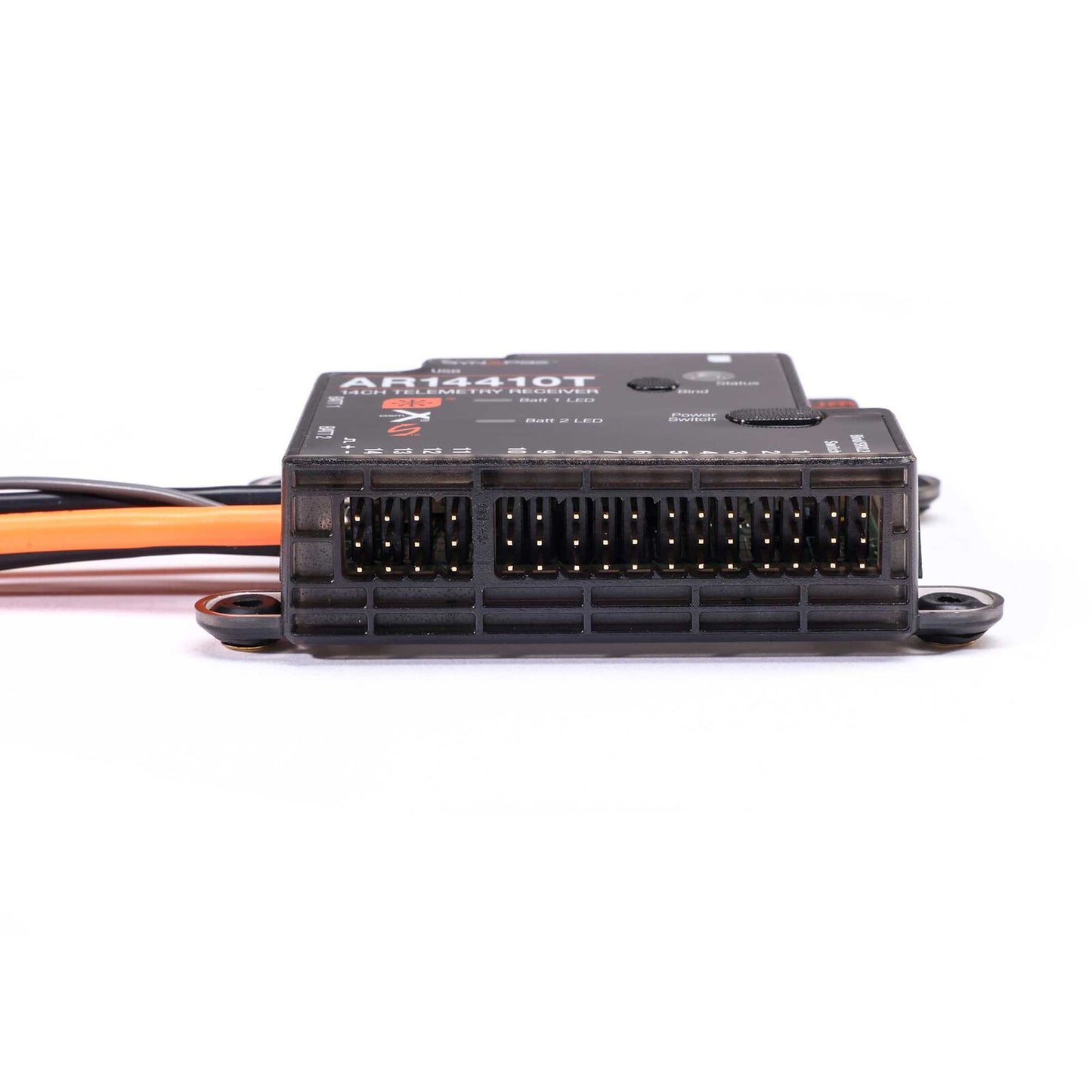

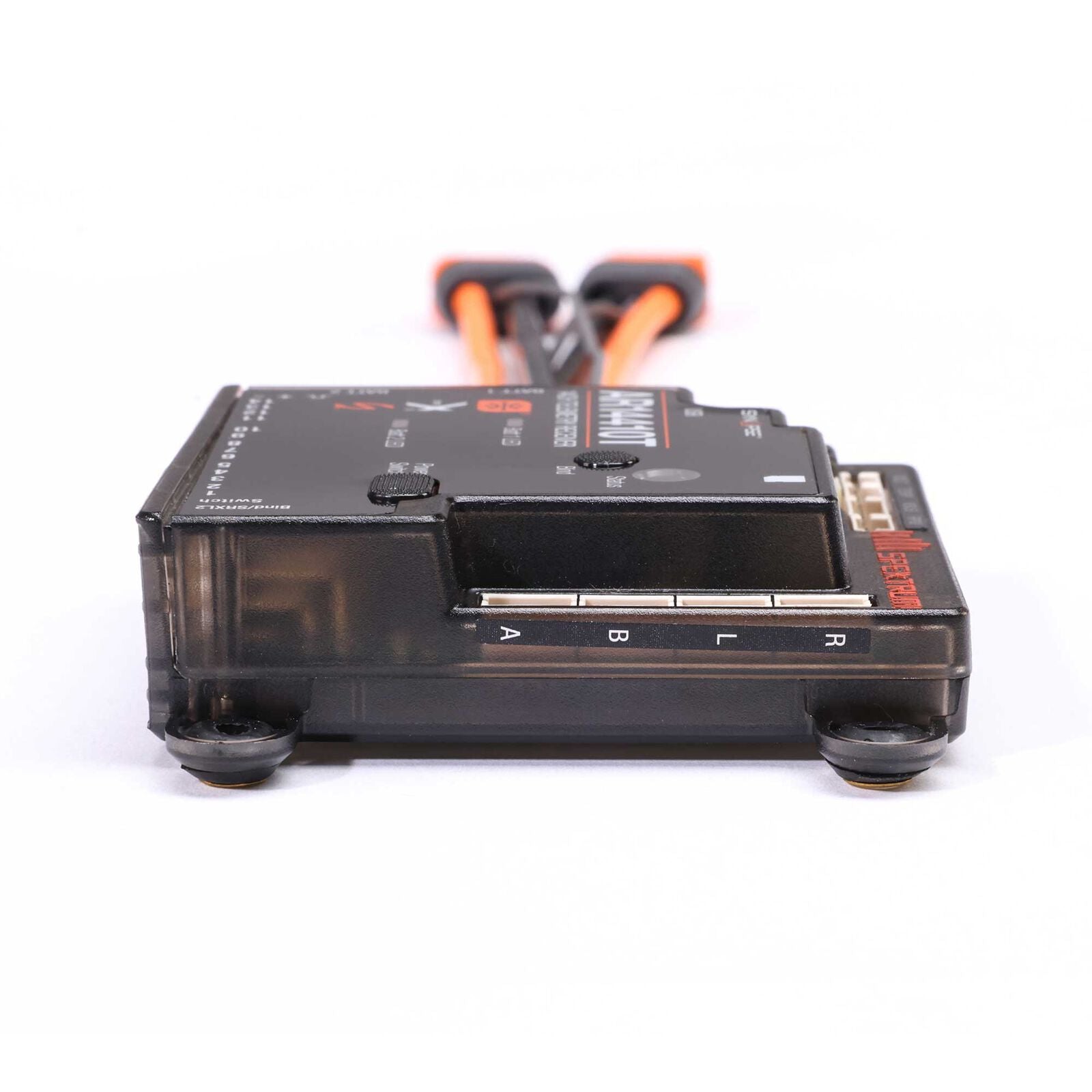

The AR14410T is a 14-channel receiver with full-range telemetry that uses the Spektrum™ PowerSafe™ redundant battery system. It features connections for full telemetry support including RPM, Flight Pack Voltage and Temperature, and X-Bus. The receiver also has a built-in vario/altitude sensor and mAh sensors that allow tracking of consumed mAh. It can be powered through the servo bus or 13AWG battery leads with IC3™ connections. It is compatible with the Spektrum Synapse™ AS3X+ / SAFE (SPMAS6000) stabilization module, delivering instantaneous attitude corrections and enhancing flight stability.

Using an optional micro-SD card, the AR14410T can store flight data for later review as a CSV file. It also has a new, push-button PowerSafe LED soft switch or can be powered on and off through the on-board button. Additionally, the system can be put in sleep mode from a compatible Spektrum transmitter and woken up between flights and can be powered off from your compatible Spektrum transmitter as well. Bind can be initiated through the button or a bind plug. The AR14410T can be updated easily through the USB-C connection.

Features:

• Compatible with the Synapse™ AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)
• Patented PowerSafe™ redundancy system with dual 13 AWG battery leads with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
• Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
• Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
• Regenerative servo support for any number of servos
• USB-C port for easy product registration and firmware updates
• 12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
• Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
• Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
• Integrated status LED provides helpful information during start up, warnings and mode indicators
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
• Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
• Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted
• Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
• Capable of high-speed 11ms frame rates
• Binding is easier than ever with four options to initiate the bind process

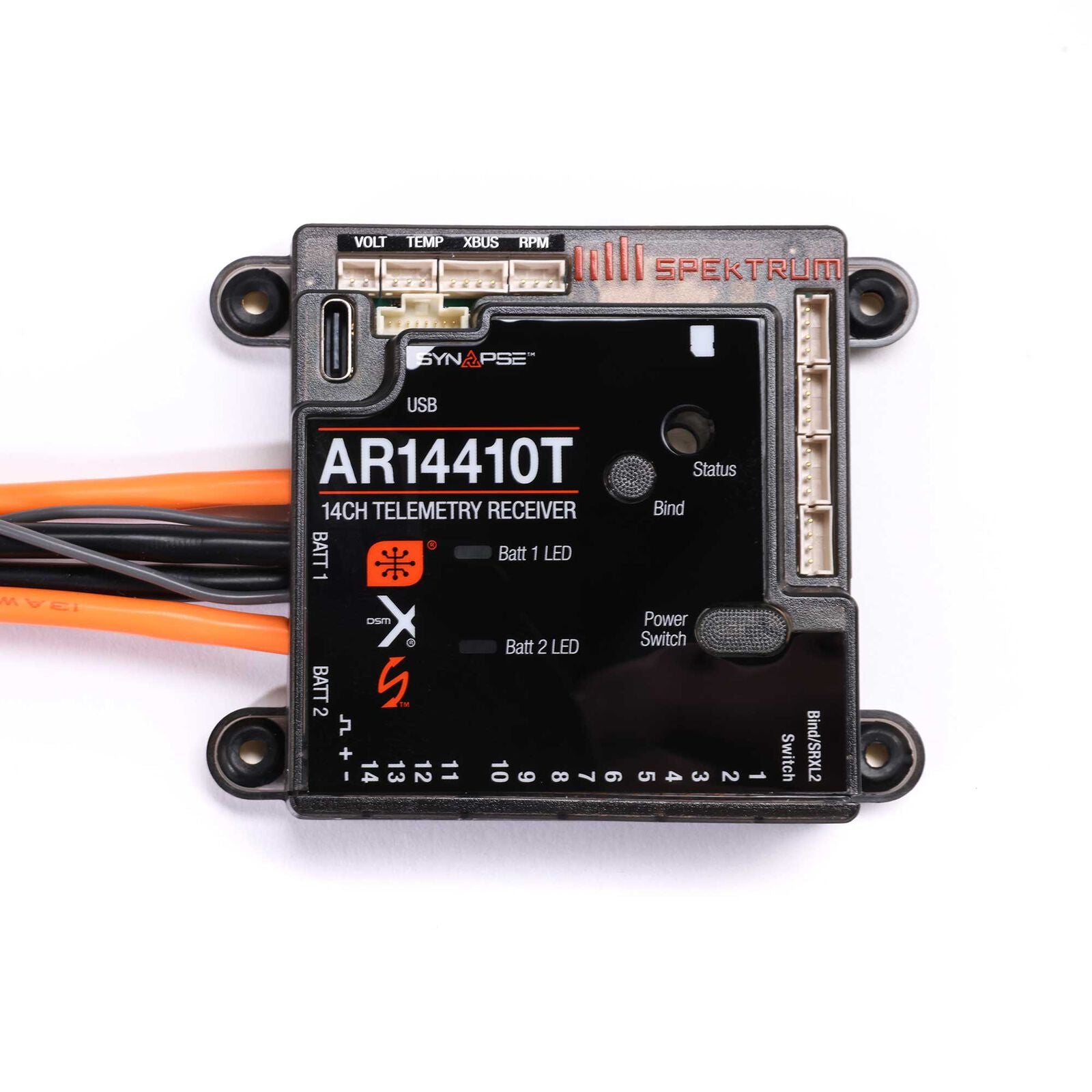

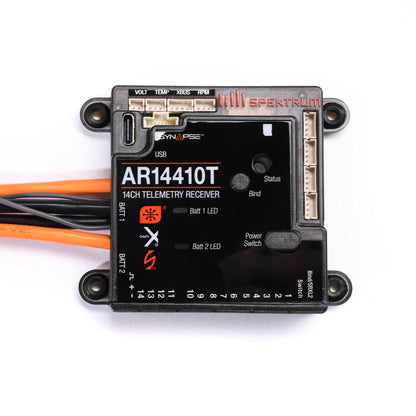

• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion

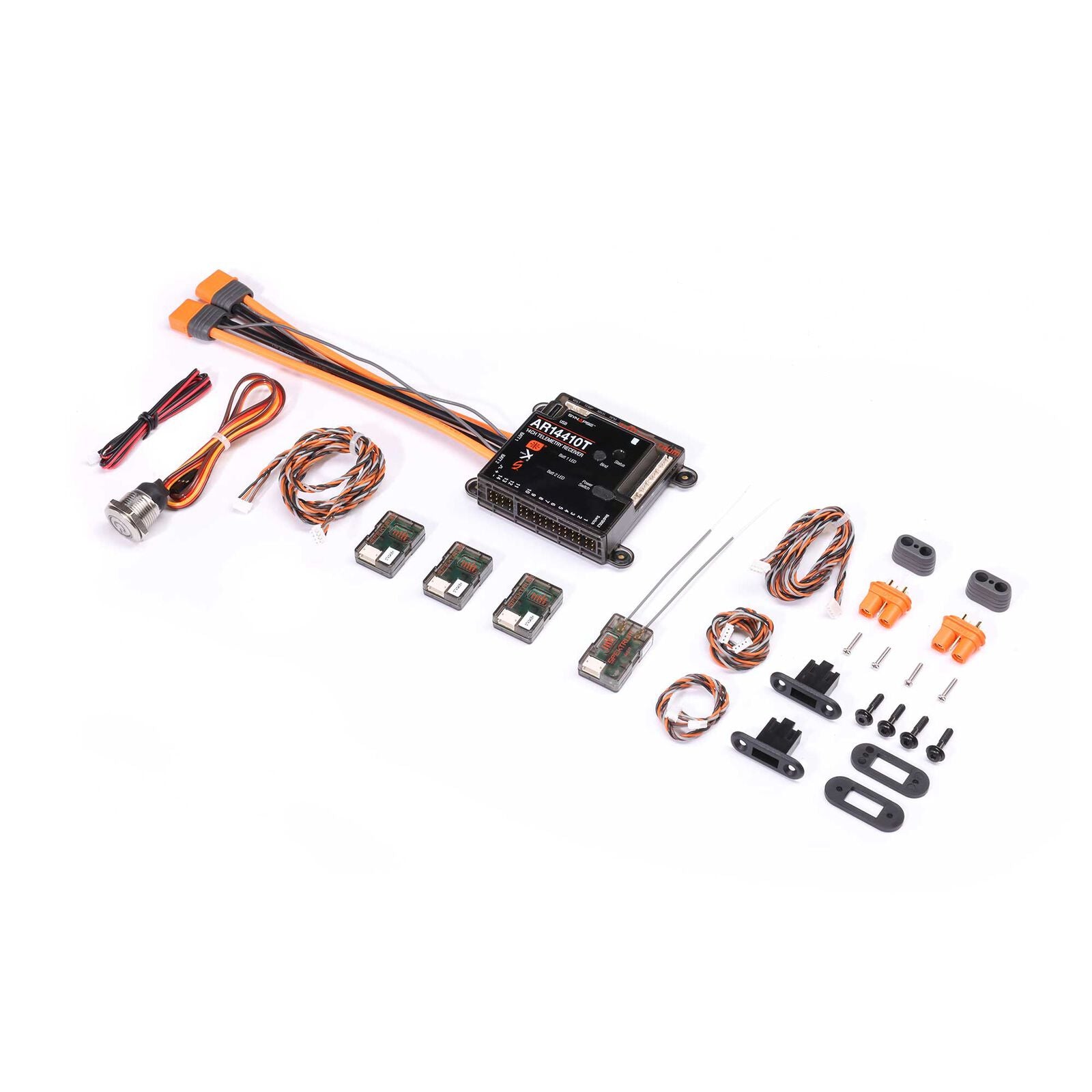

In The Box:

(1) AR14410T 14 Channel PowerSafe Receiver
(1) SPM4651T SRXL2 Remote Serial Telemetry Receiver
(3) SPM9747 SRXL2 DSMS Remote Receivers
(1) 9" SRXL2 Remote Receiver Extension
(1) 12" SRXL2 Remote Receiver Extension
(1) 24" SRXL2 Remote Receiver Extension
(1) 36" SRXL2 Remote Receiver Extension
(2) Battery IC3 Connectors
(2) Charge Receptacles
(1) Aircraft Telemetry Volt Sensor
(1) Soft Switch
(1) Instruction Manual
