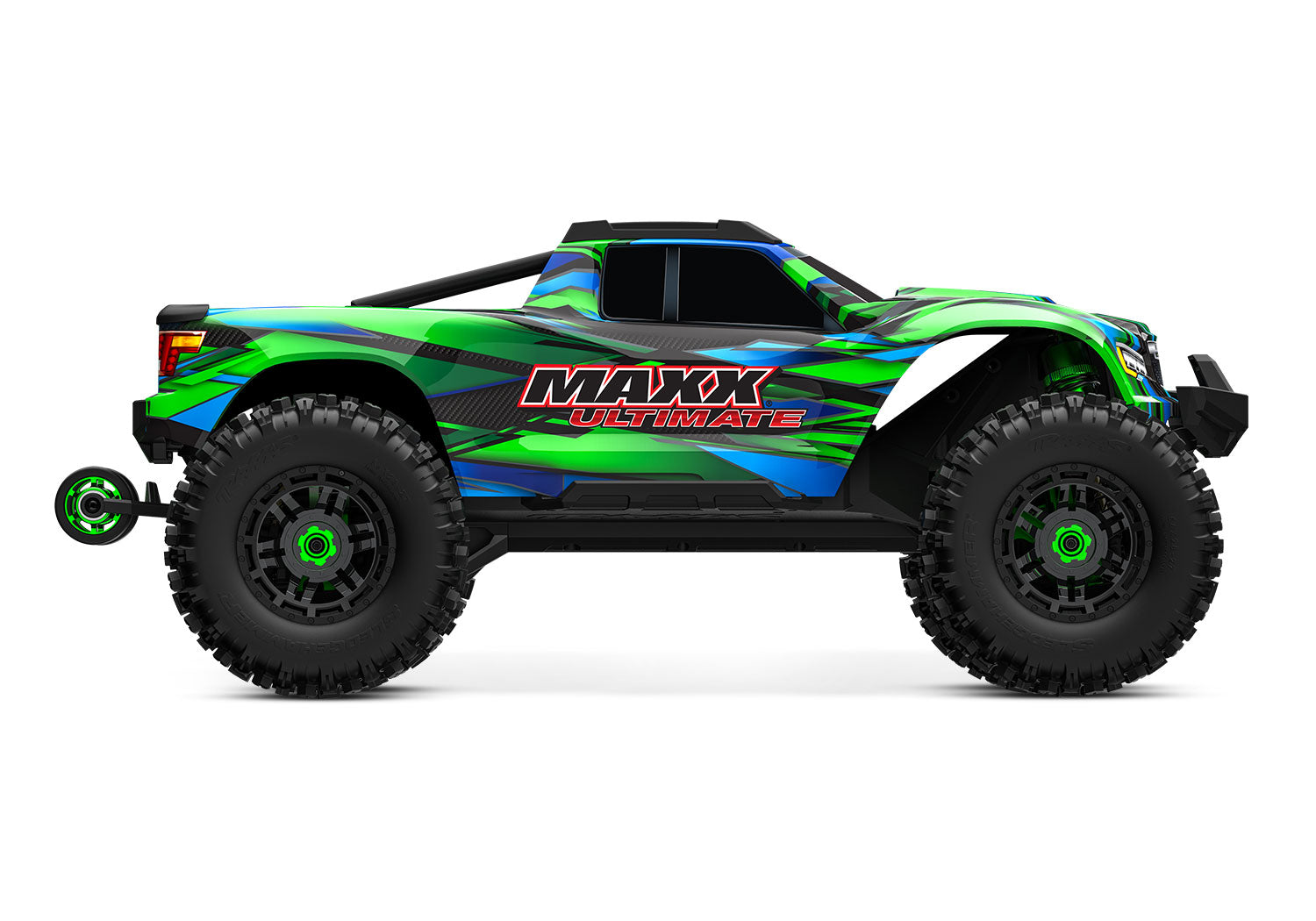

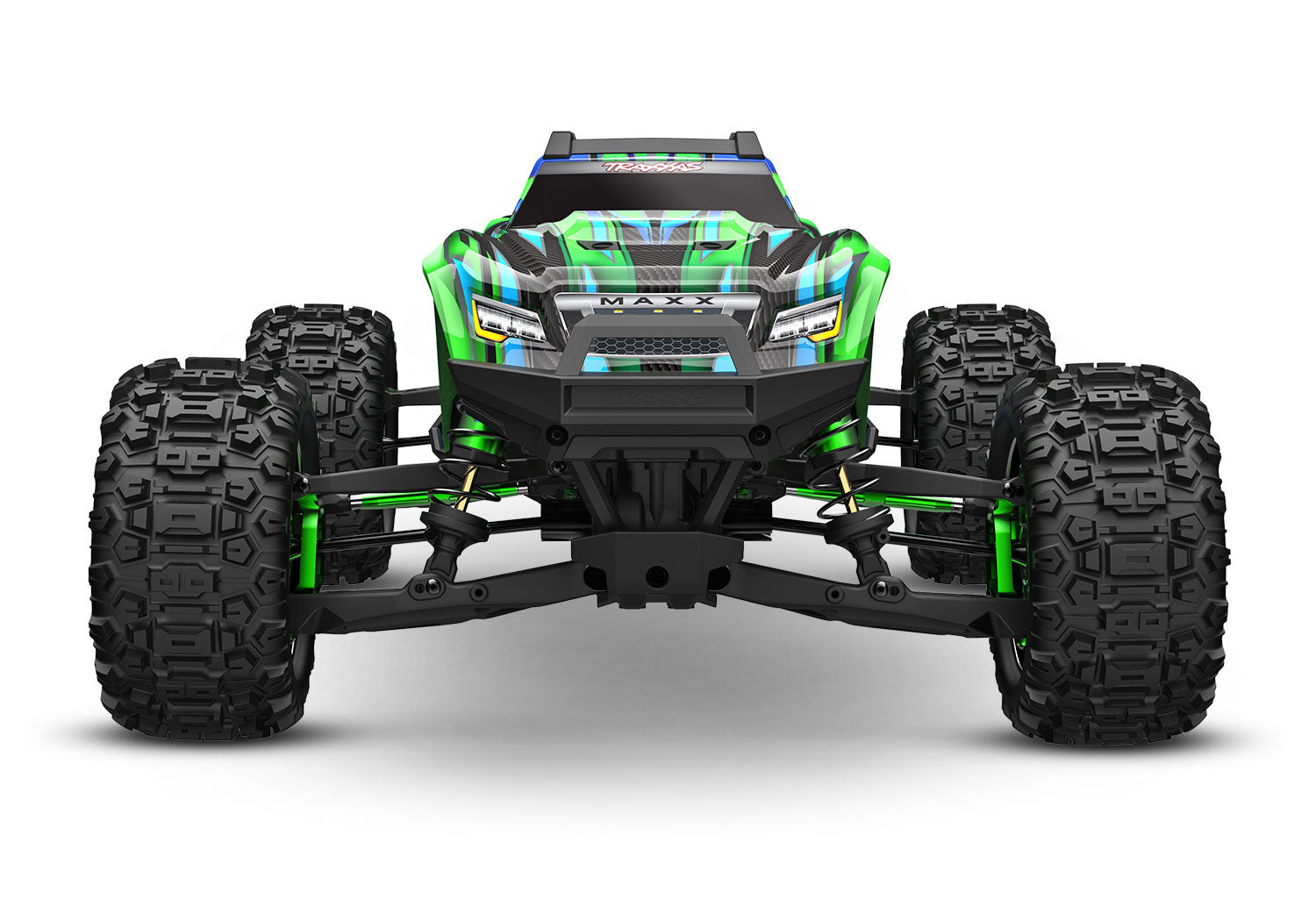

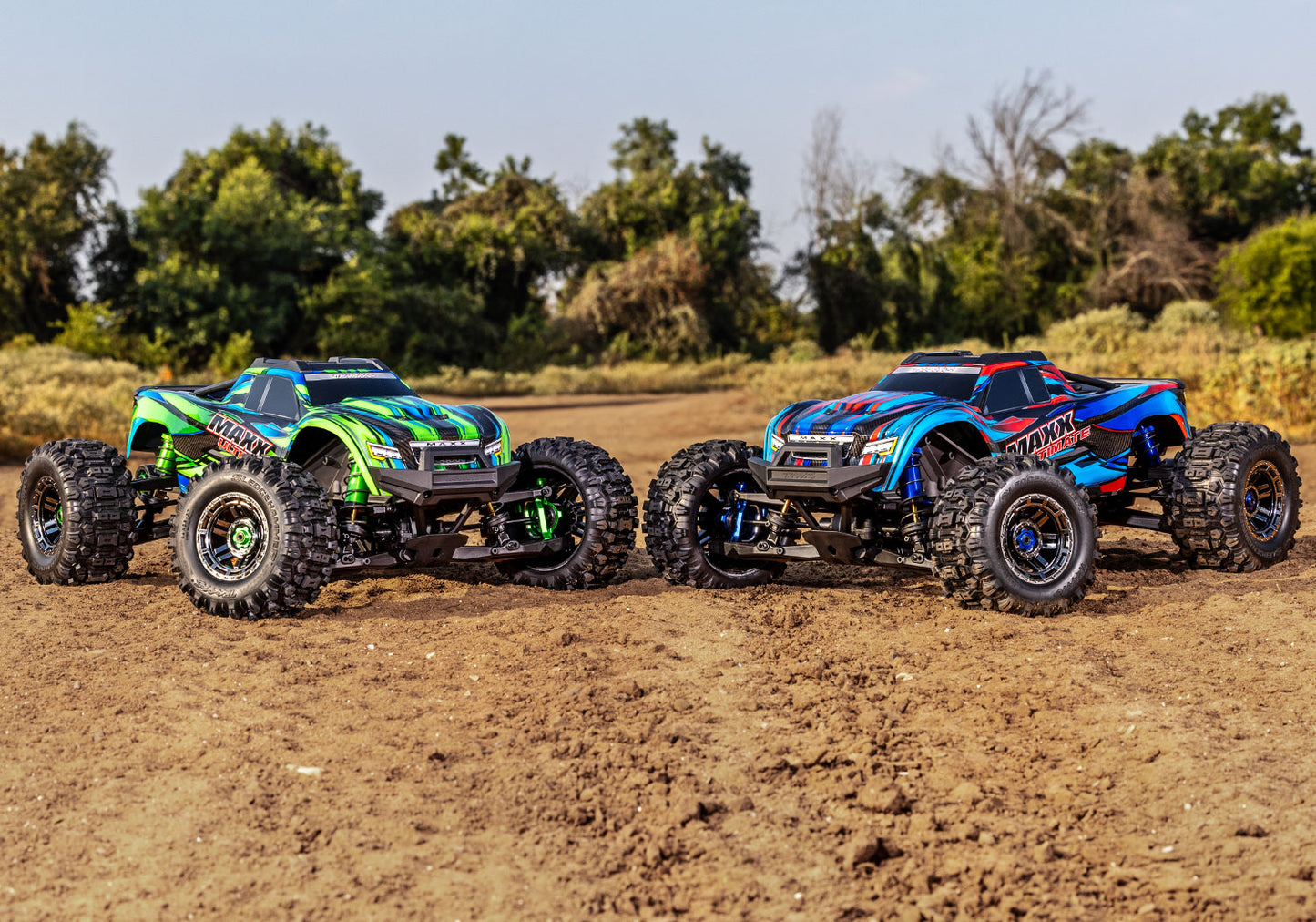

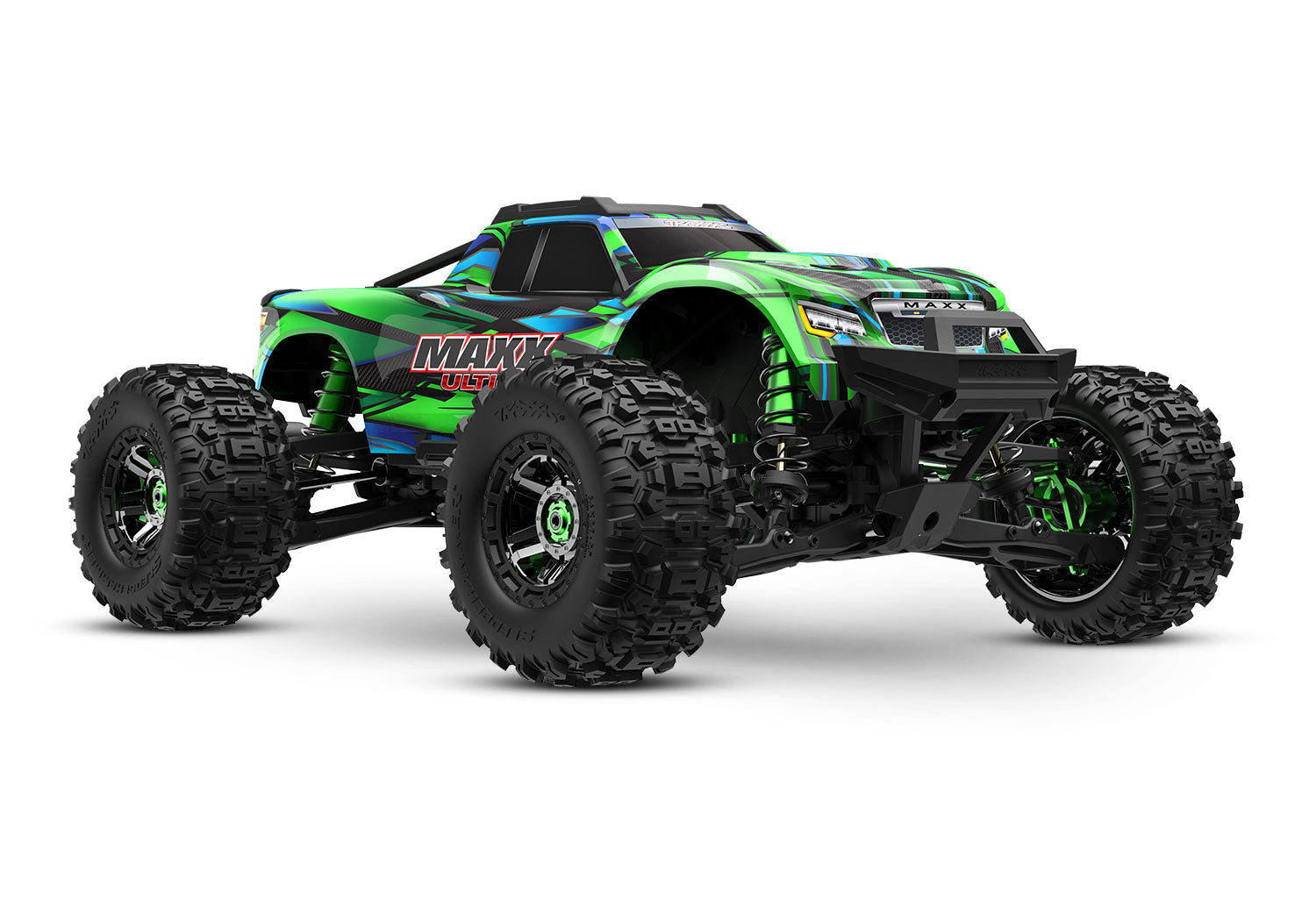

1/10 Maxx Ultimate®, 4WD, RTR (Requires battery & charger): Green
1/10 Maxx Ultimate®, 4WD, RTR (Requires battery & charger): Green

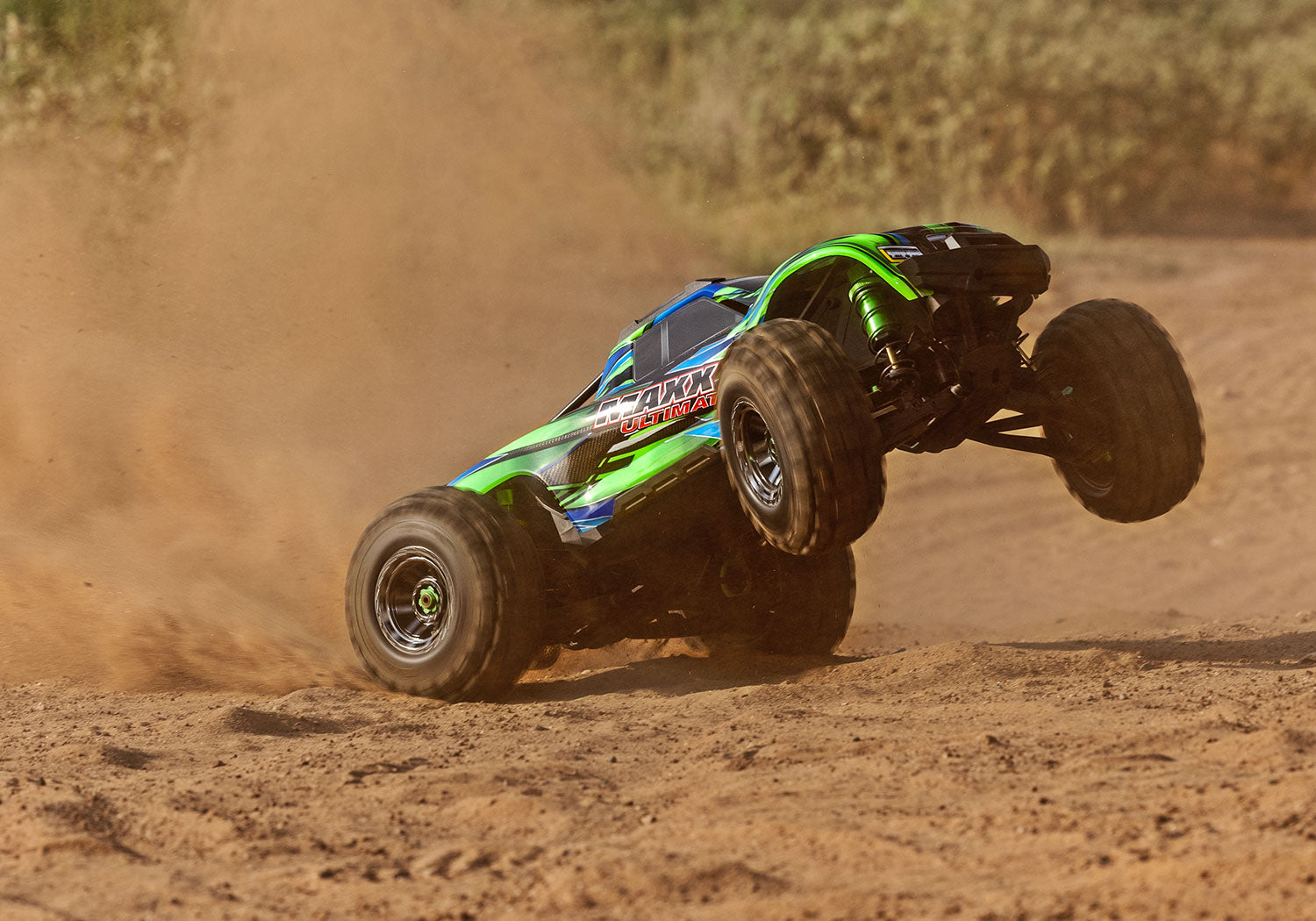

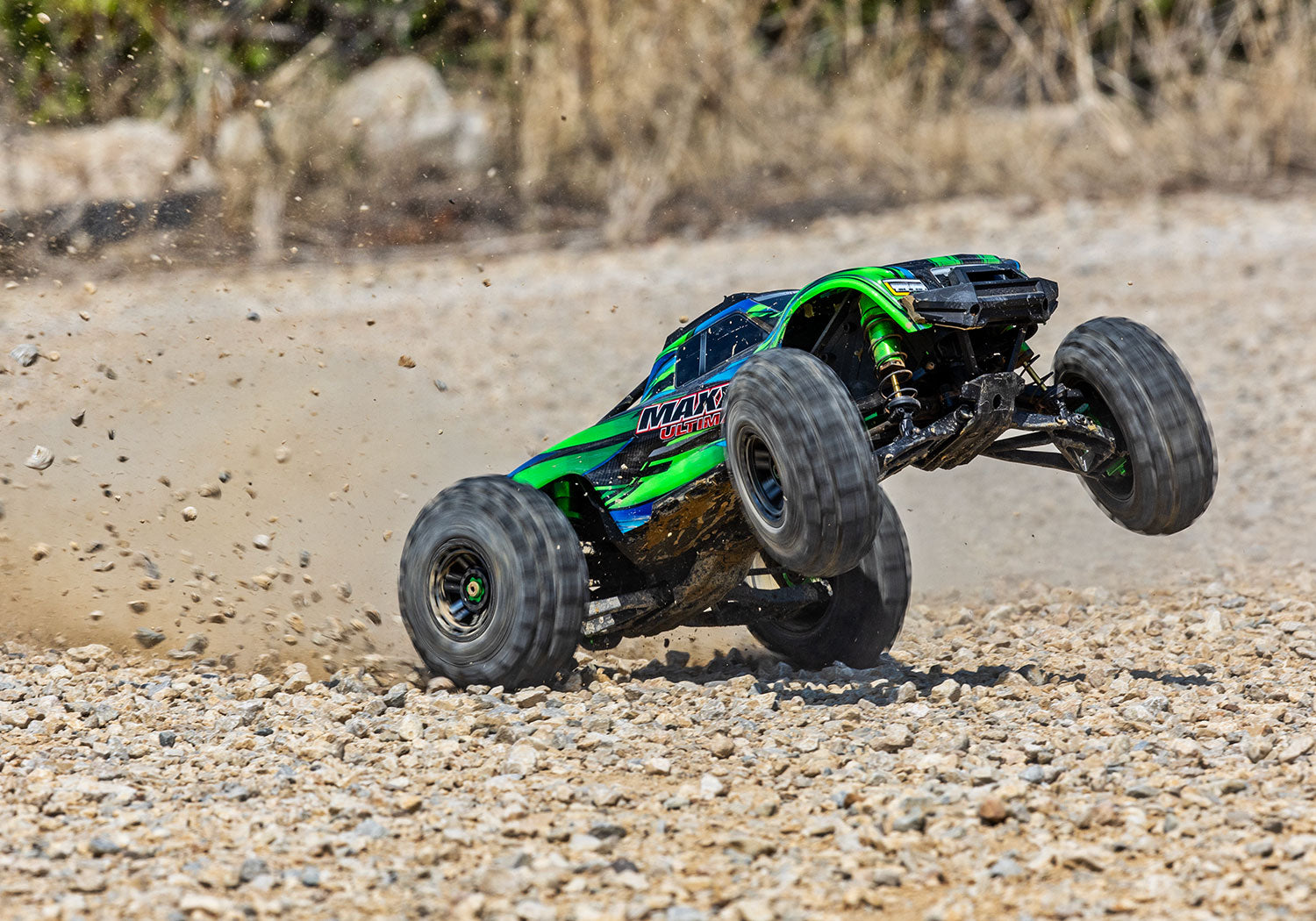

Maxx Ultimate: Green
Overview:

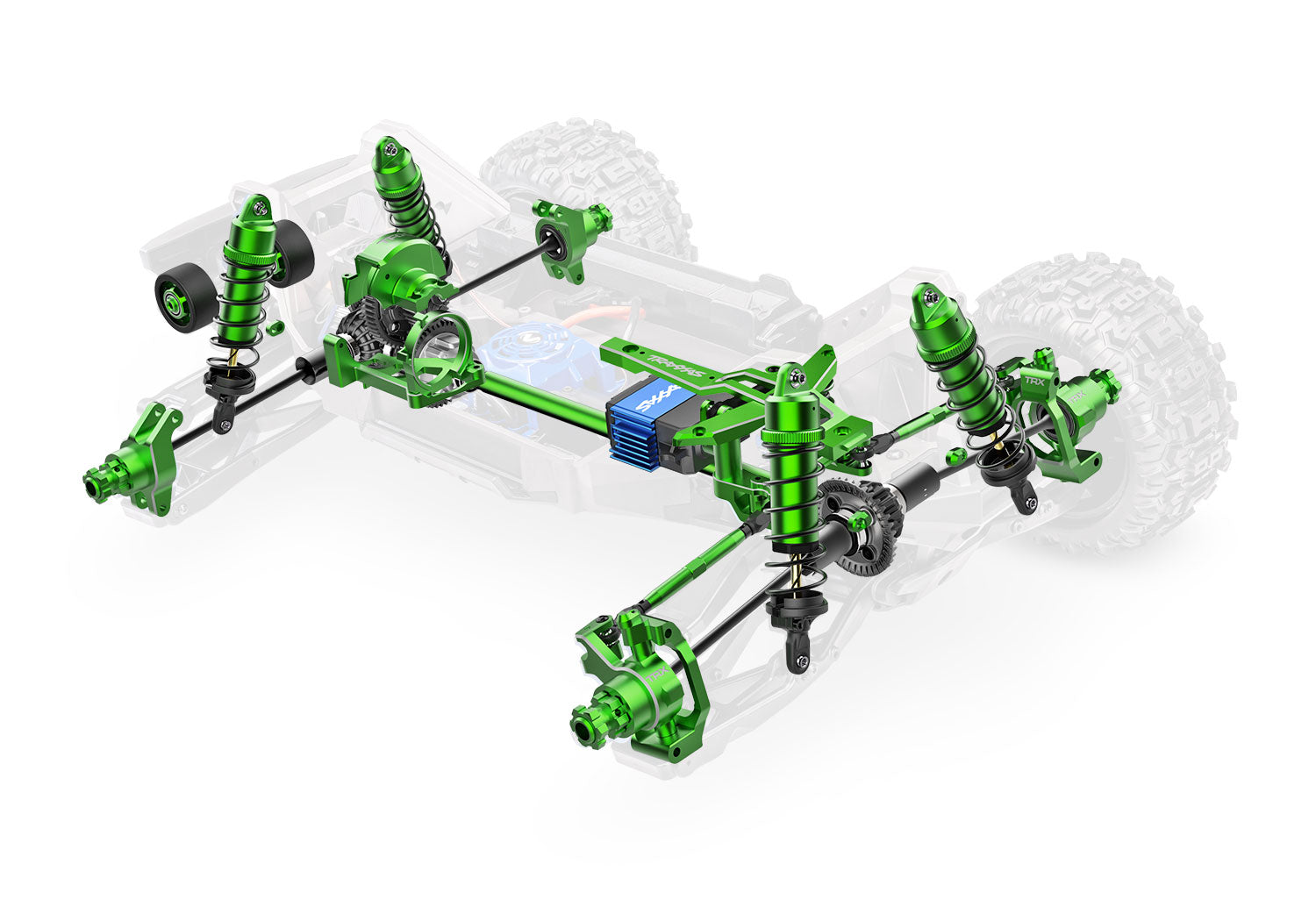

The Maxx® Ultimate takes Traxxas Tough® to the next level with Velineon® VXL-4s™ power and the massive 540XL brushless motor. Maxx Ultimate comes fully loaded with an extreme heavy duty driveline and color matched aluminum upgrades in key locations for maximum strength and durability.
Carve corners like a pro thanks to Maxx Ultimate’s ultra-smooth, aluminum GT-Maxx® shocks. The TQi Radio System with the Traxxas Link Wireless Module sets the standard for tuning ease and versatility. To truly make this the Ultimate Maxx, the specs are completed with nearly every factory option available. Simply put, it’s the best of the best.
Features:

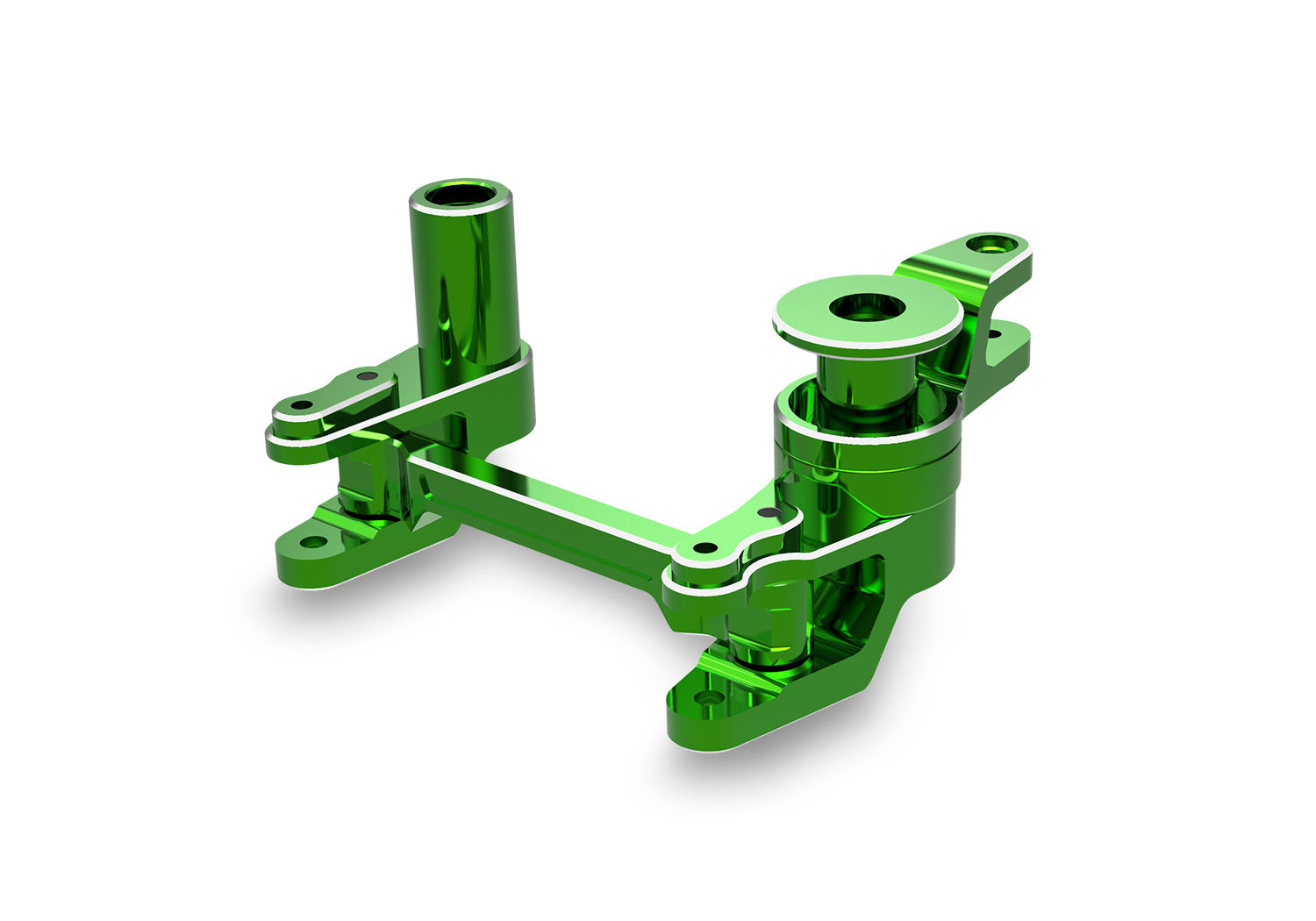

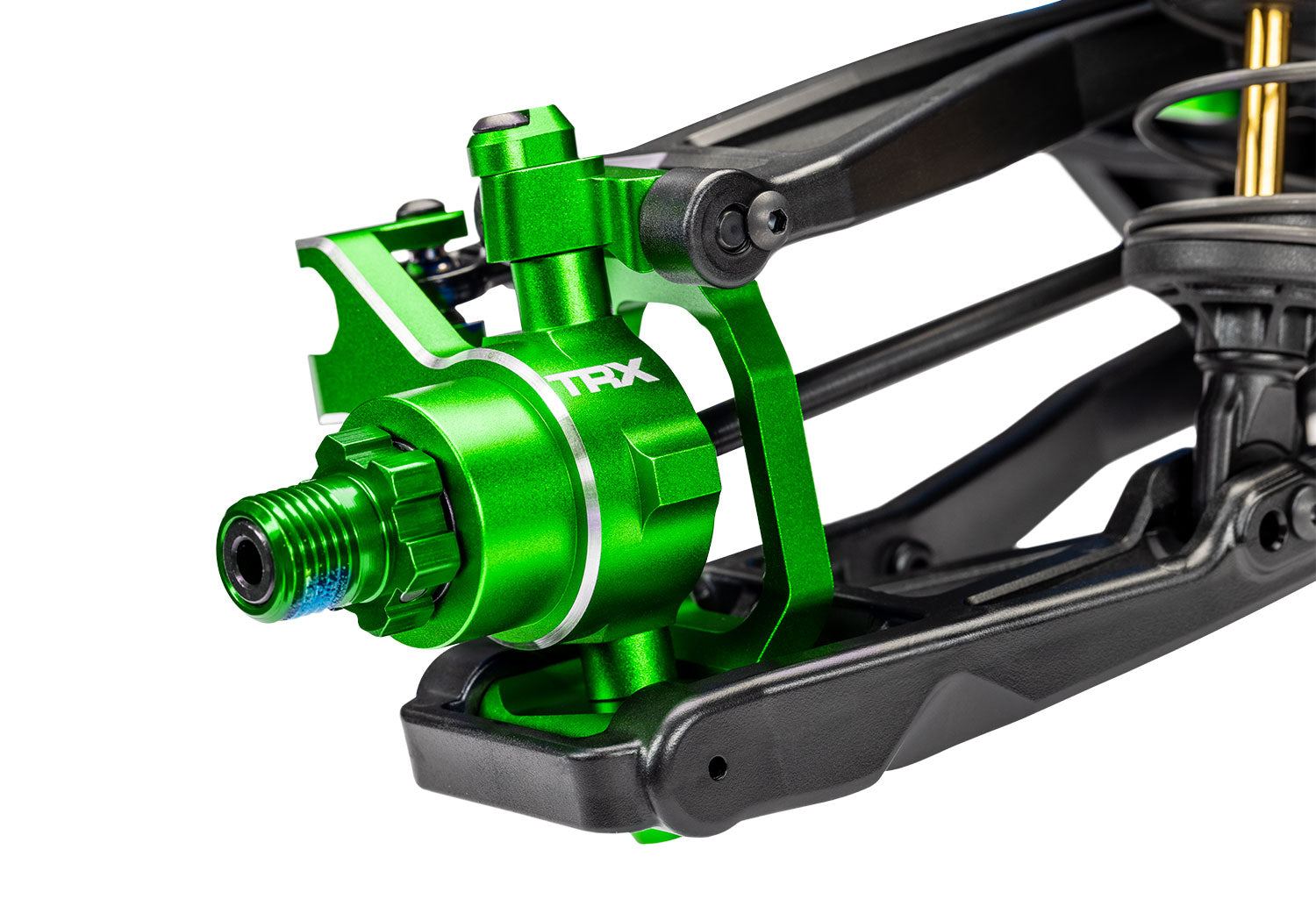

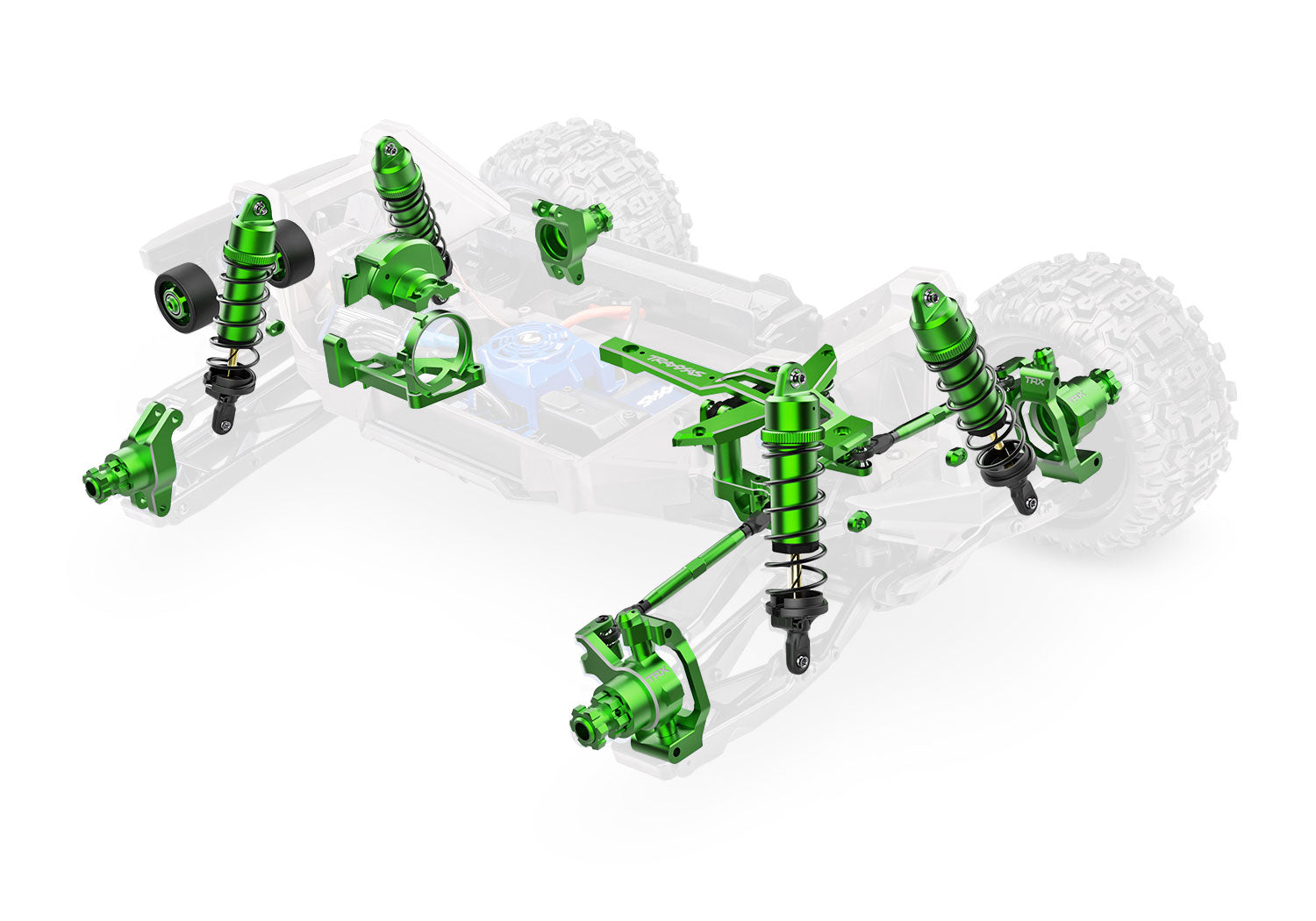

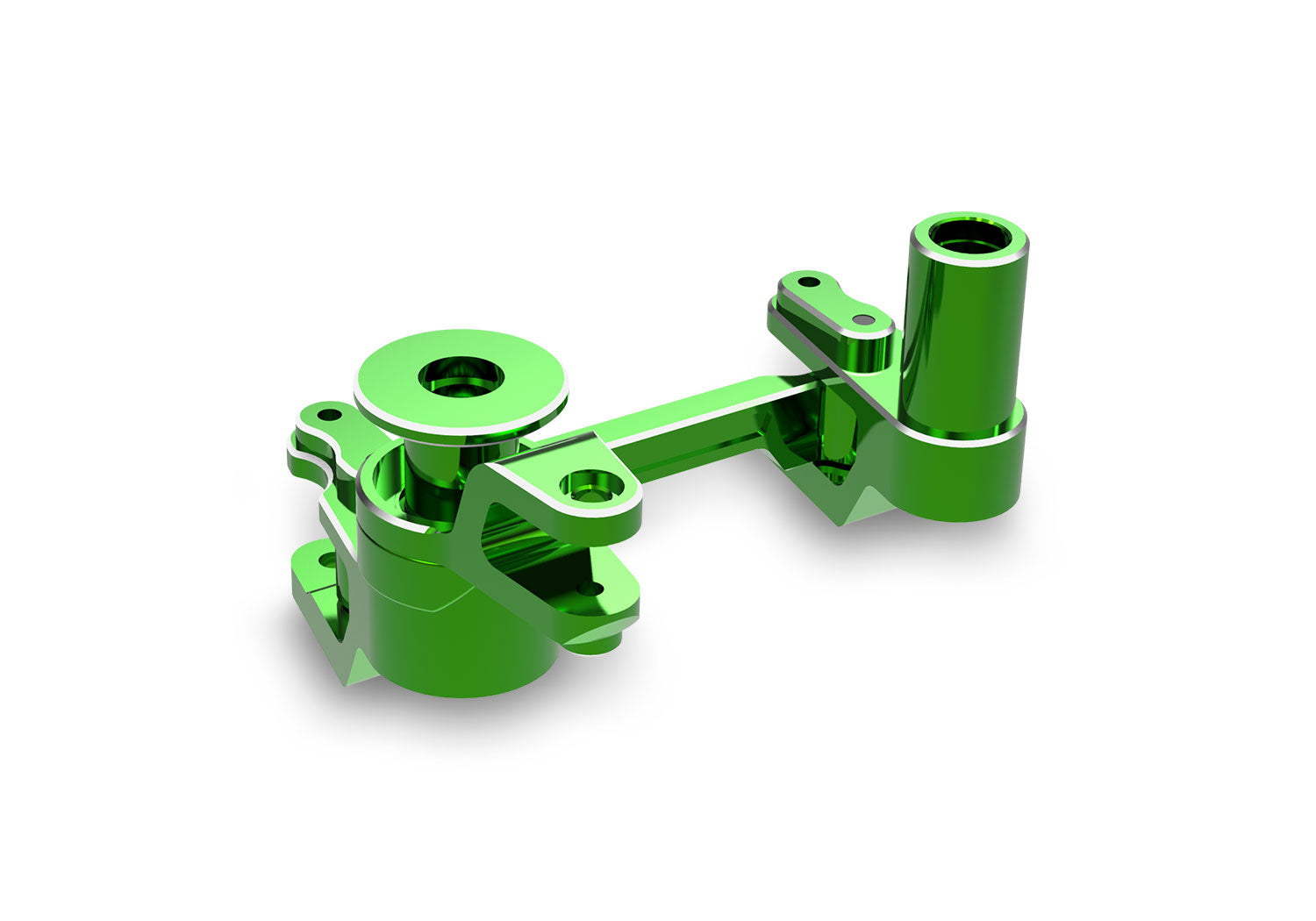

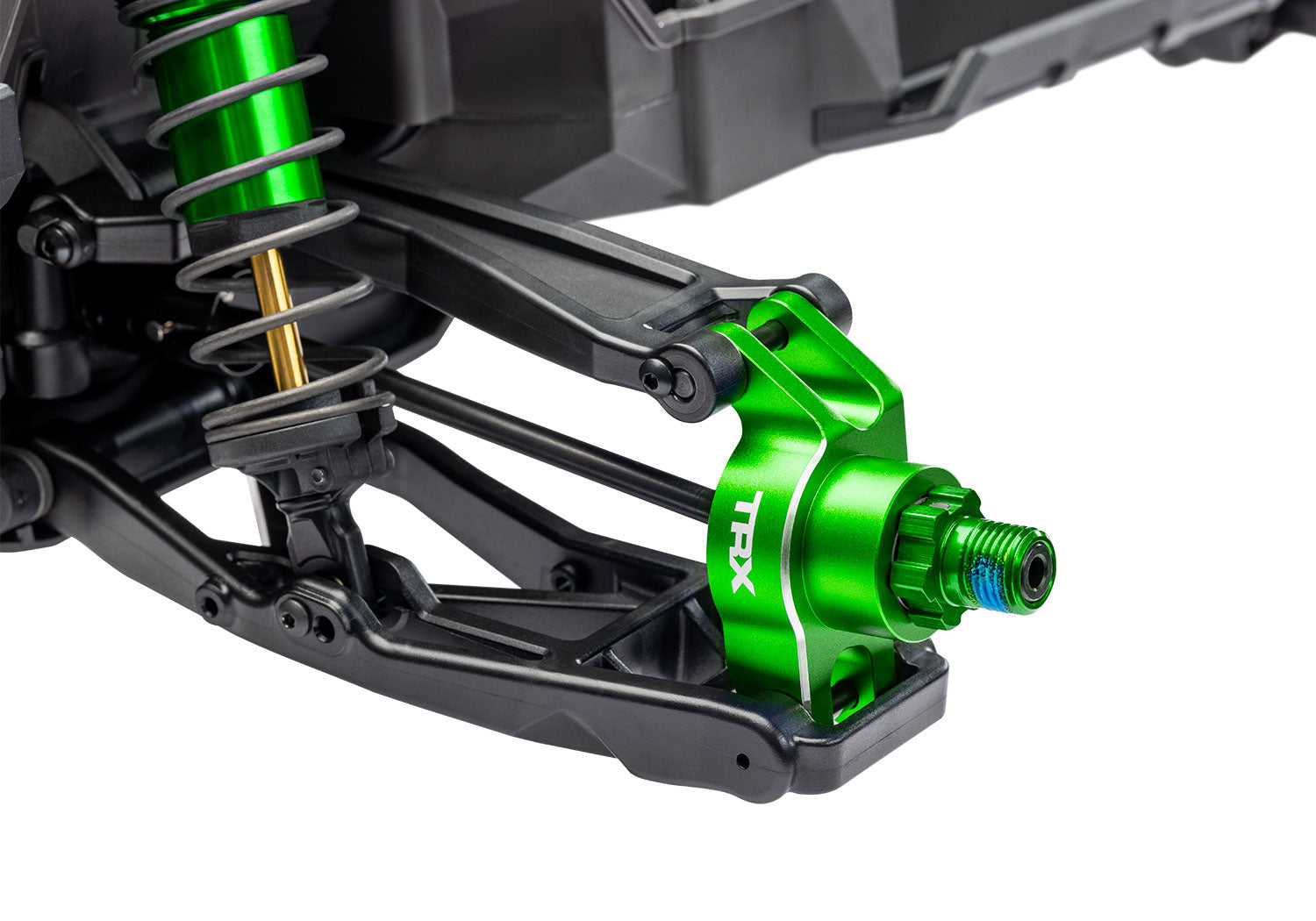

- High performance aluminum upgrades
- 55 mph out of the box using single 4s LiPo battery (sold separately)
- 60+ mph with optional gearing & 4s LiPo battery (sold separately)
- VXL-4s™ waterproof Electronic Speed Control
- Velineon® 540XL Brushless Motor
- Traxxas Stability Management®
- TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module
- Clipless body mount system
- Full-time shaft-driven 4-wheel drive

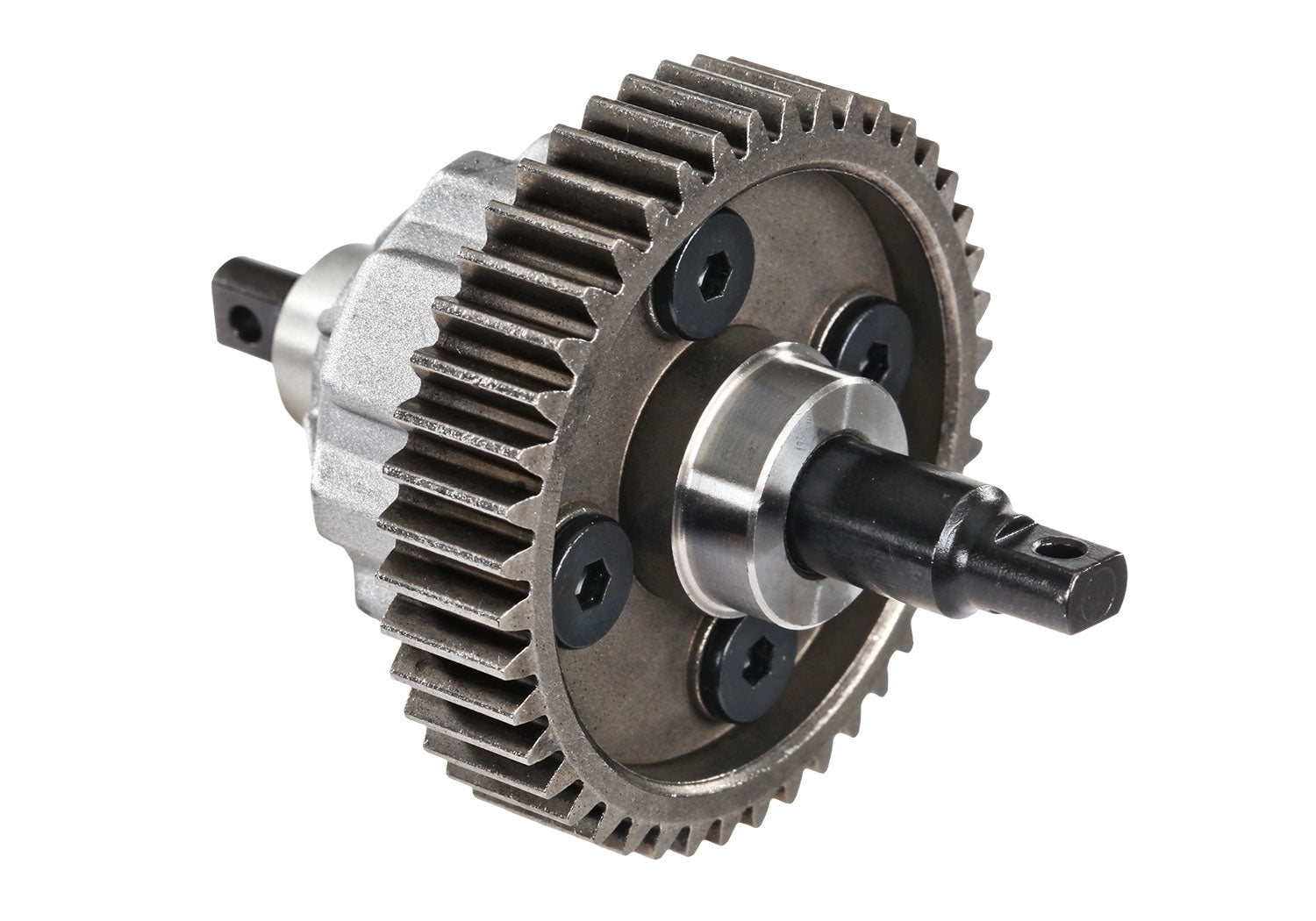

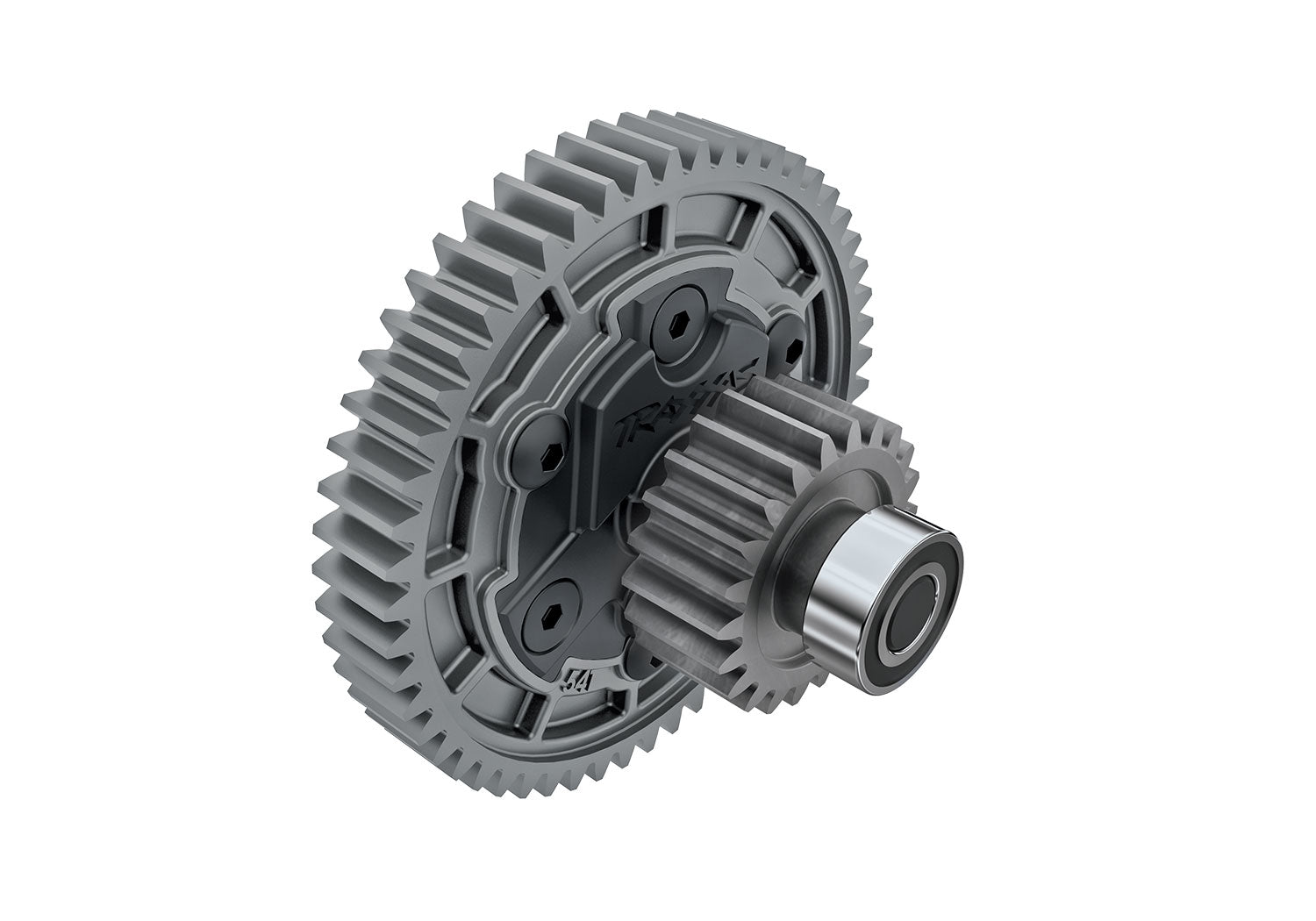

- Heavy-duty Cush Drive™ with steel spur gear
- Secure motor mounting system

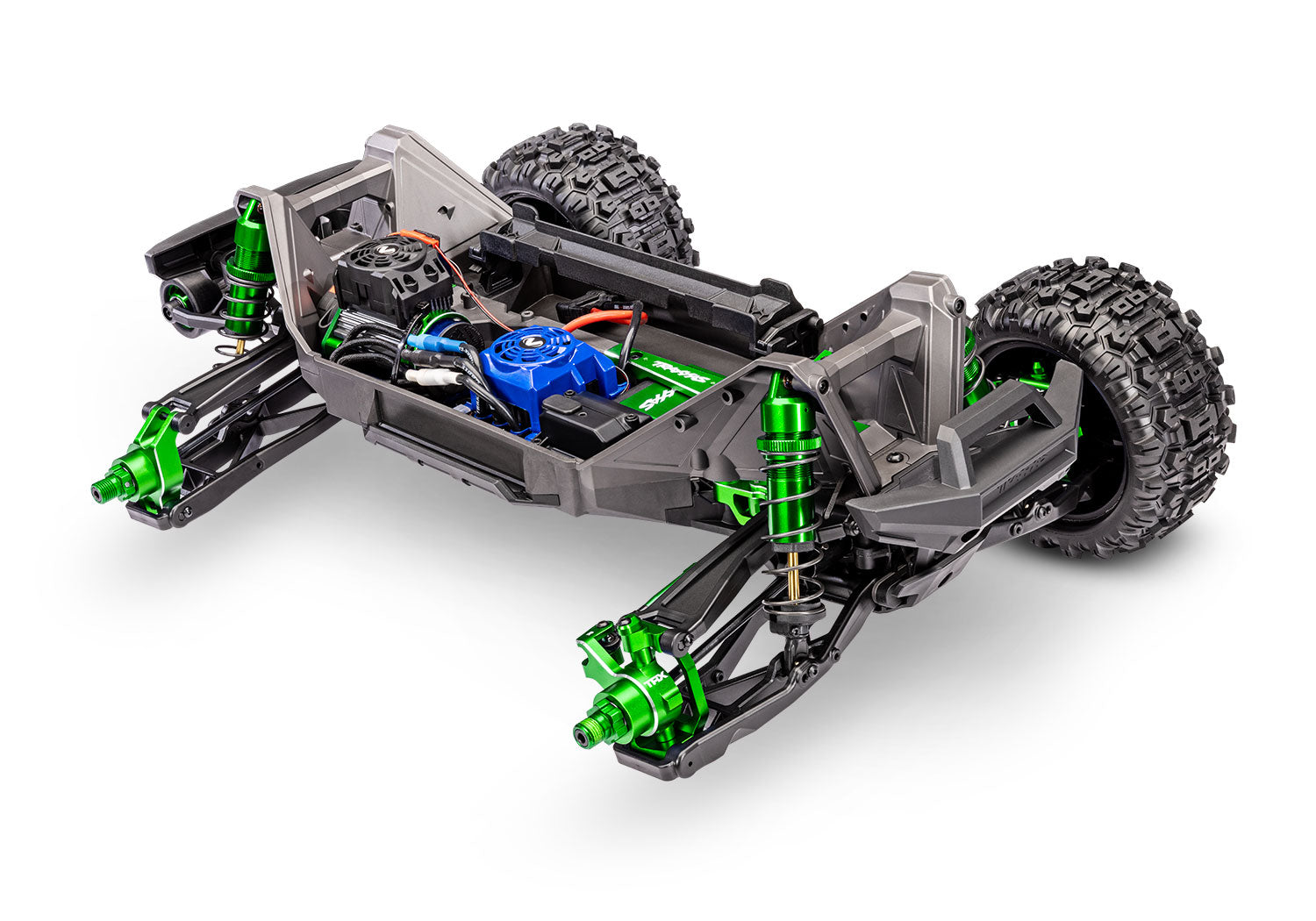

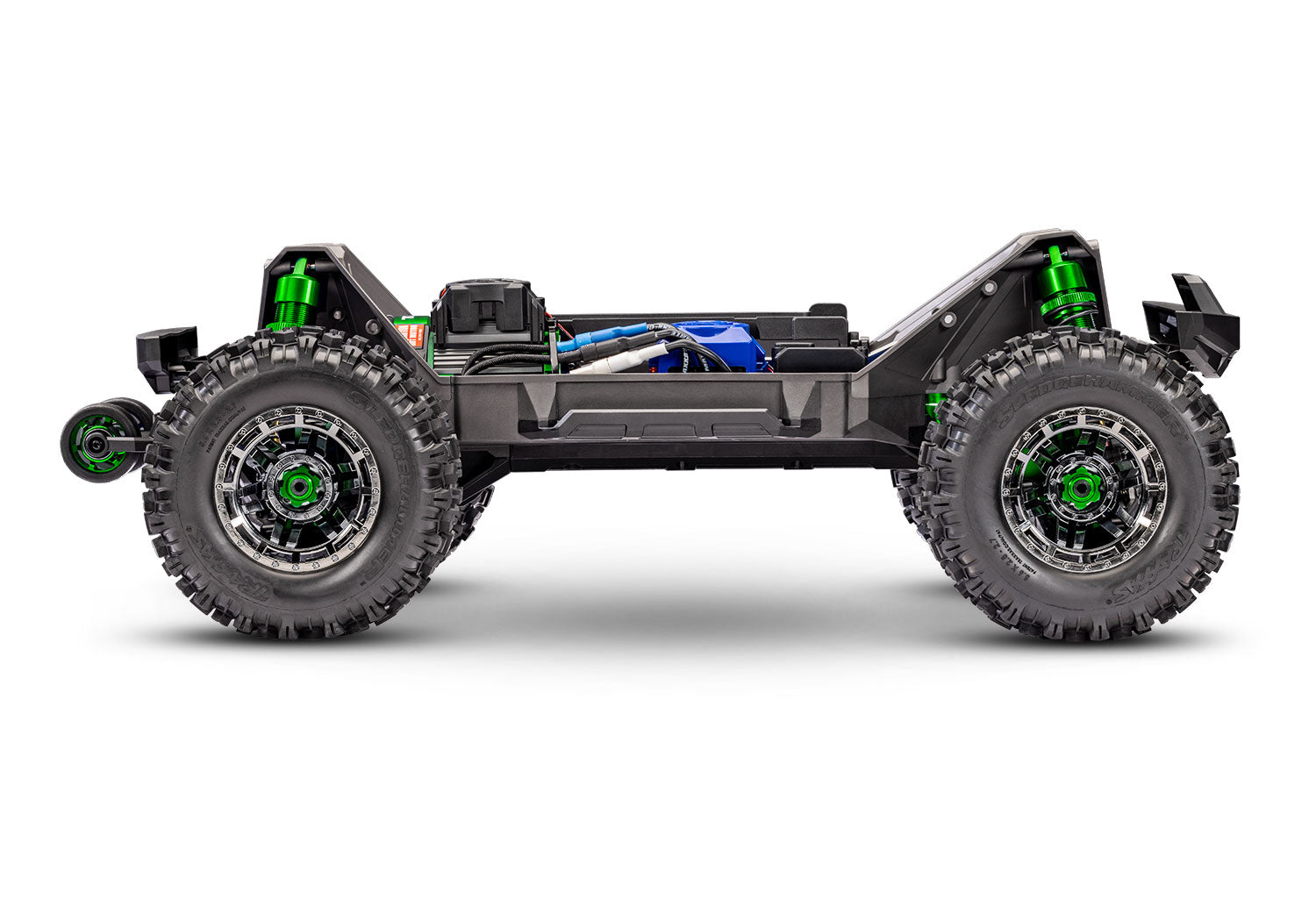

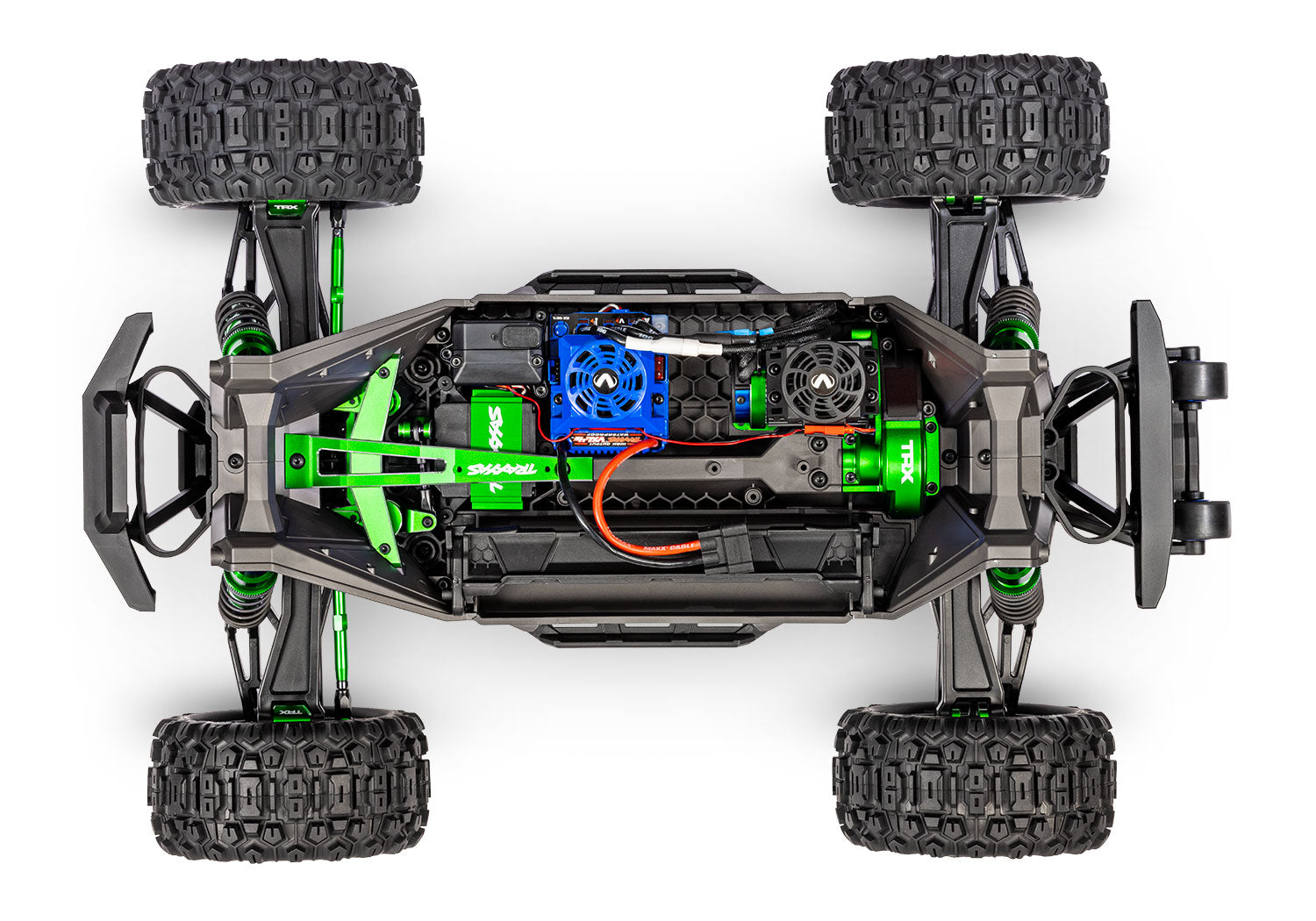

- Modular composite chassis
- Easy battery access
- 2085RL high-output metal gear steering servo
- All critical suspension points have double shear strength

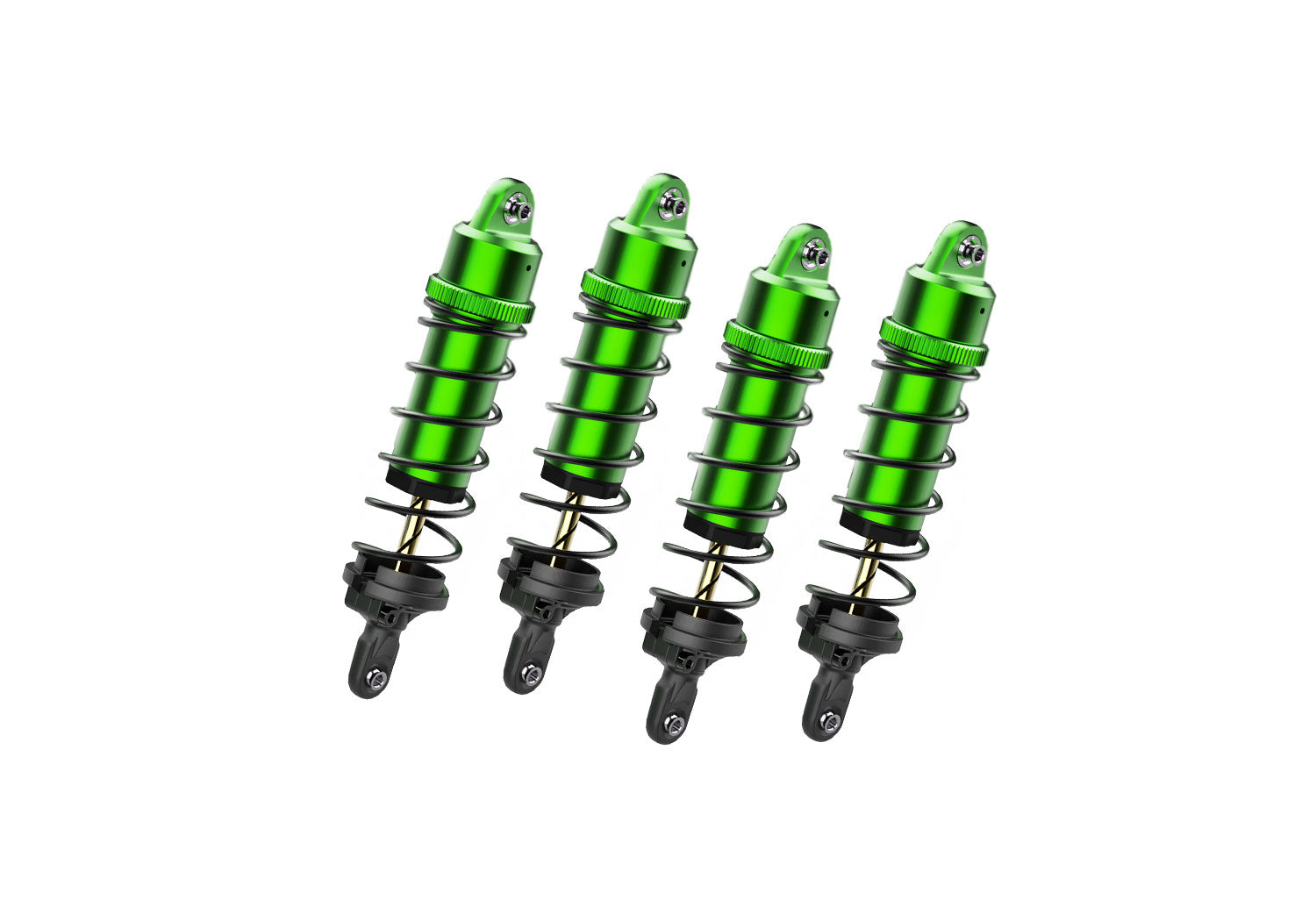

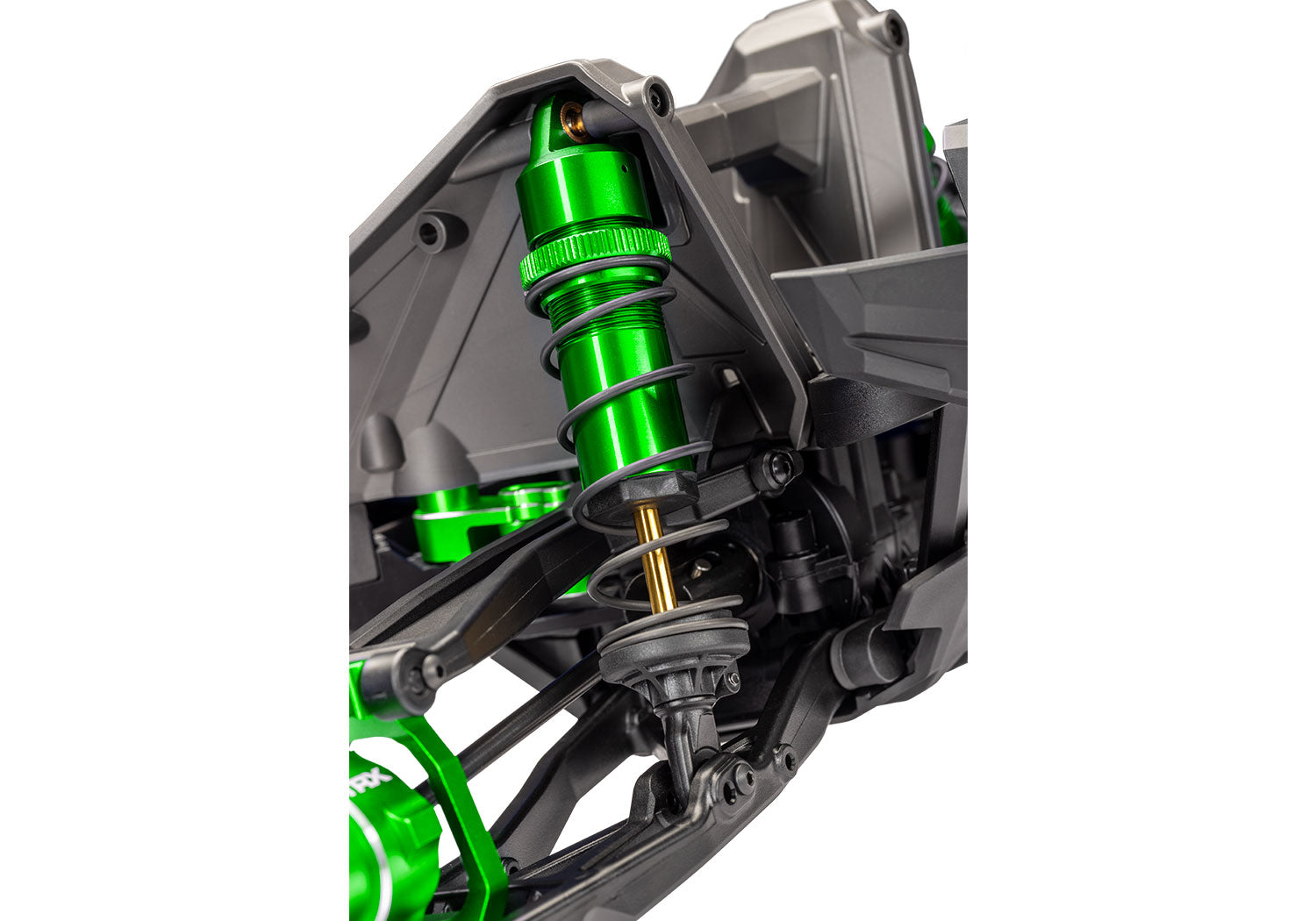

- GT-Maxx® shocks
- Tough energy absorbing front and rear bumpers
- Lower front and rear skid plates for impact and abrasion resistance

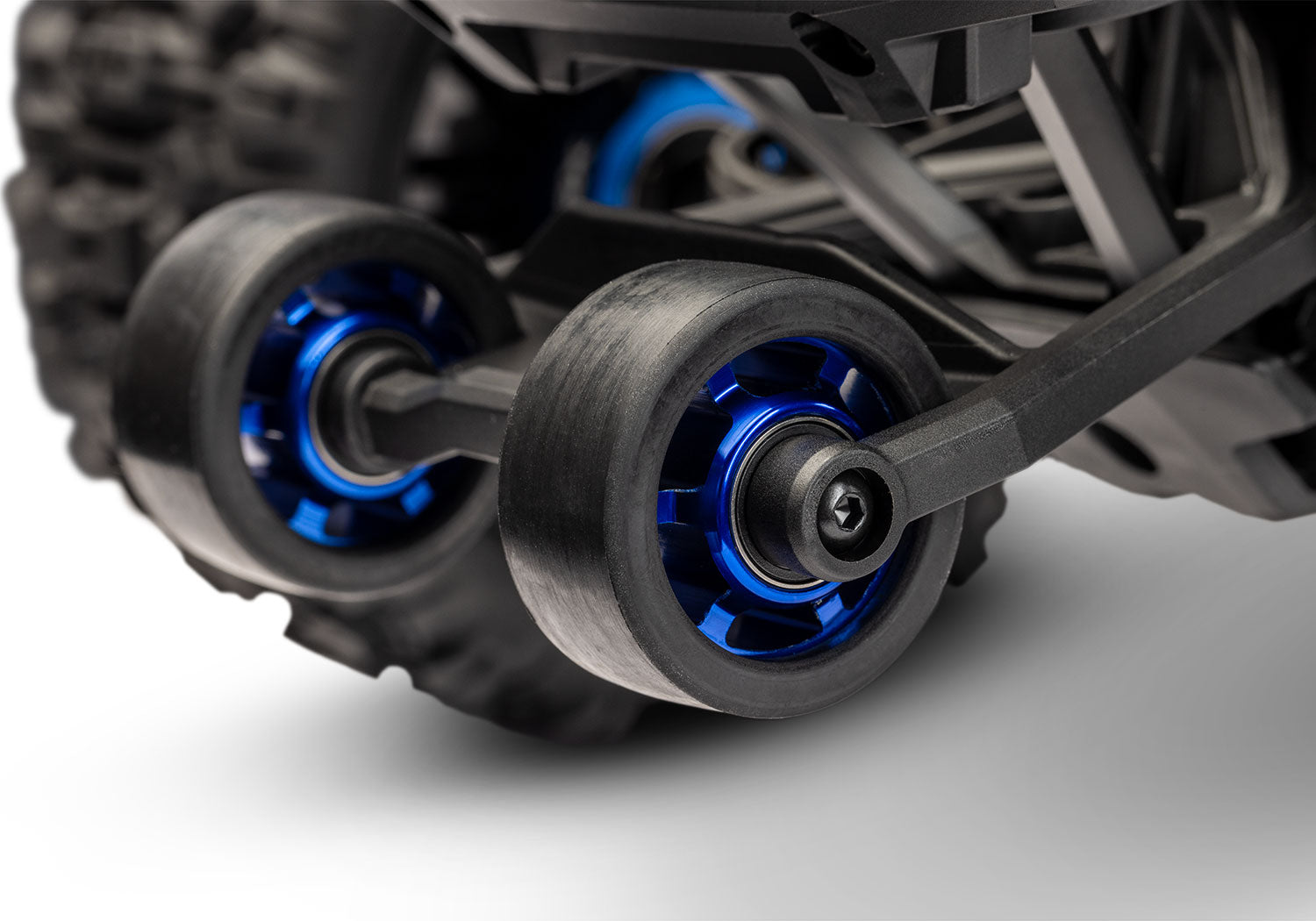

- Wheelie bar with aluminum wheels
- 2.8" black chrome wheels with keyed 17 mm hex receptor

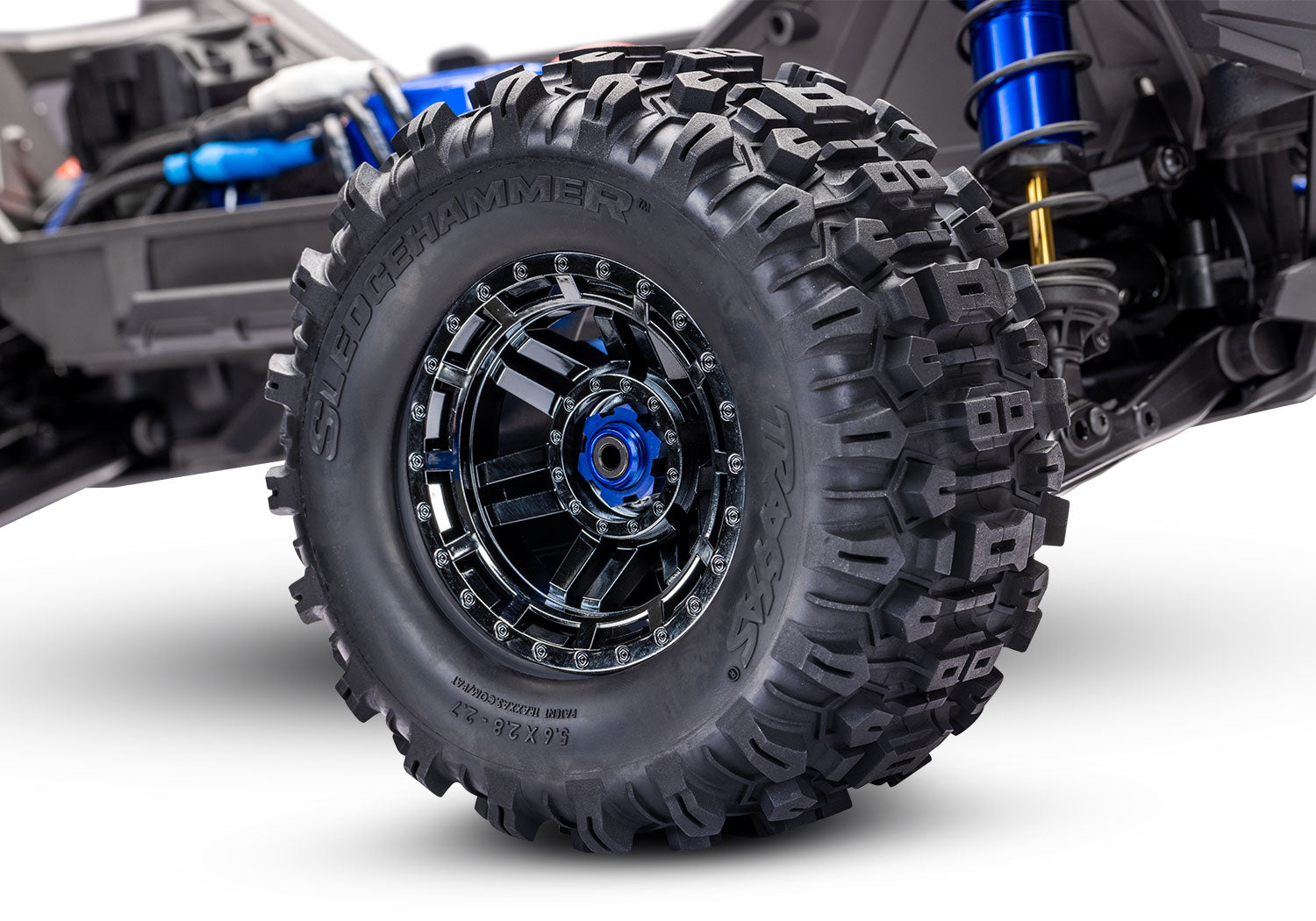

- Sledgehammer® extreme tires for sure-footed traction
What’s In The Box:
- Maxx Ultimate with Velineon® 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- TQi 2.4 GHz radio system with factory-installed wireless module
- Quick Start Guide
- High quality maintenance tools
What You’ll Need:
- LiPo Battery - Traxxas recommends a 4-cell 14.8 volt Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- Charger - LiPo Balance Charger with iD®
- Alkaline Batteries - Four AA alkaline batteries for the transmitter.

| MODEL SPECS | |
| Model Name: | Maxx Ultimate |
| Type: | Monster Truck |
| Top Speed: | 60+ mph with 4s LiPo battery and optional gearing |
| Model Skill Level: | Level 4 |
| Scale: | 1/10 |
| Weight: | 10.20 pounds (4.63 kg) |
| Length: | 22.50 inches (572 mm) |
| Width: | 15.95 inches (405 mm) |
| Track: | 15.95 inches (405 mm) |
| Height: | 9.12 inches (232 mm) |
| Wheelbase: | 13.85 inches (352 mm) |
| Center Ground Clearance: | 2.6 inches (67 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single speed |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Ratio (Internal): | 12.37:1 |
| Gear Pitch: | 1.0 metric pitch |
| Servo: | 2085RL metal gear ultra-high-torque (650 oz-in) |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with wireless module |
| Battery Compartment Specs: | 186 mm X 48 mm X 43 mm |
| MOTOR SPECS | |
| Motor Name: | Velineon® 540XL |
| Type: | 2400 Kv sensorless brushless |
| Weight: | 317 g (11.18 oz) |
| Length: | 3.58 inches (91 mm) |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 6.5 mm bullet connectors |
| ESC SPECS | |
| ESC Name: | Velineon® VXL-4s |
| Type: | Brushless |
| Case Size: | 72 mm L x 59 mm W x 49 mm H |
| Weight: | 7.09 ounces (201 grams) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
