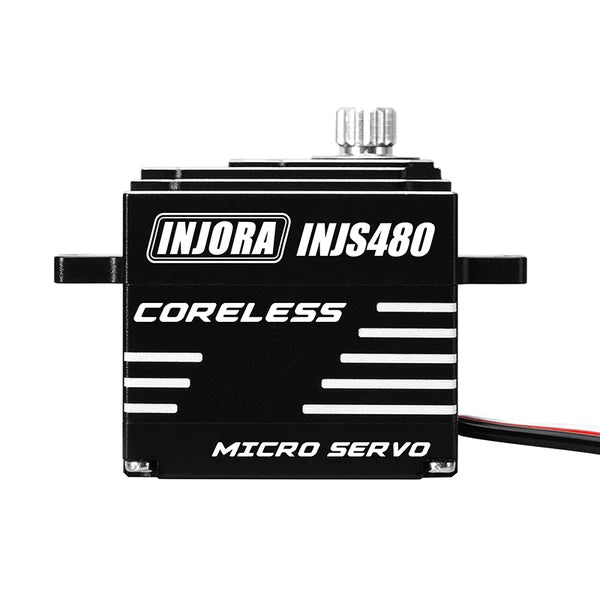

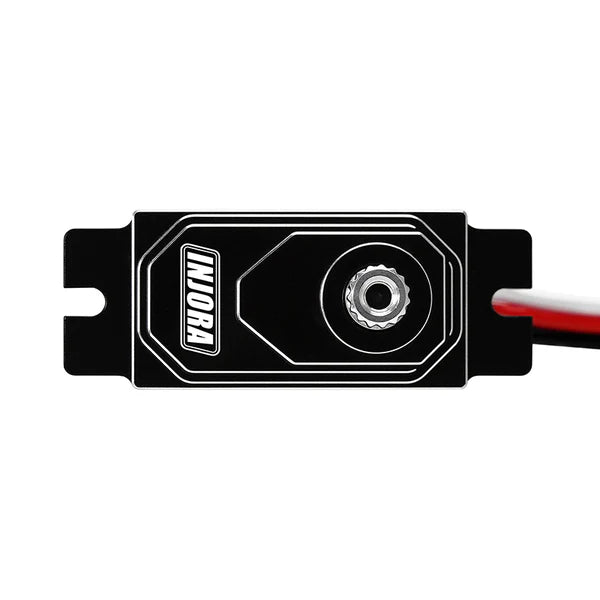

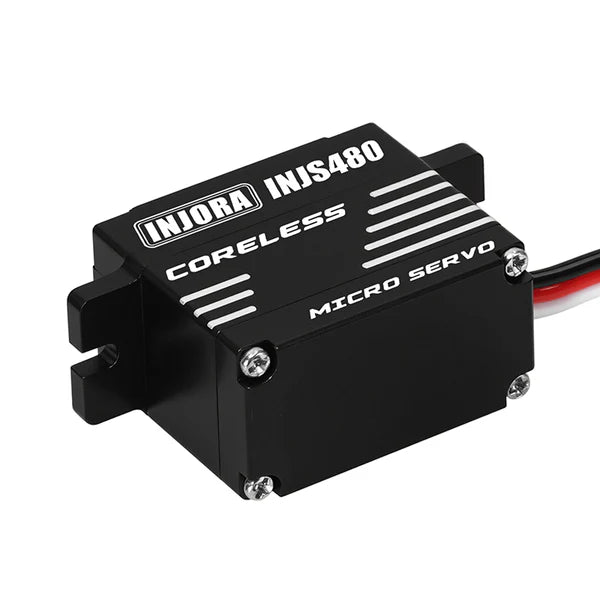

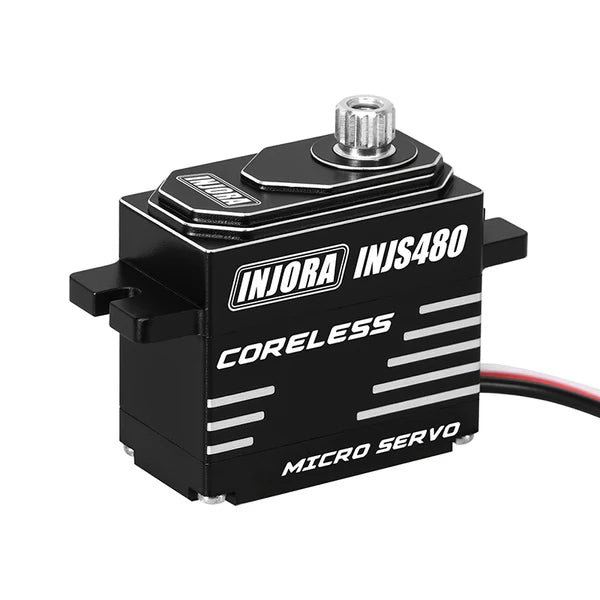

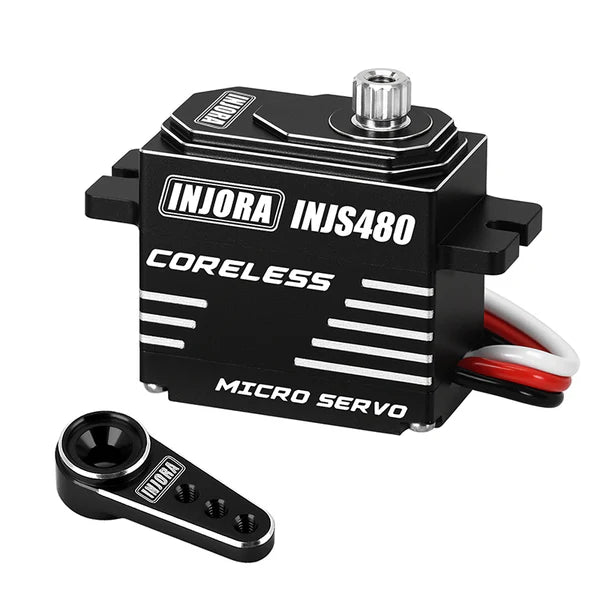

INJORA INJS480 Coreless Micro Servo with Mount & Horn for 1/24 Axial SCX24
Overview:
INJORA INJS480 Coreless Micro Servo with Servo Horn for 1/24 Axial SCX24.
Features:
- All-Aluminum Case – Strong, durable housing with excellent heat dissipation
- Coreless Motor – Delivers faster response, smoother operation, and long-lasting reliability
- High Performance – Higher speed and torque for stronger, more precise steering

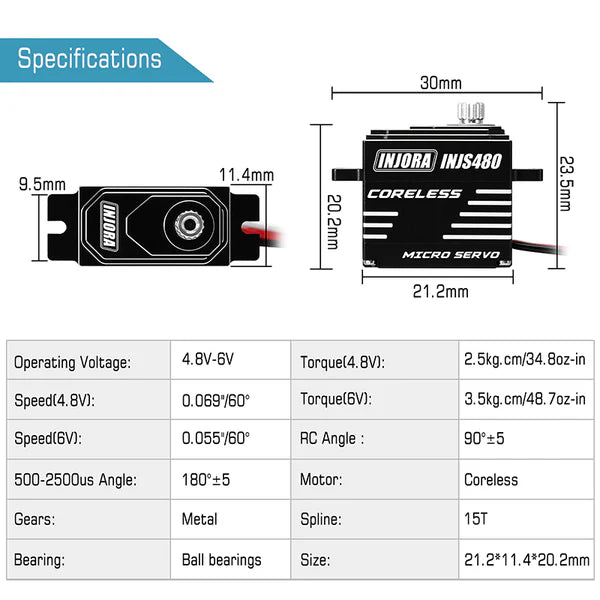

Product Details:
- Part Number: INJS480
- Operating Voltage: 4.8V-6V
- Torque(4.8V): 2.5kg.cm
- Speed(4.8V): 0.069"/60°
- Torque(6V): 3.5kg.cm
- Speed(6V): 0.055"/60°
- RC Angle: 90°±5
- 500-2500µs Angle: 180°± 5
- Motor: Coreless
- Gears: Metal
- Spline: F3.9 15T
- Bearing: Ball bearings
- Size: 21.2*11.4*20.2mm
- Weight: 9.8g
- Perfect fit for stock SCX24 servo mount and Emax ES08MA II mount
