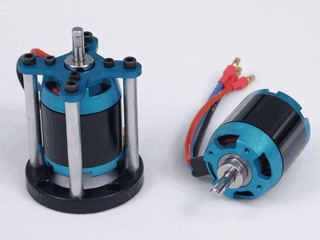

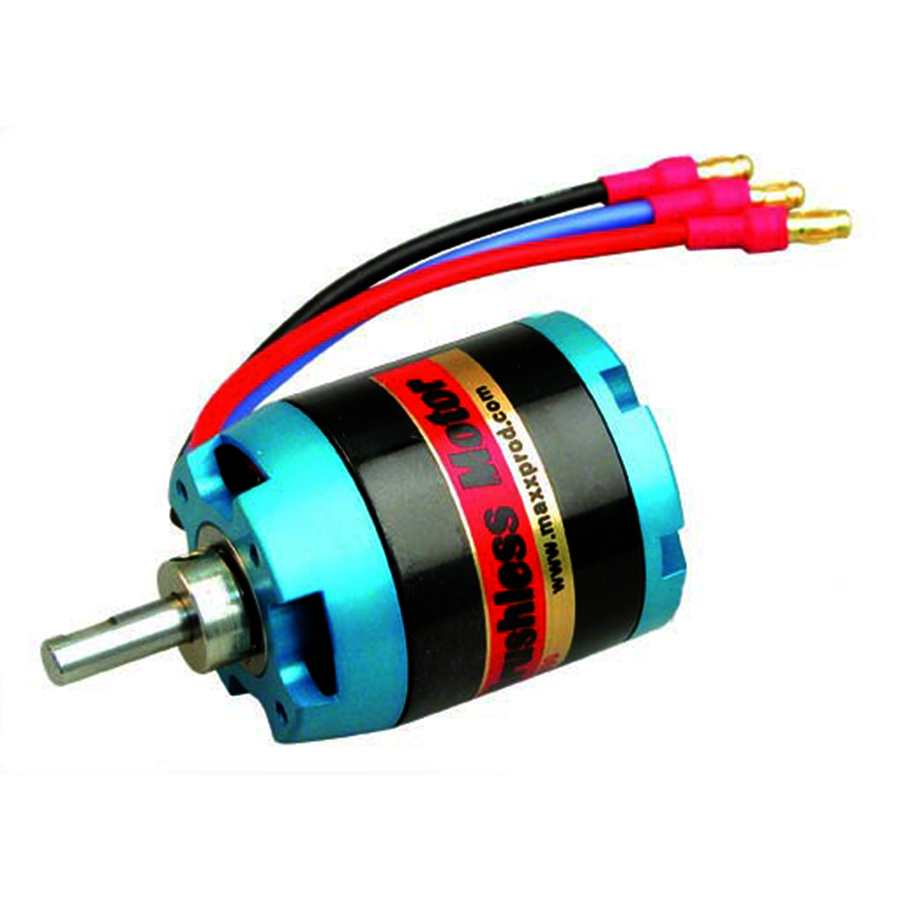

Himax HC3528-800 Outrunner Brushless Motor, 450 Watt (HC3528-0800)
$95.95
Skip to product information
Himax HC3528-800 Outrunner Brushless Motor, 450 Watt (HC3528-0800)
$95.95
450W Power Output
High efficiency electric performance
High Torque Design
Outrunner performance for aircraft
Complete Mounting Kit
Includes hardware and connectors
High Performance Outrunner PowerEfficient Brushless Power For RC Aircraft
The Himax Brushless HC3528-1000 Motor is manufactured to exceptional standards to deliver maximum power, efficiency, and torque for radio controlled aircraft. Designed specifically for medium-sized RC planes, this high-performance outrunner motor provides reliable performance across a wide range of flight profiles.
Precision Electric Aircraft PropulsionVersatile Outrunner Power For Medium Models
Engineered for demanding pilots, the Himax Brushless HC3528-1000 Motor combines lightweight construction with impressive power handling up to 450 watts. It is the ideal choice for powering medium-sized RC planes weighing 43-56 oz (~1.6kg) for aggressive 3D aerobatics, up to 96 oz (~2.7kg) for standard aerobatic flight, and up to 144 oz (~4kg) for smooth, leisurely sport flying. Packed with essential accessories including a prop adapter, bullet connectors, and mounting hardware, this brushless motor equips your aircraft for optimal power and durability.
Technical SpecificationsComplete Motor Dimensions And Ratings
Part Type
Brushless Outrunner Motor
Max Power
450W
Max RPM
20,000 RPM
Diameter
35.2mm / 1.39 in
Length
54.2mm / 2.13 in
Shaft Diameter
5.0mm / 0.1969 in
Weight
197g / 6.9 oz Motor Only
Mount Screw Thread
4-40
Maximum Case Temperature
65°C / 149°F
Key Product FeaturesEngineered For Durability And High Efficiency
Application RangeVersatile power for models weighing up to 144 oz
Brushless EfficiencyEngineered to deliver high efficiency and extended motor life
Outrunner ArchitectureProduces exceptional torque to swing large propellers

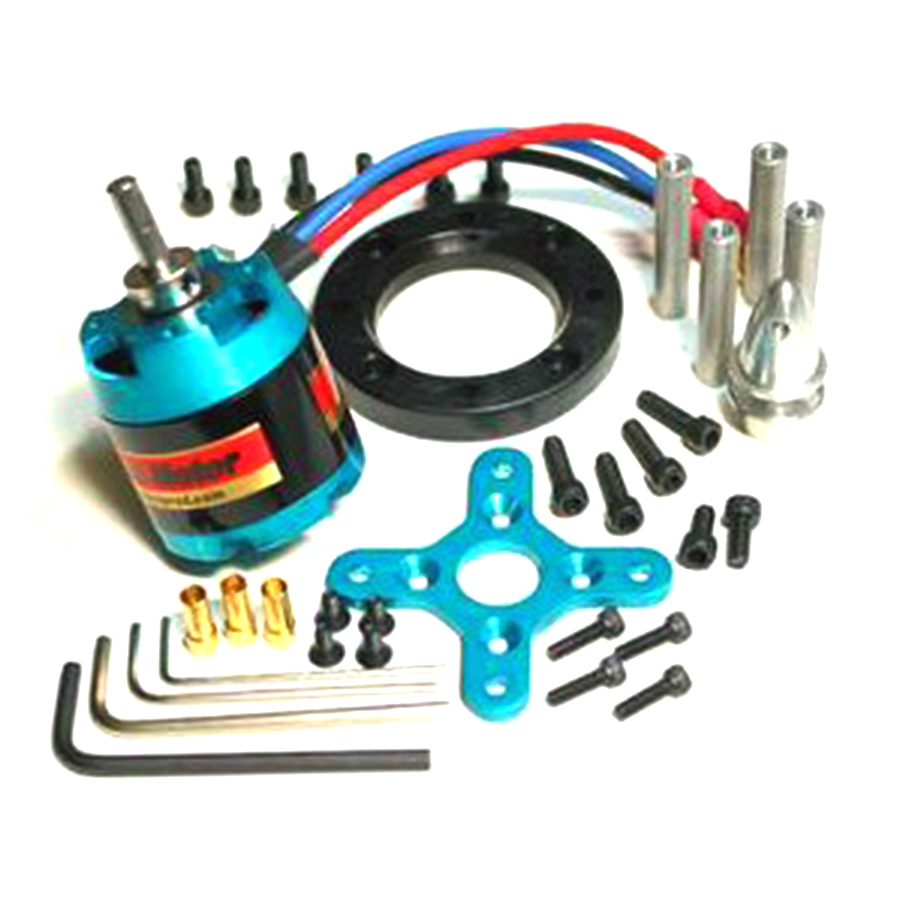

Complete Hardware PackageShips with prop adapter, mount kit, hex keys, and connectors
Robust ConstructionFeatures a heavy-duty 5mm shaft for demanding flights
Thermal Operating RangeSafe operation up to 65°C maximum case temperature
Frequently Asked QuestionsEverything you need to know
What size aircraft can the Himax Brushless HC3528-1000 Motor power?
The Himax Brushless HC3528-1000 Motor is designed for medium RC planes weighing 43 to 56 oz for 3D aerobatics, up to 96 oz for aerobatic flying, and up to 144 oz for leisurely sport flight.
What accessories are included with the Himax Brushless HC3528-1000 Motor?
The Himax Brushless HC3528-1000 Motor includes one prop adapter, three female 3.5mm bullet connectors, four mounting screws, a motor mount kit, and two hex keys.
What is the maximum operating temperature for the Himax Brushless HC3528-1000 Motor?
The maximum recommended case temperature for the Himax Brushless HC3528-1000 Motor is 65°C (149°F). Exceeding this temperature may damage the internal windings and magnets.
