Avian 6362-200Kv Outrunner Brushless Motor

Overview:

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Features:

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance Free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
  • Lightweight design
  • Excellent power and efficiency on 12S power when matched with a 18x10 size propeller
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

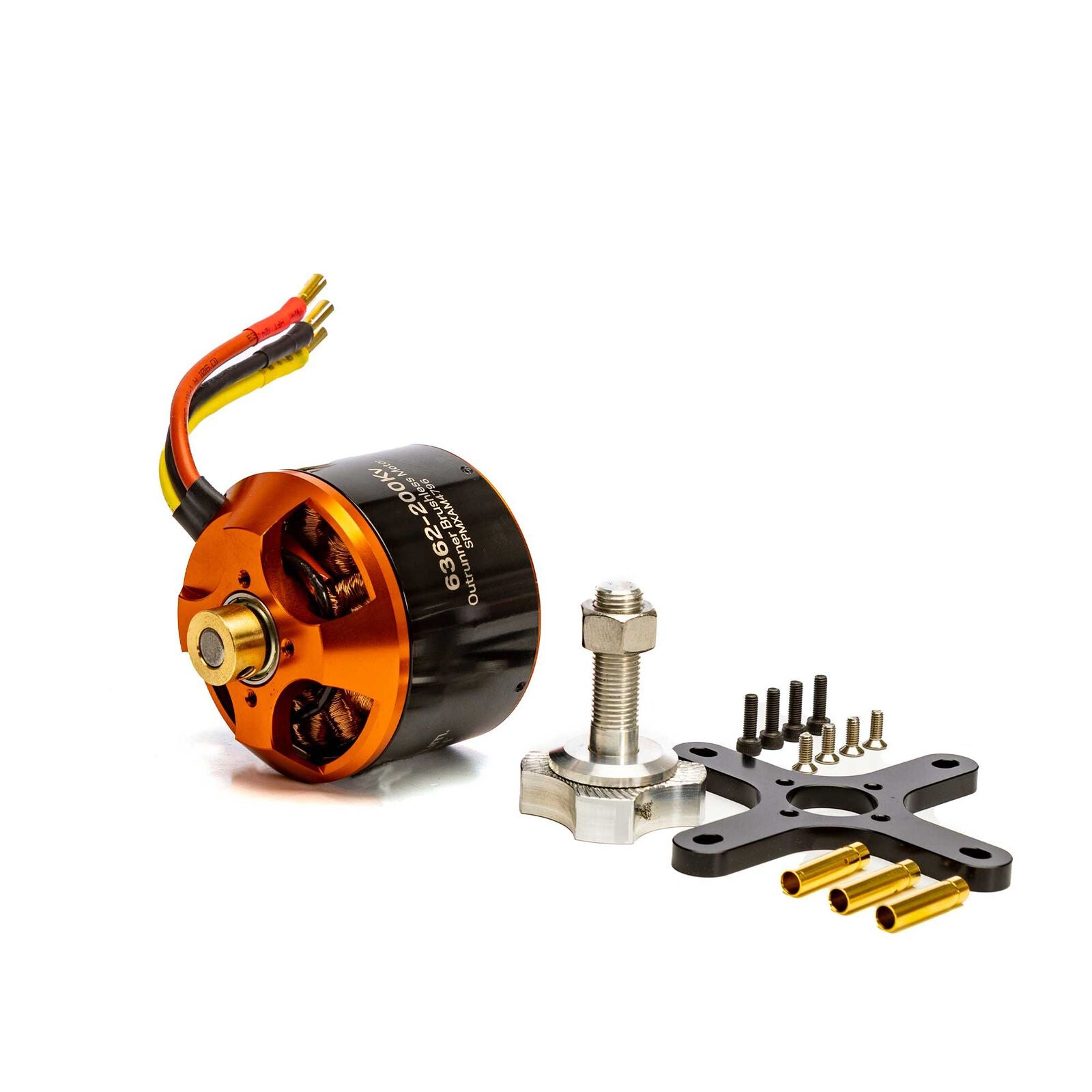

  • Includes all required hardware: preinstalled gold-plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 120 amp HV ESC
  • Perfect electric conversion upgrade for 30cc size gas combustion power systems running 12S LiPo power
Application Airplane
Bearing Yes
Connector Type 4mm Bullet
Constant Wattage 2000-2499W
Forward Yes
Input Voltage 33.3 - 44.4V / 9-12S LiPo
Integrated ESC No
Kv Rating 0-250Kv
Maximum Burst Current 77A
Maximum Continuous Current 48A
Motor Class Large
Motor Design Outrunner
Motor Output Lead 4

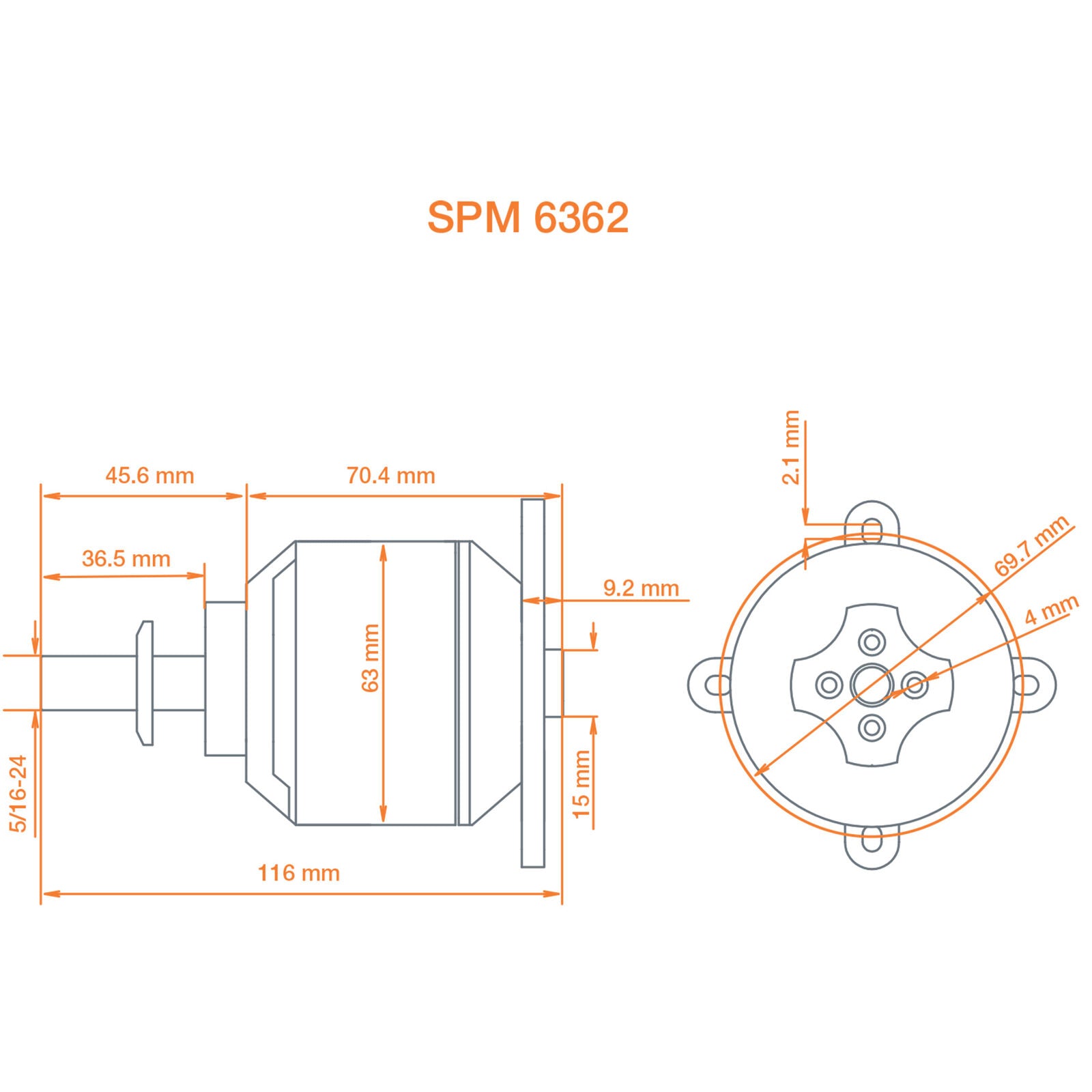

Motor Size 6362-200Kv Brushless Outrunner
Motor Type Brushless
Number of Poles 14
Outer Diameter 2.5" (64 mm)
Product Length 2.4" (61 mm)
Product Weight 22.4 oz (635 g)
Recommended Prop Range 16x8 to 19x10 Electric Propeller
Recommended Speed Control Avian 120 Amp Brushless Smart ESC
RPM/Volt (Kv) 200Kv
Sensor Type Sensorless
Shaft Diameter 0.375" (10 mm)
Shaft Length 1.41733" (36 mm)
Speed Control Sold Separately
