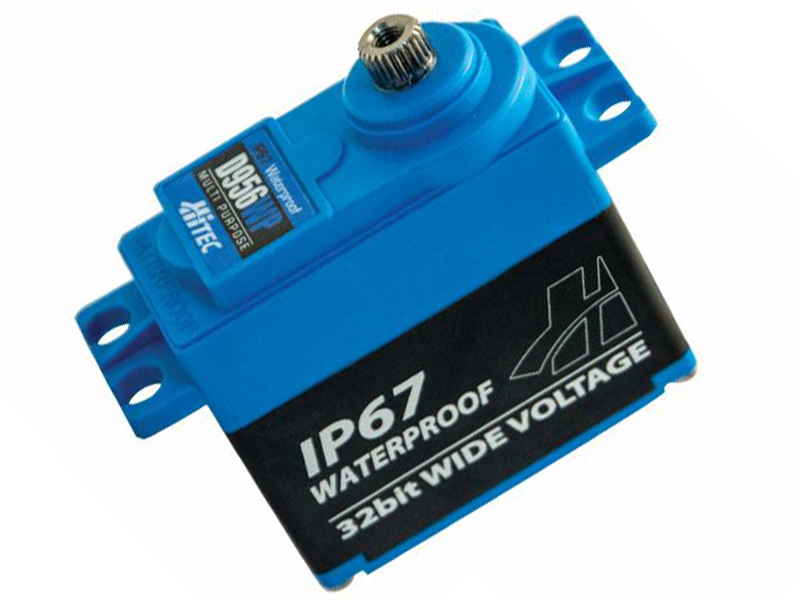

D956WP 32-Bit, High Torque, Waterproof, Steel Gear Servo
Overview:
The D956WP has arrived! Based off the D954SW servo, this IP-67 rated version is the true waterproof, dust resistant upgrade for 1/10th-scale Rock Crawlers and Off-Road Trucks. As with our entire "D” line, this technologically-advanced servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response.
The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level.
Features:
• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Water Resistant and Waterproof Proof Case
Programmable Functions:
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset
Accessories:
• 3 Steel Alloy Gears Set
• Metal / Karbonite 1st Gear Set
• Plastic / Aluminum Case Set
• Applicable Horns & Screws
Operating Voltage Range (Volts DC): | 4.8V ~ 7.4V |
Speed (Second @ 60°): | 0.19 ~ 0.12 |
Maximum Torque Range oz. / in.: | 251 ~ 405 |
Maximum Torque Range kg. / cm.: | 18.0 ~ 29.0 |
Current Draw at Idle: | 30 mA |
No Load Operating Current Draw: | 500 mA |
Stall Current Draw: | 5,200 mA |
Dead Band Width: | 1 µs |
Dimensions (Inches): | 1.57 x 0.78 x 1.46 |
Dimensions (Metric): | 40.0 x 20.0 x 37.0 |
Weight (Ounces): | 2.40 |
Weight (Gram): | 68.0 |
Circuit Type: | 32bit Programable Digital |
Motor Type: | Coreless Metal Brush |
Gear Material: | MK 1st Gear & 3 Steel Alloy Gears |
Bearing Type: | Dual Ball Bearing |
Output Shaft (type / Ømm): | H25T |
Case Material: | Plastic / Aluminum |
Dust / Water Resistance: | IP67 Rating |
Connector Gauge (AWG) / Strand Count: | 20 / 80 |
