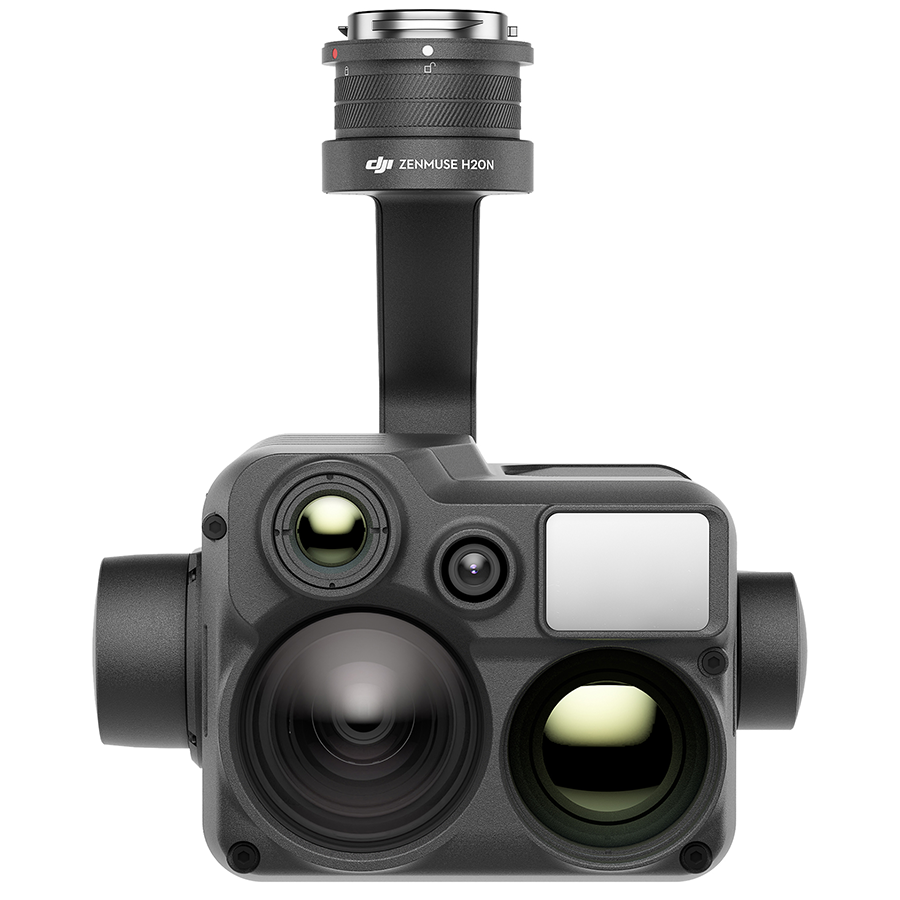

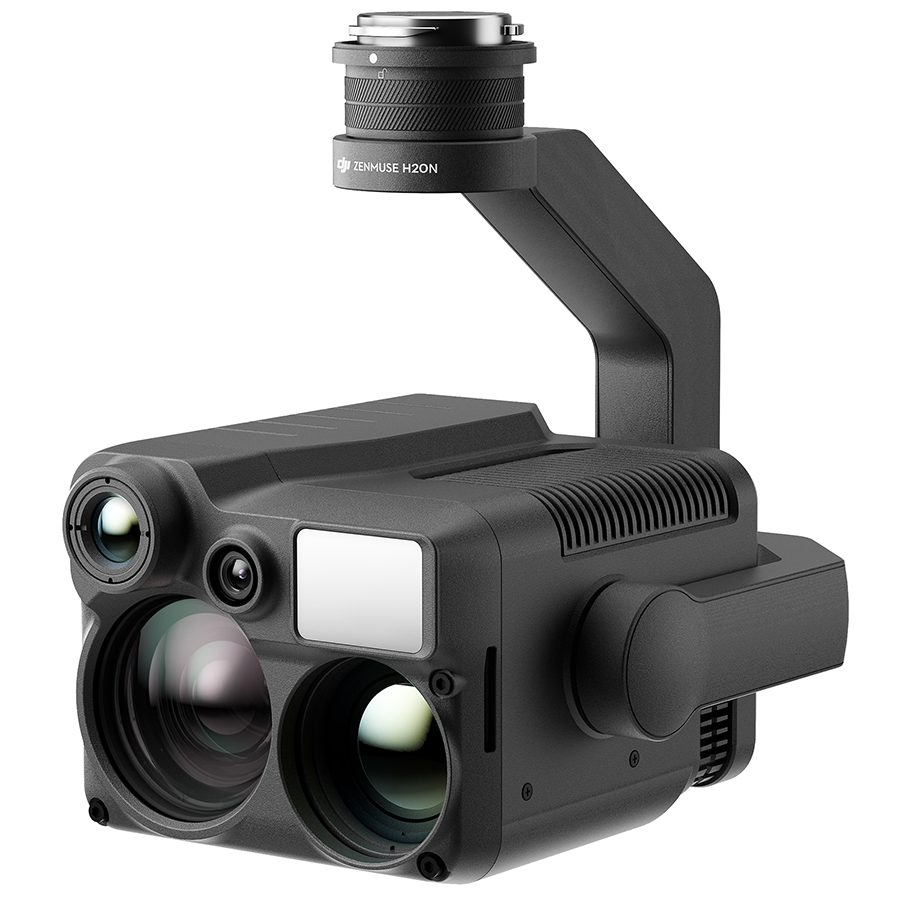

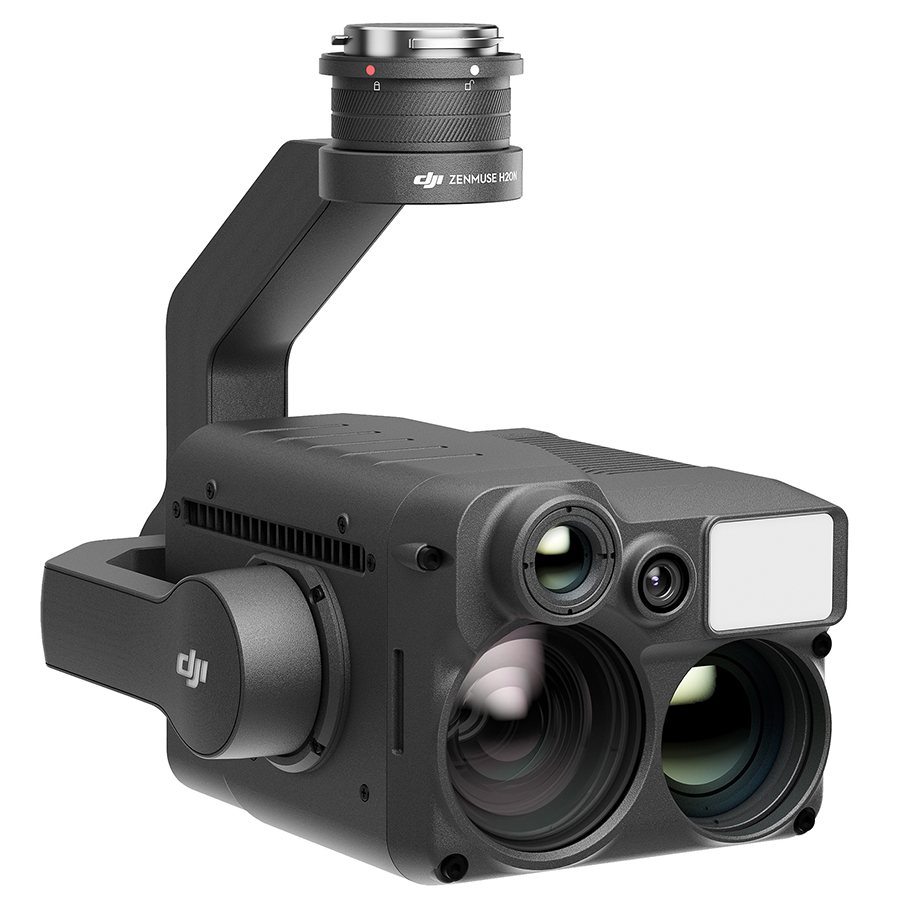

DJI Zenmuse H20N Camera System

Overview:
The Zenmuse H20N integrates starlight sensors1 into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.

The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.

The H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.

Features:

  • Starlight Night Vision
  • 20× Hybrid Optical Zoom
  • 640×512 px Thermal Camera
  • Laser Rangefinder 1200 m Max Range
  • Synchronized Split-Screen Zoom
  • Intelligent Night Scene Enhancement
General
Product Name: Zenmuse H20N
Dimensions: 178x135x161 mm
Weight: 878±5 g
Protection Rating: IP44
Laser Safety: Class 1M (IEC 60825-1:2014)
Supported Aircraft: Matrice 300 RTK

Gimbal
Angular Vibration Range: ±0.01°
Mount: Detachable

Zoom Camera
Sensor: 1/1.8" CMOS; Effective Pixels: 4M
Lens: Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
Aperture: f/2.8-f/11 (day); f/1.6-f/11 (night)
Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)

Wide Camera
Sensor: 1/2.7" CMOS; Effective Pixels: 2M
Lens: DFOV: 73.6°
Focal Length: 4.5 mm (equivalent: approximately 29 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Tele Infrared Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Lens: DFOV: 12.5°
Focal Length: 44.5 mm (equivalent: approximately 196 mm)
Aperture: f/1.2
Focus: 45 m to ∞

Wide Infrared Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Lens: DFOV: 45.5°
Focal Length: 12 mm (equivalent: approximately 53 mm)
Aperture: f/1.0
Focus: 5 m to ∞

Laser Range Finder
Wavelength: 905 nm
Maximum Power: 3.5 mW
Single Pulse Width: 6 ns
Measuring Accuracy: ± (0.2 m + target distance x 0.15%)
Measuring Range: 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)

Storage
Supported microSD Cards: Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
Supported File System: exFAT

Environment
Operating Temperature: -20° to 50° C (-4 to 122°F)
Storage Temperature: -20° to 60° C (-4 to 140°F)
