A stable rocket goes up like it is on a string. An unstable one leaves the rod, swaps ends, and cartwheels across the sky like a lit sparkler looking for the crowd. The difference is not luck. It comes down to two points on the rocket, the center of gravity and the center of pressure, and which one is in front.
This guide explains the physics in plain terms (with help from NASA Glenn's Beginner's Guide), shows how to measure both points, what a good stability margin looks like, and how to run the old-school swing test that the NAR Safety Code expects you to do whenever you are unsure about an untested rocket. Kit rockets built to the instructions are designed to be stable; this matters most when you modify, scratch-build or add a payload.
The Short Answer
A model rocket is stable when its center of pressure (CP) sits behind its center of gravity (CG), ideally by 1 to 2 body diameters ("calibers"); you can check it by finding the CG with the motor installed, computing the CP in a tool like OpenRocket, and confirming with a swing test.
- CG ahead of CP: stable. CP ahead of CG: unstable, do not fly.
- Target margin: 1.5 to 2.0 calibers; 3 or more is over-stable and weathercocks.
- Fix an unstable rocket by adding nose weight or fin area.
- Swing test with the motor and recovery loaded: it should fly nose-first on the string.
1. CG and CP: The Two Points That Decide Everything
Every rocket has two key points along its length. One is about weight, one is about air. Stability is the relationship between them.
Center of gravity (CG)
The CG is the balance point: where the rocket would balance on your finger. Weight in the nose moves it forward; a heavy motor in the tail moves it back. The CG shifts during flight as propellant burns, but for preflight checks you measure it with the motor you will fly installed and the recovery system packed.
Center of pressure (CP)
The CP is the point where all the aerodynamic forces on the rocket effectively act. NASA Glenn notes that lift and drag both act through the center of pressure. Big fins at the back pull the CP rearward; a long body and nose cone pull it forward. Unlike CG, you cannot find it by balancing. You calculate it (simulators use the Barrowman method) or estimate it.
Why CP must be behind CG
When a gust nudges the nose sideways, the air pushes on the rocket at the CP. If the CP is behind the CG, that push swings the tail back in line and the nose points into the flight path again, like a weathervane or the feathers on an arrow. NASA calls this a restoring force. If the CP is ahead of the CG, the same push swings the nose further off course, and every small wobble grows until the rocket tumbles.
Stability margin in calibers
Rocketeers measure the distance between CG and CP in body diameters, called calibers. A rocket 1 inch in diameter with the CP 1.5 inches behind the CG has a 1.5-caliber margin. NASA's Student Launch numbers call a margin of 1.5 to 2.0 generally desirable and 3.0 or more over-stable (Student Launch itself requires at least 2.0 on the pad for its competition rockets). For small sport rockets, the common hobby rule of thumb is that one caliber is the bare minimum.
| Stability margin (CP minus CG, in body diameters) | What it means | What to do |
|---|---|---|
| Below 0 (CP ahead of CG) | Unstable; will tumble or loop | Do not fly. Add nose weight or fin area |
| 0 to 1 caliber | Marginal; may wobble or cone | Add nose weight until you reach at least 1 (the common hobby minimum) |
| 1 to 2 calibers | Stable; 1.5 to 2.0 is the sweet spot NASA cites | Fly it |
| 3 calibers or more | Over-stable; turns hard into the wind | Fine on calm days; lighten the nose or trim fins on new designs |
2. Measuring Stability on Your Workbench
You need a ruler, some string or a finger, and ideally a free simulator. Here is how to find both points and turn them into a number.
Find the CG
- Load the rocket for flight. Install the heaviest motor you plan to fly, plus wadding, recovery device and nose cone.
- Balance it. Lay it across a finger, a pencil or a loop of string and slide until it hangs level.
- Mark the spot. Use a removable tape flag or a pencil tick on the body tube.
- Measure from the nose tip. Write down the distance; this is your CG.
Find the CP
The easy way is OpenRocket, a free simulator that shows CP, CG and stability in calibers in real time as you draw the rocket. Enter the real dimensions and weigh the rocket on a kitchen scale so the CG matches what you measured. OpenRocket's CP calculation builds on the Barrowman method; the resources page links to the original reports. Many kit instructions also mark a CG location: if your loaded rocket balances at or ahead of that mark, it is in the designed range.
Do the math
Subtract: CP distance from nose minus CG distance from nose, then divide by the body tube diameter. A BT-50 size rocket (0.976 inch, just under 1 inch) with a CG at 12.0 inches and a CP at 13.6 inches has a margin of 1.6 / 0.976, about 1.6 calibers. That is in the sweet spot. If the result is negative or under 1, fix it before you fly.
Things that move your CG
Anything you add changes the answer: an altimeter or payload in the nose (more stable), heavy paint and filler on the fins (less stable), a heavier motor than the kit lists (less stable), or a larger parachute packed up front (slightly more stable). That is why kit instructions list specific motors, and why you should re-check after any modification.
3. The Swing Test and Fixing an Unstable Rocket
The swing test is the classic field check. The NAR Safety Code says that if you are uncertain about the safety or stability of an untested rocket, you will check its stability before flight. NASA Glenn and the UK Rocketry Association both describe tying a string at the center of gravity; the steps below follow UKRA.
How to swing test
- Load the rocket exactly as for flight: motor, wadding, recovery device and nose cone.
- Tie a loop of string at the CG so the rocket hangs level, and hold the string in place with removable tape.
- Find clear space away from people, then swing the rocket in a circle around your head.
- Let out string gradually until it is about 2 to 3 meters (6 to 10 feet) long.
- Watch the nose. A stable rocket flies nose-first into the wind of its own motion. If it points backward or tumbles, it fails.
Reading the result
A rocket that flies nose-first after a few turns passes. One that points tail-first or tumbles is, in UKRA's words, unstable and must not be launched. In our shop's experience (general practice, not a UKRA rule), a rocket that wobbles but mostly points forward is marginal and worth a little more nose weight, and some rockets need a gentle starting push in the right direction before they settle. Give it a fair start, but do not keep re-swinging a rocket that will not straighten out.
Fixing an unstable rocket
NASA Glenn's two fixes are the same ones builders use: add weight to the nose to move the CG forward, or add fin area to move the CP back. Nose weight is easiest. Press modeling clay into the plastic nose cone, a little at a time, and re-check the CG until you have at least one caliber of margin. Bigger fins work too but mean rebuilding. Remember the extra weight costs some altitude.
Do not overdo it
A rocket with three or more calibers of margin will fly, but it turns hard into any crosswind and arcs over early. Wind has the most leverage while the rocket is still moving slowly off the launch rod. On new designs, aim for 1.5 to 2 calibers, fly the heaviest-thrust motor the kit lists on windy days, and keep the fins straight. A jig like the Estes fin alignment guide makes straight fins much easier.
Conclusion
Stability is one rule with a number attached. Keep the center of pressure behind the center of gravity by about 1 to 2 body diameters and the rocket will fly straight. Measure the CG with the flight motor and recovery loaded, get the CP from OpenRocket or your kit's marks, and swing test anything new or modified. If it fails, add nose weight a little at a time until it passes, and do not chase an extreme margin that turns every breeze into a sideways flight.
Building a modified kit or your first scratch design? Stop by our Cumming showroom for kits, fin jigs and engines, browse the rocket collection, or ask us to look over your design.
Gear Mentioned in This Guide

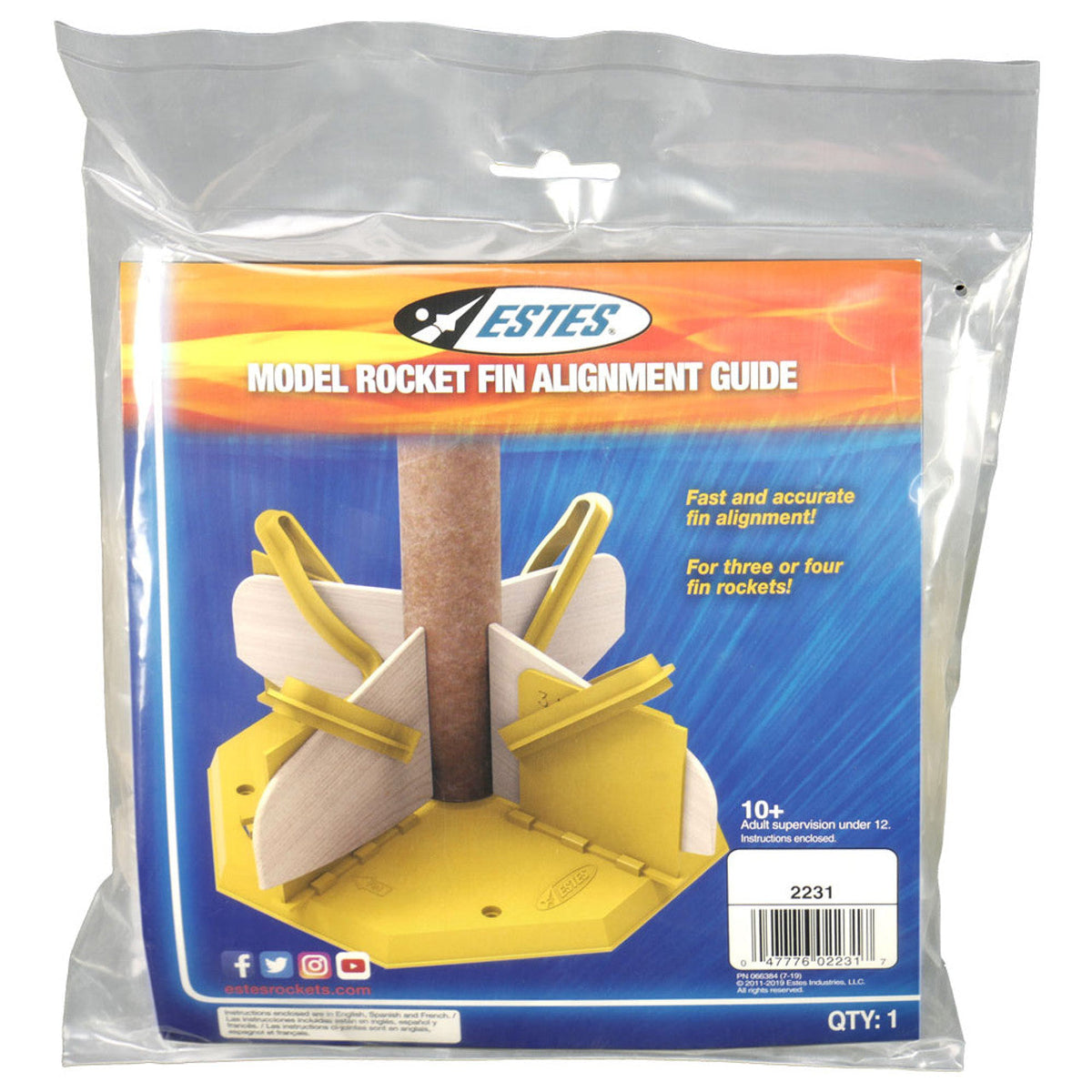

Estes Rocket Fin Alignment Guide
Fast, accurate fin alignment for 3- or 4-fin rockets using 3/32 or 1/8 inch wood.
Shop now
Estes B.O.S.S. (Belt Observer Survey Ship)
Asymmetric design with one tail fin, two engine pods and a large circular plate for stabilization.
Shop now
Estes C6-5 Model Rocket Engines (3-pack)
Always check balance with the motor you will fly installed.
Shop nowFrequently Asked Questions
What makes a model rocket stable?
Its center of pressure must be behind its center of gravity. Then any wobble creates a restoring force that turns the nose back into the flight path. A margin of 1 to 2 body diameters (calibers) is the usual target.
What is a good stability margin for a model rocket?
NASA Student Launch guidance calls 1.5 to 2.0 calibers generally desirable; for small sport rockets, 1 caliber is the common hobby minimum. NASA considers three calibers or more over-stable; a rocket like that weathercocks strongly into the wind.
How do I do a swing test on a model rocket?
Load the rocket for flight, tie a string at its balance point, and swing it in a circle around your head while letting out 6 to 10 feet of string. If it flies nose-first, it passes. If it points backward or tumbles, do not launch it.
How do I fix an unstable rocket?
Add weight to the nose (modeling clay in the nose cone is easiest) to move the center of gravity forward, or add fin area to move the center of pressure back. Re-check the balance point and swing test again.
Do I need to check stability on a kit rocket?
Kits built to the instructions with the listed motors are designed to be stable. Check it if you modify the rocket, add a payload or altimeter, use heavy paint and filler, or fly a motor not on the kit's list.
Does the motor change stability?
Yes. A heavier motor moves the center of gravity back and reduces the stability margin. Always measure the CG with the heaviest motor you plan to fly installed.
