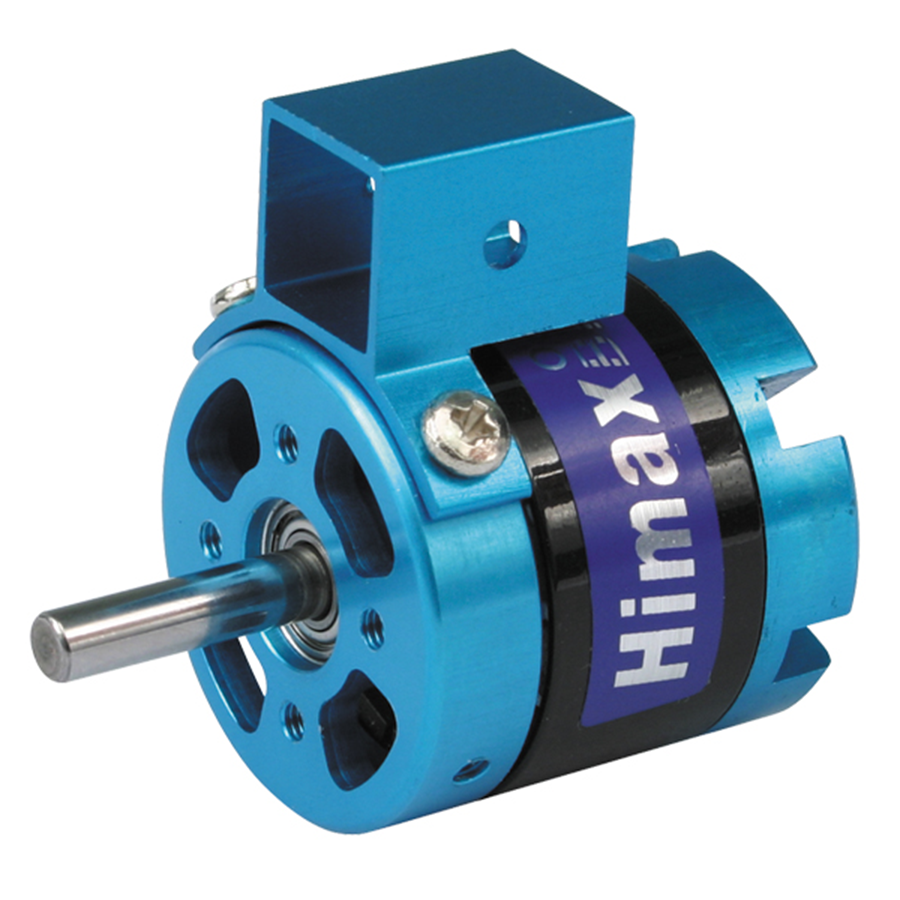

Himax HC2812-0850 Outrunner Brushless Motor, 150 Watt

Overview:
Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for lightweight, high efficiency, high torque, and durability Himax Outrunner motors are sure to make today’s radio controlled models perform.

Please read the entire operating manual to ensure correct functionality and best performance. The HC2812 series motor is made for small to medium size models weighing 12 to 32 ounces.

Weight: HC2812 Series 65g, (2.3oz), Motor with stick mount
Max Power: HC2812 Series 160W, (This is dependent on several factors)
Max RPM: 20,000 RPM
Diameter: 27.8mm, (1.09”)
Length: 28.9mm, (1.14”)
Shaft Diameter: 4.0mm (.1575”)
Mounting Screw Thread: 2.5mm, max depth 4.5mm, on 16mm, (.625”) bolt circle
Maximum Case Temperature: 65°C, (149°F)
Kv: 850
Efficient Operating Current: 4-11A, 14A Max 15 seconds
