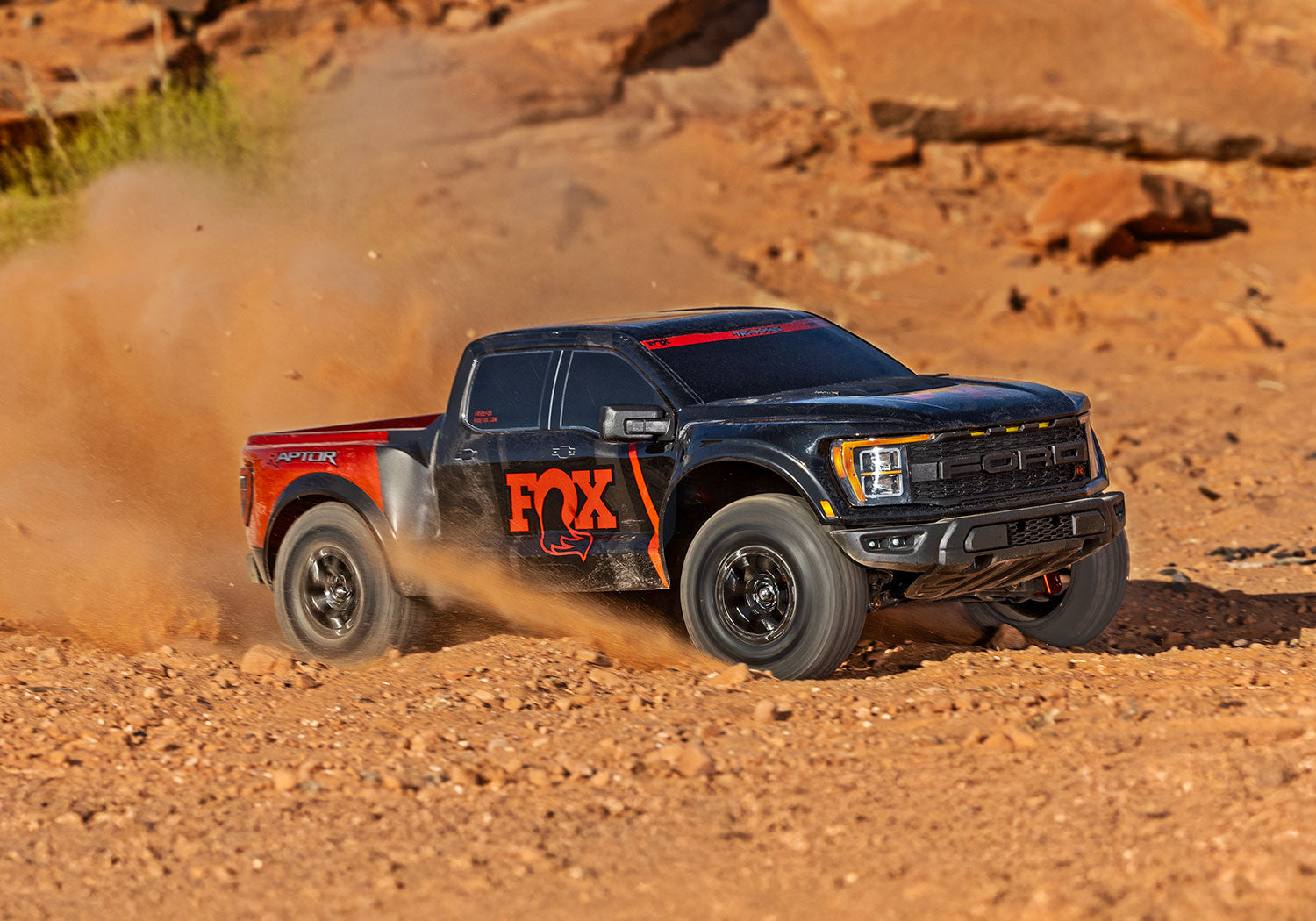

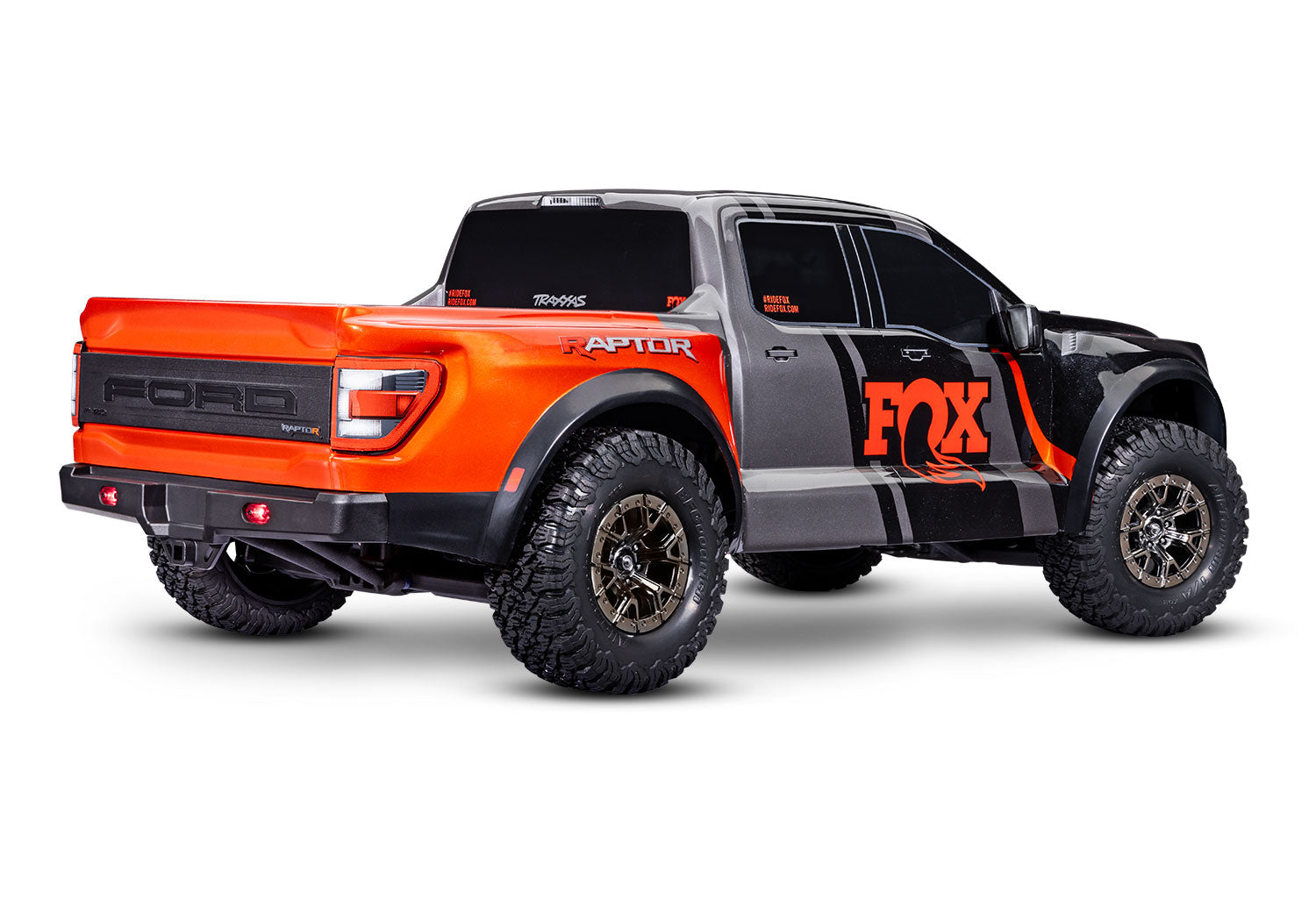

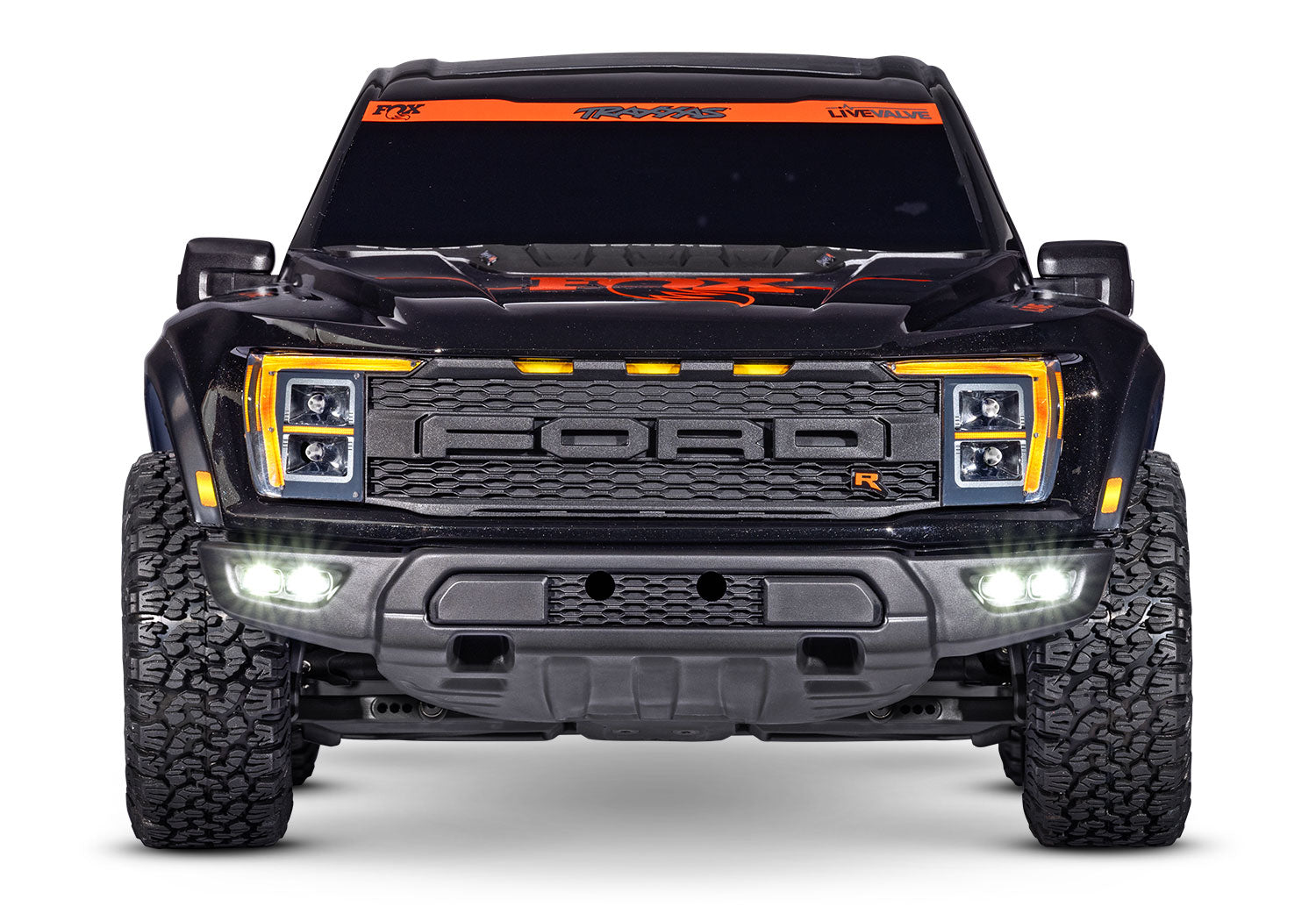

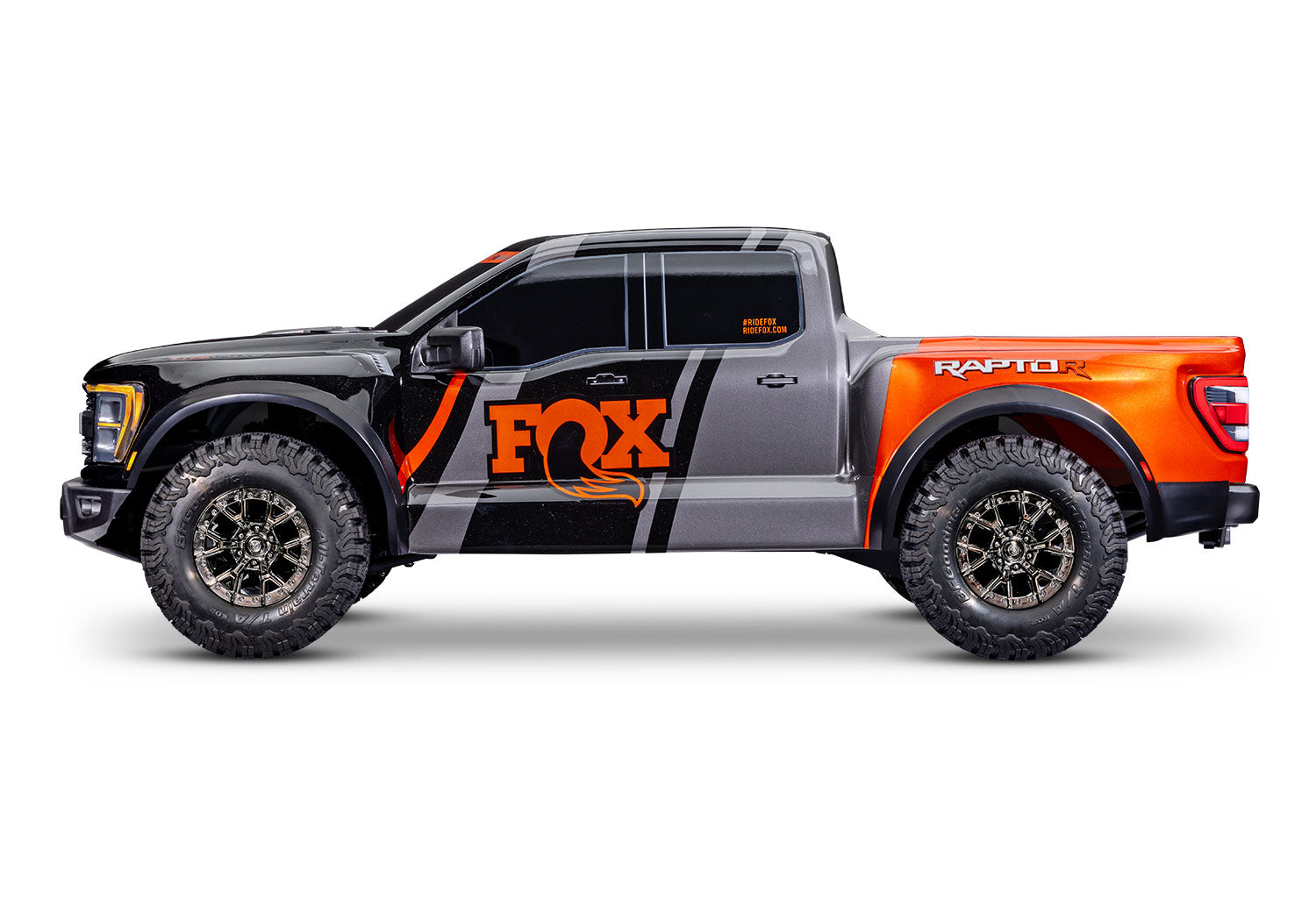

Ford Raptor R 4X4 Ultimate: Black/Orange, Fox 1

Raptor R Styling. Velineon 4s Performance.

Raptor R™ 4X4 Ultimate takes Traxxas Pro Scale® to the next level with Velineon® VXL-4s™ power and the massive 540XL brushless motor. Outfitted with an extreme HD driveline and color-matched aluminum upgrades, Raptor R Ultimate delivers both the exacting realism and unbeatable speed and durability that performance drivers demand.

Features:

Pro Scale Design - Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R. The Traxxas Raptor R 4X4 Ultimate stops the show with a Ford-licensed body and molded replica parts for maximum scale authenticity. 4s Velineon brushless horsepower and an extreme heavy-duty 4WD driveline give Raptor R performance credentials to match its stunning looks.

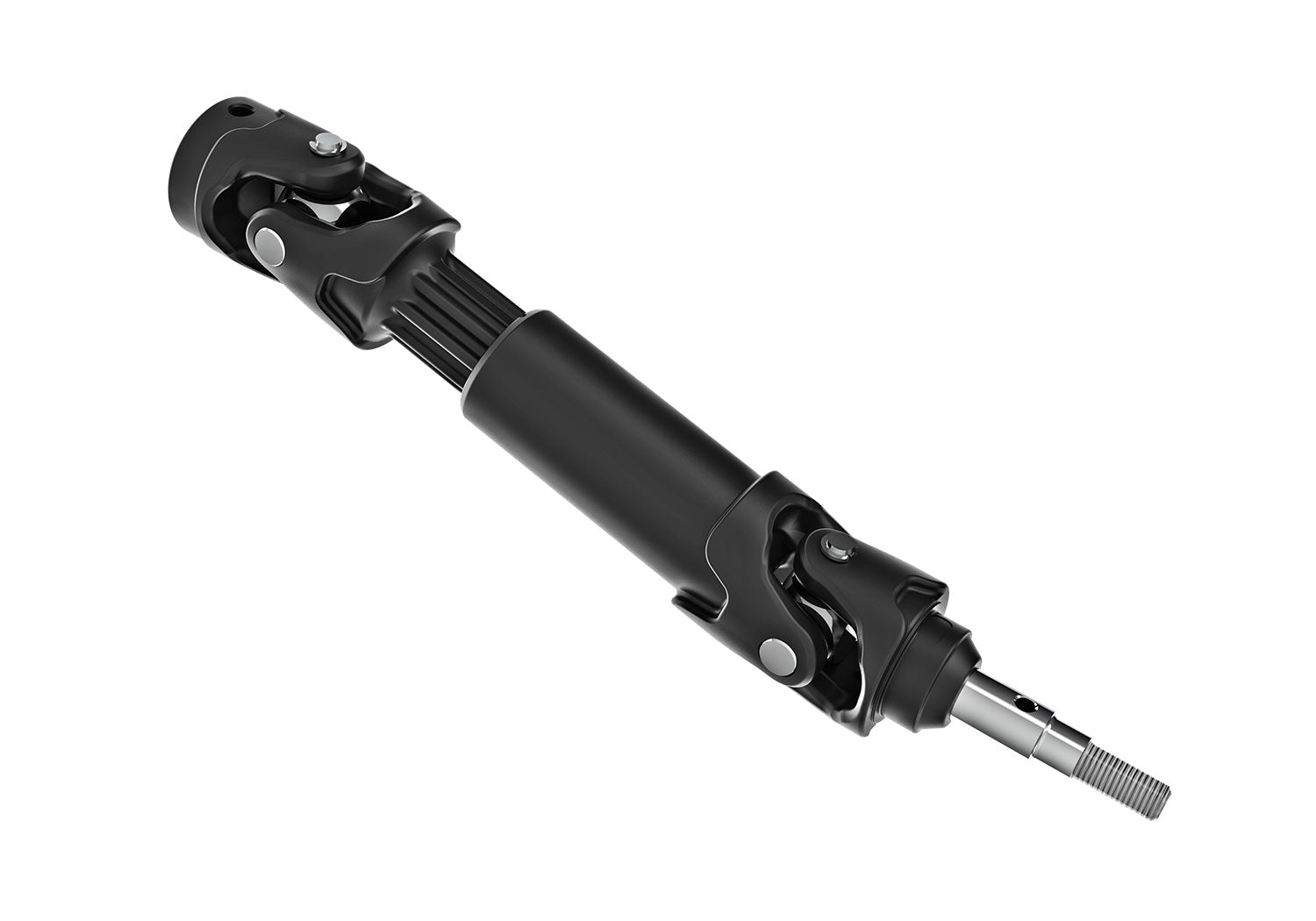

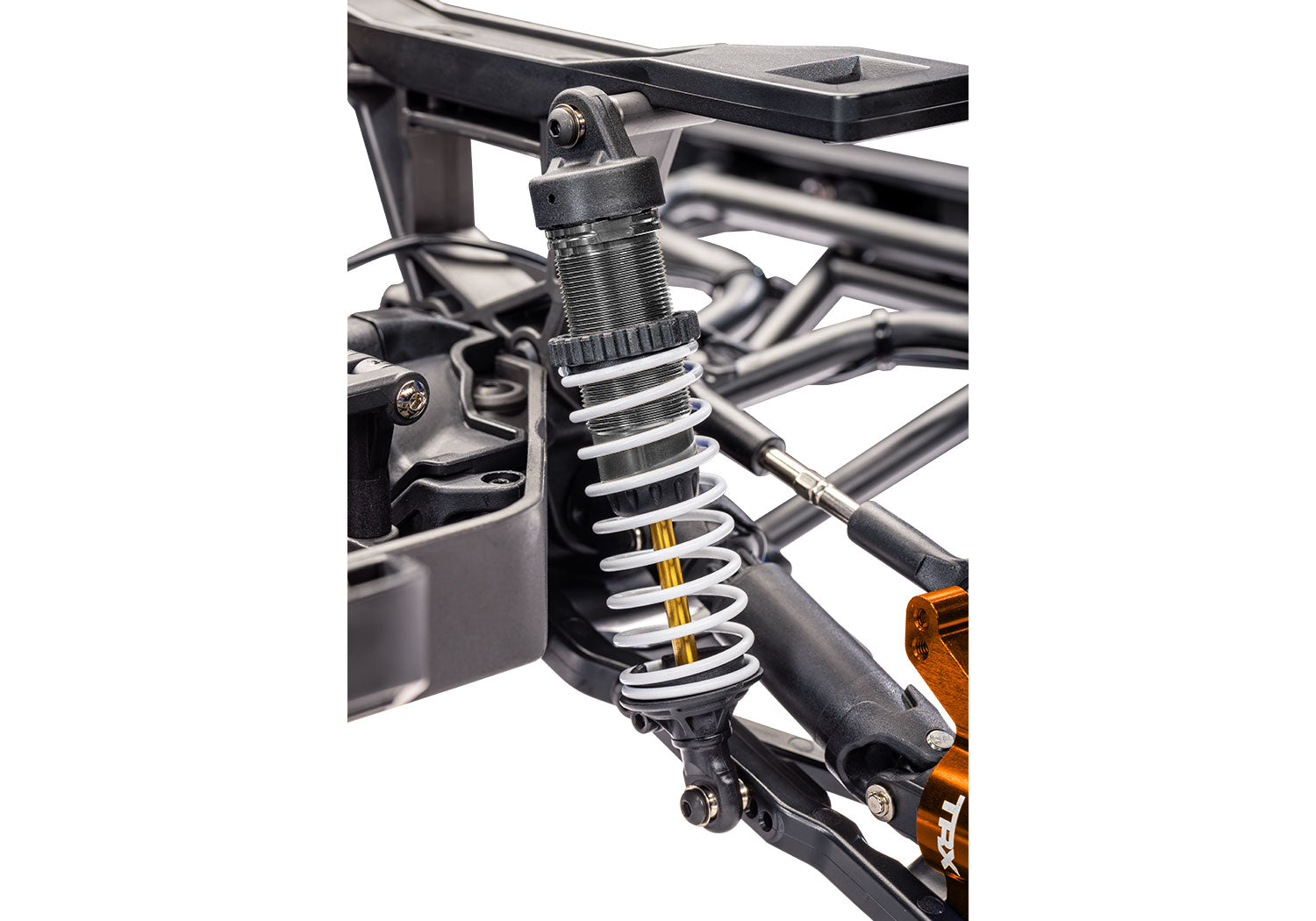

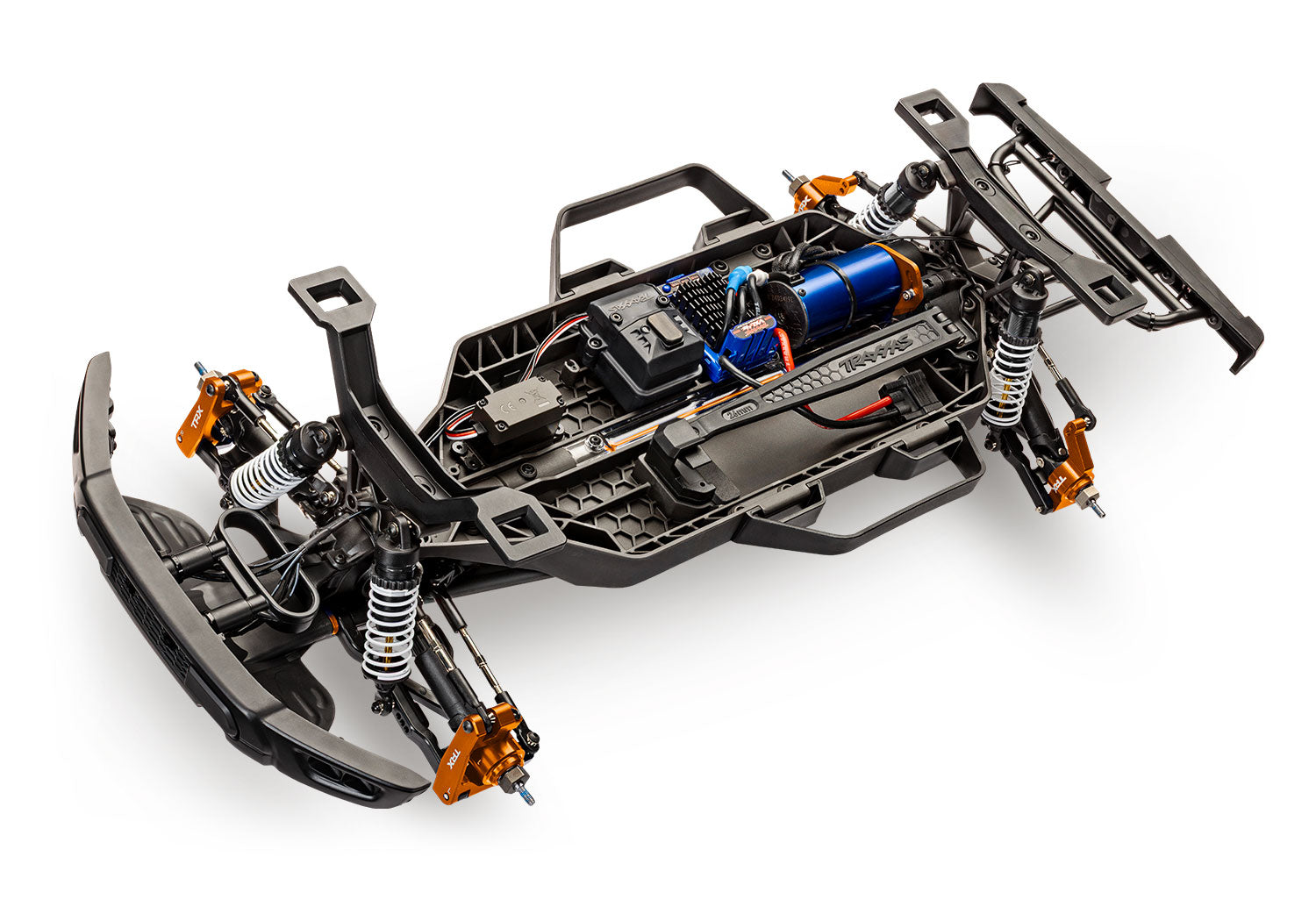

Ultimate Upgrades - Raptor R Ultimate comes fully loaded with aluminum caster and steering blocks, axle carriers, and GTR shocks to give Raptor R Ultimate the brute strength required for extreme driving. Extreme HD driveshafts are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.

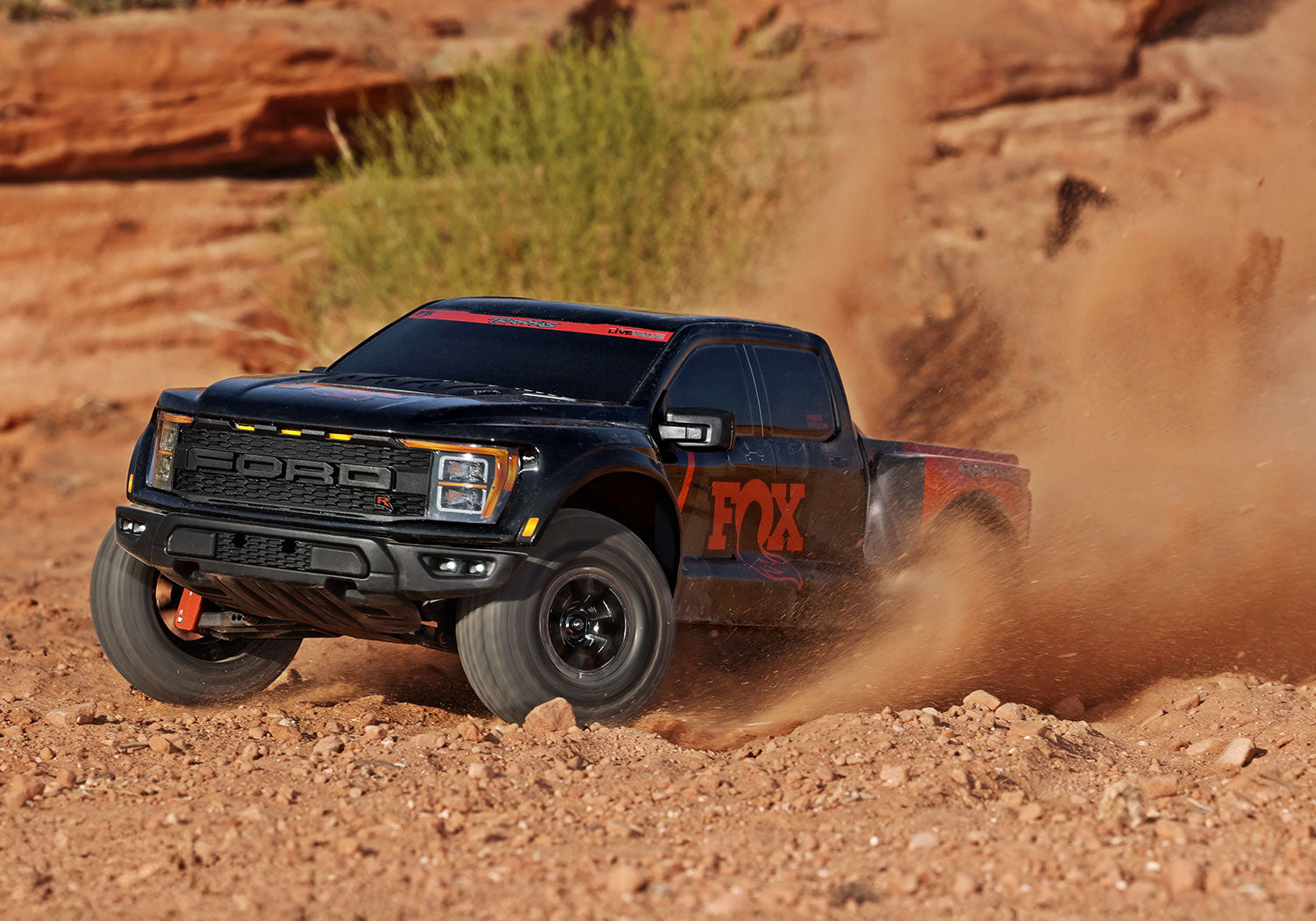

Clipless Body Mounting - High-flying stunts and 60+ mph desert speed runs won’t upset Raptor R’s tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.

Extreme 4s Power - Raptor R 4X4 Ultimate uses the extreme Velineon 540XL brushless motor found in the Maxx® monster truck, backed by the VXL-4s™ speed control with built-in telemetry and selectable 6.0 or 7.4-volt BEC. With 4s LiPo power on tap, Raptor R Ultimate defies the laws of physics as it rockets its way to 60 mph and beyond with unrelenting acceleration.

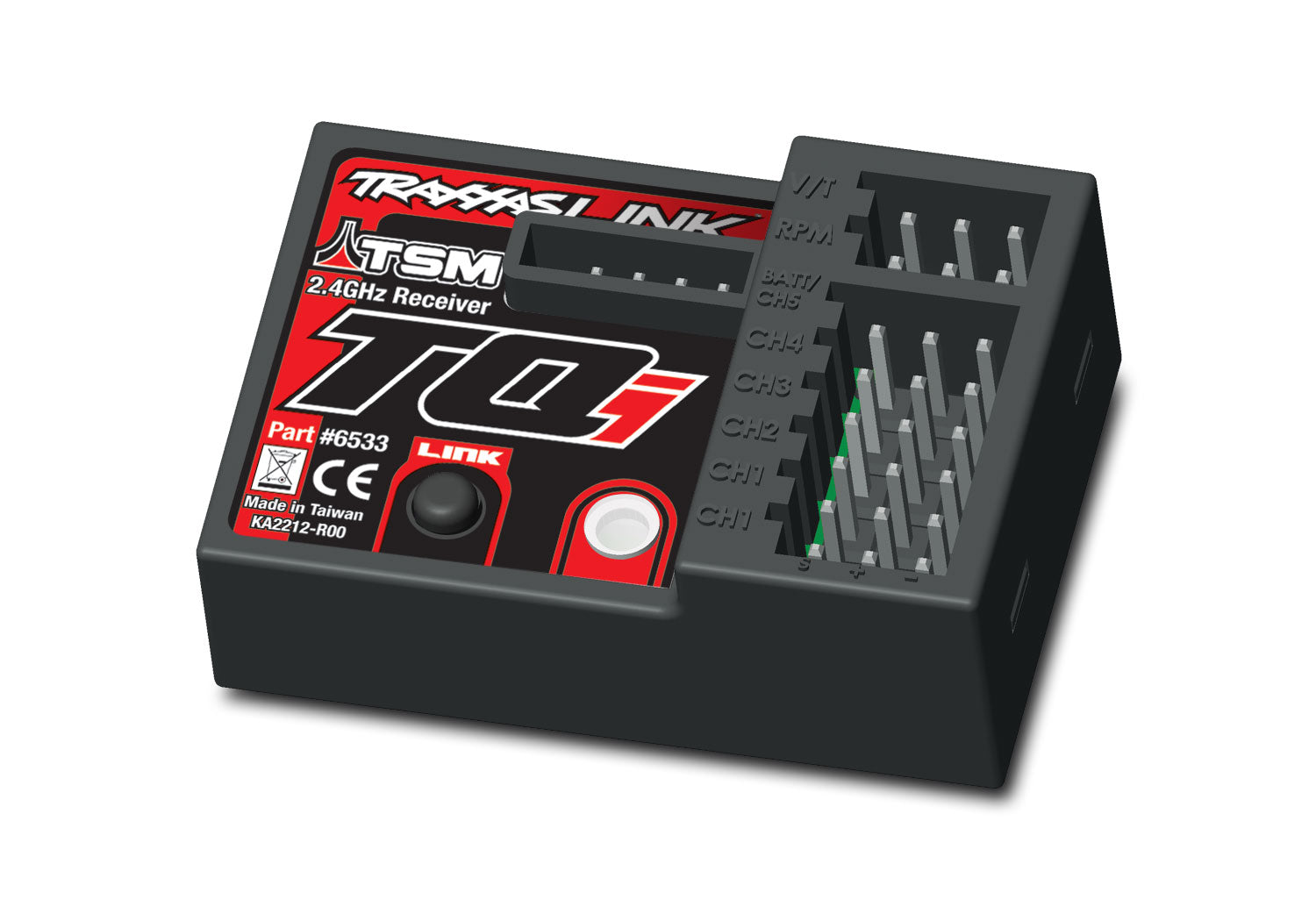

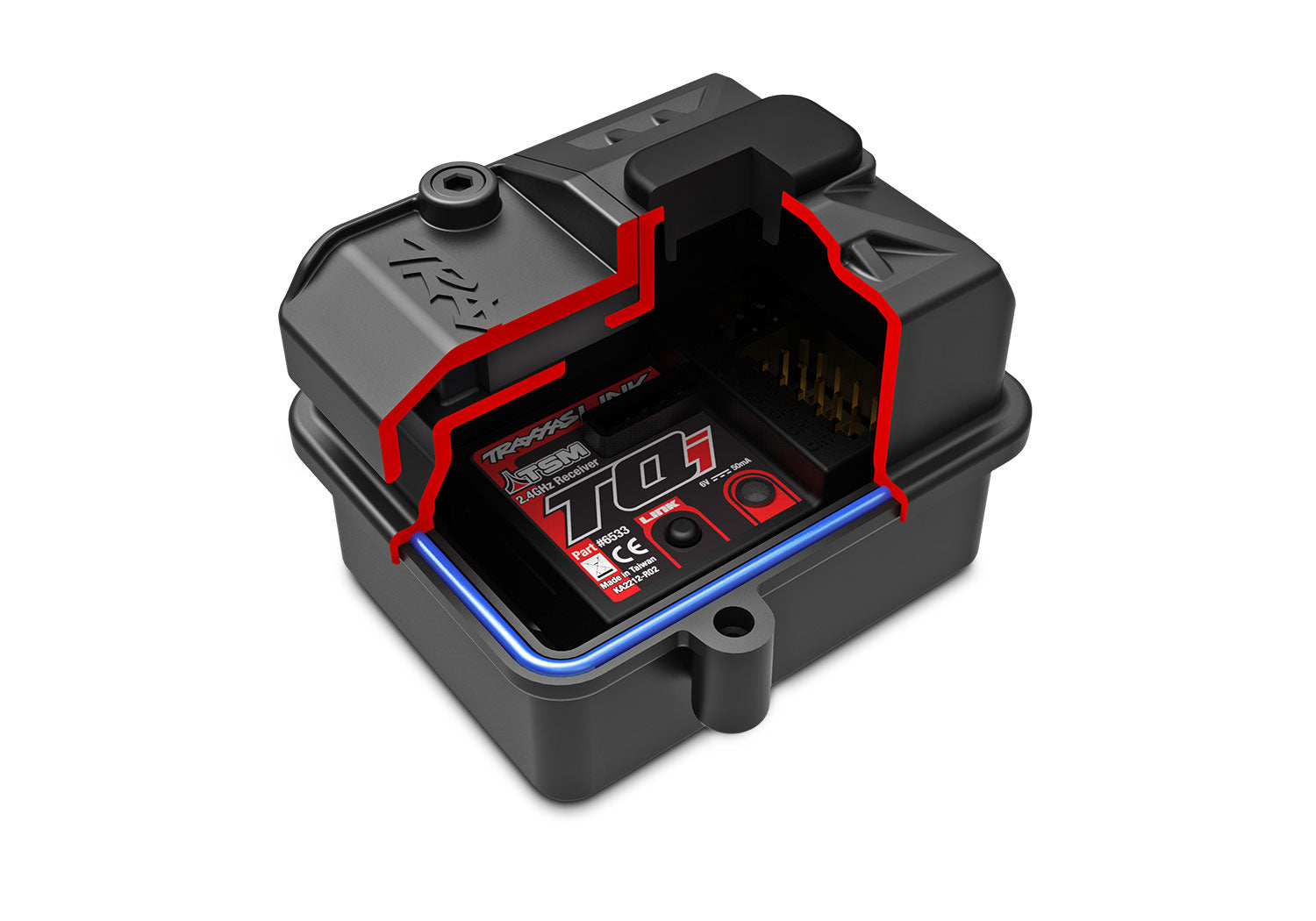

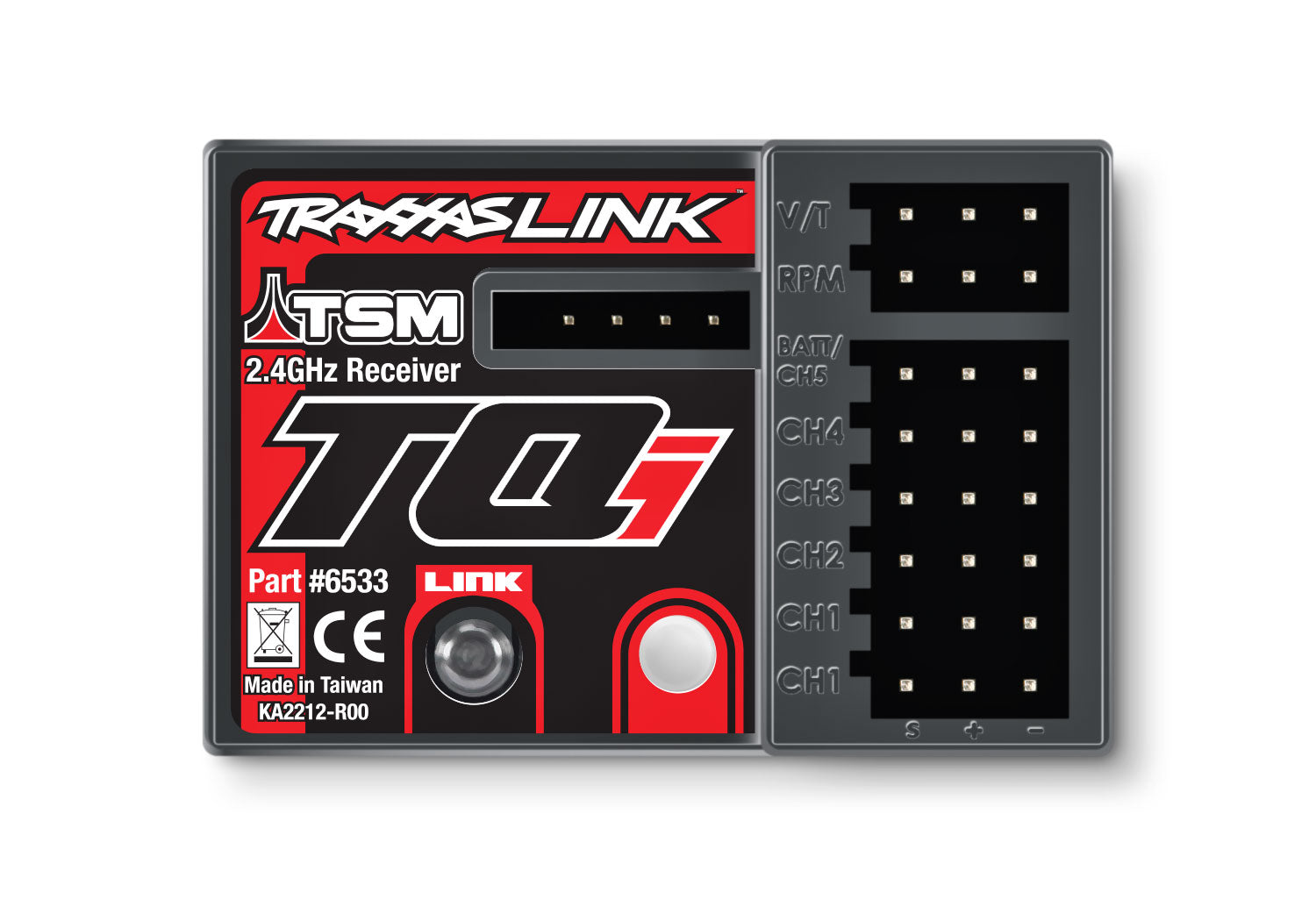

Included Wireless Module - A Traxxas Link™ Wireless Module comes standard on Raptor R 4X4 Ultimate along with factory-installed telemetry sensors to unlock the full potential of the TQi™ transmitter. Adjust the transmitter’s settings on the fly and record real-time telemetry data like speed, RPM, and battery voltage on your mobile device using the free Traxxas Link app.

Monster Servo - Raptor R Ultimate comes equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. The fully waterproof design features full ball-bearing support for smooth power delivery in any environment. With up to 486 oz-in of torque at 7.4 volts, there’s nothing this servo can’t handle.

What’s In The Box:

  • Raptor R with Velineon VXL-4s ESC and 2400 Kv motor
  • Quick Start Guide
  • TQi 2.4 GHz radio system w/ wireless module
  • High quality maintenance tools

What You’ll Need for Completion:

  • Batteries - Raptor R requires a single 2s, 3s, or 4s LiPo battery with iD®.
  • Charger - Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.
  • AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.
Truck Specs
Model Name: Ford Raptor R 4X4 Ultimate
Model Type: Short Course Truck
Model Speed: 60+ mph with 4s LiPo (sold separately)
Model Skill Level: Level 2
Scale: 1/10
Weight: 6.62 pounds (3.00 kg)
Length: 24.98 inches (637 mm)
Width: 11.63 inches (289 mm)
Front & Rear Track: 11.63 inches (289 mm)
Height: 8.91 inches (226 mm)

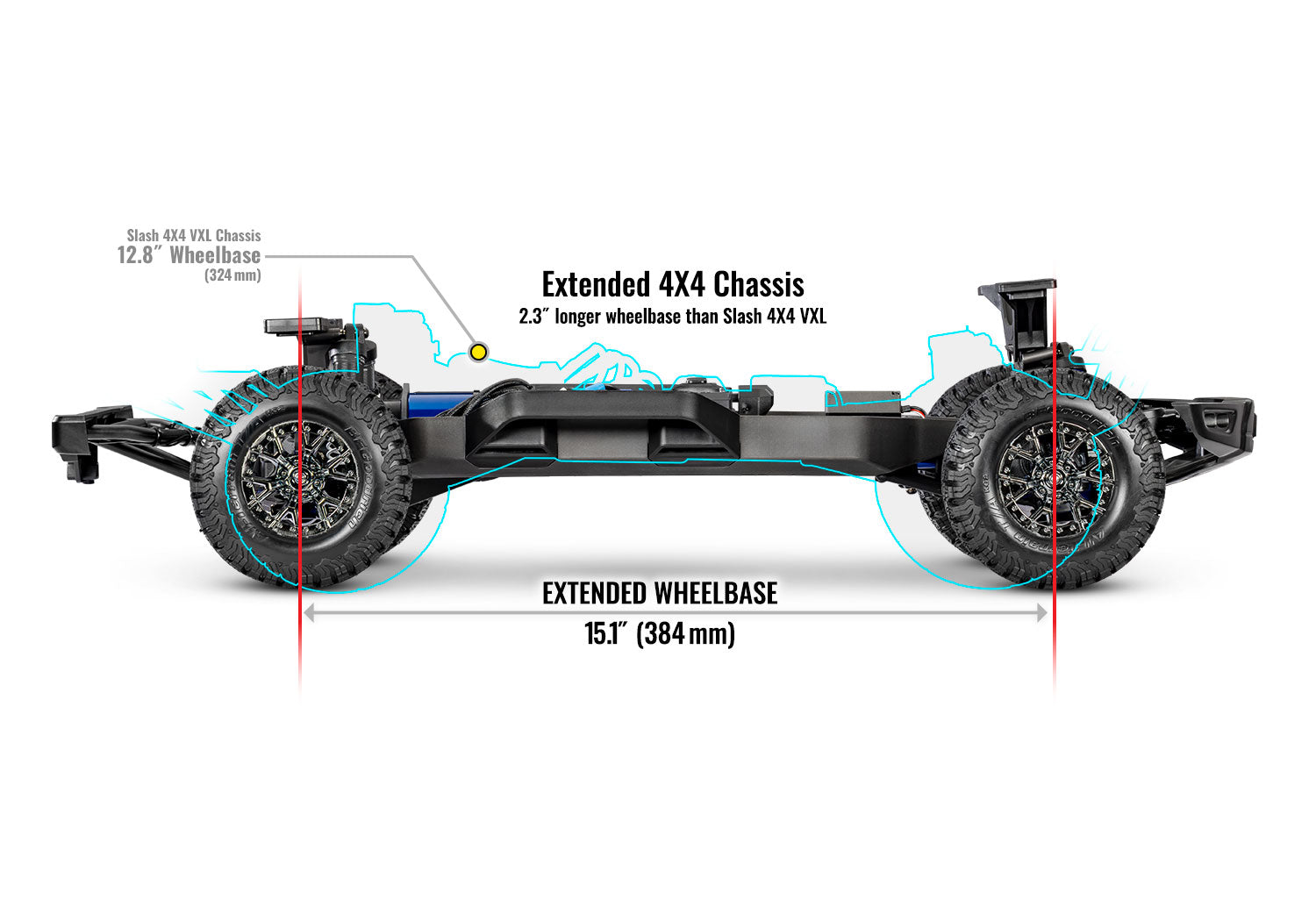

Wheelbase: 15.11 inches (384 mm)
Center Ground Clearance: 2.05 inches (52 mm)
Drive System: Shaft-driven 4WD w/ Torque-Biasing Center Drive
Differentials: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32 pitch
Servo: 2275 high-torque waterproof
Radio System: TQi™ 2.4 GHz 2-channel radio with wireless module
Battery Compartment Specs: 165 mm X 50 mm X 23/26 mm
Motor Specs
Motor Type: 540XL 2400 Kv sensorless brushless
Weight: 11.18 ounces (317 g)
Length: 3.58 inches (91 mm)
Diameter: 1.41 inches (36 mm)
Shaft Size: 5 mm
Connector Type: Traxxas 6.5 mm bullet connectors
ESC Specs
Input Voltage (cells): 2s-4s LiPo (7.4 V - 16.8 V)
Case Size: 2.40" (61 mm) x 2.09" (53 mm) x 1.42" (36 mm)
Weight: 4.20 ounces (119 g)
BEC Voltage: Selectable 6.0 or 7.4 volts
Motor Connectors: Traxxas 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Thermal Protection: Two-stage thermal shutdown
Ports: RX input, auxiliary fan connector
