1/10 Scale Authentic Volkswagen T1 Replica
Rear-Wheel Drive Realistic Rear Engine Chassis Layout
Assembly Kit Rewarding Unassembled Builder Experience
Includes ESC HobbyWing THW 1060 Speed Control
540 Motor Brushed Motor Included In Box
M-06 Chassis Balanced Low Center Of Gravity

In Stock
SKU: TAM58668
Part #: 100025674
MFG: Tamiya
45+ YEARS IN BUSINESSServing since 1978
REPAIR SERVICESRC Cars, Planes, Boats, Drones & More
AUTHORIZED DEALERGenuine products from top brands
FAST SHIPPINGNext day shipping anywhere in the country.
EASY RETURNSIn-stock items returnable within 30 days
Classic On-Road IconVintage Style Meets Modern RC Performance

Experience the timeless styling of the iconic German van with the Tamiya 1/10 Volkswagen Bus Type 2 T1 with HobbyWing ESC, M-06 Chassis kit. Designed for realistic on-road performance, this 1/10 scale RC Car pairs a detailed Volkswagen body with a rear-motor, rear-wheel drive setup for authentic handling dynamics. Perfect for vintage enthusiasts and scale builders, this scale model kit delivers an unbeatable combination of classic aesthetics and engineering quality.

Engineering The LegendRear Engine RWD M-06 Architecture

The Tamiya 1/10 Volkswagen Bus Type 2 T1 with HobbyWing ESC, M-06 Chassis captures the beloved design of the 1950 first-generation van. At the core of this electric RC Car is the rear-motor M-06 chassis, featuring a longitudinally mounted battery pack with radio gear positioned on both sides for balanced weight distribution and a low center of gravity. A 4-wheel independent double wishbone suspension, combined with front 60D radial tires and rear high-grip 60D tires, provides smooth and responsive maneuvering. Complete with separate molded bumpers, light cases, side mirrors, and an included HobbyWing THW 1060 ESC paired with a 540 brushed motor, this assembly kit offers an engaging build and rewarding scale driving experience.

Chassis SpecificationsDetailed Tech Specs And Scale Dimensions
Completion Level Assembly Kit
Drivetrain 2WD Rear-Wheel Drive
Motor Size 540 Brushed Type
Power Type Electric
Differential Gear Type
Vehicle Size 1/10 Scale
Product Width/Weight/Height M-06L 239mm Wheelbase
Charger Sold Separately
Connector Type Standard Tamiya / Bullet
Spur Gear Standard Included
Gear Pitch Module 0.6
Speed Control HobbyWing THW 1060 Brushed ESC (2-3S) (cpu)
Servo Sold Separately
Vehicle Type On-Road VW Bus Van
Top Speed Depends on Gearing and Battery
Battery Type 7.2V NiMH or 2S LiPo (Sold Separately) (battery)
LiPo Compatibility Yes (2S LiPo Compatible ESC) (battery)
Drive Type Rear Drive RR Layout
Shock Type Friction Dampers
Body Polycarbonate with Molded Plastic Detail Parts
Wheel Hex Size 12mm Hex
Battery Tray Longitudinally Mounted
Motor Class 540
Final Drive Ratio Adjustable Gear Ratio
Roll Out N/A
Radio 2-Channel Radio Required
Assembly Time 3 to 5 Hours
Scale 1/10
Motor Type Brushed Motor
Power System 2S/7.2V Capable Brushed System
Chassis M-06 ABS Plastic
Tire Tread/Hub Size Front 60D Radial / Rear 60D Super Grip
Recommended Battery 7.2V NiMH Pack or 2S LiPo
Pinion Included
Internal Gear Ratio Standard M-06 Internal Ratio
Oil Type Friction
Receiver Sold Separately
Bearings Plastic Bushings
Terrain Use On-Road
Model HighlightsDesigned For Realism And Smooth Handling

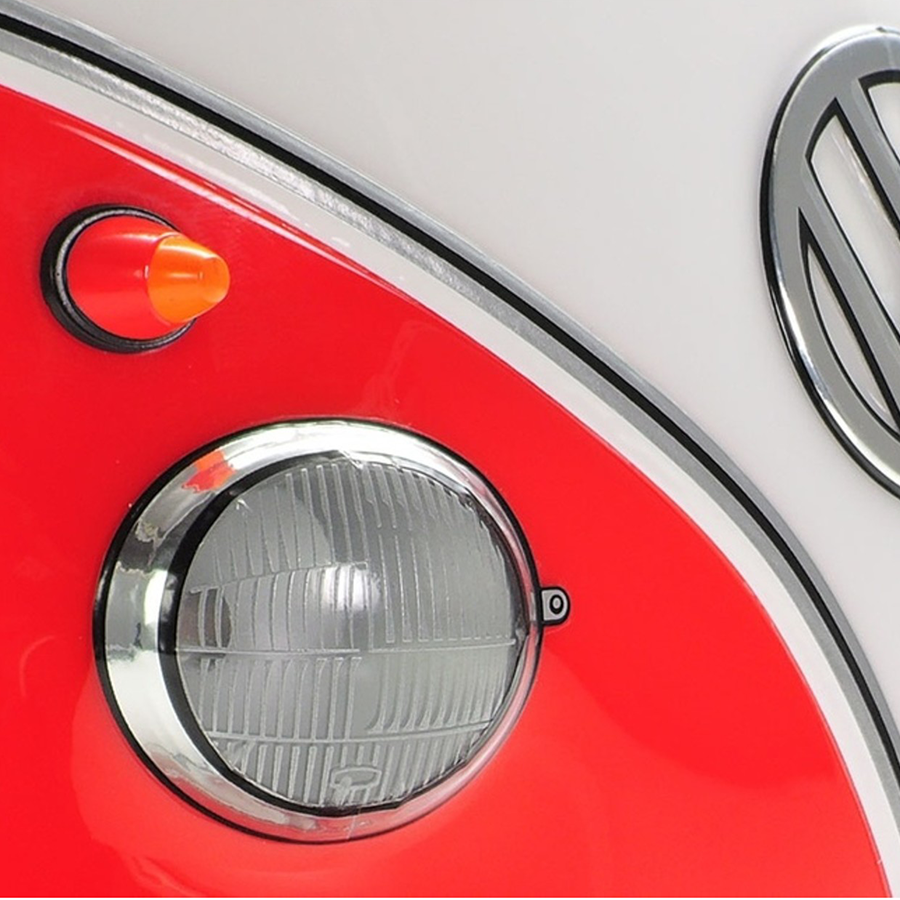

Scale BodyPolycarbonate VW Bus T1 body with separate molded light cases, bumpers, and side mirrors

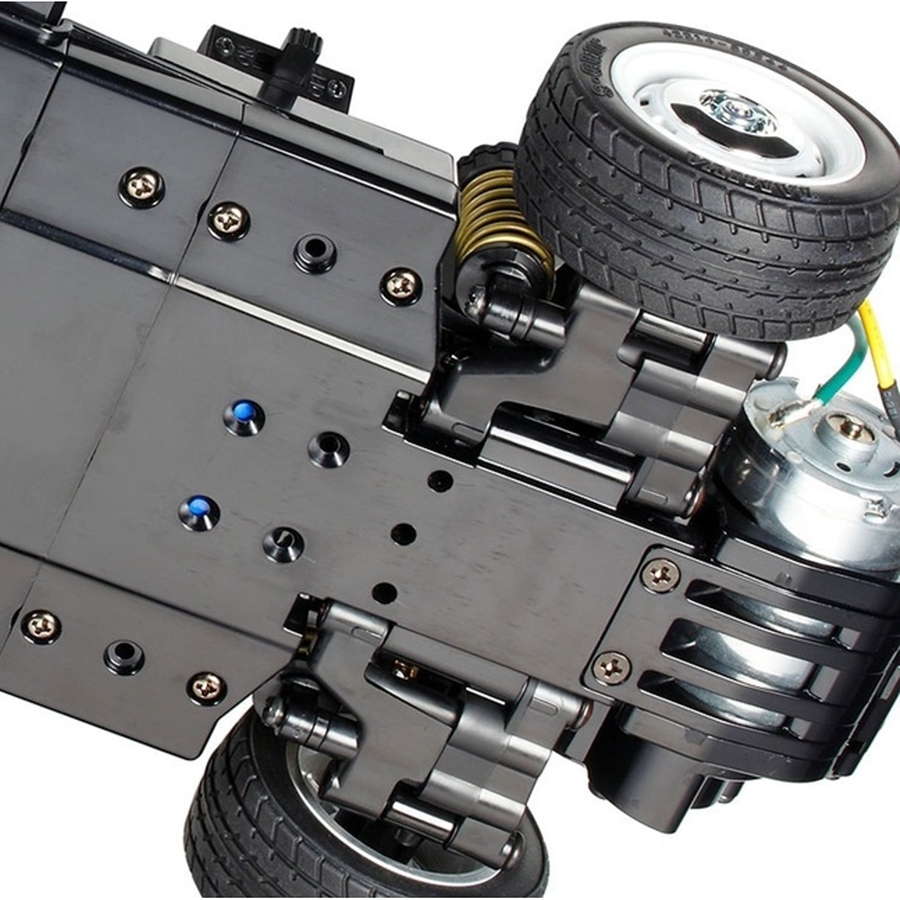

Chassis LayoutM-06 rear-engine RWD configuration with longitudinal battery pack for optimal balance
Extended Wheelbase239mm M-06L chassis specification
Suspension Setup4-wheel double wishbone independent suspension with friction shocks

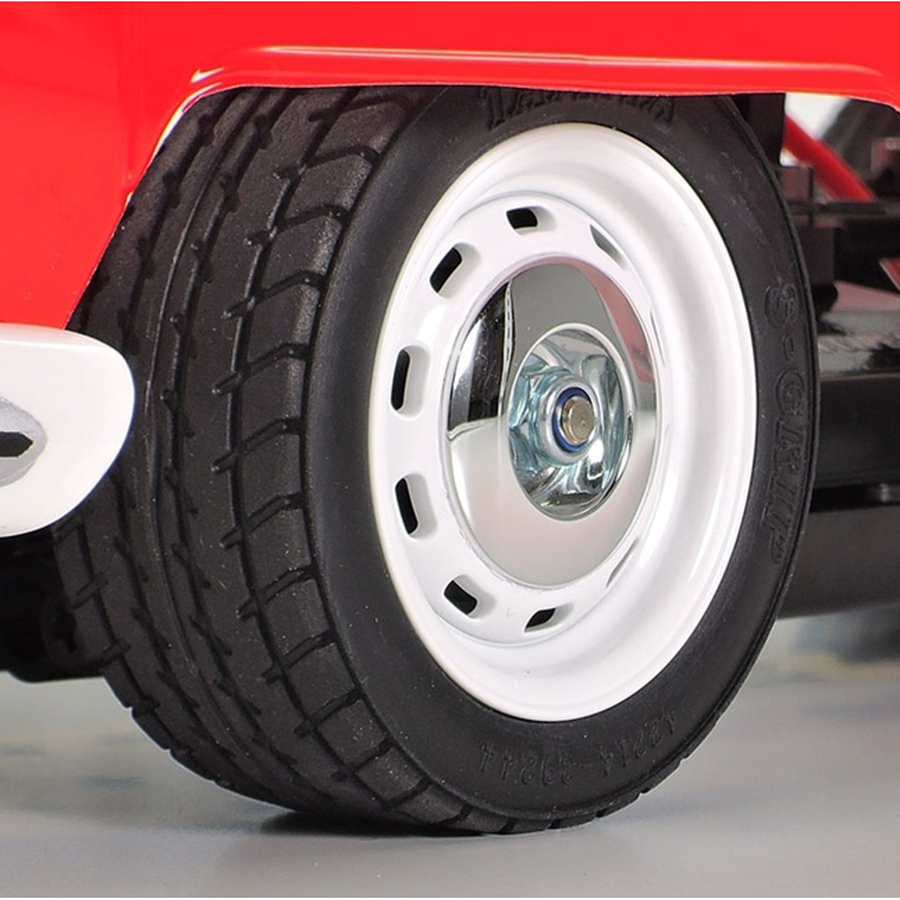

Tire ConfigurationFront 60D radial tires and rear 60D super grip tires on plated dish wheels
Electronic Speed ControlIncludes HobbyWing THW 1060 brushed ESC (2-3S LiPo ready) (cpu)

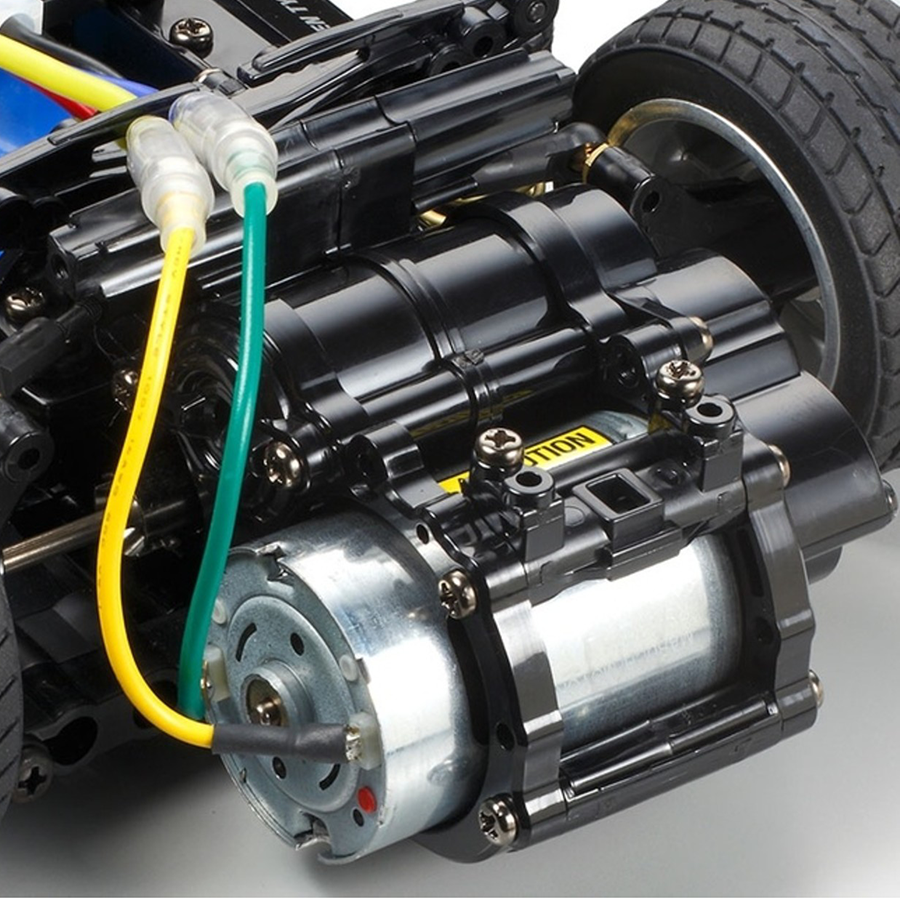

Brushed MotorSupplied with a standard 540-type brushed motor
Steering System3-piece steering linkage for nimble and accurate turning response
Frequently Asked QuestionsEverything you need to know
What is required to complete the Tamiya 1/10 Volkswagen Bus Type 2 T1 with HobbyWing ESC, M-06 Chassis?

To complete this model kit, you will need a 2-channel transmitter and receiver, a standard steering servo, a 7.2V NiMH or 2S LiPo battery pack, a compatible battery charger, and Tamiya PS paint for the clear body shell.

What scale is the Tamiya 1/10 Volkswagen Bus Type 2 T1 with HobbyWing ESC, M-06 Chassis?

This vehicle is a 1/10 scale RC car designed for on-road driving on smooth pavement or indoor track surfaces.

Does the Tamiya 1/10 Volkswagen Bus Type 2 T1 with HobbyWing ESC, M-06 Chassis come pre-assembled?

No, this is an assembly kit that requires full assembly, painting, and installation of electronics prior to operation.

Is an electronic speed controller included with the Tamiya 1/10 Volkswagen Bus Type 2 T1 with HobbyWing ESC, M-06 Chassis?

Yes, this package includes a HobbyWing THW 1060 brushed electronic speed control (ESC) along with a 540-type brushed motor.
