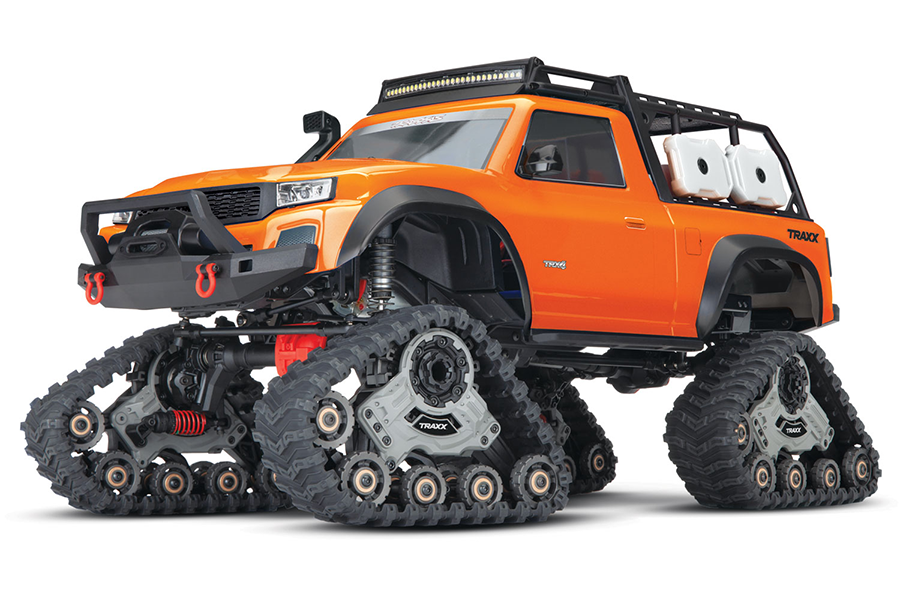

Traxxas 1/10 TRX-4 with Traxx, Orange

Overview:

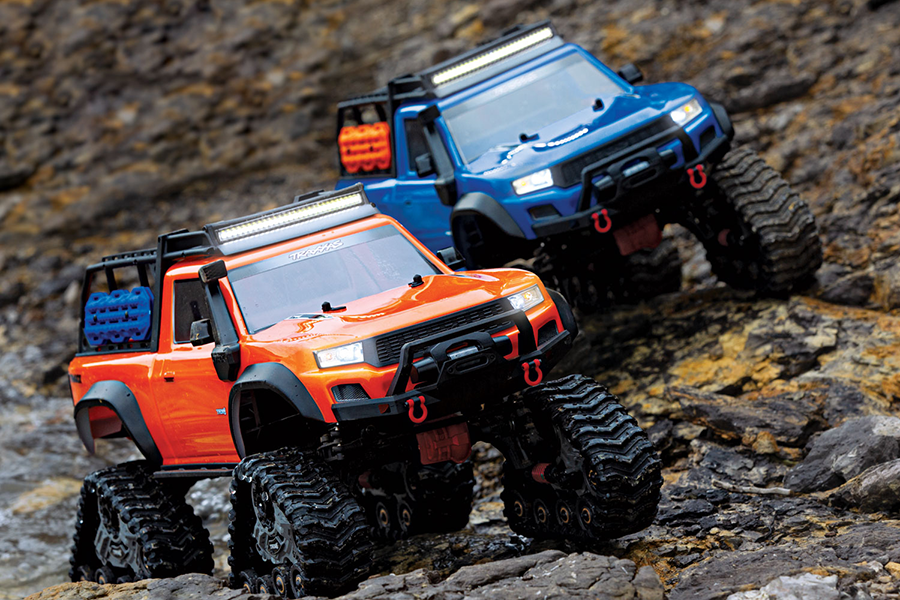

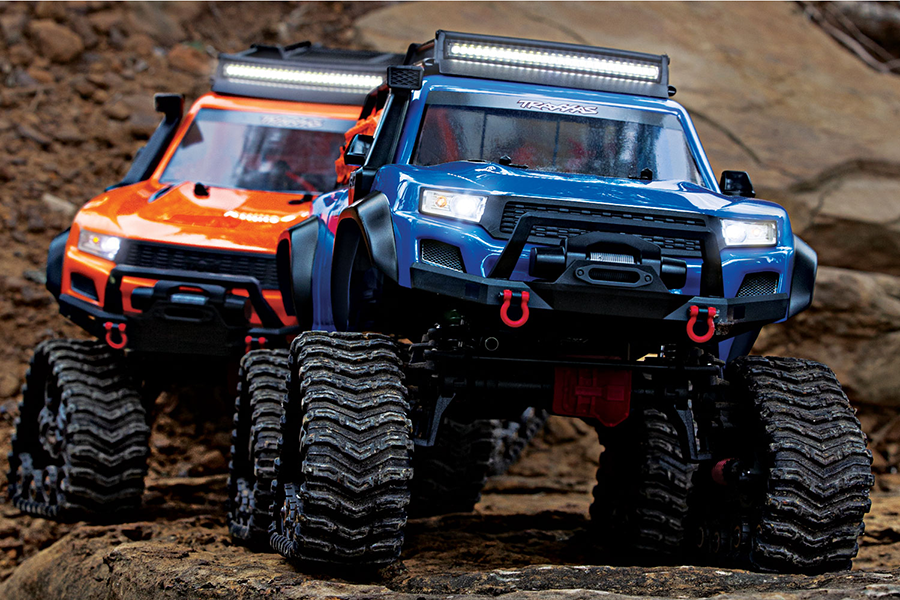

Hit the trail fully outfitted for fun and adventure with the TRX-4 equipped with Traxx™. Engineered for grip everywhere and ultimate off-road capability, Traxxas elevates this truck higher and wider than any other TRX-4 model.





Features:
  • Tough, Lightweight Clipless Pickup Truck Body
    • Clipless body mounting
    • Low profile bumpers for increased clearance
    • Red differential covers and D-rings
    • Clear windows
  • Scale Accessories
    • Rugged Expedition Rack with detailed accessories
    • Tough inner fenders
    • Injection-molded snorkel, side mirrors, and grilles

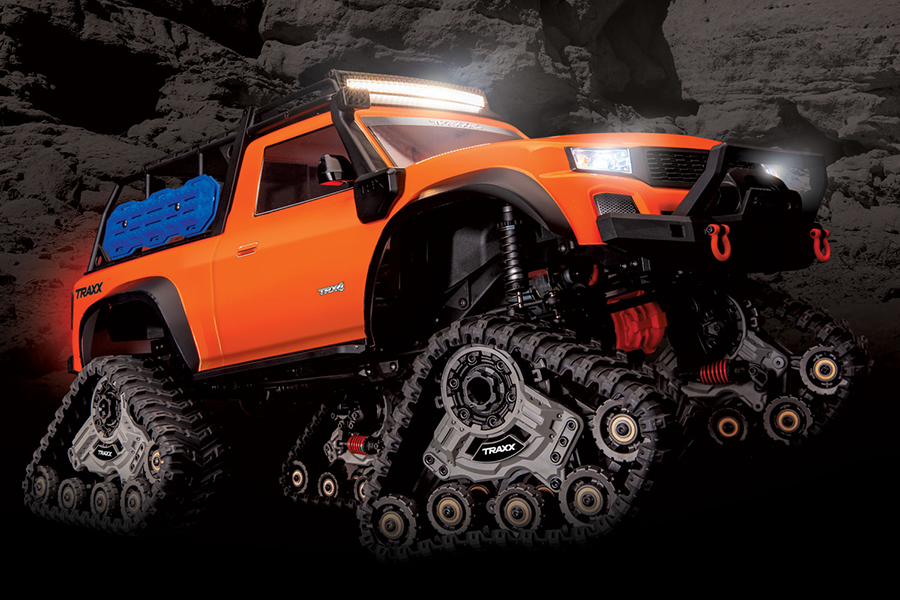

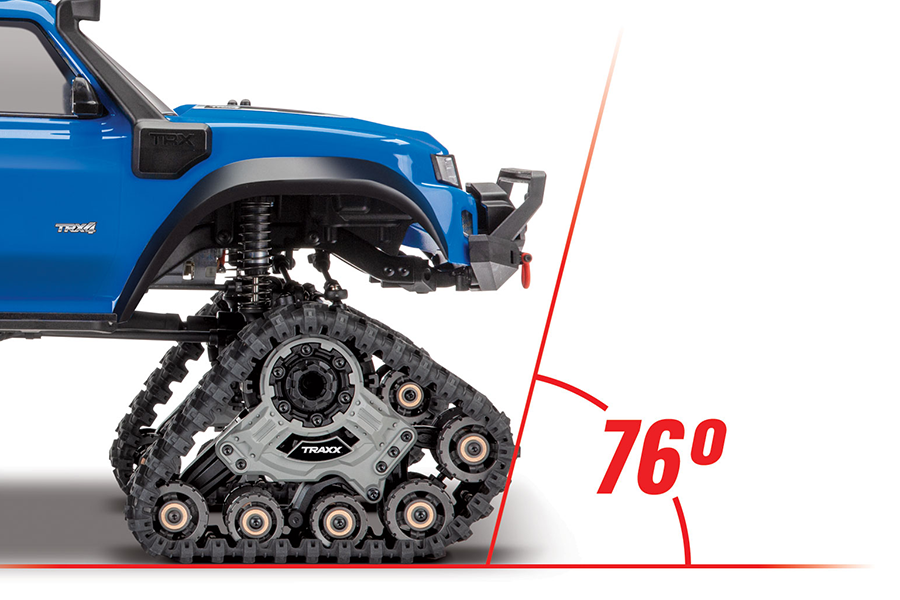

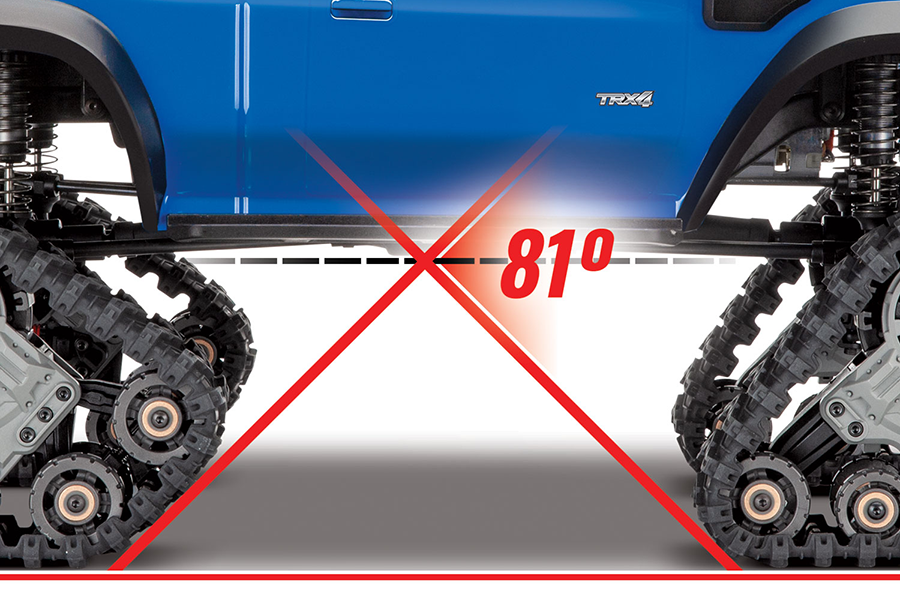

  • All-Terrain Traxx
    • Virtually unstoppable traction on practically any terrain
    • Oil-filled coilover dampers to control rotational movement
    • Suspended road wheels allow treads to conform to irregular surfaces
    • Specially designed one-piece rubber treads resist de-tracking

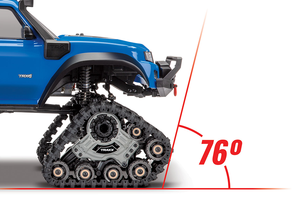

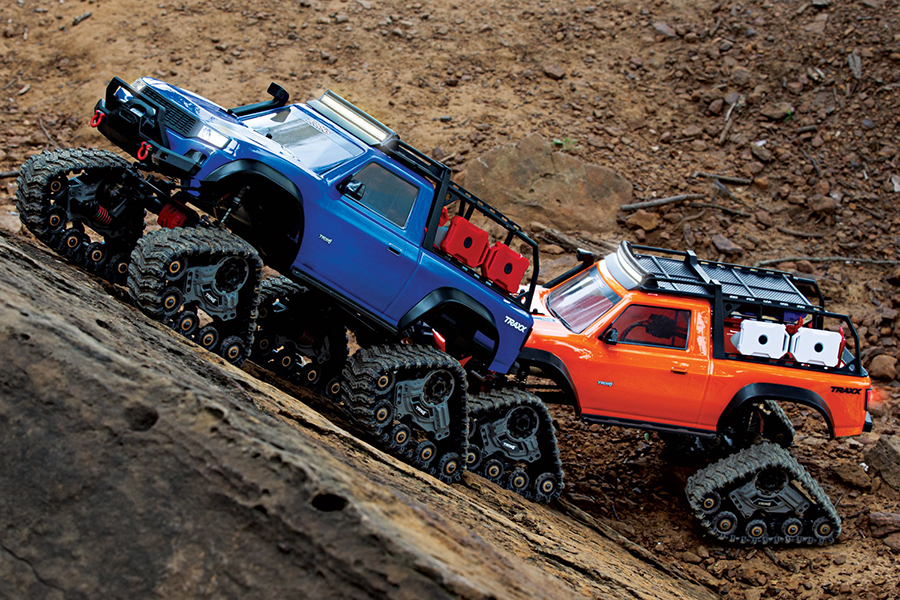

    • Longer rear Traxx drive units for steep climbing stability
    • Designed for all-weather fun
      • Sealed bearings on drive wheels
      • Low-maintenance self-lubricating bushings on guide wheels

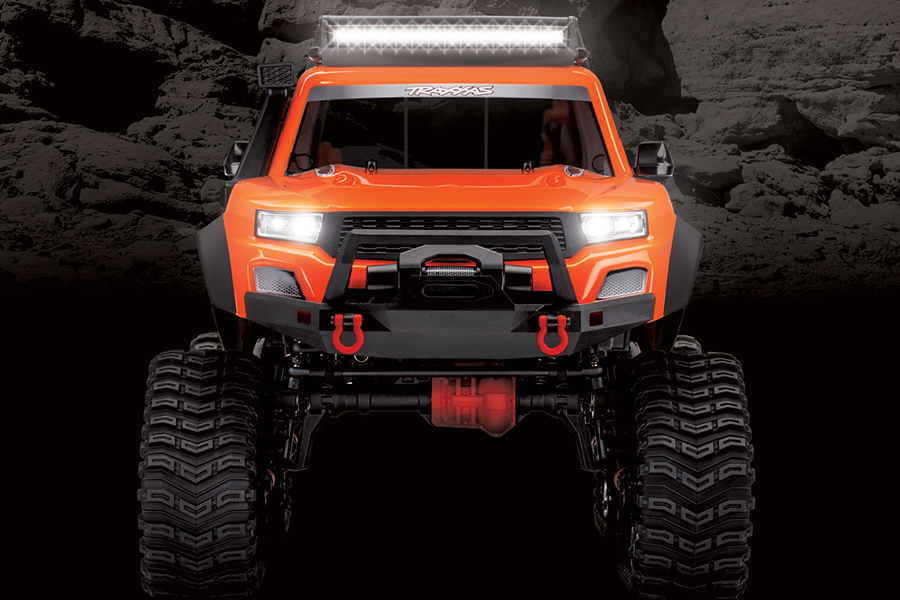

  • LED Light Kit
    • Sealed waterproof design
    • Color-coded power distribution block for easy and secure connections
    • Traxxas LED lighting module
      • Regulated to provide consistent and reliable power output
      • Eliminates overheating, glitching, and other electronics issues

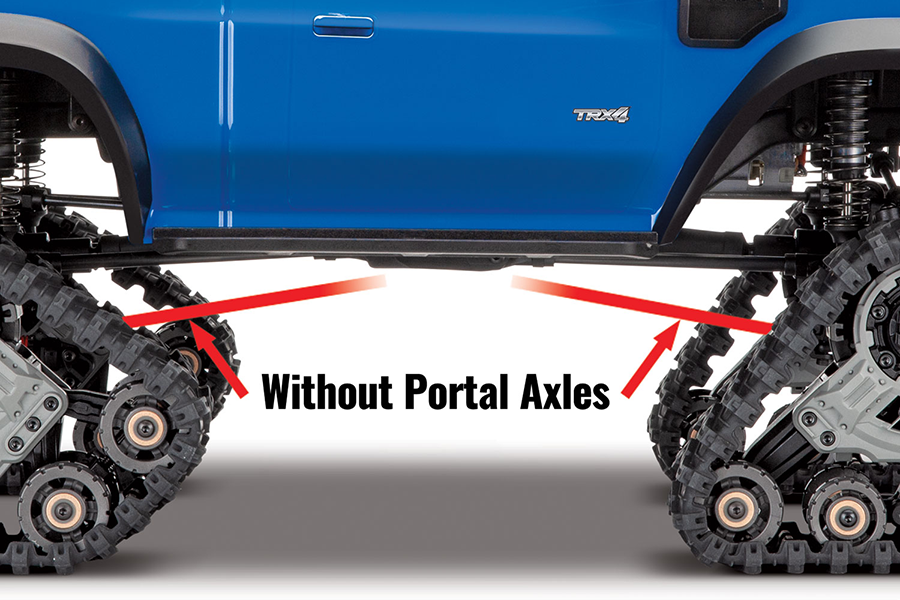

  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts
  • Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
    • Fully waterproof design
    • Five drive profiles
      • Sport Mode — forward / brake / reverse
      • Race Mode — forward / brake / no reverse
      • Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
      • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set® one-button setup
    • Large, efficient heat sink
    • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
    • Two stage low voltage protection (LVD)
  • Motor
    • Powerful Titan™ 21T reverse rotation motor with internal cooling fan
    • Precise preset gear mesh adjustments
    • Motor retention separate from gear mesh

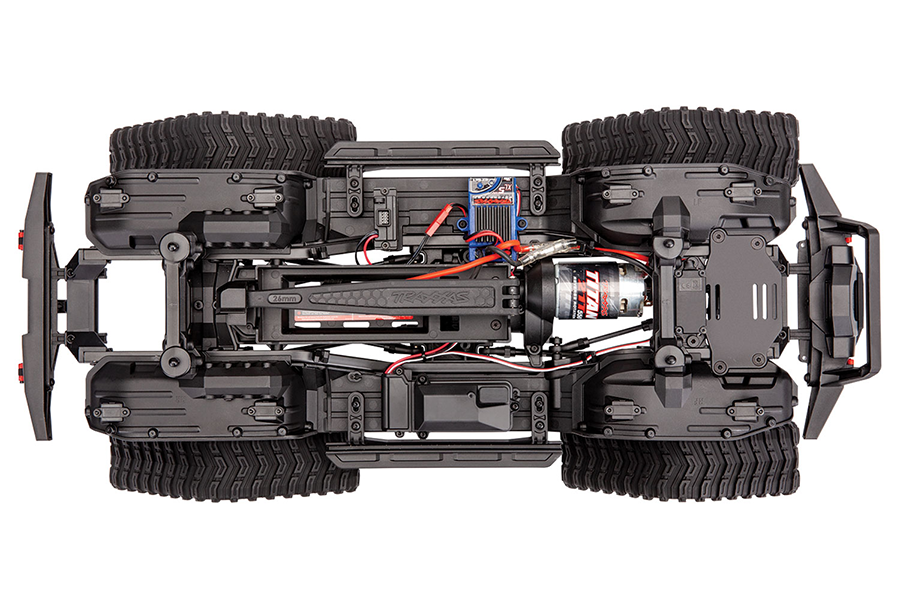

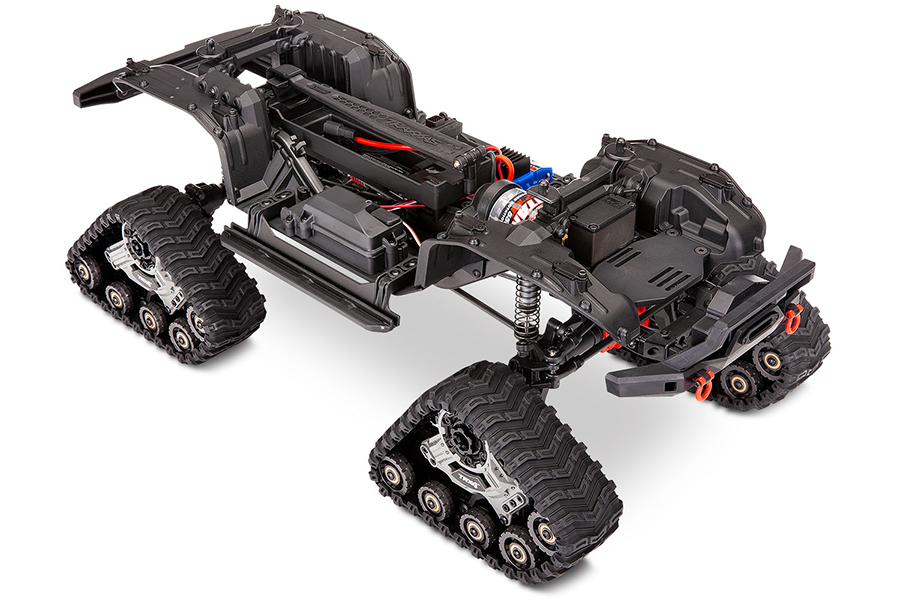

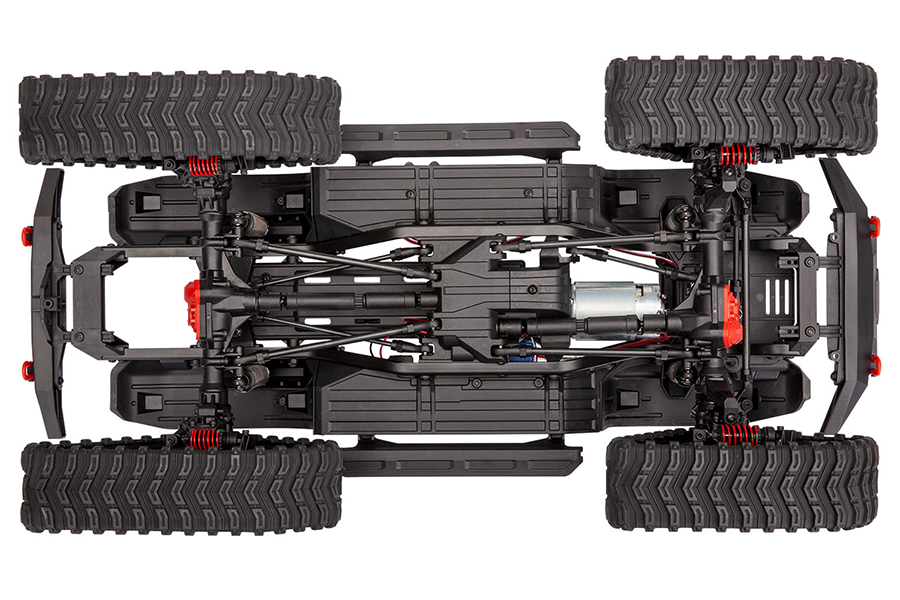

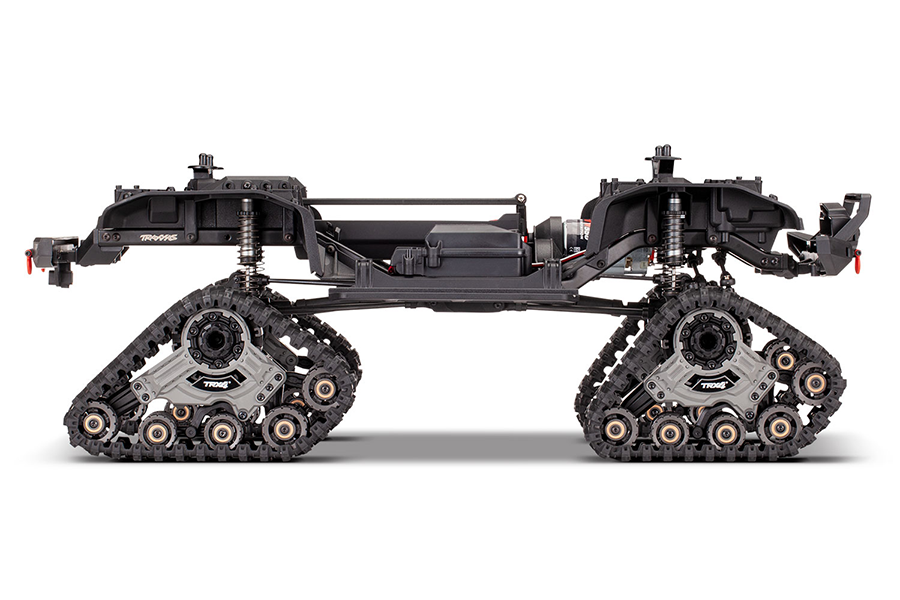

  • Rigid Steel Frame
    • 1.5mm thick steel frame rails increase torsional rigidity
    • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
    • Adjustable rear shock tower positions for SWB and LWB configurations
    • Bumpers adjust fore and aft
    • Rugged rock rails adjust for width
    • Wire routing clips integrated into frame rails
  • Drivetrain
    • Full-time shaft driven 4-wheel drive
    • Tough 6mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Spool-locked front and rear differentials
    • Steel gear transfer case
  • Innovative Battery Compartment
    • Hinged battery strap allows quick and easy battery access
    • No pins to lose
    • Accommodates different height batteries
    • Accepts full-size long battery packs
    • Secondary forward battery tray accepts smaller 1/16 scale batteries (with optional strap)
  • Transmission
    • Single-speed with steel gears
    • Dual horizontal shafts
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Chassis mounted 2270 high torque digital servo
      • 236 oz-in torque
      • Waterproof case
      • Full metal gears
    • Superior 45° steering angle
    • Direct steering (no servo saver)
    • Steering geometry corrected for bump steer
  • Suspension
    • Front — 3 link with panhard
    • Rear — triangulated 4 link
    • Heavy-duty rod ends with steel hollow balls
    • 5mm diameter steel link rods with 4mm threaded ends
  • Aluminum GTS Shocks
    • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
    • Silver-anodized aluminum bodies
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
  • TQ™ 2.4GHz 2-channel transmitter
  • Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
  • Sealed Ball Bearings
  • Hex Hardware with Rust-Resistant Black Oxide Coating

Truck


Model Name: TRX-4 Traxx
Model Type: Trail / Crawler
Model Skill Level: 1
Scale: 1/10
Weight: 8.71 pounds (3.95 kg)
Length: 21.93 inches (557 mm)
Front Track: 10.48 inches (266 mm)
Rear Track: 10.48 inches (266 mm)
Height: 10.29 inches (261 mm)
Wheelbase: 12.28 inches (312 mm)
Center Ground Clearance: 3.54 inches (90 mm)
Drivetrain: Shaft-driven 4WD
Transmission: Single speed
Differential Type: Spool (no differential)
Gear Pitch: 32 pitch
Servo(s): Waterproof 2270 high torque, metal gear
Radio System: TQ™ 2.4 GHz 2-channel transmitter
Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm


Motor


Motor Name: Titan® 550 21T Reverse Rotation
Motor Type: High-torque brushed motor
Motor Weight: 8.47 ounces (240 g)
Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter: 1.53 inches (39 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: Bullet


ESC


ESC Name: XL-5™ HV
ESC Type: Brushed
ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight: 2.6 ounces (74 g)
Motor Connectors: Bullet
Battery Connectors: Traxxas High-Current Connector
ESC Power Wire: 14 gauge
