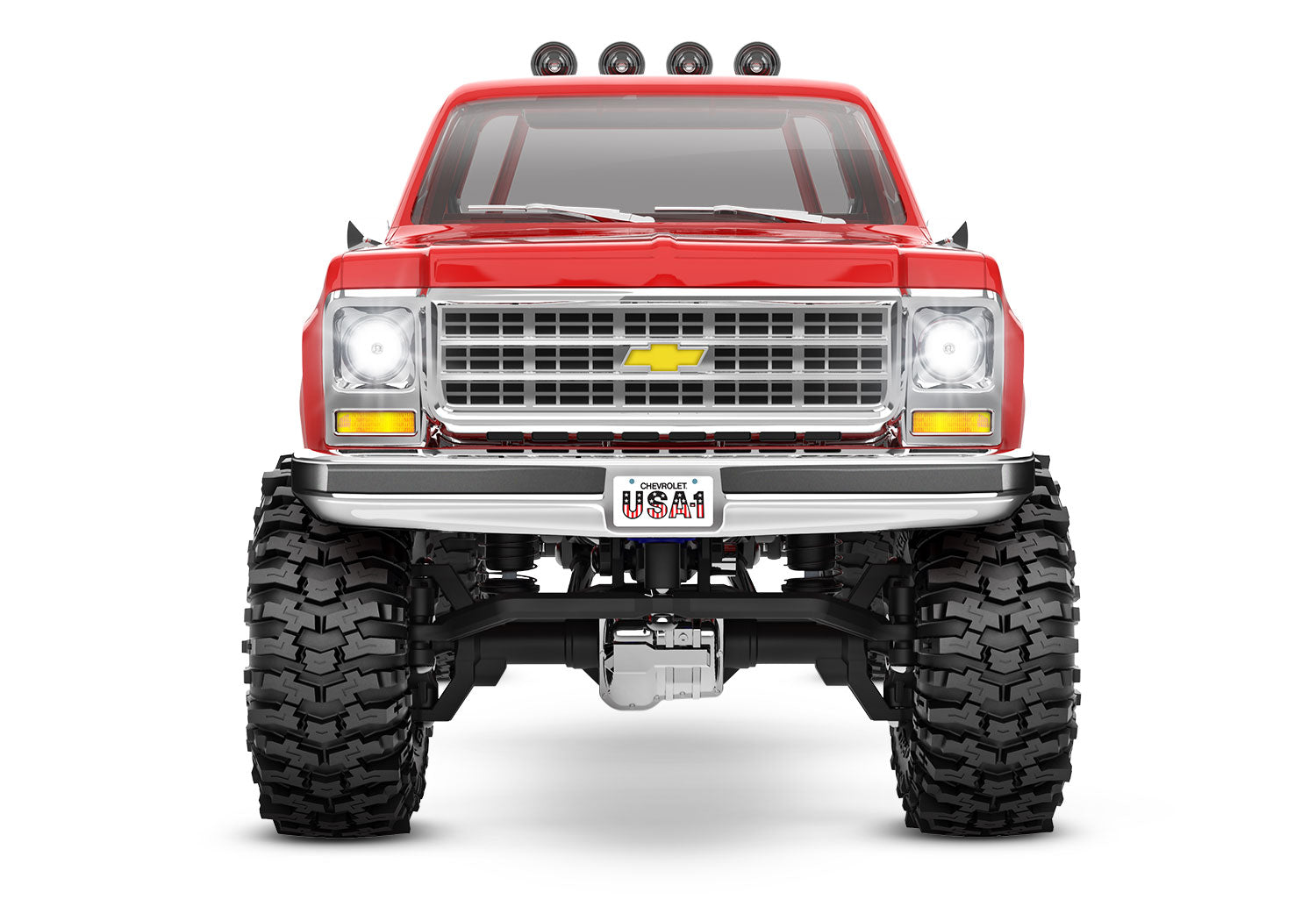

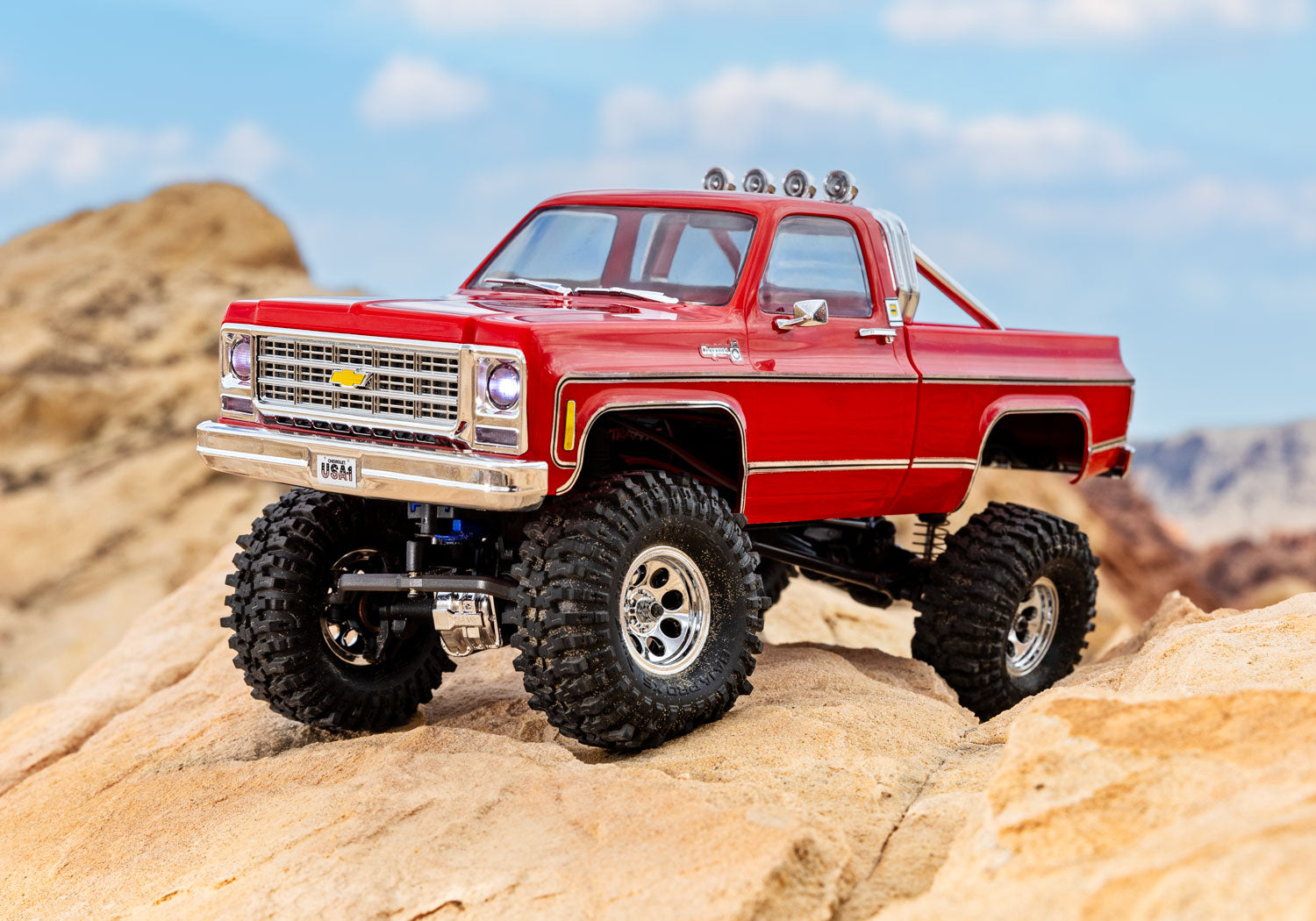

Traxxas 1/18 TRX-4M Chevrolet K10 High Trail: Red (97064-1_RED)
$199.95
Skip to product information
Low StockIn Stock
Traxxas 1/18 TRX-4M Chevrolet K10 High Trail: Red (97064-1_RED)
$199.95
In Stock
Arrives
This item ships free.
Pick up today in Cumming, usually ready in 2 hours.
1/18 Scale
Compact Small Scale Adventure
Ready To Run
Includes Battery and Charger

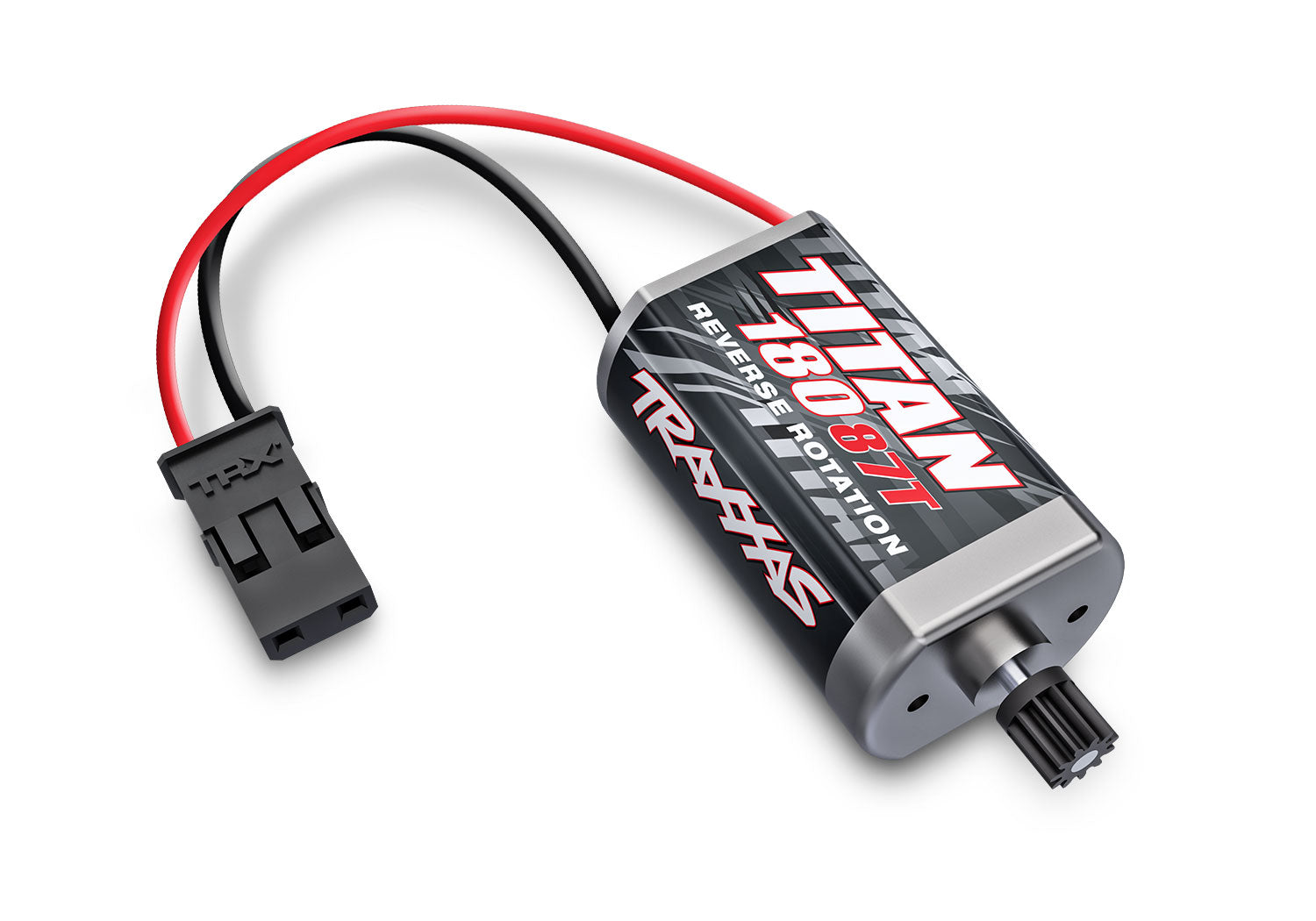

Titan 180 Motor
High Torque 87T Power
Lifted 4WD
Thirty Five Percent Clearance
GTM Shocks
Smooth Oil Filled Performance
Clipless Body
Detailed Chevrolet K10 Scale
Miniature Trail DominatorBig Performance in Small Scale

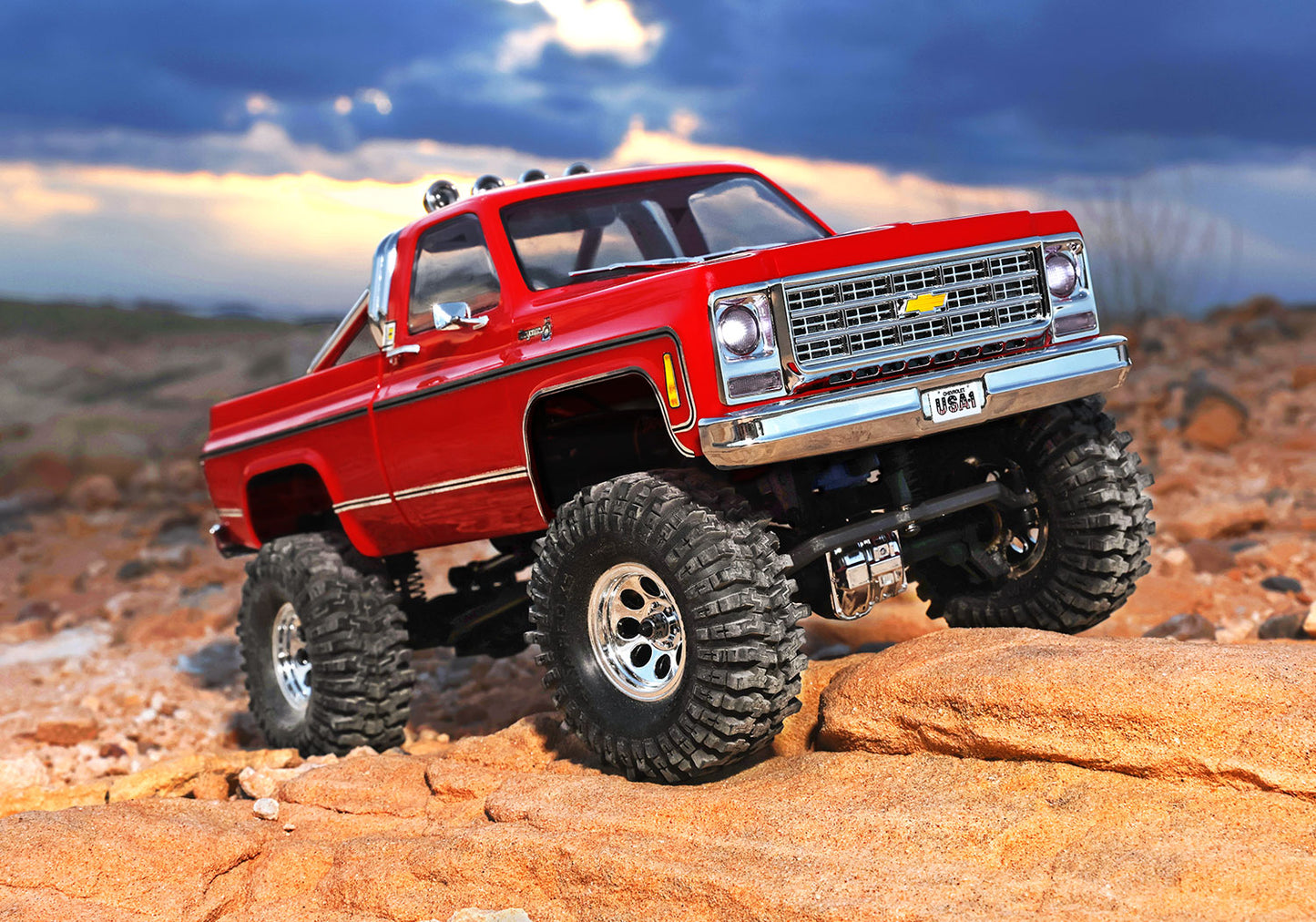

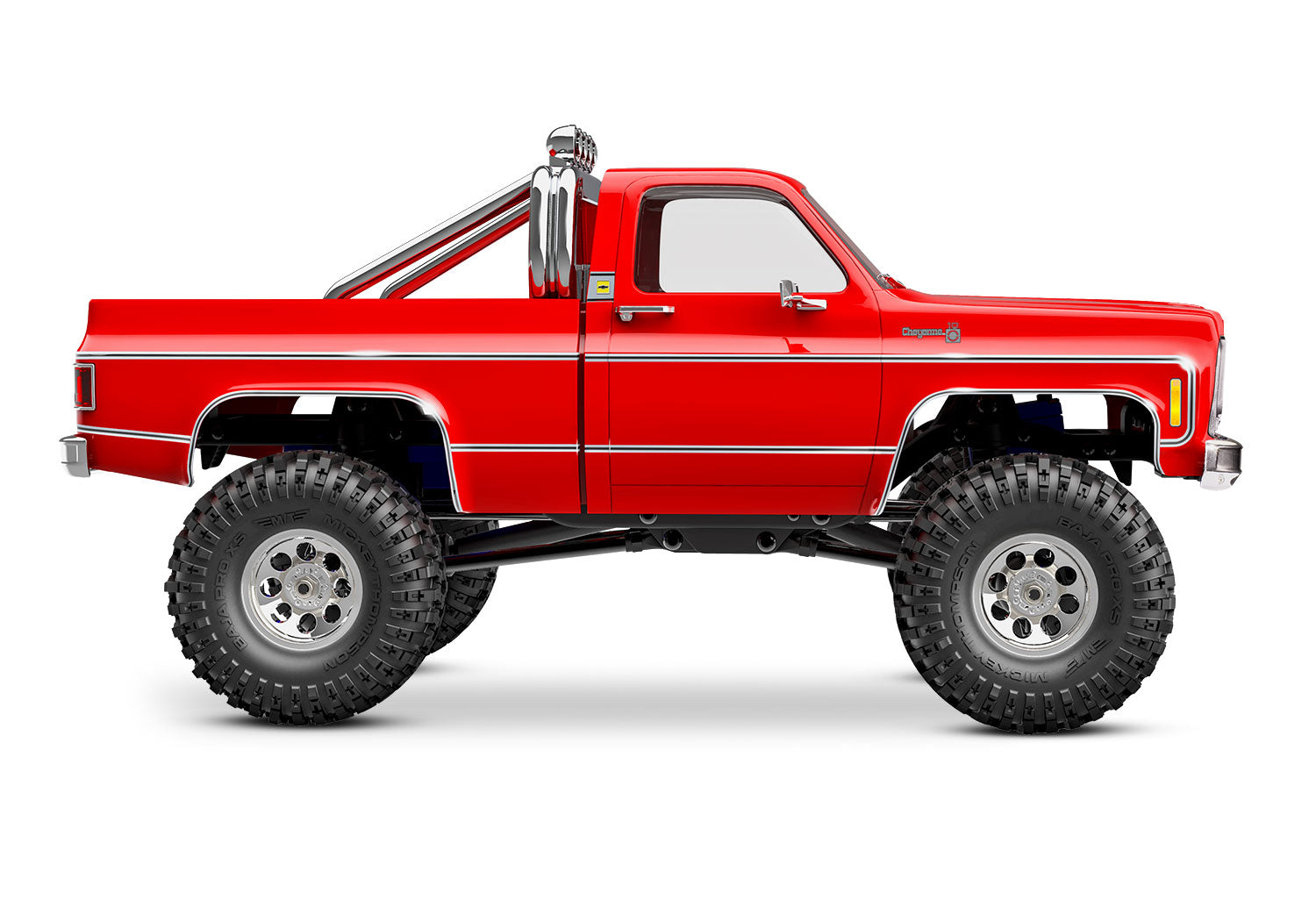

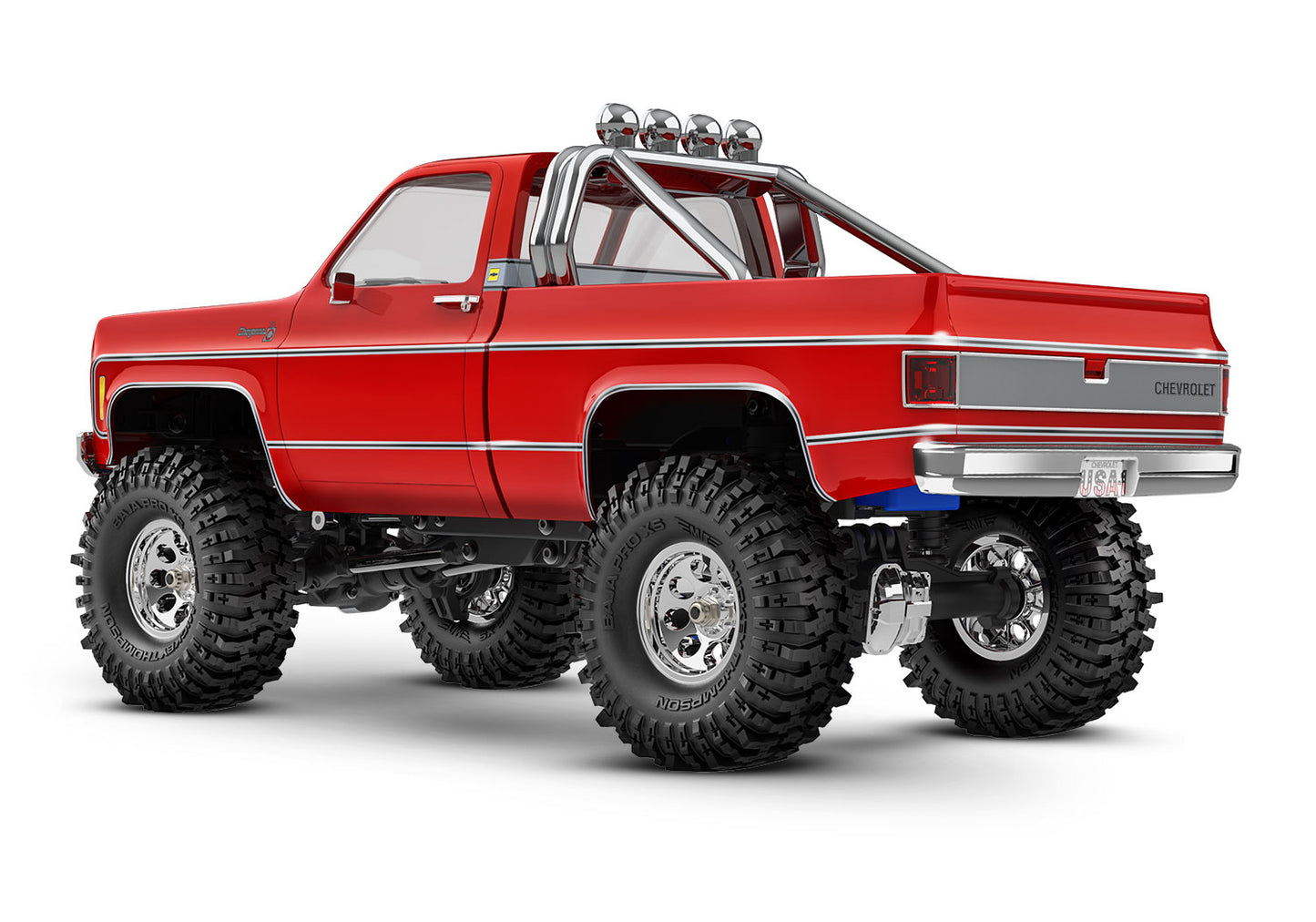

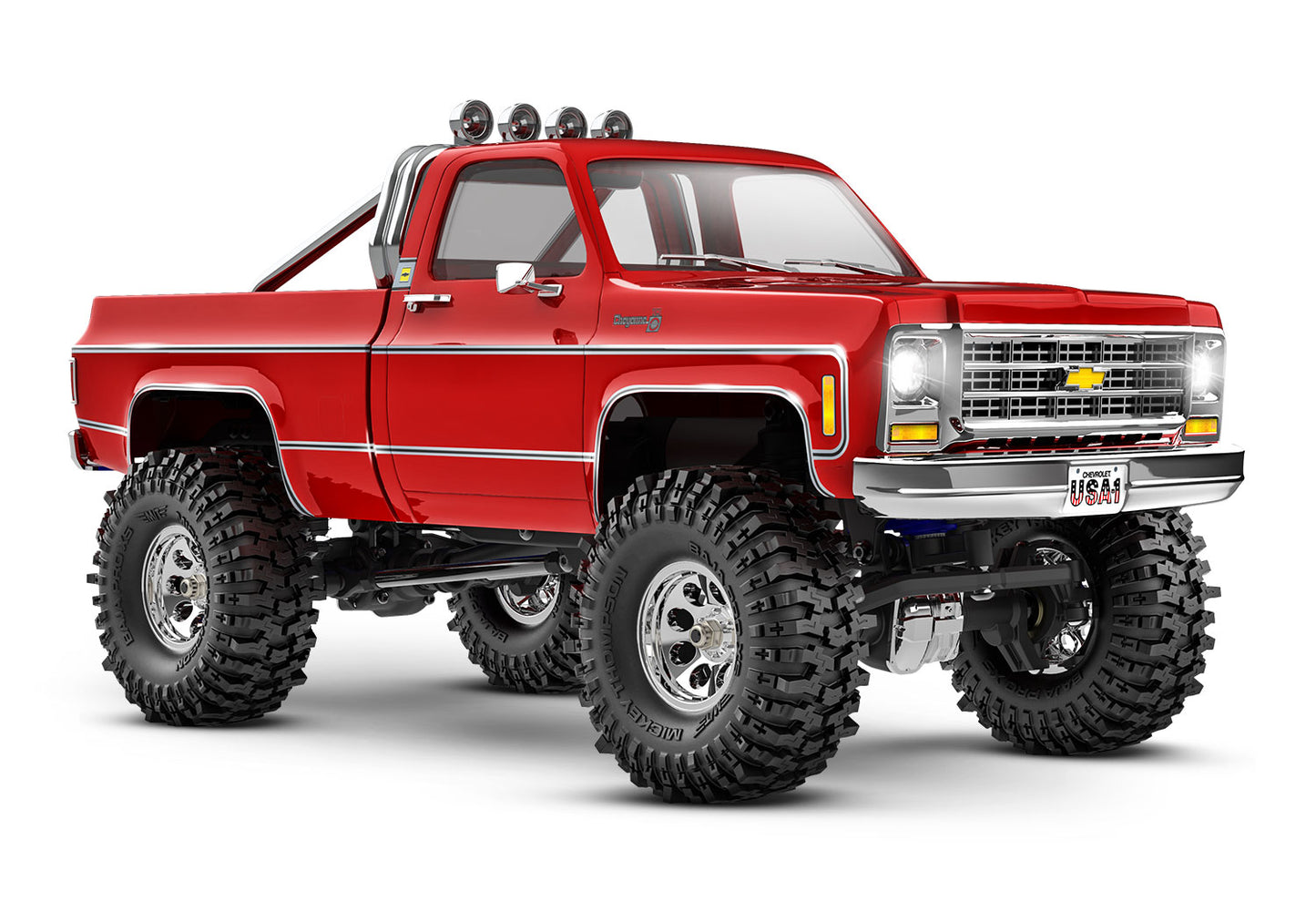

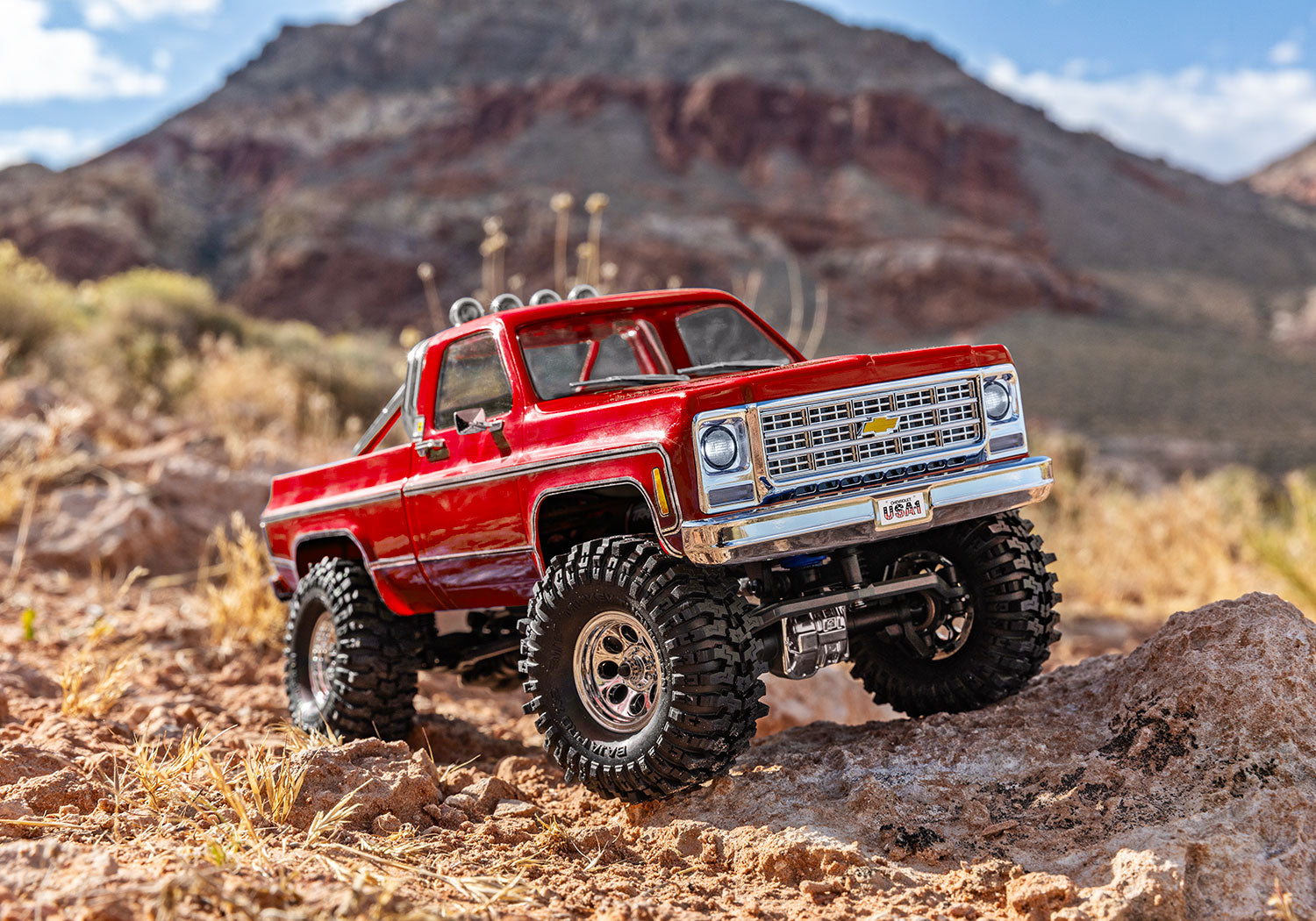

The Traxxas TRX-4M Chevrolet K10 High Trail Edition brings authentic 1/18 scale RC crawler adventure to any terrain. Featuring a factory-installed Long Arm Lift Kit, oversized tires, and an extended wheelbase, this 4WD micro truck delivers unmatched off-road capability in a compact package. Perfect for indoor trailing or outdoor trail adventures, it comes fully assembled and ready to run right out of the box.
Engineered For Peak PerformanceUncompromising Scale Detail and Capability

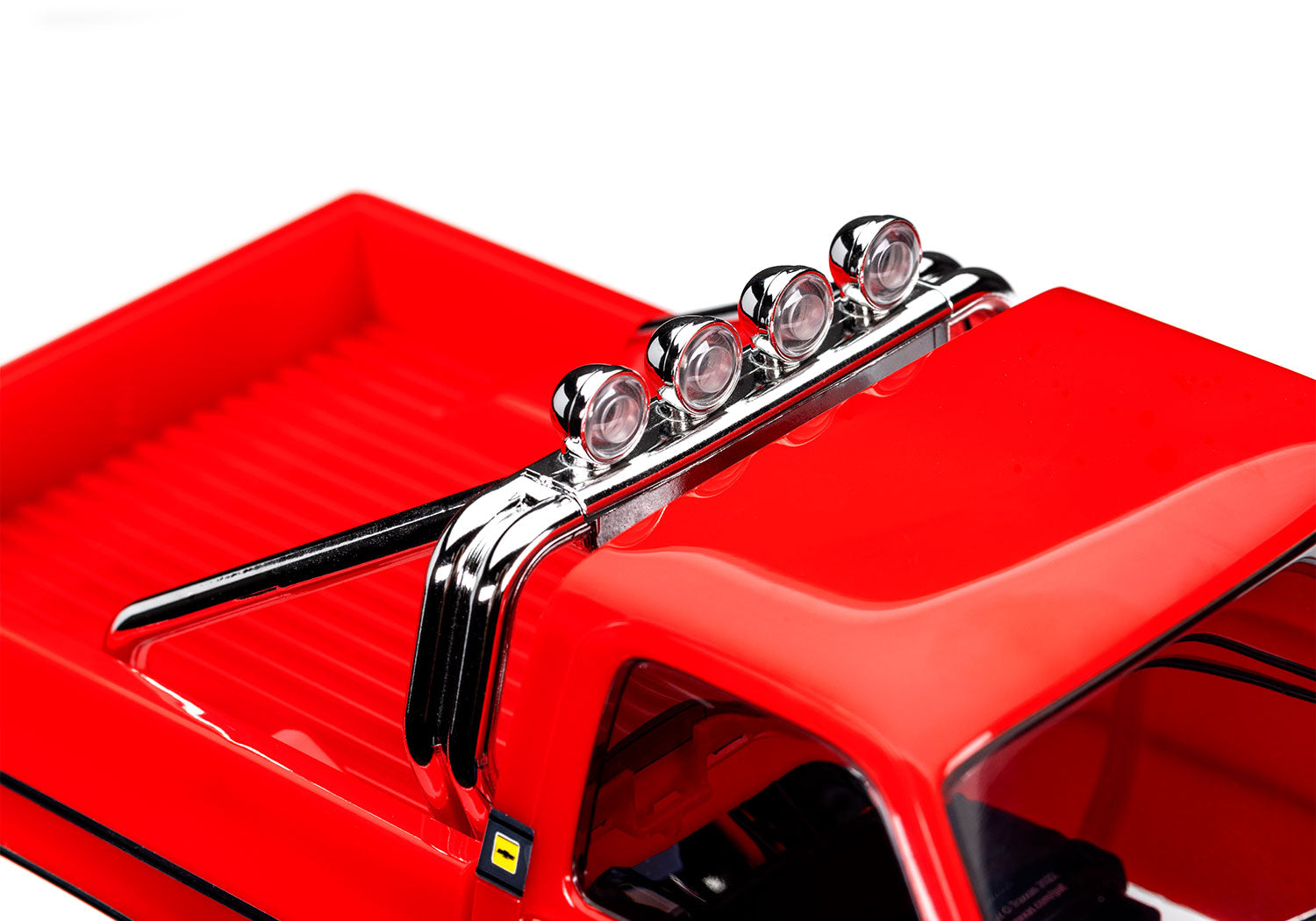

Built to conquer technical obstacles, the Traxxas TRX-4M Chevrolet K10 High Trail Edition features a factory lift kit that raises center ground clearance by 35% alongside sticky 2.4-inch Mickey Thompson Baja Pro XS tires. The extended steel C-channel frame rails expand the wheelbase to 162mm, maximizing climbing stability on steep inclines. Powered by a high-torque Titan 180 87T brushed motor and managed by the advanced ECM-2.5 control module, drivers can select between Sport, Trail, and Crawl modes to suit any driving condition. The highly detailed, clipless ABS hard body stays locked in place over rough obstacles while preserving realistic scale aesthetics like molded chrome trim, side mirrors, and classic 1.0-inch wheels.
Technical SpecificationsDetailed Breakdown of Truck Geometry
Completion Level
Ready-To-Run (RTR) (check)
Drivetrain

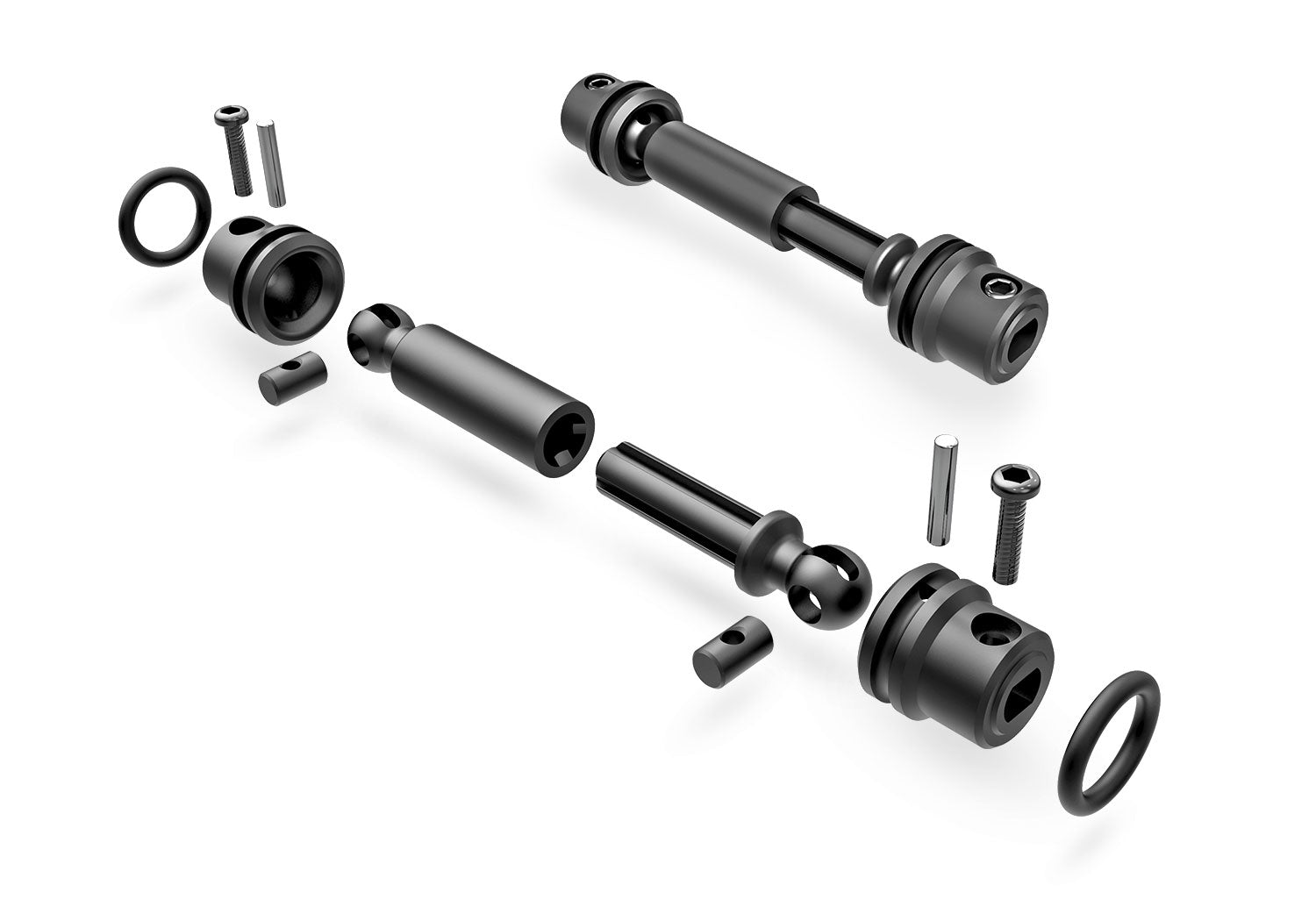

Shaft-Driven 4WD
Motor Size
Titan 180 87T Brushed Motor
Power Type
Electric
Differential
Fully Locked Spools
Vehicle Size
1/18 Scale
Product Width
5.0 in (127mm) (ruler)
Product Weight
1.03 lbs (468g) (weight)
Product Height
5.0 in (127mm) (ruler)
Charger

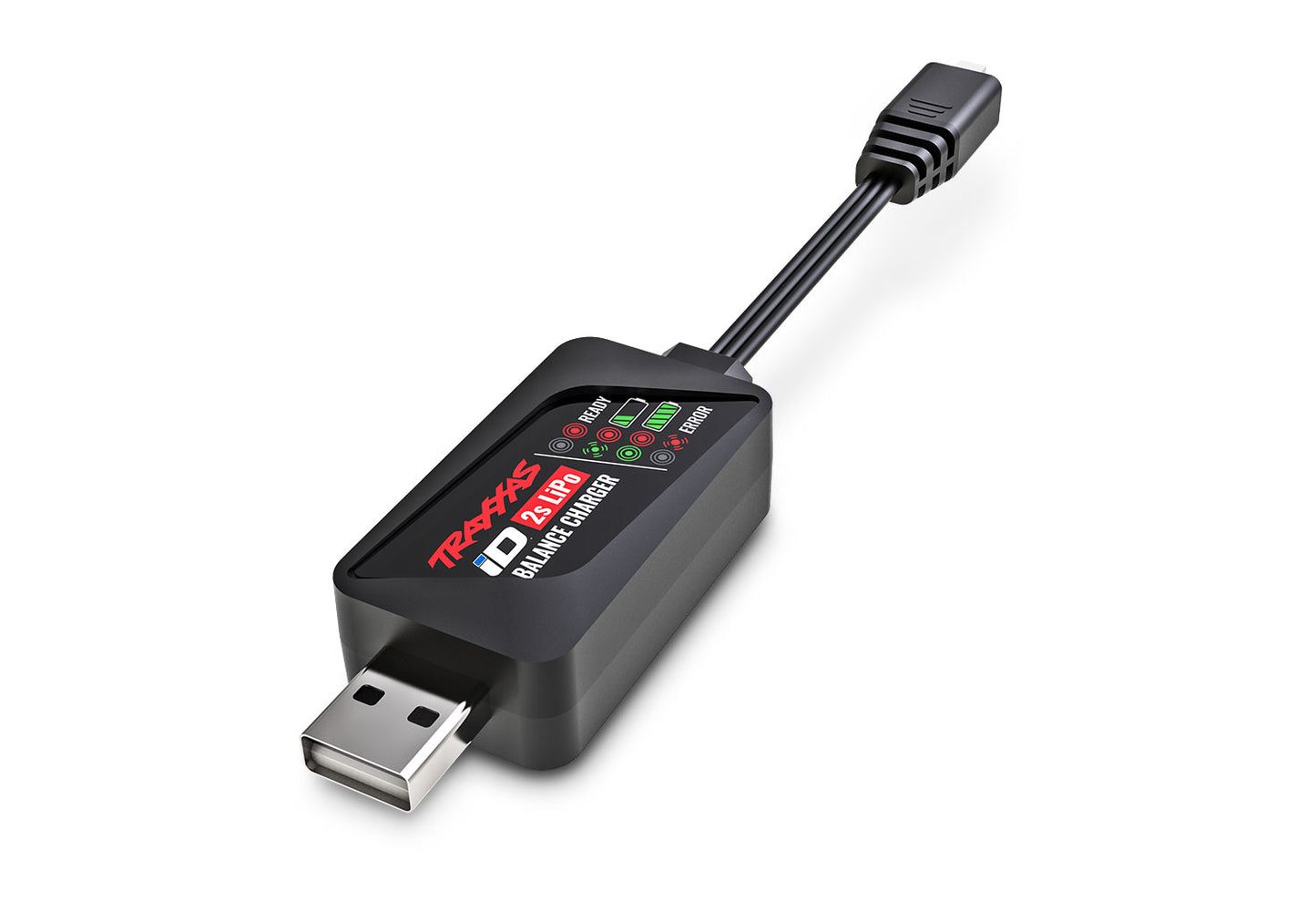

2-Amp USB Fast Charger with iD
Connector Type
Traxxas iD
Speed Control
ECM-2.5 Electronic Control Module
Servo

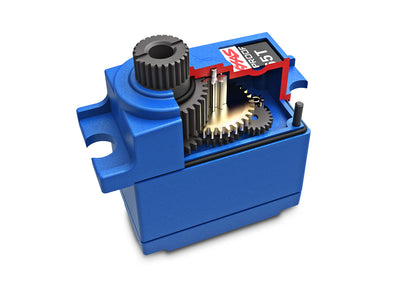

#2065T Heavy Duty Waterproof Servo
Vehicle Type
Scale Mini RC Crawler
Top Speed
Trail Speeds
Battery Type

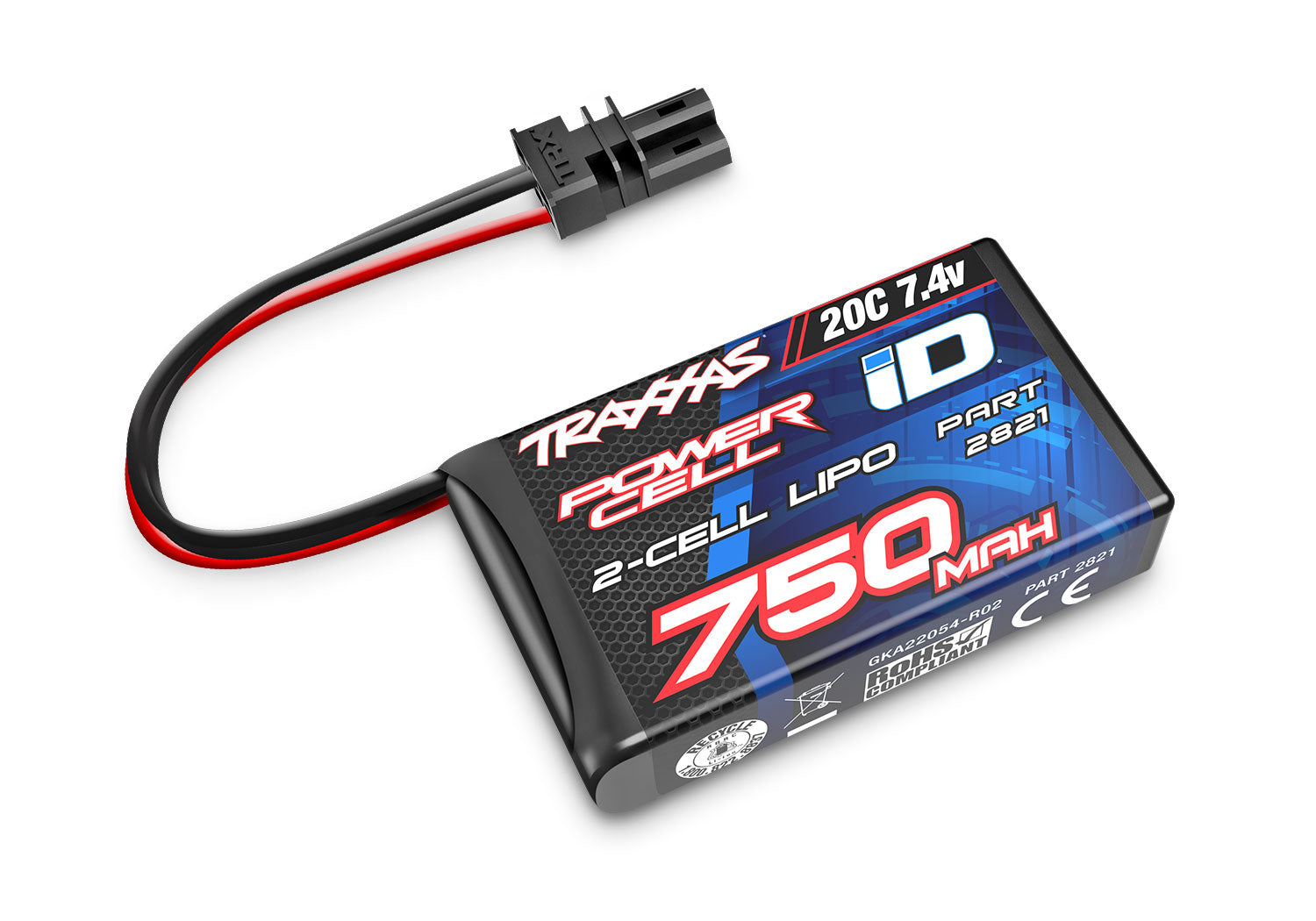

7.4V 750mAh 2S LiPo Battery
LiPo Compatibility
2S LiPo
Drive Type
Shaft Drive
Shock Type
Oil-Filled GTM Shocks
Body
Licensed ABS Hard Body
Wheel Hex Size
7mm
Battery Tray
50.5mm L x 31mm W
Radio
TQ 2.4GHz 2-Channel Transmitter
Assembly Time
None
Scale
1/18
Motor Type
High-Torque Brushed
Chassis

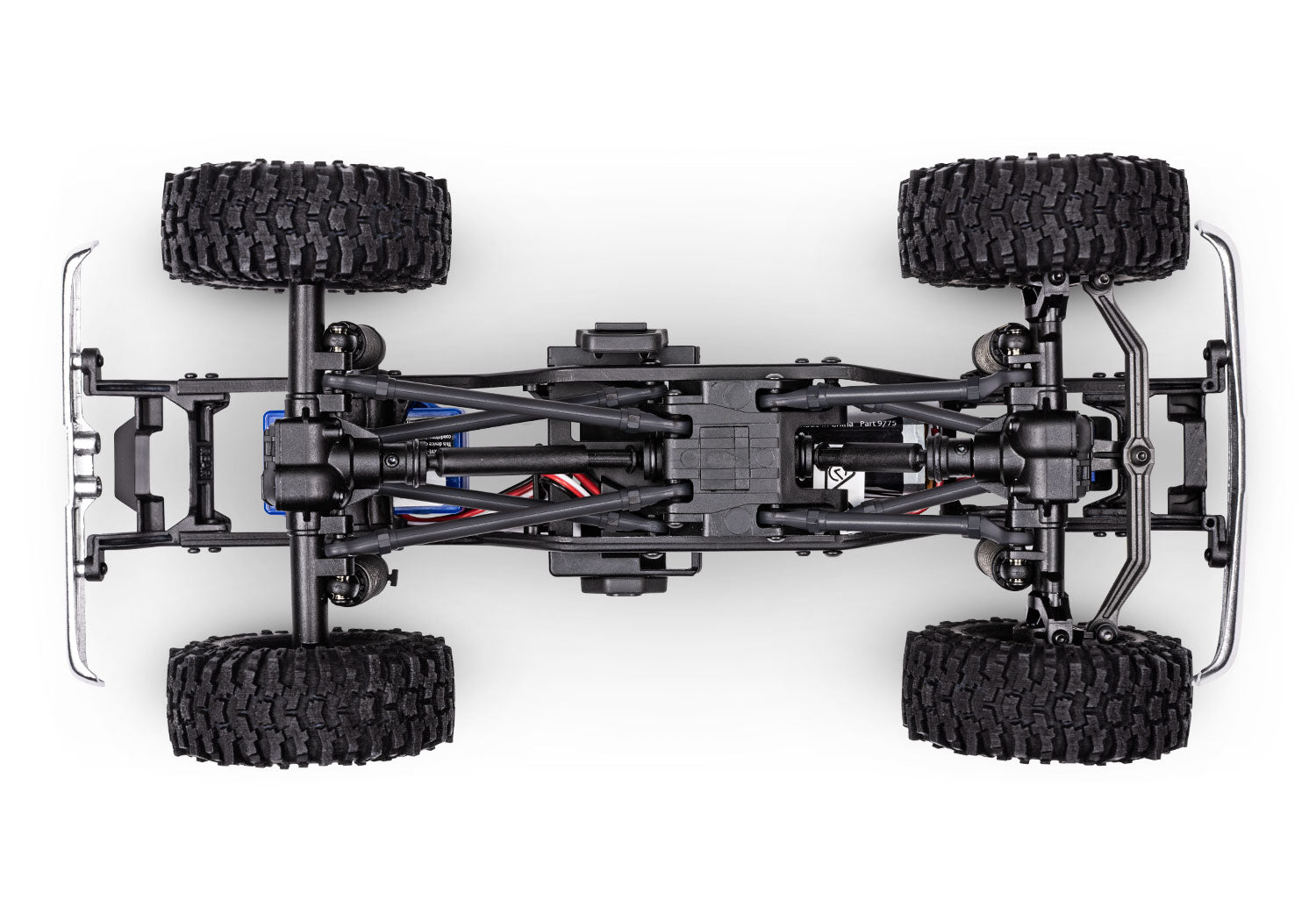

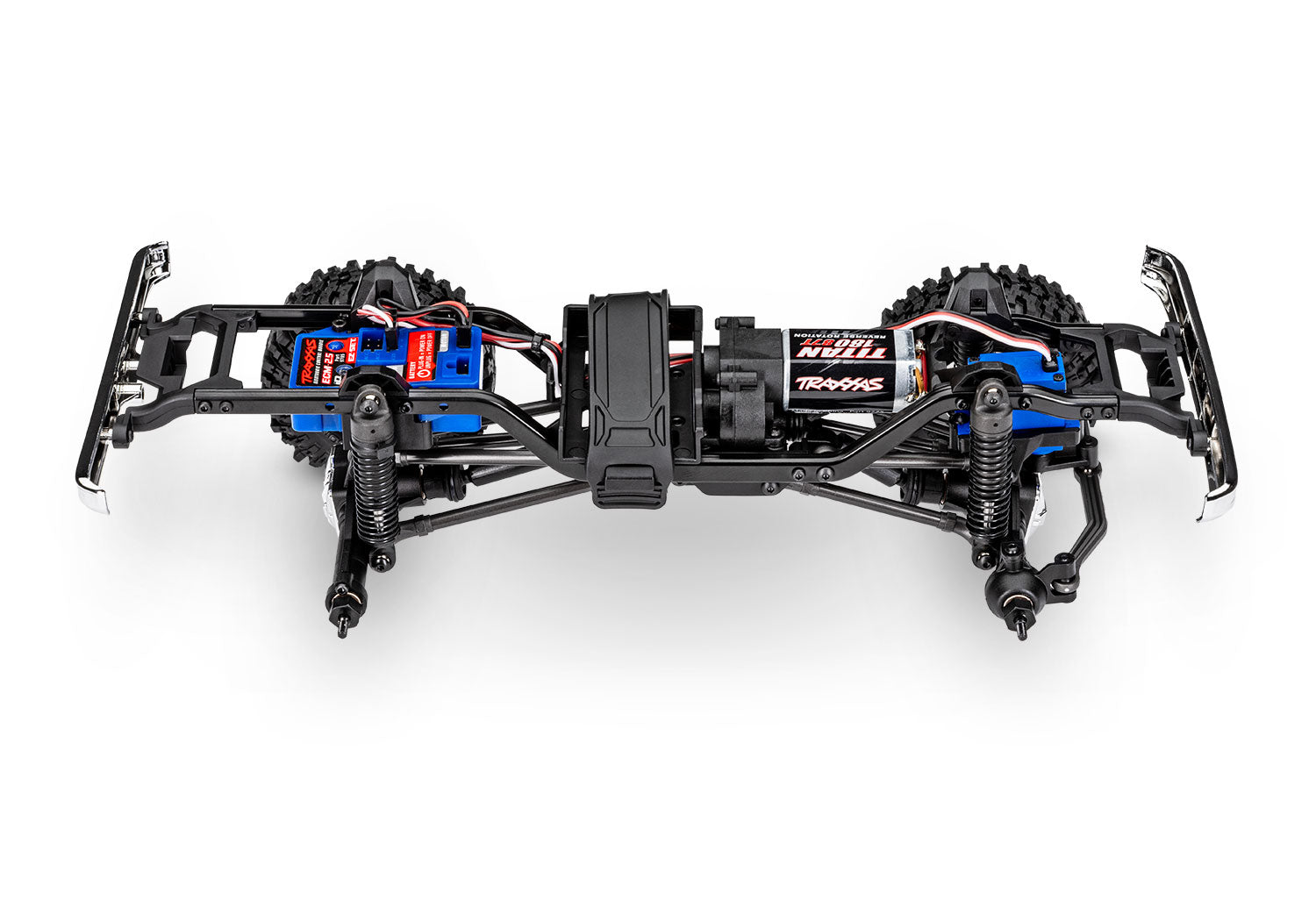

Steel C-Channel Frame Rails
Tire Tread
Mickey Thompson Baja Pro XS
Recommended Battery
Included 2S 750mAh LiPo
Wheelbase
6.38 in (162mm) (ruler)
Center Ground Clearance
1.57 in (40mm) (ruler)
Approach Angle
62°
Breakover Angle
51.5°
Departure Angle
52°
Key Trail FeaturesBuilt for Technical Terrain and Realism

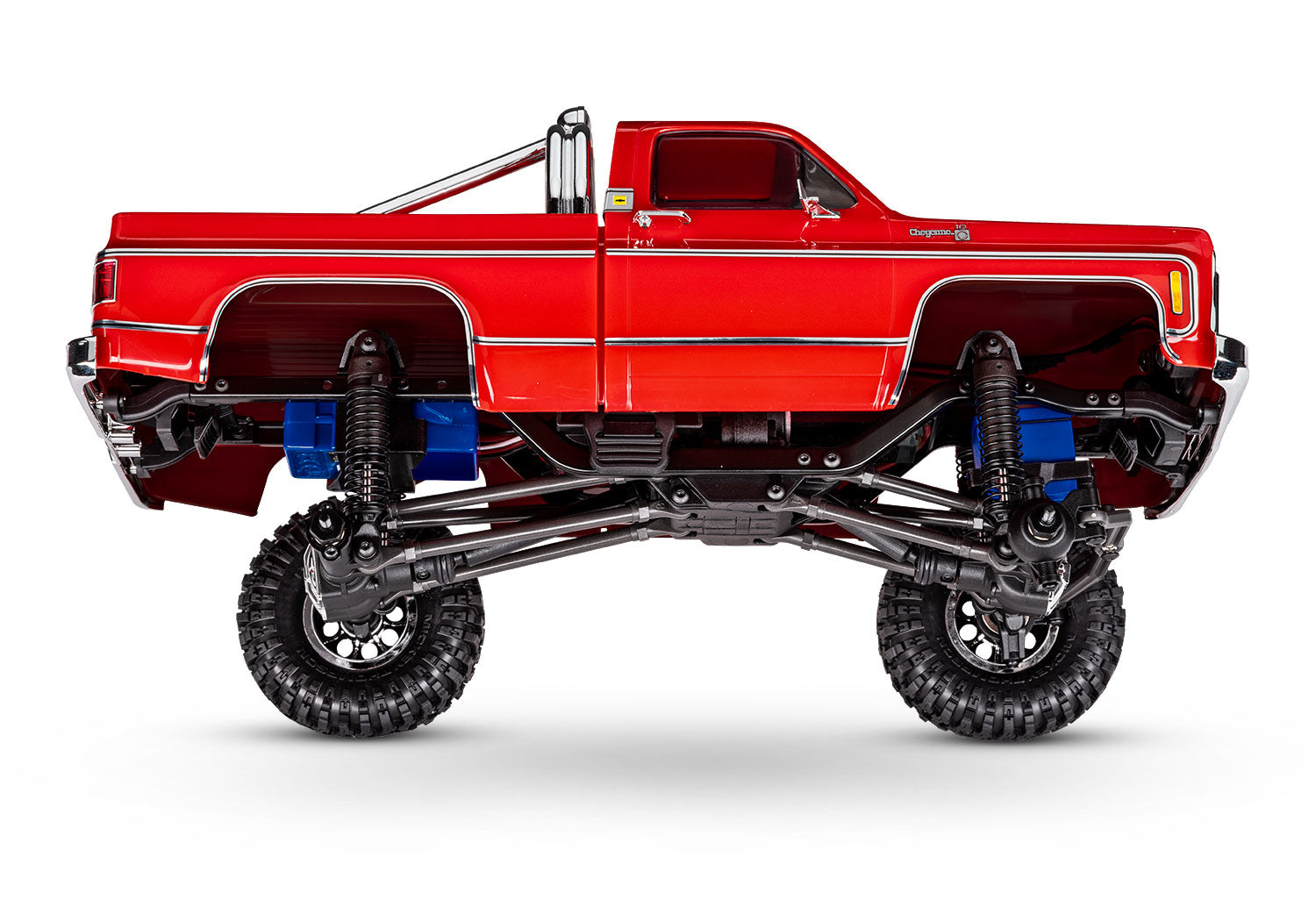

Factory Lift KitPreinstalled Long Arm Lift Kit for 35% higher ground clearance

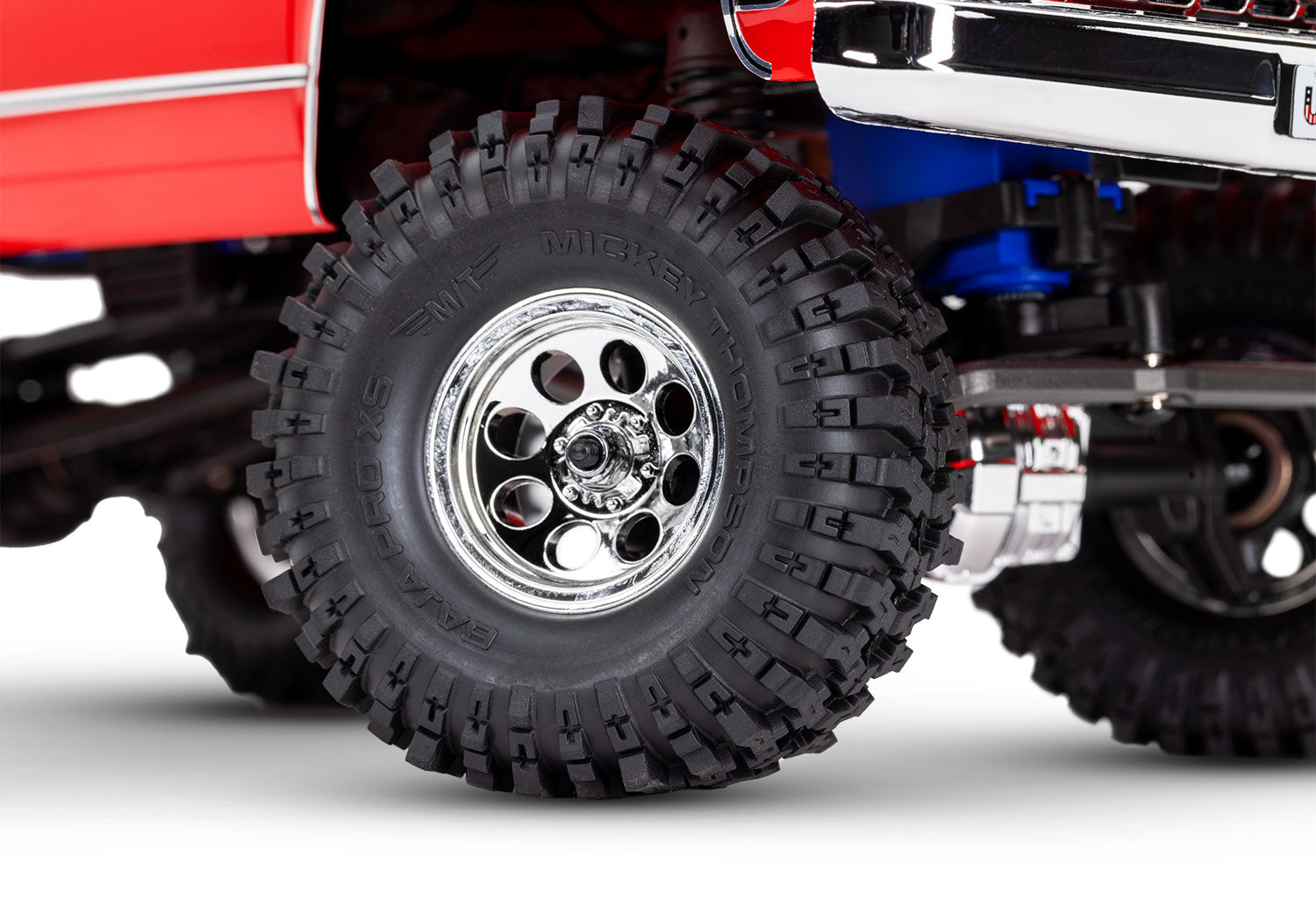

Oversized TiresLicensed 2.4-inch Mickey Thompson Baja Pro XS tires

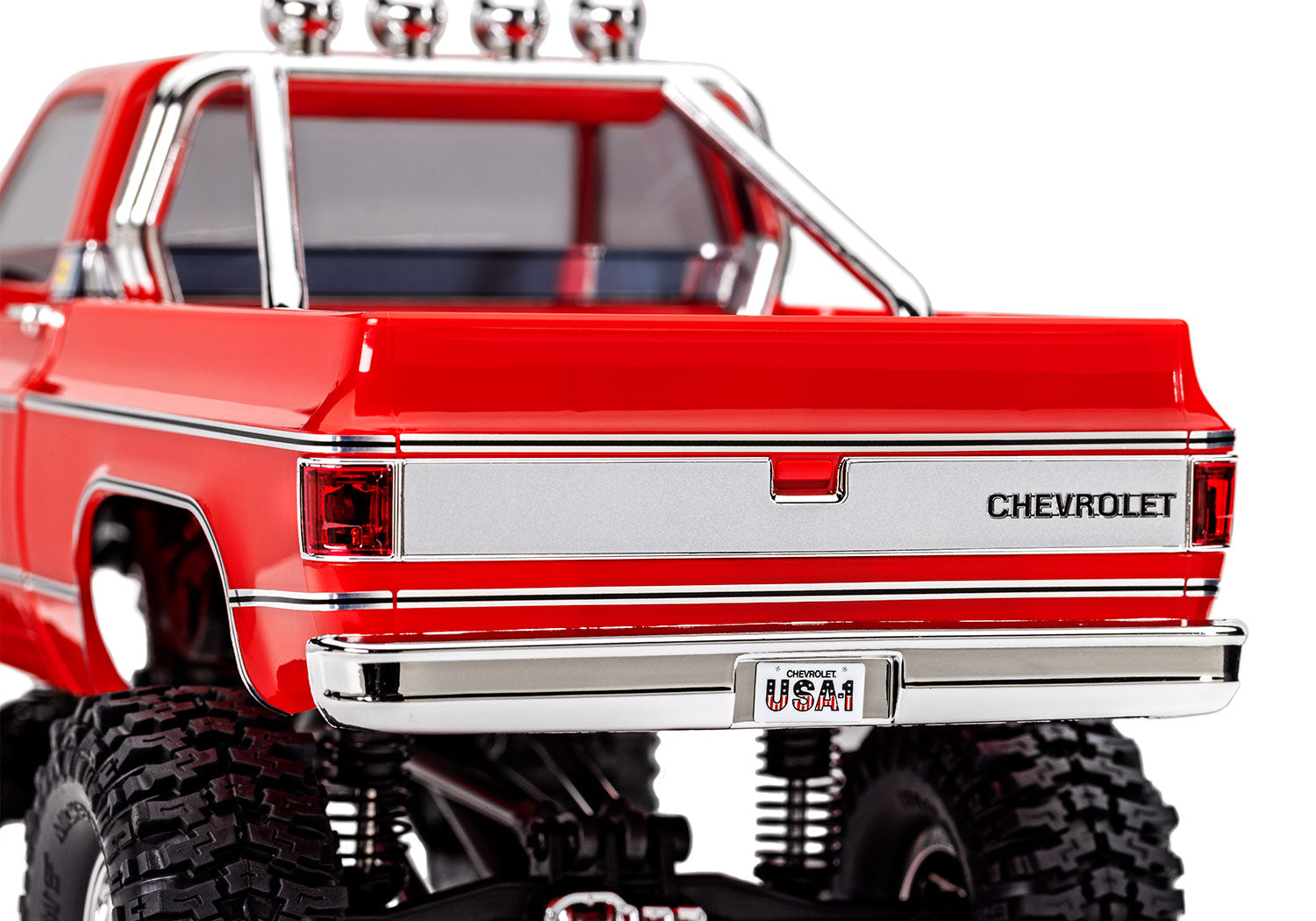

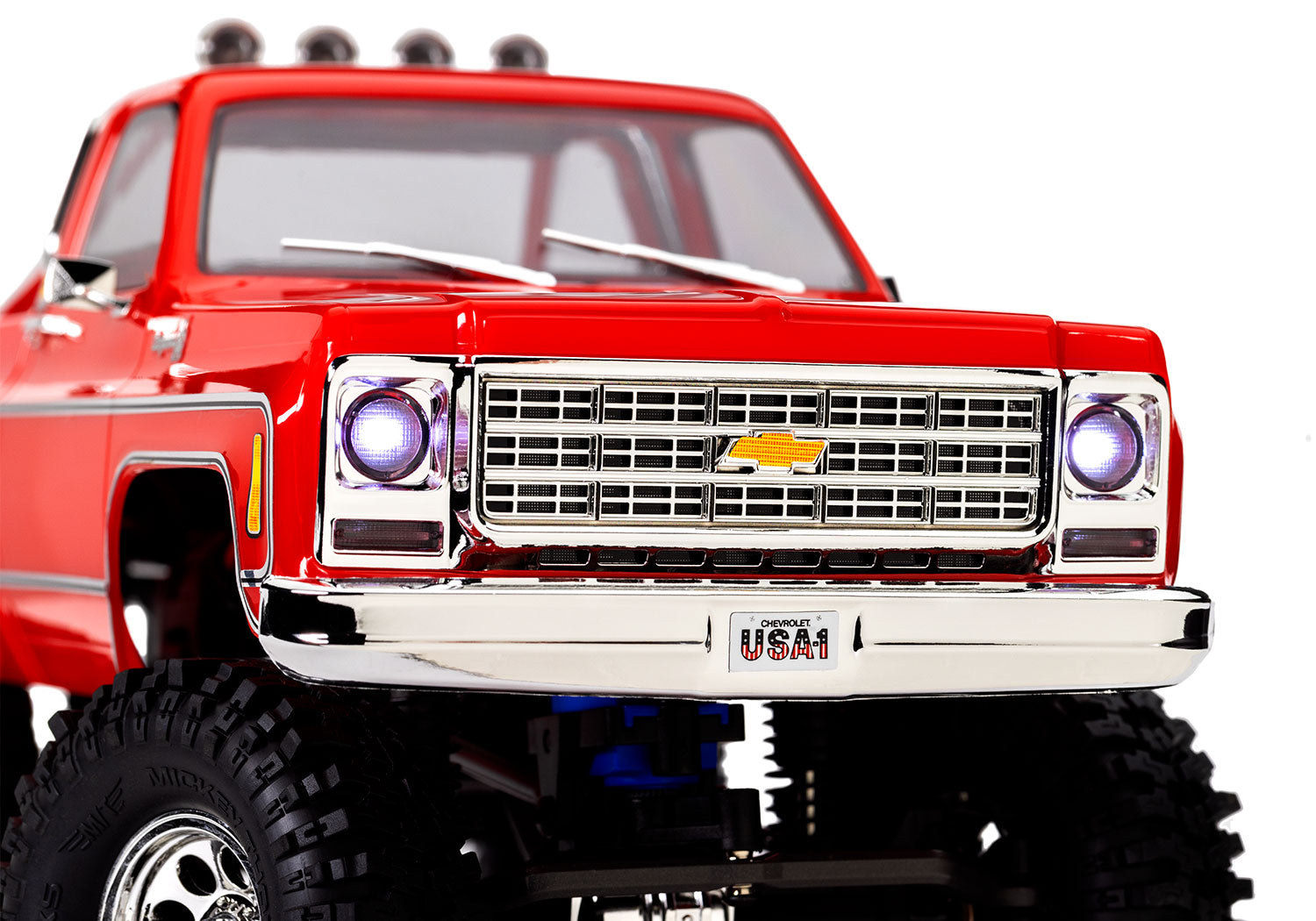

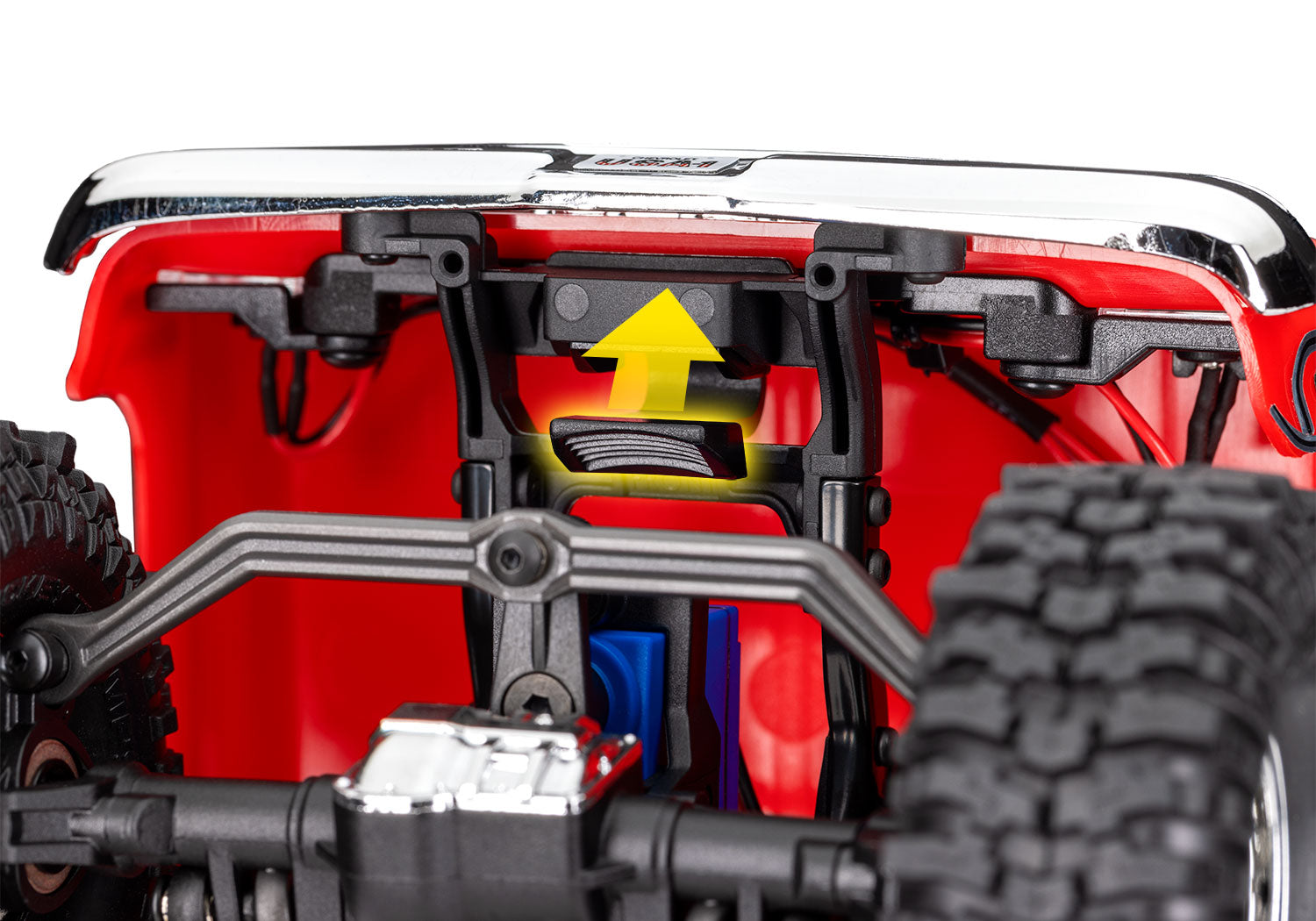

Clipless ABS BodyDetailed Chevrolet K10 scale body with hidden latch system
Extended Wheelbase162mm steel frame rails for improved climbing stability

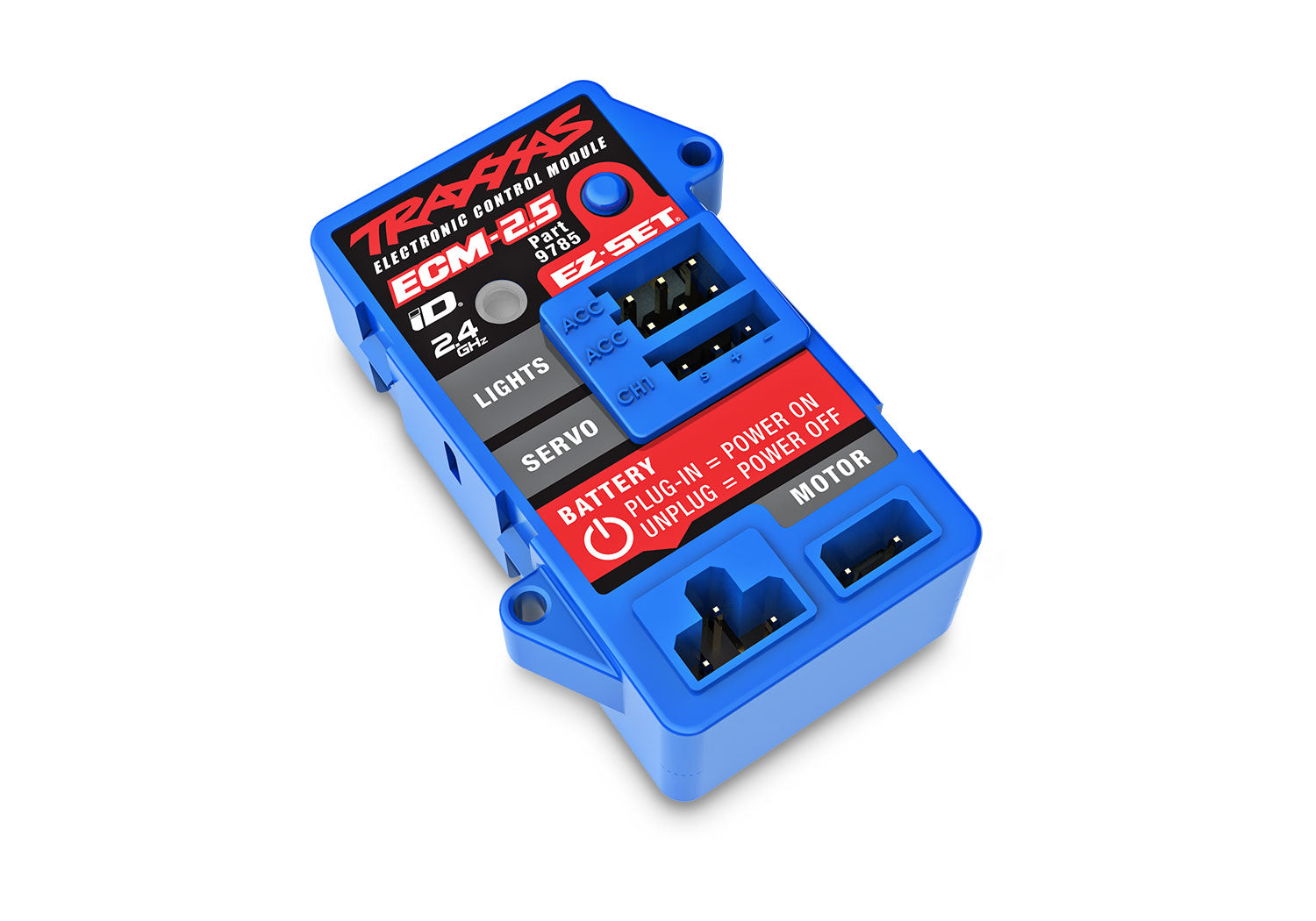

ECM-2.5 ModuleIncludes Sport, Trail, and Crawl driving profiles

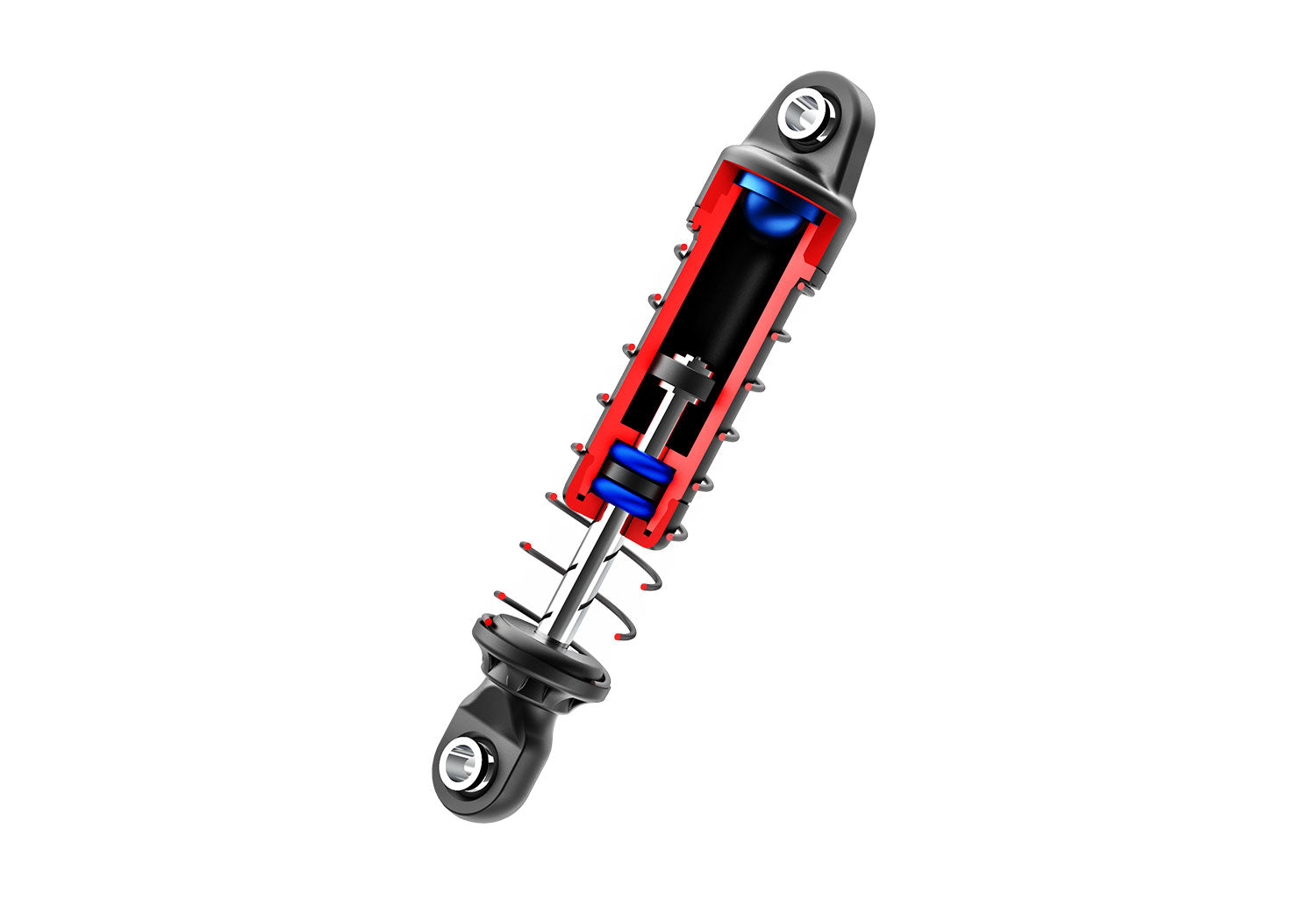

GTM ShocksSmooth oil-filled shocks with dual O-ring seals

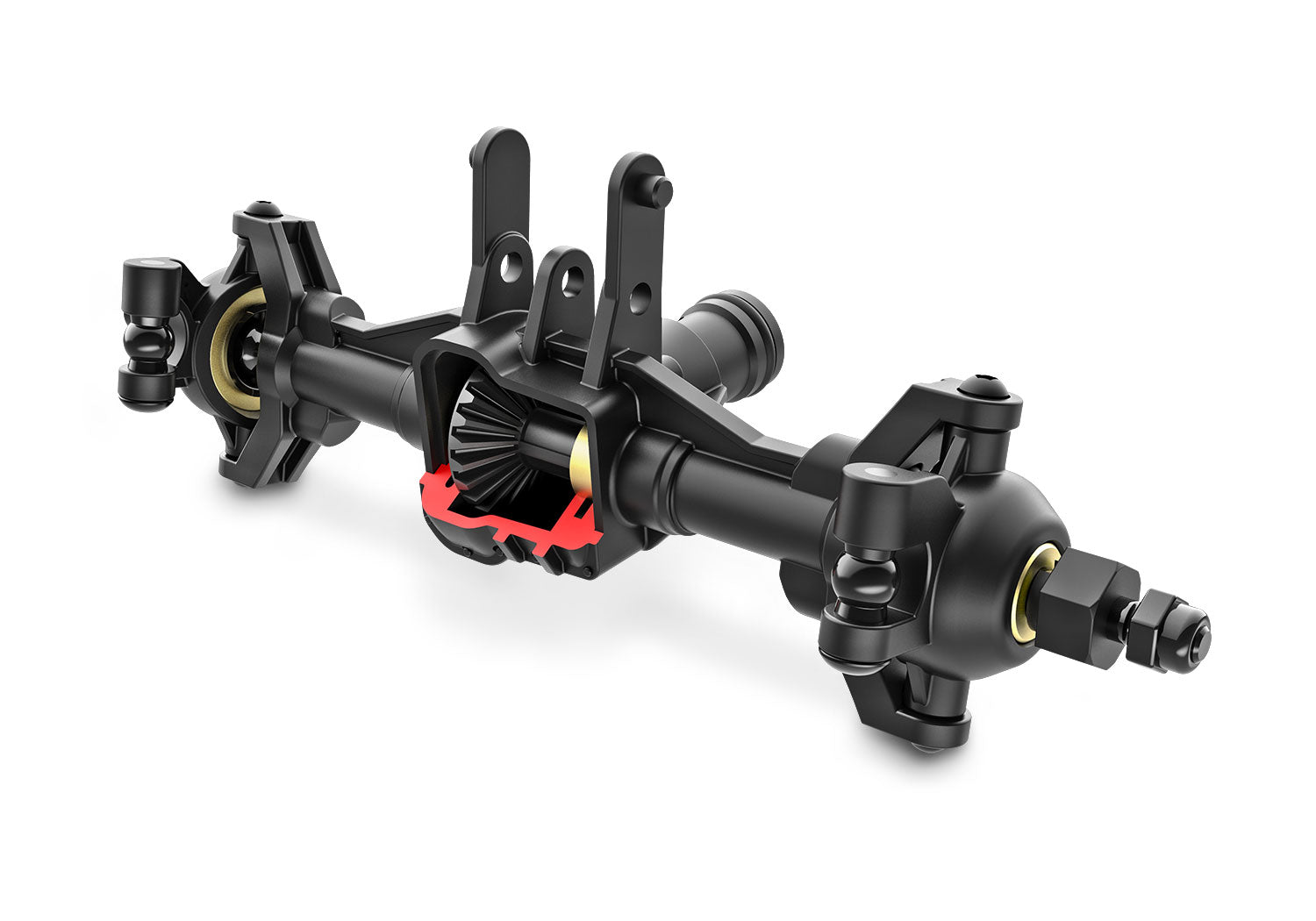

Locked AxlesFront and rear spools for continuous 4WD climbing power
Complete PackageIncludes 2S LiPo battery and 2-amp USB fast charger
Parts & Accessories
To run this model you’ll need:
Suggested:
GoodOff-Road1.0.2.2"Traxxas Mickey Thompson Baja Pro X 2.2x1.0" TRX-4M Crawler Tires (2) (9782)
$12.00
Frequently Asked QuestionsEverything you need to know
What comes included in the box with the Traxxas TRX-4M Chevrolet K10 High Trail?
The Traxxas TRX-4M Chevrolet K10 High Trail comes fully assembled with a painted ABS hard body, Titan 180 87T motor, ECM-2.5 control module, TQ 2.4GHz transmitter, 750mAh 2S LiPo battery, 2-amp USB fast charger, and maintenance tools.
What battery and charger does the Traxxas TRX-4M Chevrolet K10 High Trail use?
The Traxxas TRX-4M Chevrolet K10 High Trail includes a 7.4V 750mAh 2-cell LiPo battery with a Traxxas iD connector and a matching 2-amp USB fast charger for convenient, safe charging.
Is the Traxxas TRX-4M Chevrolet K10 High Trail waterproof?
Yes, the ECM-2.5 module, heavy-duty 2065T servo, and electronics are water-resistant, allowing the Traxxas TRX-4M Chevrolet K10 High Trail to drive through damp grass, mud, and small streams.
How does the High Trail Edition differ from a standard Traxxas TRX-4M?
The Traxxas TRX-4M Chevrolet K10 High Trail Edition features a factory-installed Long Arm Lift Kit for 35% more ground clearance, an extended 162mm wheelbase, and larger 2.4-inch Mickey Thompson Baja Pro XS tires for enhanced trail capability.
